Product Overview

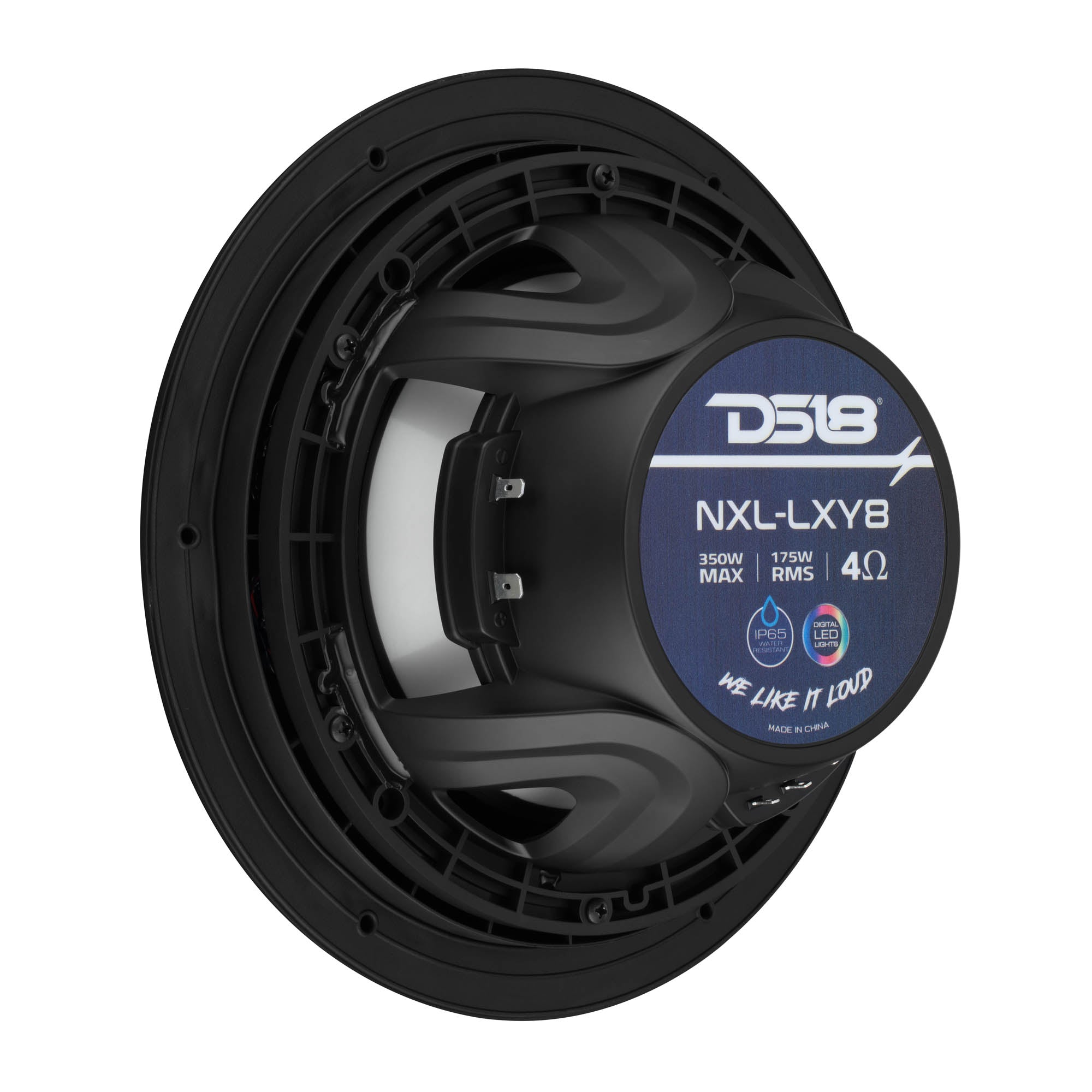

DS18 NXL-LXY8
8” 2-Way Marine Coaxial with Floating Bullet Tweeter + Flush Magnetic Grille + RGB LED Lighting
The NXL-LXY8 gives your system full-range DS18 sound, show-ready RGB lighting, and a clean, screwless flush-mount fit that holds up through anything.
Flush-Mount Magnetic Grille
The flush-fit magnetic grille gives your install a clean, high-end finish. Magnets mean faster installs and cleaner removals if you ever need to service the speaker. And because it’s connected your grille stays tight when the adventure gets rough.
Full-Range Takeover
With a high-output neodymium-loaded tweeter suspended in front of the cone, the NXL-LXY8 gives you crisp, clean highs and tight midbass in one drop-in upgrade.

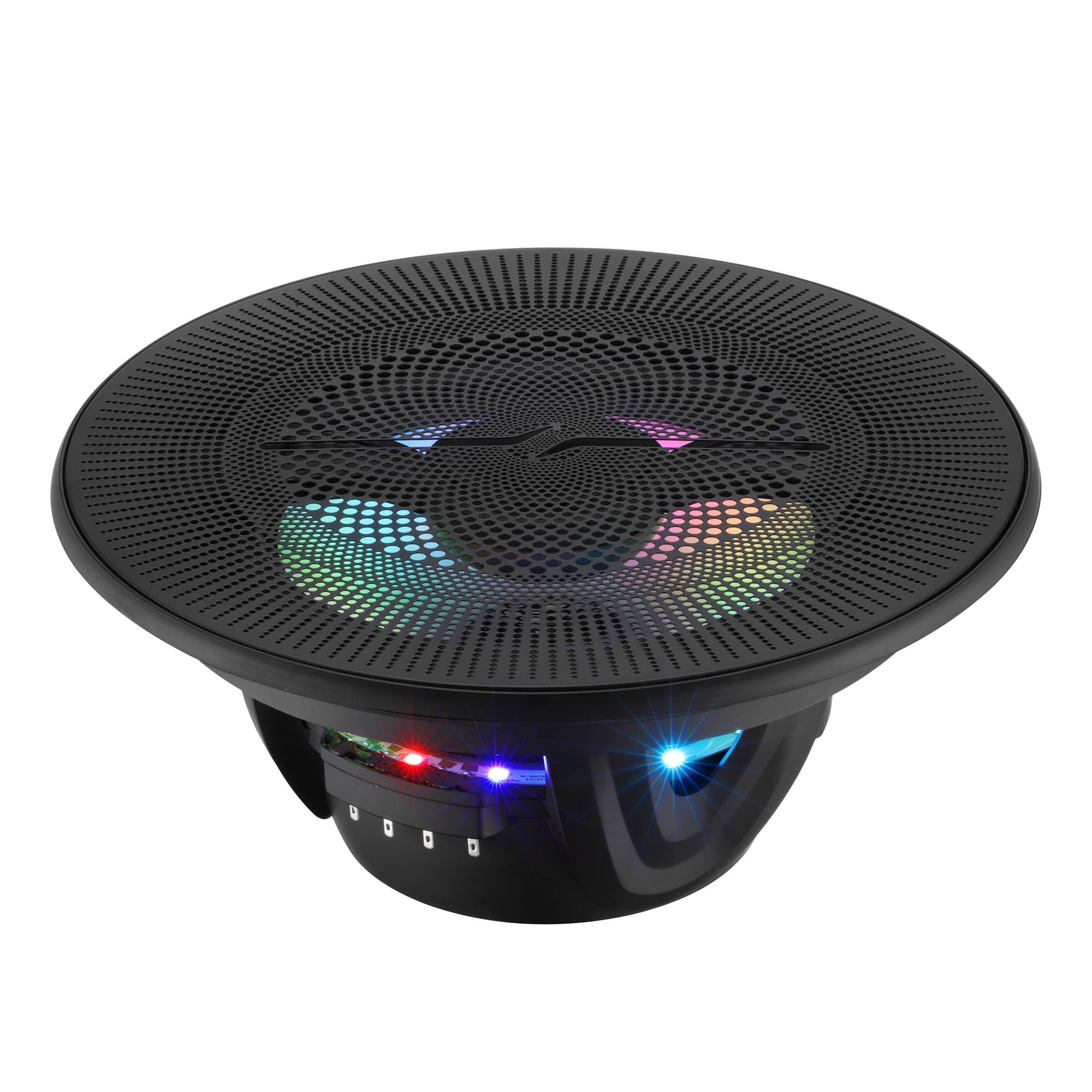

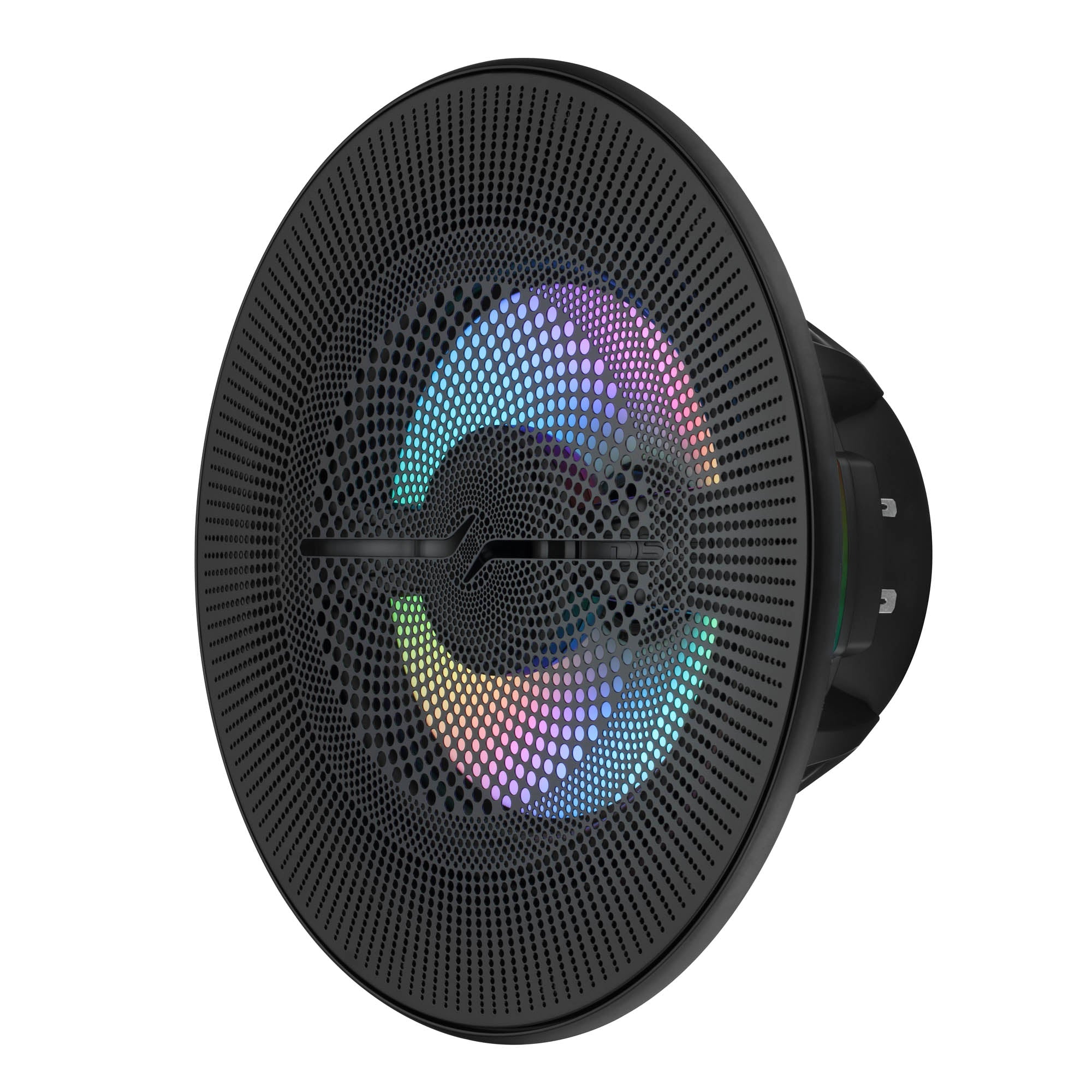

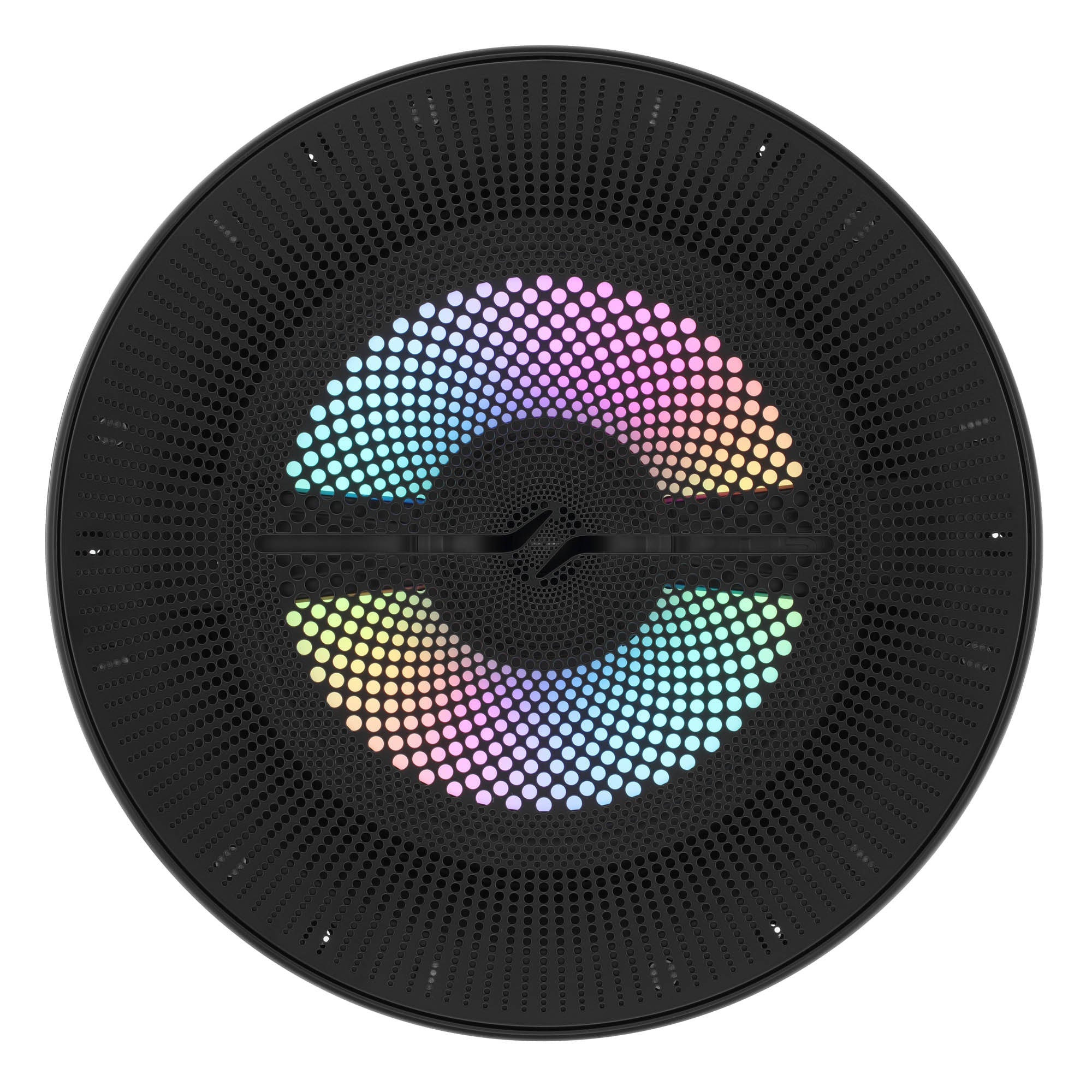

Digital LED Glow
A full digital LED ring sits behind the cone, creating a backlit glow that matches your vibe. Add DS18’s LC-DRM (sold separately) to unlock full color control.
Marine-Rated Strength for All Terrains

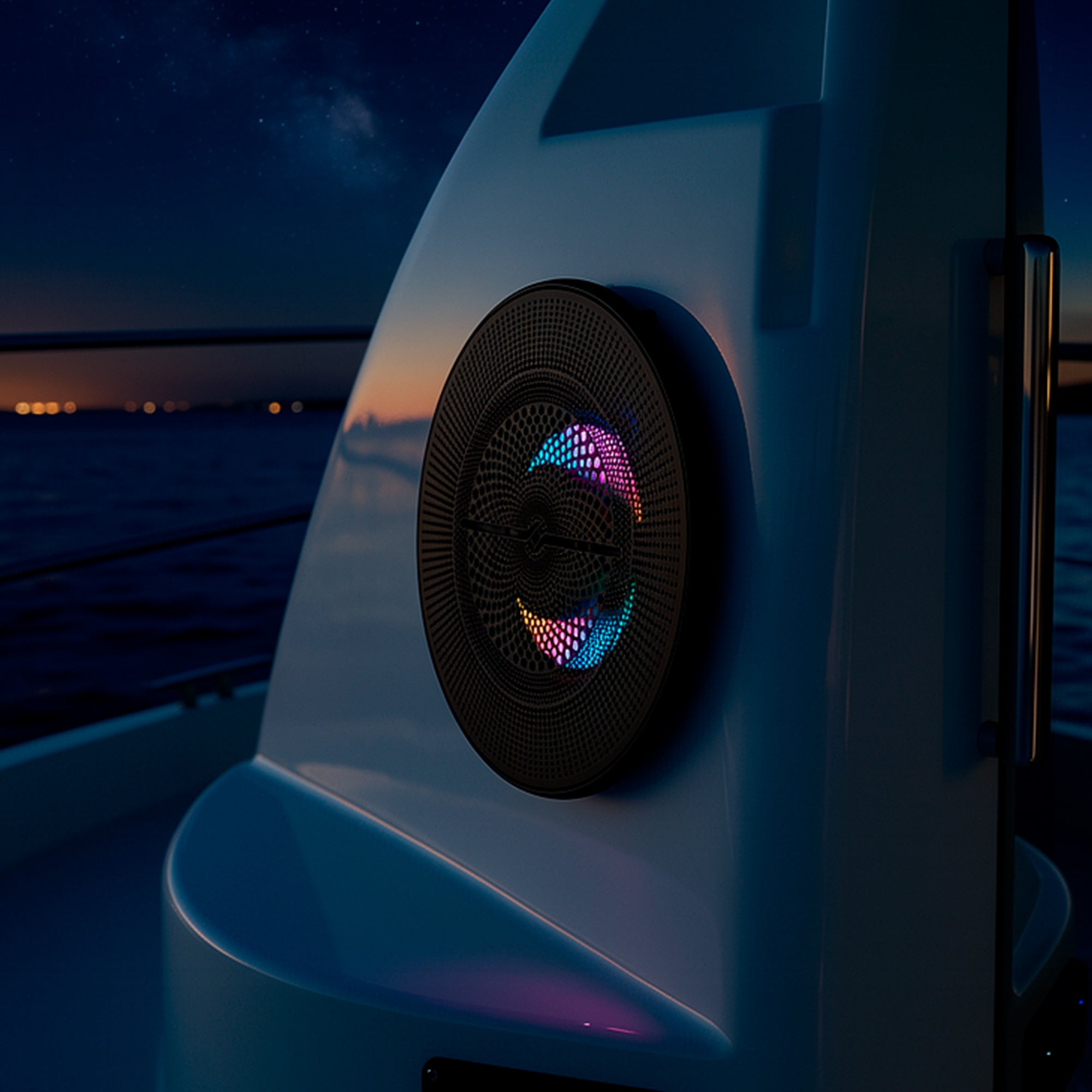

IP65-rated with UV-resistant housing and rubber surround, the NXL-LXY8 is built for boats, UTVs, bikes, and open-air builds that see water, salt, heat, and impact.
Bring LOUD full-range sound to your marine or powersports vehicle with DS18’s NXL-LXY8!
Key Features
- 8” 2-Way Marine-Grade Coaxial Speaker
- IP65 Water & UV Resistant Construction
- Floating Bullet Tweeter with Neodymium Magnet
- Digital LED Ring (LC-DRM Compatible)
- Flush-Mount Magnetic Grille for Clean Install
Specifications
| Nominal Diameter | 8" / 203mm |
|---|---|
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 175W |
| MAX Power Handling | 350W |
| Sensitivity (1w/1m) | 96 dB |
| Frequency Response | 40Hz-20KHz |
| Recommended HI Pass Crossover | 50Hz |

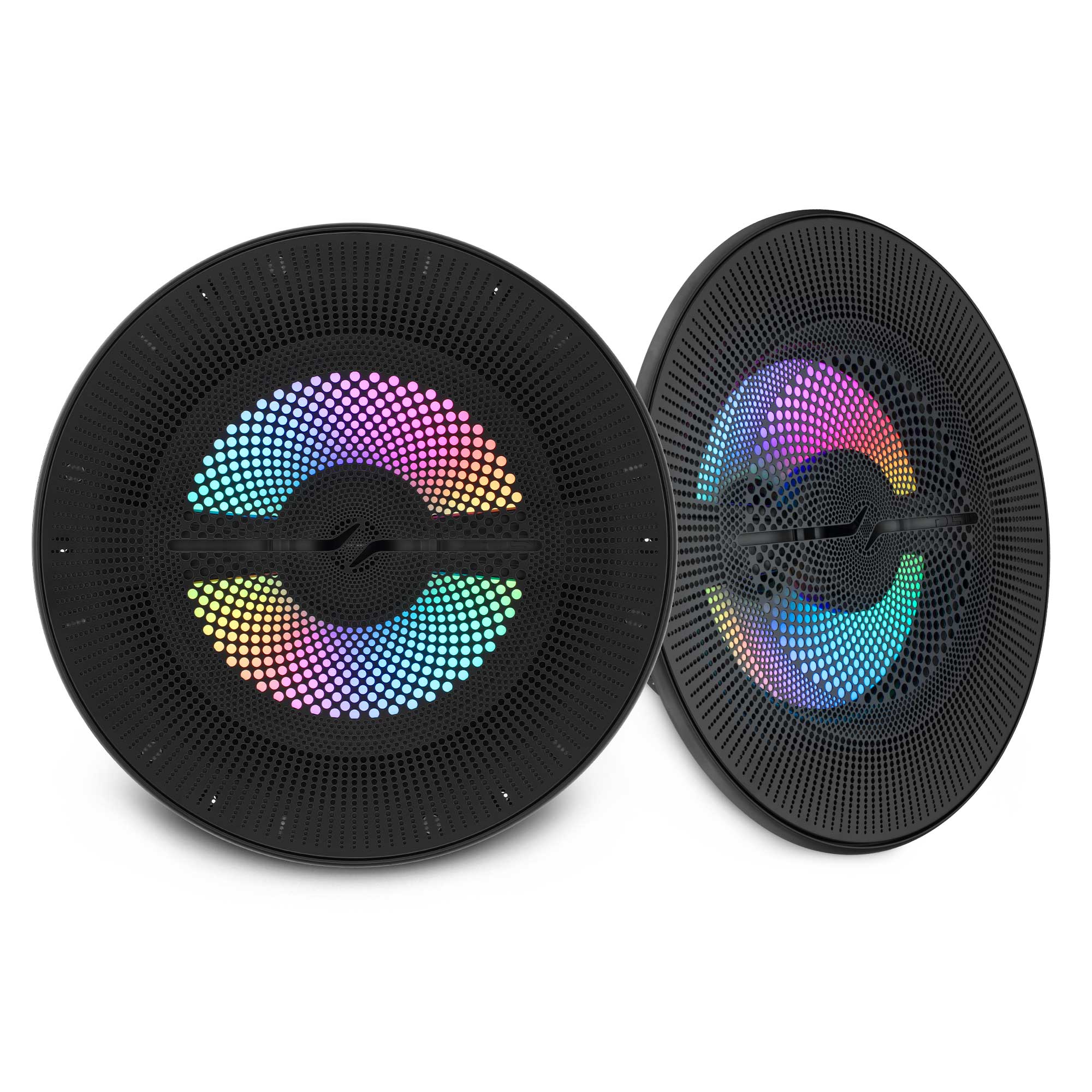

| Sold in Pair or Single | Pair |
| Grill Type | PC+Stainless Steel |
| Marine Grade Type | IP65 |
| RGB LED | Yes, Digital LED integrated (behind cone) |
| Digital LED Chip Type | 1815S |
| Basket Material | Injection Molded Composite ASA with UV Protection Coating / PC |
| Color / Finish | Black |
| Voice Coil Diameter | 1.5" / 38.6mm / 1" / 25.5mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW |
| Cone Material | PPI |
| Surround Material | Rubber |
| Magnet Material | Ferrite+Neodymium / Neodymium (N35H) |
| Magnet Weight | 24oz + 1.1 oz / 0.4oz |
| Diaphragm Material | Aluminium |
| Equivalent Volume | 16.92L / 0.59ft3 |
| Excursion (one way) | 3mm |
| Free Air Resonance | 58Hz |
| Mechanical Factor | 7.599 |
| Electrical Factor | 0.834 |
| Total Factor | 0.752 |
| Moving Mass | 25.604g |
| Compliance | 0.2875mm/N |
| Bl Factor | 6.016 |
| Voice Coil Inductance | 1.4mH |
| Diaphragm Area | 203.58cm2 |
| DC Resistance | 3.2 Ohms |
| Efficiency Bandwidth Product | 69.5 |

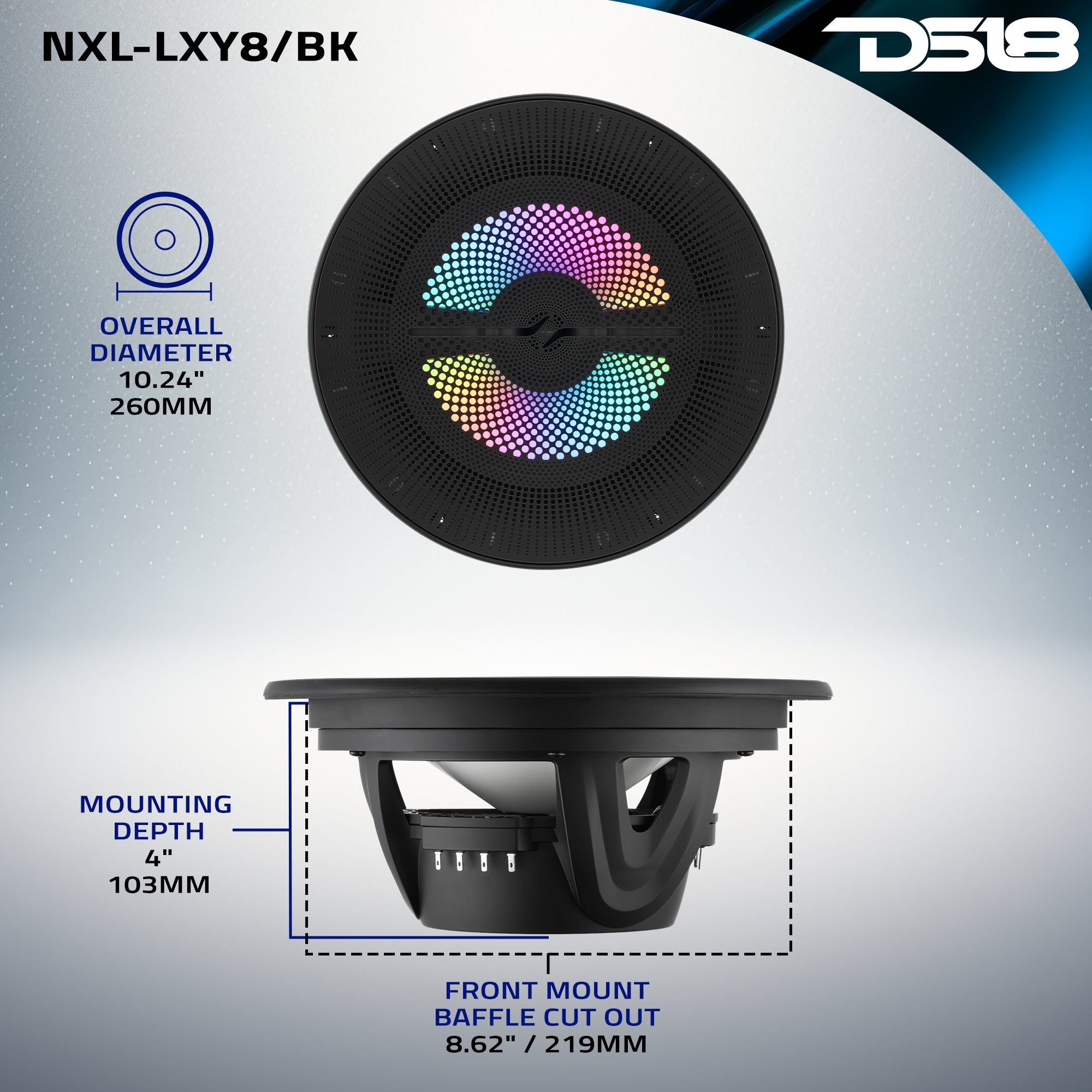

| Overall Diameter | 10.24" / 260mm |
| Overall Depth | 4.5" / 114mm |
| Front Mount Baffle Cutout | 8.62" / 219mm |
| Mounting Depth | 4" / 103mm |
| Motor Diameter | 4.33" / 110mm |
