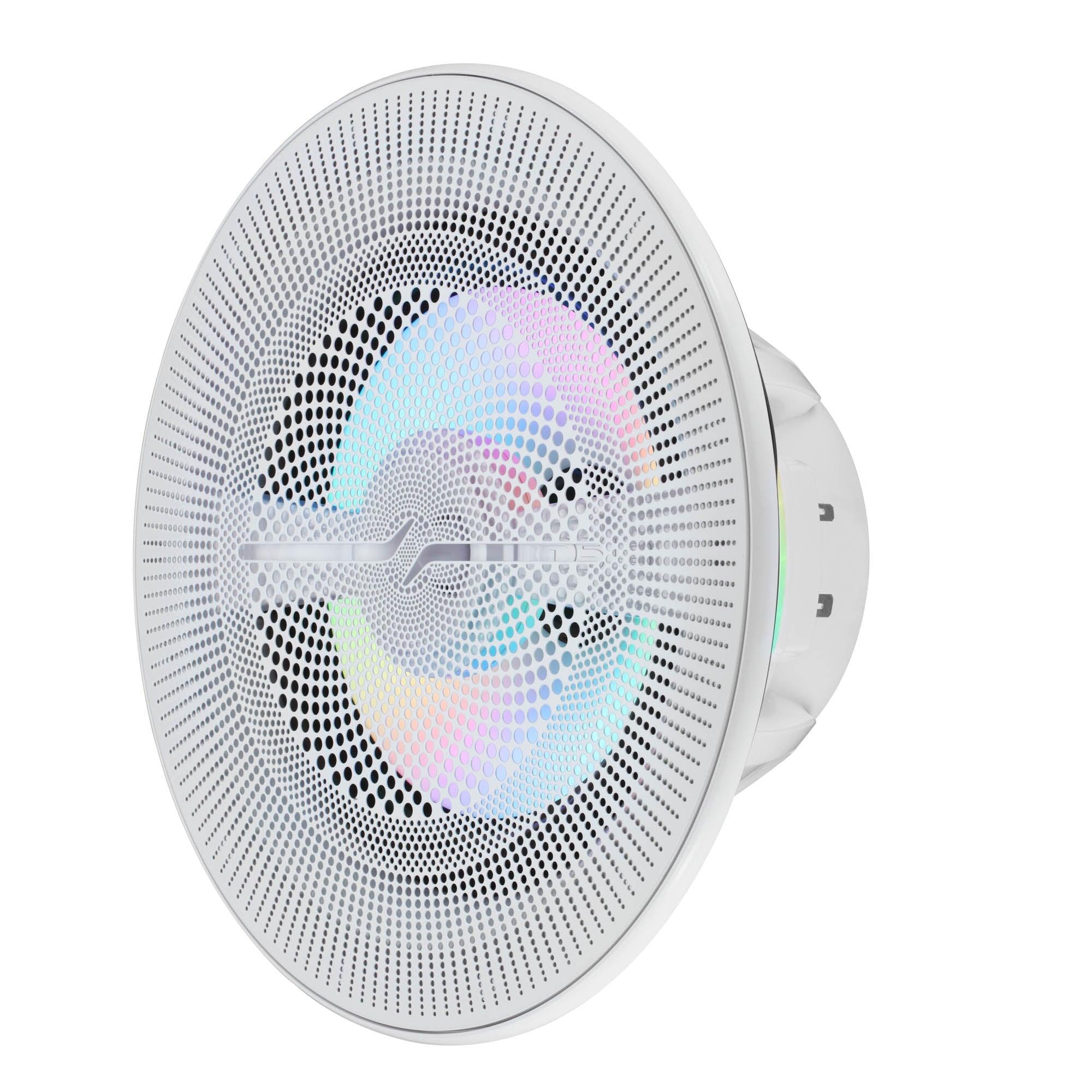

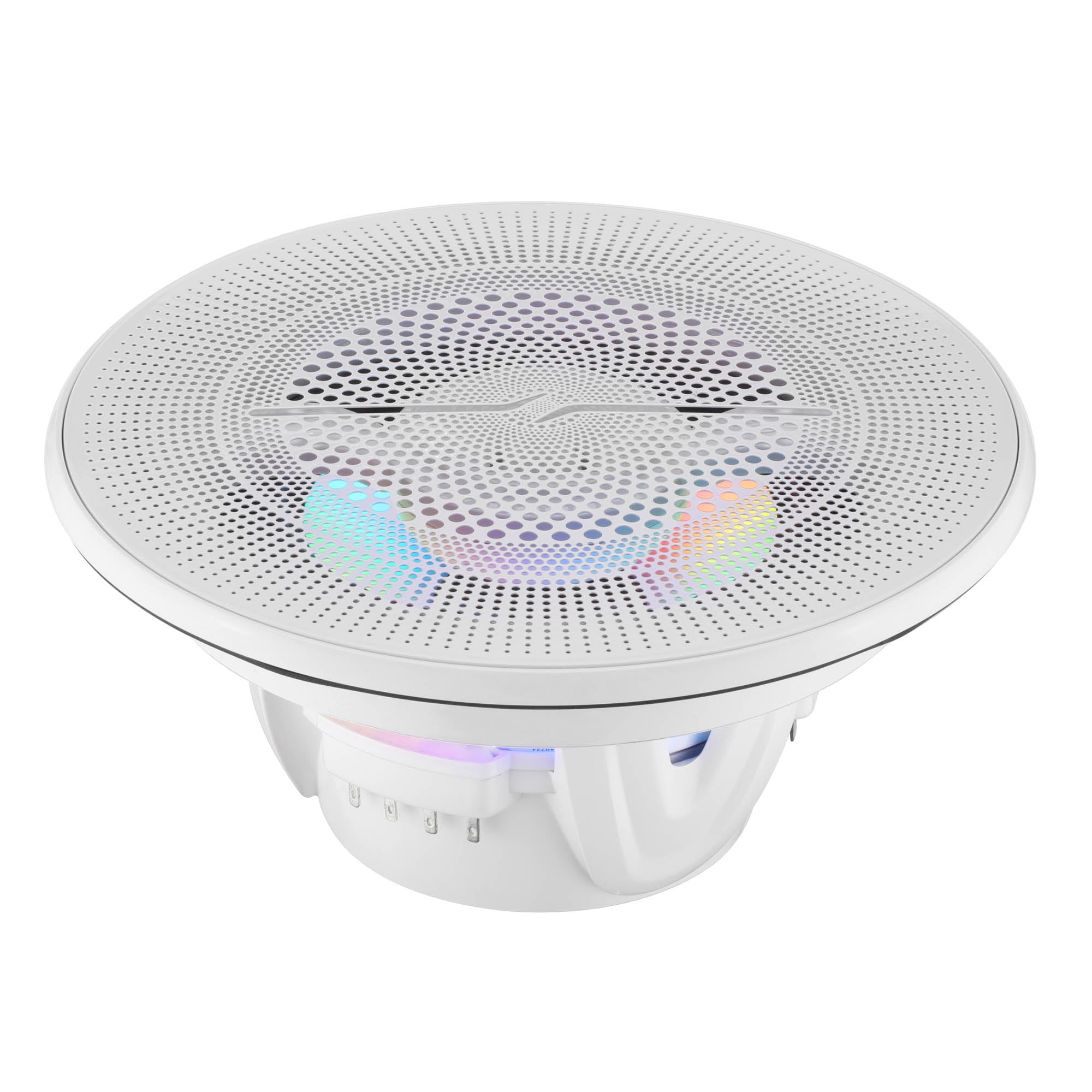

Luxury 6.5” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 150W RMS 4-Ohm
Luxury 6.5” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 150W RMS 4-Ohm
Product Overview
DS18 NXL-LXY6
6.5” 2-Way Marine Coaxial with Digital Lighting
The NXL-LXY6 gives your marine or powersports build everything it could ask for from a speaker: high-output sound, weatherproof strength, and a factory-style finish with digital LED’s.
Powerful Coaxial Setup
Built around a 6.5” woofer + 1” floating bullet tweeter, this speaker delivers full-range audio from 40Hz–20kHz, perfectly-tuned for full-spectrum sound in outdoor environments. The neodymium magnet on the tweeter gives it the power to cut through wind and engine noise, while the ferrite woofer brings clean midbass you could feel throughout your entire vehicle.

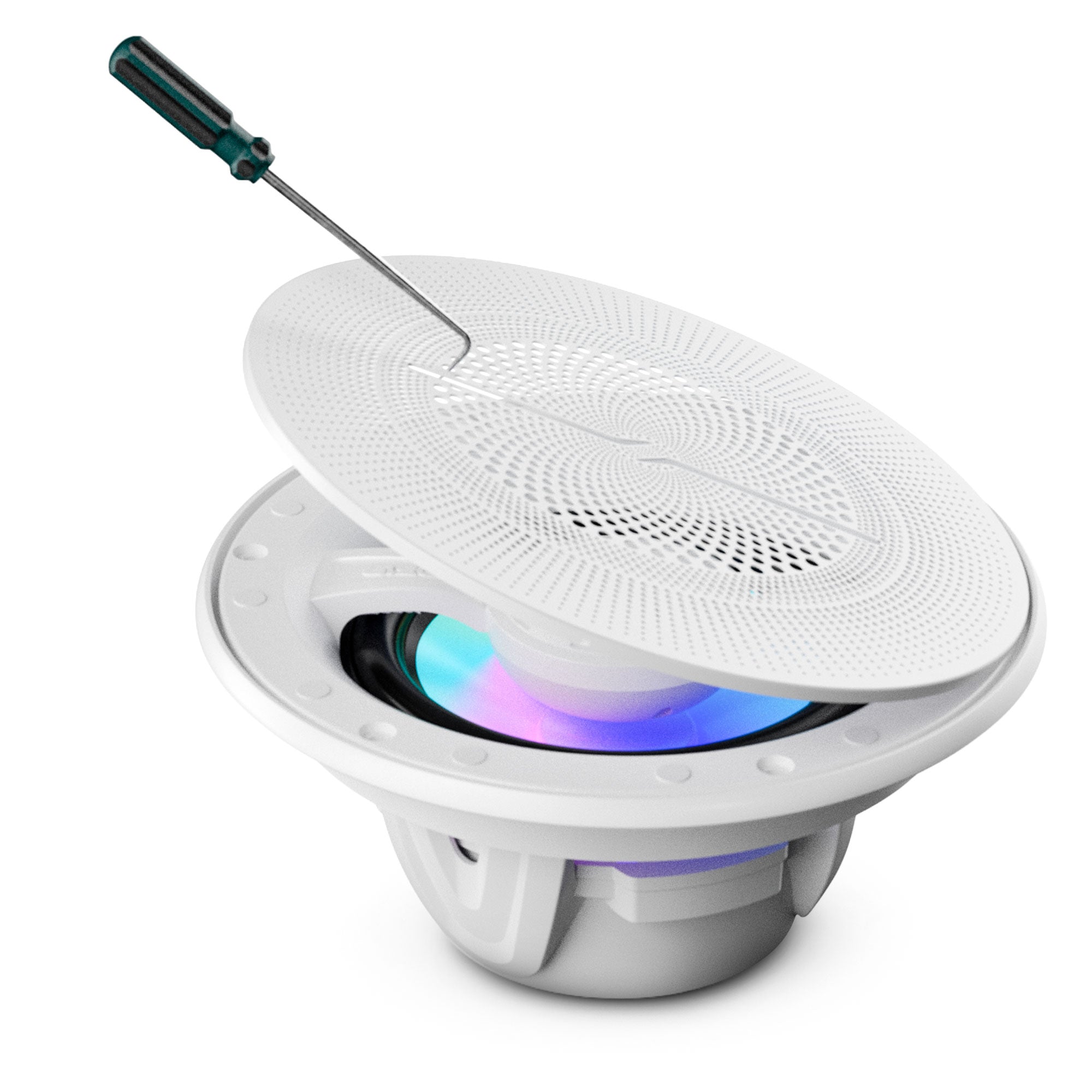

Flush-Mount Magnetic Grille
The flush-fit magnetic grille gives your install a clean, high-end finish. Magnets mean faster installs and cleaner removals if you ever need to service the speaker. And because it’s connected your grille stays tight when the adventure gets rough.
Real-World Ready
With an IP65 rating, UV-treated cone and rubber surround, the NXL-LXY6 is ready for any all elements adventure.

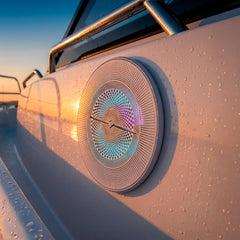

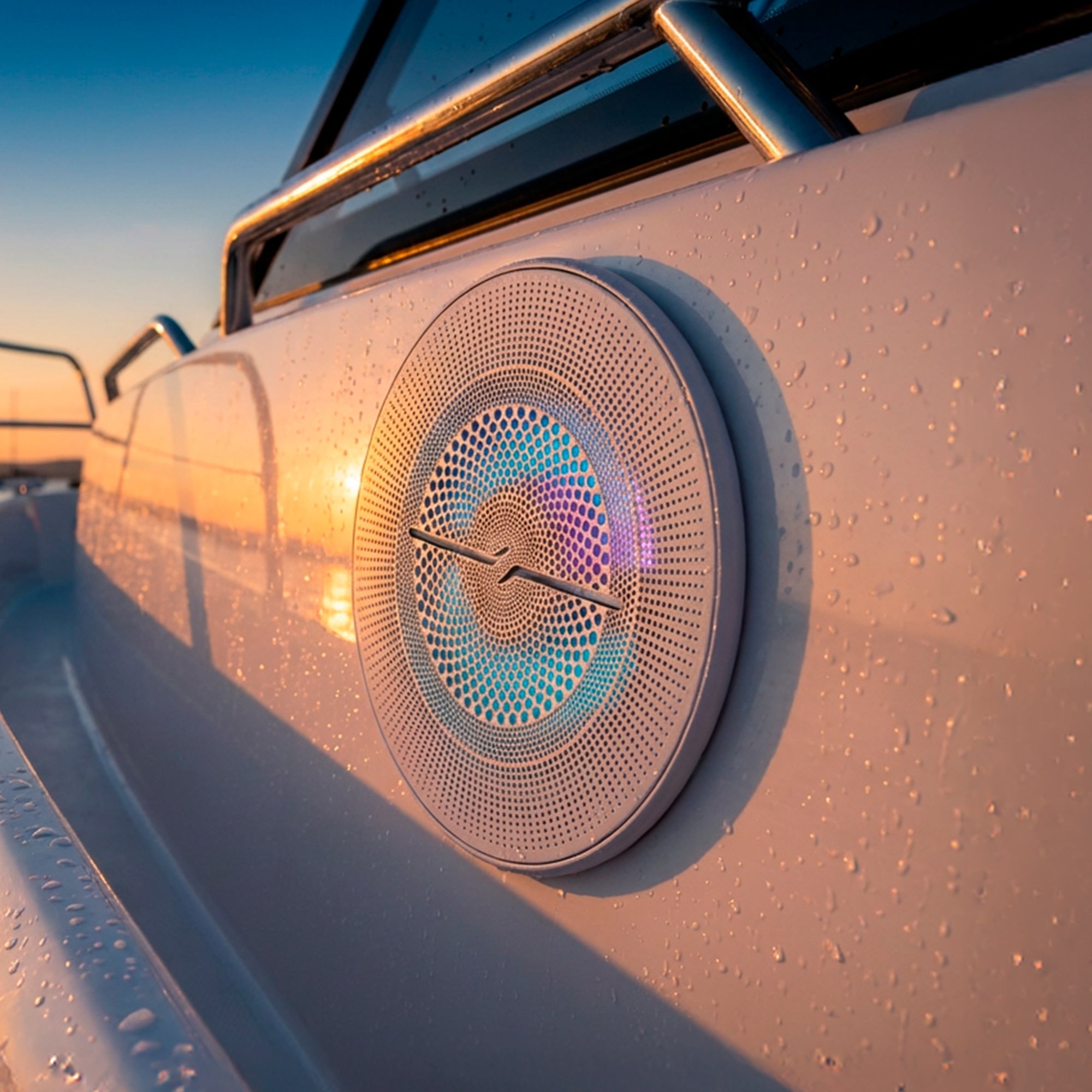

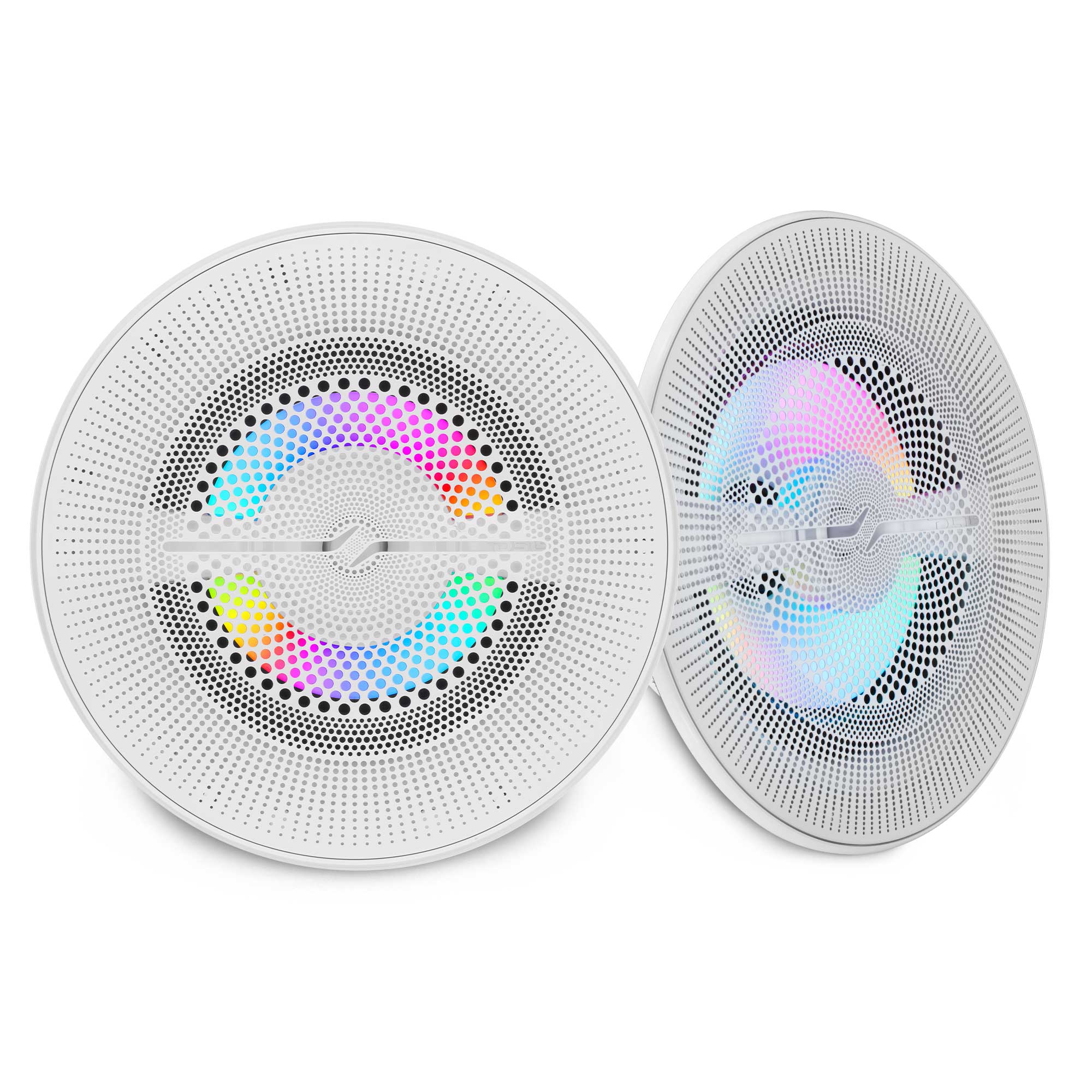

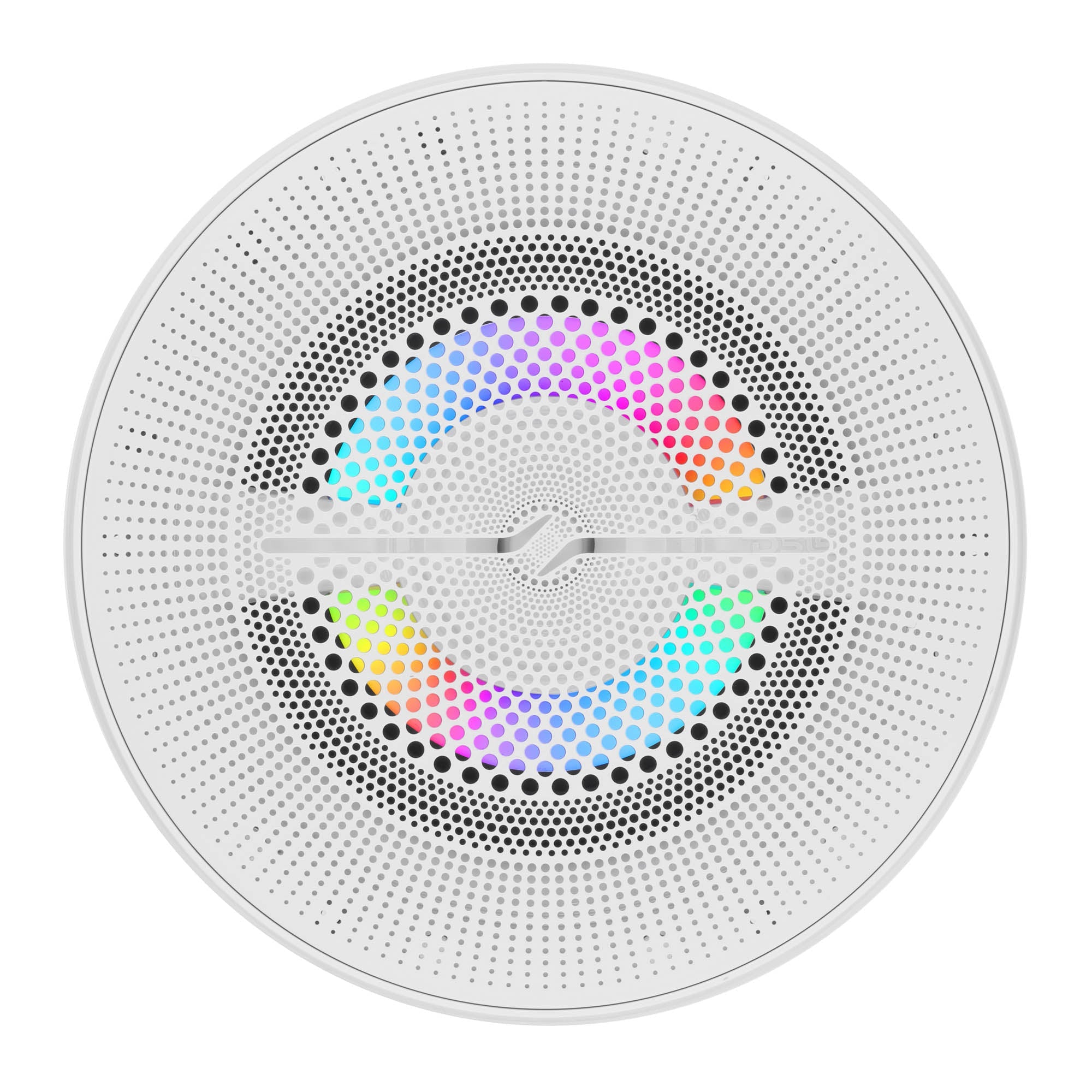

Digital LED Glow
A full digital LED ring sits behind the cone, creating a backlit glow that matches your vibe. Add DS18’s LC-DRM (sold separately) to unlock full color control.
Bring full-range sound to your marine or powersports vehicle with DS18’s NXL-LXY6!
Key Features
- 6.5” 2-Way Marine-Grade Coaxial Speaker
- IP65 Water & UV Resistant Construction
- Floating Bullet Tweeter with Neodymium Magnet
- Digital LED Ring (LC-DRM Compatible)
- Flush-Mount Magnetic Grille for Clean Install
Specifications
| Nominal Diameter | 6.5" / 165mm |
|---|---|
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 150W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 95 dB |
| Frequency Response | 60Hz-20KHz |
| Recommended HI Pass Crossover | 70Hz |
| Sold in Pair or Single | Pair |
| Grill Type | PC+Stainless Steel |
| Marine Grade Type | IP65 |
| RGB LED | Yes, Digital LED integrated (behind cone) |
| Digital LED Chip Type | 1815S |
| Basket Material | Injection Molded Composite ASA with UV Protection Coating / PC |
| Color / Finish | Gloss White |
| Voice Coil Diameter | 1.5" / 38.6mm / 1" / 25.5mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW |
| Cone Material | PPI |
| Surround Material | Rubber |
| Magnet Material | Ferrite+Neodymium / Neodymium (N35H) |
| Magnet Weight | 13oz + 1.1oz / 0.4oz |
| Diaphragm Material | Aluminium |
| Equivalent Volume | 3.15L / 0.11ft3 |
| Excursion (one way) | 3mm |
| Free Air Resonance | 88Hz |
| Mechanical Factor | 7.497 |
| Electrical Factor | 1.205 |
| Total Factor | 1.038 |
| Moving Mass | 16.603g |
| Compliance | 0.1679mm/N |
| Bl Factor | 5.138 |
| Voice Coil Inductance | 1.4mH |
| Diaphragm Area | 114.99cm2 |
| DC Resistance | 3.2 Ohms |
| Efficiency Bandwidth Product | 78.8 |

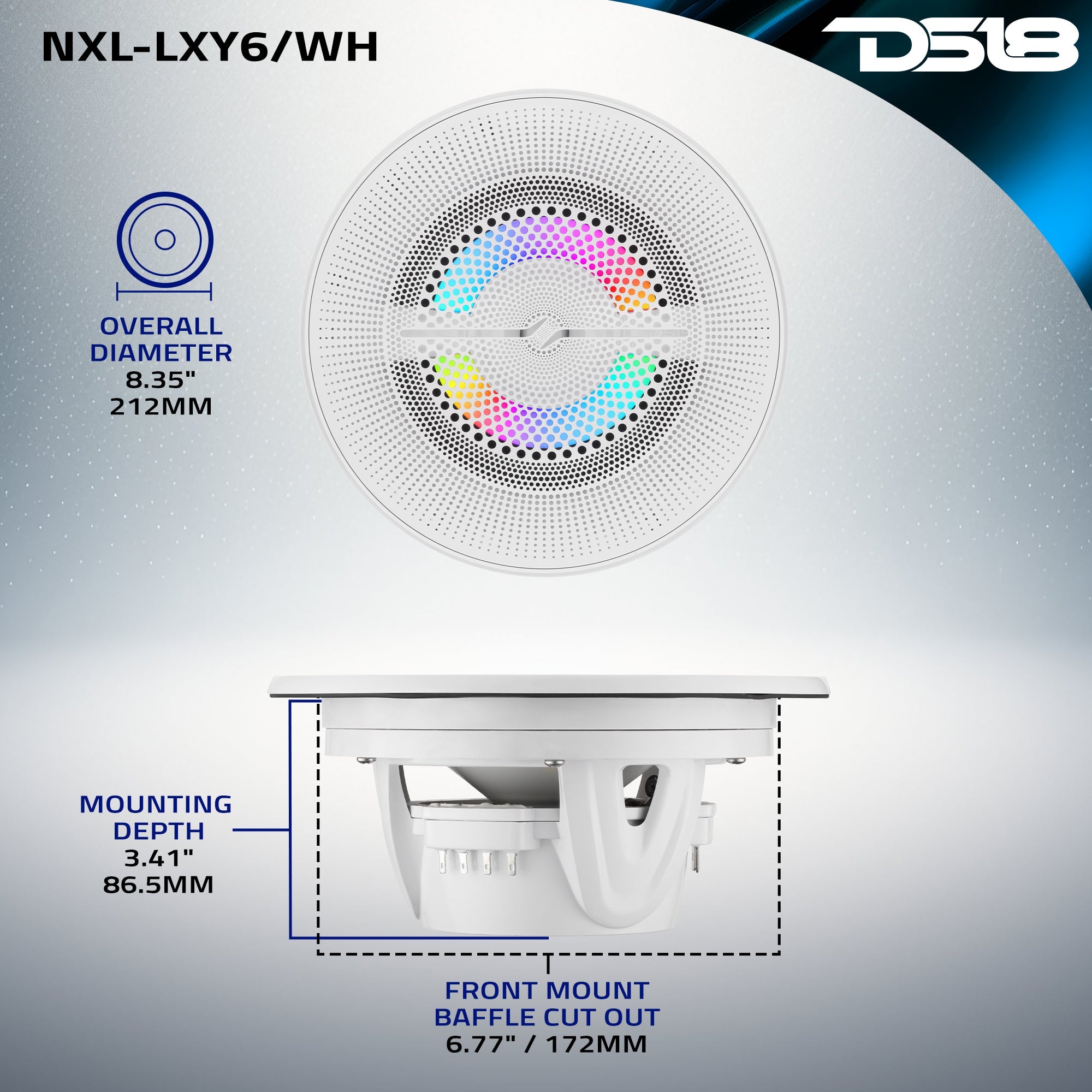

| Overall Diameter | 8.35" / 212mm |
| Overall Depth | 3.8" / 96.5mm |
| Front Mount Baffle Cutout | 6.77" / 172mm |
| Mounting Depth | 3.41" / 86.5mm |
| Motor Diameter | 3.54" / 90mm |
