Luxury 6.5” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 150W RMS 4-Ohm

Availability: In stock SKU: NXL-LXY6/BK
Regular price $449.95 Sale price $359.96

Luxury 6.5” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 150W RMS 4-Ohm - DS18

Luxury 6.5” 2-Way Marine Coaxial Speaker with Digital LED Lights and Flush Magnetic Mount Grille | 150W RMS 4-Ohm

$359.96

Product Overview

DS18 NXL-LXY6
6.5” 2-Way Marine Coaxial with RGB Lighting

The NXL-LXY6 gives your marine or powersports build everything it could ask for from a speaker: high-output sound, weatherproof strength, and a factory-style finish with digital LED’s.

Powerful Coaxial Setup
Built around a 6.5” woofer + 1” floating bullet tweeter, this speaker delivers full-range audio from 40Hz–20kHz, perfectly-tuned for full-spectrum sound in outdoor environments. The neodymium magnet on the tweeter gives it the power to cut through wind and engine noise, while the ferrite woofer brings clean midbass you could feel throughout your entire vehicle.

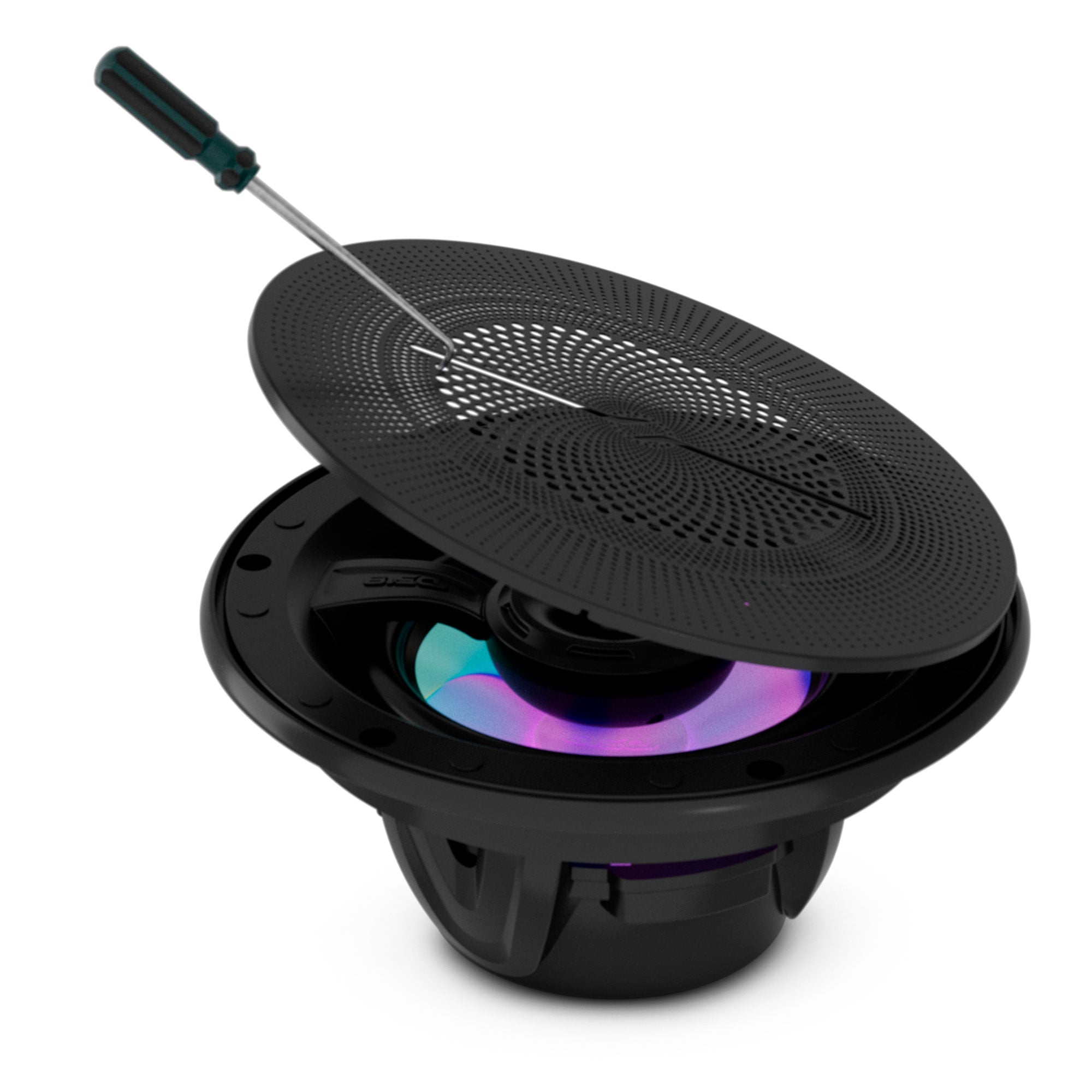

Flush-Mount Magnetic Grille
The flush-fit magnetic grille gives your install a clean, high-end finish. Magnets mean faster installs and cleaner removals if you ever need to service the speaker. And because it’s connected your grille stays tight when the adventure gets rough.

Real-World Ready
With an IP65 rating, UV-treated cone and rubber surround, the NXL-LXY6 is ready for any all elements adventure.

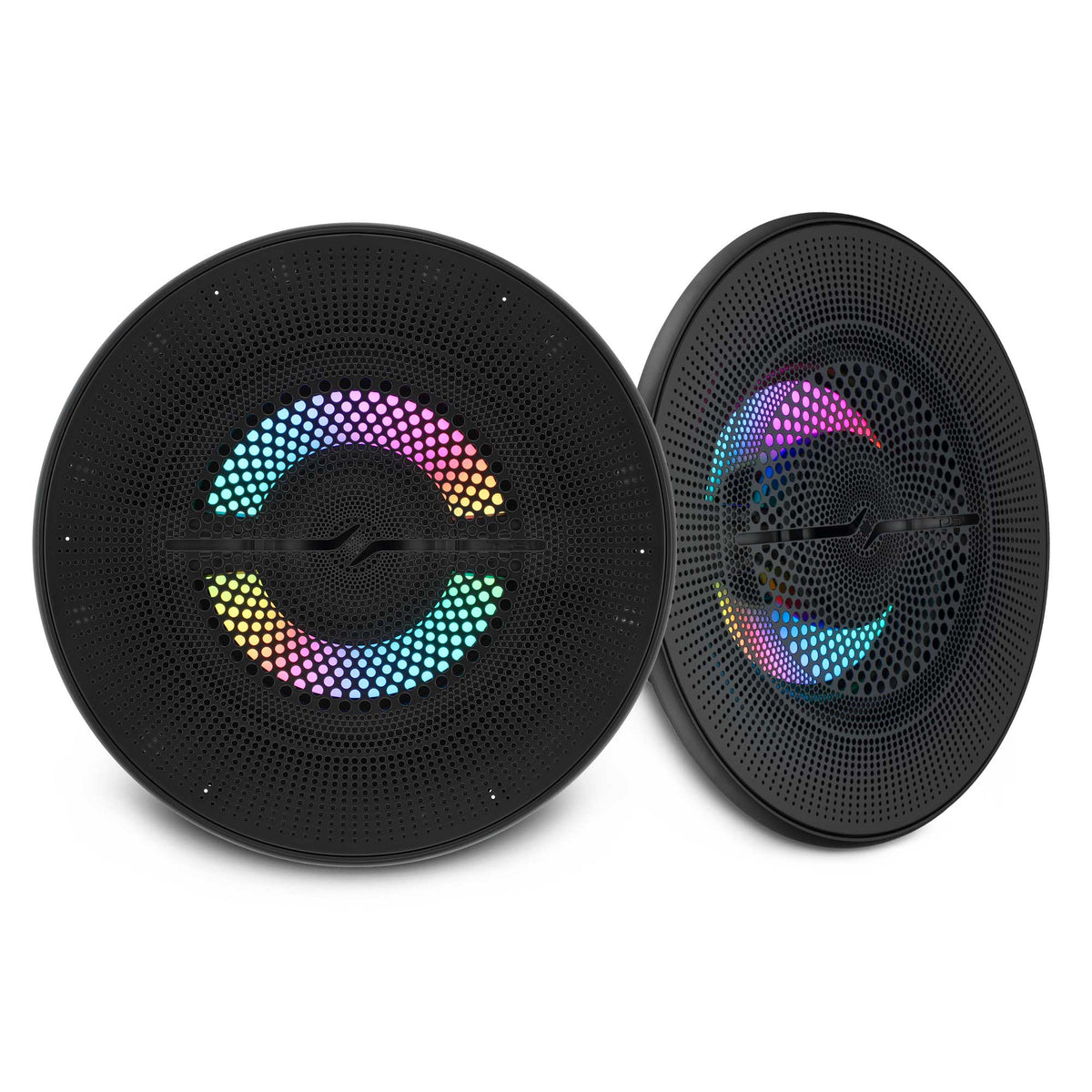

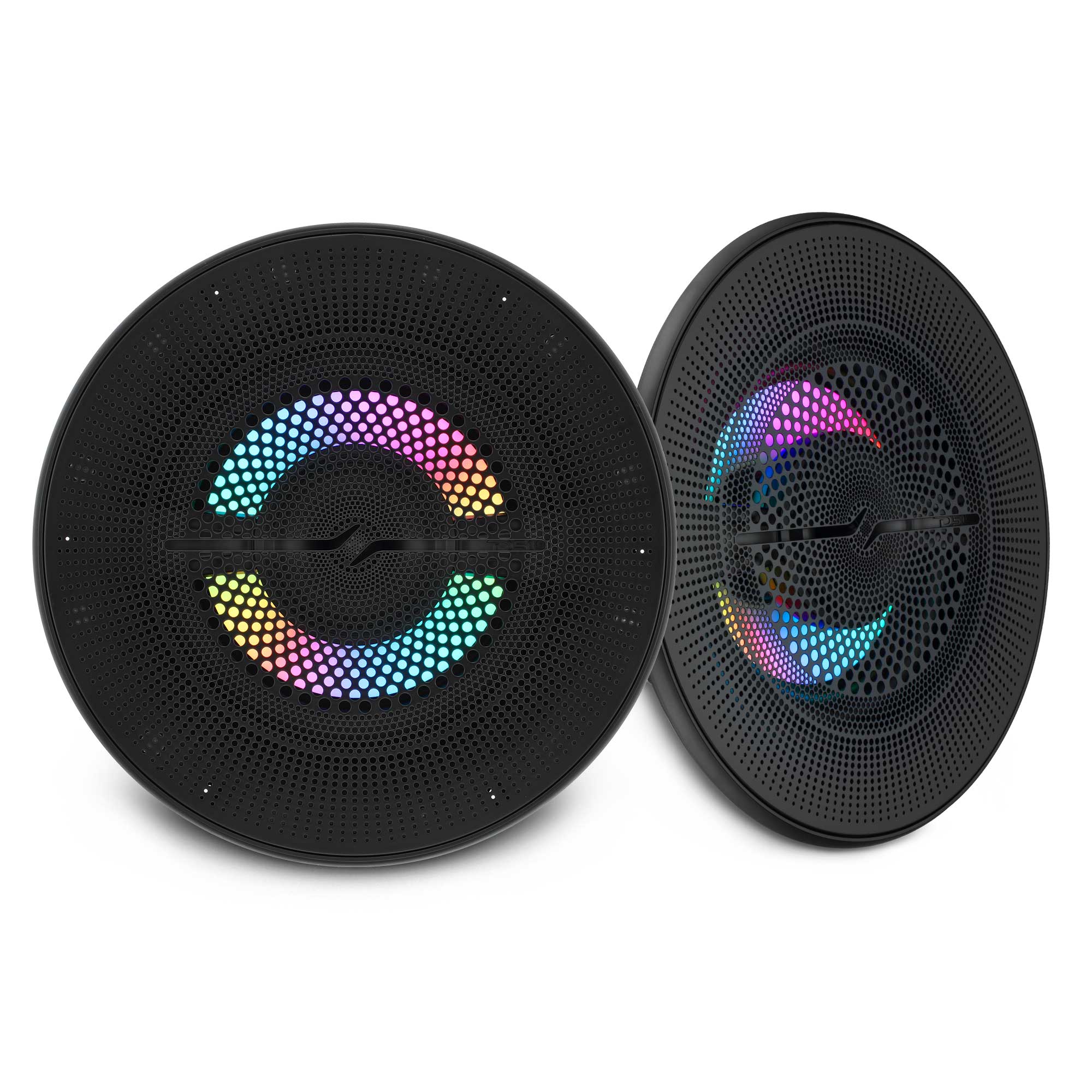

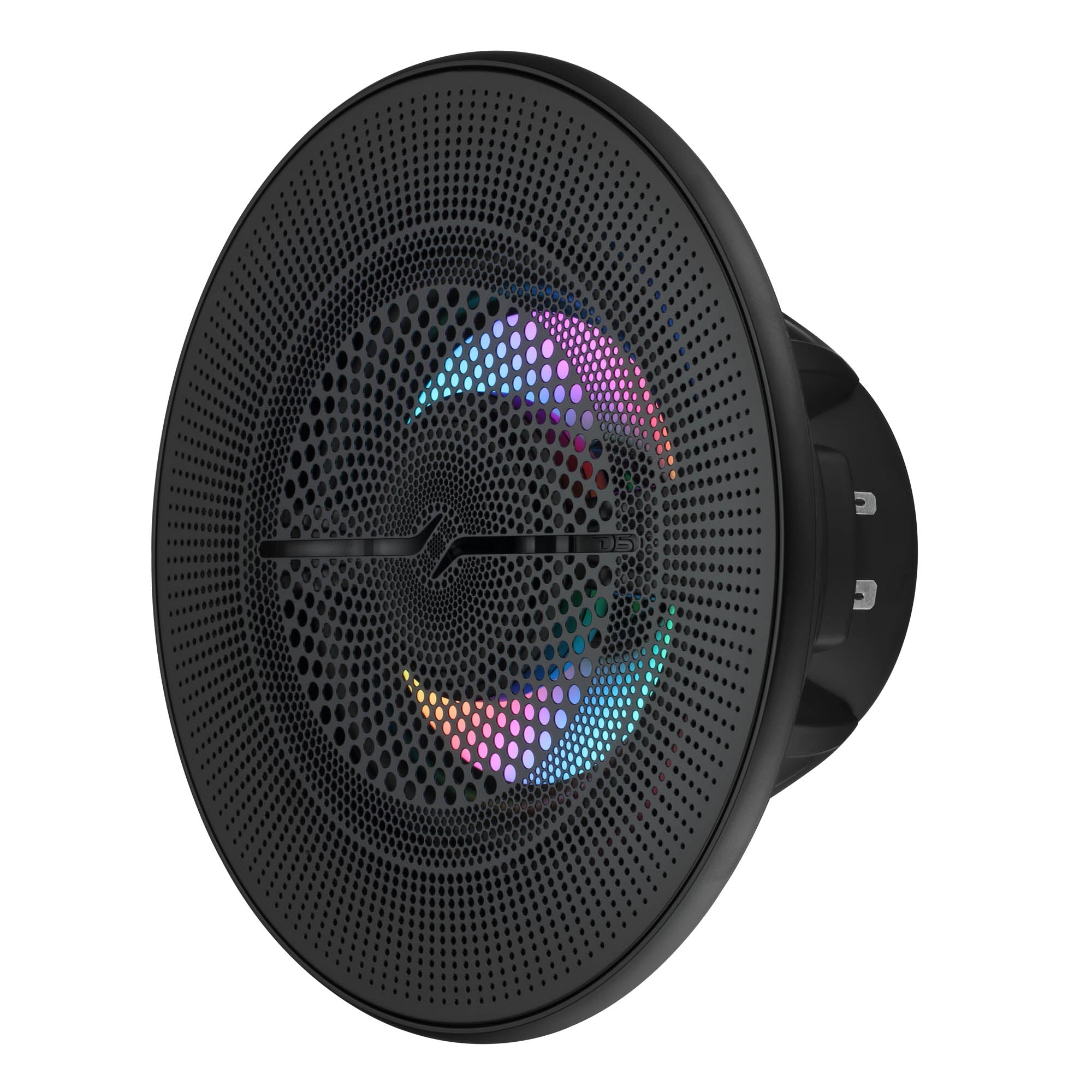

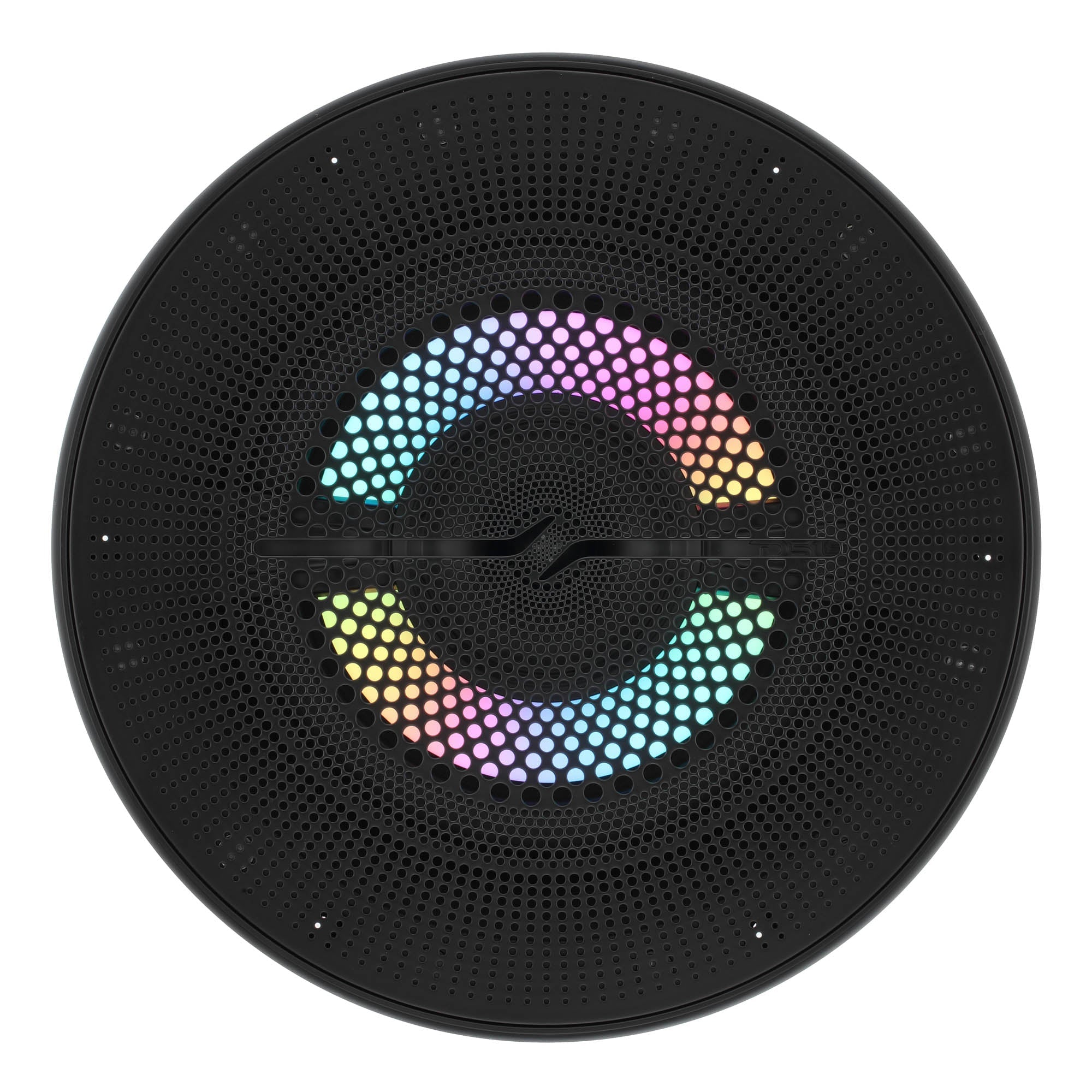

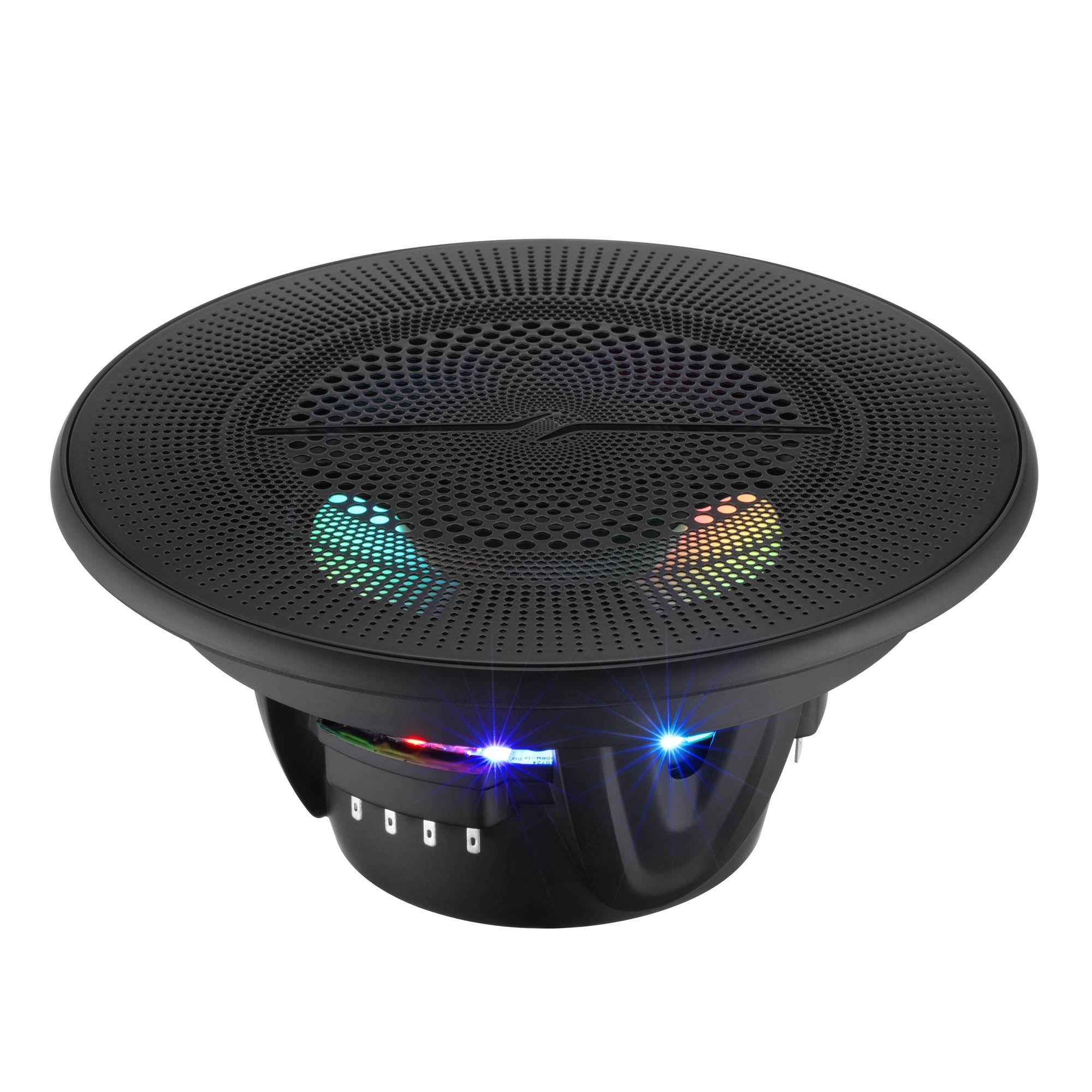

Digital LED Glow
A full digital LED ring sits behind the cone, creating a backlit glow that matches your vibe. Add DS18’s LC-DRM (sold separately) to unlock full color control.

Bring full-range sound to your marine or powersports vehicle with DS18’s NXL-LXY6!

Key Features

  • 6.5” 2-Way Marine-Grade Coaxial Speaker
  • IP65 Water & UV Resistant Construction
  • Floating Bullet Tweeter with Neodymium Magnet
  • Digital LED Ring (LC-DRM Compatible)
  • Flush-Mount Magnetic Grille for Clean Install

Specifications

Nominal Diameter 6.5" / 165mm
Nominal Impedance 4 ohms
RMS Power Handling 150W
MAX Power Handling 300W
Sensitivity (1w/1m) 95 dB
Frequency Response 60Hz-20KHz
Recommended HI Pass Crossover 70Hz
Sold in Pair or Single Pair
Grill Type PC+Stainless Steel
Marine Grade Type IP65
RGB LED Yes, Digital LED integrated (behind cone)
Digital LED Chip Type 1815S
Basket Material Injection Molded Composite ASA with UV Protection Coating / PC
Color / Finish Matte Black
Voice Coil Diameter 1.5" / 38.6mm / 1" / 25.5mm
Voice Coil Former Material Glass Fiber / Kapton
Winding Material CCAW
Cone Material PPI
Surround Material Rubber
Magnet Material Ferrite+Neodymium / Neodymium (N35H)
Magnet Weight 13oz + 1.1oz / 0.4oz
Diaphragm Material Aluminium
Equivalent Volume 3.15L / 0.11ft3
Excursion (one way) 3mm
Free Air Resonance 88Hz
Mechanical Factor 7.497
Electrical Factor 1.205
Total Factor 1.038
Moving Mass 16.603g
Compliance 0.1679mm/N
Bl Factor 5.138
Voice Coil Inductance 1.4mH
Diaphragm Area 114.99cm2
DC Resistance 3.2 Ohms
Efficiency Bandwidth Product 78.8

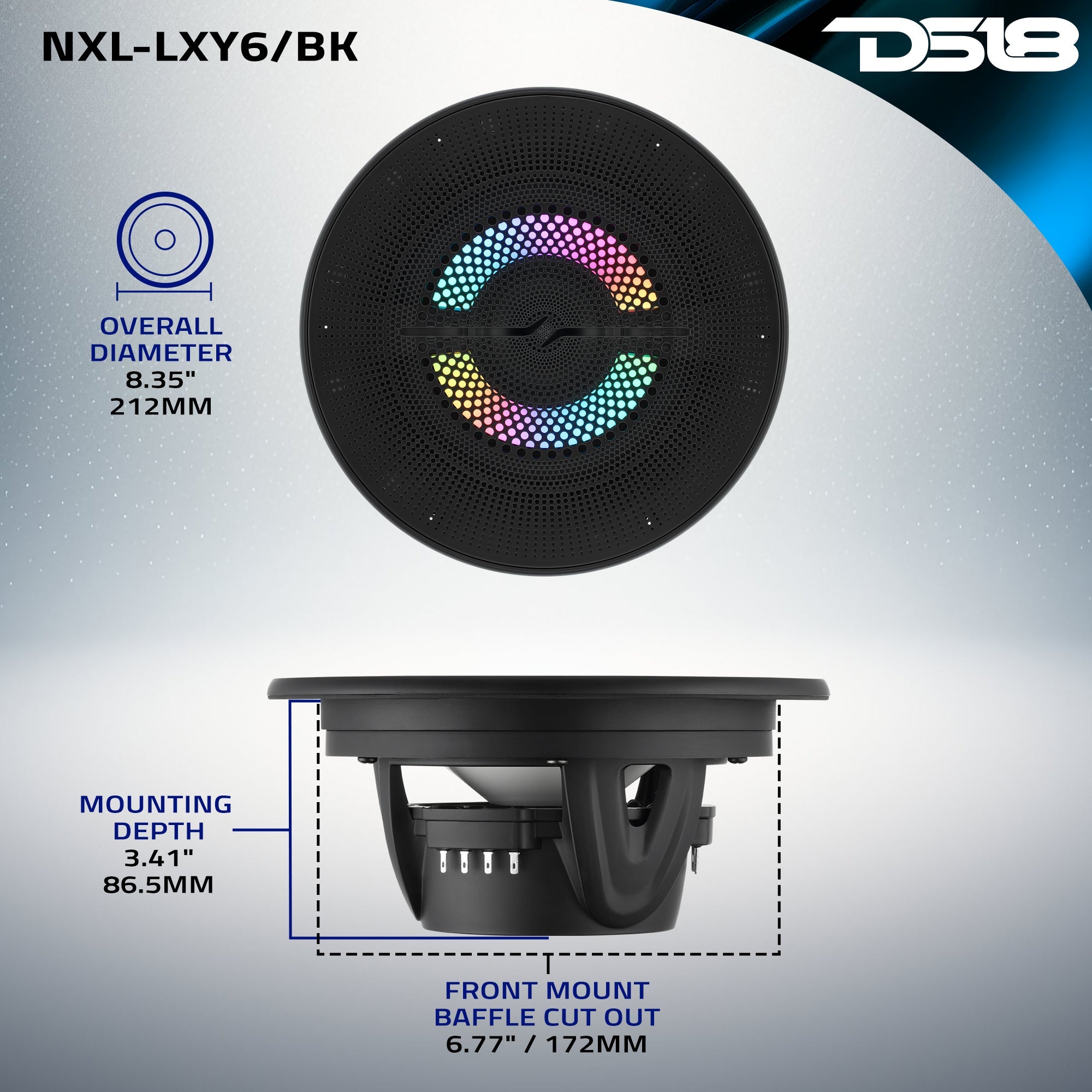

Overall Diameter 8.35" / 212mm
Overall Depth 3.8" / 96.5mm
Front Mount Baffle Cutout 6.77" / 172mm
Mounting Depth 3.41" / 86.5mm
Motor Diameter 3.54" / 90mm
