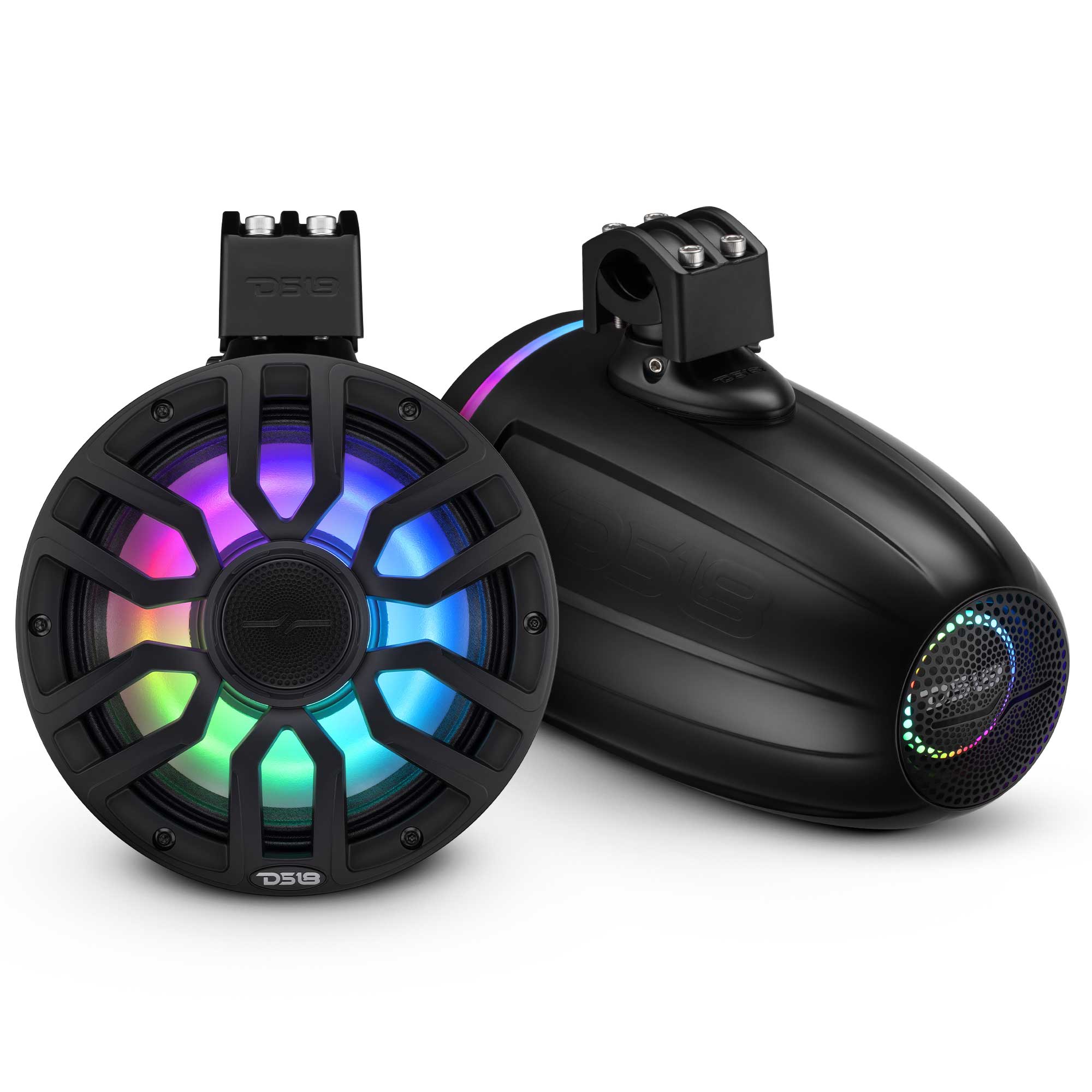

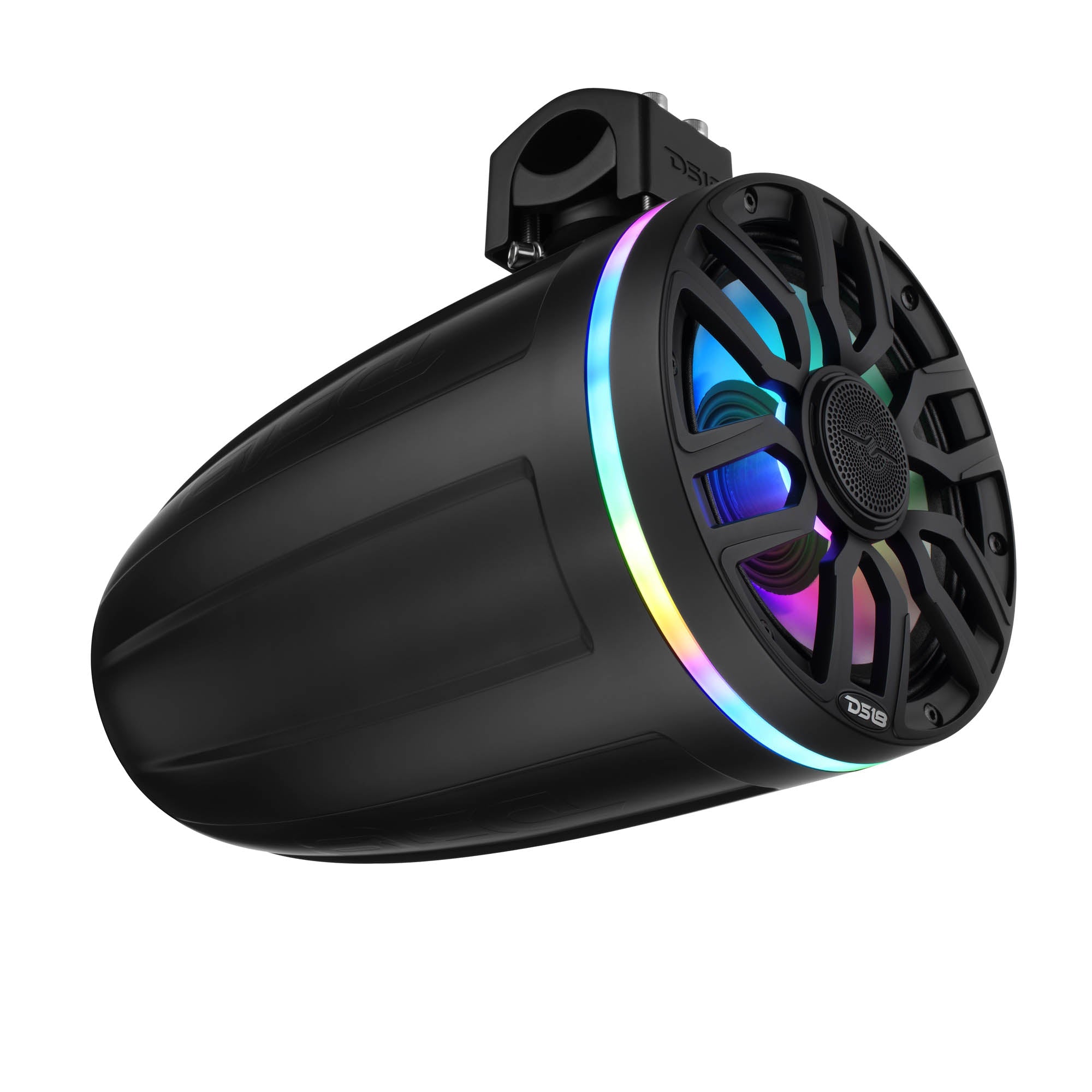

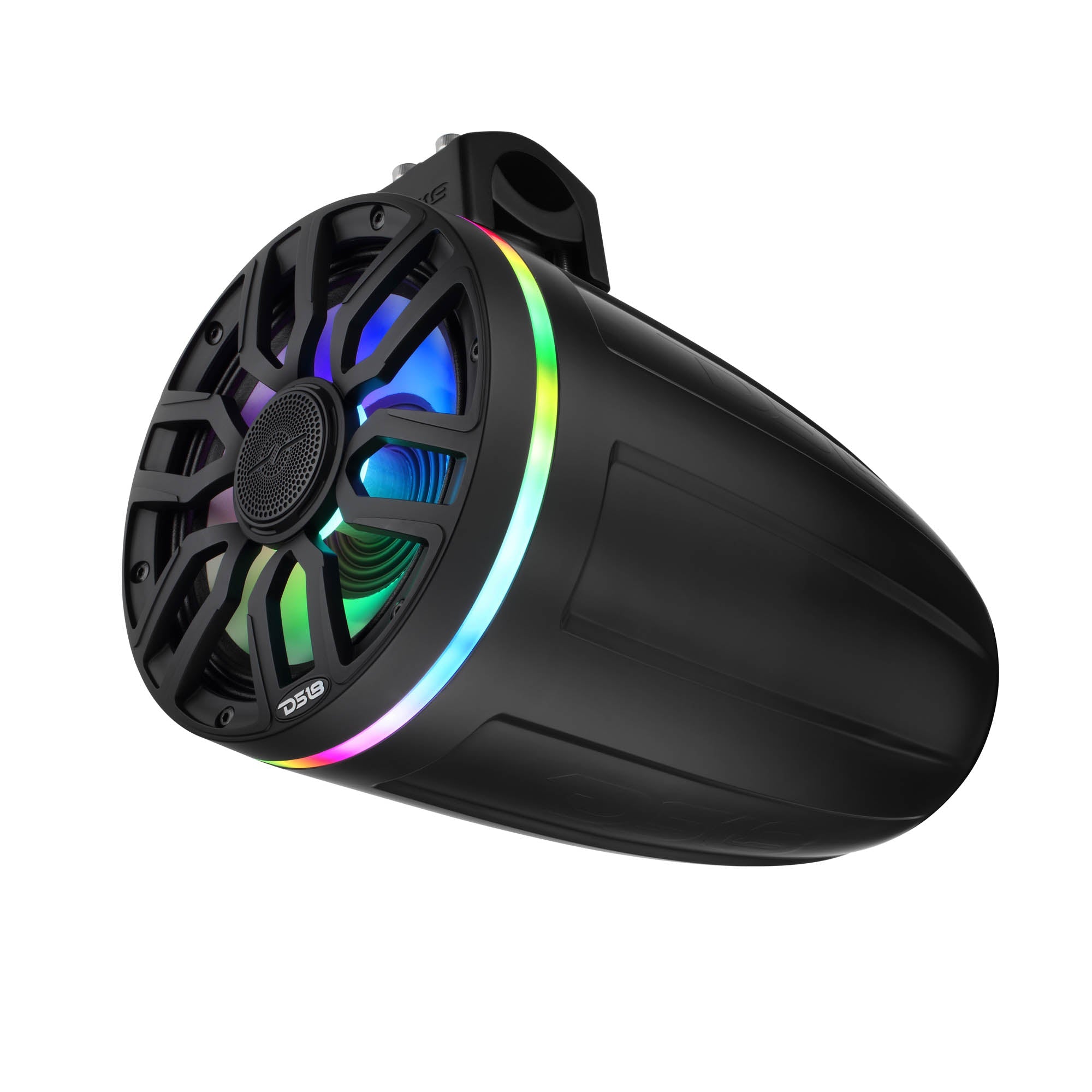

8" NXL-iQ Marine Tower Speaker with Digital LED Lights, Neodymium Magnet, 1" Compression Driver, IP65 Rated, 350W RMS, 4-Ohm
8" NXL-iQ Marine Tower Speaker with Digital LED Lights, Neodymium Magnet, 1" Compression Driver, IP65 Rated, 350W RMS, 4-Ohm
8" NXL-iQ Marine Tower Speaker with Digital LED Lights, Neodymium Magnet, 1" Compression Driver, IP65 Rated, 350W RMS, 4-Ohm
Product Overview
Optimal Audio, Quality Materials

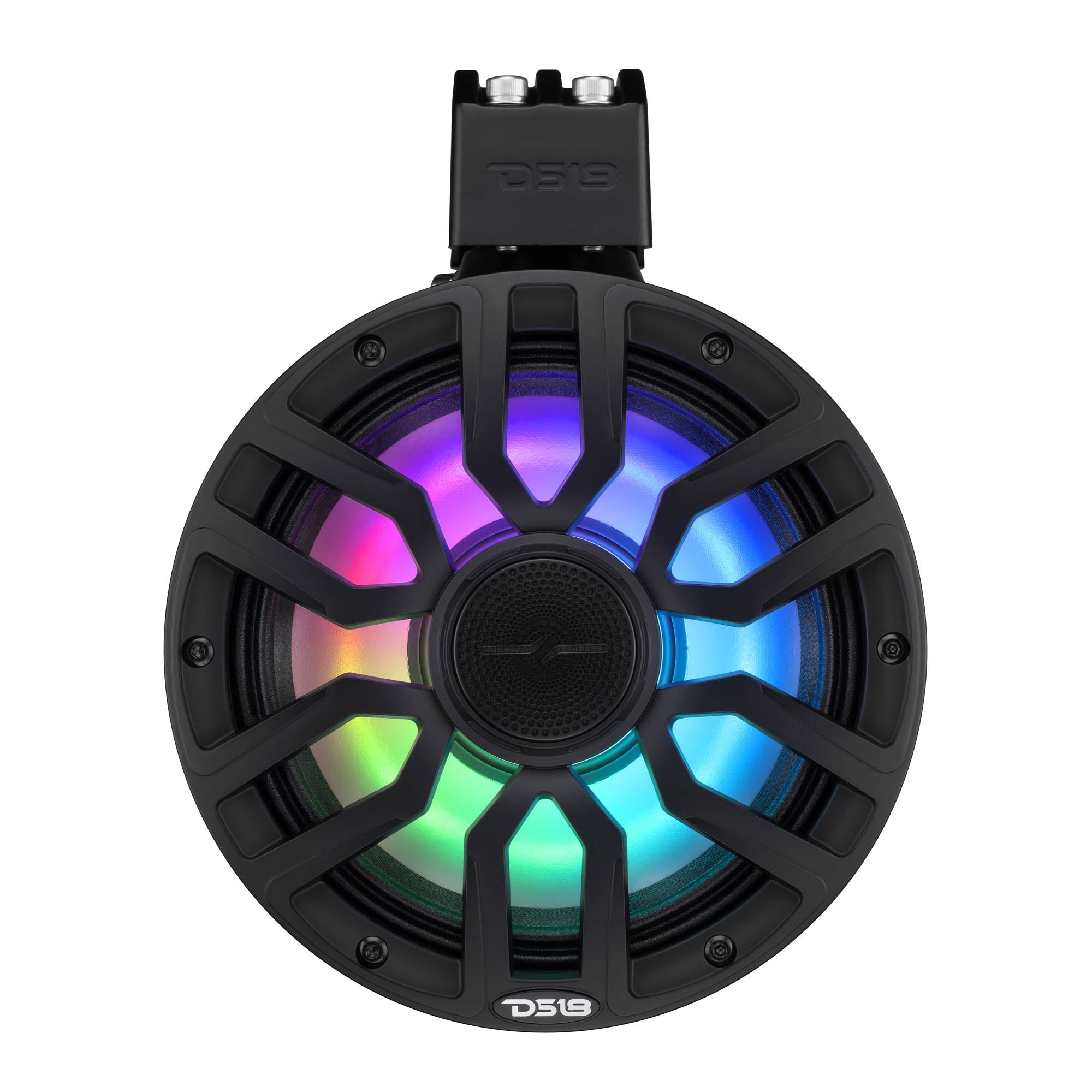

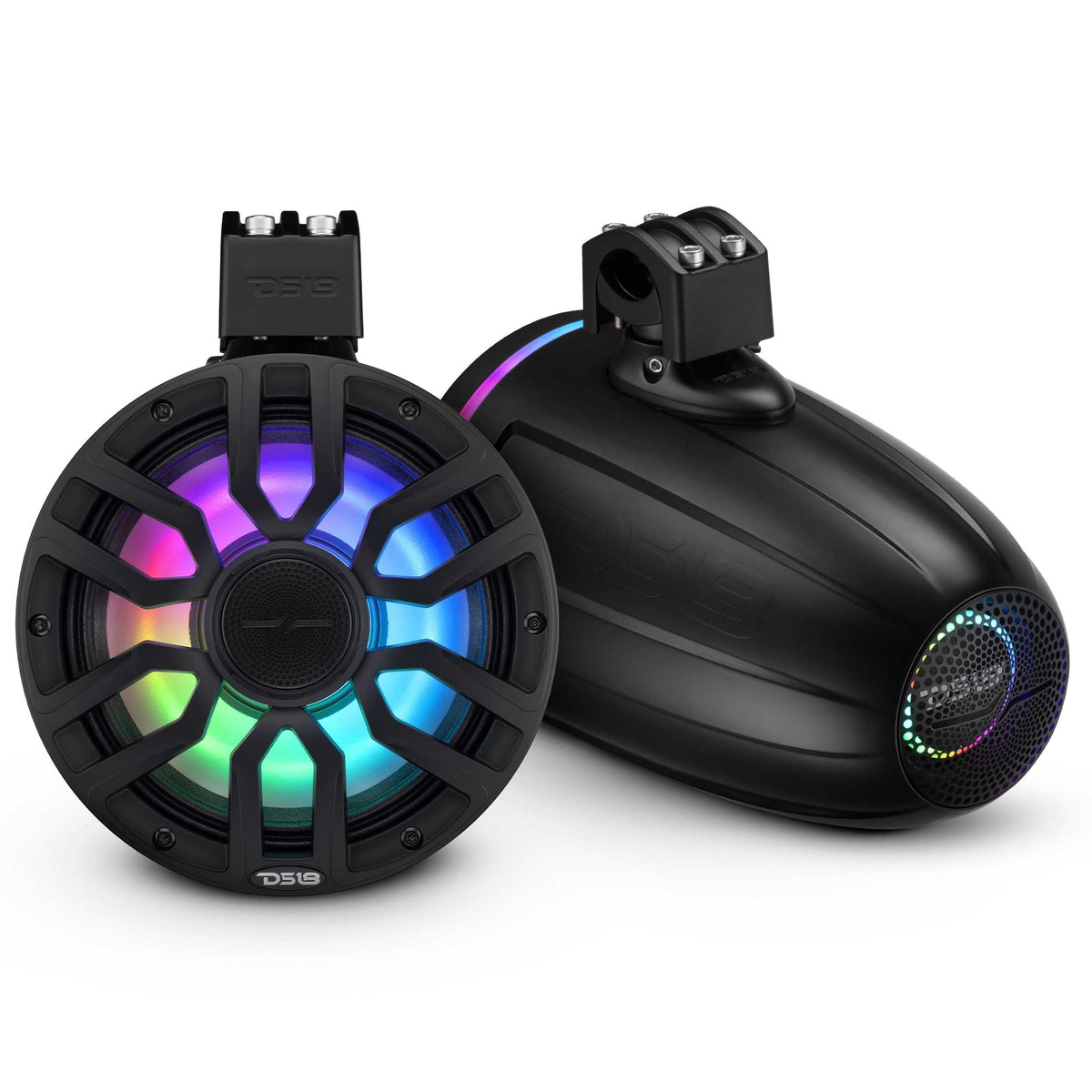

Keep the volume pumping with the NXL-IQ8TPNEO/BK, an 8” marine tower speaker with neodymium magnets for better power handling and a lighter install. This design gives you a powerful sound setup with a higher sensitivity rating. Experience audio clarity with a 1” compression driver that gives you crisp highs and clear sound while the 1.5” glass fiber voice coil brings the rumble to your sound system.
Durability You Can Trust
Rated IP65, this tower speaker is ready to brace the elements with a water-resistant compressed paper cone and UV protection on the grille and enclosure. This tower is made from durable materials to keep the party going day and night.
Style It Your Way
Take advantage of 360 degrees of rotation, a detachable grille, and buried or open wire mounting for a flexible speaker setup you can take anywhere.
Light Up the Sky
Customize your speaker setup with digital LED lights. Control the lights directly from your phone using DS18’s LC app and the LC-DRM module (sold separately).
NOTE: This digital lighting system requires a digital signal from a compatible module to function correctly. To ensure proper operation, DS18's LC-DRM digital lighting controller is required (sold separately).
DS18 Marine Audio
The NXL-IQ8TPNEO/BK is only one way to play it loud. DS18’s diverse line of marine speakers and towers let you brave the elements with ease while enjoying quality audio anywhere you go.
Key Features
- 8” Marine and Powersports Audio – 350W RMS / 700W MAX
- Neodymium Magnet – Strong performance with lighter weight
- IP65 Rated Build – Water-resistant and UV protected
- Digital LED Lights – LC app control with LC-DRM (sold separately)
- 360° Adjustable Mount – Flexible positioning and clean install
Specifications
| Nominal Diameter | 8" / 218mm |
|---|---|
| Nominal Impedance | 4 Ohms |
| RMS Power Handling (Combined) | 350W |
| MAX Power Handling (Combined) | 700W |
| Sensitivity (1w/1m) (Combined) | 96dB |
| Frequency Response (Combined) | 35Hz-20kHz |
| Number of Ways | 2-Ways |
| Recommended High-Pass Crossover | 60Hz |
| Sold in Pair or Single | Pair |
| Enclosure Material | Injection ASA |
| IP Rating | IP65 + UV Stable |
| RGB LED Lighting | Integrated Digital LED Speaker Lighting (Front of Cone, Acrylic Ring, Radiator Logo) |
| Digital LED Chip Type | 1815S |
| Grill Type | Injection Molded Composite ASA with UV Protection coating |

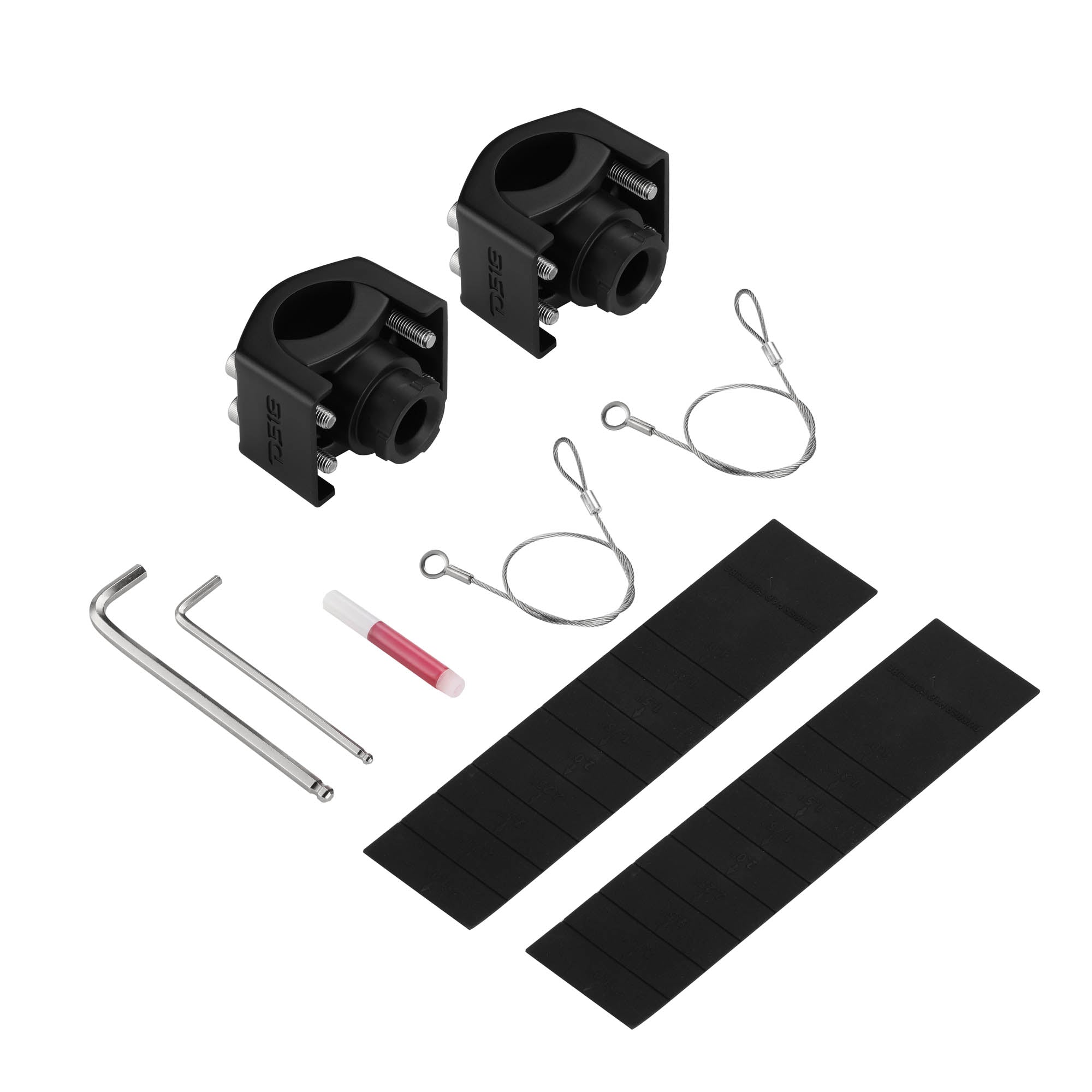

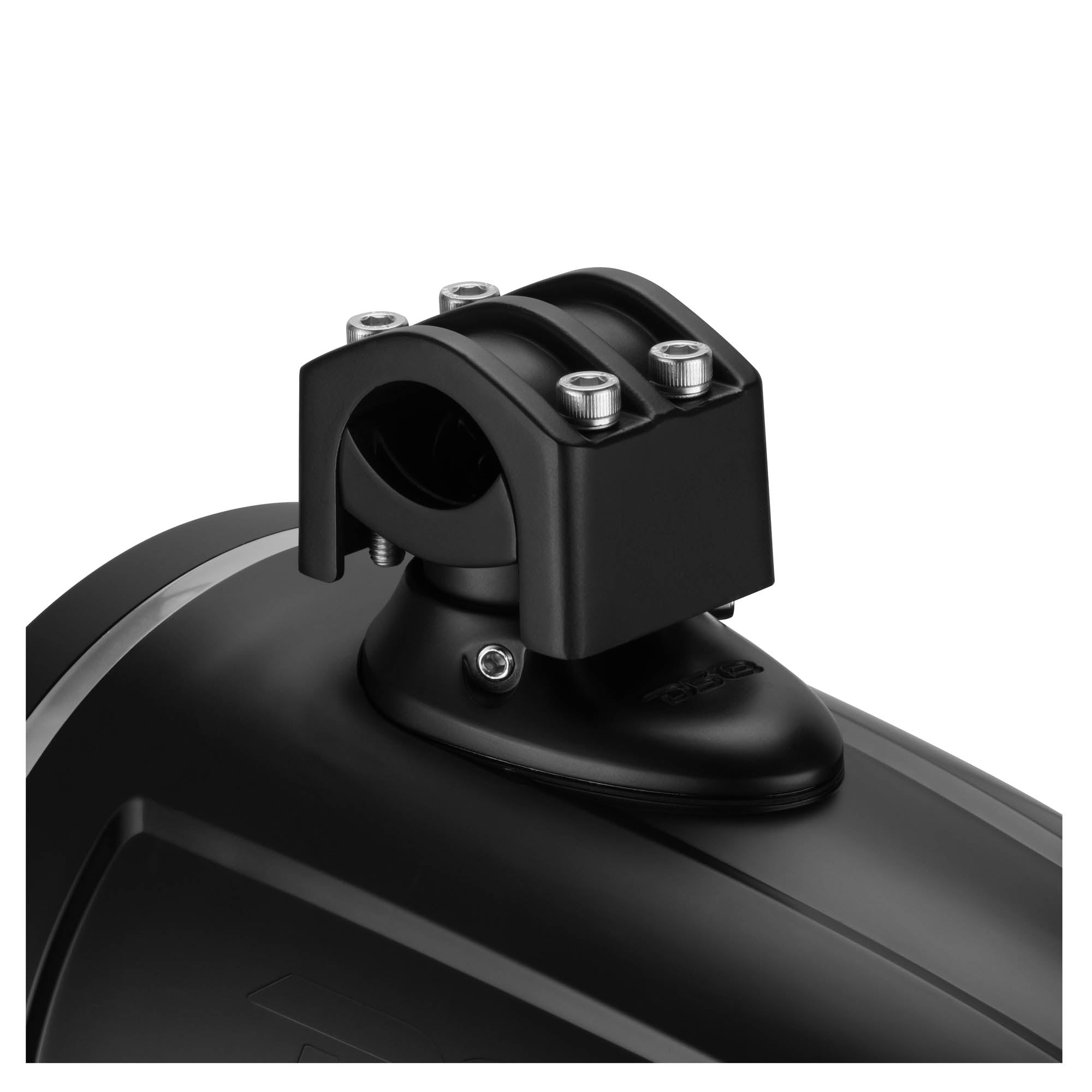

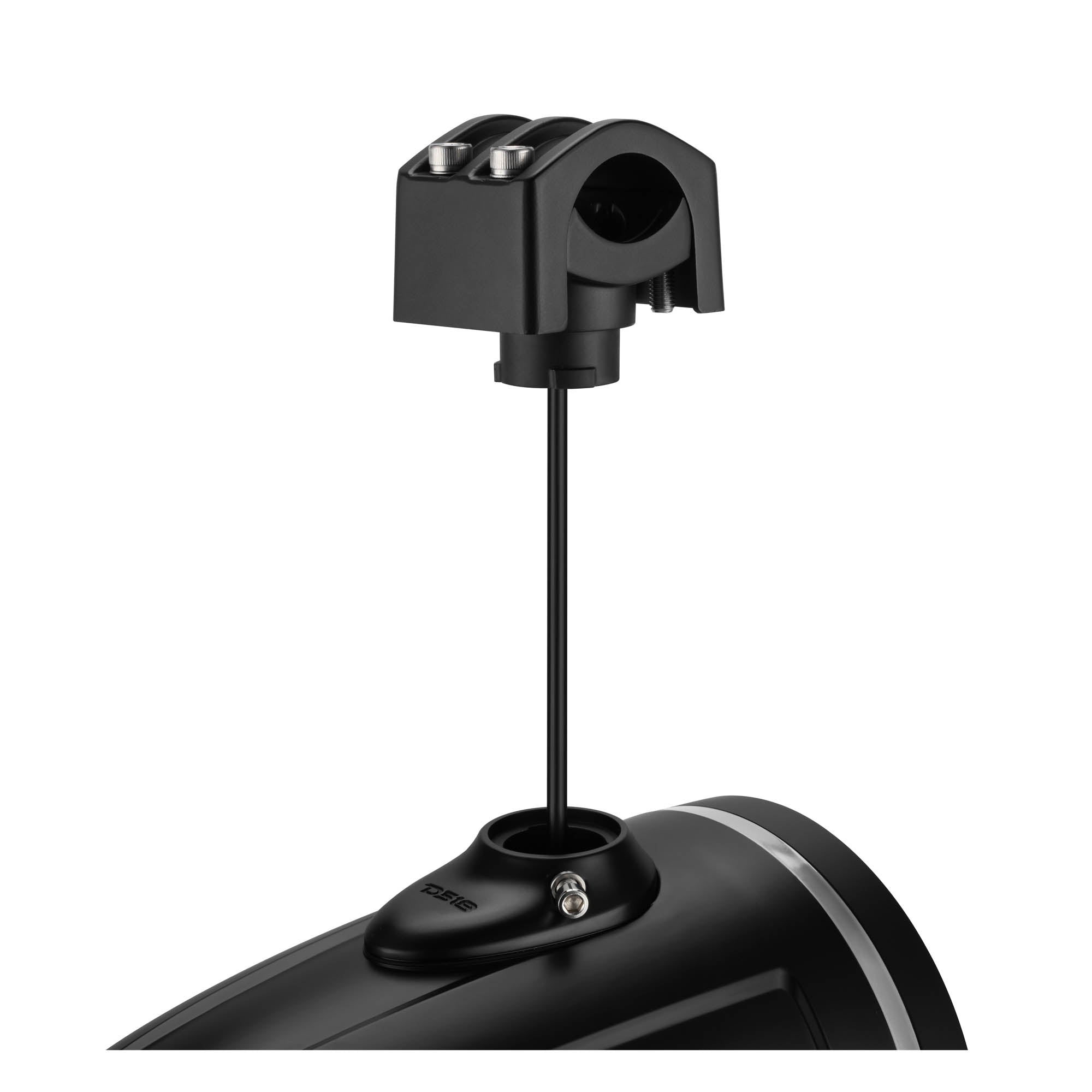

| Clamps | Die-Cast adjustable (1"~ 2") 360 Degree Rotation Mounting, Buried Wire or Open Wire Mounting Optional, Included NBR Pad And Stainless Hardware (Screws, Stop Washers, Hexagon wrench, Safety Rope, Screw fastening Glue) |
| Front Logo | Yes, can be rotated for correct angle display |

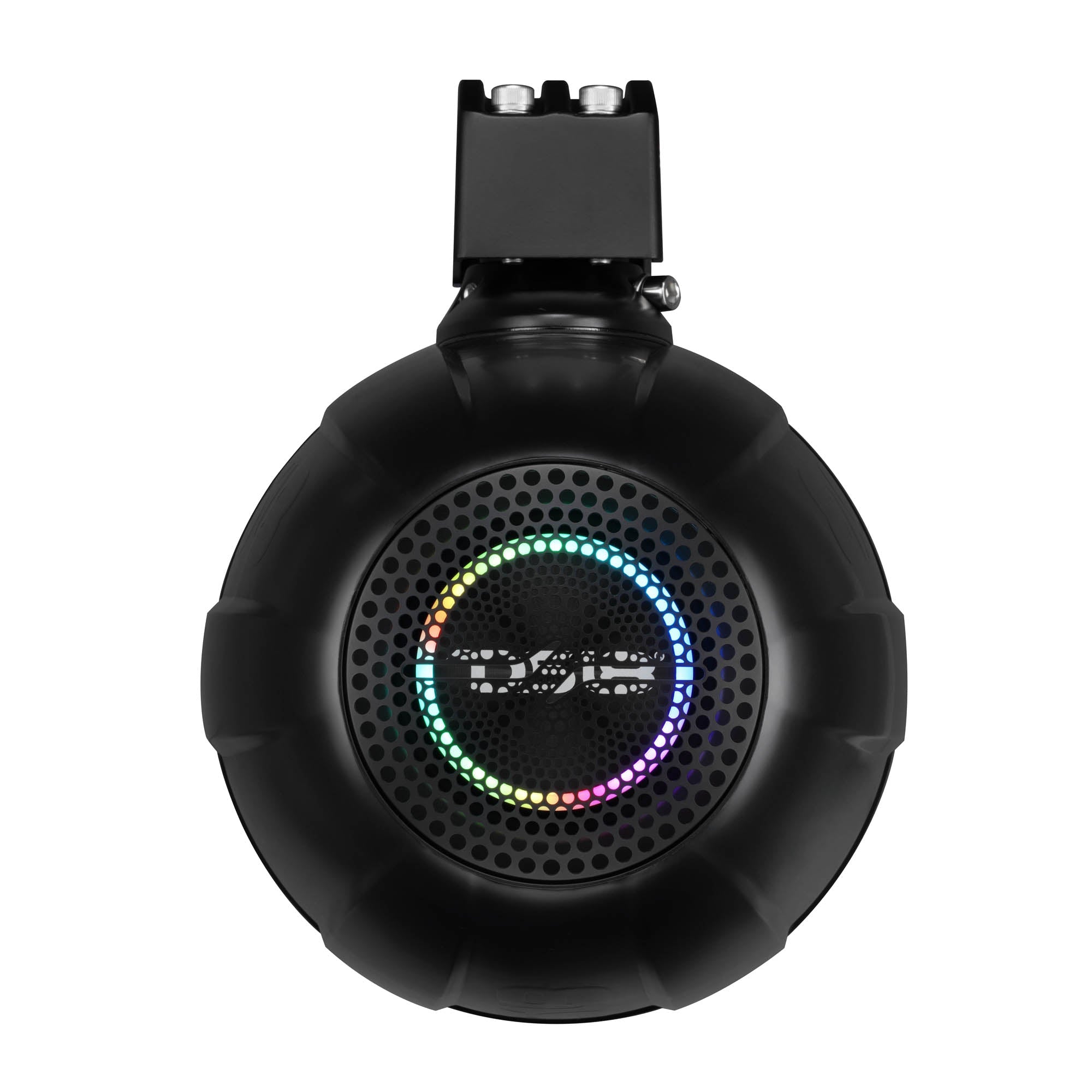

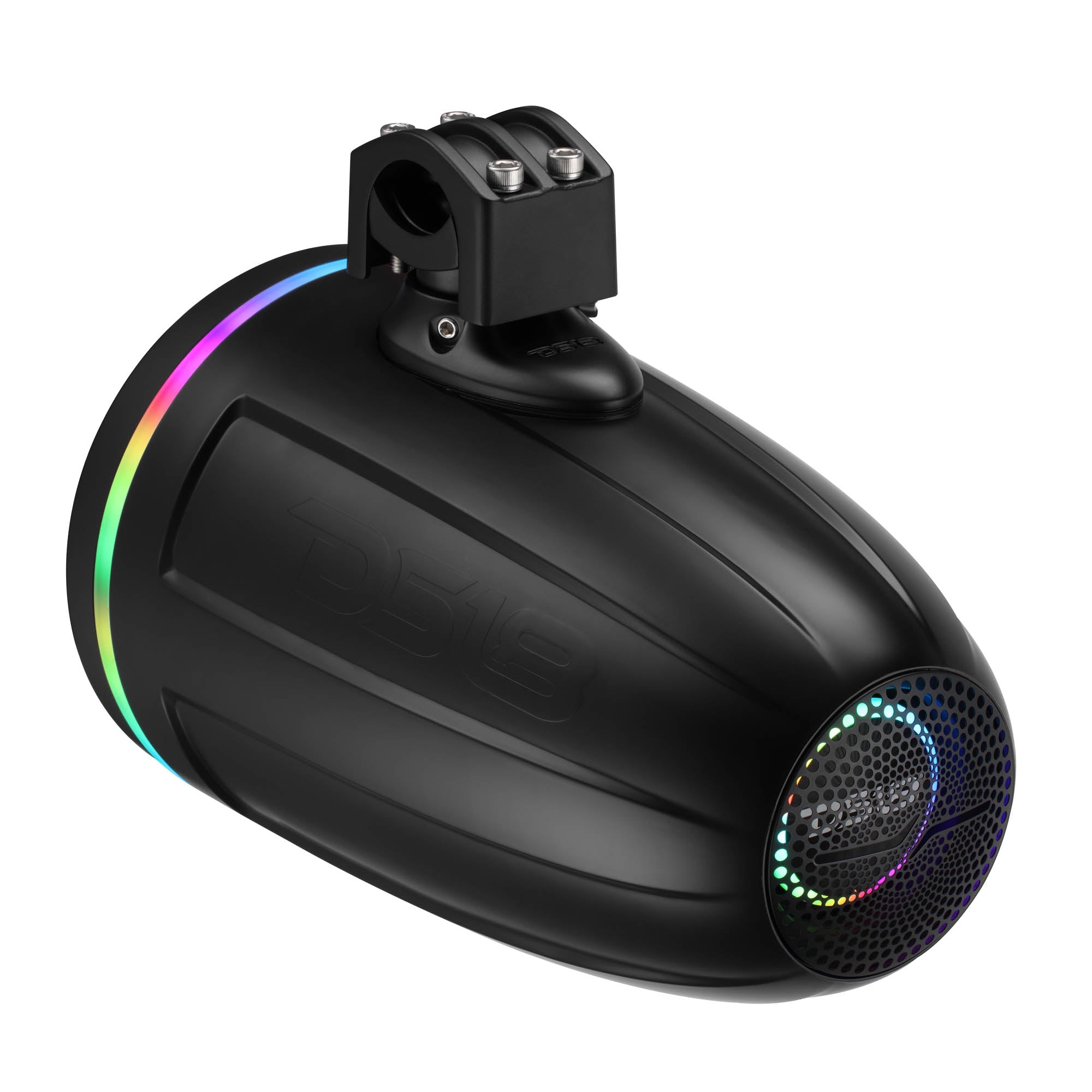

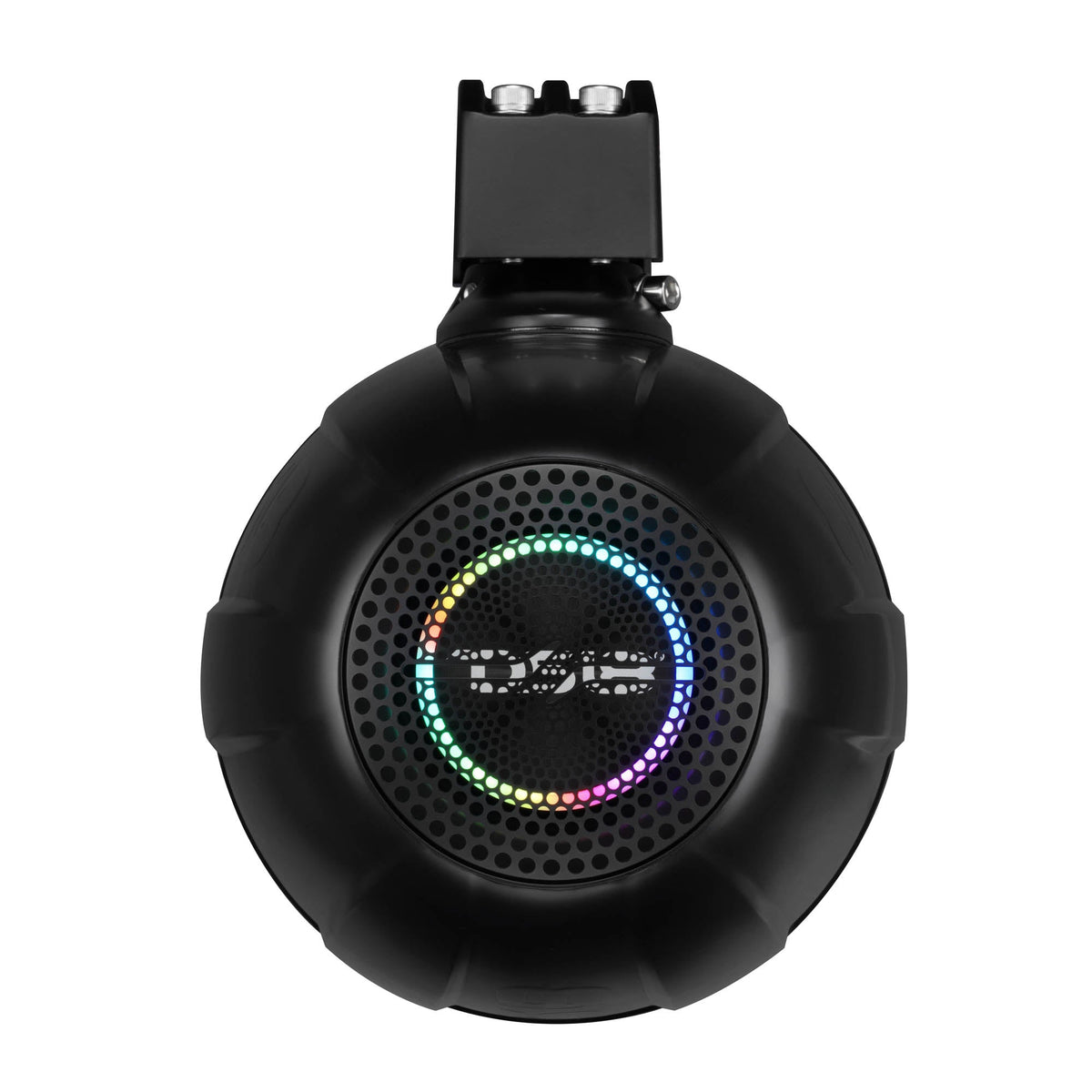

| Rear Logo | Radiator Fixed Position |
| Color / Finish | Matt Black |
| Wiring | 5 Core Wires for Lighting and Speaker |
| Voice Coil Diameter | 1.5" / 38.6mm / 1" / 25.4mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW |
| Cone Material | Water Resistant Compressed Paper |
| Surround Material | Soft PC Damping Glued |
| Basket Material | PC Injection Molded Composite |
| Magnet Material | Neodymium |
| Magnet Weight | 8.8 Oz / 0.61 Oz |
| Magnet Grade | N38H |
| Passive Radiator | Yes 4" |
| Equivalent Volume | 16.29L / 0.575ft3 |
| Excursion (one way) | 2.25mm |
| Free Air Resonance | 82Hz |
| Mechanical Factor | 5.048 |
| Electrical Factor | 0.604 |
| Total Factor | 0.539 |
| Moving Mass | 15.048g |
| Compliance | 0.251mm/N |
| BL Factor | 6.202 |
| Voice Coil Inductance | 1.4mH |
| Diaphragm Area | 213.82 CM2 |
| DC Resistance | 3.2 Ohms |
| Type | Compression Driver with CNC Solid Aluminum Horn |
| Diaphragm Material | PEN |
| Crossover | Built-In 12dB/Oct with Overload Protection |
| Overall Diameter | 8.6" / 218mm |
| Overall Depth | 13.9" / 353mm |
| Overall Height (with Mast Clamp) | 12.37" / 314mm |
