Product Overview

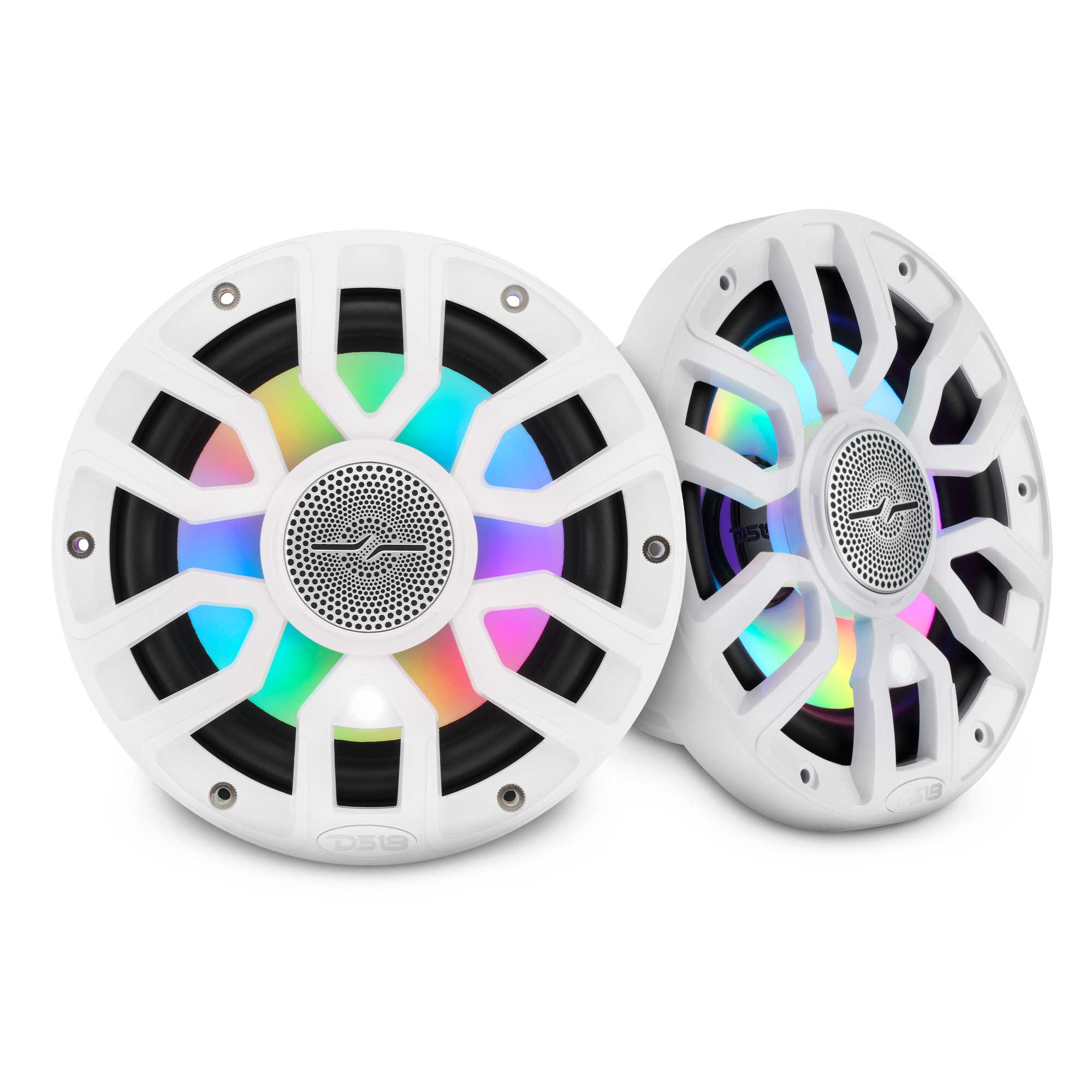

DS18 NXL-IQ7.7
7.7” Marine Grade Coaxial Speaker with Digital LED Lights and Bullet Tweeters
DS18’s NXL-IQ7.7 is a high-performance 7.7” marine coaxial built with louder output, deeper bass, and fully integrated lighting. Designed for any marine vehicle that wants high-quality sound and show-stopping style.
The New Standard
With 175W RMS / 350W MAX handling and 96dB sensitivity, the NXL-IQ7.7 delivers huge volume with stunning clarity. It’s built to hit harder and cleaner than standard marine speakers, all the way down to 40Hz.
True 2-Way Sound
Features a 1.5” glass fiber woofer paired with a 1” floating bullet tweeter, for precise high-frequency control with rich midbass. Powered by CCAW coils, PPI spiders, and a hybrid Ferrite + Neodymium motor system, this speaker is made to dominate open-air environments.

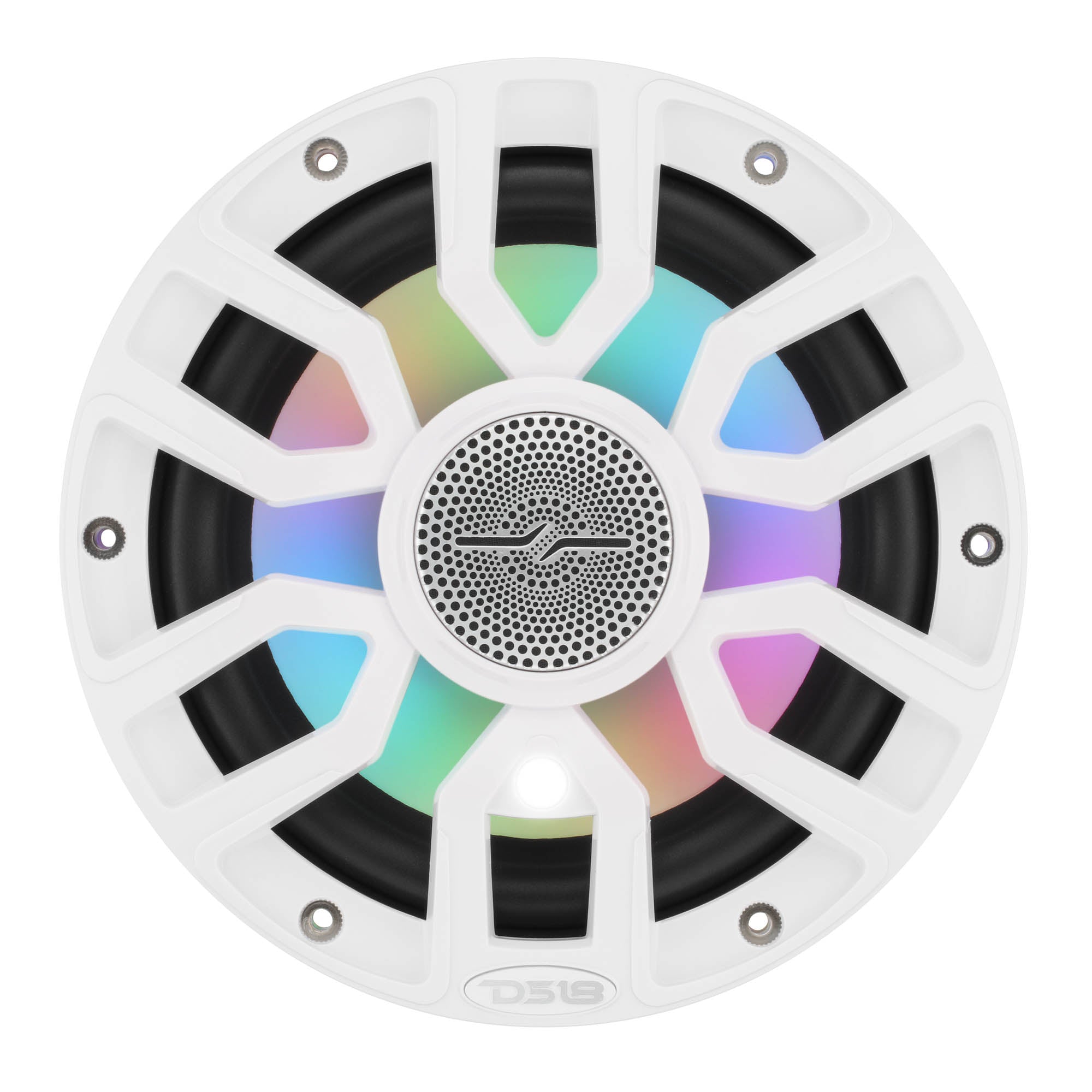

Built-In Digital LED Lighting

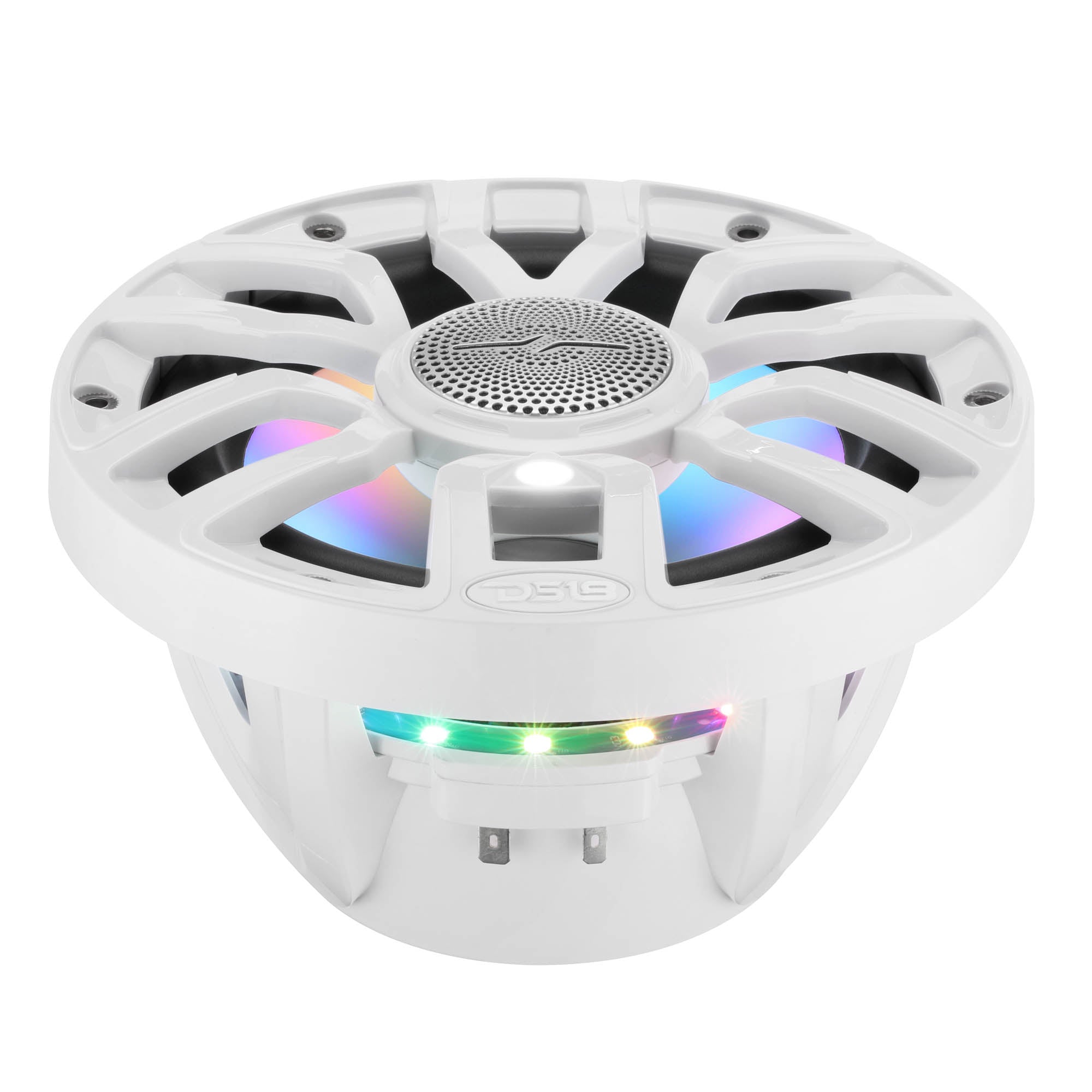

Integrated white deck LEDs and digital RGB LED backlighting behind the cone create a glow that matches your boat’s mood. Bright, clean, and fully controllable via 12V or digital LED controller input.
IP65 Rated + UV Resistant

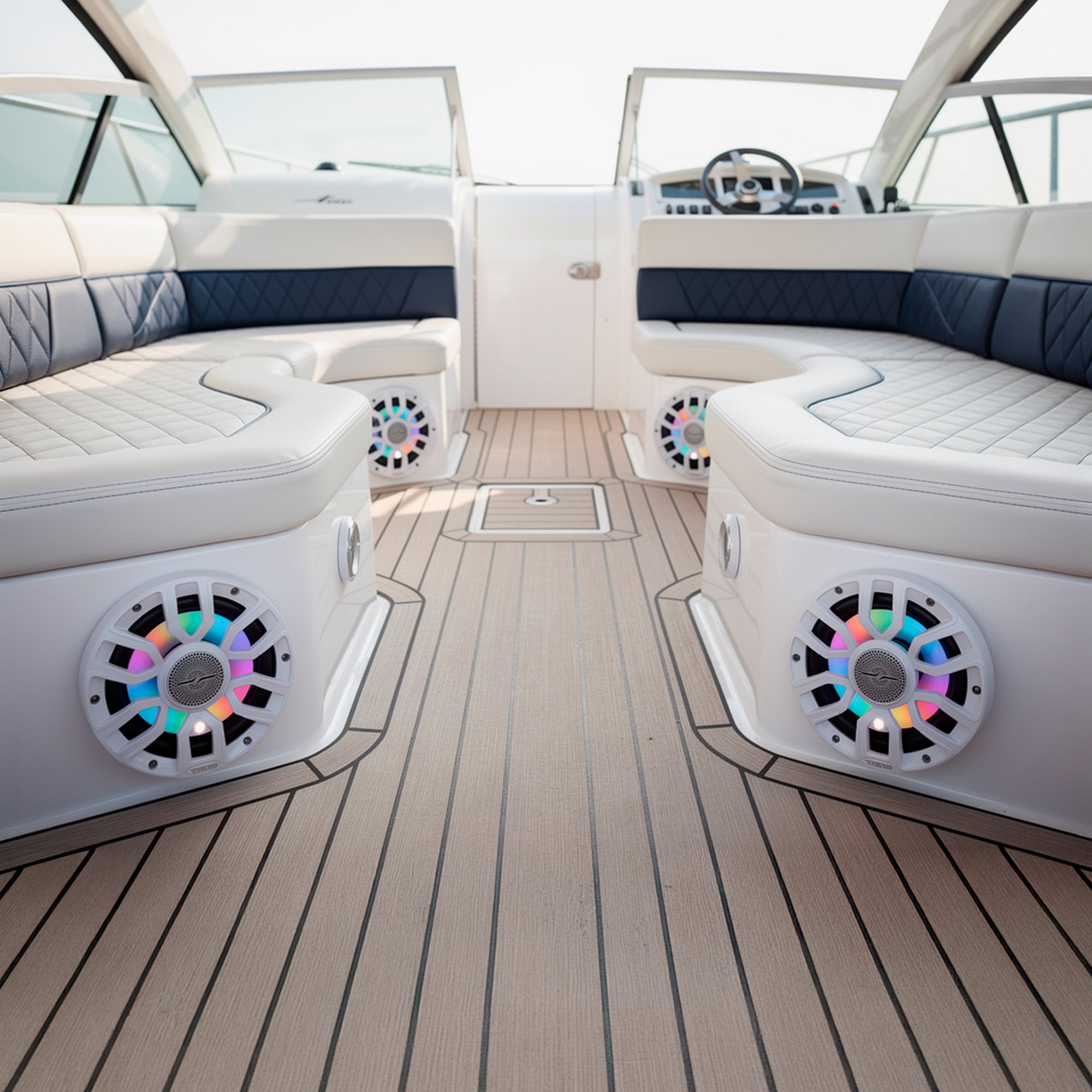

Fully marine-rated with IP65 water resistance, UV-protected injection-molded housings, and a rubber surround to withstand salt, spray, sun, and vibration. These speakers are perfect for wake boats, center consoles and more.
The NXL-IQ7.7 hits harder, glows brighter, and outlasts the rest.
Key Features
- 7.7" 2-Way Coaxial Marine Speaker
- RMS Power: 175 Watts
- Impedance: 4 Ohm ~ 96dB
- Digital LED Lighting / White Deck LED ~ IP65
- Ferrite & Neodymium Magnets
- Pair ~ Silicone Speaker Covers Included
Specifications
| Nominal Diameter | 7.7" / 196mm |
|---|---|
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 175W |
| MAX Power Handling | 350W |
| Sensitivity (1w/1m) | 96dB |
| Frequency Response | 40Hz-20KHz |
| Number of Ways | 2-Ways |
| Recommended High-Pass Crossover | 50Hz |
| Sold in Pair or Single | Pair |
| UV Protection | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| LED Lights | Yes, Digital LED integrated (behind cone) / White Deck LED (Front Cover) |
| LED Connection Type | 12V & Digital input terminal |
| Digital LED Chip Type | 1815S |
| Grill Type | Injection Molded Composite ASA with UV Protection coating |
| Color / Finish | Matte Black |
| Voice Coil Diameter | 1.5" / 38.6mm / 1" / 25.4mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW |
| Cone Material | PPI |
| Dust Cap Material | PPI |
| Surround Material | Rubber |
| Basket Material | Injection Molded Composite PC with UV Protection coating |
| Magnet Material | Ferrite+Neodymium / Neodymium (N35H) |
| Magnet Weight | 18 oz + 1.1 oz / 0.4 oz |
| Type | Floating Bullet Tweeter |
| Diaphragm Material | Aluminium |
| Bullet Material | Injection Molded Composite PC with UV Protection coating |
| Equivalent Volume | 8L / 0.283ft3 |
| Excursion (one way) | 3mm |
| Free Air Resonance | 69Hz |
| Mechanical Factor | 8.975 |
| Electrical Factor | 1.228 |
| Total Factor | 1.080 |
| Moving Mass | 25.661g |
| Compliance | 0.208 mm/N |
| Bl Factor | 5.592 |
| Voice Coil Inductance | 0.044 mH |
| Diaphragm Area | 165.13cm2 |
| DC Resistance | 3.2 Ohms |
| Efficiency Bandwidth Product | 56 |

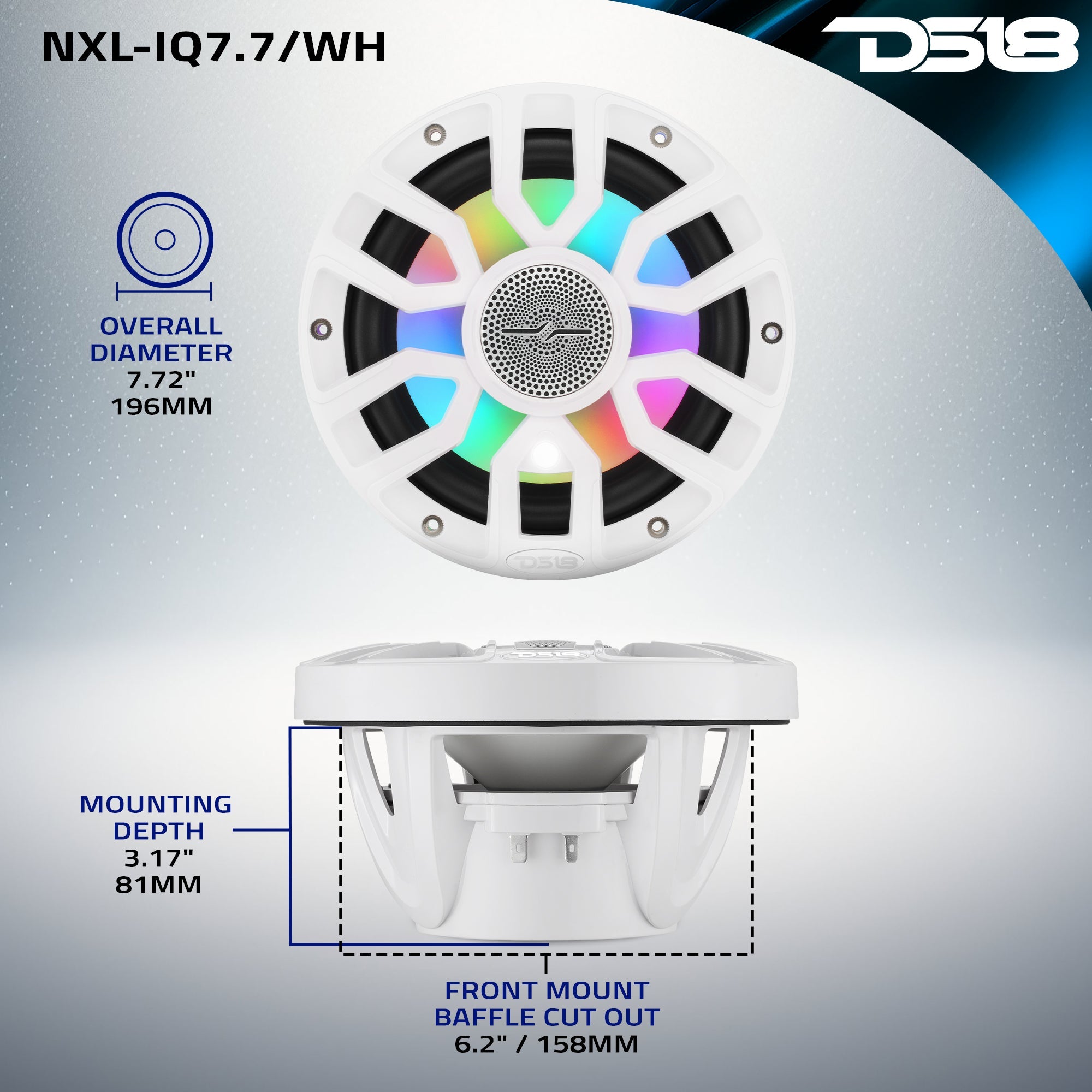

| Overall Diameter | 7.72" / 196mm |
| Overall Depth | 4.4" / 112mm |
| Front Mount Baffle Cutout | 6.2" / 158mm |
| Mounting Depth | 3.17" / 81mm |
| Motor Diameter | 3.75" / 95mm |
