Product Overview
10” Marine-Grade Subwoofer with Removable Grille and Digital LED Lights
Precision Marine-Grade Subwoofer

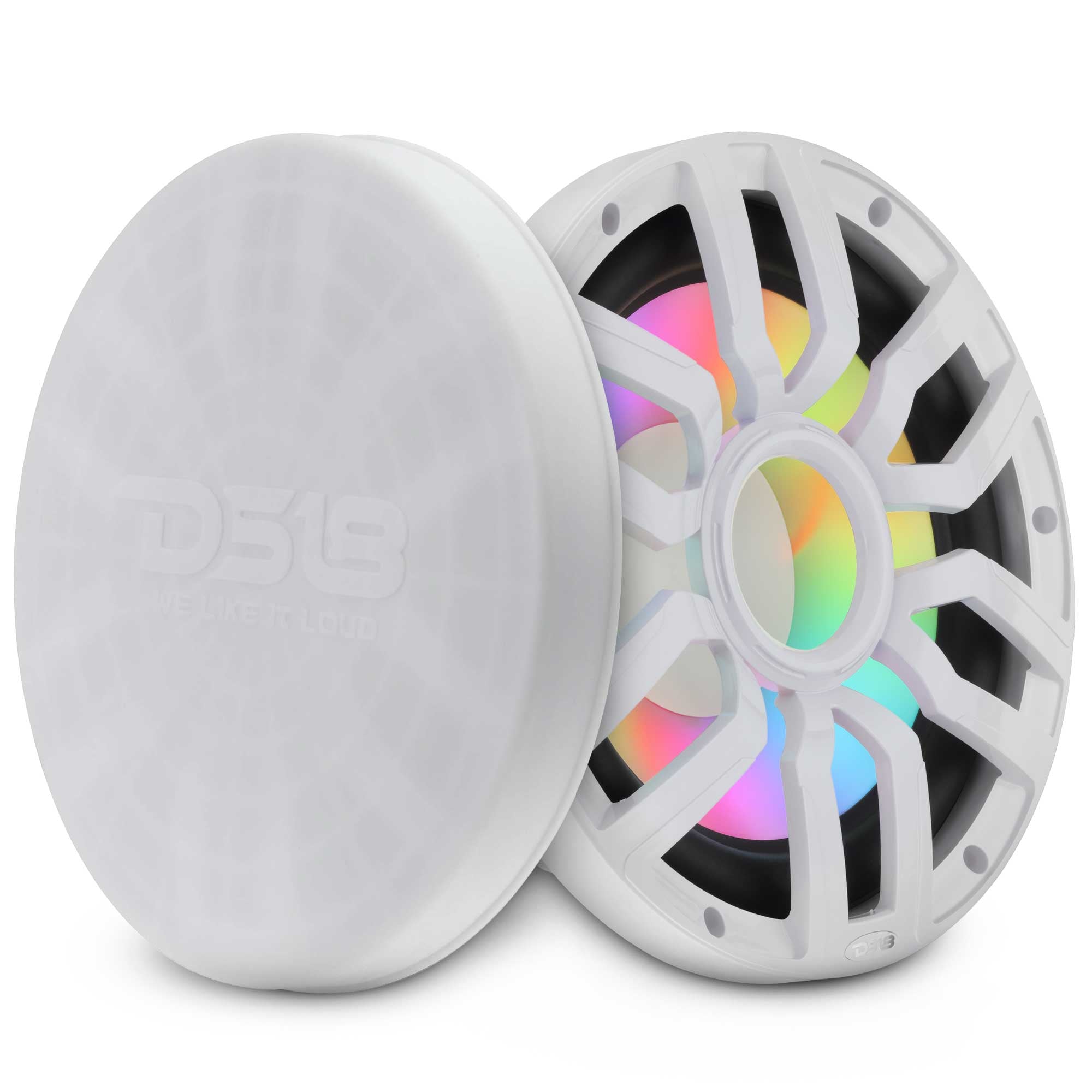

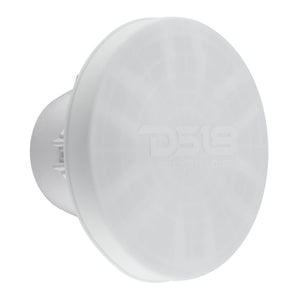

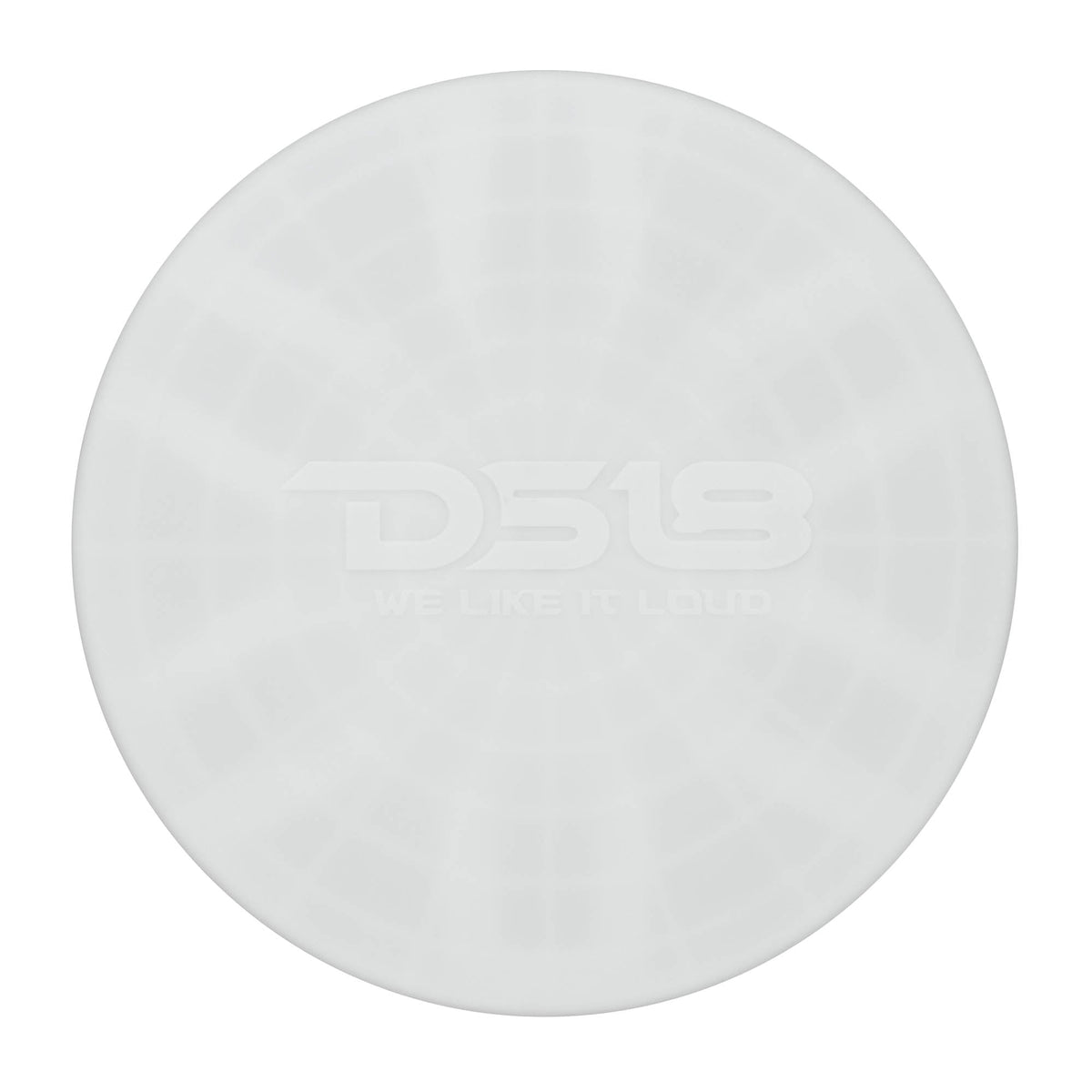

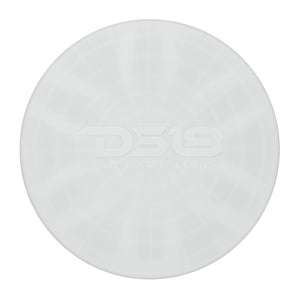

The NXL-iQ10SUB is a 10” marine-grade subwoofer that combines smart design with precision engineering to deliver the bass your system deserves in your marine and powersports vehicles. Included subwoofer covers help protect your investment.
Deep Impact Performance
With 500W RMS power handling and 87 dB sensitivity at 1W/1m, this subwoofer delivers powerful bass. Its motor structure features a ferrite main magnet and reverse neodymium magnet for strong, controlled output. A 5.31” mounting depth allows for versatile installation across a variety of applications.
Make Waves With Color

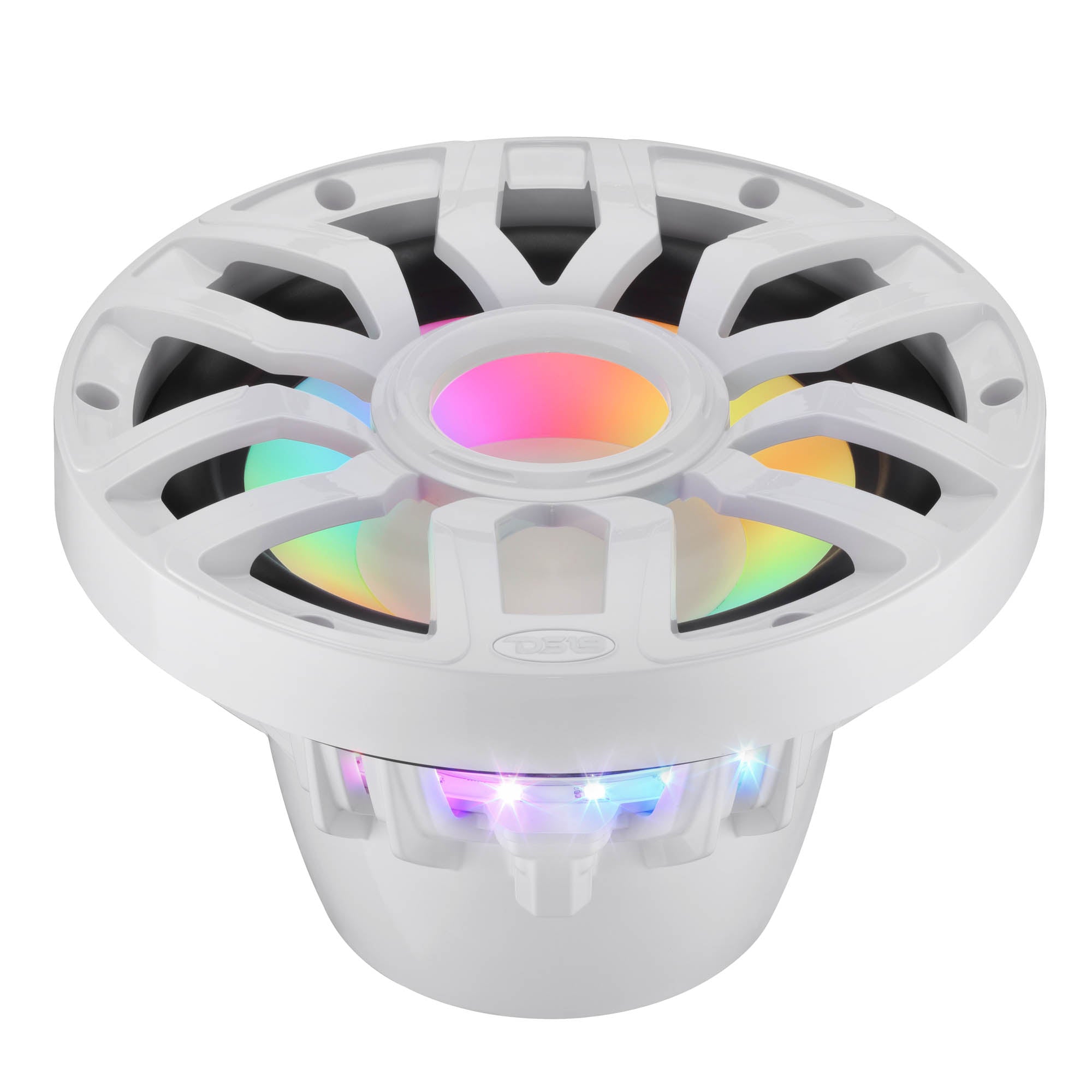

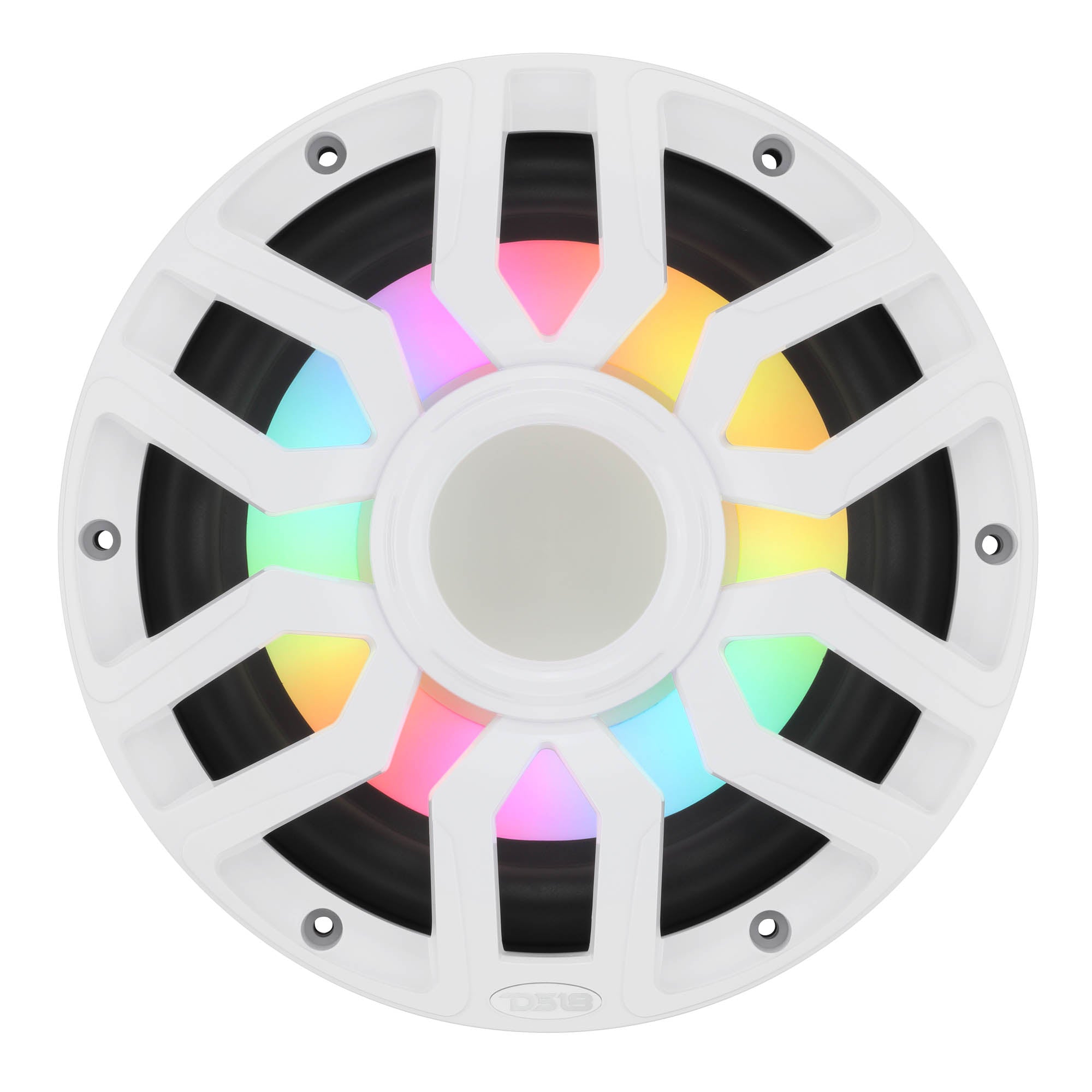

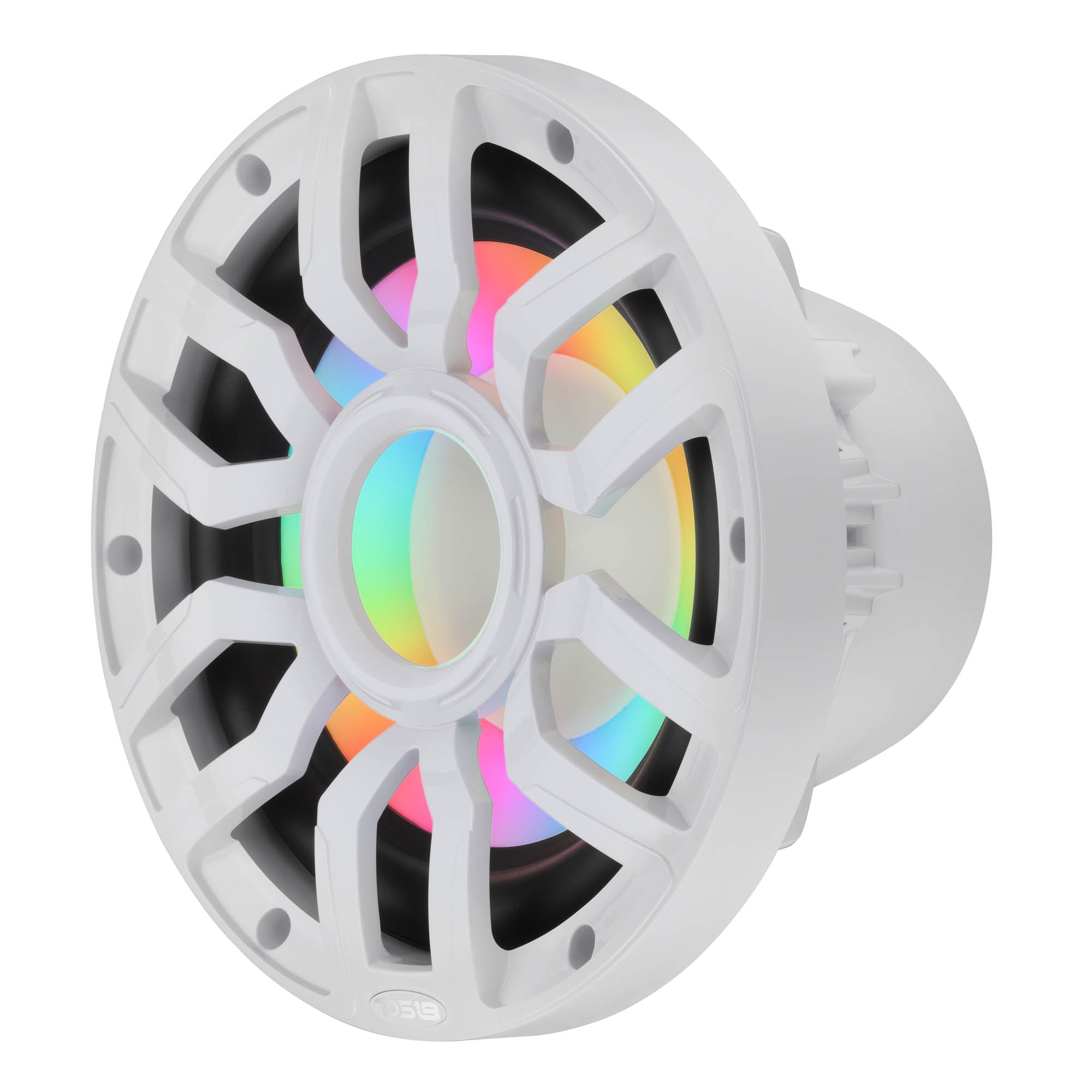

Integrated digital LED lighting behind the cone gives this subwoofer a bold glow to complete your build. Control the lights with the LC-DRM Bluetooth controller (sold separately) using the DS18 LC app.
Designed for Open Environments
The NXL-iQ10SUB is built for function, featuring a removable grille for easy cleaning after every ride. Its aluminum basket with UV coating resists heat and the elements for long-lasting performance. A PPI cone and UV-protected grille keep it looking fresh.
Bring the Boom
The NXL-iQSUB marine subwoofers feature advanced audio technology with protected components, so you can enjoy powerful sound on the water. Digital LEDs enhance your build’s look while maintaining marine-grade durability. Available in black or white in 10” and 12” options.
Key Features
- 500W RMS Power Handling
- Marine-Grade Durability (IP65 Rated)
- Digital LED Lighting
- Hybrid Magnet Motor (Ferrite main magnet and reverse neodymium magnet)

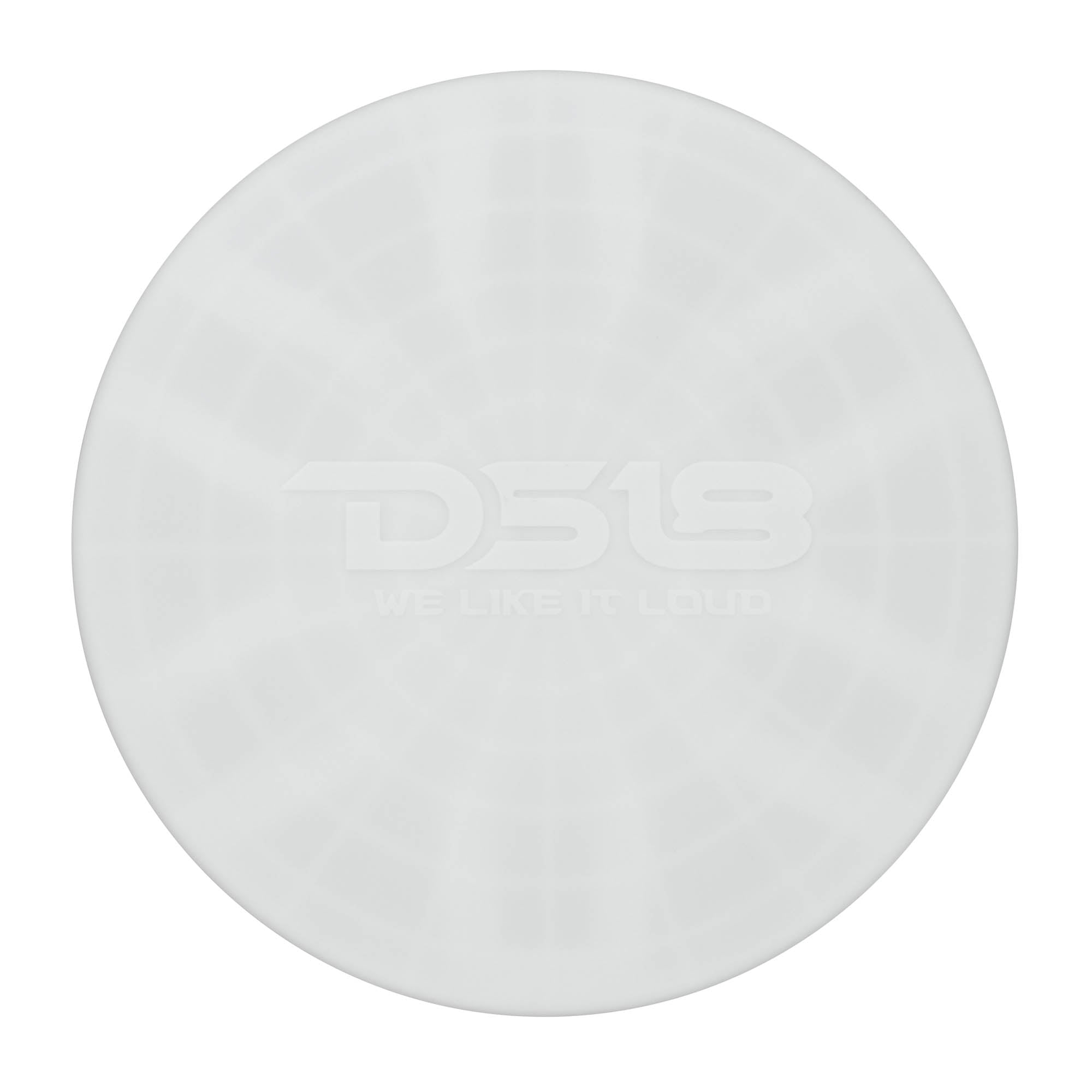

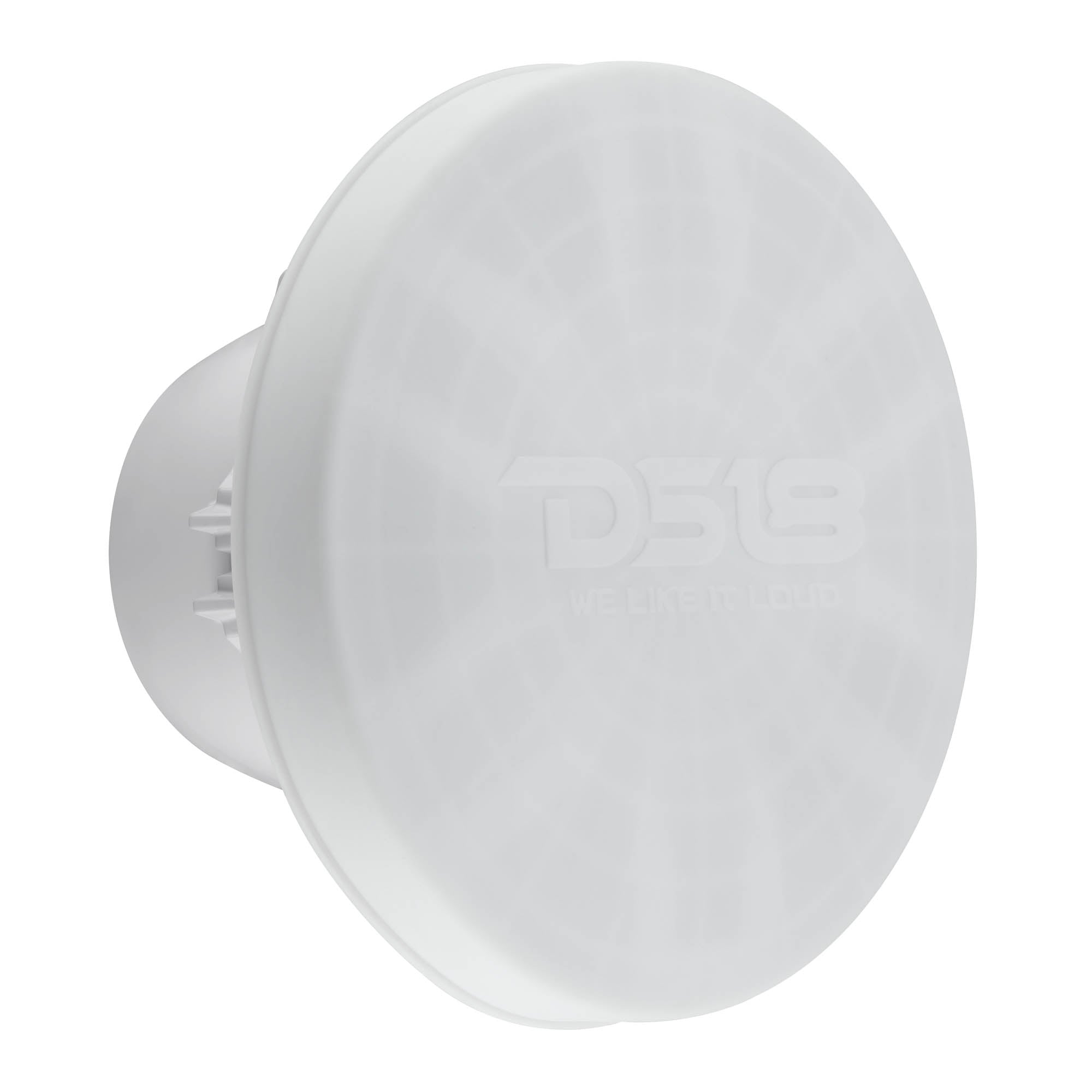

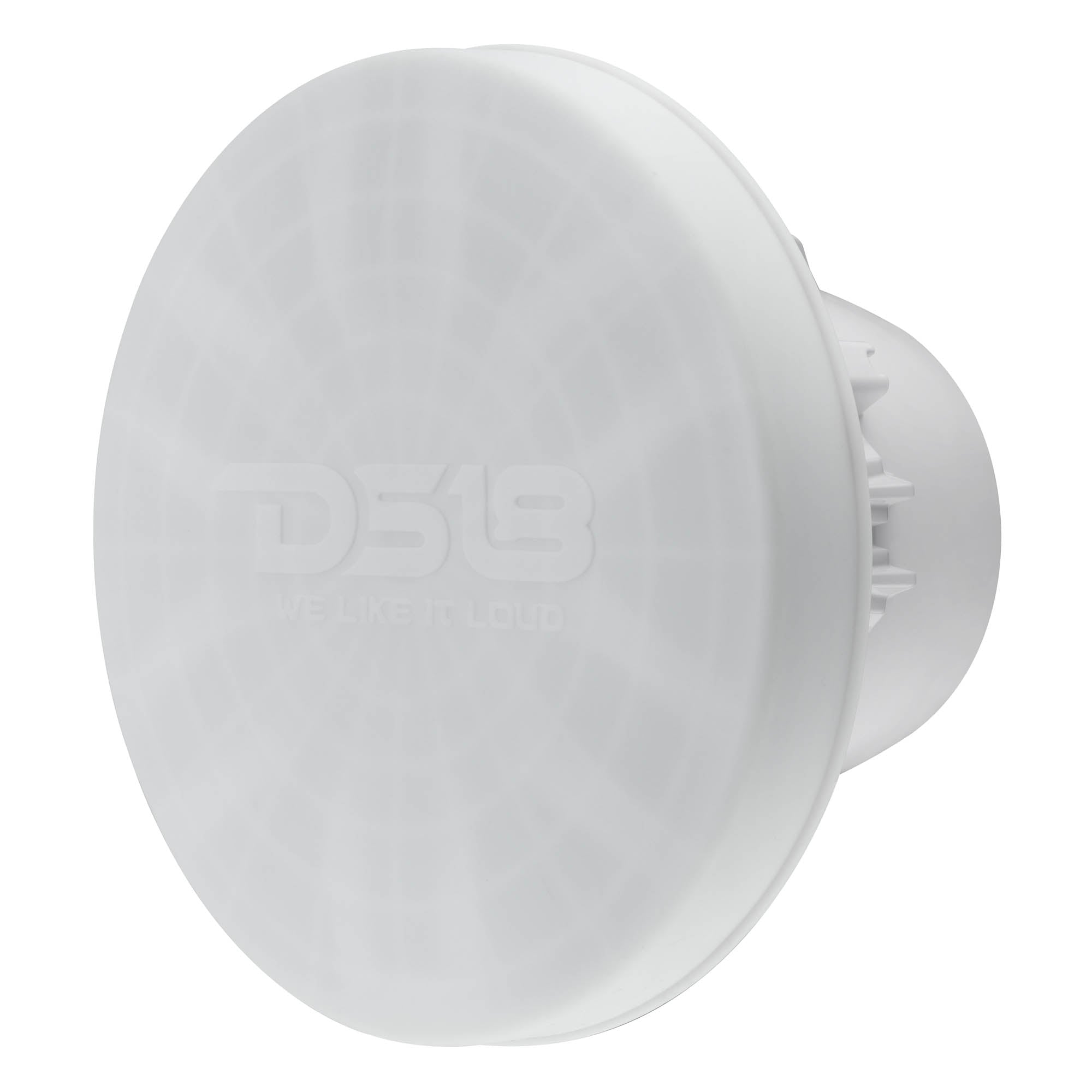

- Silicone Cover Included / Removable Grille Design
- Aluminum Basket
Specifications
| Nominal Diameter | 10" / 268mm |
|---|---|
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 500W |
| MAX Power Handling | 1000W |
| Sensitivity (1w/1m) | 87dB |
| Frequency Response | 20Hz-250Hz |
| Recommended High-Pass Crossover | 100Hz |
| Sold in Pair or Single | Single |
| UV Protection | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| LED Lights | Yes, Digital LED integrated (behind cone) |
| LED Connection Type | 12V & Digital IN (Water-Resistant Terminal) |
| Digital LED Chip Type | 1815S |
| Grill Type | Injection Molded Composite ASA with UV Protection coating and electroplated decorative strips |
| Color / Finish | White |
| Voice Coil Diameter | 2.4" / 61.1mm |
| Voice Coil Former Material | Glass fiber |
| Winding Material | CCAW |
| Cone Material | PPI |
| Surround Material | Rubber |
| Basket Material | Aluminum |
| Magnet Material | Ferrite + Neodymium |
| Magnet Weight | 73oz + 1.8oz |
| Equivalent Volume | 14.34L / 0.506ft3 |
| Excursion (one way) | 6.6mm |
| Free Air Resonance | 53 Hz |
| Mechanical Factor | 6.808 |
| Electrical Factor | 0.723 |
| Total Factor | 0.654 |
| Moving Mass | 98.487g |
| Compliance | 92.724 uM/N |
| BL Factor | 12 |
| Voice Coil Inductance | 0.74 mH |
| Cone Area | 330.06 cm_ |
| DC Resistance | 3.2 Ohms |
| Efficiency Bandwidth Product | 73.3 |
| Sealed Internal Volume | 0.6~2ft3 |
| Sealed Box Output Response | 64~45Hz |
| Free Air or Baffle Mount | Yes (Recommended) |

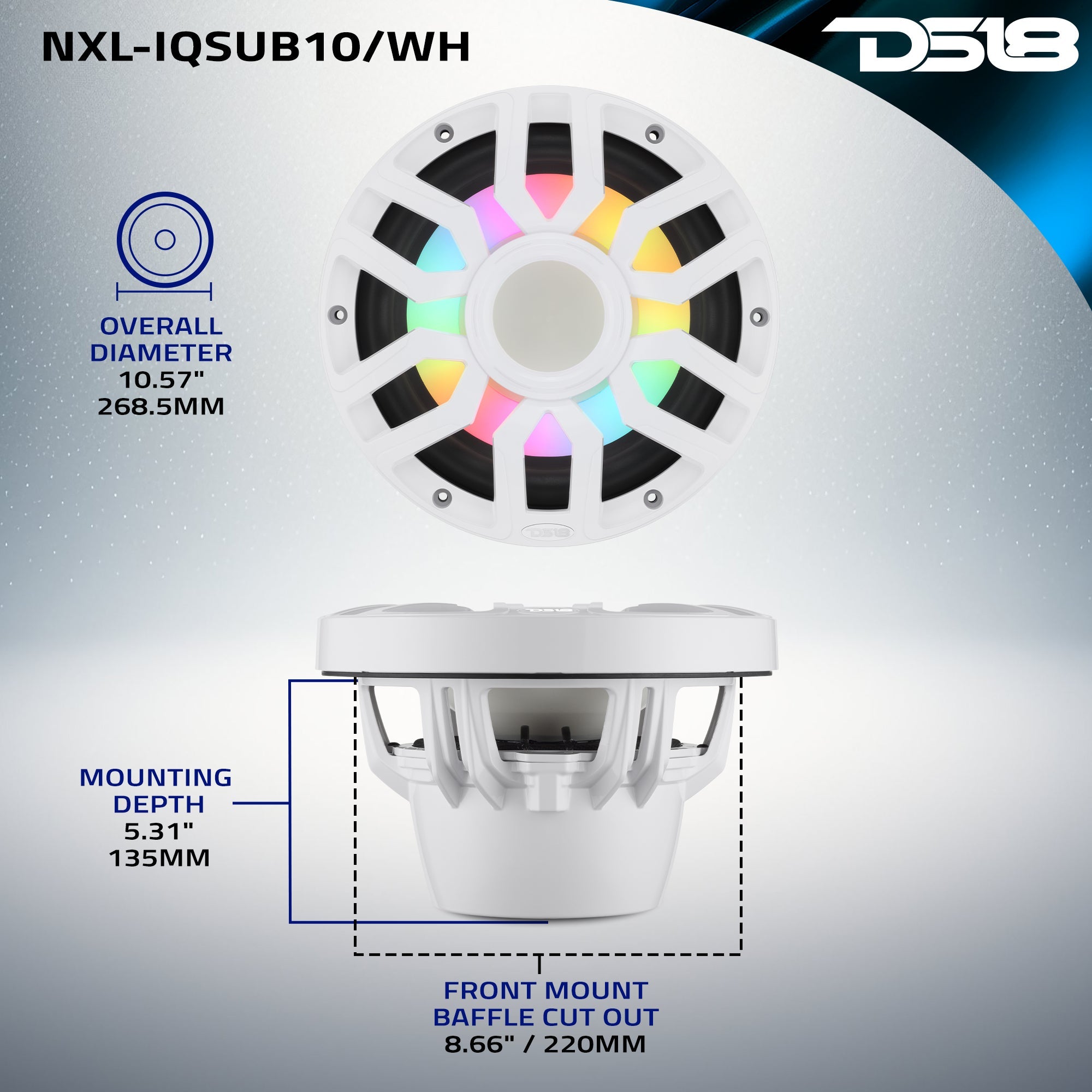

| Overall Diameter | 10.57" / 268.5mm |
| Overall Depth | 6.9" / 175mm |
| Front Mount Baffle Cutout | 8.66" / 220mm |
| Mounting Depth | 5.31" / 135mm |
| Motor Diameter | 5.28" / 134mm |
