6.5” Marine 2-Way Hybrid Speaker with RGB LED, Compression Driver and Neodymium Magnet | 250W RMS 4-Ohm
Product Overview 6.5” Marine Grade Hybrid Speaker with RGB LED’s, Compression Driver, and Neodymium Magnet The NXL-6MD...
Vendor:
DS18
Manufacturer SKU
NXL-6MD/BK
Availability:
In Stock
Product Type:
Compression Drivers & Horns
- $624.95
- $624.95
- Unit price
- per
Subtotal:
$624.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

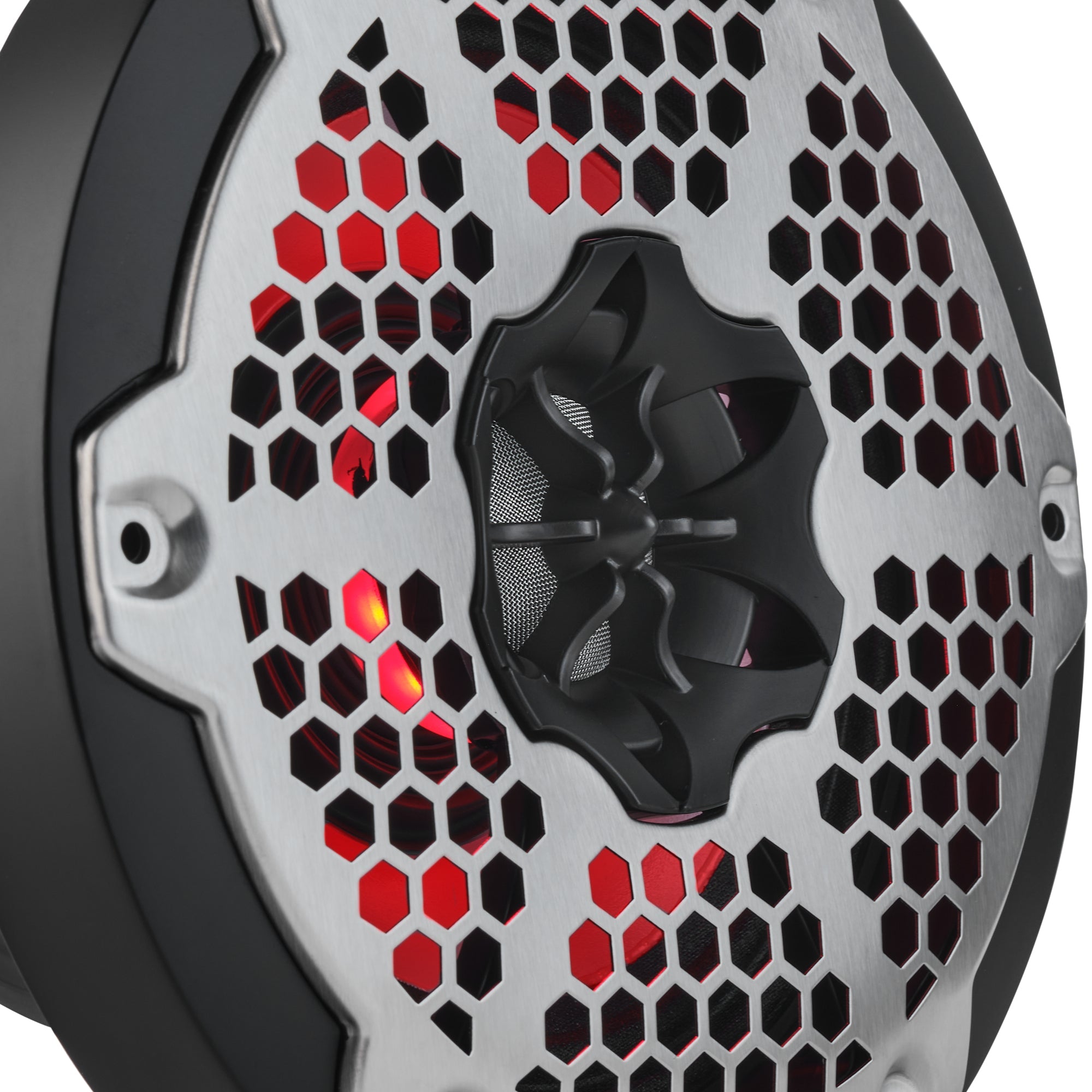

6.5” Marine Grade Hybrid Speaker with RGB LED’s, Compression Driver, and Neodymium Magnet
The NXL-6MD handles 250W RMS and 500W MAX in a compact 6.5-inch frame. Engineered with an IP65 marine-grade certification, this speaker stays crystal clear no matter the conditions.
Hybrid Design for Full-Range Sound
This 2-way hybrid speaker features a neodymium-powered compression driver with a CNC machined aluminum horn for punchy highs, while the water-resistant paper cone woofer delivers warm, precise mids and bass. The combination provides a balanced and immersive audio experience across a wide frequency range of 80Hz to 20kHz.
Durability Meets Style
Built with an injection-molded ASA basket with UV protection and removable 316 stainless steel grill, the NXL-6MD is rugged yet visually striking. Integrated 12V RGB LED’s light up your marine or powersports setup.
Ready for Installation

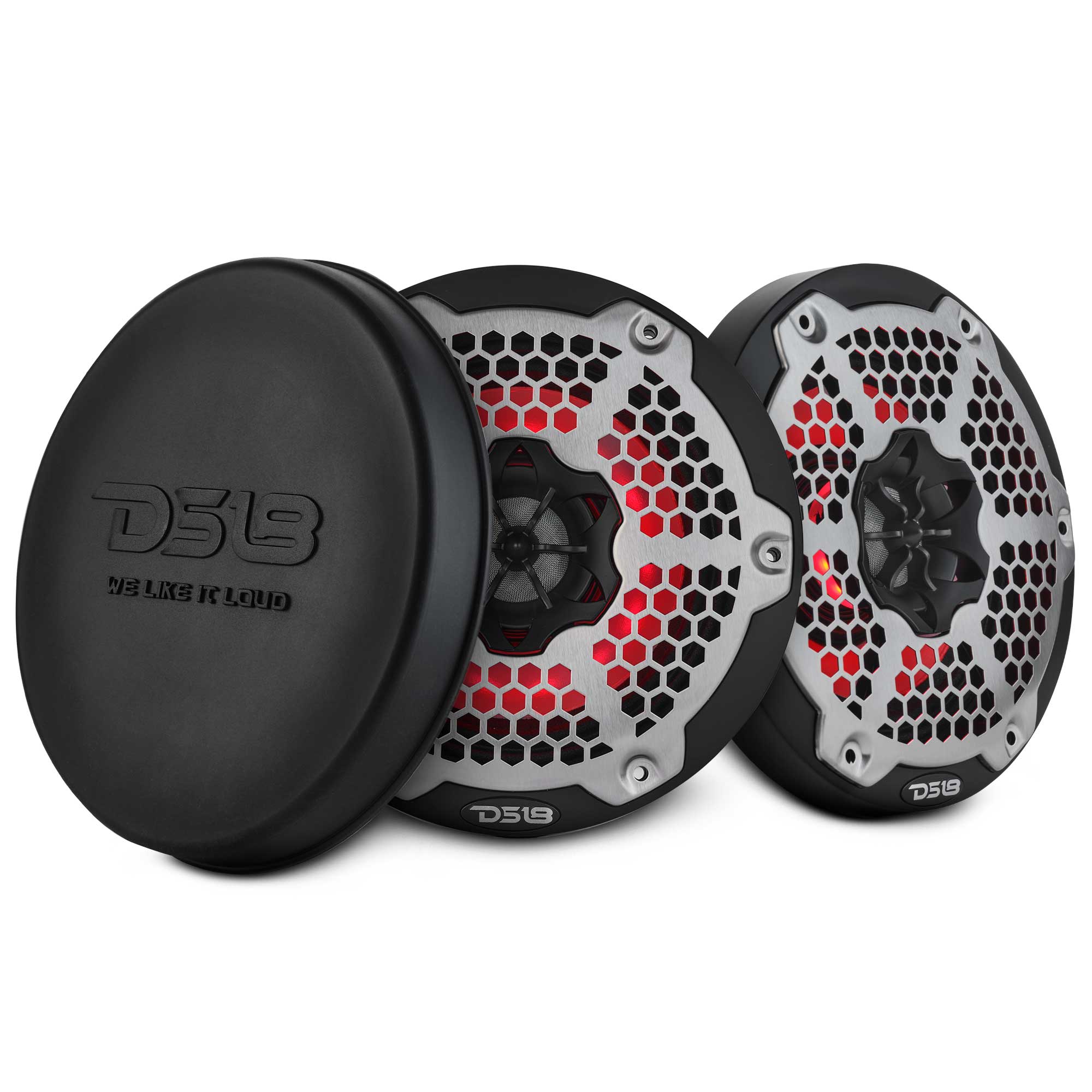

Installation is straightforward, and the NXL-6MD is sold in pairs to fit perfectly in your boat, ATV, or outdoor vehicle audio system. Speaker covers are included.
Upgrade to DS18’s NXL-6MD and enjoy premium marine audio with customizable LED lighting!
Key Features
- Neodymium compression driver with CNC aluminum horn for crisp highs
- Waterproof and UV-protected for all-weather durability IP65

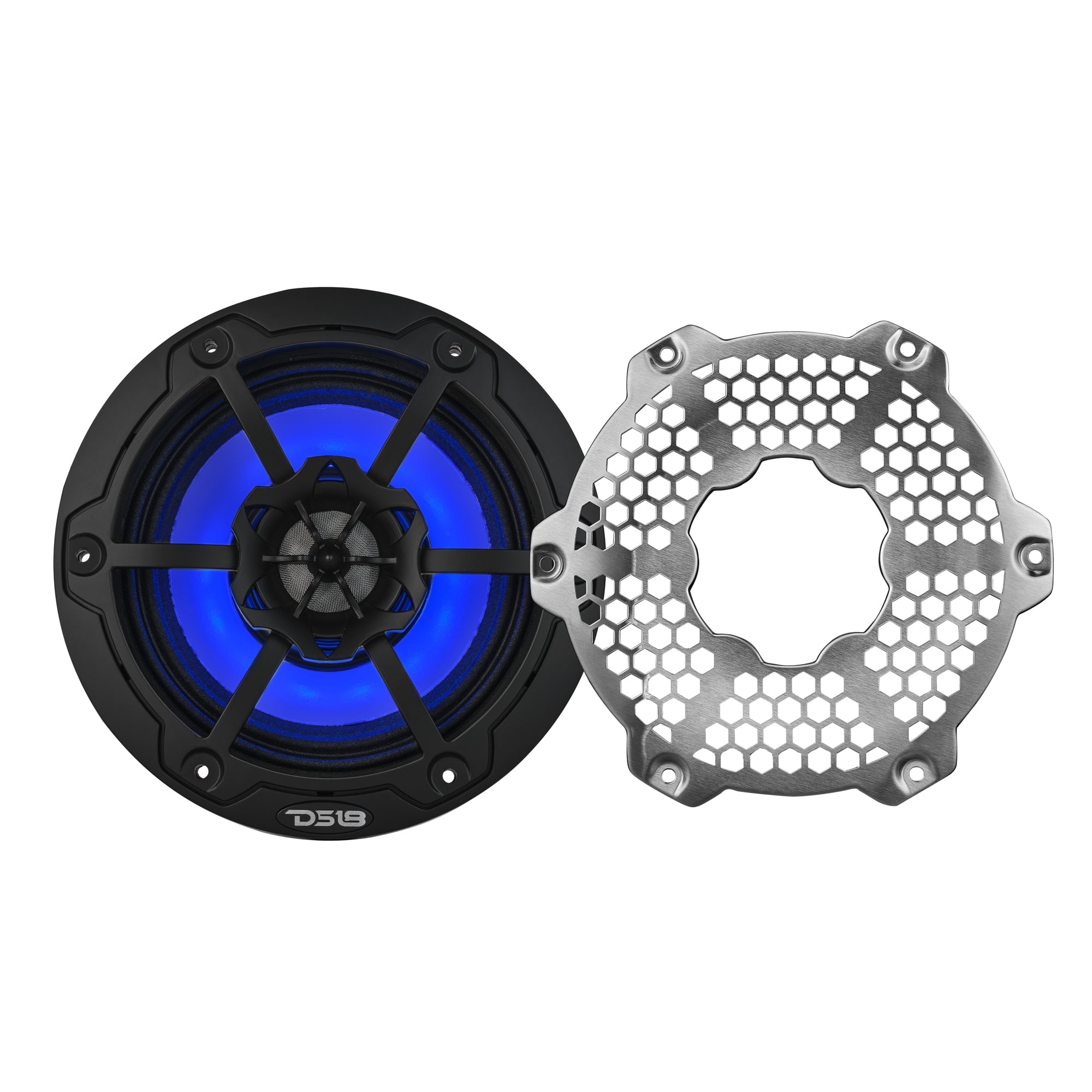

- Removable Stainless Steel Grill

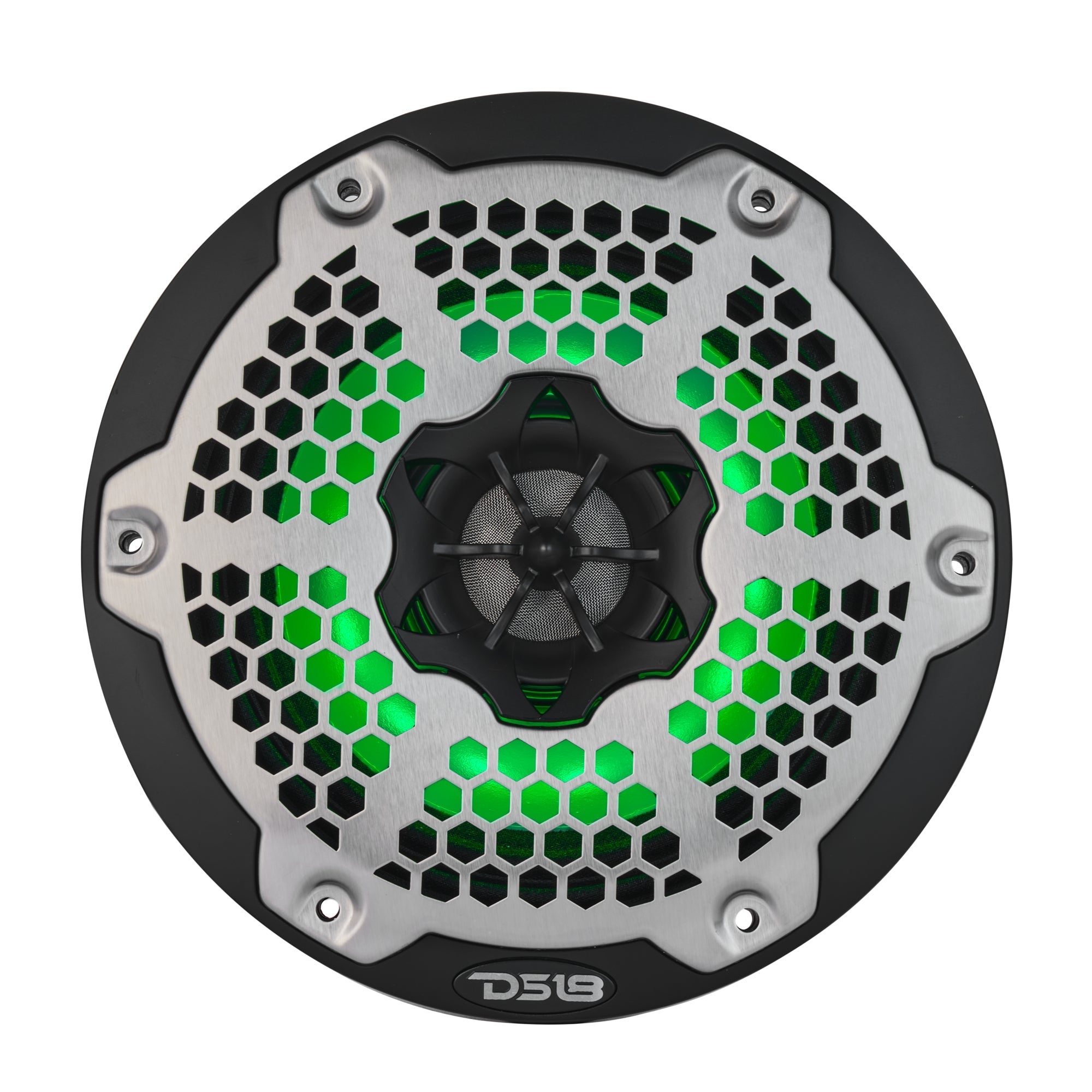

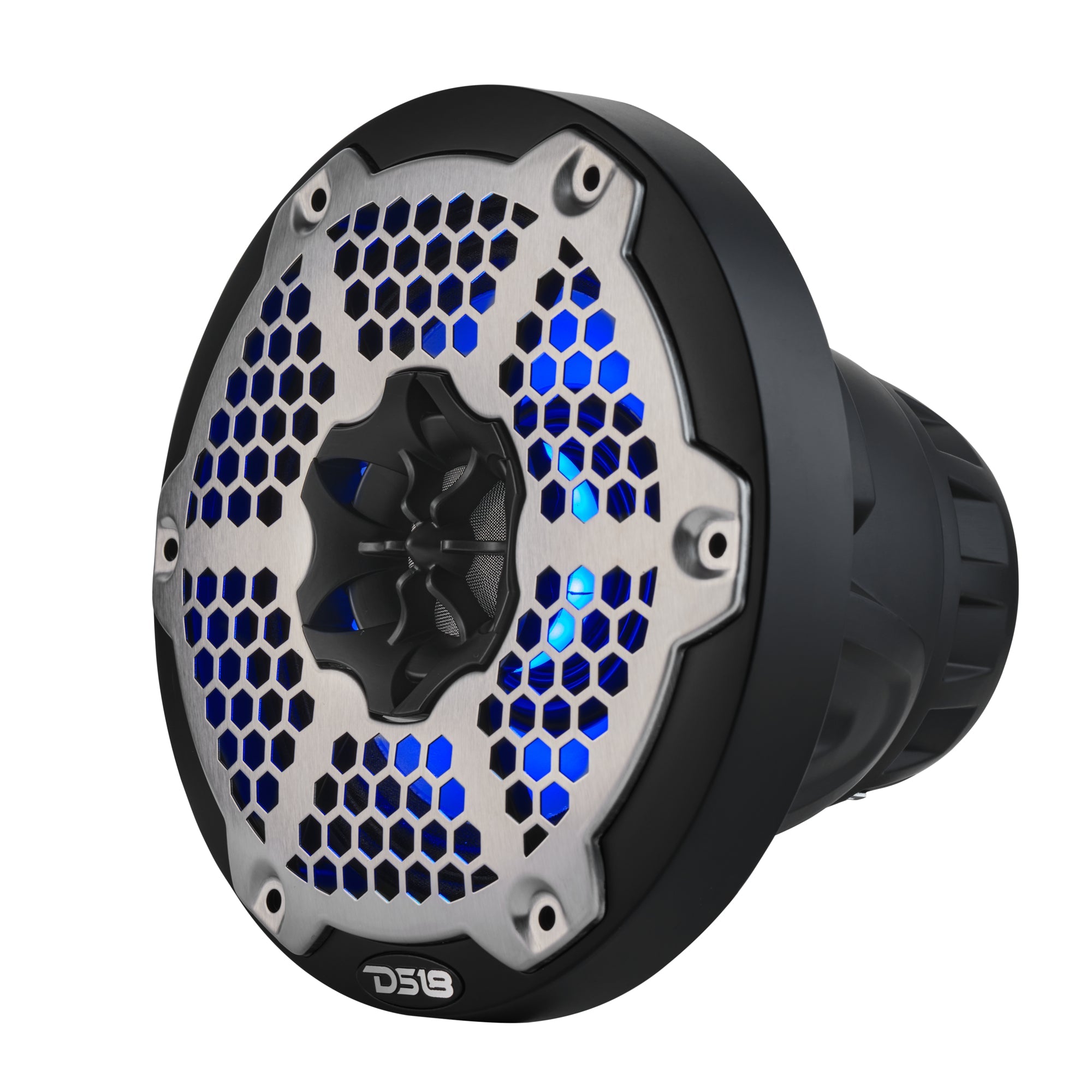

- Vibrant RGB Lighting

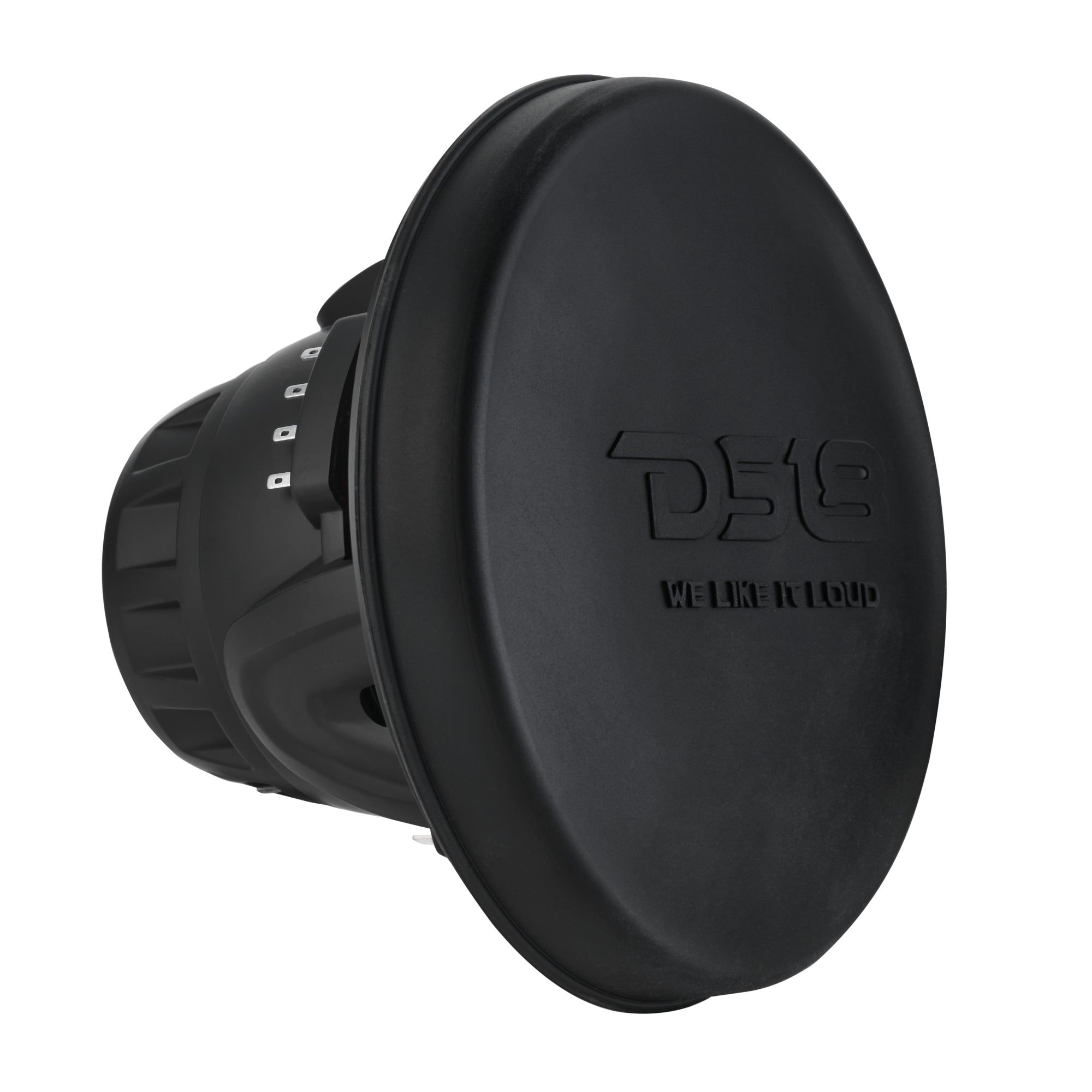

- Speaker covers included
Specifications
| Nominal Diameter | 6.5" / 165mm |
|---|---|
| RMS Power Handling (Combined) | 250W |
| MAX Power Handling (Combined) | 500W |
| Sensitivity (1w/1m) (Combined) | 108dB |
| Frequency Response (Combined) | 80Hz-20kHz |
| Number of Ways | 2-Ways |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, 12VDC LED integrated |
| Grill Type | Injection Molded Composite ASA with UV Protection coating + Removable 316 Stainless Steel metal mesh |
| Sold in Pair | Yes |
| Color / Finish | Matte Black |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 200W / 50W |
| MAX Power Handling | 400W / 100W |
| Sensitivity (1w/1m) | 93dB / 108dB |
| Frequency Response | 80Hz-9kHz / 1kHz-20kHz |
| Recommended Band-Pass Crossover | 100Hz-2.5kHz |
| Voice Coil Diameter | 1.5" / 38.6mm / 1" / 25.4mm |
| Voice Coil Former Material | Glass Fiber / Kapton |
| Winding Material | CCAW |
| Cone Material | Water-Resistant Paper |
| Surround Material | Treated Cloth |
| Basket Material | Injection Molded PC with UV Protection coating |
| Magnet Material | Neodymium (N40H) / Neodymium (N38H) |
| Magnet Weight | 4.9 oz / 0.61 oz |
| Type | Compression driver with CNC solid aluminum horn |
| Crossover | Built-In 12dB/Oct with overload protection |
| Recommended High-Pass Crossover | 2.5kHz |
| Diaphragm Material | PEN |
| Equivalent Volume | 3.36L / 0.118ft3 |
| Excursion (one way) | 2.5mm |
| Free Air Resonance | 134Hz |
| Mechanical Factor | 5.659 |
| Electrical Factor | 1.036 |
| Total Factor | 0.876 |
| Moving Mass | 8.1g |
| Compliance | 187.33uM/N |
| Bl Factor | 3.729 |
| Voice Coil Inductance | 0.15mH |
| Cone Area | 113.1CM2 |
| DC Resistance | 2.9 Ohms |
| Efficiency Bandwidth Product | 129 |

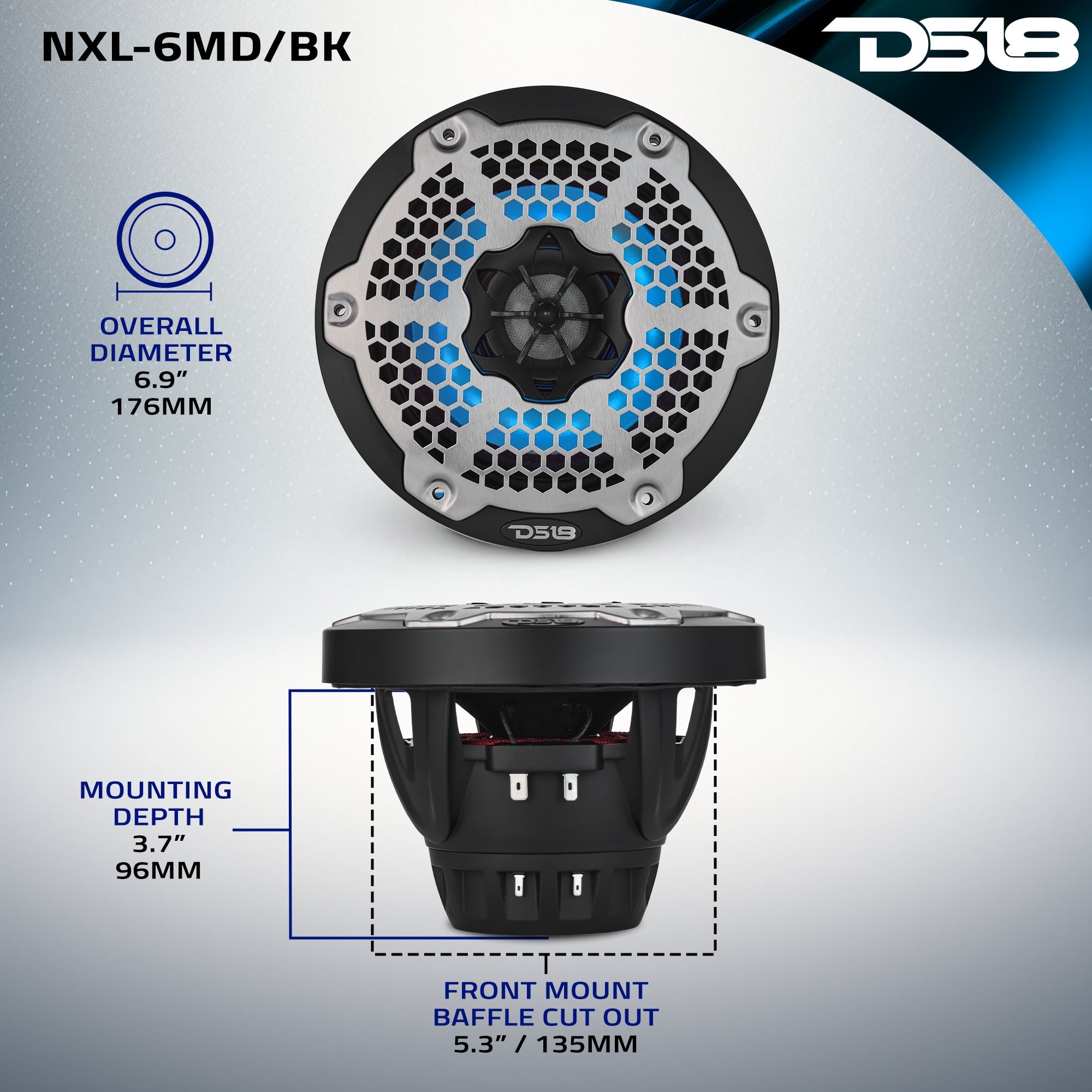

| Overall Diameter | 6.9" / 176mm |
| Overall Depth | 5" / 128mm |
| Front Mount Baffle Cutout | 5.3" / 135mm |
| Mounting Depth | 3.7" / 96mm |
| Motor Diameter | 3.15" / 80mm |
