Product Overview
6-Channel High-to-Low Level Line Output Converter with Remote Turn-On
DS18’s MTLOC6 converts up to six factory speaker outputs to six RCA low-level signals. Selectable impedance settings and input modes make it compatible with various factory stereo configurations.
Automatic Turn-On Features
Trigger your amplifier via audio sensing, DC offset, or remote wire for convenience and reliability.
Robust Construction
A durable anodized aluminum housing with thermal and noise protection guarantees long-lasting performance in any environment.
Audio Purity
Delivering less than 0.01% distortion across 10Hz–20kHz, the MTLOC6 preserves your music’s detail and power.
Bring your system to life with DS18’s MTLOC6.
Key Features
- 6-Channel High-to-Low Conversion
- Selectable Impedance & Input Modes
- Auto Turn-On (Audio / DC / Remote)
- Anodized Aluminum Housing & Noise Protection
- 10Hz–20kHz Frequency Range (<0.01% THD)
Specifications
| Maximum Speaker Level Input | Up to 40V (400 watts RMS) |
|---|---|
| Maximum Preamp Output | Up to 11V |
| Nominal Conversion Ratio | 4:1 |
| Frequency Response | 10Hz - 20kHz |
| Total Harmonic Distortion | 0.01% |
| Signal To Noise Ratio | >110dB |
| Input Impedance | Selectable 20 / 60 / 20k ohms |
| Output Impedance | 100 ohms |
| Power Draw | 230mA |
| Recommended Fuse Rating | 1A |
| Bass Boost | 0 - 12dB |
| Auto Turn-On | Yes (Audio Sens / REM / DC) |
| Remote Output | Yes |
| Level Matching Controls | Yes |
| Dash Remote Level Control | Yes |
| Led Indicators | Power / Clip |
| Housing Material / Color | Aluminum / Black |

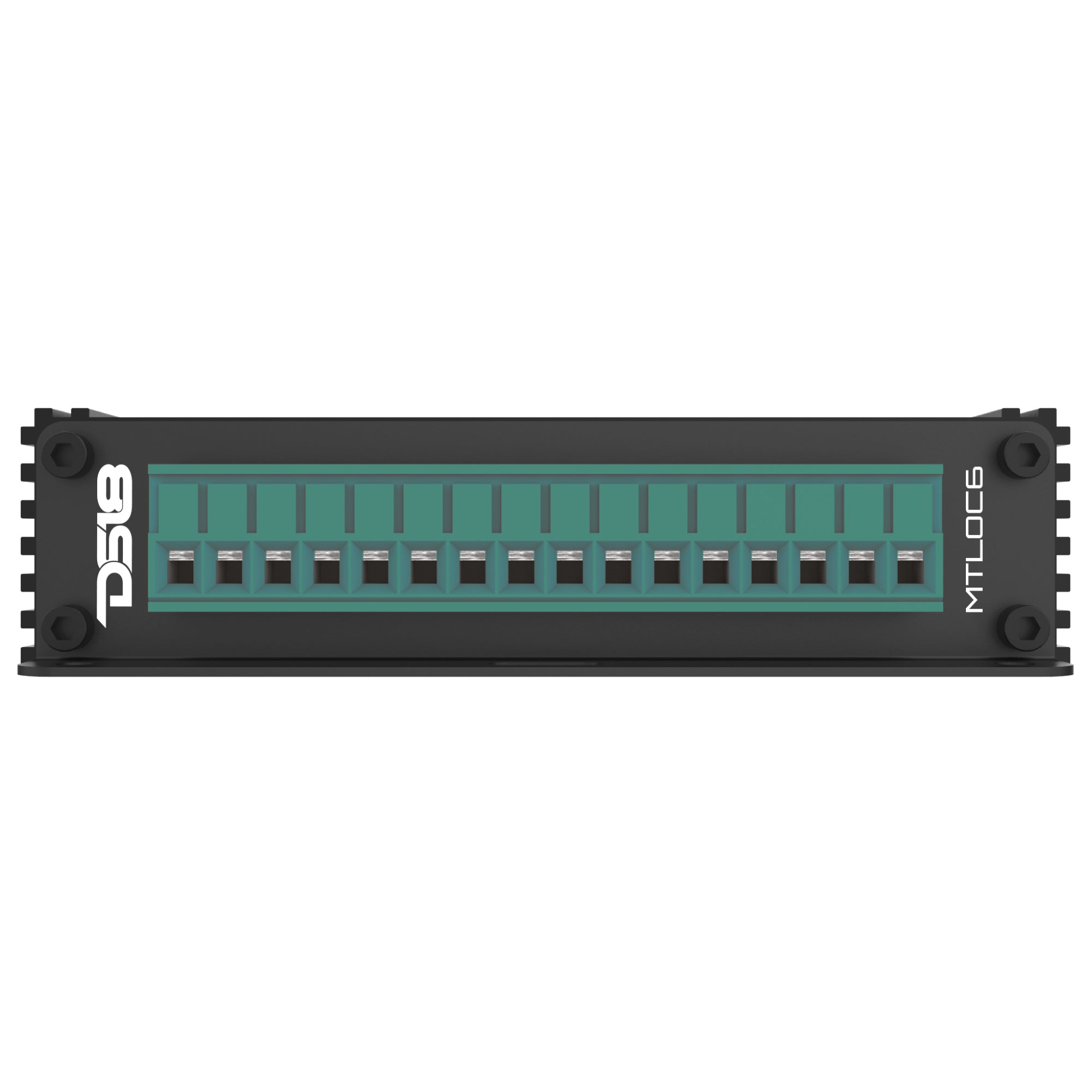

| Wiring Connector | 14ga Quick Connector |
| Ground Isolation | Selectable (200 ohms / Isolated / Grounded) |
| Step-Down Method | Transformer |
| Input Selector | Selectable (2ch / 6ch) |
| Overall Length | 5.7" / 145mm |
| Overall Width | 4.5" / 114mm |
| Overall Height | 1.1" / 28mm |
