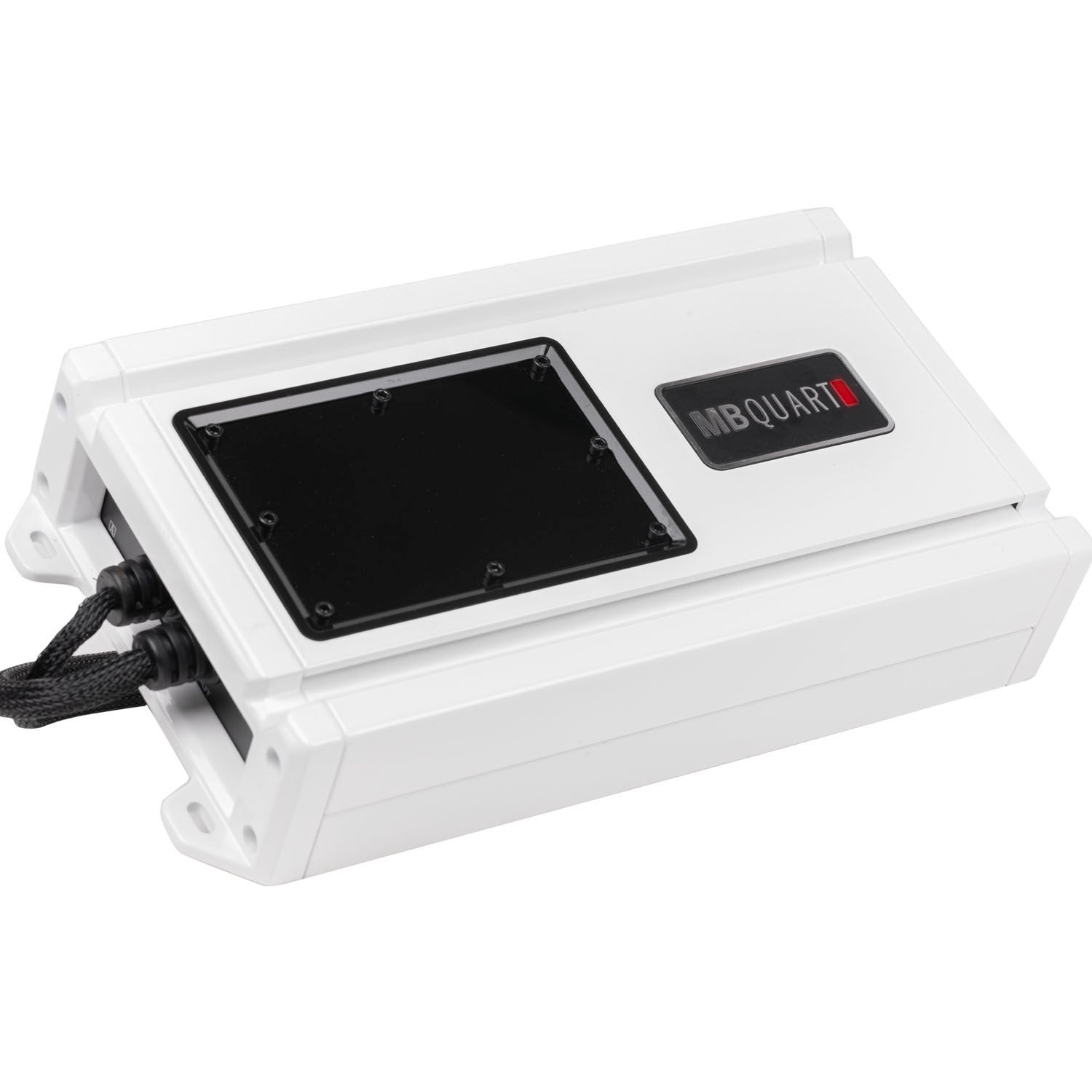

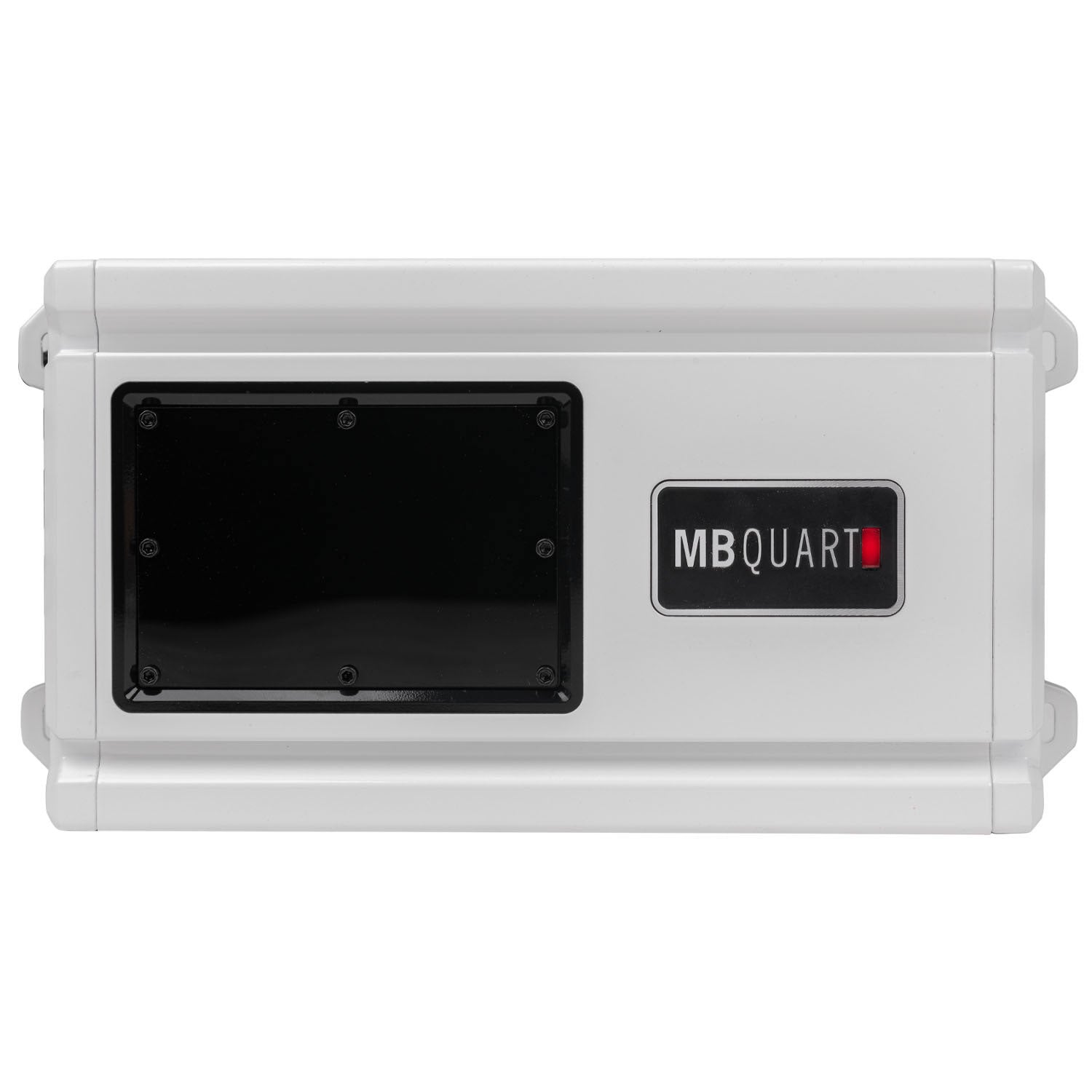

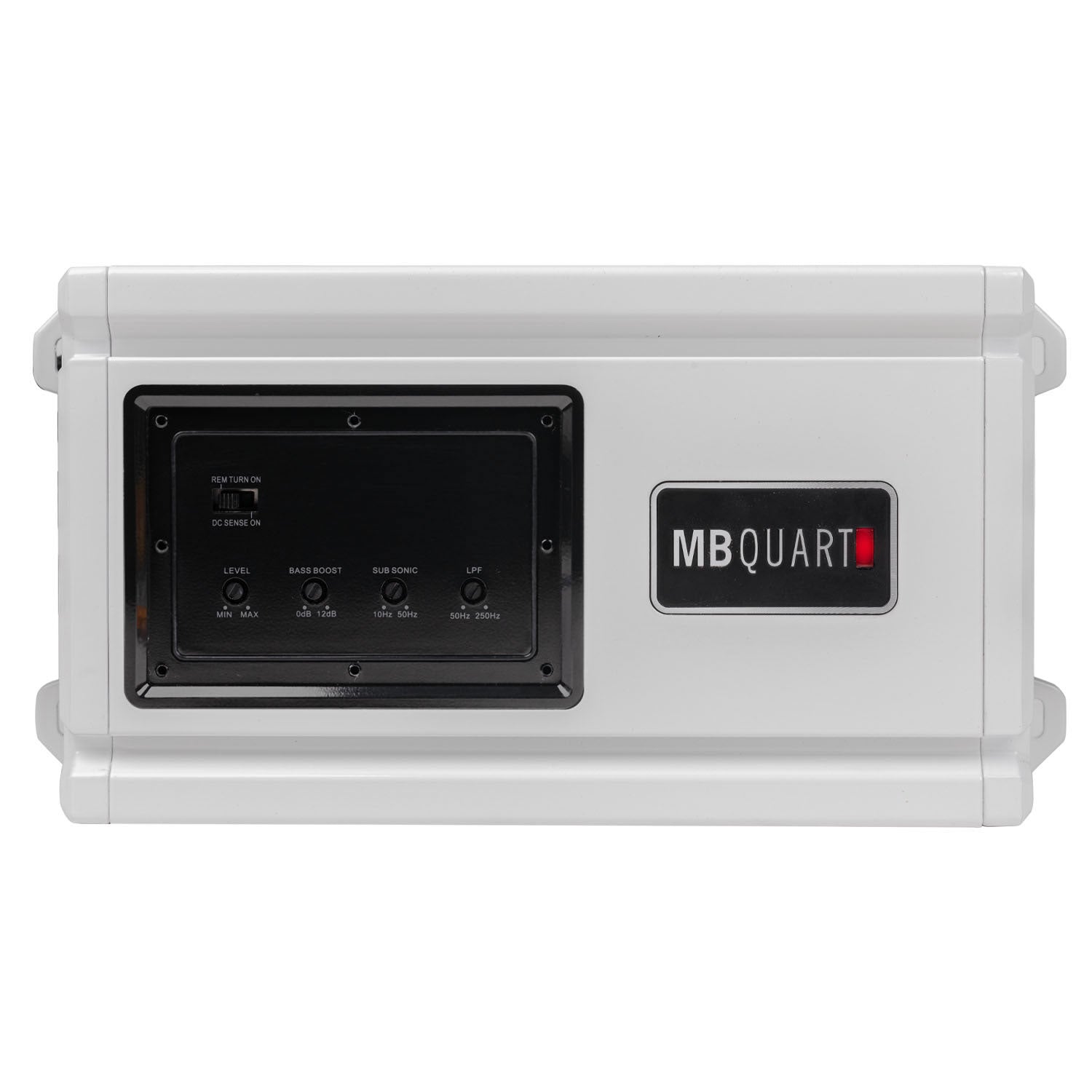

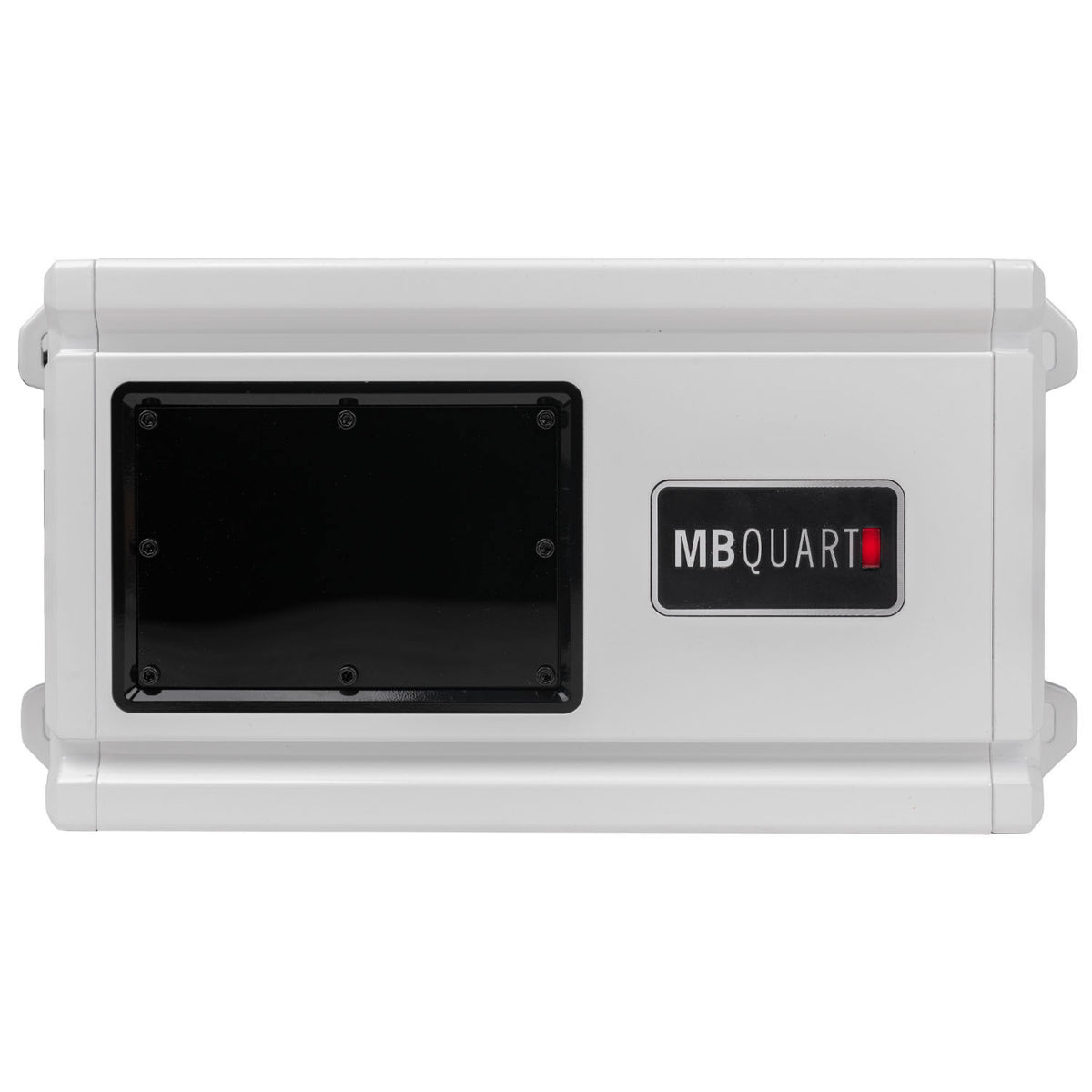

NA3-750.1 Nautic 750 Watt Amplifier
DescriptionMB Quart NA3-750.1 Nautic Marine 750 Watt Mono Block Marine Amplifier with Bass Remote.Features Type: Amplifier Series:...
Vendor:
MB Quart
Manufacturer SKU
MBQ-NA3-750.1
Availability:
Out Of Stock
Product Type:
Marine Amplifiers
- $419.99
- $419.99
- Unit price
- per
Subtotal:
$419.99
Couldn't load pickup availability
Out of stock
Description
MB Quart NA3-750.1 Nautic Marine 750 Watt Mono Block Marine Amplifier with Bass Remote.
Features
- Type: Amplifier
- Series: Nautic
- IPX Rating: IPX Rated for water resistance
- Marine Grade Protection / IPX Rating: Meets or exceeds IPX standards for waterproof and dustproof.
The Kaos Run Down
| Manufacturer | MB Quart |
|---|---|
| Manufacturer SKU | NA3-750.1 |
| Application | Marine |
| Weight | 7.15 lbs |
| Dimensions | 11.5 × 5.86 × 2.24 in |
| Item Weight (lbs) | 6.05 |
| Item Length (in) | 10.0 |
| Item Width (in) | 6.0 |
| Item Height (in) | 2.5 |
| Type | Amplifier |
| Brand | MB Quart |
| Series | Nautic |
| Category | Marine |
| Condition | New |
| Color | White |
| Warranty | 1 Year |
| IPX Rating | IPX Rated for water resistance |
| Compatible Vehicles | Universal |
| Amp Class | Class D |
| Amp Total Channels | 1 |
| Amp Max Power (watts) | 750 |
| Amp Power @ 1 Ohm (ch x watts) | 1 x 750 |
| Amp Power @ 2 Ohms (ch x watts) | 1 x 500 |
| Amp Power @ 4 Ohms (ch x watts) | 1 x 300 |
| Amp Crossover | Electronic |
| Amp Variable High Pass Crossover 12dB per Octave | N/A |
| Amp Variable Low Pass Crossover 12dB per Octave | 50Hz-250Hz |
| Amp Bass Boost | 0-12dB |
| Amp Subsonic Filter | OFF/25Hz |
| Amp Variable Voltage | 0.02-9V |
| Amp Signal to Noise | > 99dB |
| Amp Frequency Response | 10Hz – 250Hz |
| Amp Total Harmonic Distortion (THD) | < 0.01% |
| Amp Power Terminal 12v/GND | 10 AWG |
| Amp Speaker Terminal Wire Gauge | 12 AWG |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Marine Grade Protection / IPX Rating | Meets or exceeds IPX standards for waterproof and dustproof. |
| Low Noise Preamplifier Circuit | Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion. |
| RCA Inputs | Prewired to PC Board for additional protection. Leave connector cover closed on RCA jacks that are not used. |
| High Level Inputs | See Auto-Sense Feature. |
| Operation Mode | 1 Channel |
| Crossover Type | Variable electronic crossovers allow for complete control of the sound. |
| Electronic Equalizer | Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier. |
| Class / Topology | Full Range Class D: Highly efficient circuit topology which helps the amplifer develop a lot of power in a compact heatsink. |
| Output Device Technology | FLUID-FETS: MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers. |
| Heat Sink | Nautic gloss white epoxy finish helps reject heat on the surface of the amplifier. Heavy duty heat-sink efficiently moves heat from the MOSFET where it can be cooled. |
| Power Supply | Robust marine grade MOSFET Pulse Width Modulation power supply. Allows amplifier to product efficient power without taxing the boats electrical system. |

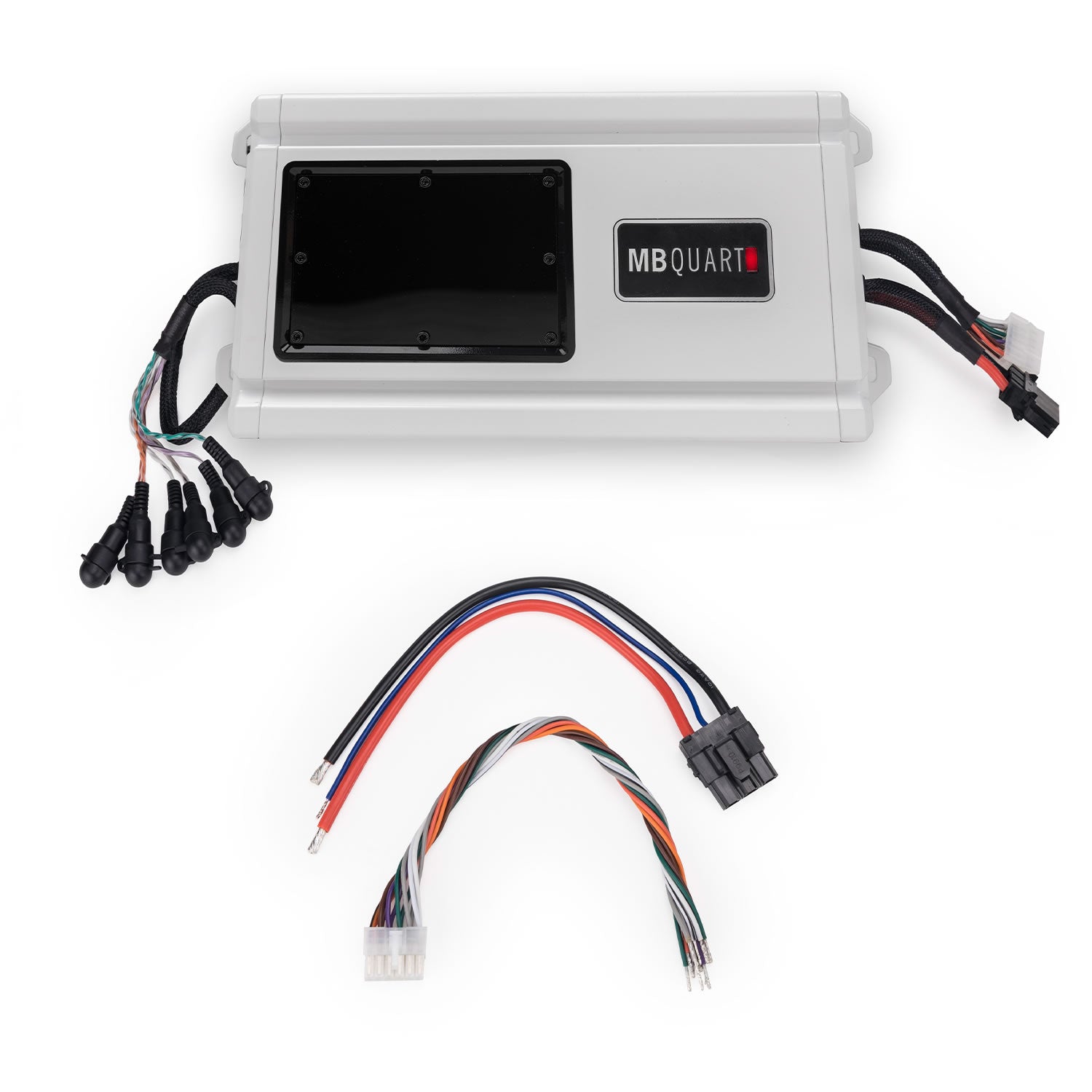

| Output Connections | Connection from amplifier are sealed and grommeted. |

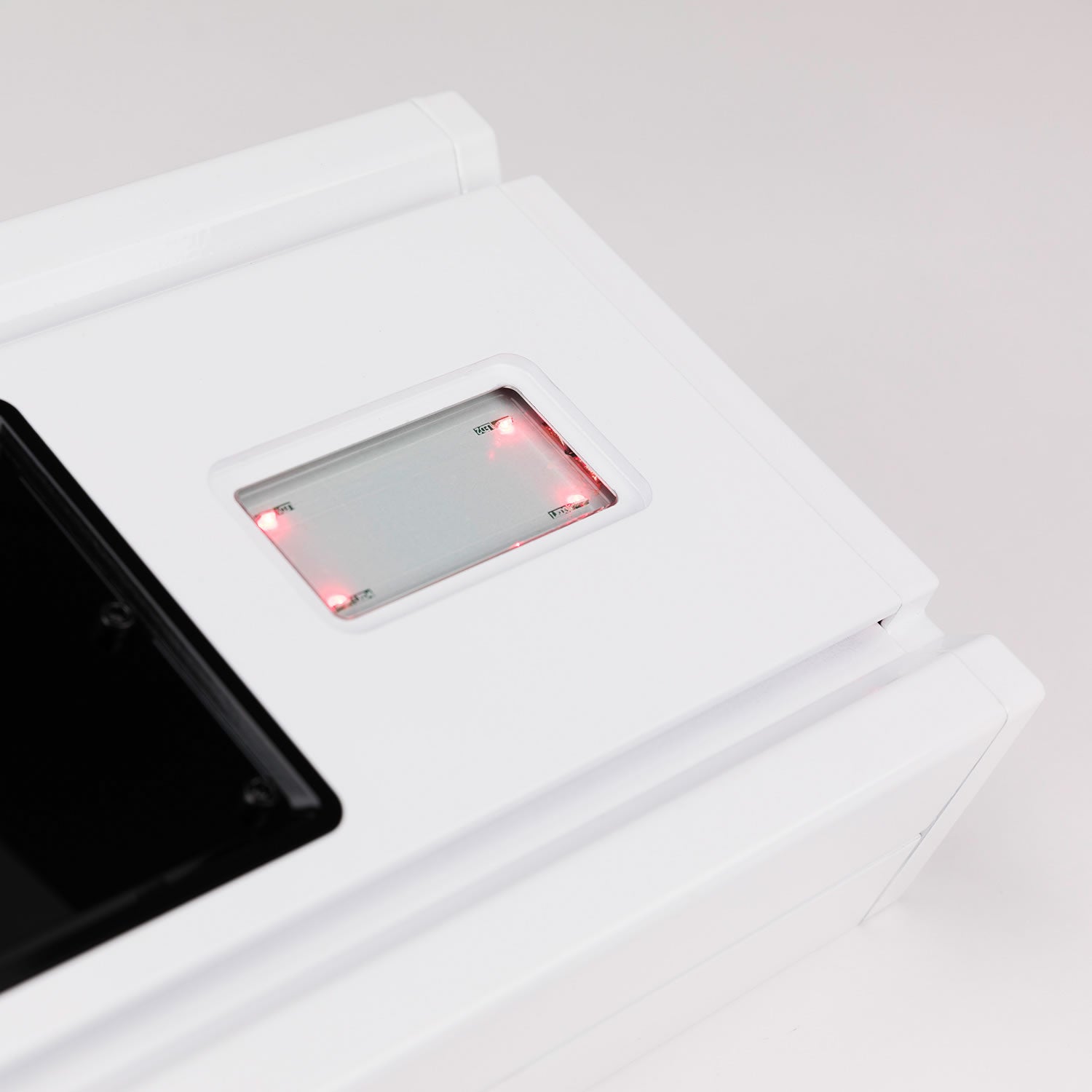

| LED System Protection Circuitry Diagnostics | Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel. |

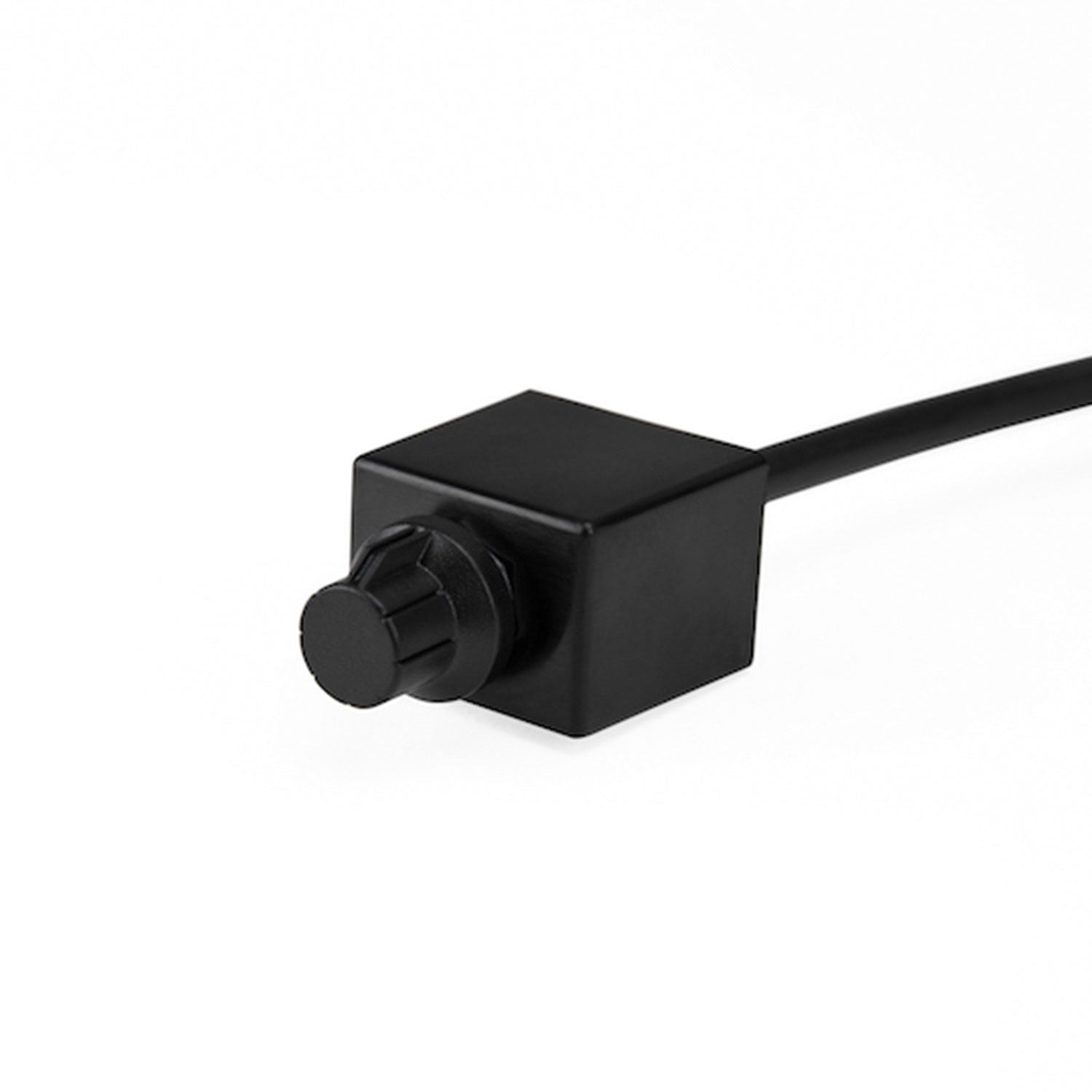

| Bass Remote Included | Included to allow the captain to make subtle changes to the bass respond of the audio system from the seated listening position. |

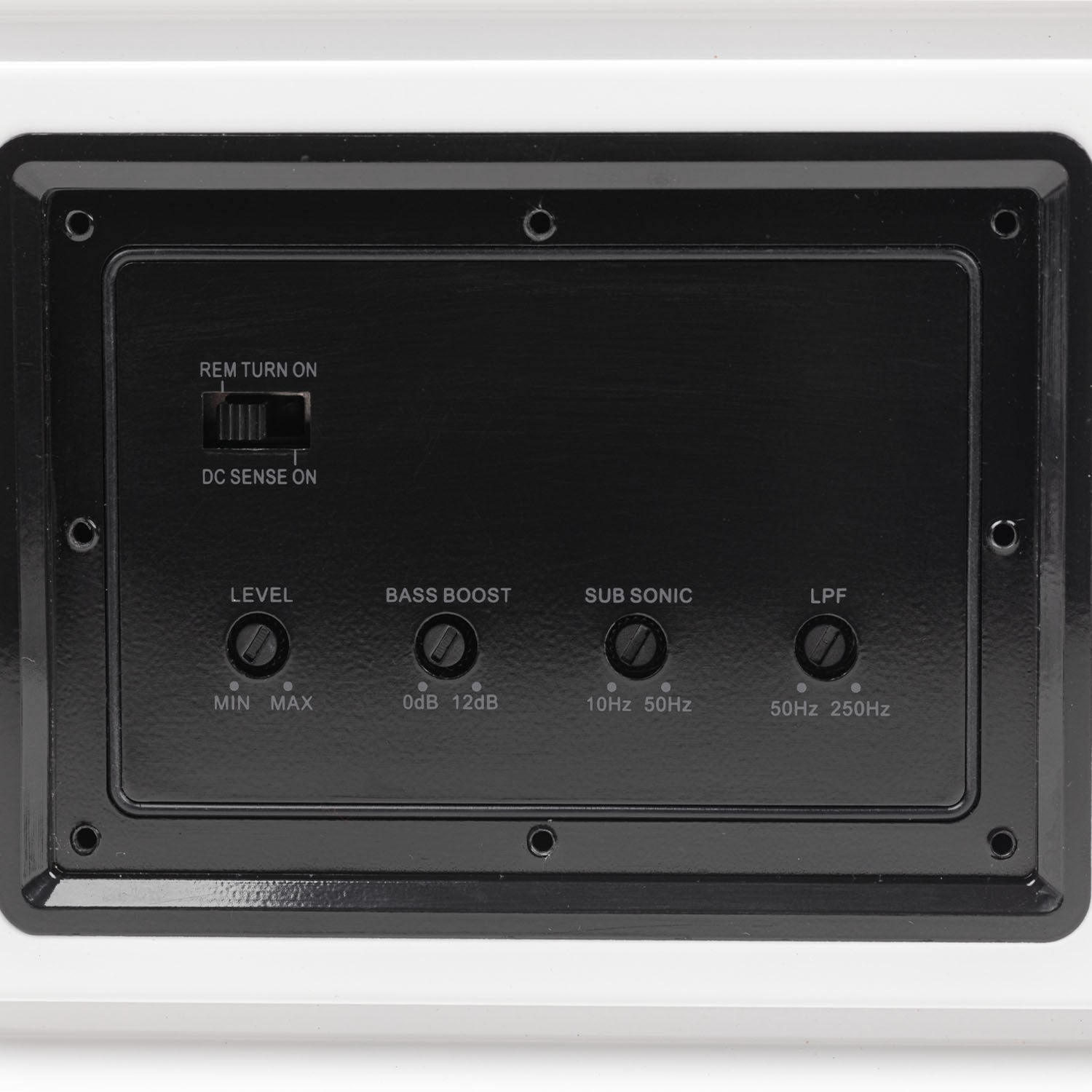

| Auto Turn-On | DC SIGNAL SENSE: The DC SIGNAL SENSE switch will allow the amp to turn on when a signal is received on the RCA inputs, so an amplifier remote turn on wire is not needed to turn on the amplifier. This feature can also be turned off. |
| SMT Inside | With Surface Mount Technology the typical "through-hole" placement and the larger tolerances from human placement is dramatically improved. In addition, circuit engineers can design better circuits for power and sound quality as the tolerances of SMT components are superior to larger "through-hole" components. Because of their lower mass SMT components withstand shock and vibration making them perfect for audio designed for all vehicles. |
| Additional Features | With Surface Mount Technology the typical "through-hole" placement and the larger tolerances from human placement is dramatically improved. In addition, circuit engineers can design better circuits for power and sound quality as the tolerances of SMT components are superior to larger "through-hole" components. Because of their lower mass SMT components withstand shock and vibration making them perfect for audio designed for all vehicles. |
| View/Download (1.1 MB) | MB Quart Nautic Amplifiers (NA3) Quick Start Guide (Rev4) |
