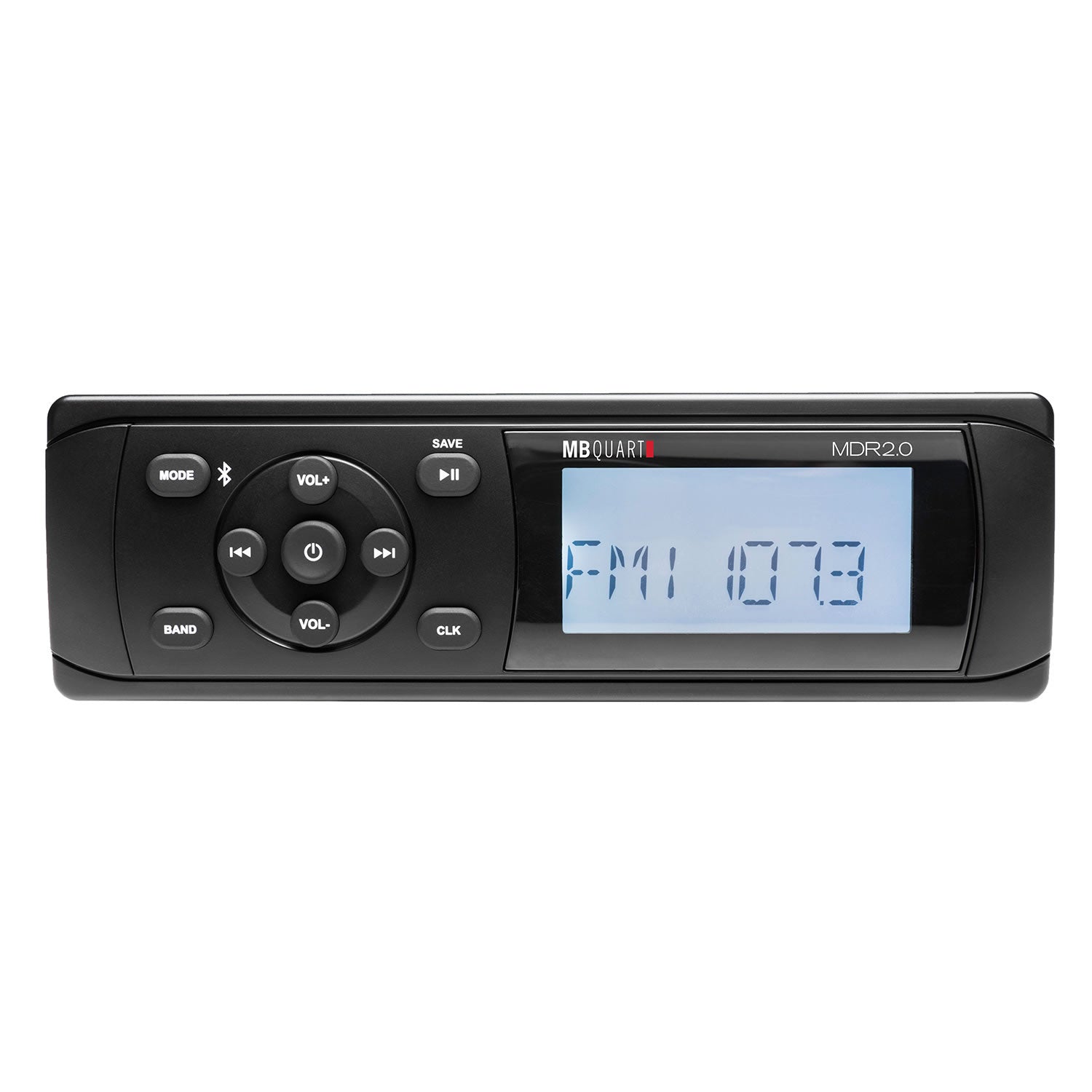

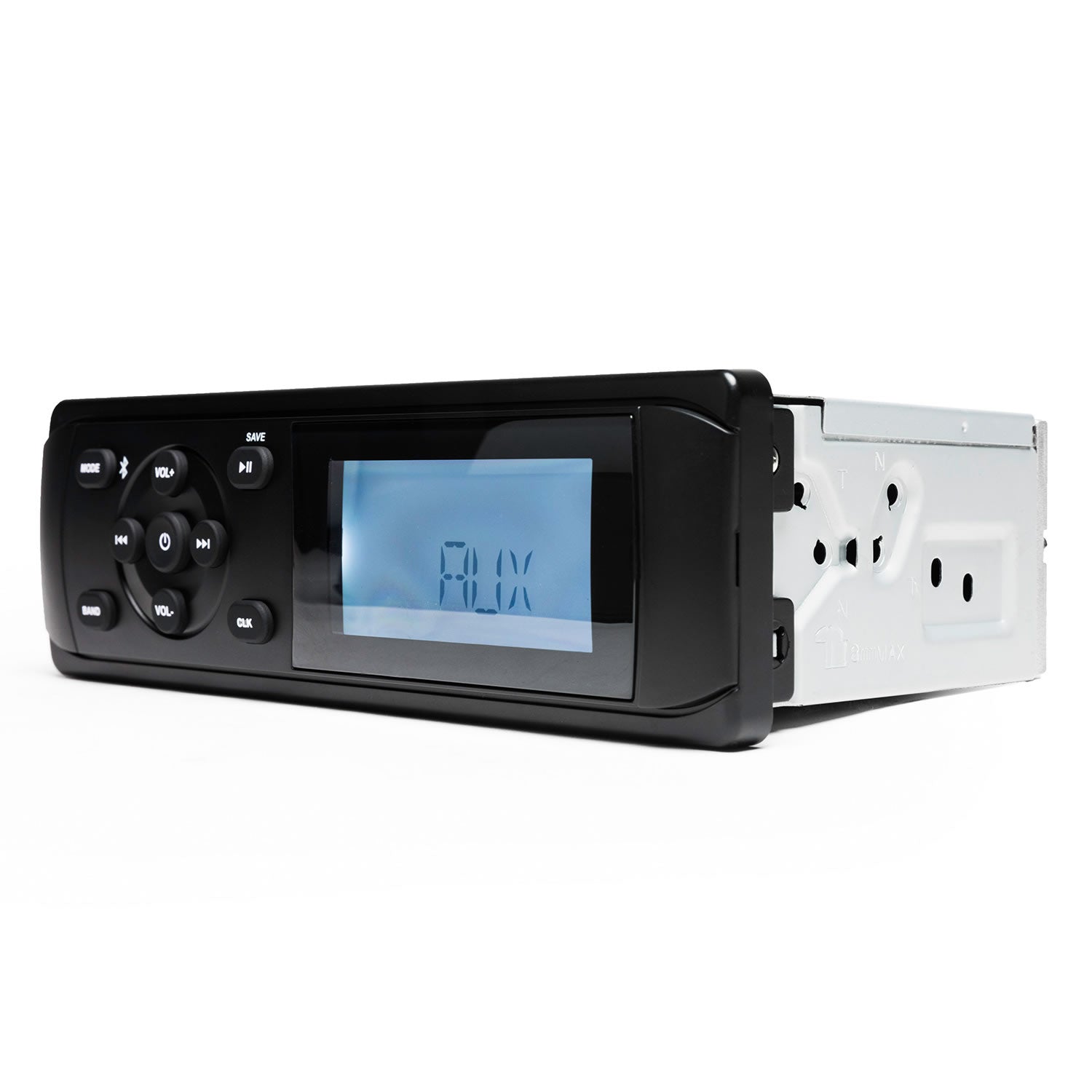

MDR2.0 160 Watt Digital Source Unit
DescriptionMB Quart MDR2.0 160 Watt Multimedia Receiver with AM/FM Radio and Bluetooth Input.Features Type: Source Unit Series:...
Vendor:
MB Quart
Manufacturer SKU
MBQ-MDR2.0
Availability:
Out Of Stock
Product Type:
Digital Media Receivers
- $198.99
- $198.99
- Unit price
- per
Subtotal:
$198.99
Couldn't load pickup availability
Out of stock
Description
MB Quart MDR2.0 160 Watt Multimedia Receiver with AM/FM Radio and Bluetooth Input.
Features
- Type: Source Unit
- Series: MDR
- IPX Rating: IPX5
- Marine Grade Protection / IPX Rating: Meets or exceeds IPX5 requirements for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors.
The Kaos Run Down
| Manufacturer | MB Quart |
|---|---|
| Manufacturer SKU | MDR2.0 |
| Application | Marine |
| Weight | 1.68 lbs |
| Dimensions | 8.75 × 4.0 × 6.5 in |
| Type | Source Unit |
| Brand | MB Quart |
| Series | MDR |
| Category | Marine, RV |
| Condition | New |
| Color | Black |
| Crutchfield Available | Yes |
| Crutchfield Link | https://www.crutchfield.com/p_049MDR20/MB-Quart-MDR2-0.html |
| Warranty | 1 Year |
| IPX Rating | IPX5 |
| Compatible Vehicles | Universal |
| Source Unit Tuner Section FM Stereo Frequency Range | 87.5MHz-108MHz |
| Source Unit Tuner Section S/N Ratio | 86.4dBA |
| Source Unit Bluetooth Range (ft) | 32 |
| Source Unit RMS Power Output (watts) | 4 x 16 |
| Source Unit Peak Power Output (watts) | 4 x 40 |
| Source Unit S/N @1W | 90.6dBA |
| Source Unit Frequency Response (Aux In) | 20Hz-20kHz |
| Source Unit Pre-amp Outputs (Y/N #) | 1 Pair, Yes |
| Source Unit Pre-amp Voltage | 5.9V |
| Source Unit Minimum Impedance (ohms) | 4 |
| Source Unit Display Type | LCD |
| Source Unit Dimensions Mounting Hole (in) | 7.0 x 2.0 |
| Source Unit Dimensions Total Mounting Depth (in) | 4.5 |
| Additional Details | MAXIMUM THD+N AT 4 OHMS: 15.8 watts, MAXIMUM UNDISTORTED PREAMP VOLTAGE (WITH 20K OHM LOAD): 5.9 Volts, SIGNAL TO NOISE (CTA-2006B): -86.4dBA AUX / -84.7dBA Bluetooth, SIGNAL TO NOISE RATIO OF LINE LEVEL OUTPUTS (AT MAX VOLUME): Bluetooth -88.4dBA / Aux -90.6dBA, PREAMP FREQUENCY RESPONSE (+/- 3.0DB): 20Hz–19.5kHz AUX / 34Hz–15.6kHz Bluetooth, AMPLIFIER FREQUENCY RESPONSE (+/- 3.0DB): 20Hz–20.0kHz AUX / 27Hz–20.0kHz Bluetooth, STEREO SEPARATION (AUX INPUT): -65.1dB @ 5kHz, FM MONO USABLE SENSITIVITY: 12.7dBf, AM MONO USABLE SENSITIVITY: 12-14µV |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Compatible Vehicle Fitment | Universal |
| Marine Grade Protection / IPX Rating | Meets or exceeds IPX5 requirements for water and dust proofing. LIFE SHIELD: This product has been designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors. |
| Apple® Control | Quick control and access of music apps via iPhone, iPod and iPad. |
| Source Type | AM/FM/Bluetooth® Radio allows all access to radio stations and content from Bluetooth enabled devices. |

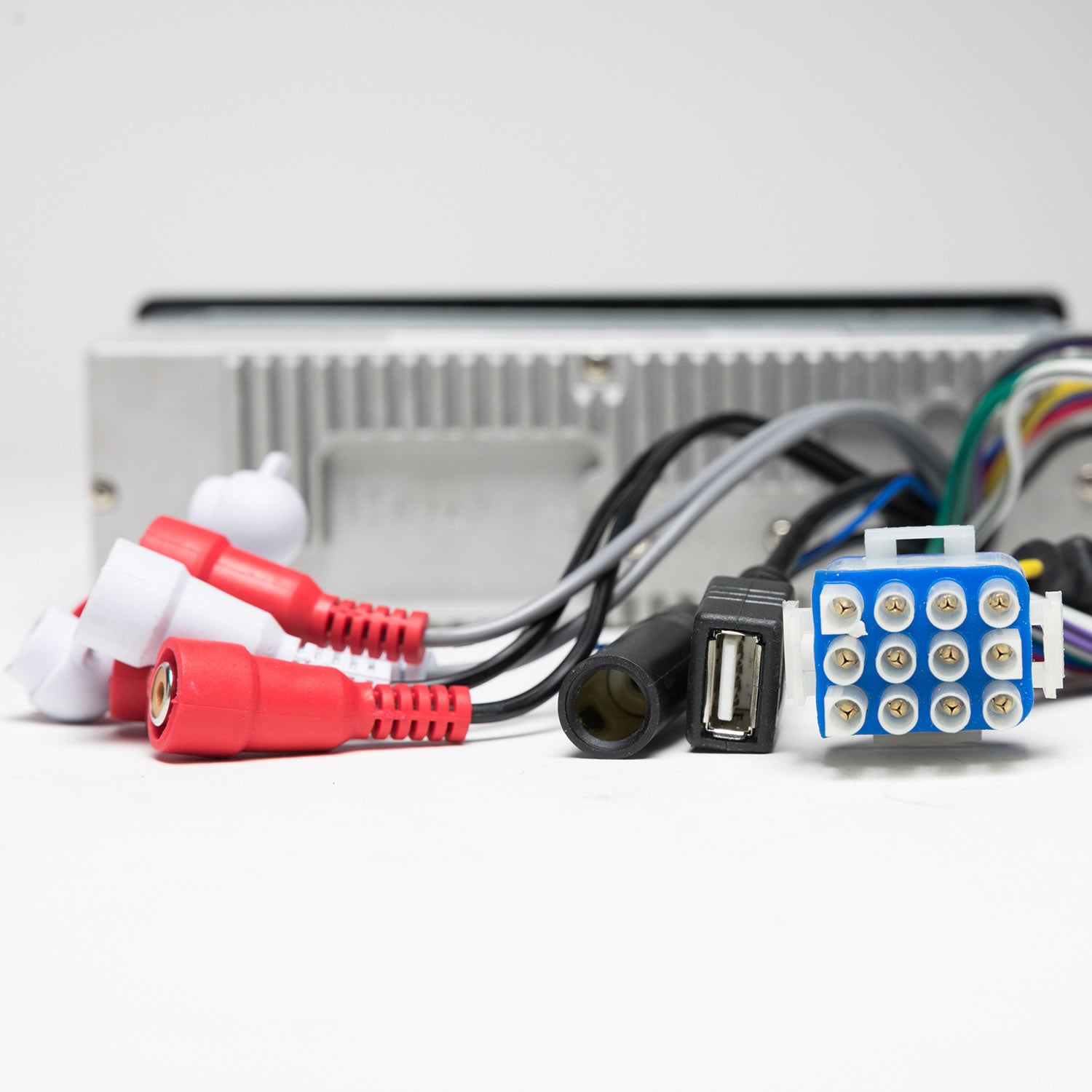

| Input Types | Bluetooth, RCA, USB: Nearly nothing the device can not play. |
| Control Buttons | Front facing buttons to engage and adjust all features. |
| Bluetooth® Connect | Bluetooth® Connect allows your phone or other Bluetooth enabled device to be quickly paired to the controller without a complicated pairing process. |
| Secure Simple Pairing™ | Quick and secure wireless connection between your Bluetooth enabled device. This reliable connection is impervious to outside interference, providing a lock-tight connection to your audio system. |
| Quick-Pair™ | No more frustration with trying to pair. When the unit powers up, it immediately connects to the last device connected. For a first time connection, you only have to select "MB Quart" from your Bluetooth menu and you are connected, QUICKLY. |
| Built-In Power | Four channels of output. These channels remain active when running external amplifiers (RCA Output) to run additional speakers in the vehicle. |

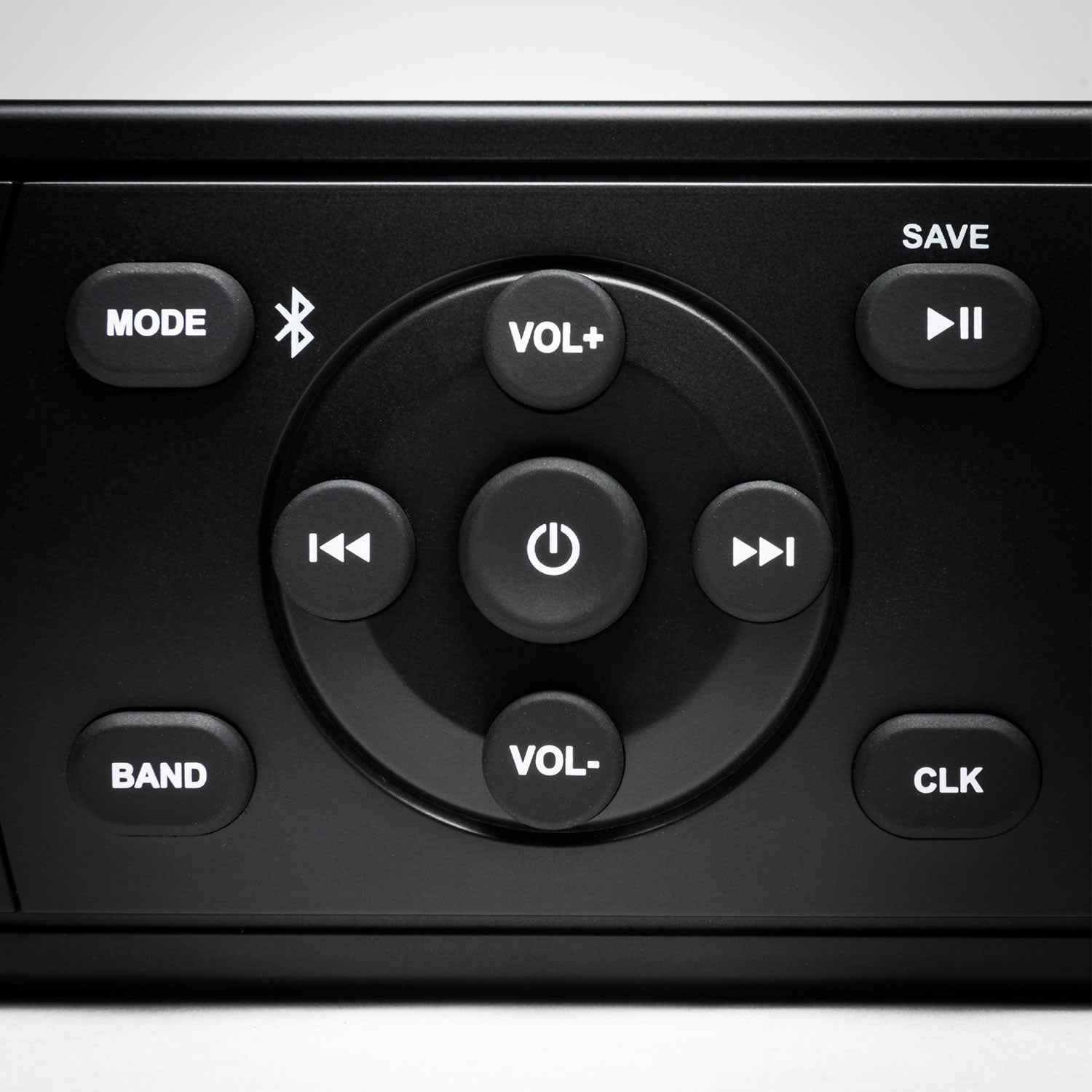

| Control Method | 9 control buttons on faceplate. |
| Frequency Range | FM: 87.5-108, AM: 530-1710 |
| Additional Inputs | 1 Pair (Aux), 1 USB |
| USB / Apple® / Charging Port | 1 USB |
| Bluetooth® Version | Version 4.0 |
| View/Download (816.1 KB) | MB Quart Source Unit (MDR2.0) Installation Manual (Rev1.0) |
| View/Download (160.9 KB) | MB Quart MDR2.0 Firmware Update (stm8) |
