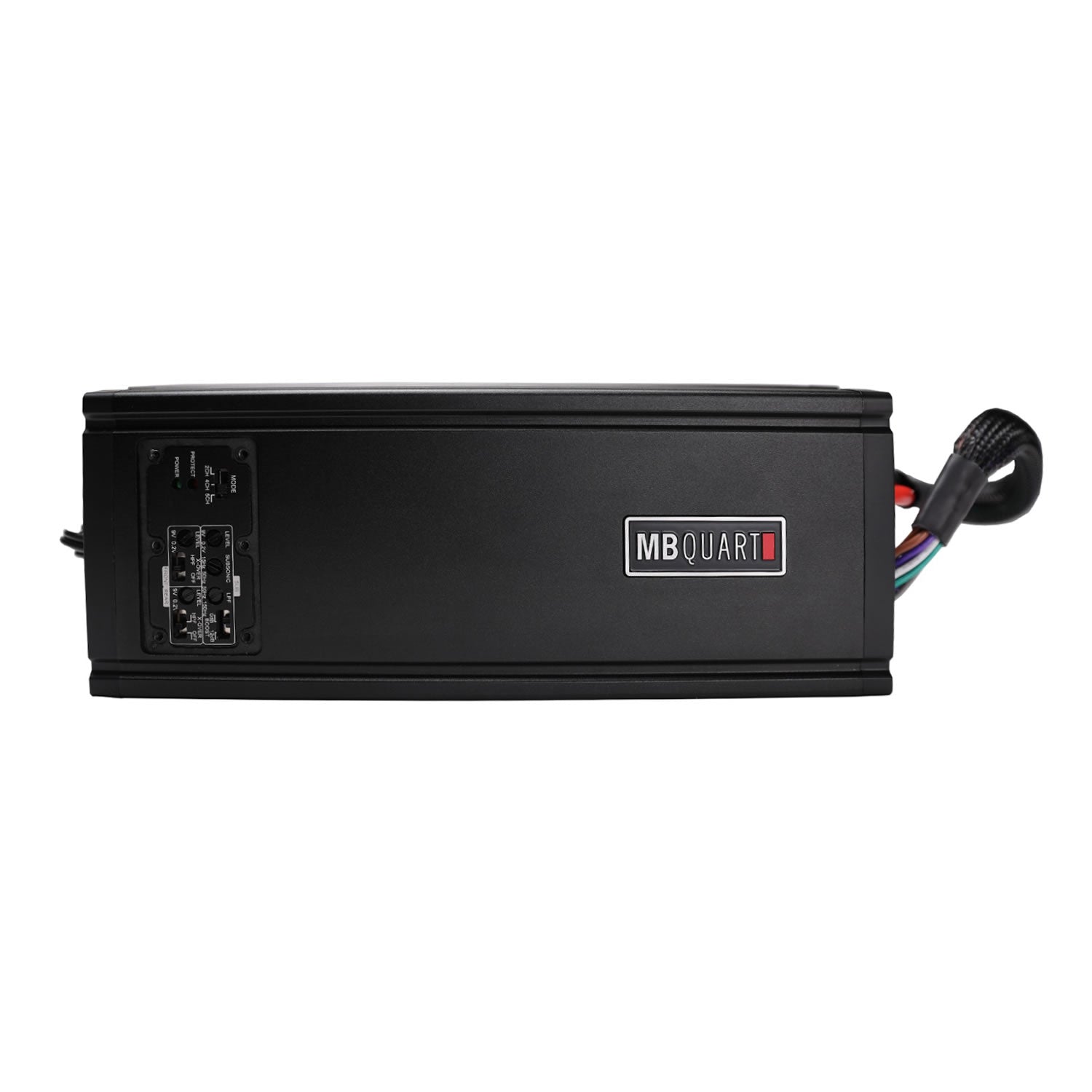

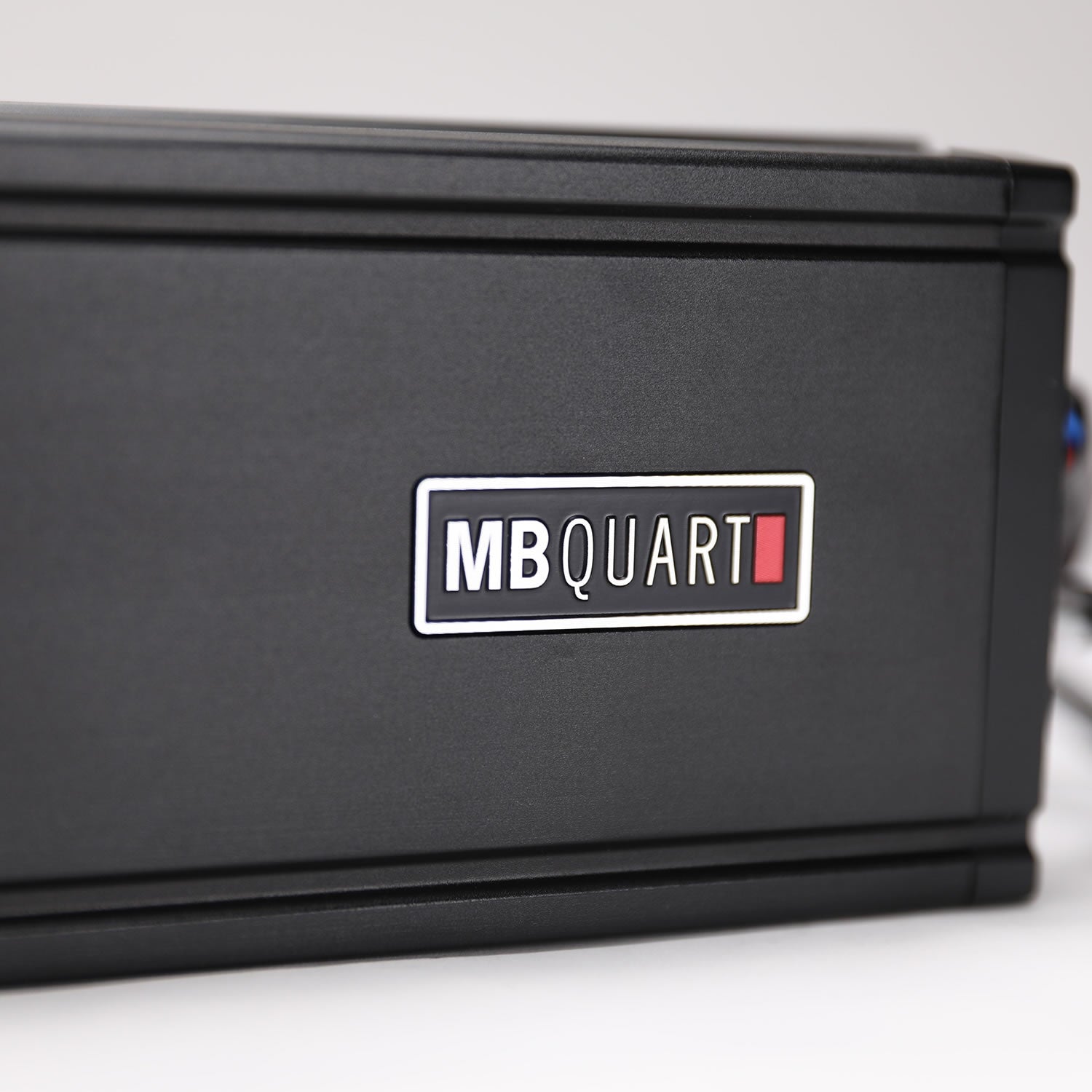

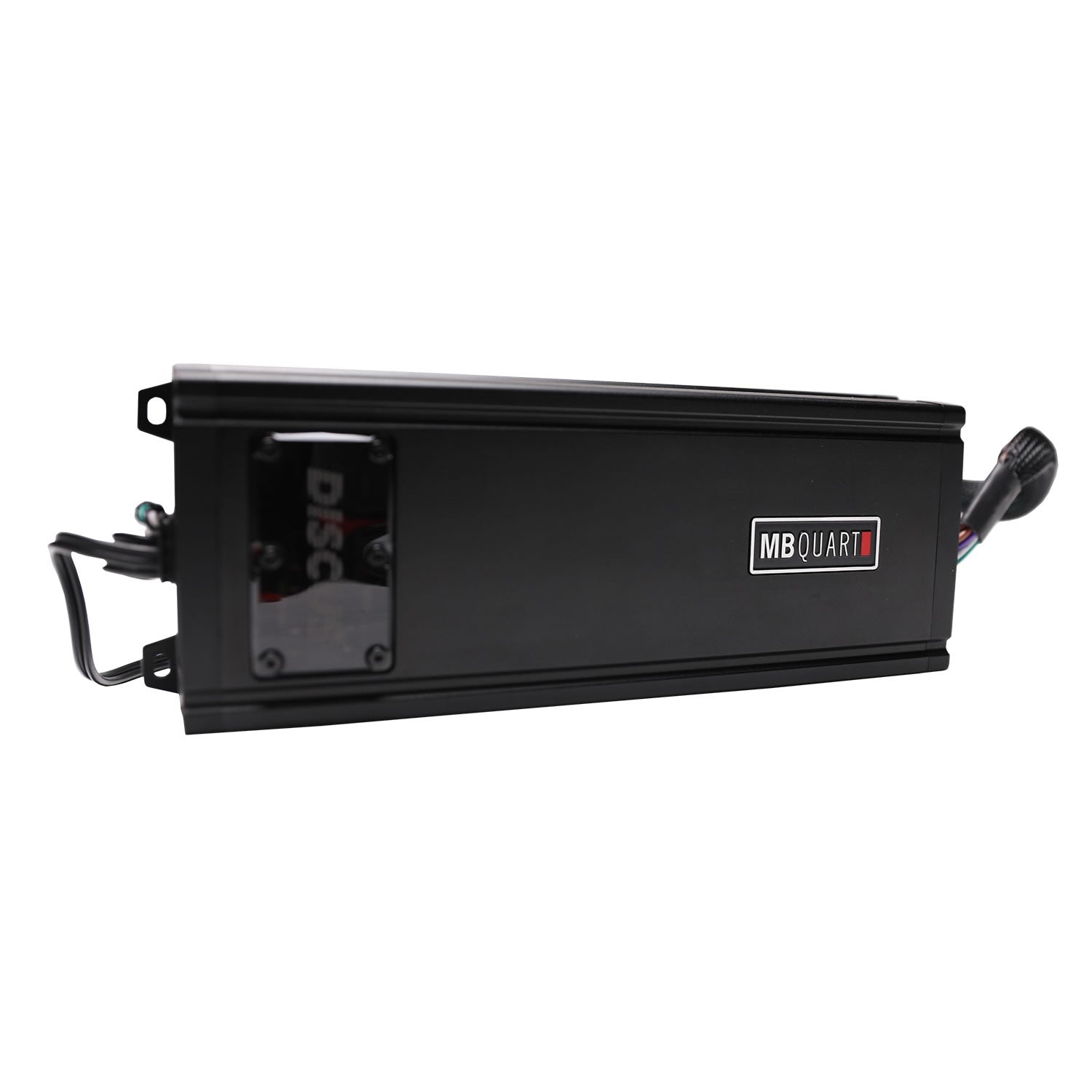

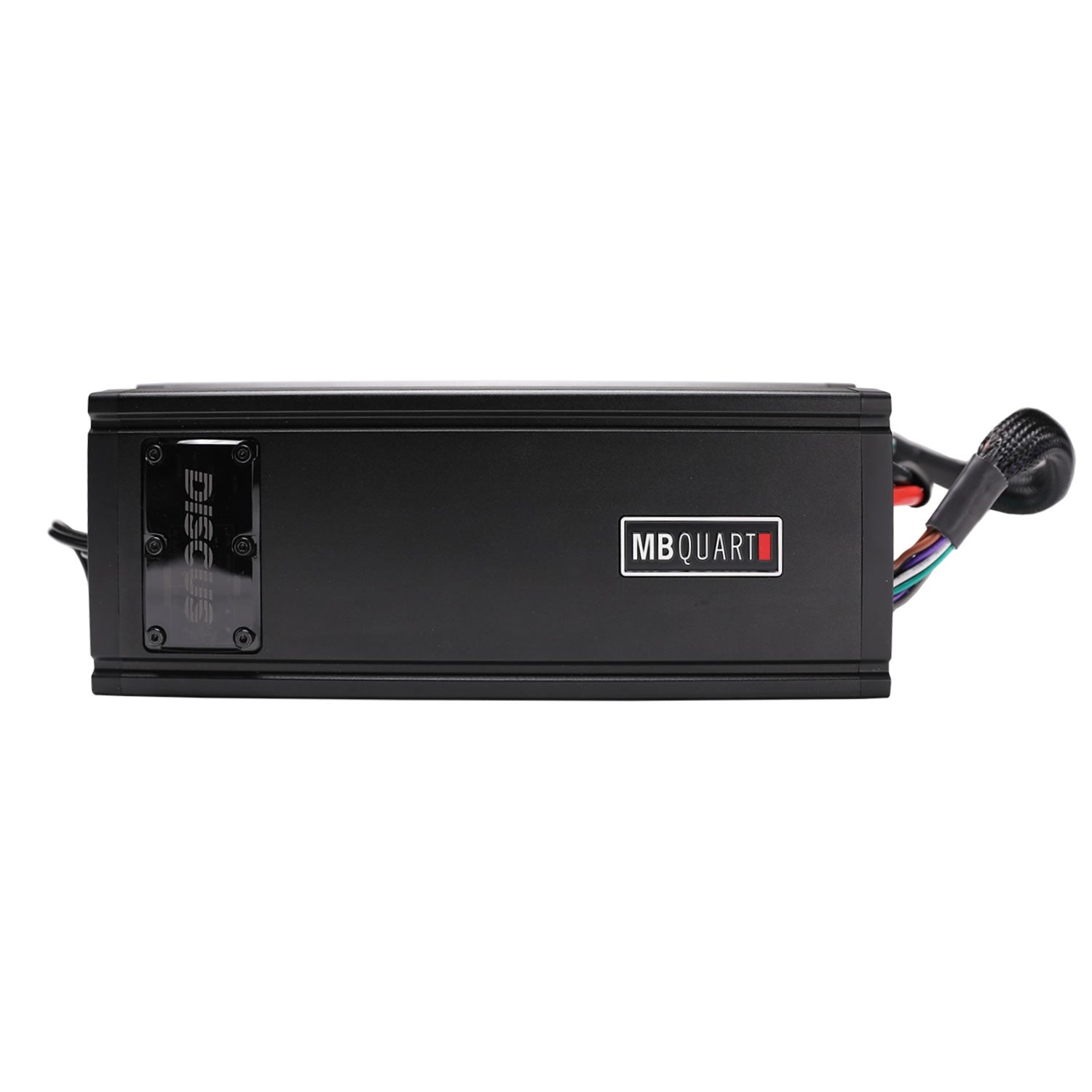

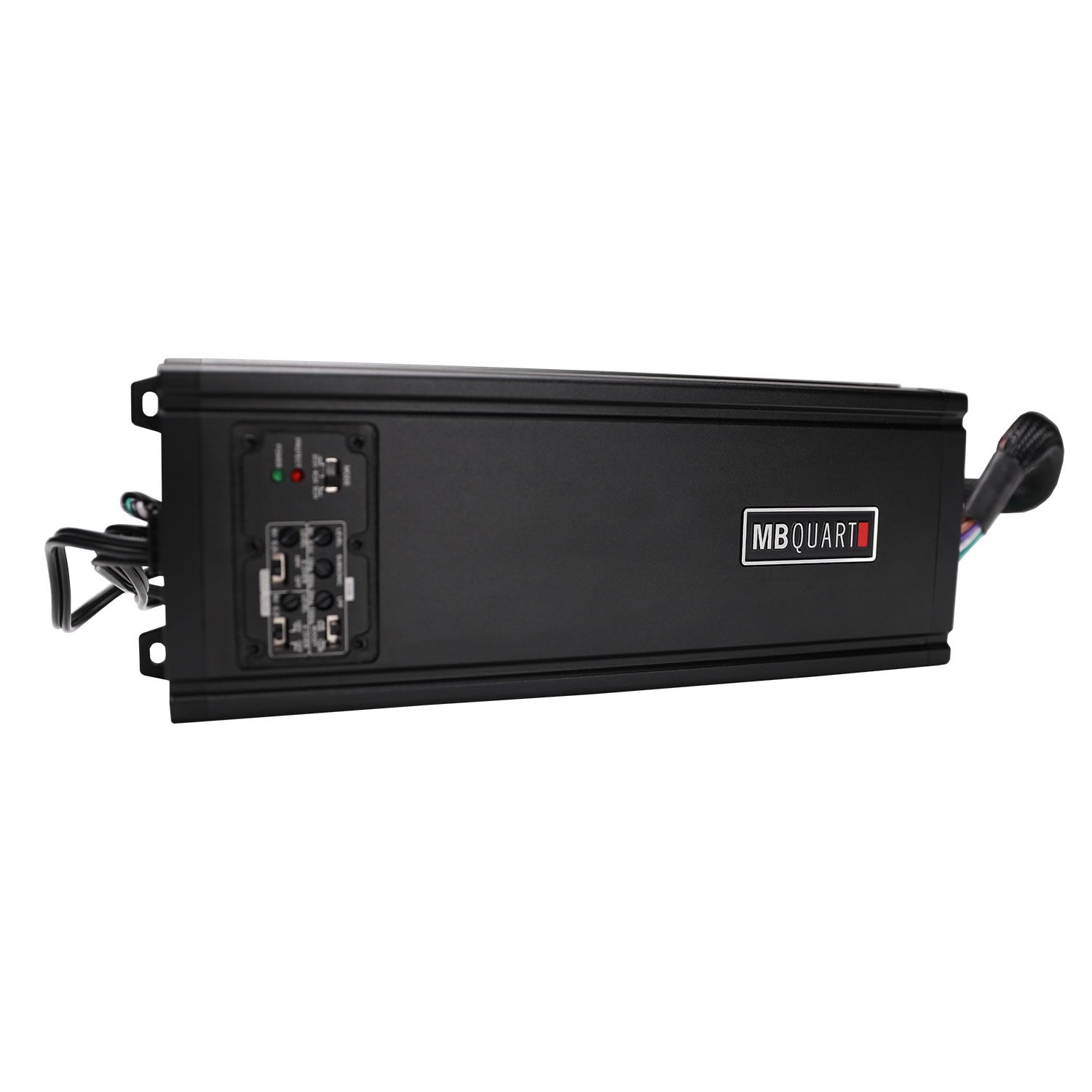

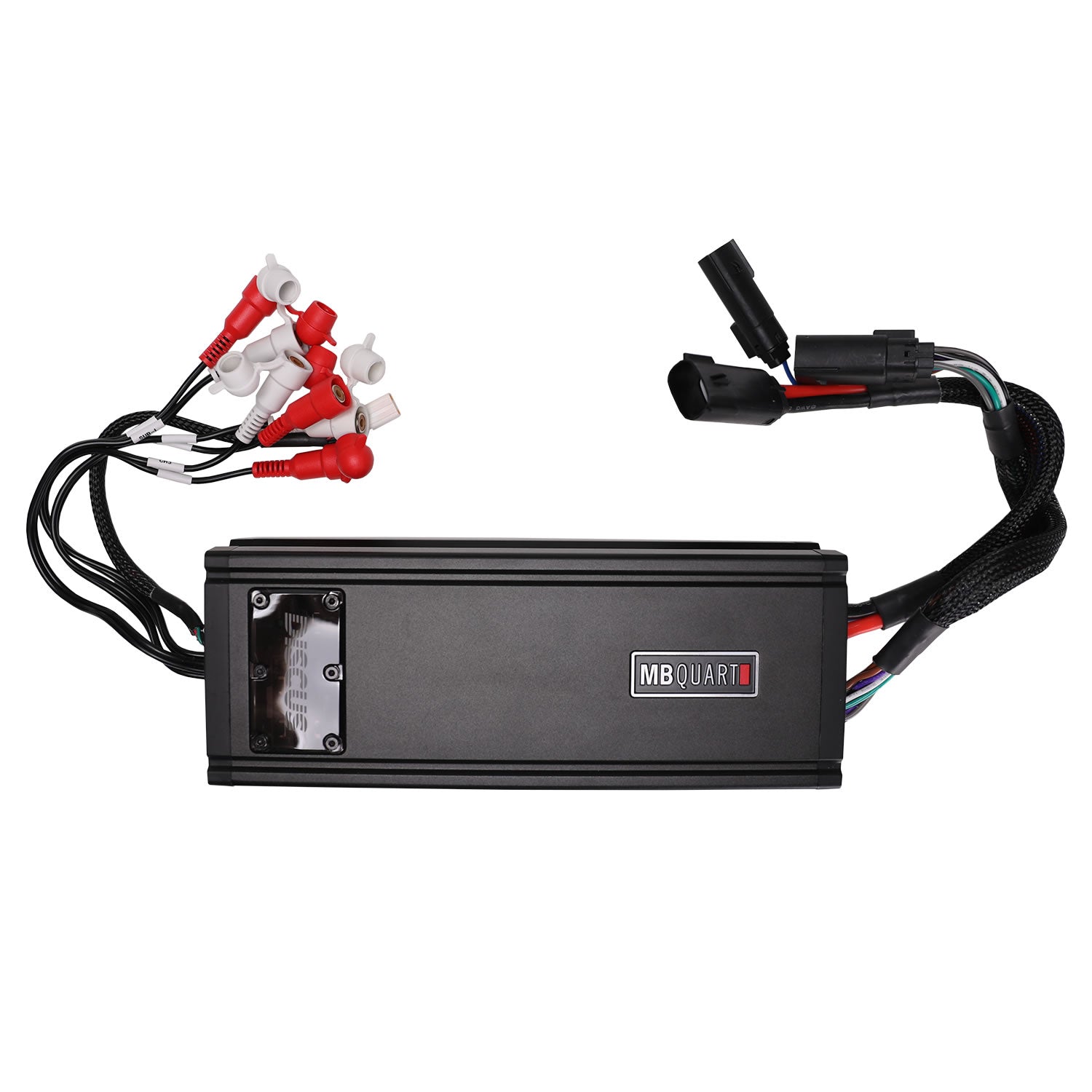

DA2-500.5D Discus 500 Watt Waterproof 5 Channel Amplifier
DescriptionMB Quart DA2-500.5D Discus 500 Watt Waterproof Five Channel Amplifier with Bass Remote.Features Type: Amplifier Series: Discus...
Vendor:
MB Quart
Manufacturer SKU
MBQ-DA2-500.5D
Availability:
Available Online — Not Stocked In Store
Product Type:
Marine Amplifiers
- $530.00
- $530.00
- Unit price
- per
Subtotal:
$530.00
Couldn't load pickup availability
Description
MB Quart DA2-500.5D Discus 500 Watt Waterproof Five Channel Amplifier with Bass Remote.
Features
- Type: Amplifier
- Series: Discus
- IPX Rating: IP67
- Marine Grade Protection / IPX Rating: Meets or exceeds IP67 standards for waterproof and dustproof.
The Kaos Run Down
| Manufacturer | MB Quart |
|---|---|
| Manufacturer SKU | DA2-500.5D |
| Application | Marine & Powersports |
| Weight | 6.1 lbs |
| Dimensions | 23.25 × 6 × 4 in |
| Item Weight (lbs) | 5.1 |
| Item Length (in) | 10.625 |
| Item Width (in) | 3.875 |
| Item Height (in) | 1.875 |
| Type | Amplifier |
| Brand | MB Quart |
| Series | Discus |
| Category | Marine, Mobile, Powersports |
| Condition | New |
| Color | Black |
| Warranty | 1 Year |
| IPX Rating | IP67 |
| Compatible Vehicles | Universal |
| Amp Class | Class D |
| Amp Total Channels | 5 |
| Amp Max Power (watts) | 500 |
| Amp Power @ 1 Ohm (ch x watts) | 1 x 350 Watts: CH5 Only |
| Amp Power @ 2 Ohms (ch x watts) | 4 x 50 + 1 x 225 |
| Amp Power @ 4 Ohms (ch x watts) | 4 x 35 + 1 x 150 |
| Amp Mono Bridged @ 4 Ohms (ch x watts) | 2 x 100 CH1-4 |
| Amp Crossover | Electronic |
| Amp Variable High Pass Crossover 12dB per Octave | CH1 & CH2: Switched Full/HPF Level 0.2V-9V, CH3 & CH4: Switched Full/HPF Level 0.2V-9V |
| Amp Variable Low Pass Crossover 12dB per Octave | CH5 ONLY: 50Hz-150Hz |
| Amp Bass Boost | Switchable 0dB and 12dB |
| Amp Subsonic Filter | CH5 ONLY: 15Hz-50Hz |
| Amp Variable Voltage | 0.2V-9V |
| Amp Power Terminal 12v/GND | 4 AWG |
| Amp Speaker Terminal Wire Gauge | 12 AWG |
| Amp Fusing | 40A External |
| Proposition 65 Notice | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| Compatible Vehicle Fitment | Universal |
| Marine Grade Protection / IPX Rating | Meets or exceeds IP67 standards for waterproof and dustproof. |
| Low Noise Preamplifier Circuit | Q-Stasis Pre Amplifier Stage: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion. |

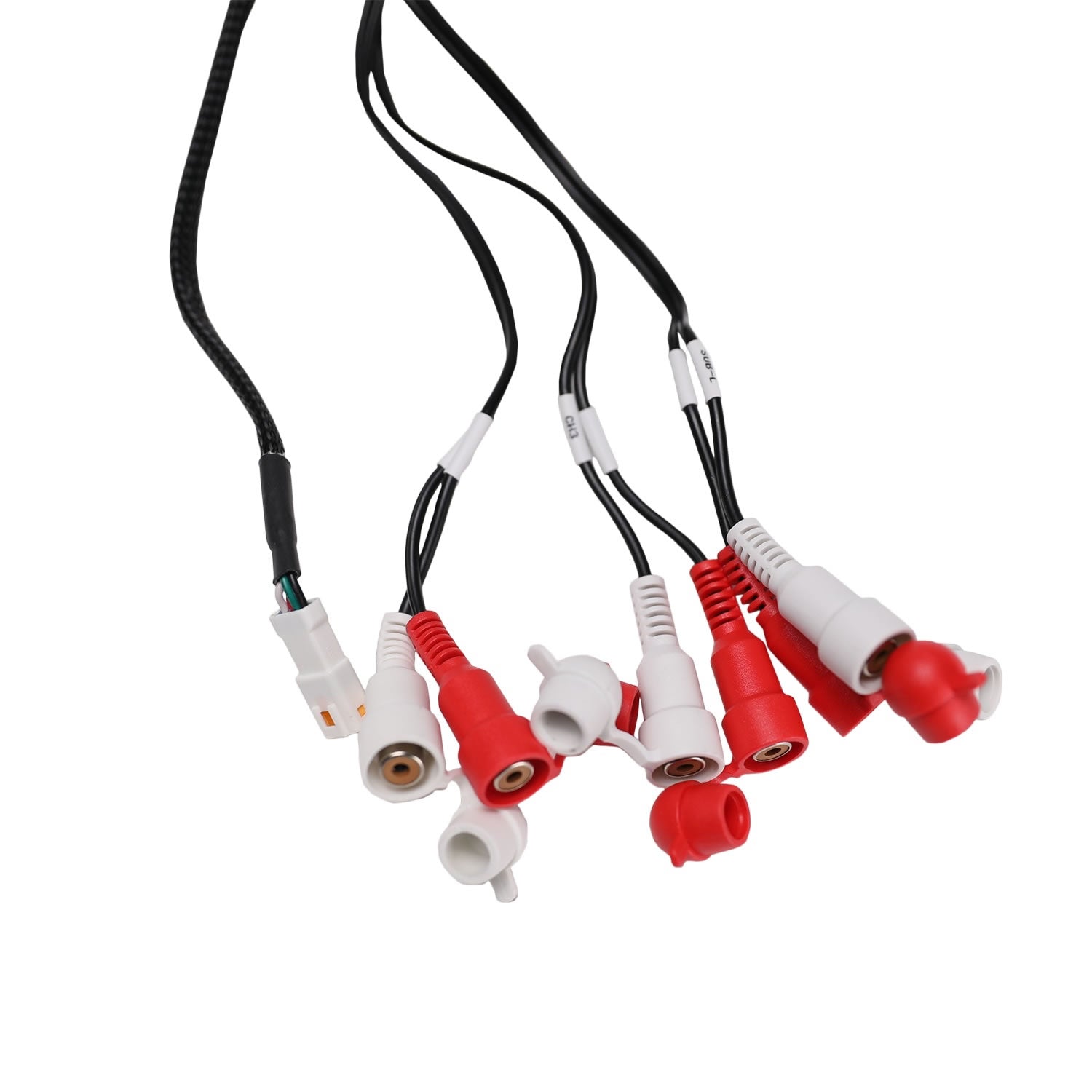

| RCA Inputs | Prewired to PC Board for additional protection. Leave connector cover closed on RCA jacks that are not used. |
| Operation Mode | 2 / 4 / 5 Channel |
| Crossover Type | Variable electronic crossovers allow for complete control of the sound. |
| Electronic Equalizer | Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier. |
| Class / Topology | Class D: Highly efficient circuit topology which helps the amplifier develop a lot of power in a compact heatsink. |
| Output Device Technology | MB Quart output devices, FLUID-FETS are painstakingly selected for their ability to efficiently produce power and mimic the sound quality of the highest end home amplifiers. |
| Heat Sink | Heavy duty heat-sink efficiently moves heat from the MOSFET where it can be cooled. |
| Power Supply | Robust premium grade MOSFET Pulse Width Modulation power supply allows the amplifier to produce efficient power without taxing the electrical system. |

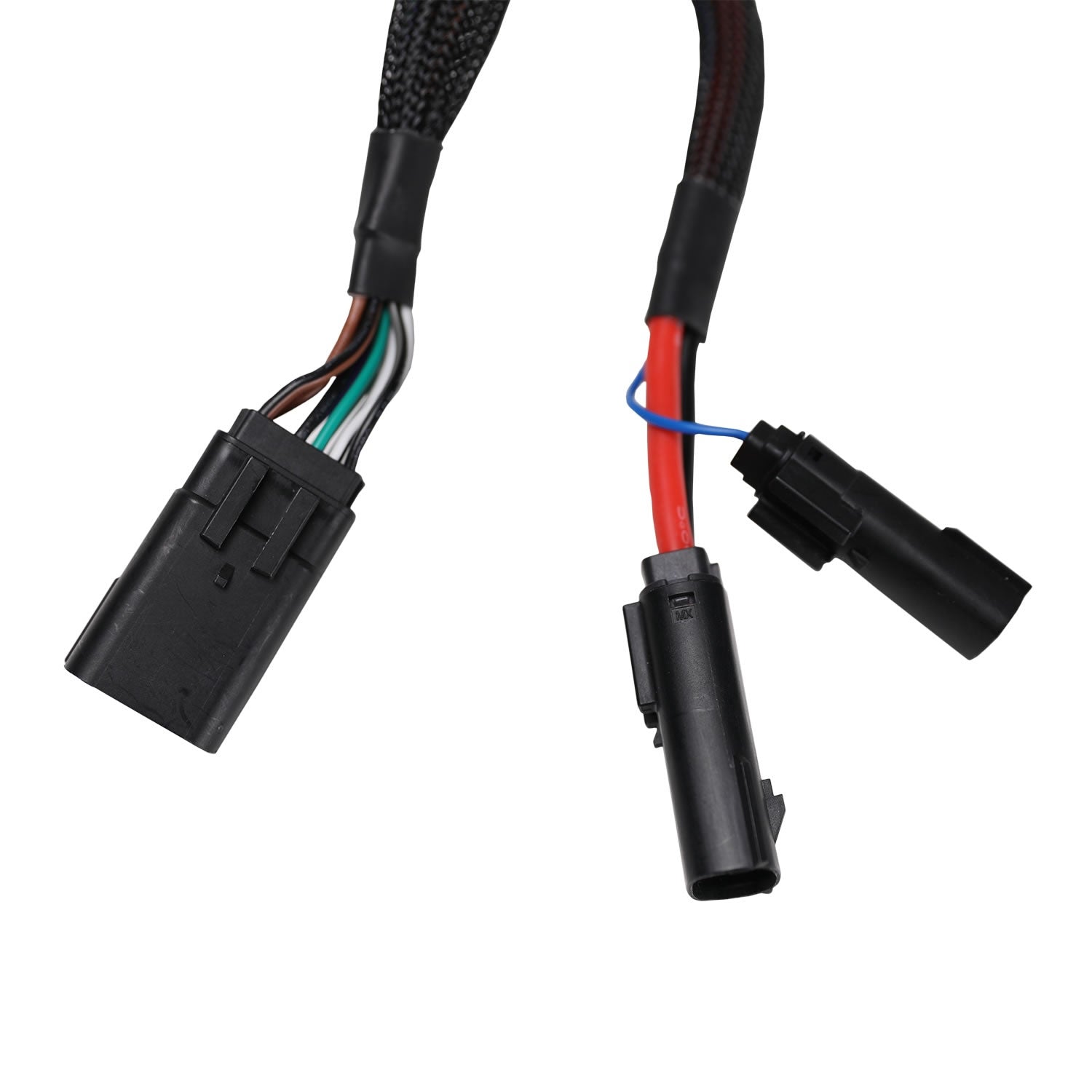

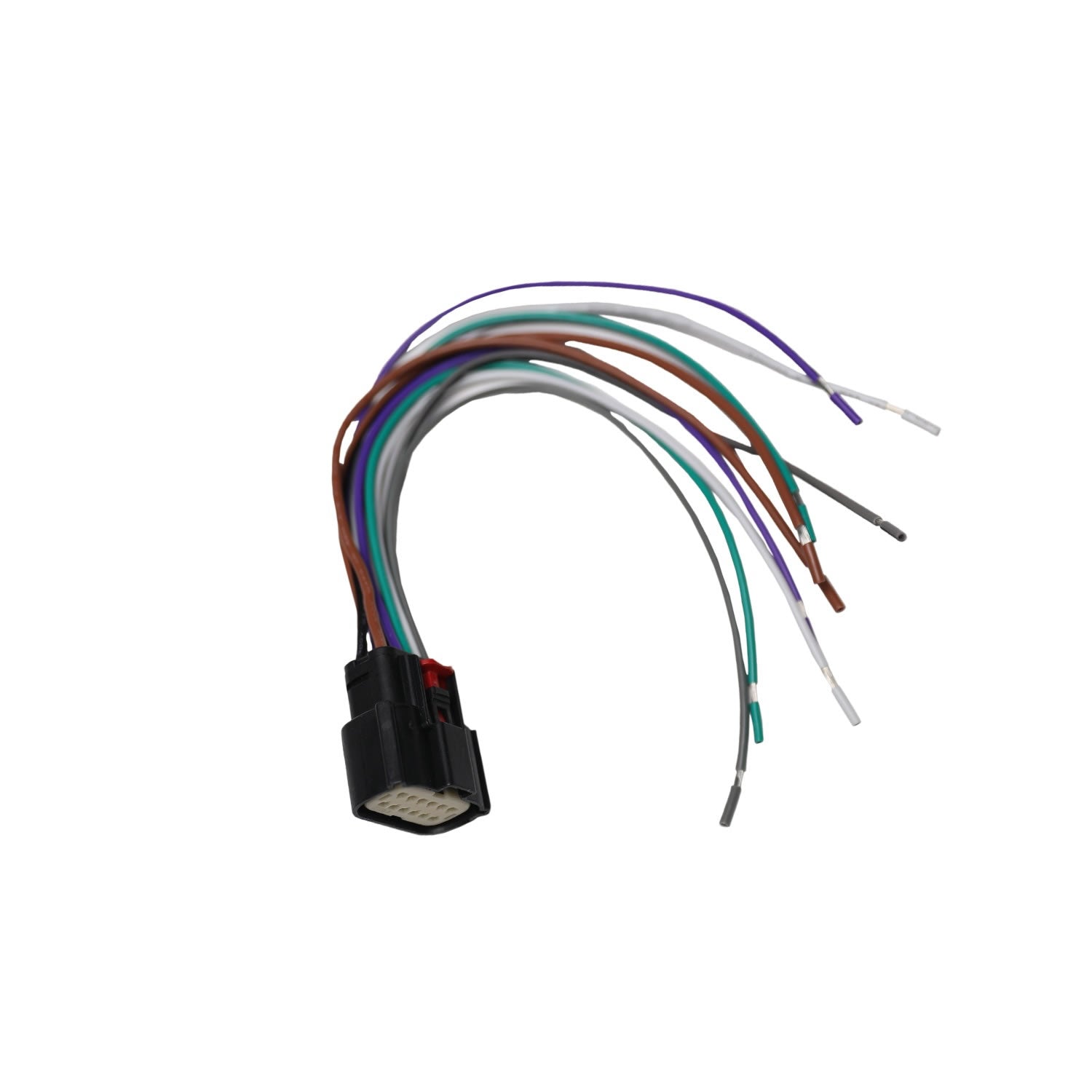

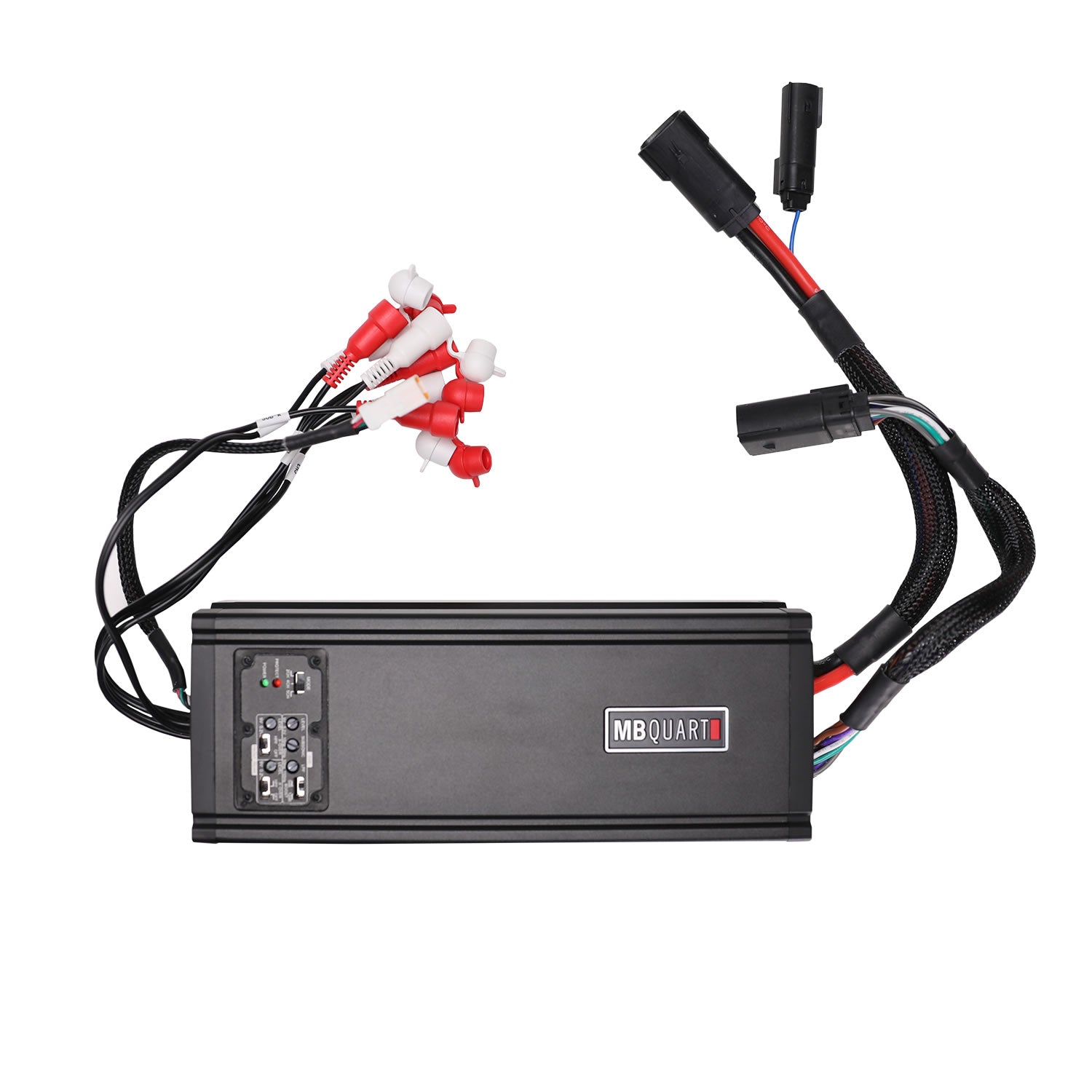

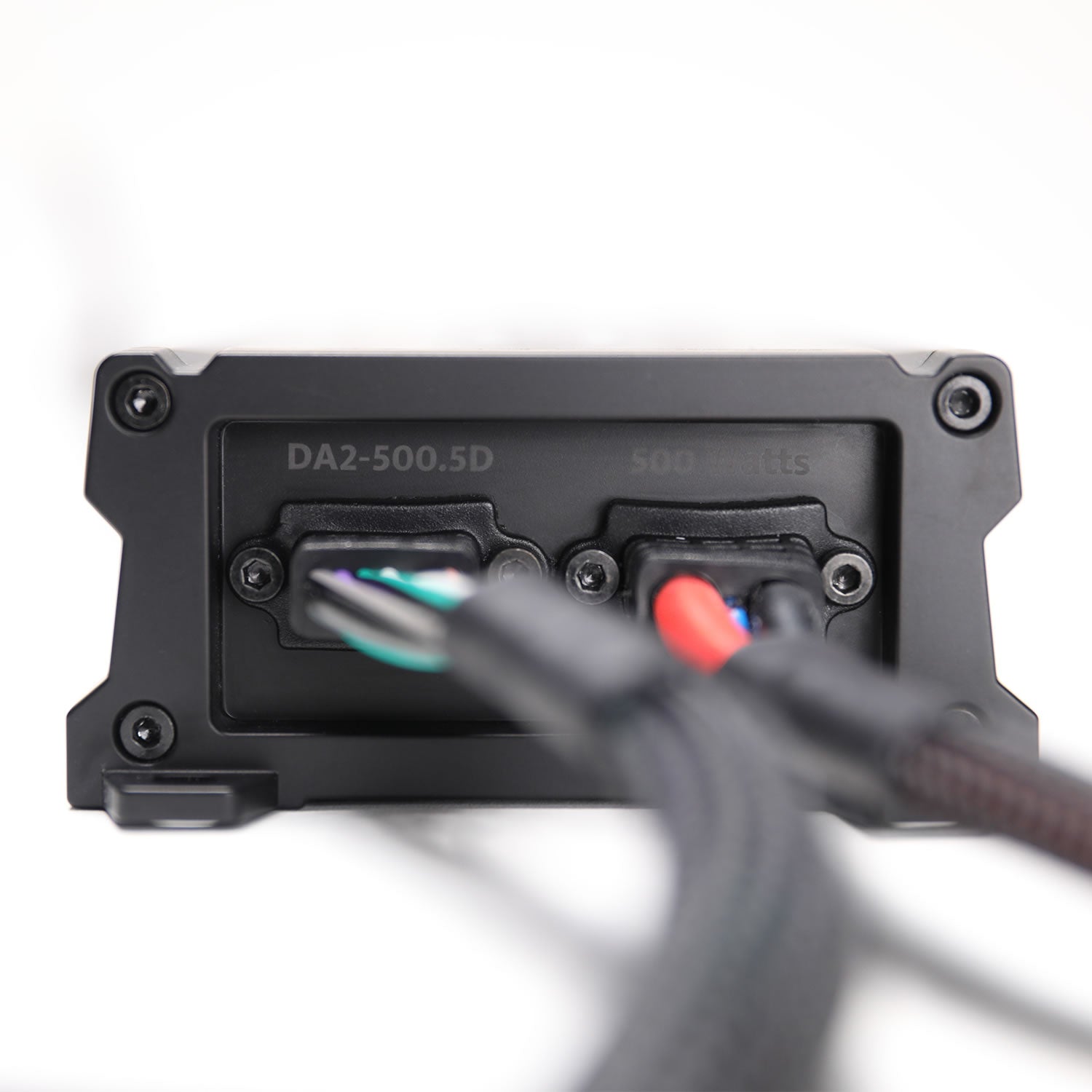

| Output Connections | Waterproof connectors designed to provide a secure moisture-resistant connection, ensuring reliable signal transmission and preventing corrosion or damage in environments exposed to water or humidity. |
| Connection Type | Waterproof connectors designed to provide a secure moisture-resistant connection, ensuring reliable signal transmission and preventing corrosion or damage in environments exposed to water or humidity. |
| LED System Protection Circuitry Diagnostics | Monitor overload and speaker short protection with illuminated indicators on the amplifier top mounted control panel. |

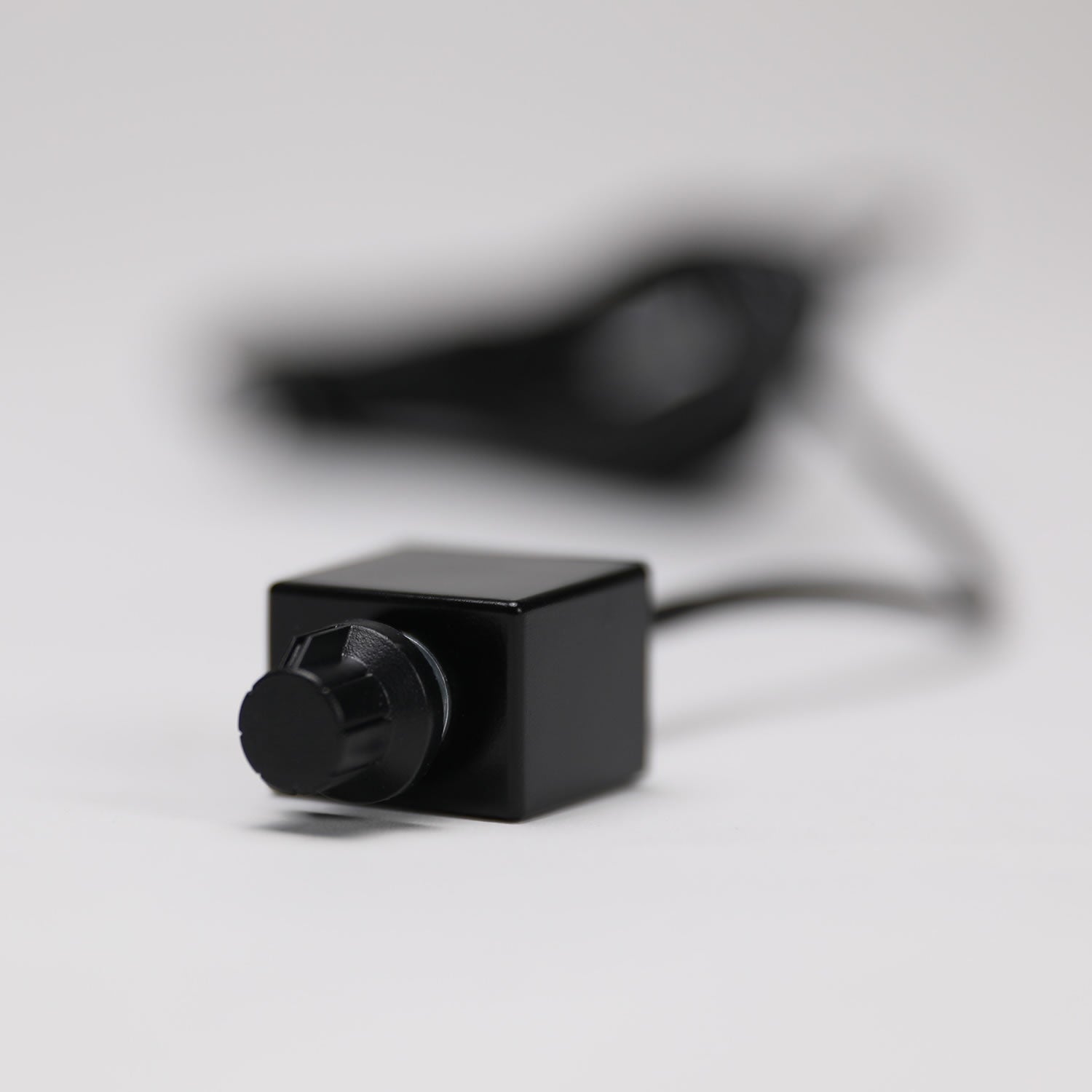

| Bass Remote Included | Included: Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle. |

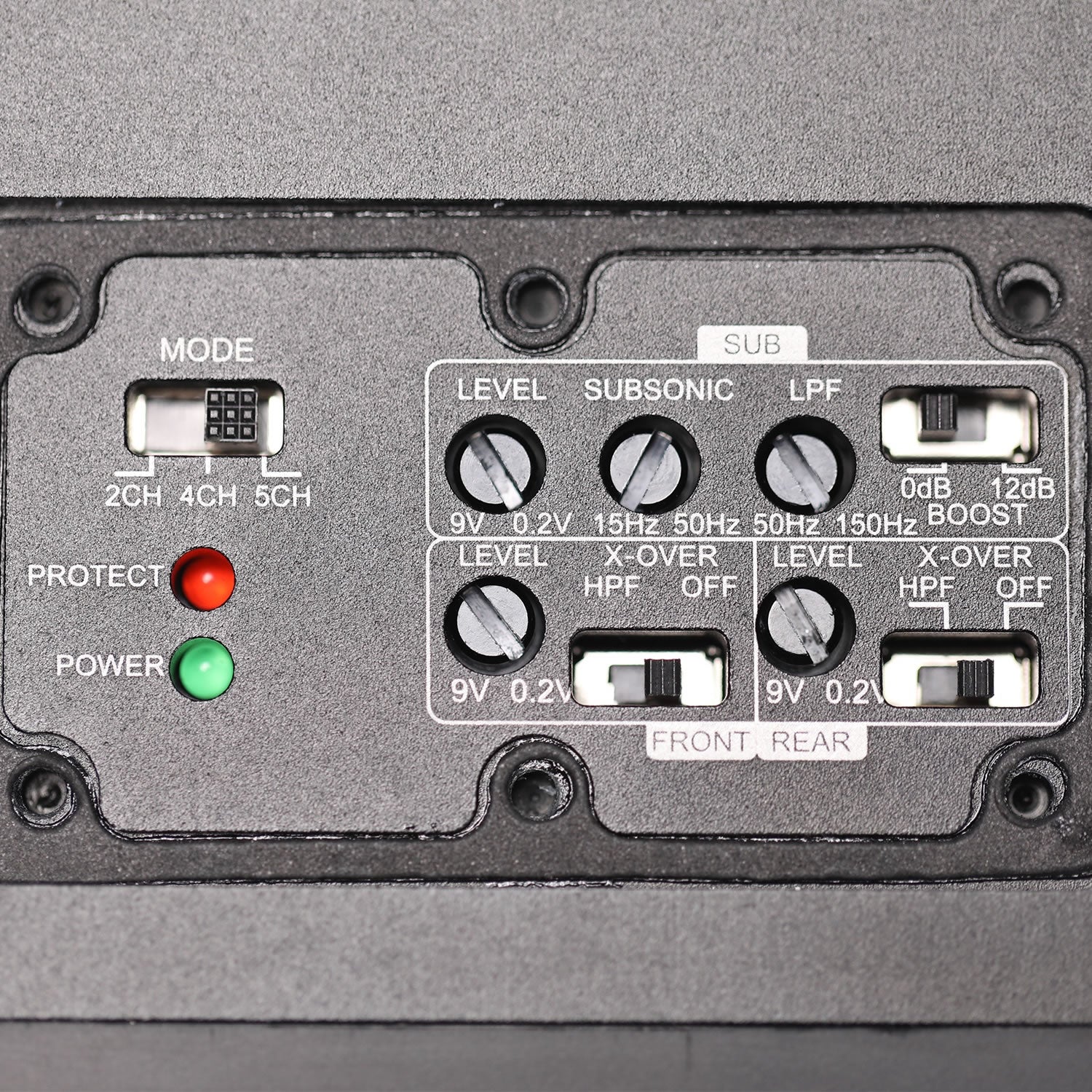

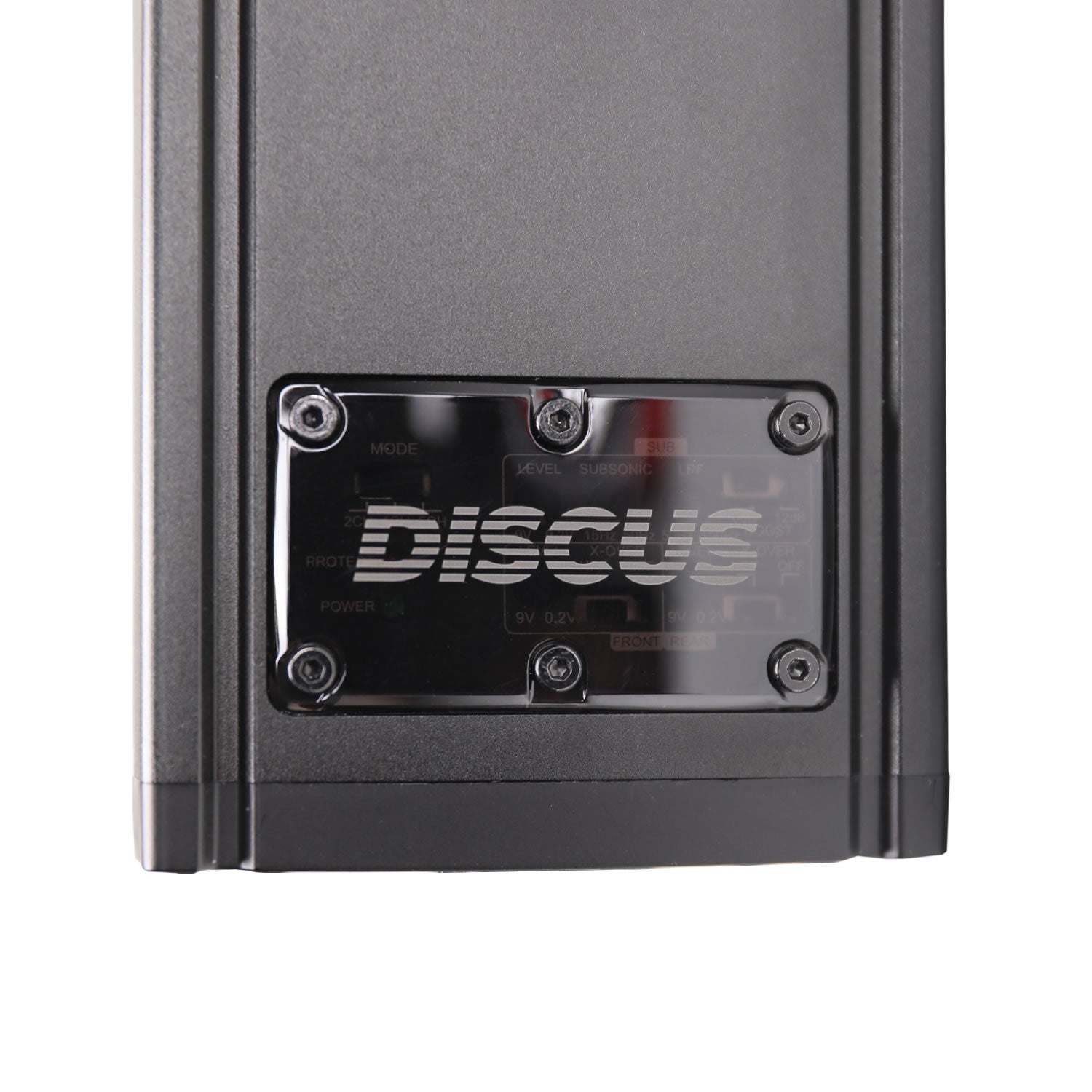

| Additional Features | Top Mounted Controls: Sound contouring with on-board crossover, bass boost, and adjustable input sensitivity are all concealed behind a sealed, top mounted cover. |
| View/Download (1.6 MB) | MB Quart Discus DA2 Amplifiers Quick Start Guide (Rev1) |
