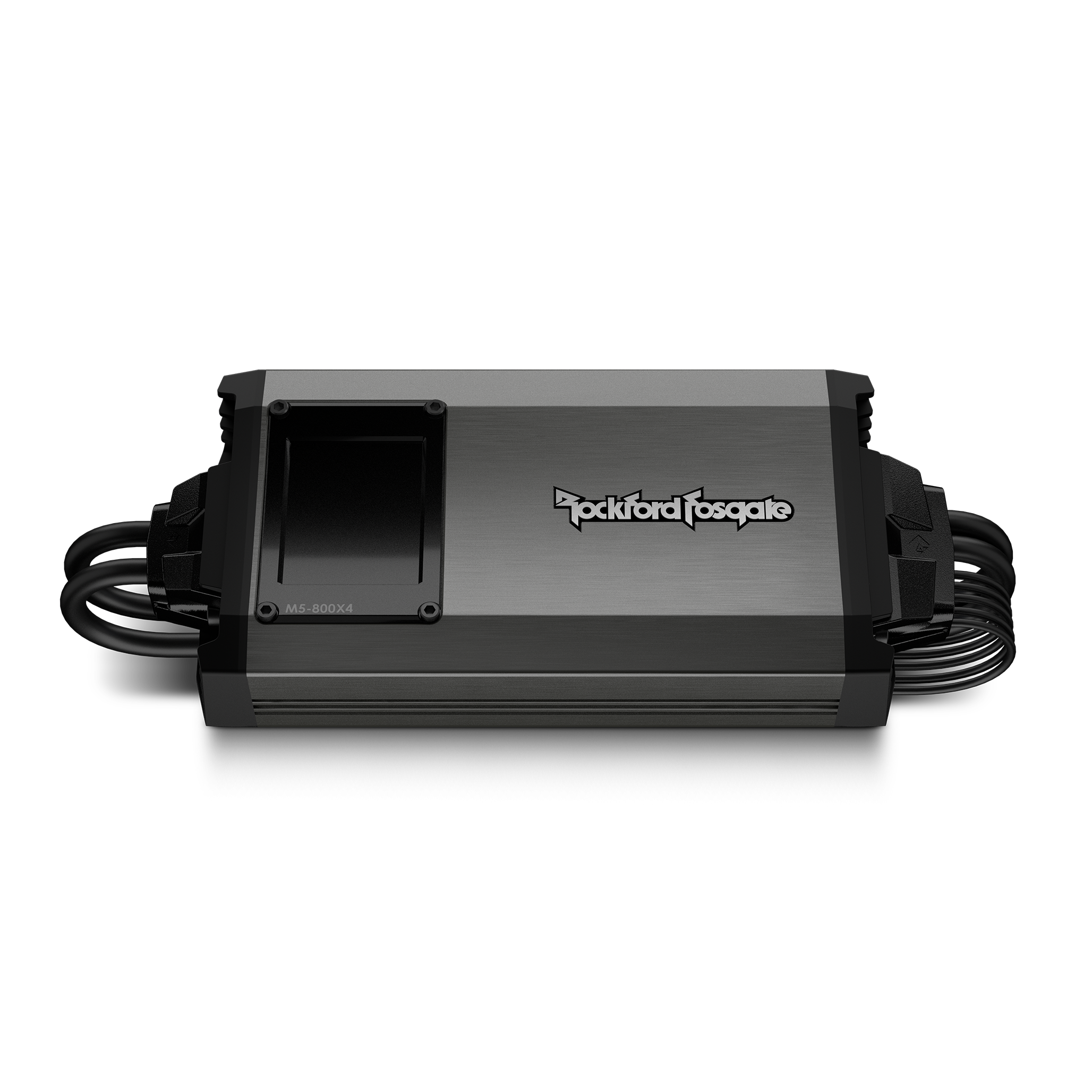

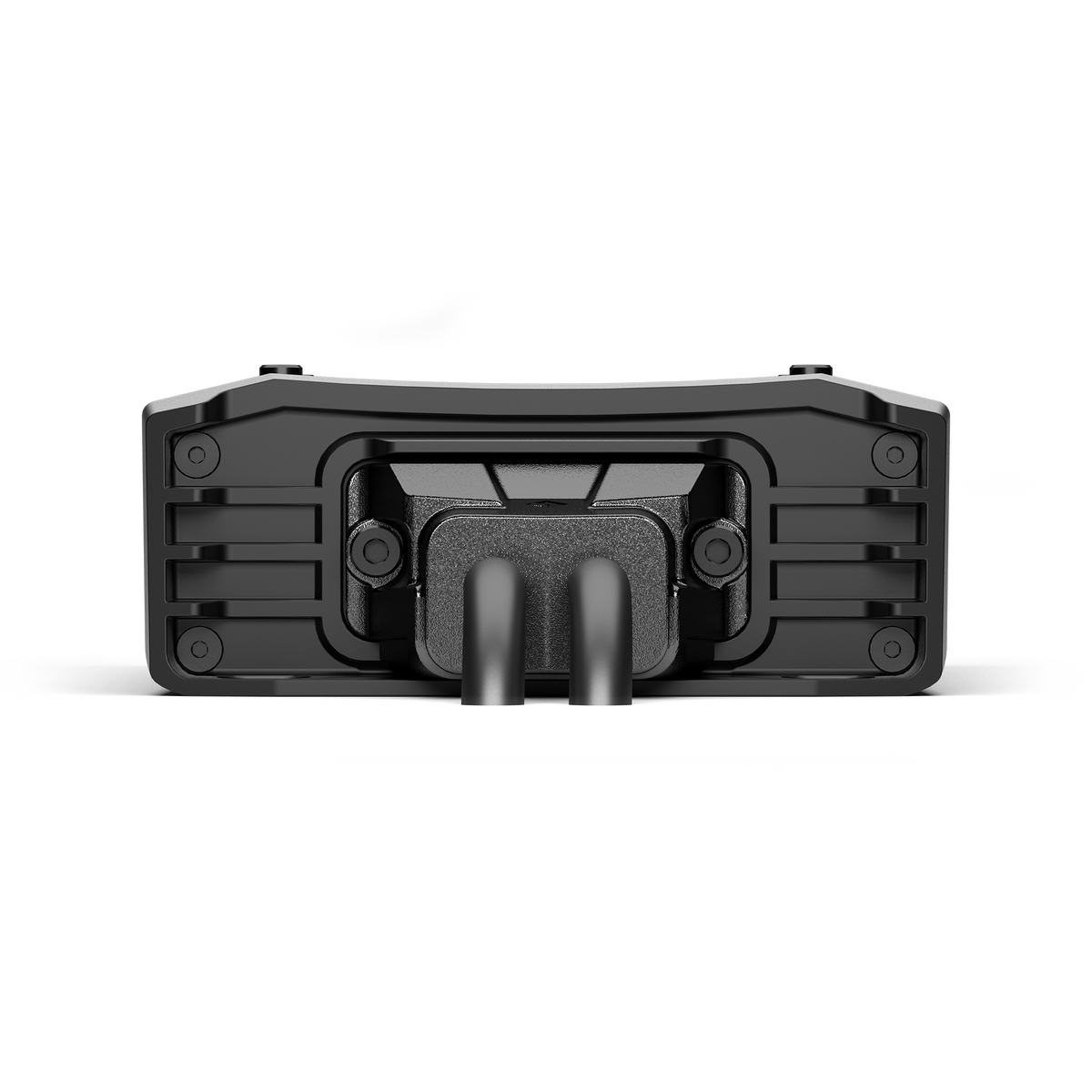

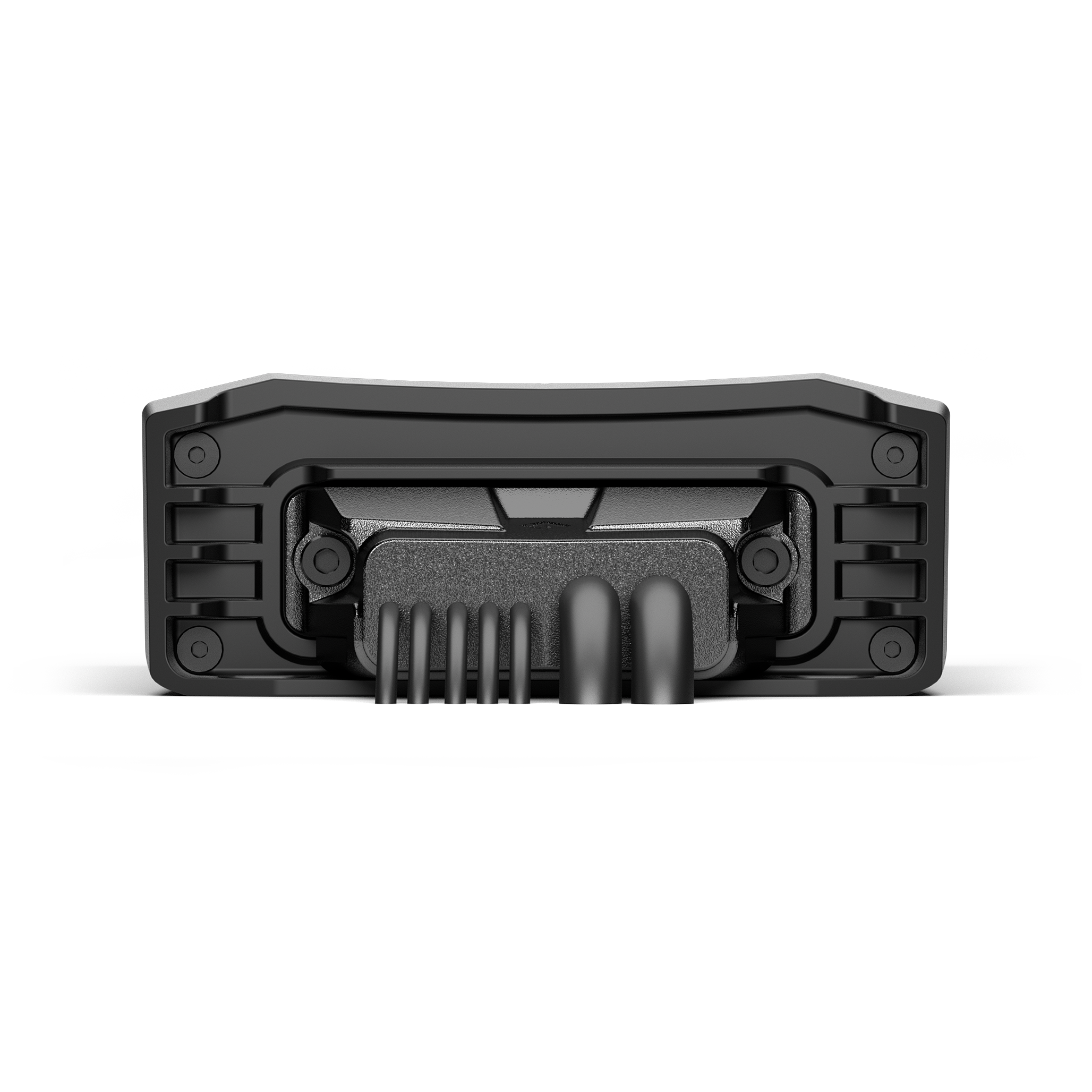

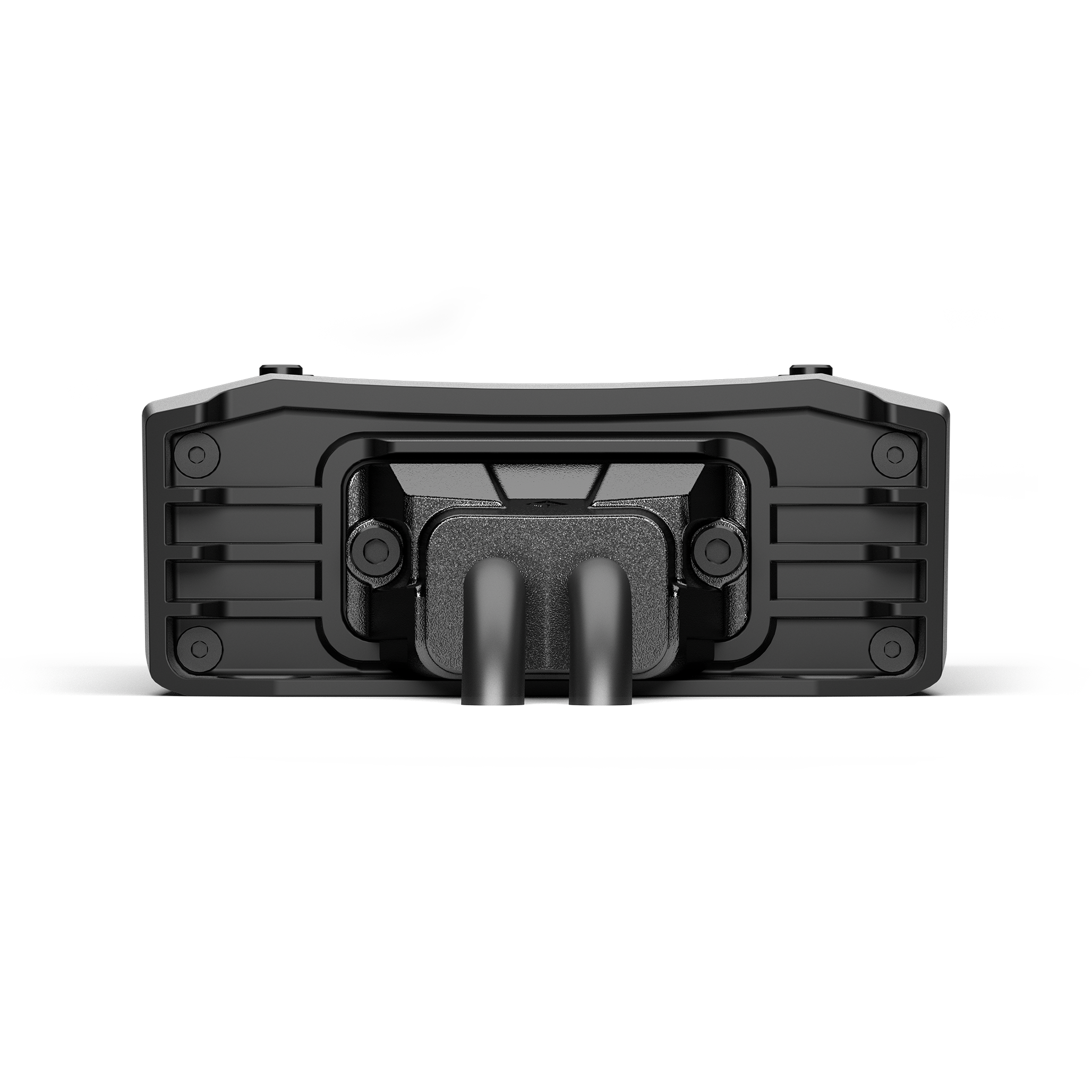

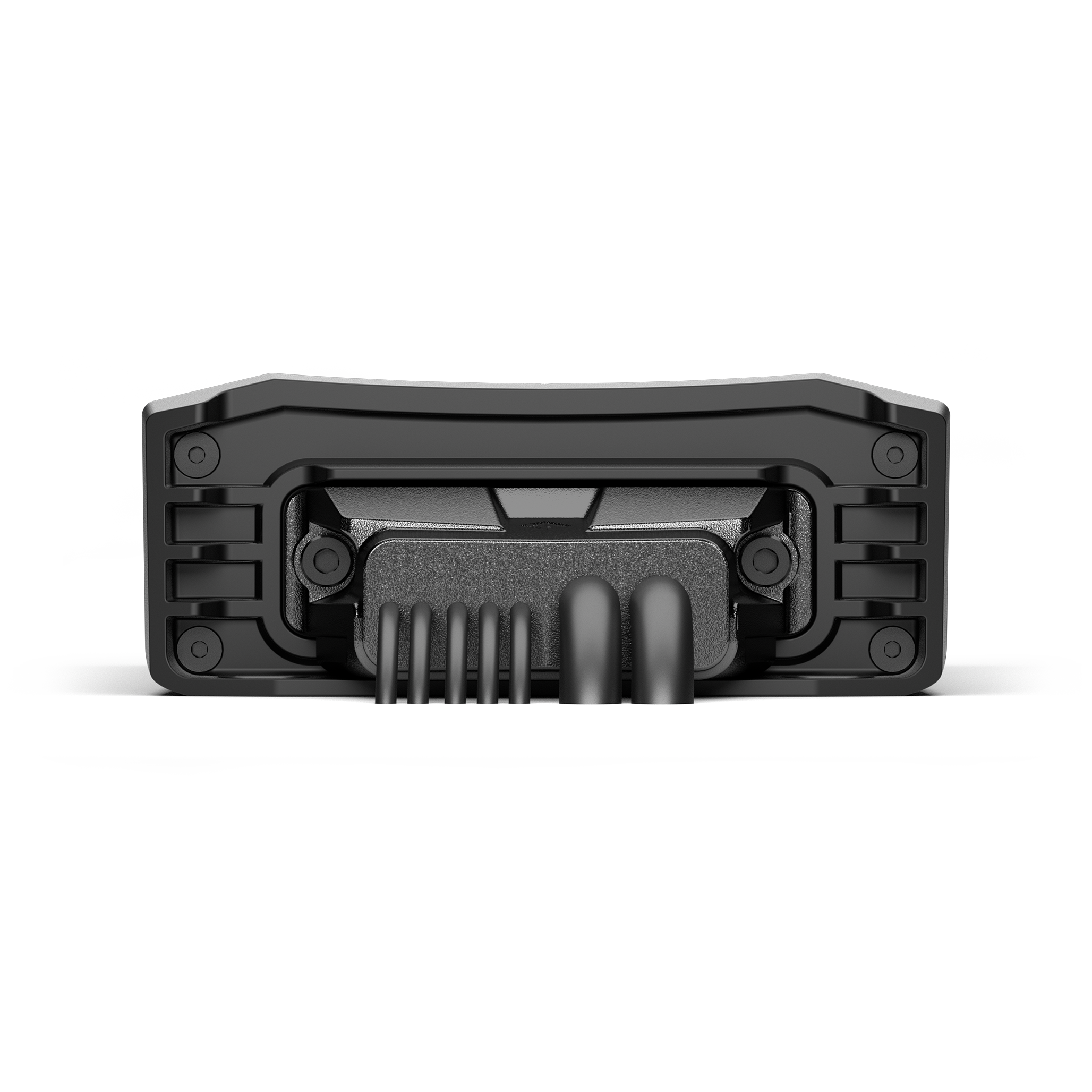

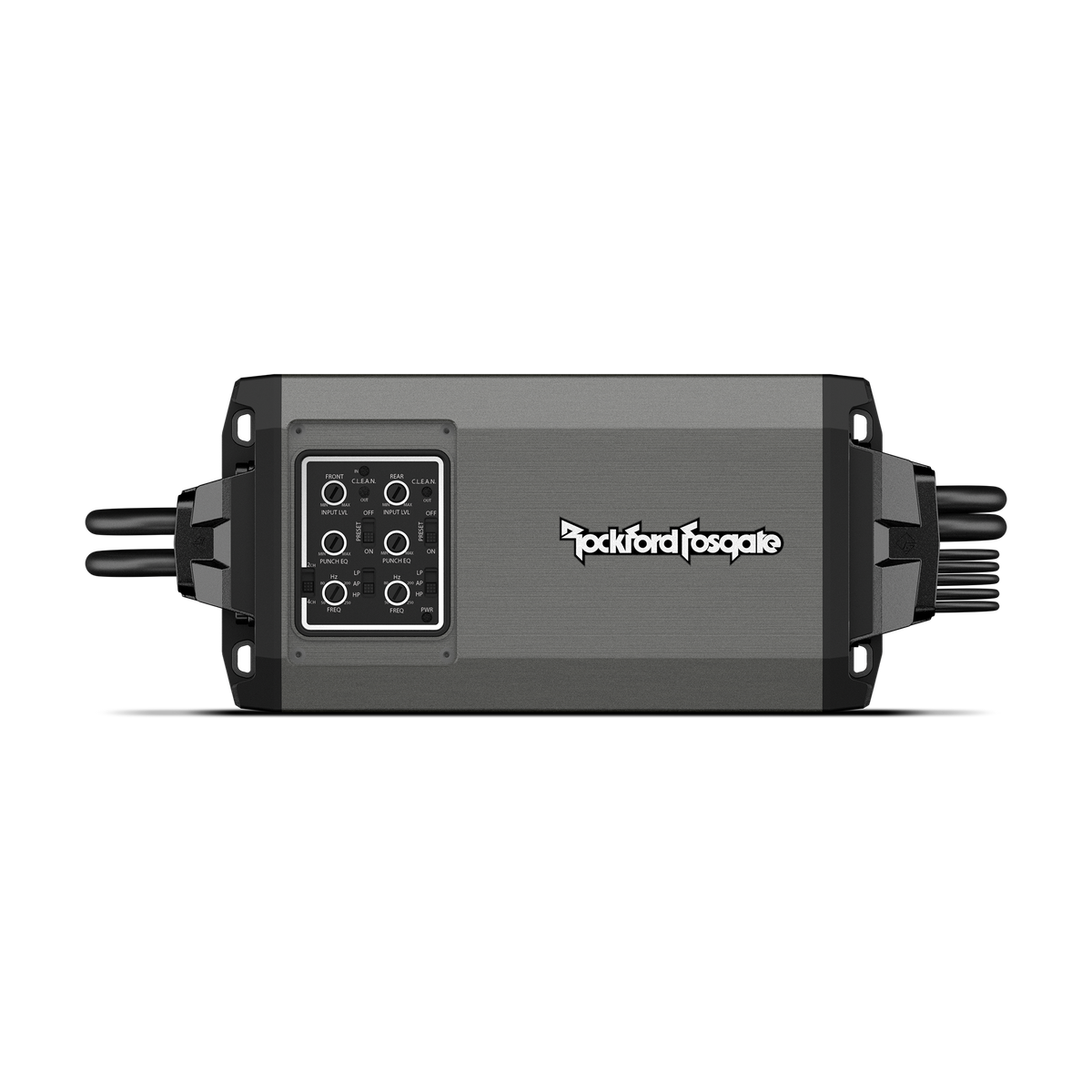

800 Watt 4-Channel IPX6 Element ReadyTM Amplifier

Overview

The 800-Watt 4-Channel IPX6 amplifier with the next level of Element Ready™ design from Rockford: Power your full range speakers with Element Ready durability.

Features

• Play all day, easy to integrate, and keep music playing for extended lengths of time
• Element Ready™ design with integrated harness & panel seals
• PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
• C.L.E.A.N. input/output clip detection and indicator LEDs
• Patented Constant PowerTM boosts power up to 25% across varying impedance loads
• RATS (Rockford Automated Testing System) proprietary quality & performance tested
• Discrete Surface Mount technology with 1% tight-tolerances for high efficiency & reduced cross-talk
• Proprietary Class-AD technology allows amplifier to produce more power with less current draw
• OEM and aftermarket radio integration inputs

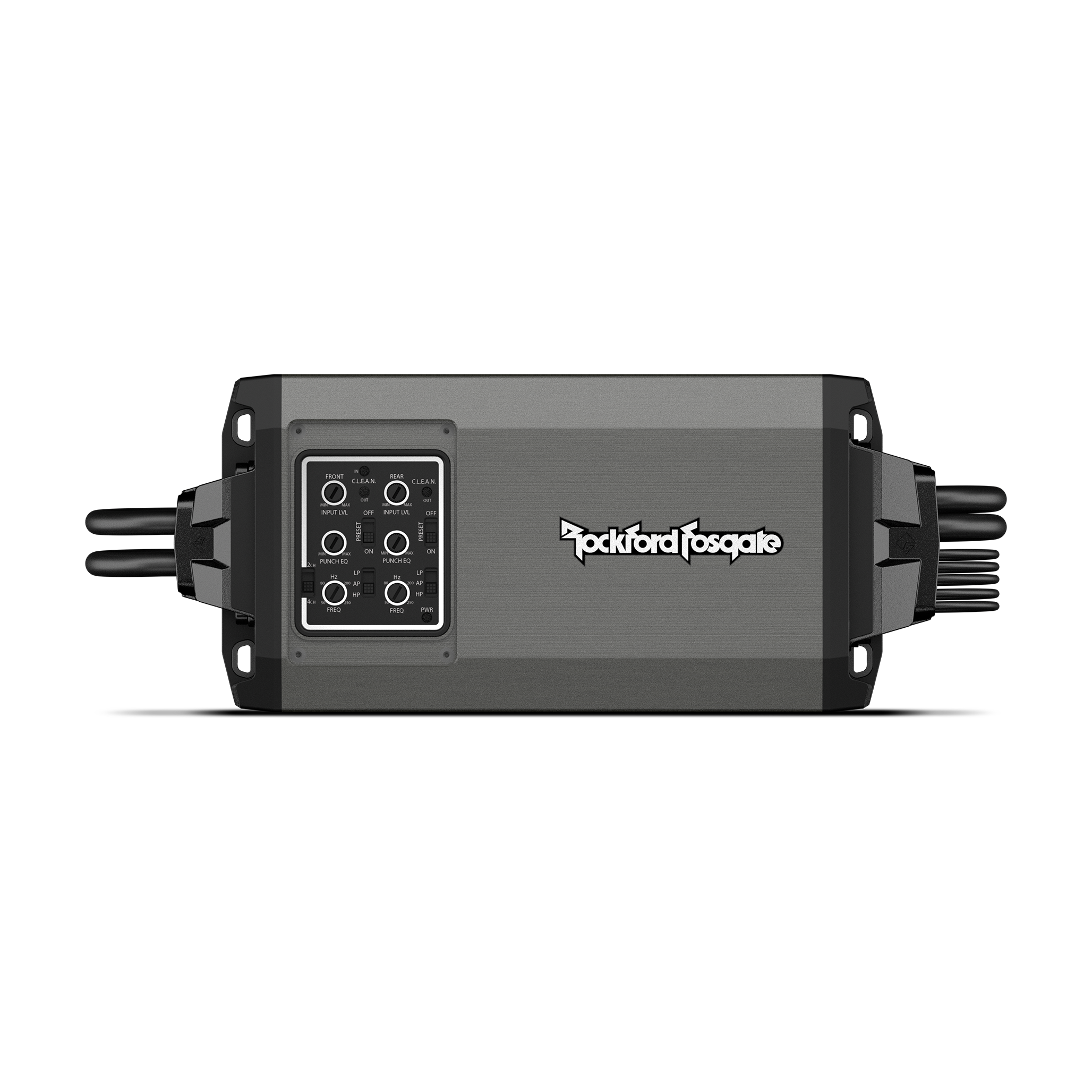

• Top mounted control panel with Element Ready™ smoked lens cover
• Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise
• MESHA 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span
• Remote-Out feature when using high level inputs
• Balanced Differential Inputs eliminates noise picked up by signal cables
• Low Impedance Stability
• 2-Year Warranty
• Focused mass heat sink allows critical aluminum material to be located around hottest internal devices

Technologies

• CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• Element Ready™ | Amps: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
• IPX6 Water Intrusion Rating: Water projected in powerful jets from any direction shall have no harmful effects.
• P.O.W.E.R.: Power supply circuit design that allows the amplifier to increase output power as voltage increases.
• MEHSA 4 (Maximum Efficiency Heat Sink Application): MEHSA⁴ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• C.L.E.A.N. Technology: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
• Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables.
• Constant Power: Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.
• Punch EQ2: Onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12kHz.
• NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
• Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
• DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• Class-AD: This technology allows the amplifier to produce more power with less current draw from the vehicle's charging system.

Specifications

Number of Channels	4
Efficiency (average)	>75%
CEA-2006 Compliant	Yes
Circuit Topology Class	Class-AD
Input Sensitivity	150mVrms - 12Vrms
Bridgeable	Yes
Frequency Response	10 Hz - 50 kHz
Dynamic Power (PVC/PowerCube®)	CTA-2006 Dynamic Power Rating 125 Watts x 4 @ 4Ω 200 Watts x 4 @ 2Ω 400 Watts x 2 @ 4Ω Bridged/Mono
Rated Power (RMS Continuous Power)	CTA-2006 Continuous Power Rating ≤1.0% THD+N 100 Watts x 4 @ 4Ω 100 Watts x 4 @ 2Ω 200 Watts x 2 @ 4Ω Bridged/Mono
Total Power (Sum of Rated Power)	800 Watts
Total Harmonic Distortion (THD+Noise)	<0.25% THD+N @ 1 Watt
Signal-to-Noise (CEA)	CTA-2006: >85 dBA (reference 1W output) Rated Dynamic Power: >105 dBA (reference 1W output)
Common Mode Rejection Ratio	—
Channel Separation	—
Damping Factor
Accepts RCA Input	Yes
Pass Thru Output	No
Signal Output	—
Signal Input	Low-Level: 4 RCA High-Level: (2) 4-Pin Molex
Tone Controls	Front/Rear: 0-14dB @ 12.5kHz Front/Rear: 0-18dB @ 45Hz
Adjustable Crossovers	Yes
Crossover Controls	High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth All-Pass: Yes
Remote Controls	No
Visual Indicators	Power: Blue Protect: Red Input Clip: Red Output Clip: Blue/Red
Power Wire Gauge	8 AWG
Power Input Connector	Compression Terminal Block Replacement 1040-57997
Speaker Wire Gauge	16 AWG
Speaker Output Connector	4-Pin Molex
Cooling	Convection
Heatsink	Extruded Aluminum
Operating Voltage	9 - 16 VDC
Recommended Fuse (not included)	80A MAXI Littelfuse #0299080
Average Current Draw (13.8V Music)	4Ω Stereo: 29 A 2Ω Stereo: 29 A 4Ω Bridged: 29 A
Max. Current Draw (13.8V Sinewave)	4Ω Stereo: 55 A 2Ω Stereo: 85 A 4Ω Bridged: 90 A
Suggested Alternator

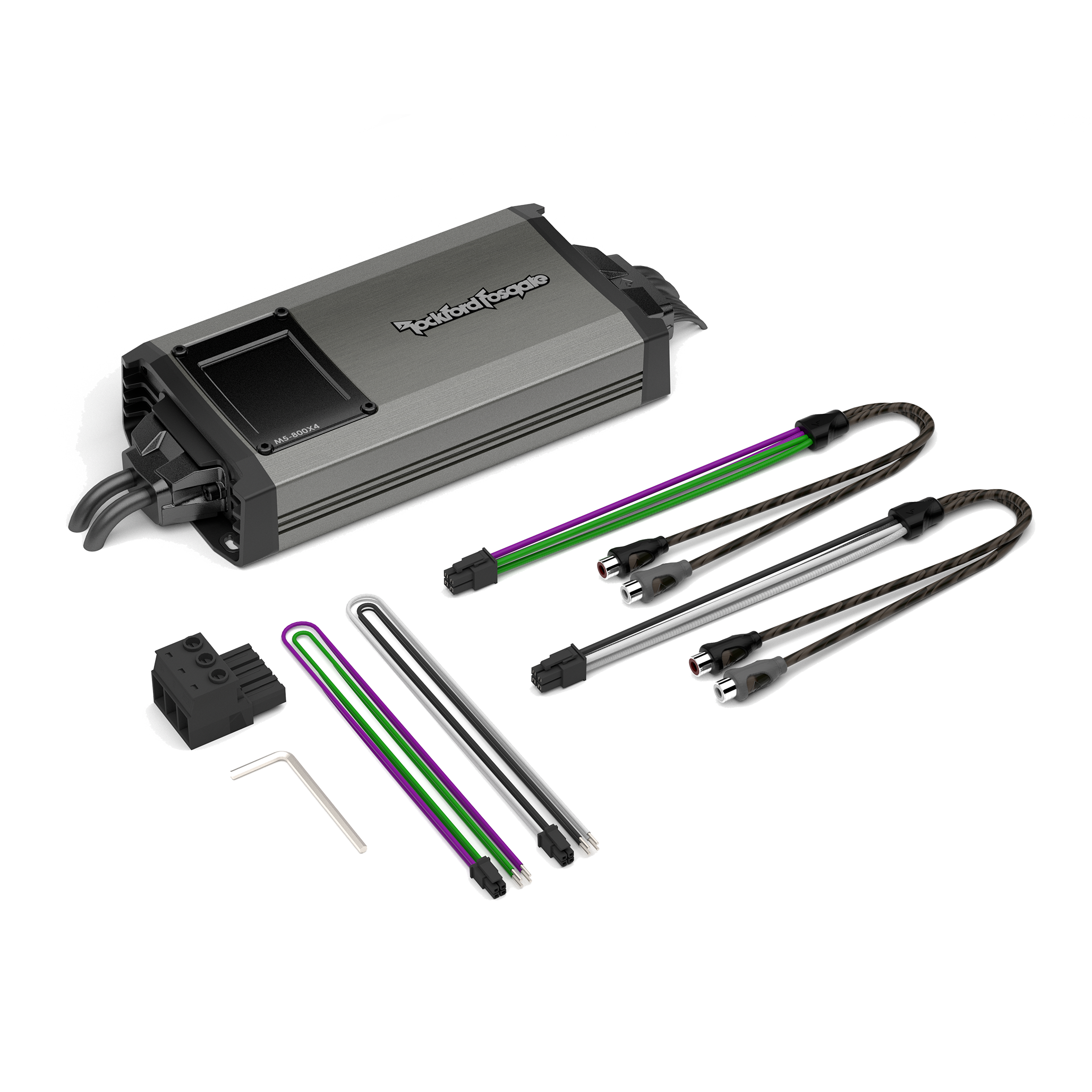

Included in the Box	(1) Control Cover (1130-75511-01) (1) Extension Harnesses (1130-75503-01) (1) Pwr/Gnd/Rem Connector (1040-61932-01) (1) Front RCA Input Harness (1560-56458-02) (1) Rear RCA Input Harness (1560-56727-02) (1) Front Spk Out Harnness (1560-56568-01) (1) Rear Spk Out Harness (1560-56544-01) (1) Allen wrench (1) RF sticker (1) PRESET warning label (1) Performance verification certificate
Dimensions (H x W x D)	1.7" x 4.25" x 8.41" (42.8 mm x 108 mm x 213 mm) Does not include harnesses
Shipping Weight	4.19 lb. (1.9 Kg.)
