M2D4-12IB
M2D4-12IB
M2D4-12IB
Overview

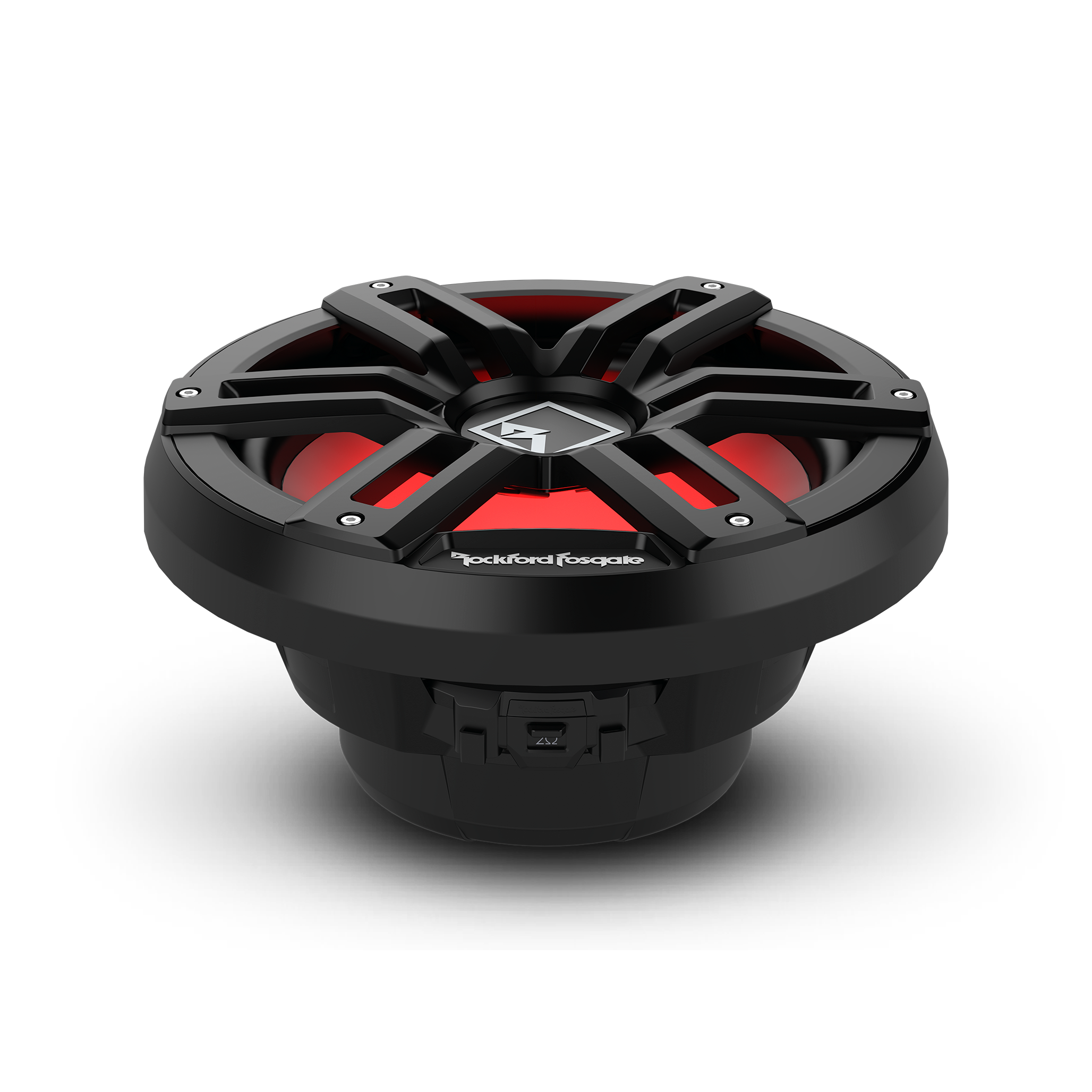

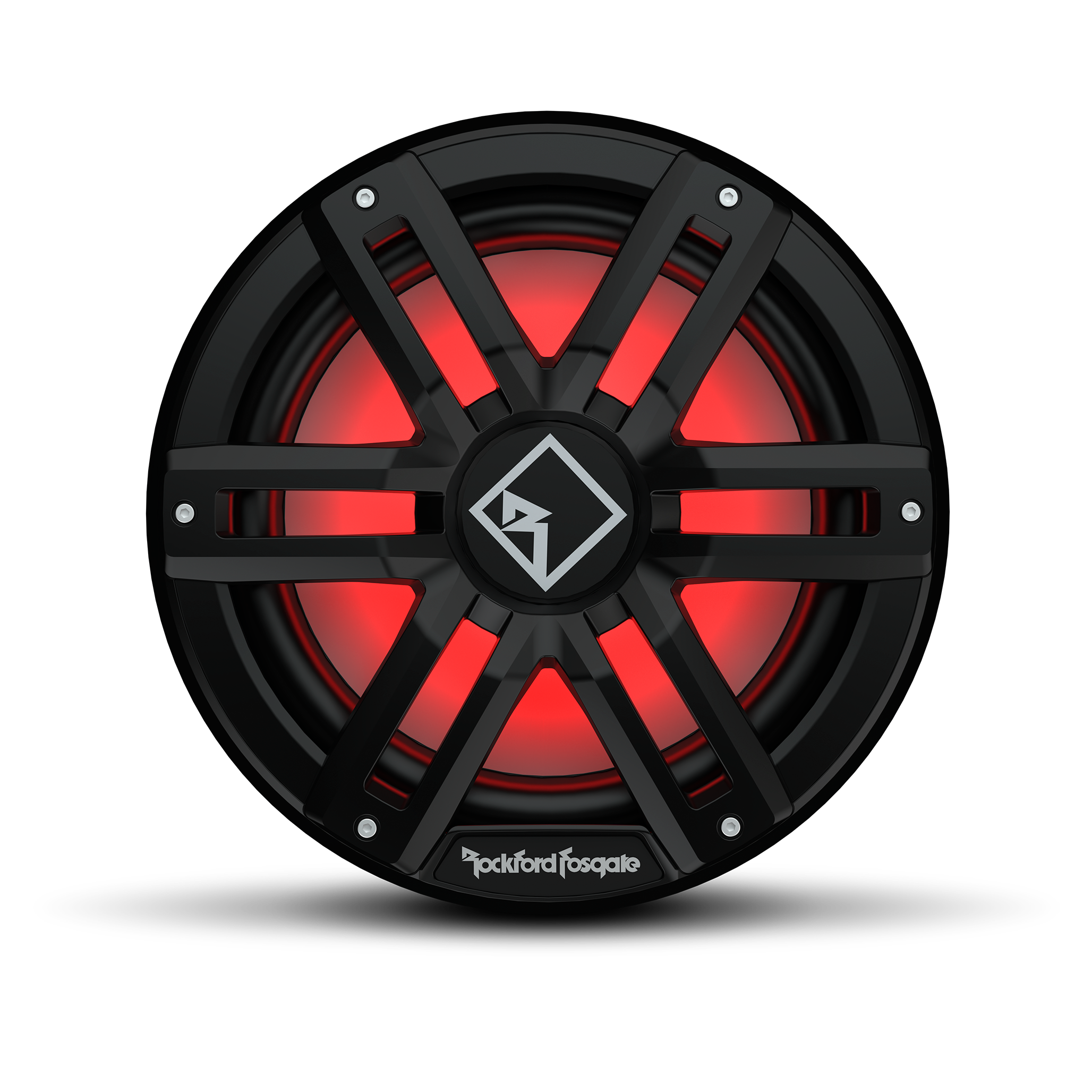

The M2D4-12IB Color Optix TM 12" DVC 4-Ohm infinite baffle subwoofers deliver loud, clear, accurate bass, and light the way for your journey! Sold individually (1 each).
Features
- Adjust color experience to suit your taste with Rockford Fosgate Color Optix TM controller (optional)

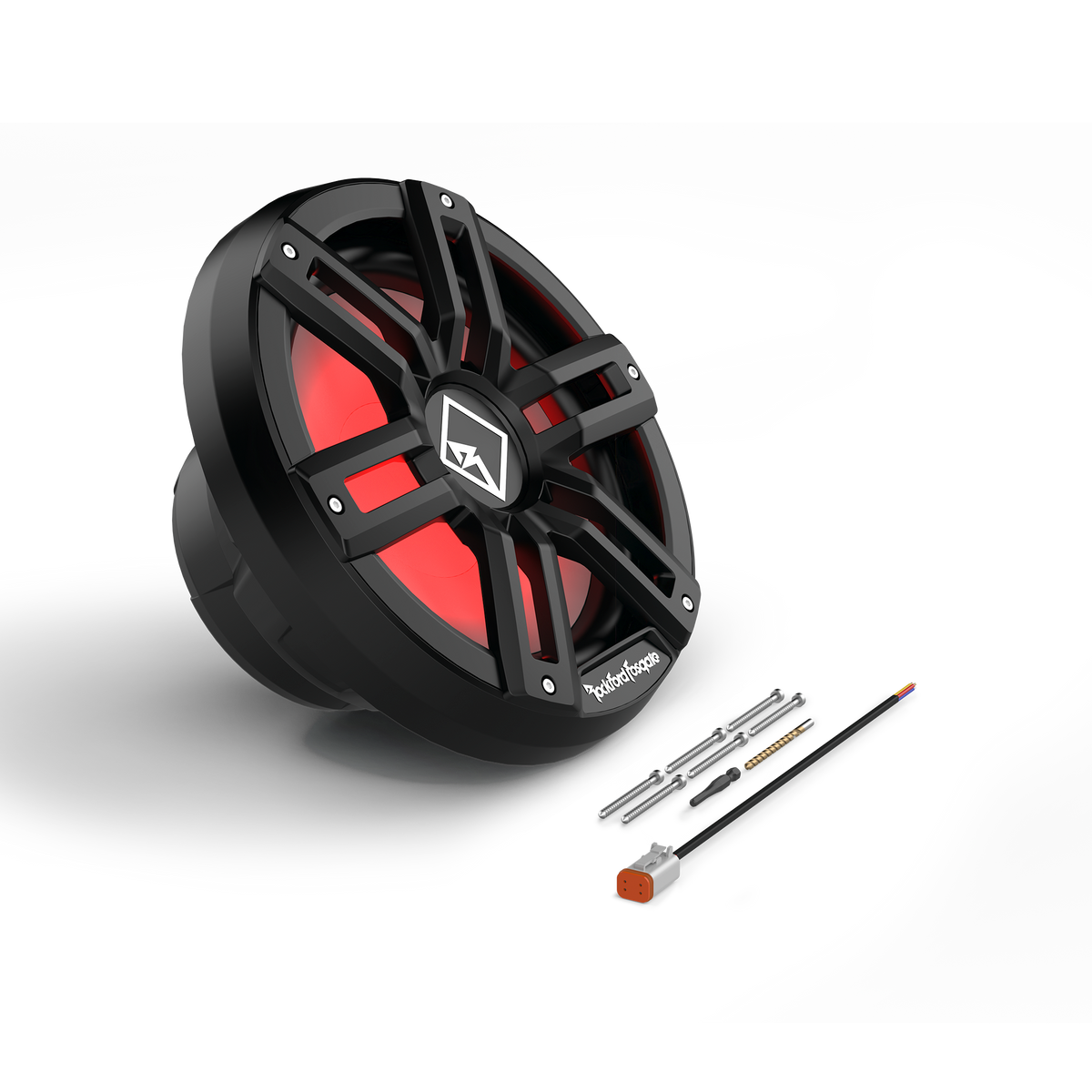

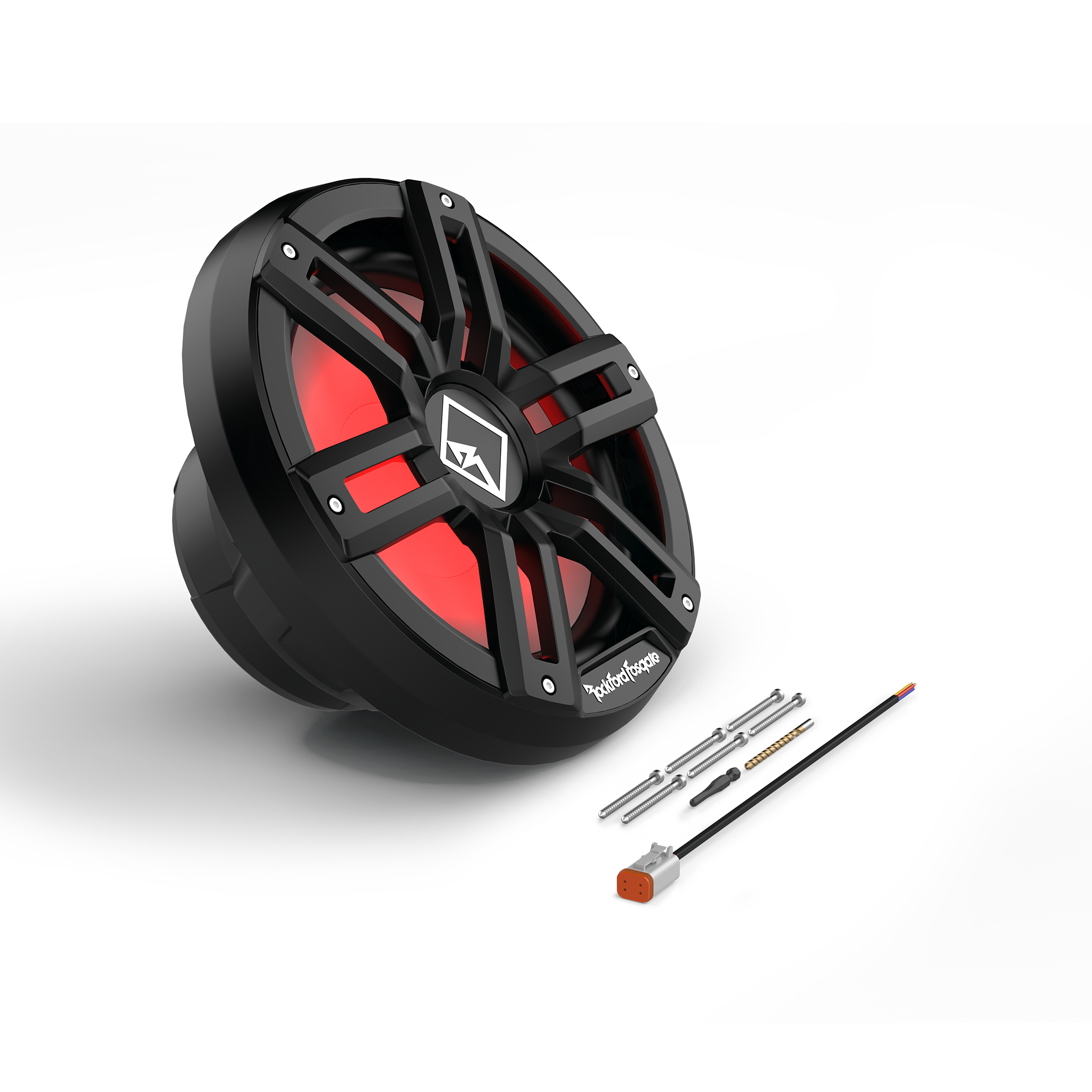

- Integrated DeutschTM/AmphenolTM connectors make wiring connections simple and error proof
- Bright, wide-angle LEDs provide rich, reliable illumination
- Deutsch DT connectors incorporate front/rear silicone seals to protect against environmental ingress
- Element Ready TM design protects lighting from exposure

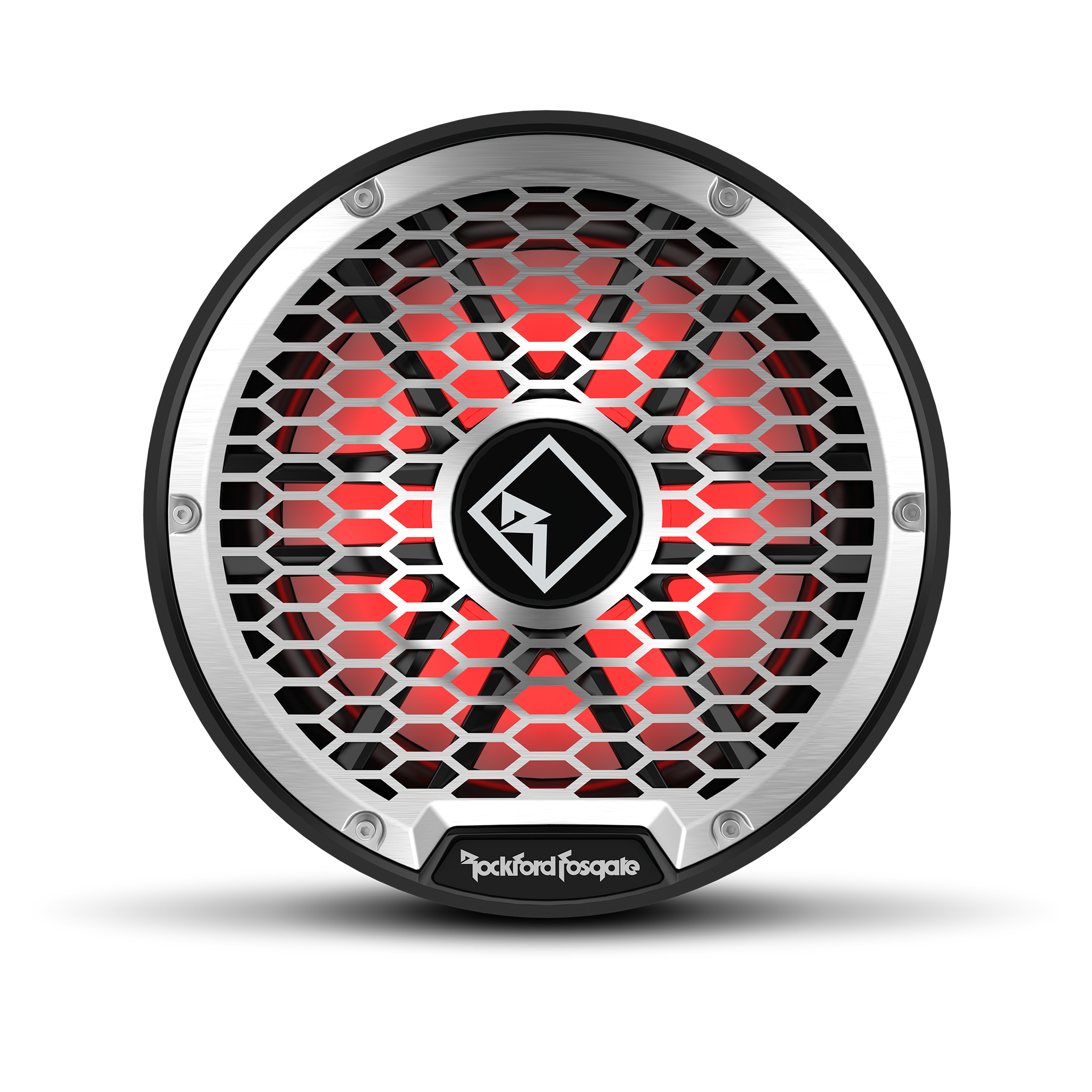

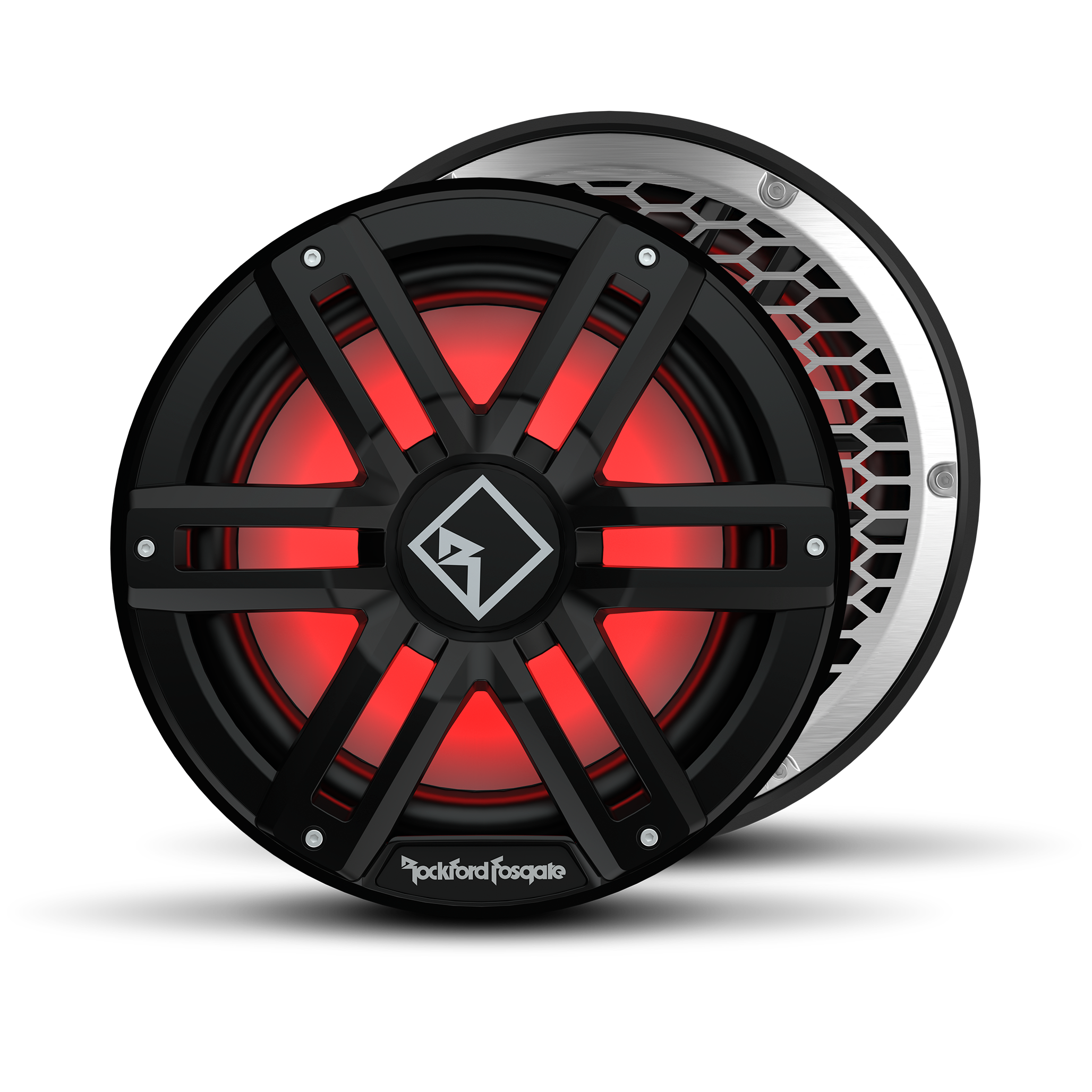

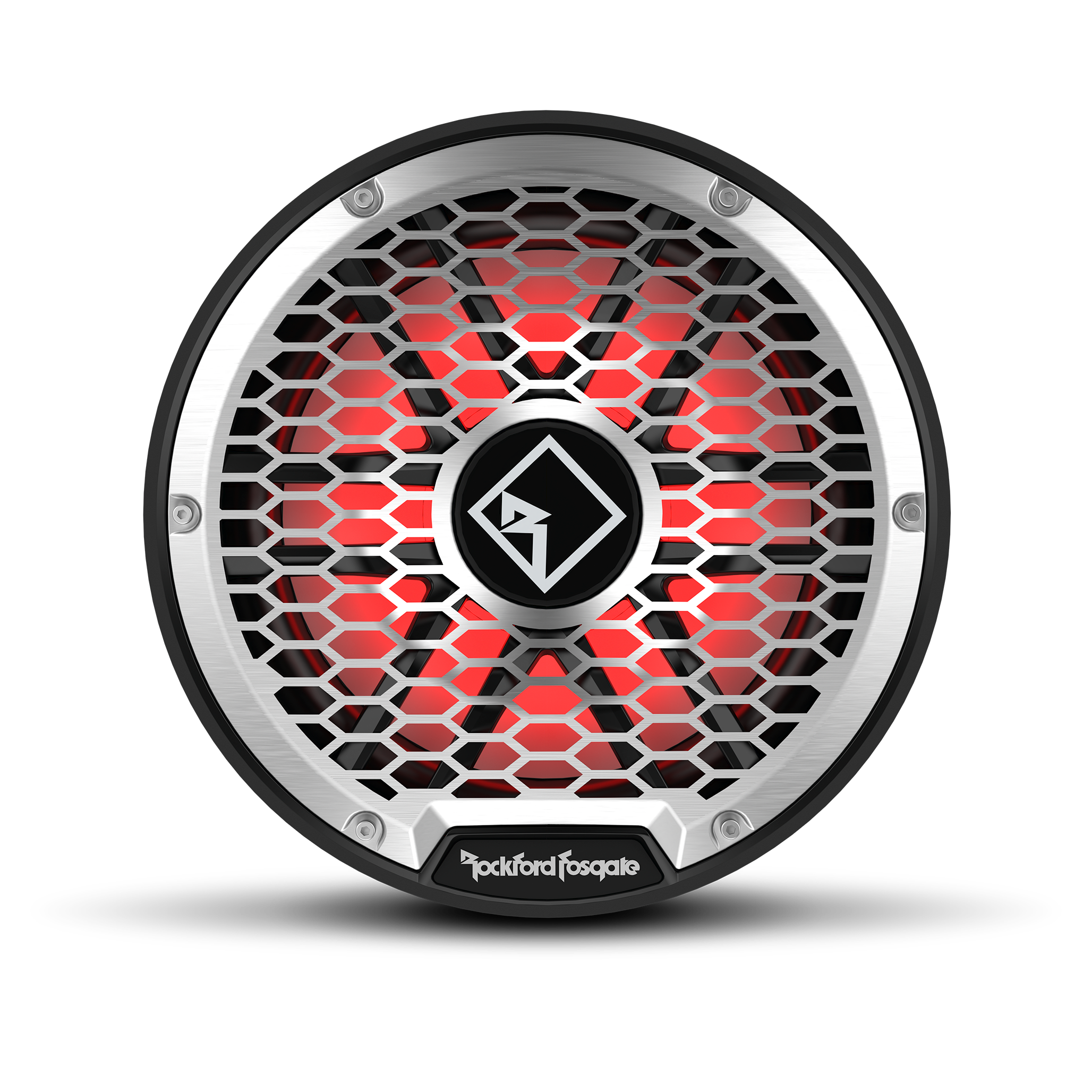

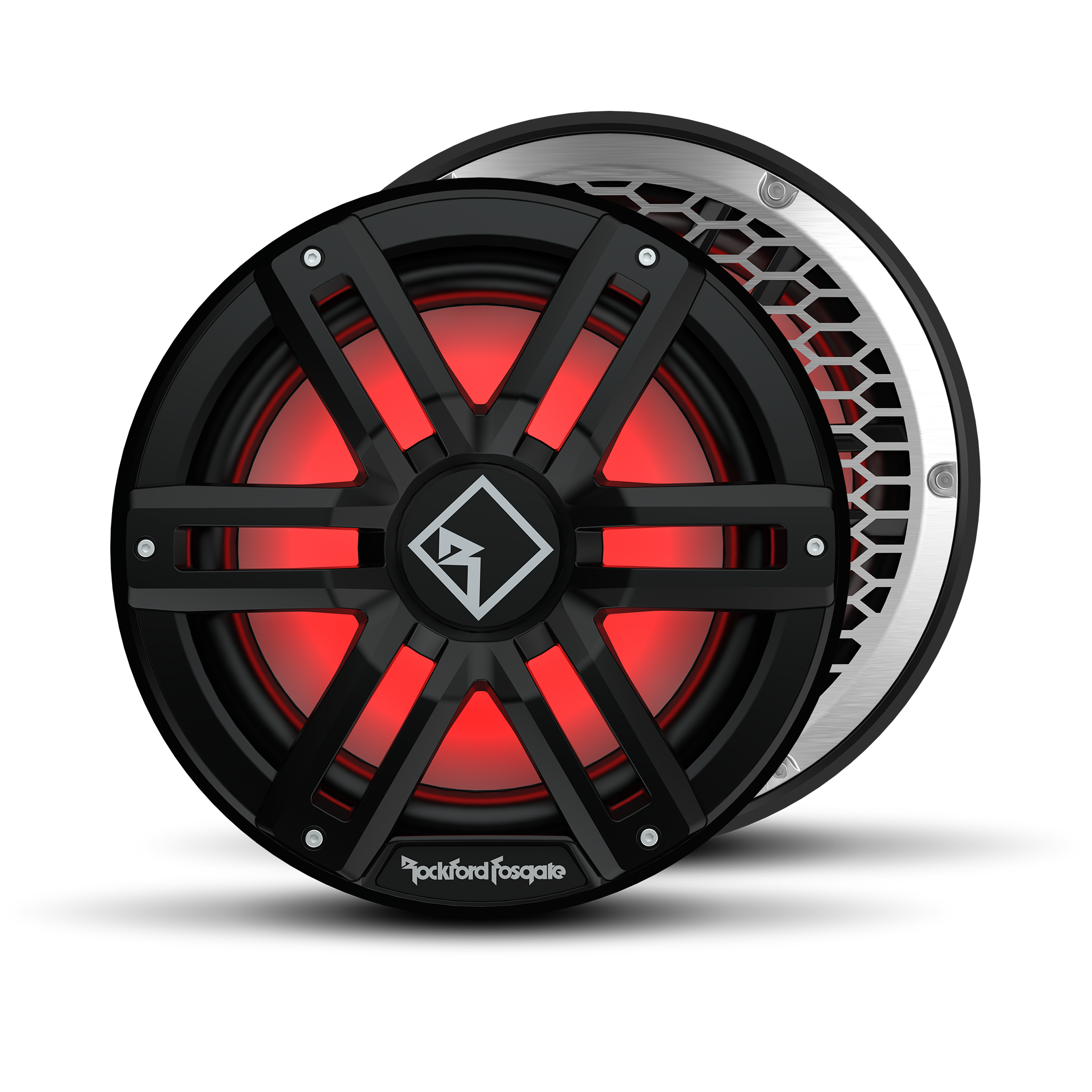

- 2-piece grille allows for interchangeable stainless-steel or "sport" option
- IPX6 Water Intrusion Rated
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Gold plated marine grade brass terminals provide a corrosion resistant connection
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Klippel Verified certification program delivers the best possible loudspeakers

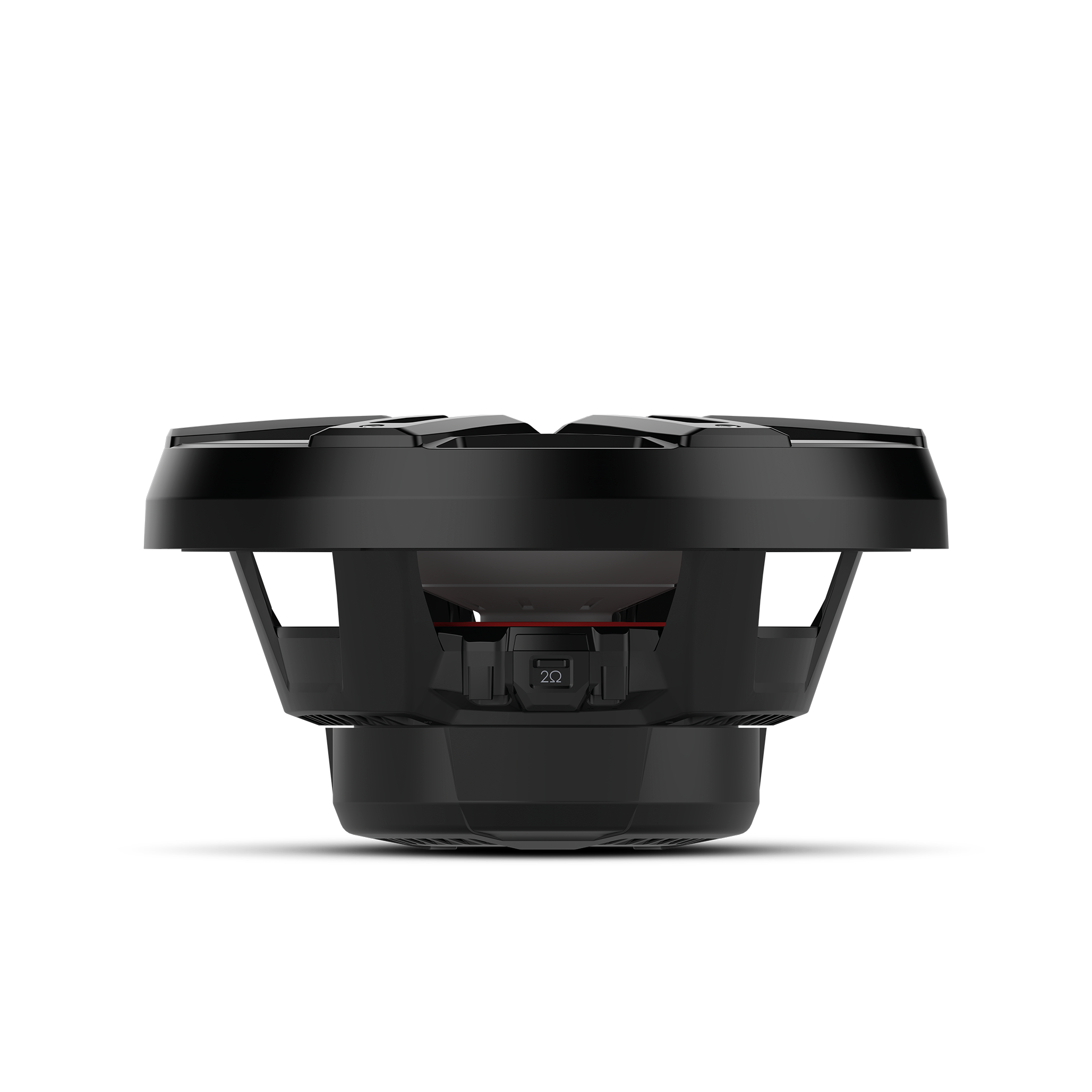

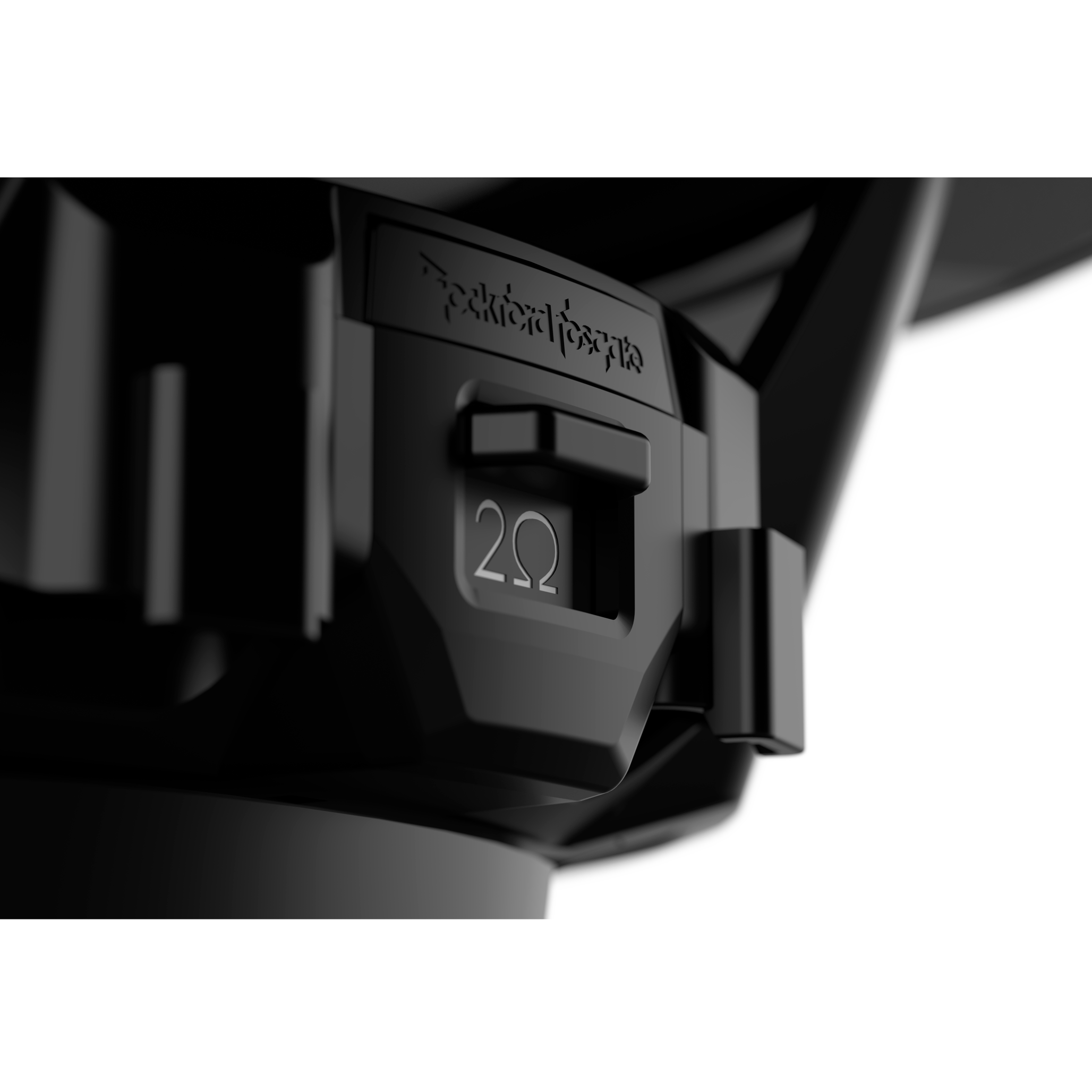

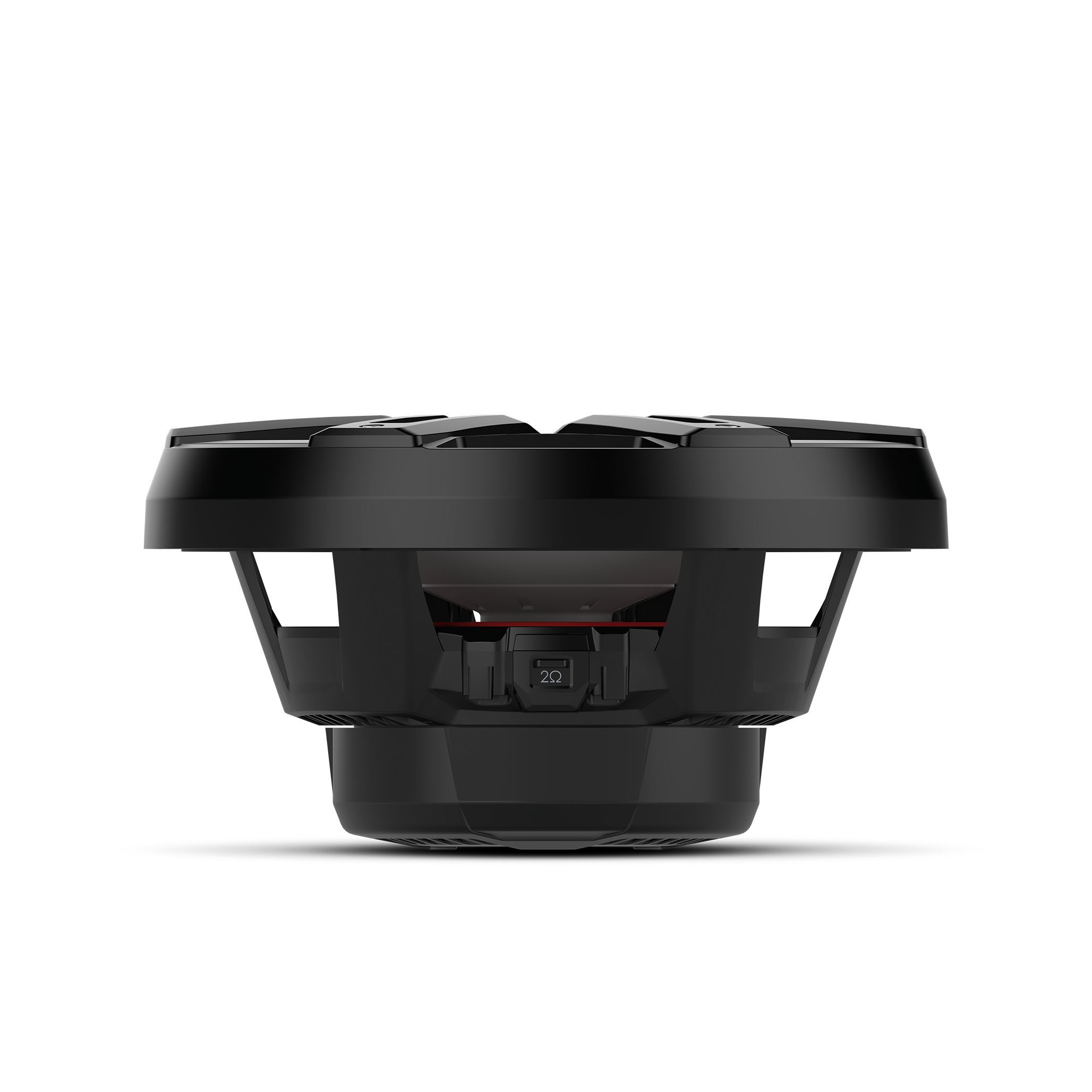

- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Optimized for infinite baffle applications when an enclosure is not an option
- 2-Year Warranty
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Injection molded mineral filled polypropylene cone body with UV inhibitors
Specifications
- Size: 12"
- Qes: 1.14
- Qms: 5.27
- Qts: 0.94
- Sd (cm2): 539
- Le (mH): 3.43
- Re (Ohms): 6.5
- Fs (Hz): 38
- Frequency Response (Hz): 20 Hz - 750 Hz
- Magnet Weight (oz): 61.09 oz. (1.7 Kg)
- Voice Coil Diameter: 1.95" (49.53 mm)
- Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
- Voice Coil Type: Dual Voice Coil
- Power Handling (Watts RMS): 400 Watts RMS; 1,600 Watts PEAK
- Vas: 64.2
- SPL (dB @ 1w/1m): 88
- Woofer Displacement: 0.121 (3.43 Liters)
- Xmax (mm): 15
- SPL (dB @ 2.8v): 90
- Speaker Connector: 2-pin DeutschTM and 1/8" Spade
- Cutout Diameter: 11" (279.4 mm)
- Shipping Weight: 14.26 Lbs. (6.47 Kg)
- Mounting Depth: 5.13" (130.4 mm)
