Overview

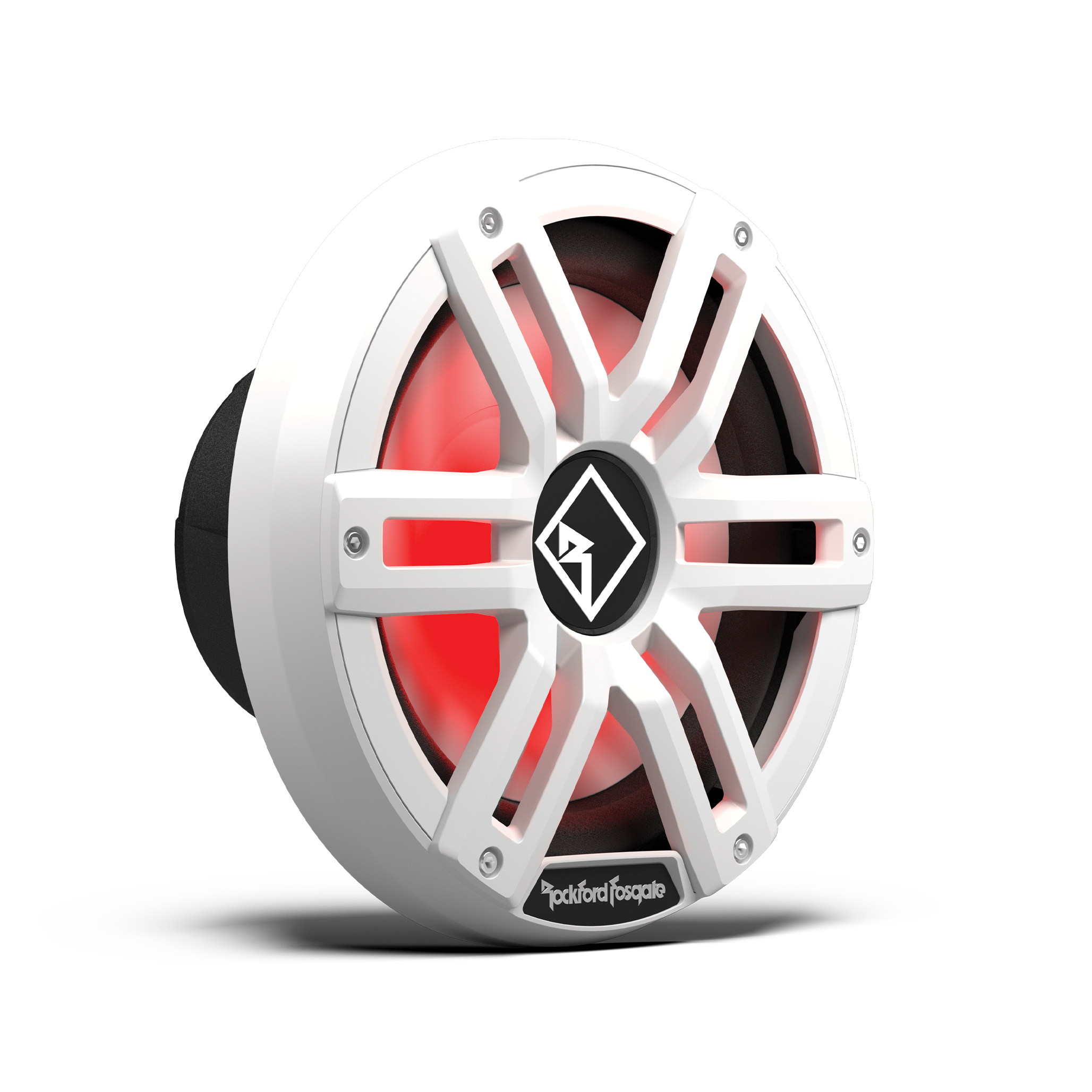

The second generation M2 10-inch subwoofers create an unmatched audio experience, with class-leading output, complete on-water lighting control and grille customization. This subwoofer is optimized for small Sealed Enclosures when there is very little space for an enclosure. Sold individually (1 each).
Features
- Optimized for small sealed enclosures when there is very little space for an enclosure
- COMSOL Multiphysics simulation software used to optimized suspension & motor assembly
- New vented T-yoke improves power and performance without bottoming
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Chemically bonded co-molded surround for a stronger attachment
- Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors

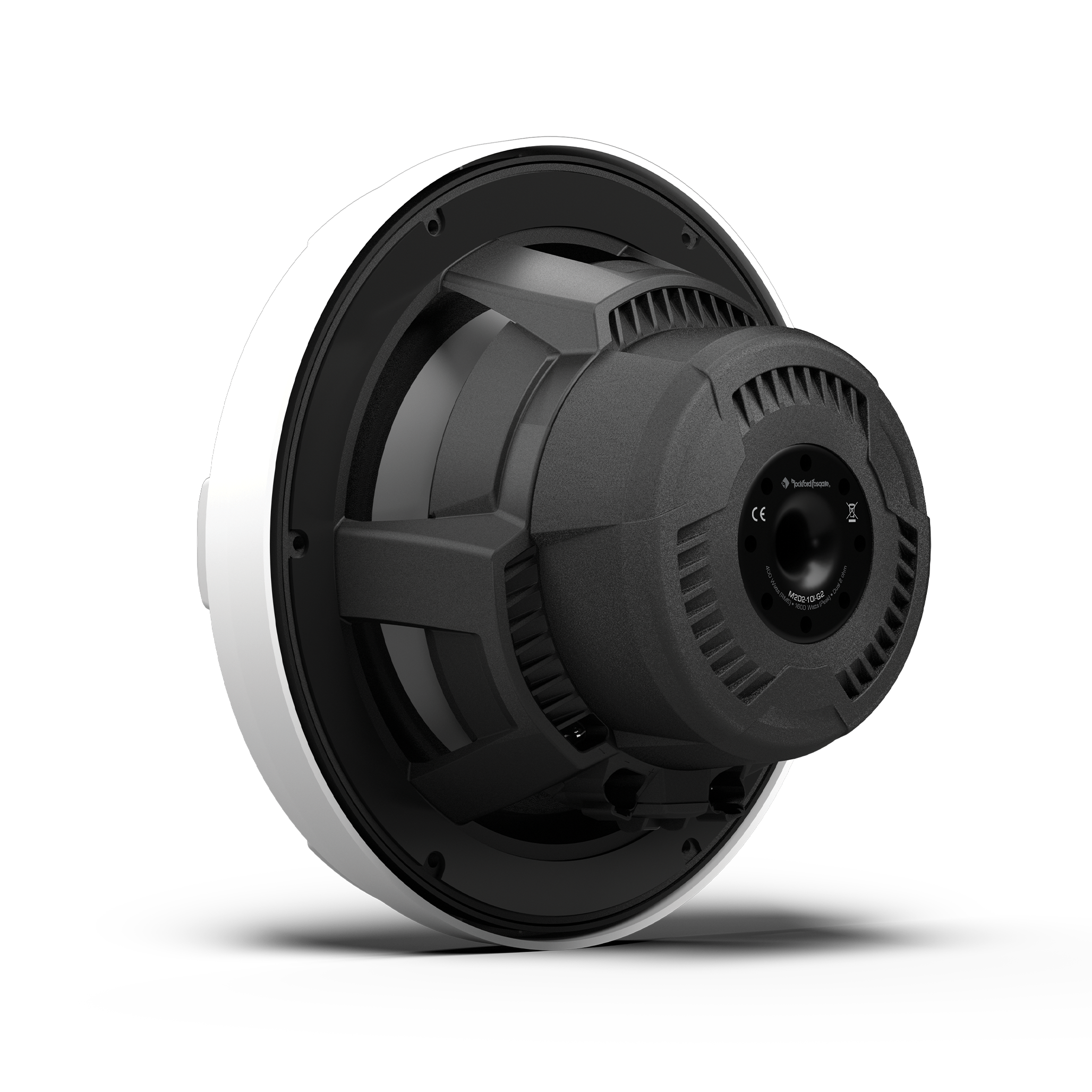

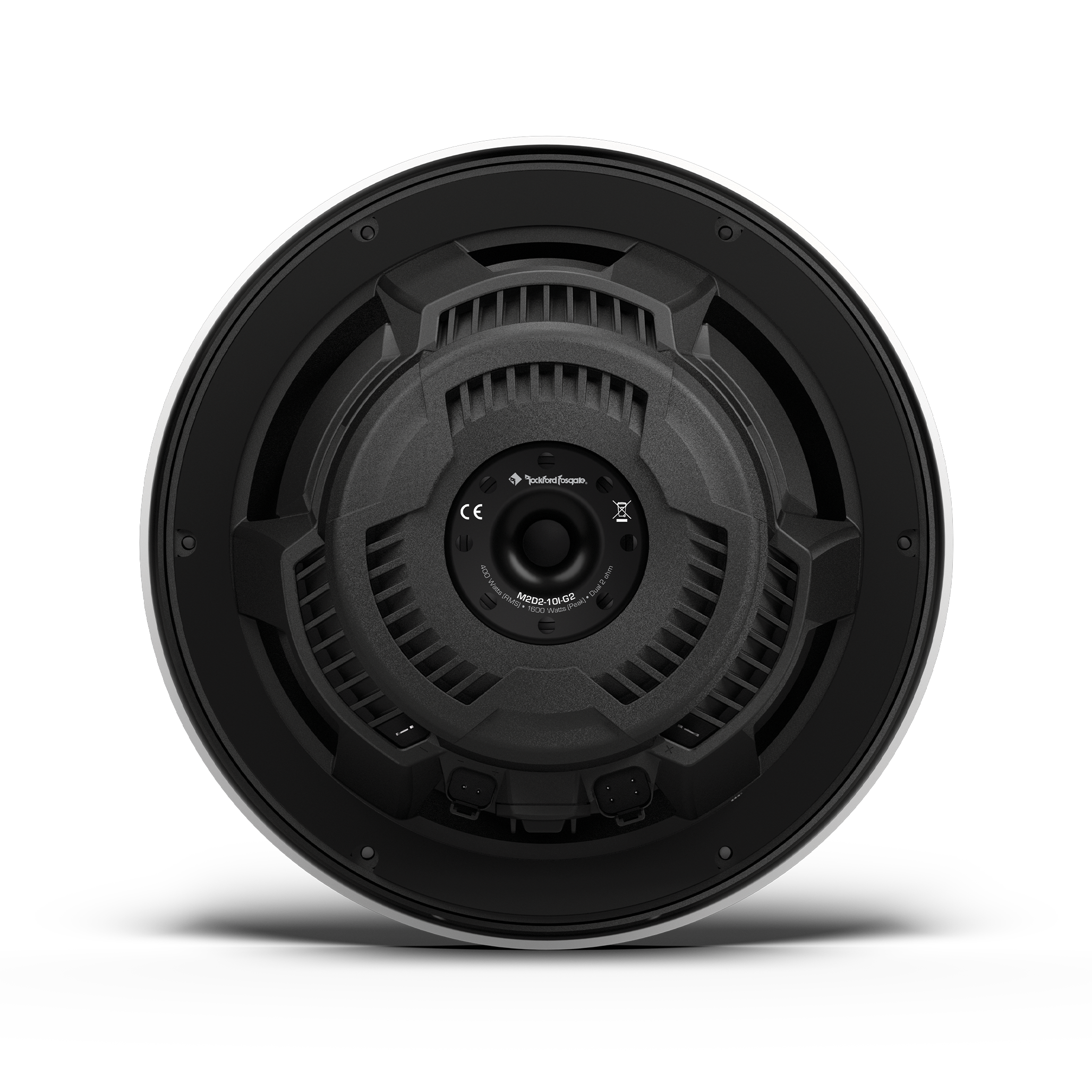

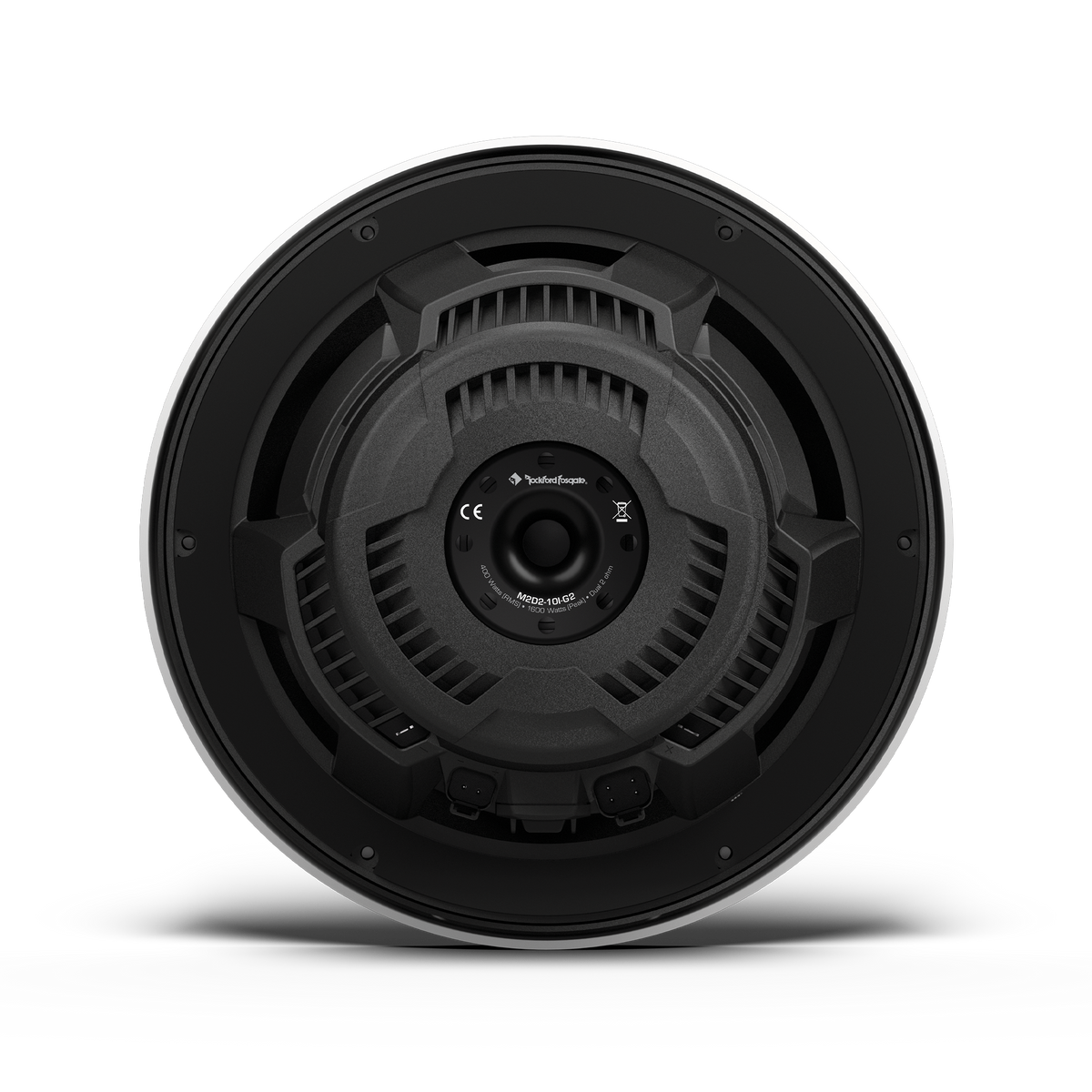

- Vented motor design with water-repelling nano coated mesh screen
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- Provides superb low and midrange frequency reproduction with smooth high frequency roll-off
- Integrated DeutschTM/AmphenolTM connectors make wiring connections simple and error proof
- Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- DeutschTM connector front/rear silicone seal protects against water ingress

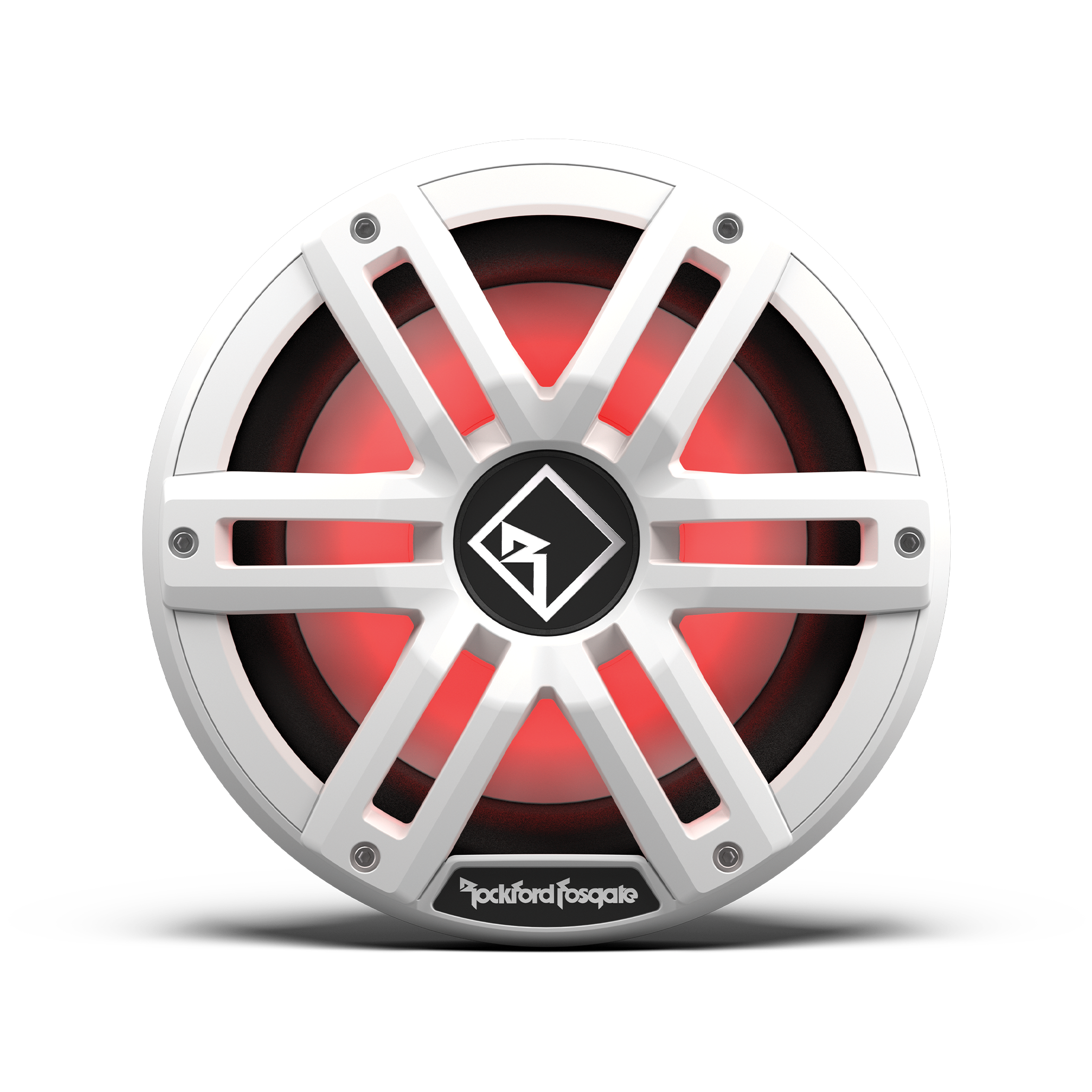

- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination

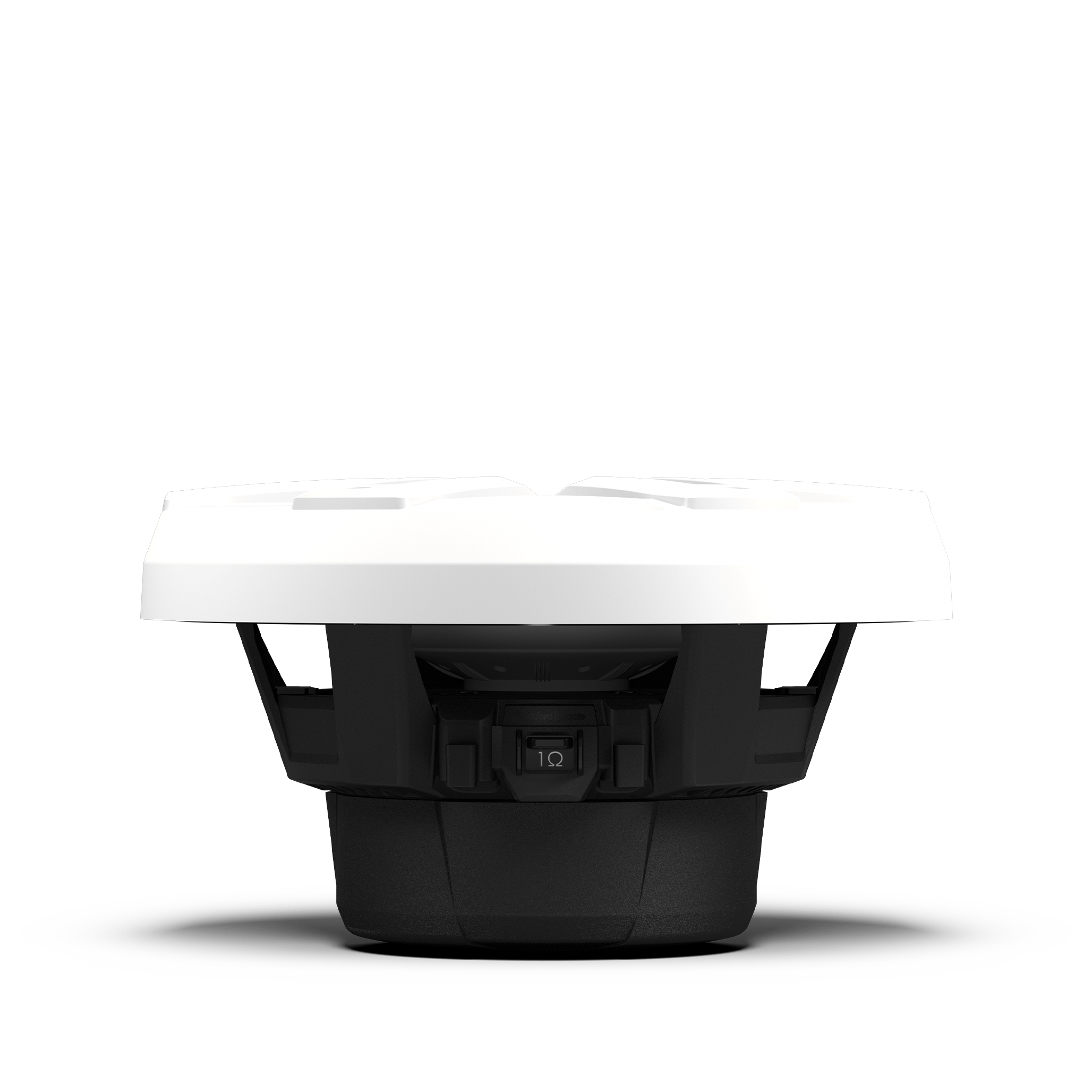

- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Fully insulated silicone tinsel leads
- 100% UV Stable Centrex plastic grill
- Optically clear UV stable RGB Lighting Encapsulation
- Gold plated marine grade brass terminals provide a corrosion resistant connection
- Adjust color experience to suit your taste with Rockford Fosgate Color Optix TM controller (optional)

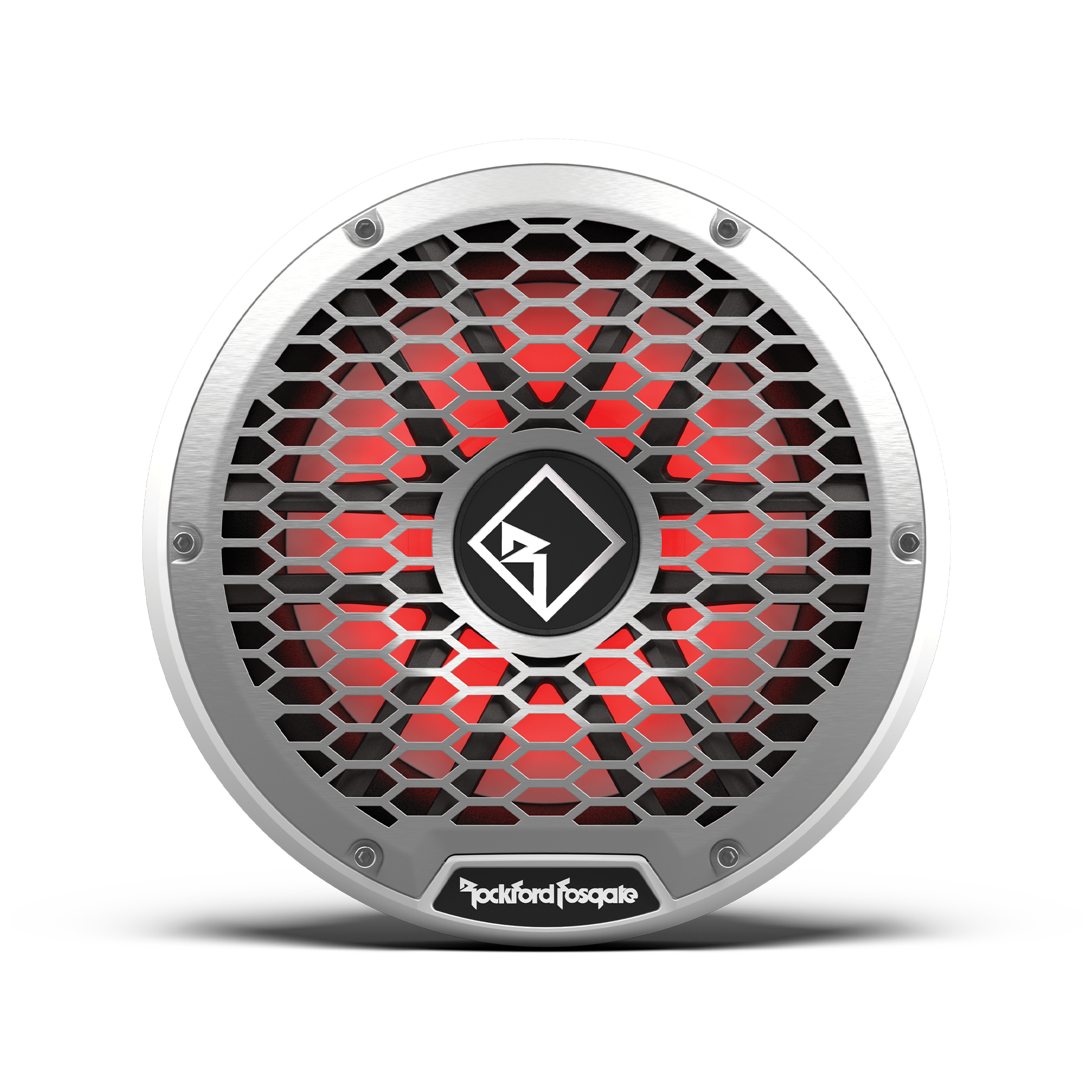

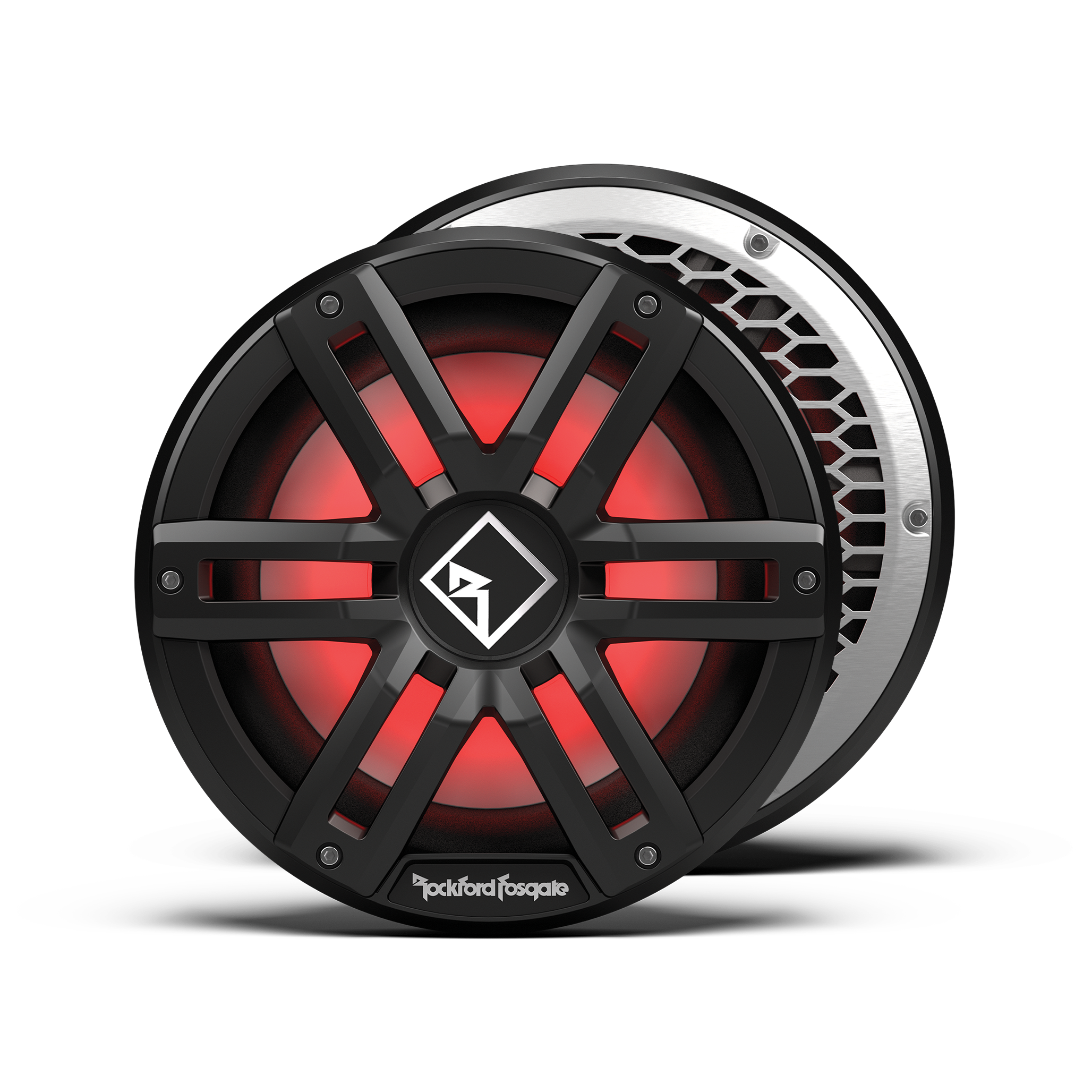

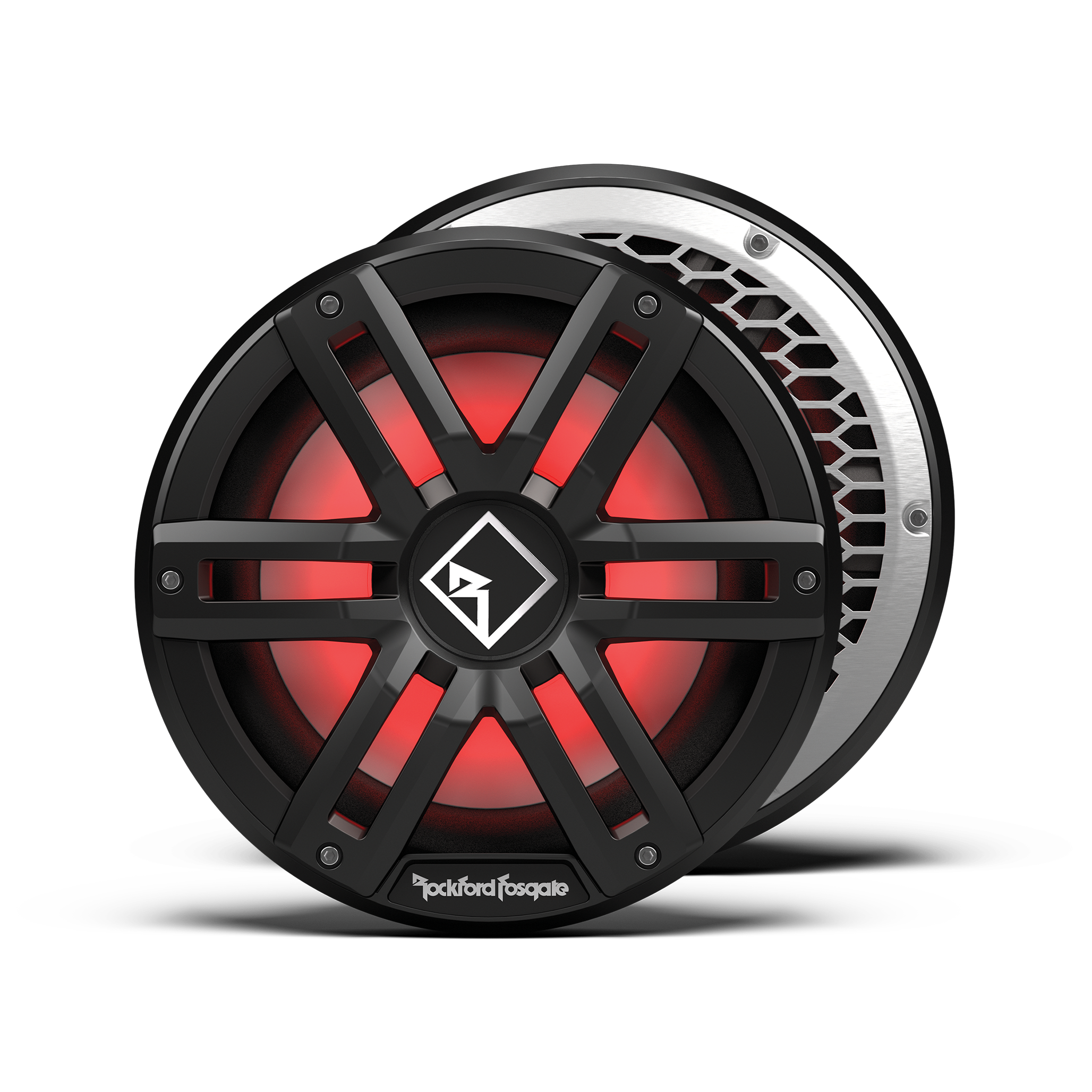

- 2-piece grille allows for interchangeable stainless-steel or "sport" option
- 2-Year Warranty
Specifications
- Size: 10"
- Frequency Response: 22 Hz - 250 Hz
- Voice Coil Type: Dual Voice Coil
- Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
- Power Handling (Watts RMS): 400 Watts RMS; 1600 Watts PEAK
- Voice Coil Diameter: 2" (51 mm)
- Magnet Weight (oz): 55.04 oz. (1.56 Kg)
- Fs (Hz): 30
- Re (Ohms): 6.4
- Le (mH): 4.88
- Sd (cm2): 363
- Qms: 7.69
- Qes: 0.66
- Qts: 0.61
- SPL (dB @ 1w/1m): 83
- Vas: 25.2
- Xmax (mm): 13
- Speaker Connector: DeutschTM and 1/8" Spade
- Sealed Box Volume (Vb): 0.5 cu. ft. (14.2 Liters) - 1.25 cu. ft. (35.4 Liters)
- Cutout Diameter: 8.98" (228 mm)
- Mounting Depth: 4.70" (119.35 mm)
- Woofer Displacement: 0.047 cu. ft. (1.33 Liters)

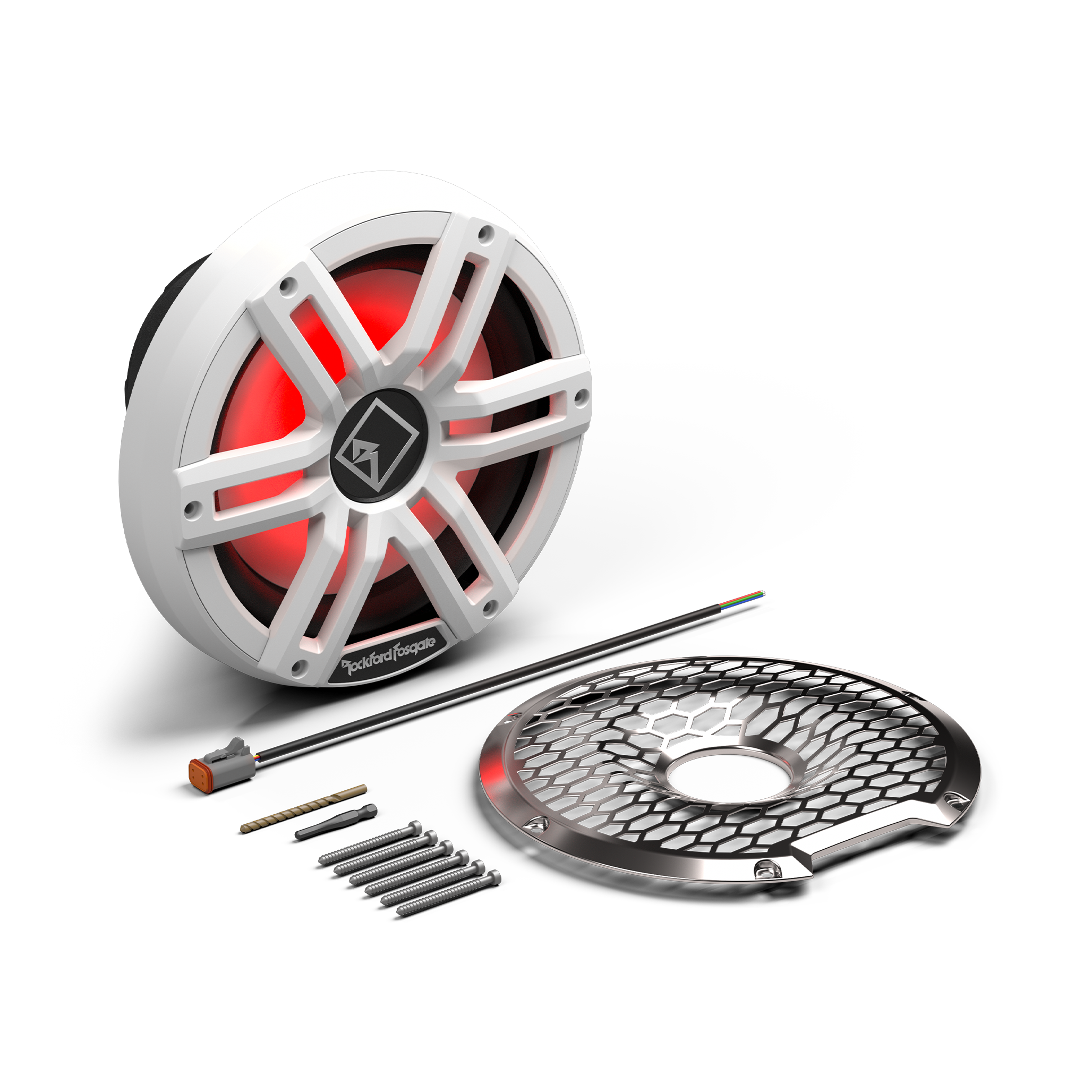

- In The Box: (6) 1025-71213-01: Black Grille Spacer; (1) 1120-71212-01: Stainless Steel Grill; (1) 1125-71208-01: 4.5mm x 80mmL Drill Bit; (6) 1125-71237-01: 3.0mm x 60mmL Hex Screws; (1) 1125-73494-01: 5.0mm x 40mmL Hex Bit; (1) 1560-71095-01: 4-Wire RGB Harness 300mm
- Shipping Weight: 14.45 Lbs. (6.6 Kg)
