M2D4-10IB
Overview

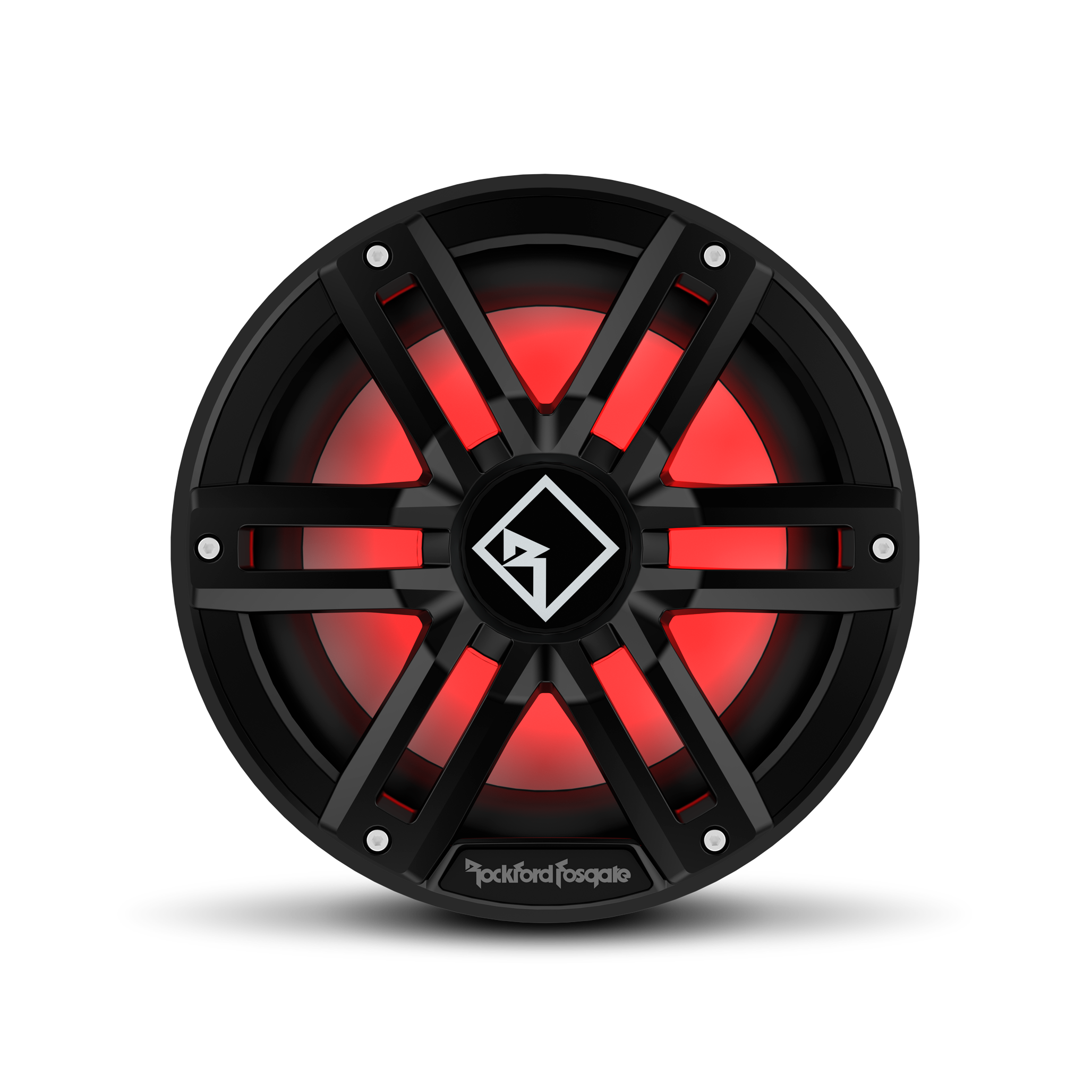

The M2D4-10I Color Optix TM 10" DVC 2-Ohm infinite baffle subwoofers deliver loud, clear, accurate bass, and light the way for your journey! Sold individually (1 each).
Features
- 2" (50mm) High Temp KaptonTM Woofer Voice Coil Former
- Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
- Gold plated Marine grade brass terminals provide a corrosion resistant connection
- Optically clear UV stable RGB Lighting Encapsulation
- Injection molded UV stable foam surround
- Integrated DeutschTM/AmphenolTM connectors make wiring connections simple and error proof
- Fully insulated silicone tinsel leads

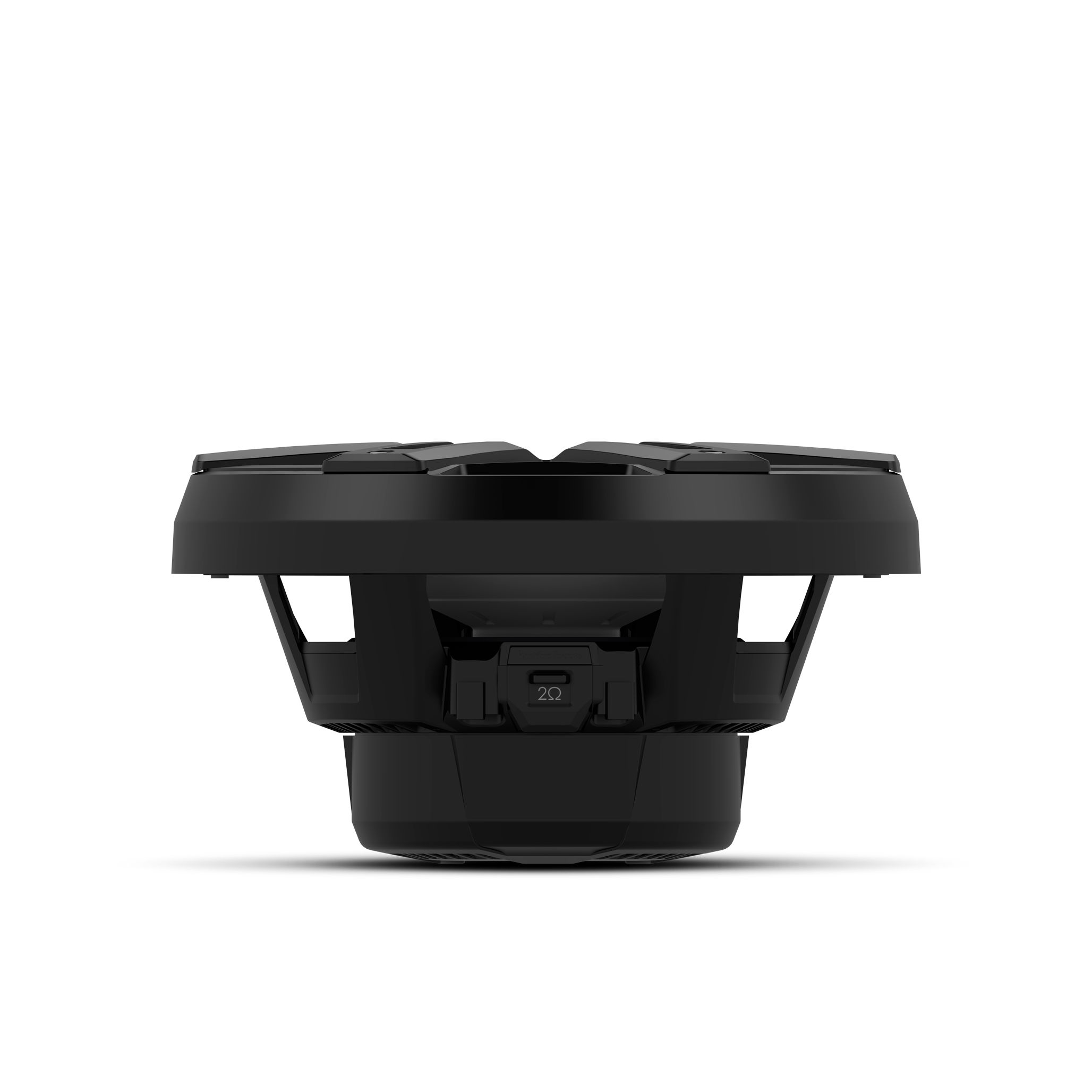

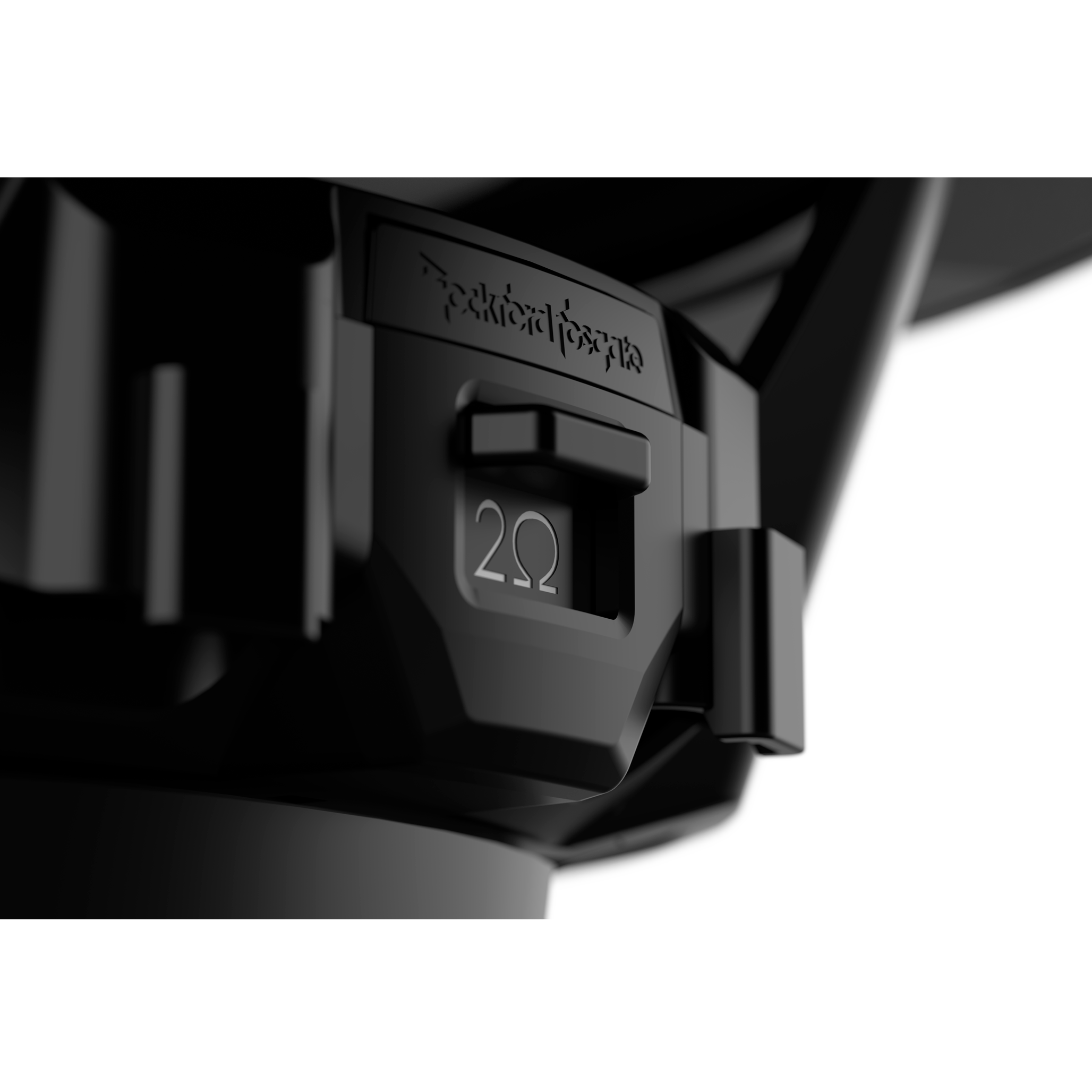

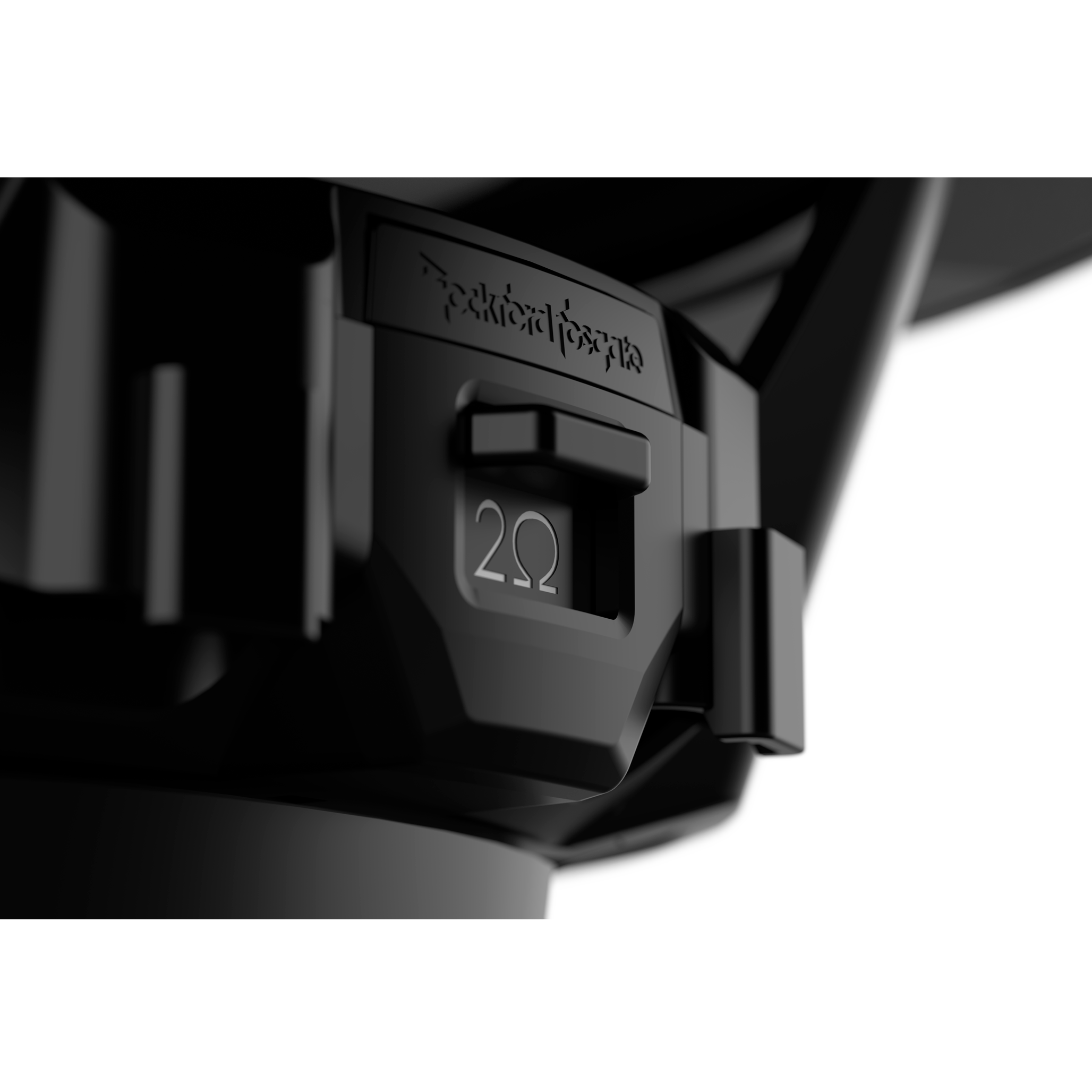

- VERSA impedance switch quickly allows series or parallel configuration without additional wiring

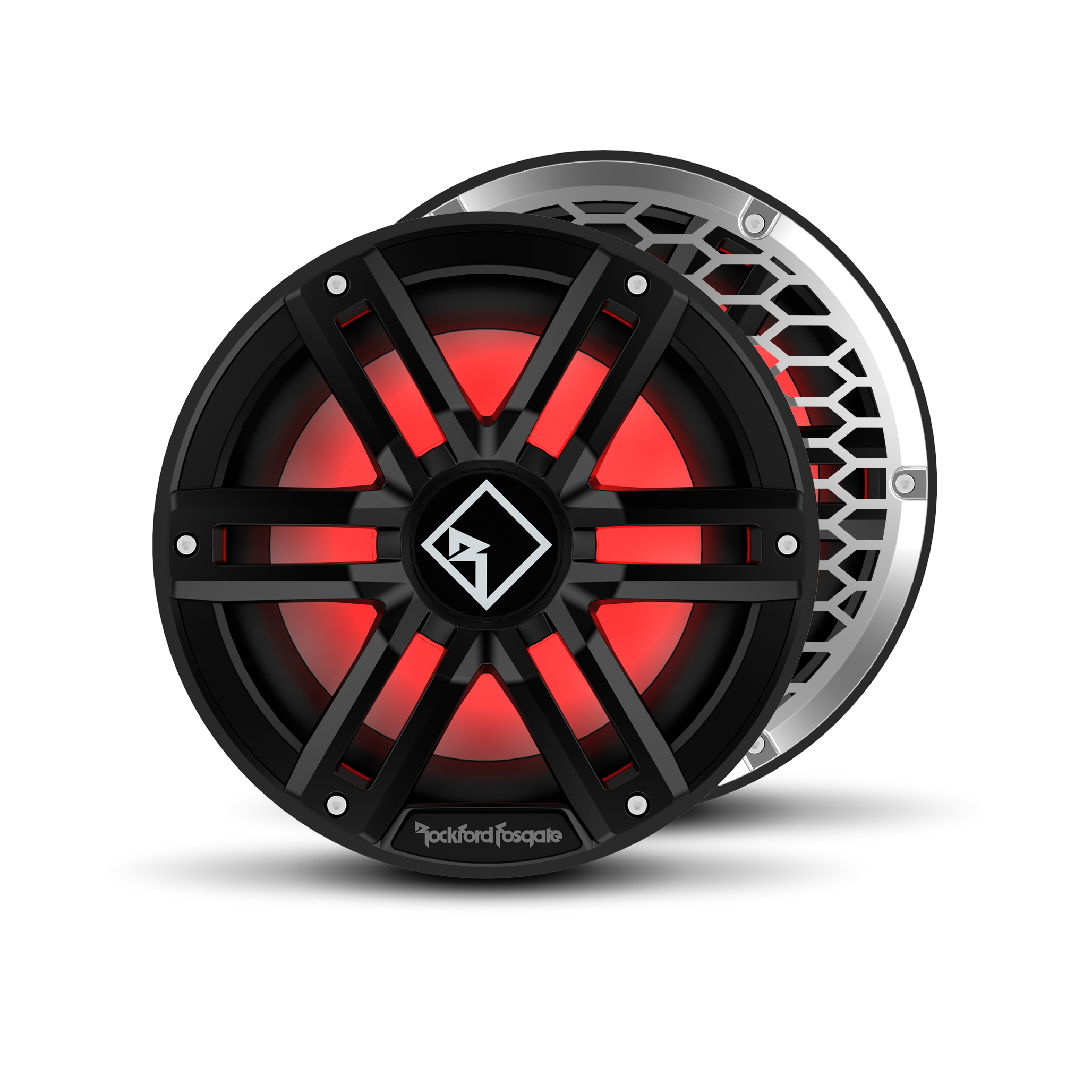

- 100% UV Stable Centrex plastic grill
- Linear Aramid-Polyester Composite Spider
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Vented motor design with water-repelling nano coated mesh screen
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Co-molded surround and mineral filled polypropylene cone body
- Optimized for infinite baffle applications when an enclosure is not an option
- 2-Year Warranty
- Injection molded mineral filled polypropylene cone body with UV inhibitors
Specifications
- Voice Coil Type: Dual Voice Coil
- Size: 10"
- Frequency Response: 20 Hz - 750 Hz
- Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
- Power Handling (Watts RMS): 400 Watts RMS; 1600 Watts PEAK
- Magnet Weight (oz): 55.02 oz. (1.56 Kg)
- Voice Coil Diameter: 2.0" (50.8 mm)
- Fs (Hz): 43
- Re (Ohms): 6.6
- Le (mH): 1.76
- Sd (cm2): 363
- Qms: 5.67
- Qes: 1.07
- Qts: 0.9
- Vas: 31.5
- SPL (dB @ 1w/1m): 90.3
- Xmax (mm): 12
- Woofer Displacement: 0.06 cu. ft. (1.74 Liters)
- Speaker Connector: DeutschTM
- Cutout Diameter: 8.87 in. (225.3 mm)
- Mounting Depth: 4.44 in. (112.7 mm)
- Shipping Weight: 13.8 Lbs. (6.26 Kg)
