M2-8HB
Overview

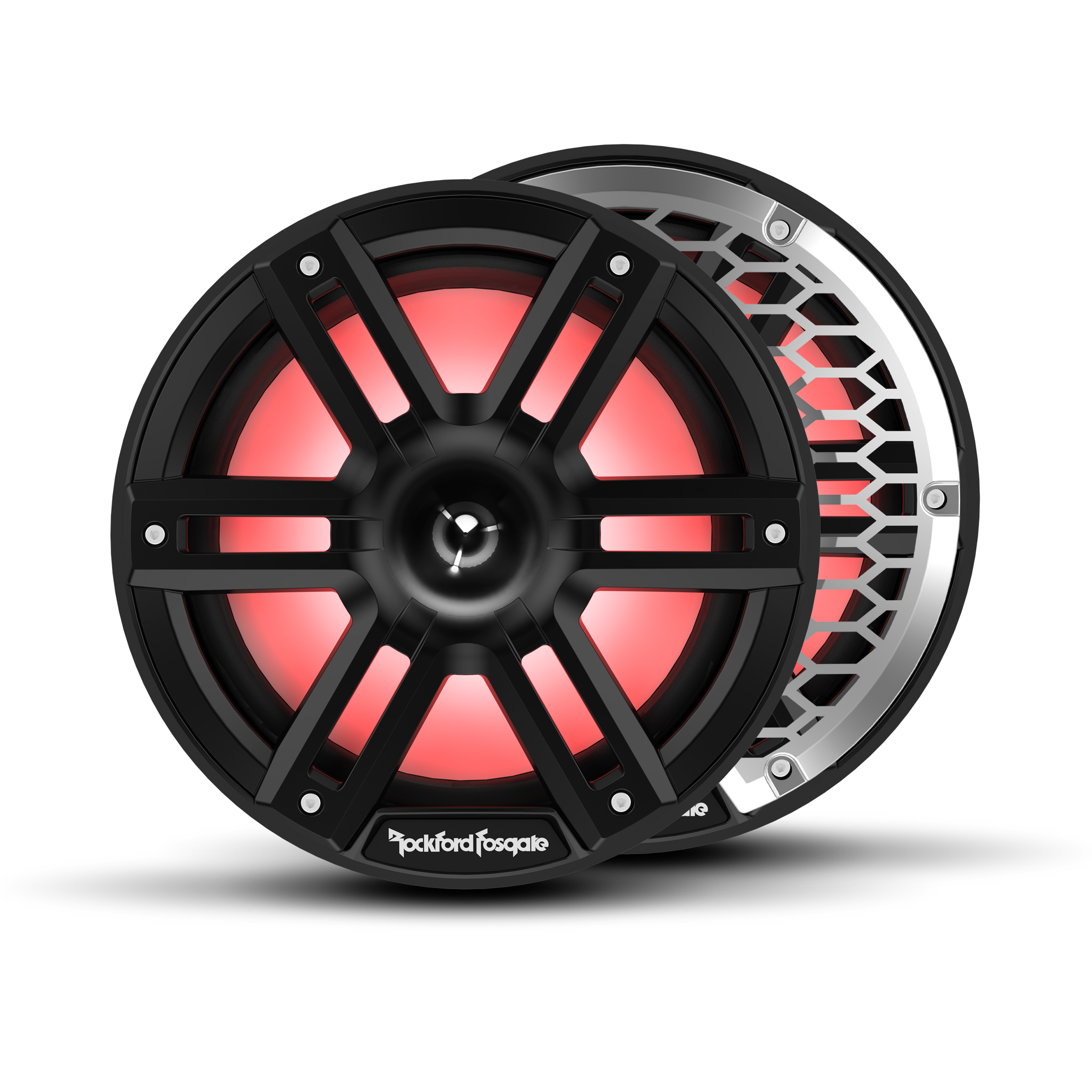

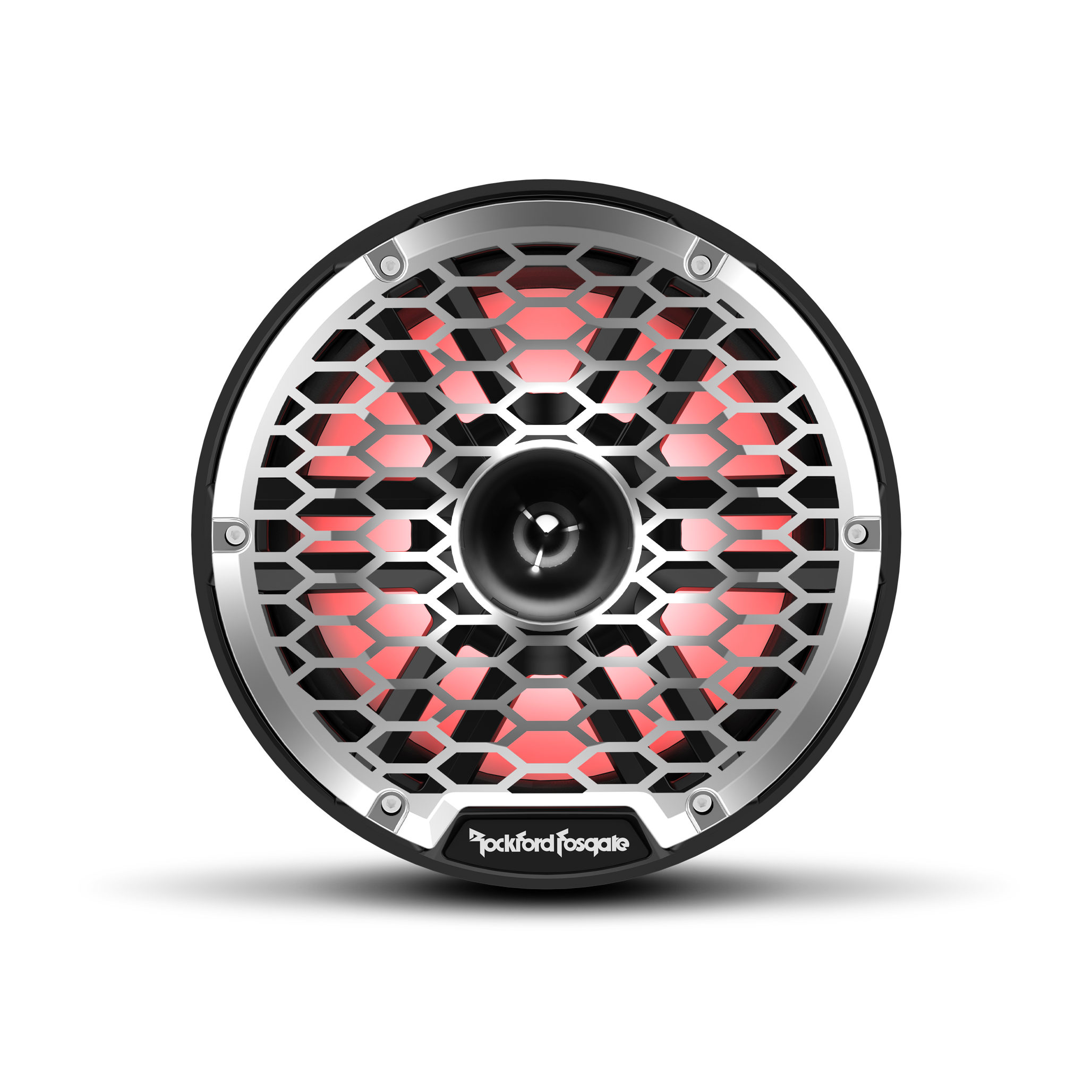

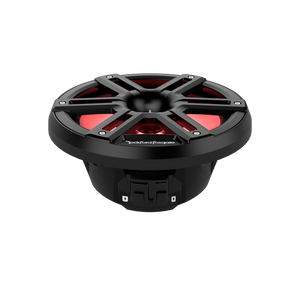

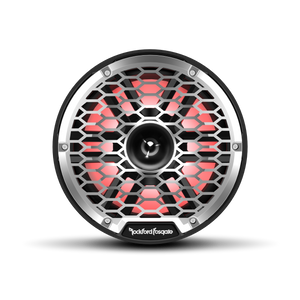

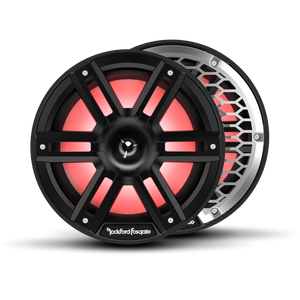

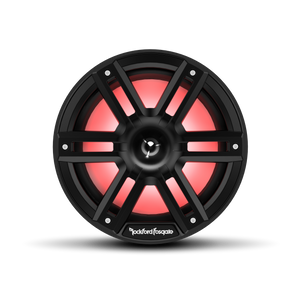

The M2-8B Color Optix TM 2-way 8" horn speakers deliver extra-loud, clear, accurate sound, while lighting the way on your journey!
Features
- Proprietary Dual Function Input Terminals
- Integrated Deutsch RGB and Speaker receptacles
- 1" (25mm) High Temp KaptonTM Woofer Voice Coil Former
- Integrated 1" (25 mm) high efficiency horn tweeter
- Gold plated Marine grade brass terminals provide a corrosion resistant connection
- Ultra-high temperature PA66 with 30% glass-fill injection-molded frame with UV inhibitors
- Fully insulated flex lead wire stitched under spider
- 2-Year Warranty

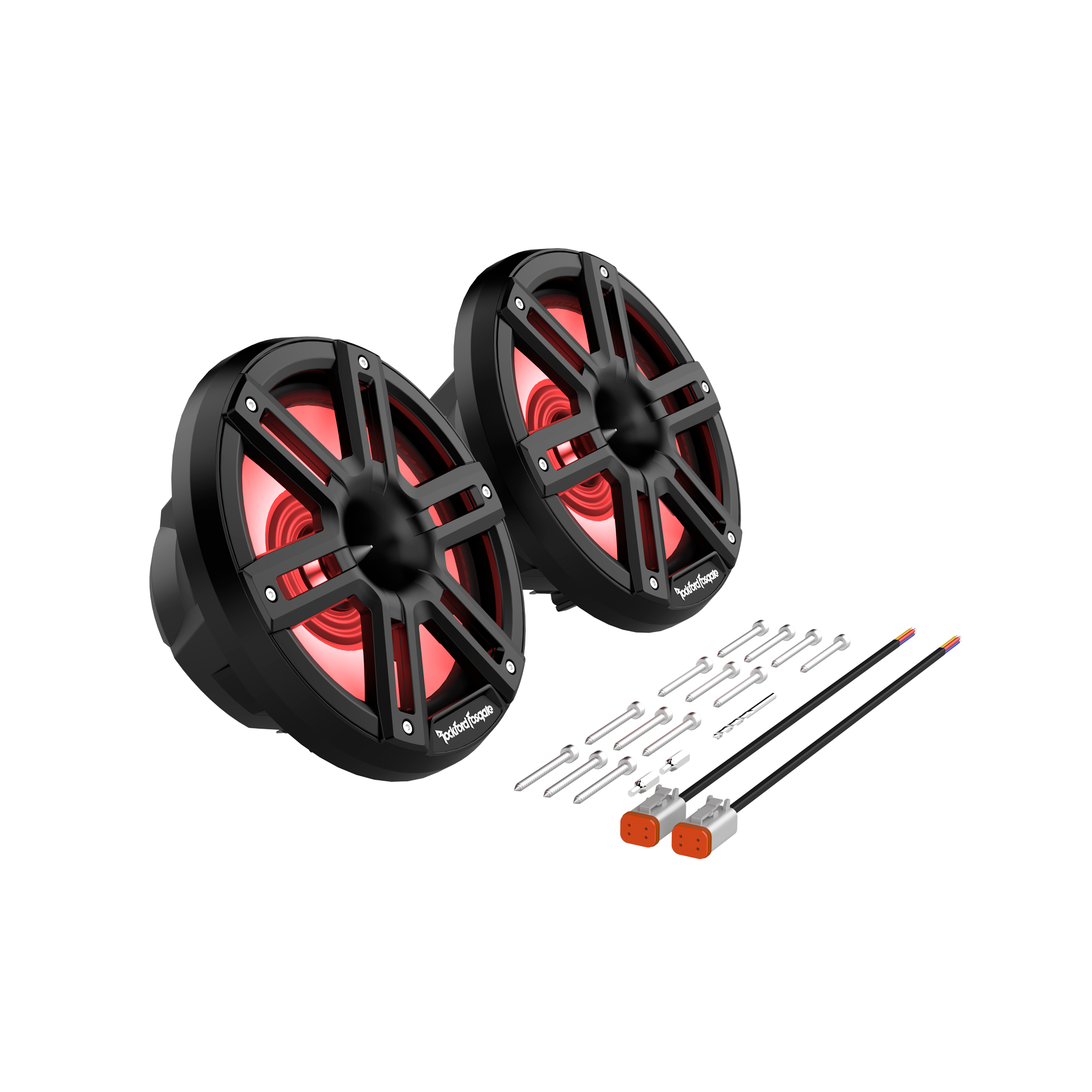

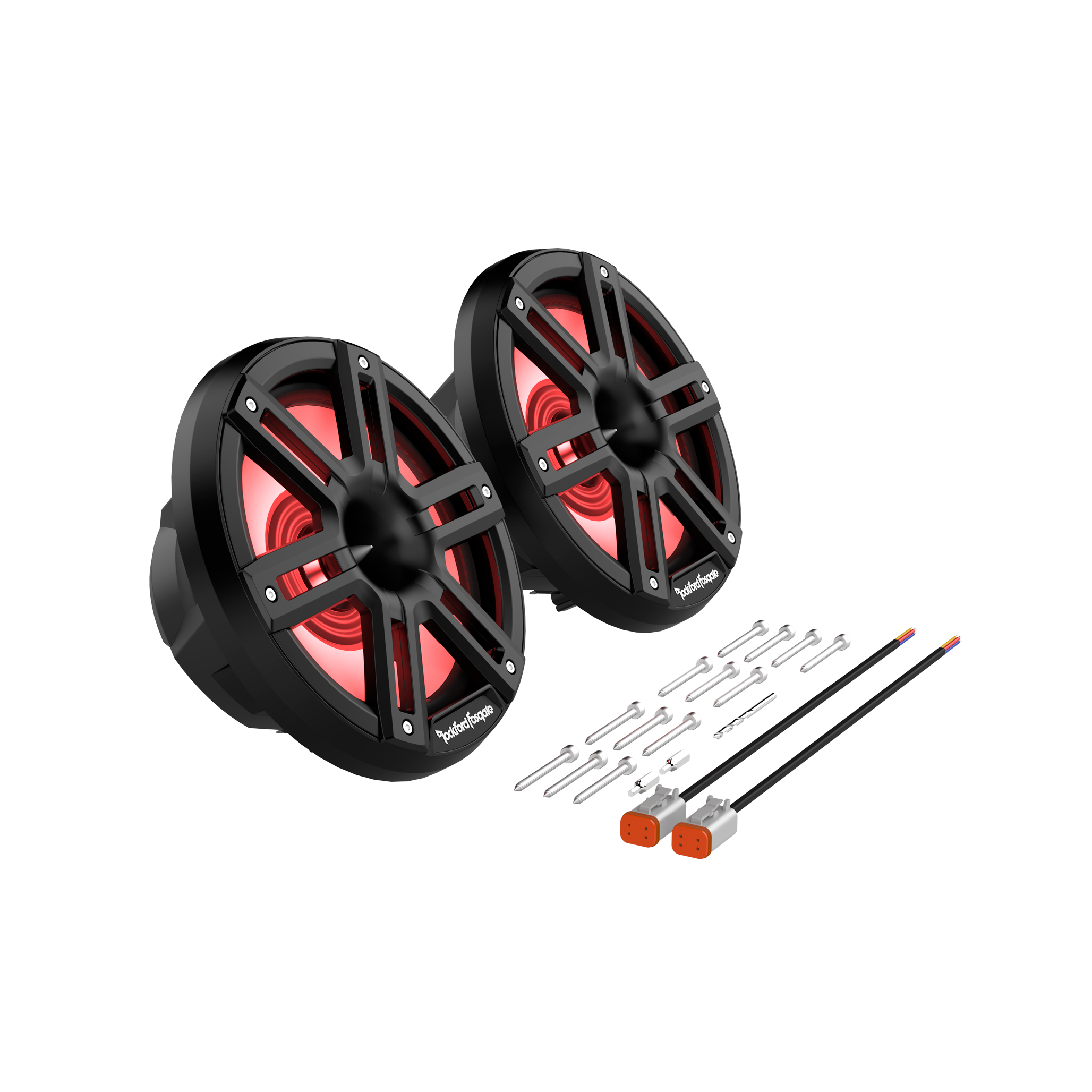

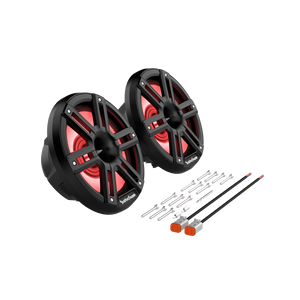

- Sold in pairs (2 each)
- Ultra-Bright, Wide Angle Tri-Color Surface Mount LED's with Flat Mold Lenses
- Vented motor design with water-repelling nano coated mesh screen
- 100% UV Stable Centrex plastic grill
- Co-molded surround and cone body
- Metallized Polyester Film Capacitors
- 12dB/Octave Crossover network
- Optically clear UV stable Encapsulated LED PCB
- Moisture, tear and fatigue resistant Aramid fiber spider
- UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- Fully sealed integrated concealed crossover (ICC) network
- Multiplexed RGB Input
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
Specifications
- Speaker Model: M2-8HB
- Speaker Type: 2-Way
- Frequency Response: 20 Hz - 25 kHz
- Midrange Size (Nominal Diameter): 8"
- Nominal Impedance (Ohms): 4-Ohm
- Power Handling (RMS): 300 Watts RMS; 1200 Watts PEAK

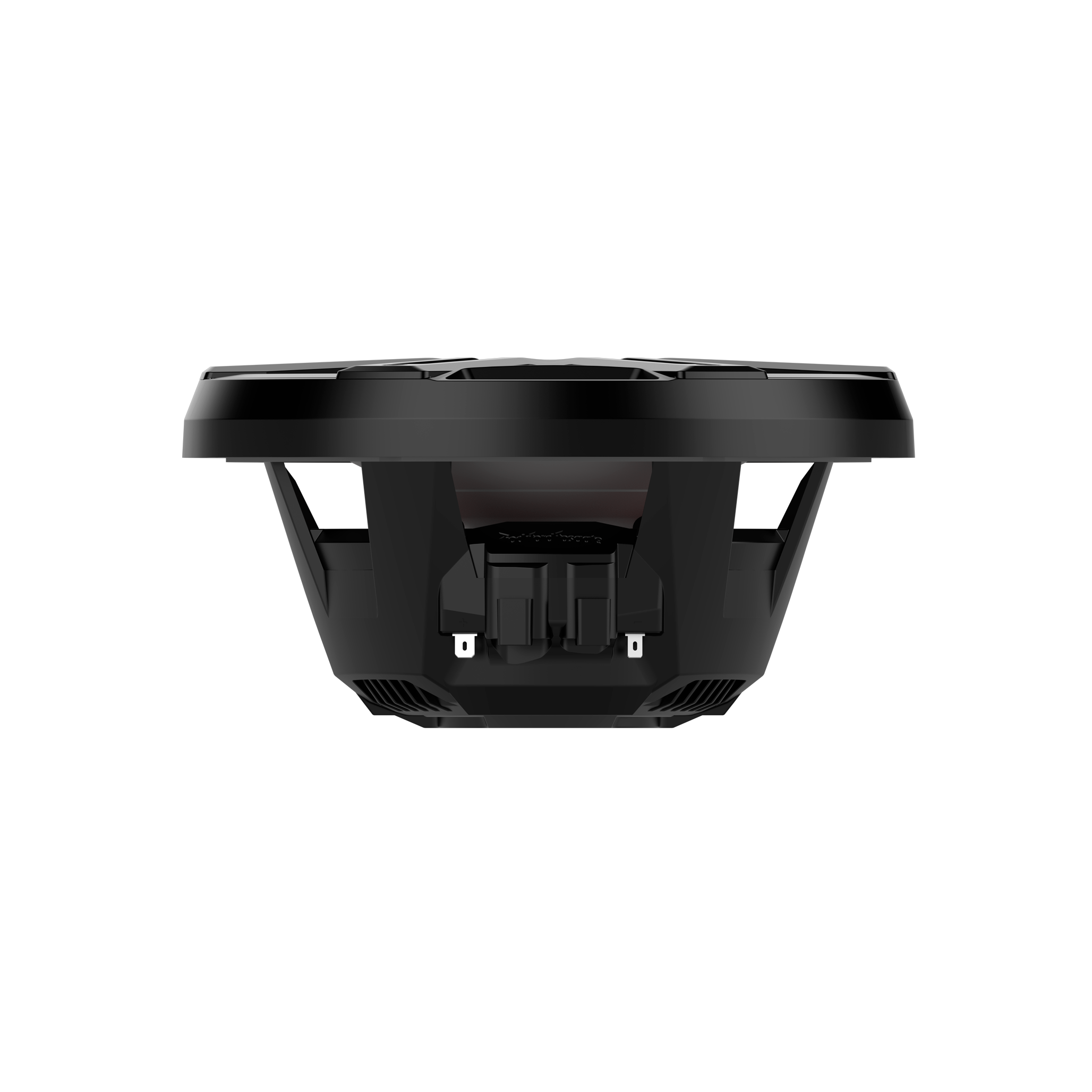

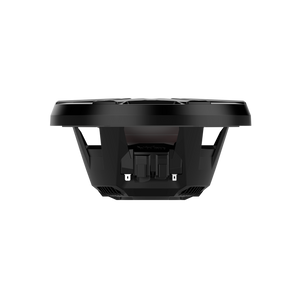

- Midrange Mounting Depth: 3.35" (85 mm)
- Tweeter Size: 1", (25.4 mm) High Efficiency Horn Tweeter
- Crossover: 12dB/Octave
- Sensitivity (dB @ 1w/1m): 94
- Sensitivity (dB @ 2.83V): 96
- Mounting Hardware: Yes
- Grille/Trim Rind Included: Yes
- Shipping Weight: 7.16 Lbs. (2.35 Kg.)
