Overview

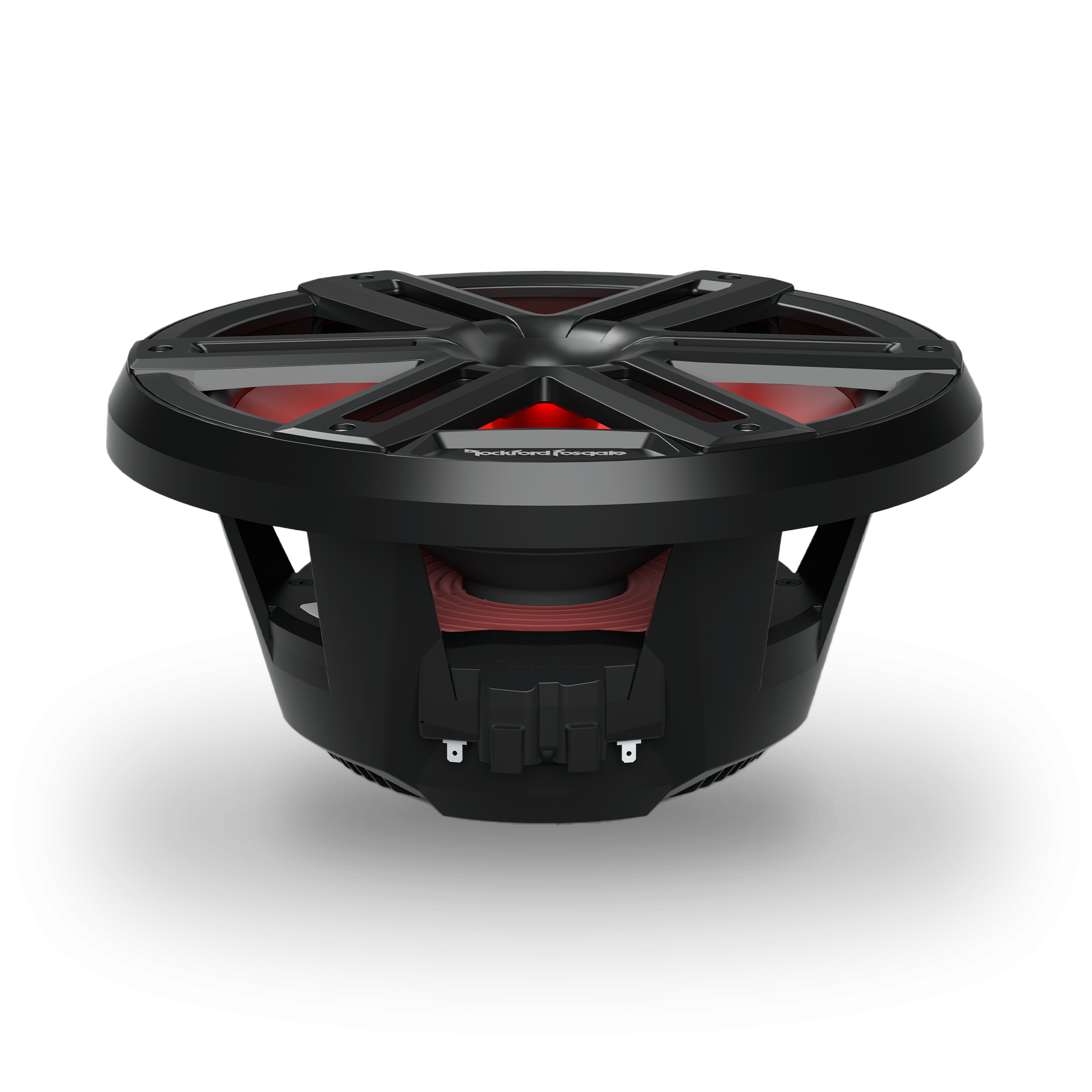

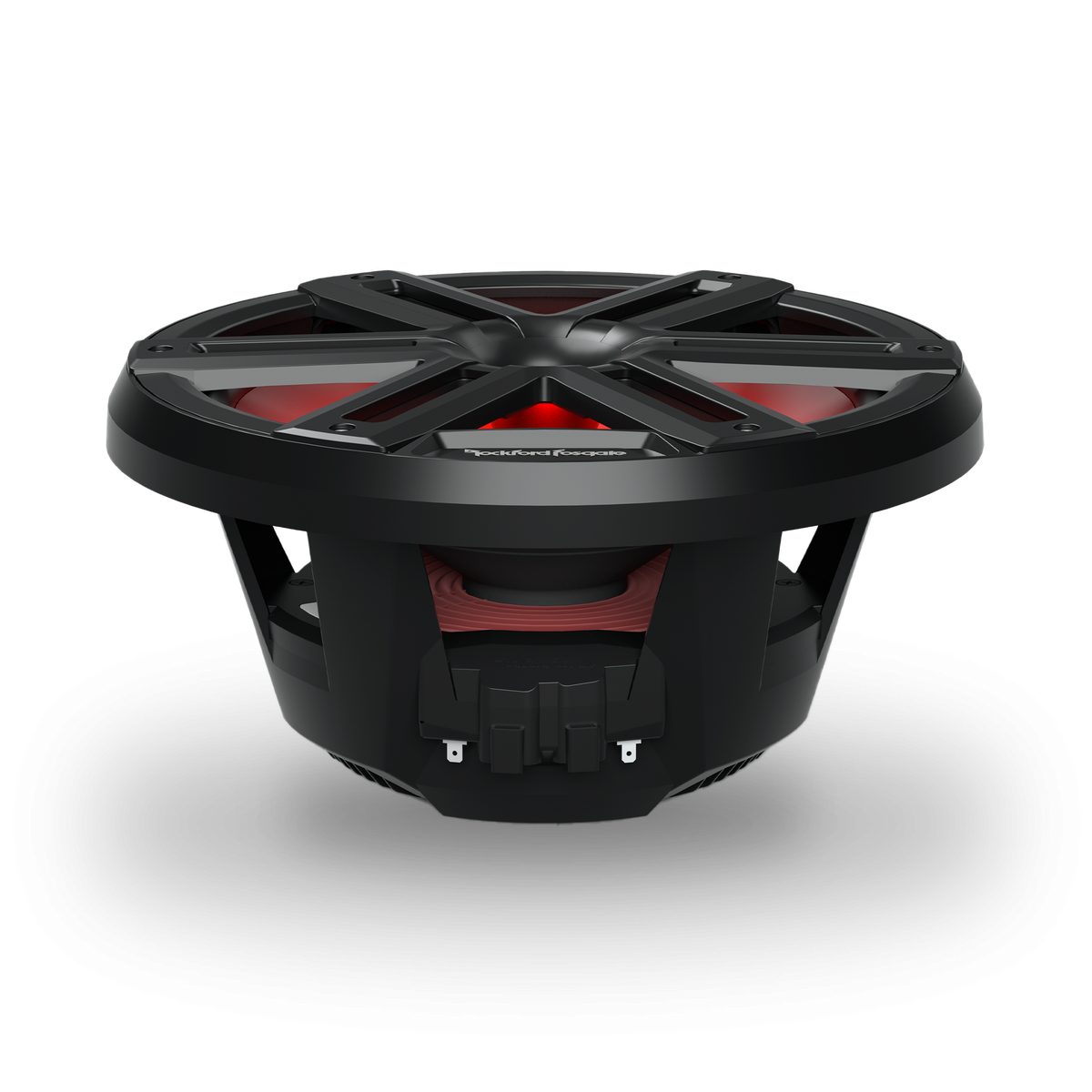

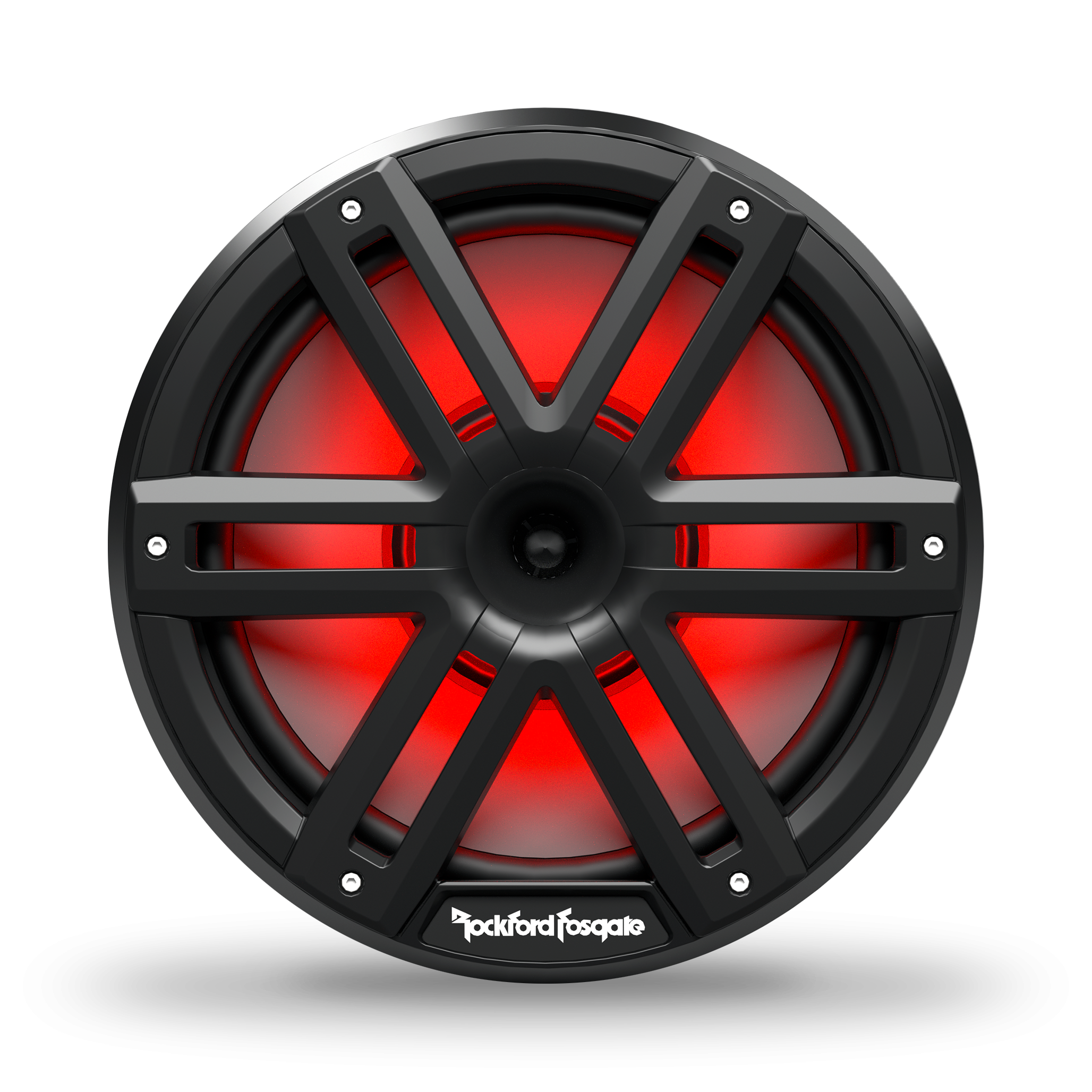

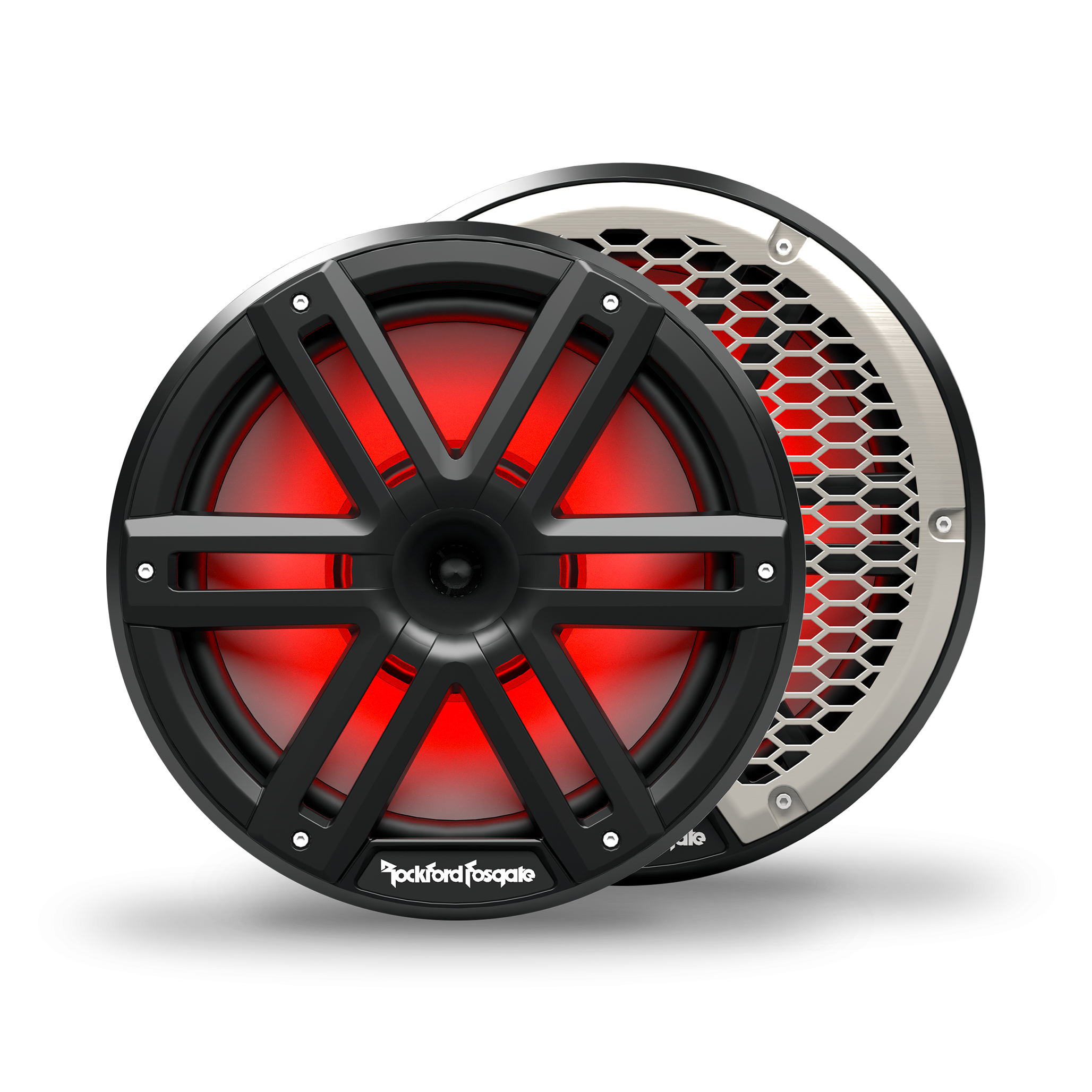

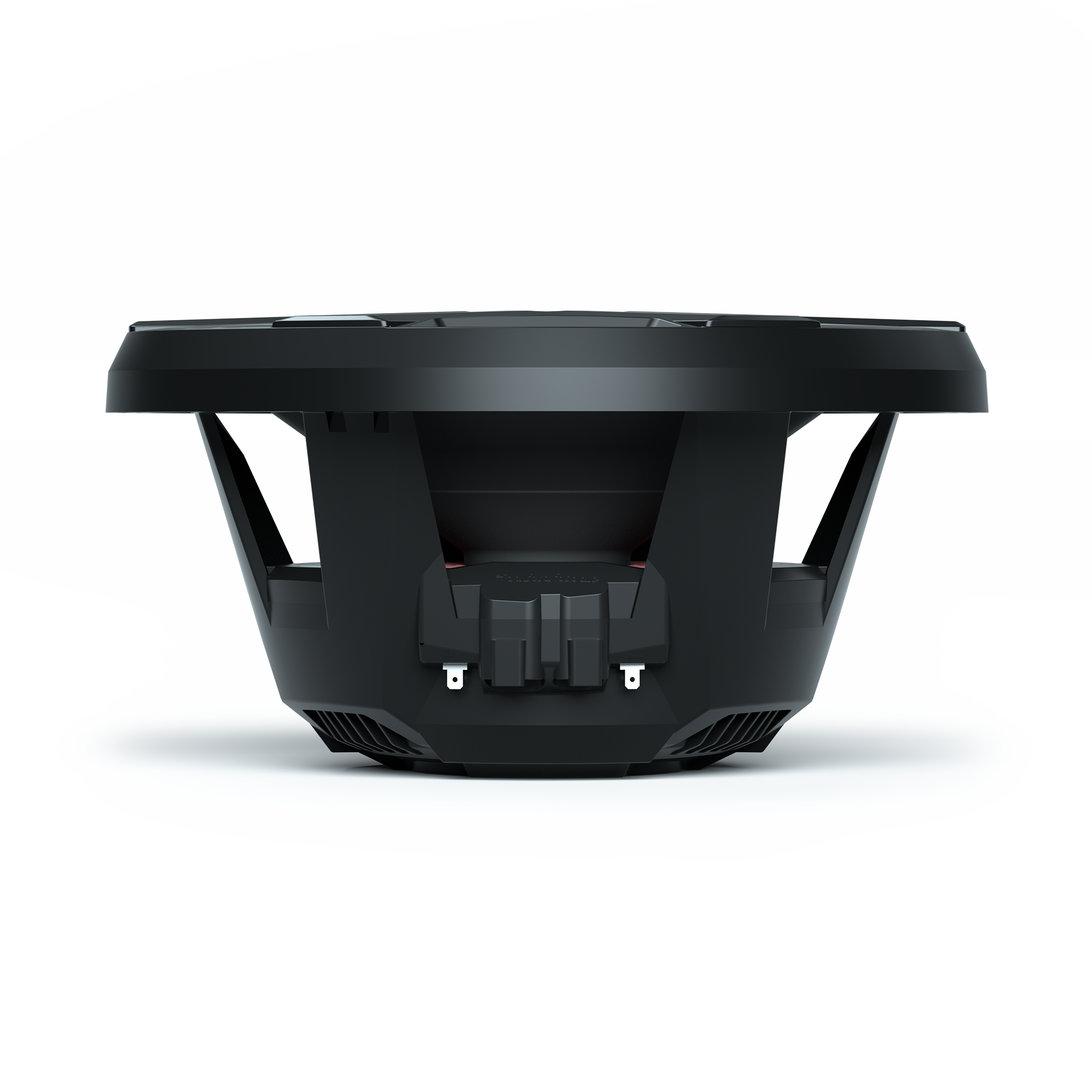

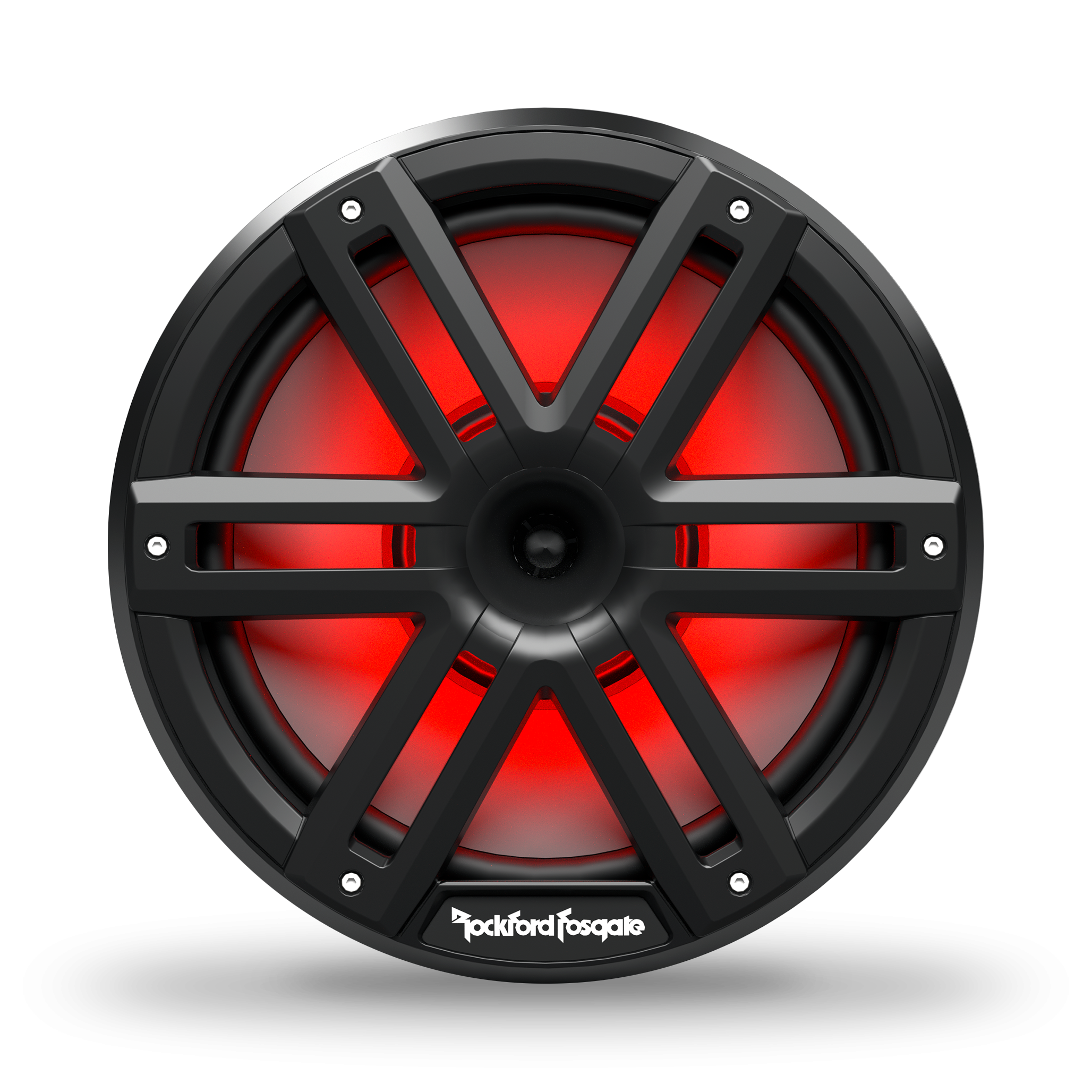

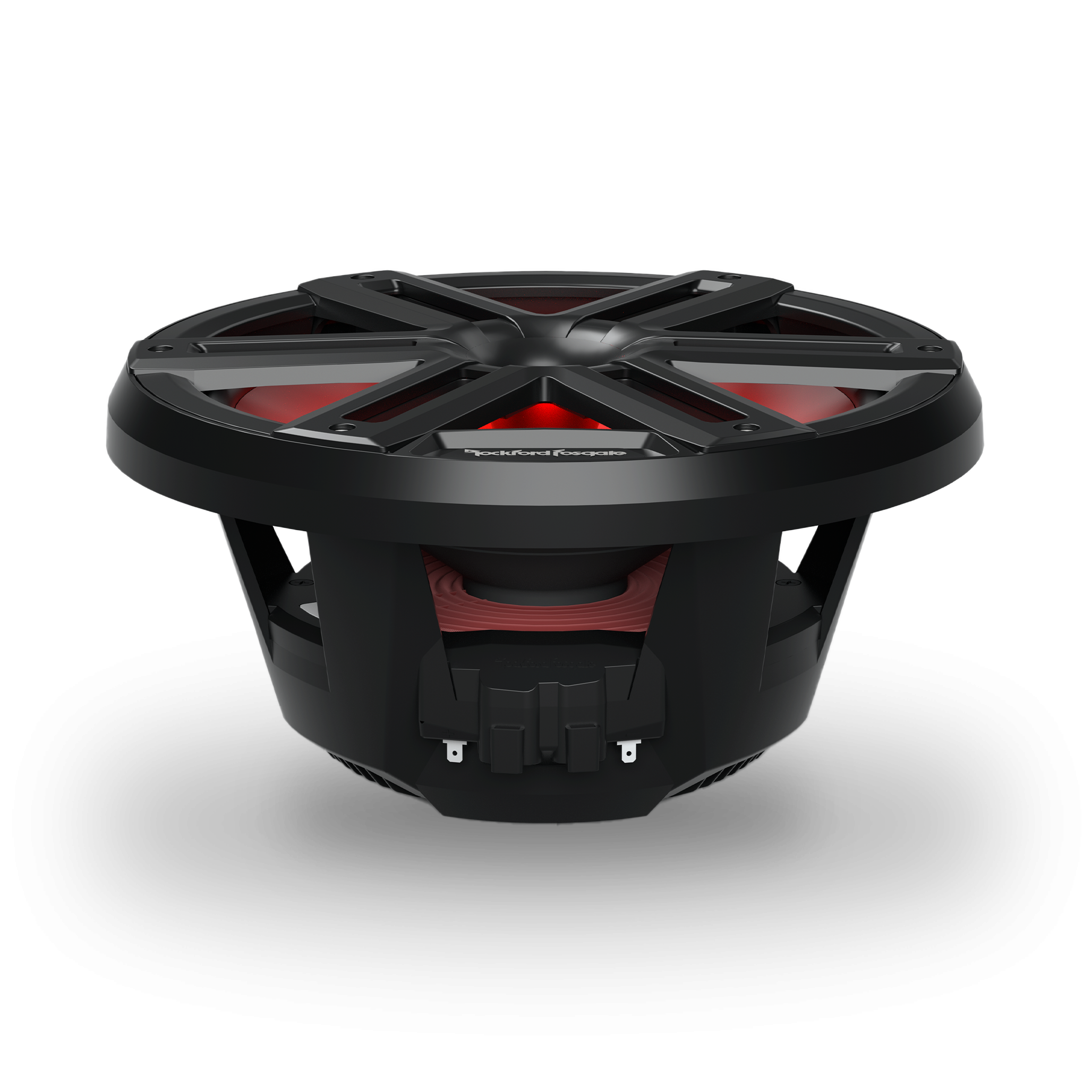

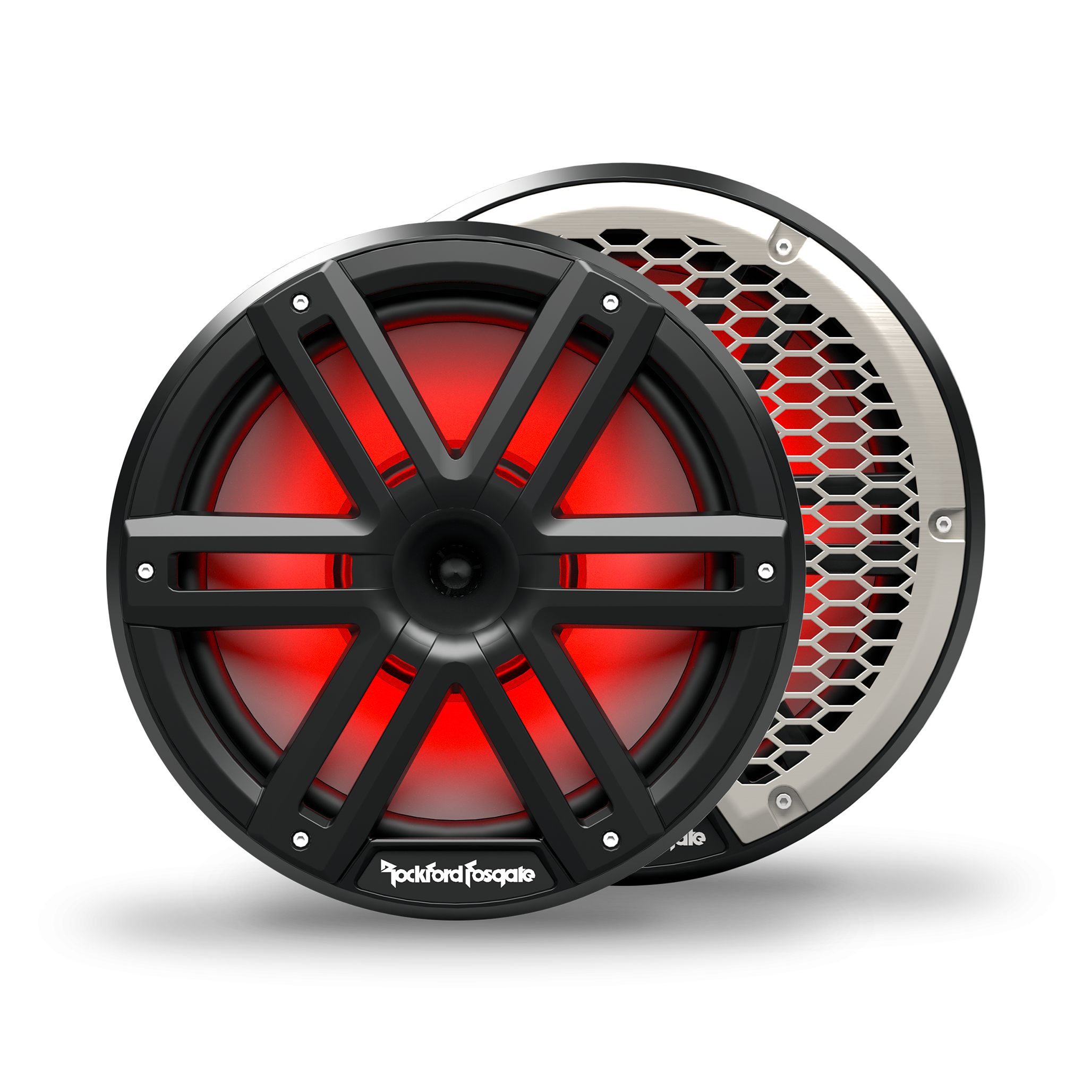

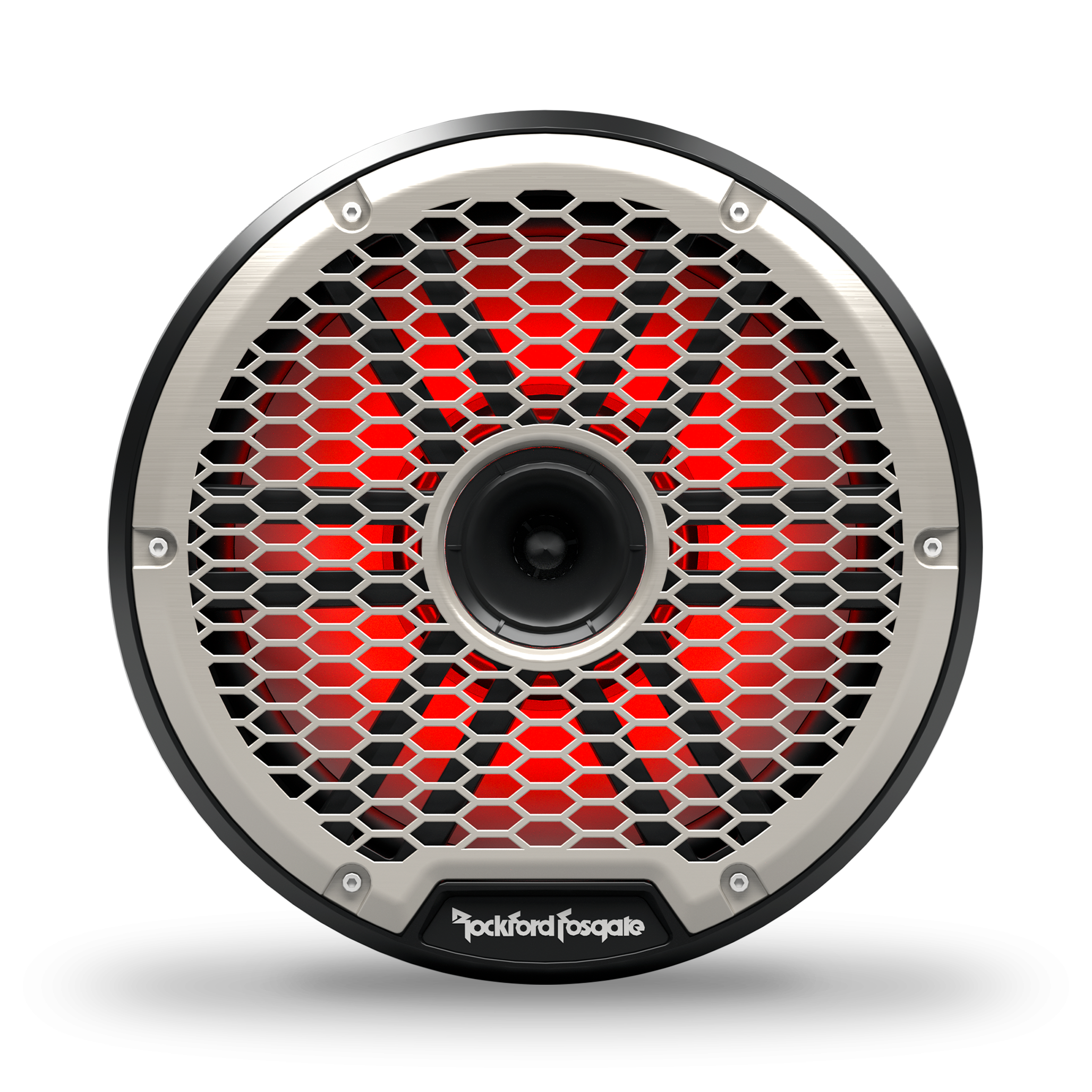

M2 10" Color Optix TM 2-Way Horn Loaded Tower Black Marine Speakers
Features
- 100% UV Stable Centrex plastic grill
- Integrated 1" (25 mm) high efficiency horn tweeter
- 1" (25mm) High Temp KaptonTM Woofer Voice Coil Former
- Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
- Proprietary Dual Function Input Terminals
- Gold plated marine grade brass terminals provide a corrosion resistant connection
- Integrated Deutsch RGB and Speaker receptacles
- Fully insulated flex lead wire stitched under spider
- Multiplexed RGB Input
- Optically clear UV stable Encapsulated LED PCB
- Fully sealed integrated concealed crossover (ICC) network
- Vented motor design with water-repelling nano coated mesh screen
- Moisture, tear and fatigue resistant Aramid fiber spider
- UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- Co-molded surround and cone body
- 2-Year Warranty
- 12dB/Octave Crossover network
- Ultra-Bright, Wide Angle Tri-Color Surface Mount LED's with Flat Mold Lenses
- Metallized Polyester Film Capacitors
- Sold in pairs (2 each)
Specifications
- Speaker Model: M2-10HB
- Speaker Type: 2-Way
- Frequency Response: 20 Hz - 25 kHz
- Midrange Size (Nominal Diameter): 10"
- Nominal Impedance (Ohms): 4-Ohm
- Power Handling (RMS): 300 Watts RMS; 1200 Watts PEAK
- Midrange Mounting Depth: 4.66 in (118.4 mm)
- Tweeter Size: 1" (25.4 mm) High Efficiency Horn Tweeter
- Crossover: 12dB/Octave
- Sensitivity (dB @ 1w/1m): 94
- Sensitivity (dB @ 2.83V): 97

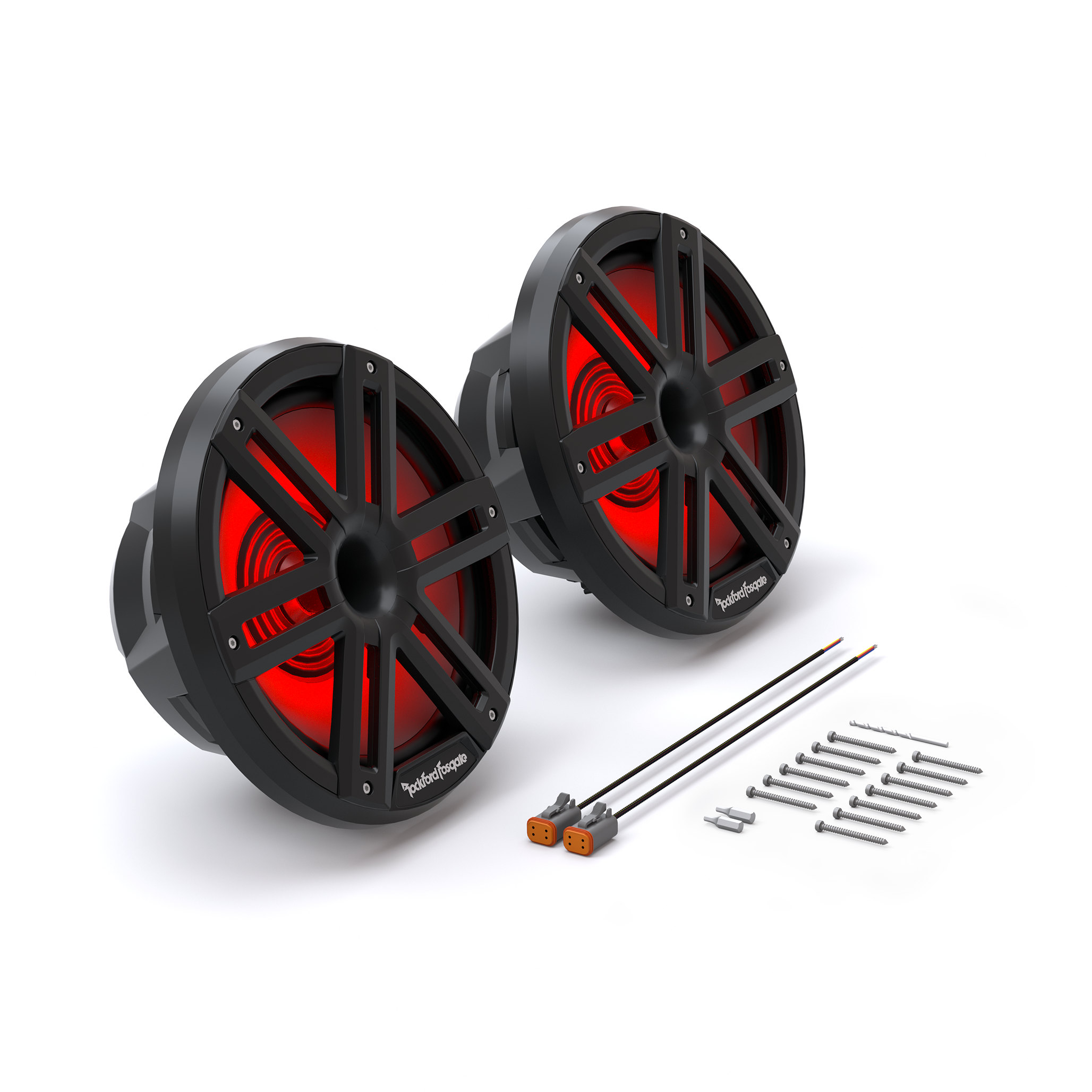

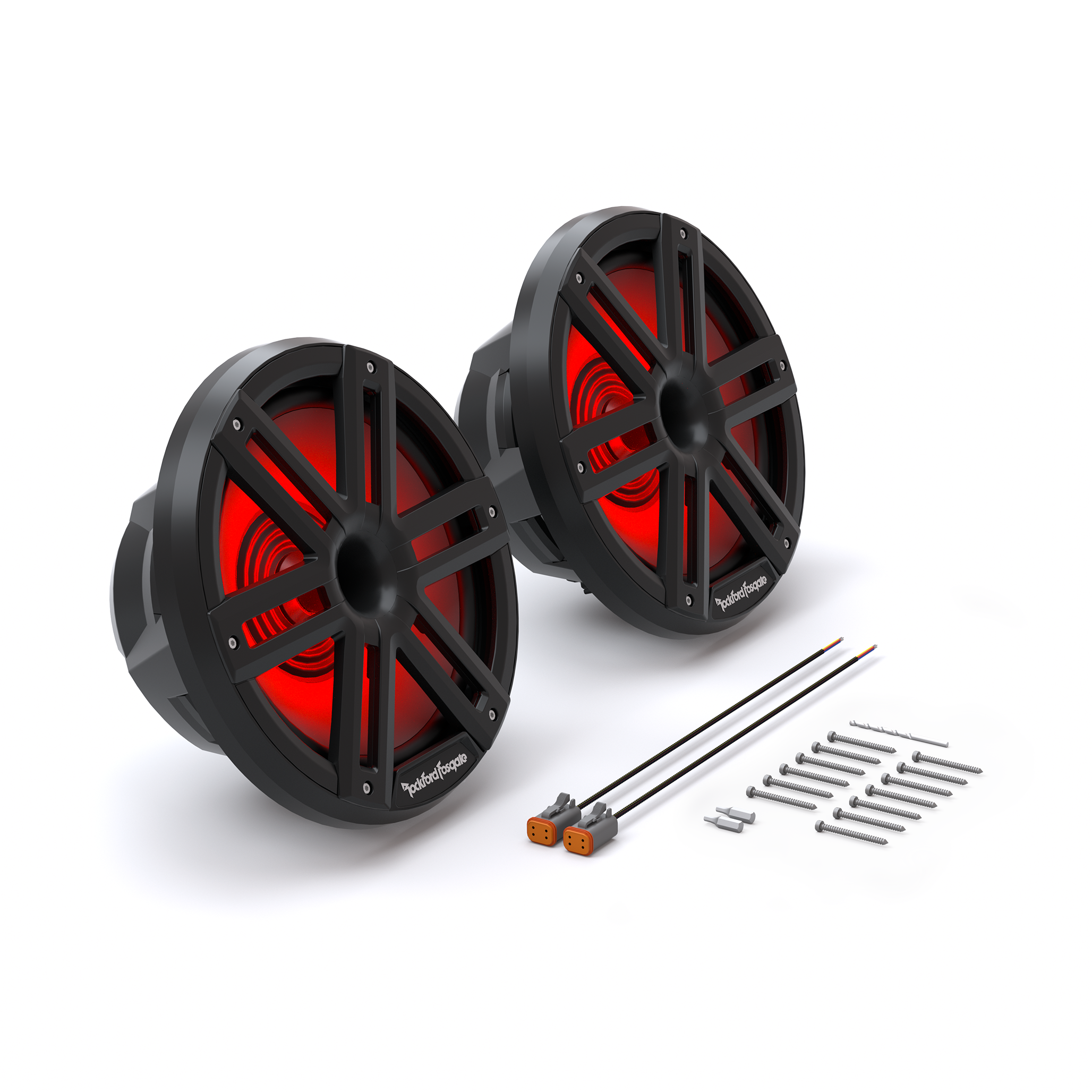

- In The Box: 2) 4-pin Deutsch harness (1130-74637-01); 2) Stainless grills; 2) Black sport grills; 2) Driver bits; 1) Drill bit; 12) Mounting screws
- Mounting Hardware: Yes
- Grille/Trim Ring Included: Yes
- Shipping Weight: 10.2 Lbs. (4.6 Kg.)
