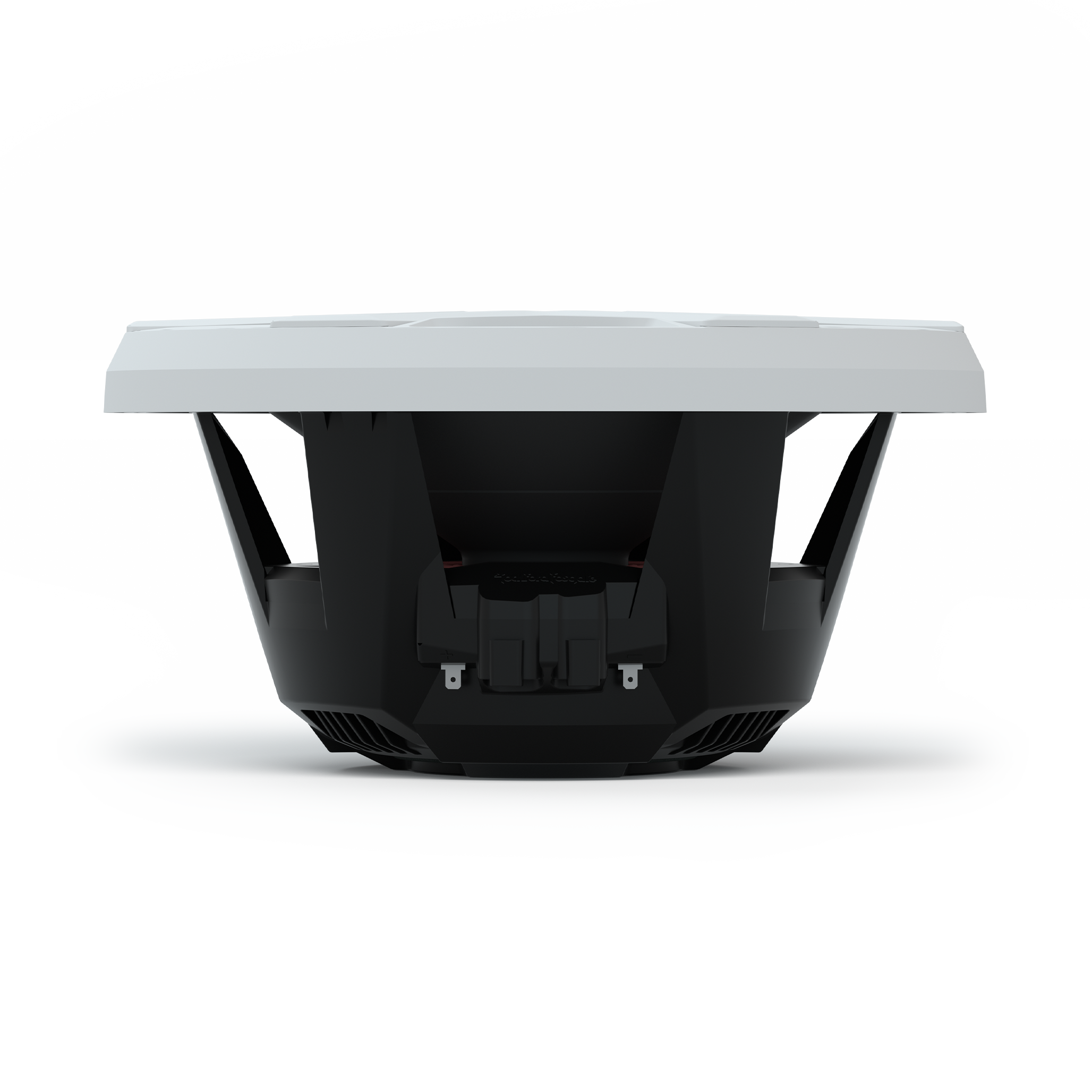

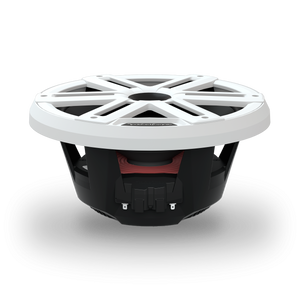

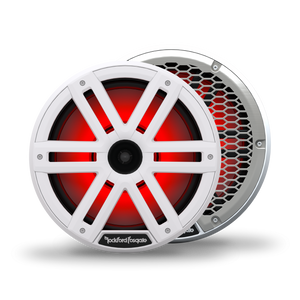

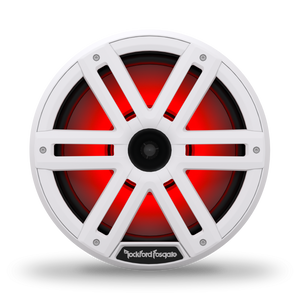

M2-10H

Features

• Moisture, tear and fatigue resistant Aramid fiber spider
• 1" (25mm) High Temp Kapton™ Woofer Voice Coil Former
• Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
• Fully insulated flex lead wire stitched under spider
• Integrated 1” (25 mm) high efficiency horn tweeter
• Proprietary Dual Function Input Terminals
• Vented motor design with water-repelling nano coated mesh screen
• Integrated Deutsch RGB and Speaker receptacles
• 100% UV Stable Centrex plastic grill
• Gold plated marine grade brass terminals provide a corrosion resistant connection
• UV and Salt-Fog resistant TPE (Thermo-Plastic Elastomer) surround
• Metallized Polyester Film Capacitors
• Multiplexed RGB Input
• Fully sealed integrated concealed crossover (ICC) network
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• Injection molded mineral filled polypropylene cone body with UV inhibitors
• Co-molded surround and cone body
• Ultra-Bright, Wide Angle Tri-Color Surface Mount LED's with Flat Mold Lenses
• 12dB/Octave Crossover network
• 2-Year Warranty
• Optically clear UV stable Encapsulated LED PCB
• Sold in pairs (2 each)

Technology

• Element Ready™ | Speakers: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
• Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
• IPX6 Water Intrusion Rating: Water projected in powerful jets from any direction shall have no harmful effects.
• ICC Crossover: The Integrated Concealed Crossover hides the crossover inside the basket, creating a cleaner look and easier installation.
• CEA-2031: Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
• CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
• Color Optix™ Control: Adjust your own bright, wide, and limitless lighting experience with the Rockford Fosgate Color Optix™ plug-and-play controller and App.
• Vast + Co-Molded Surround: The vertically attached surround is co-molded to the cone to provide an incredibly strong bond at the mounting point.

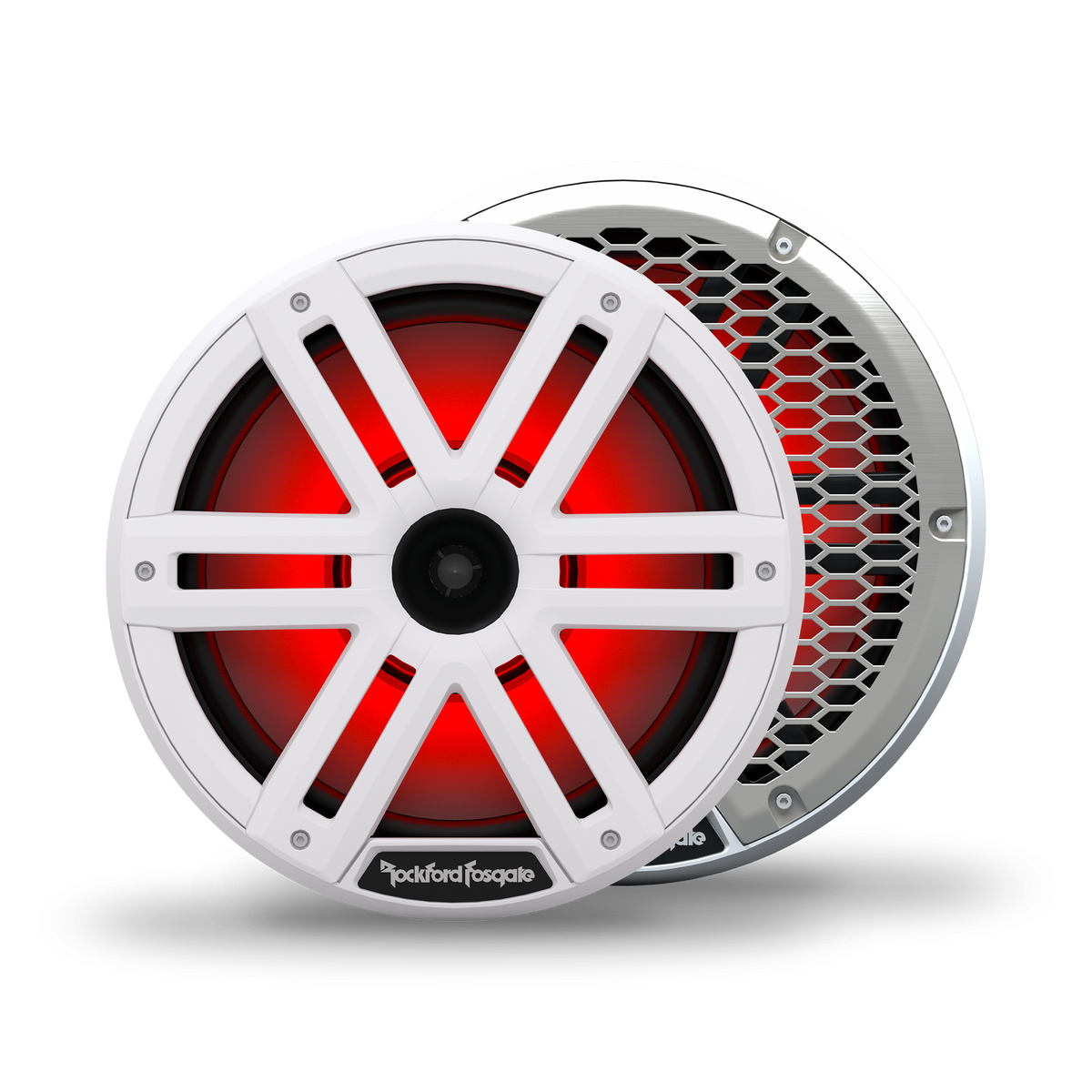

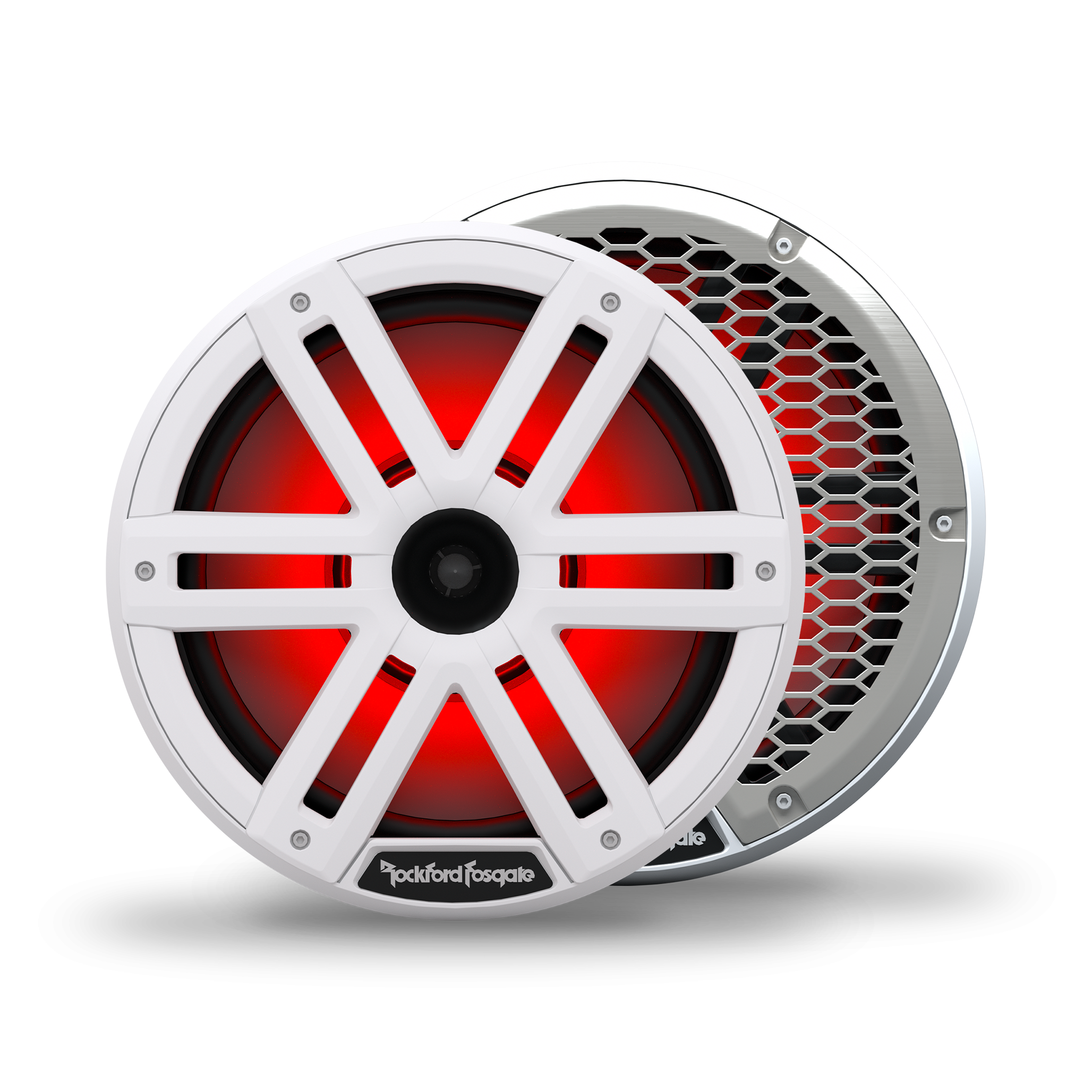

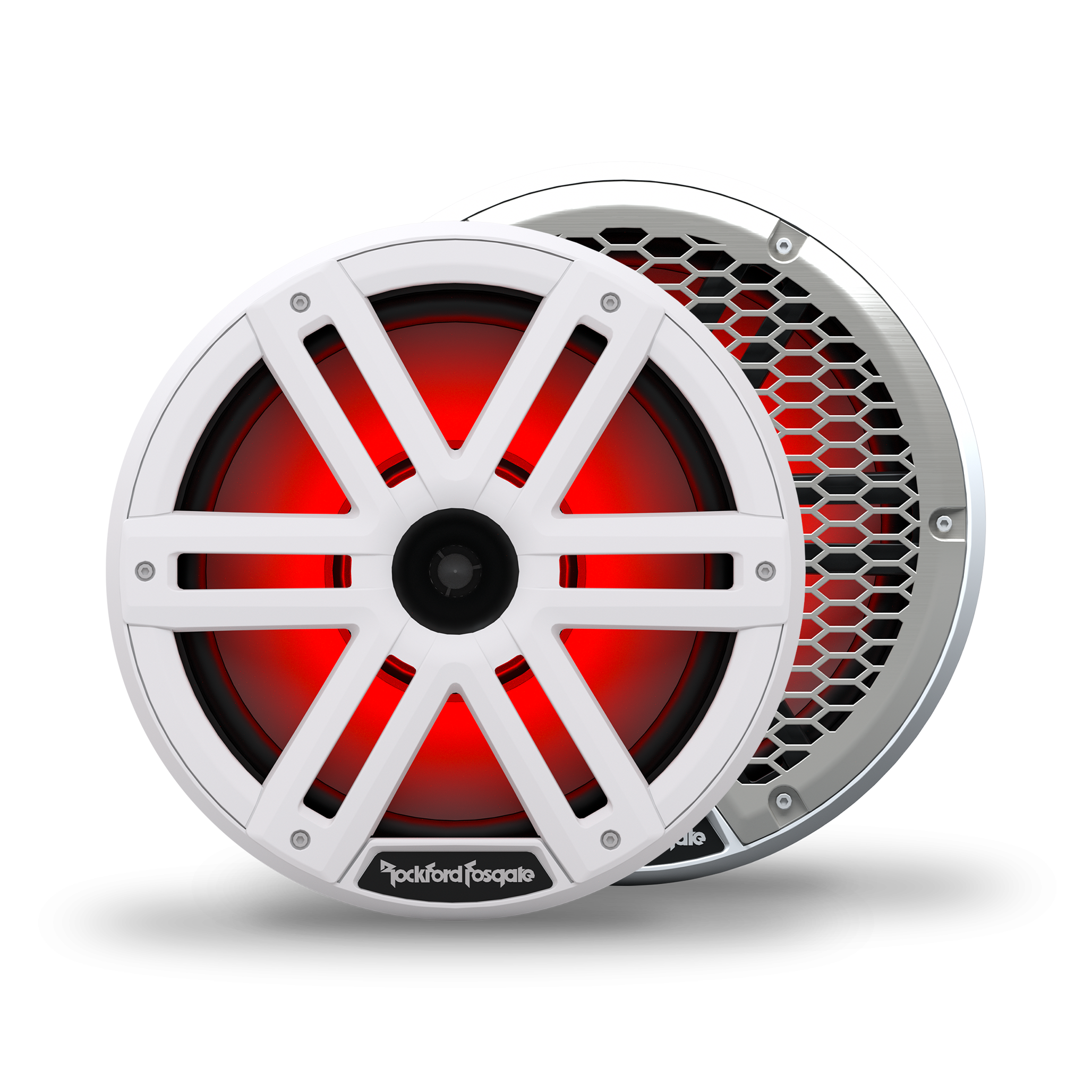

• Grille Customization: With multiple grille options you can dial in your personalized-on water style all to match the look of your SXS or boat

Specifications

• Speaker Model: M2-10H
• Crossover: 12dB/Octave
• Tweeter Size: 1” (25.4 mm) High Efficiency Horn Tweeter
• Frequency Response: 20 Hz - 25 kHz
• Midrange Mounting Depth: 4.66 in (118.4 mm)
• Power Handling (RMS): 300 Watts RMS

• 1200 Watts PEAK
• Nominal Impedance (Ohms): 4-Ohm
• Midrange Size (Nominal Diameter): 10"
• Tweeter Mounting Depth
• Speaker Type: 2-Way
• Sensitivity (dB @ 1w/1m): 94

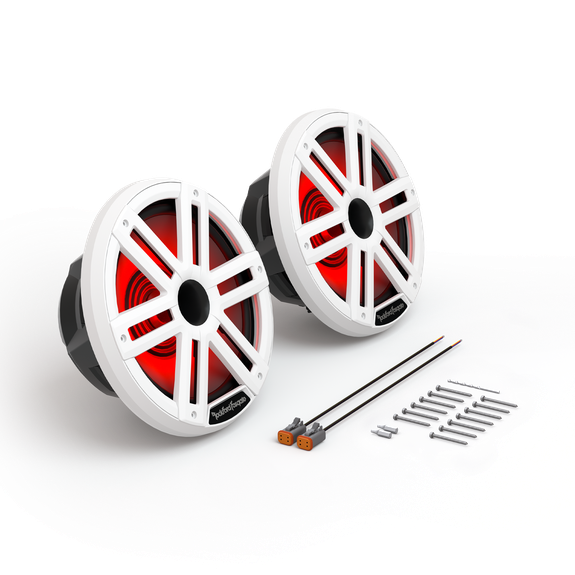

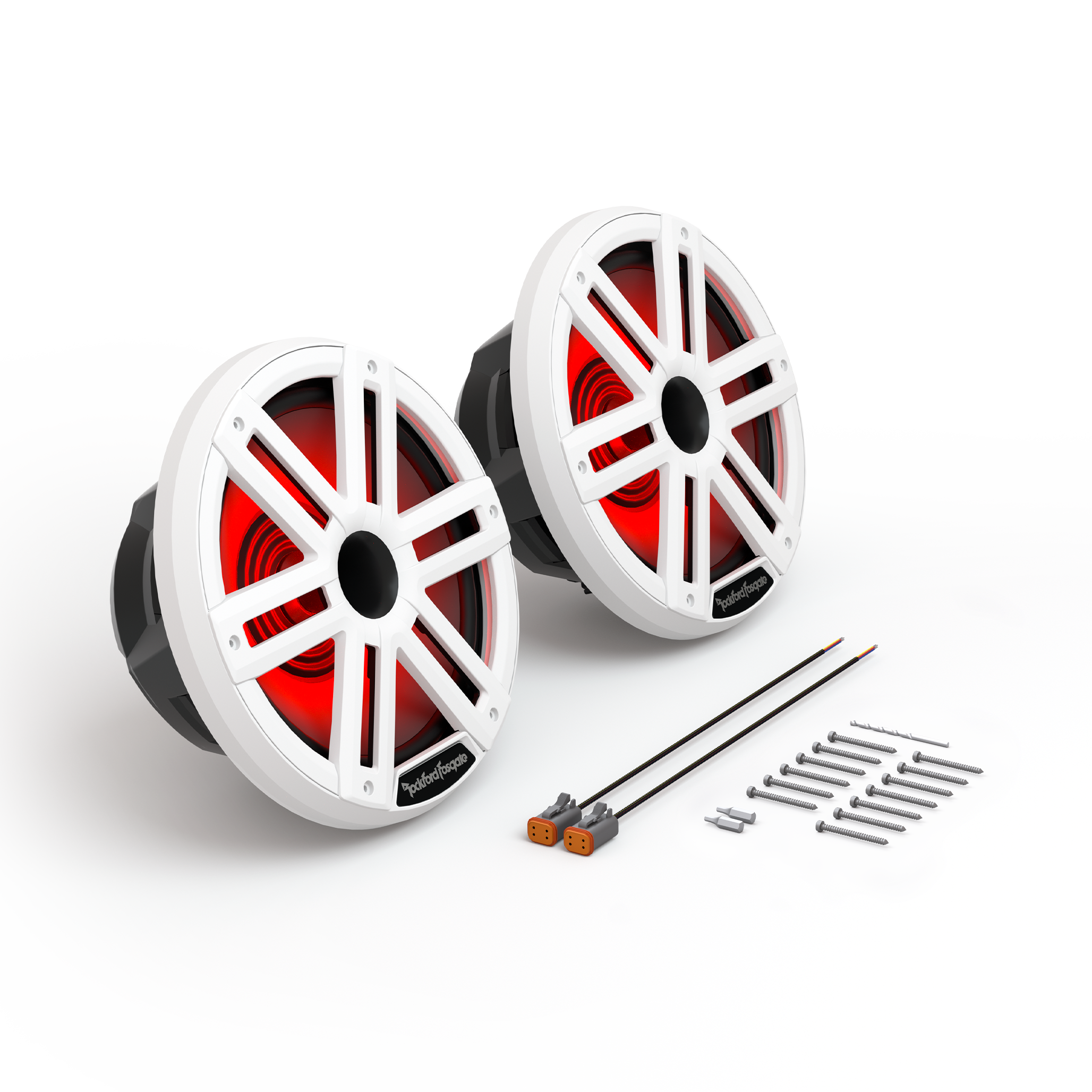

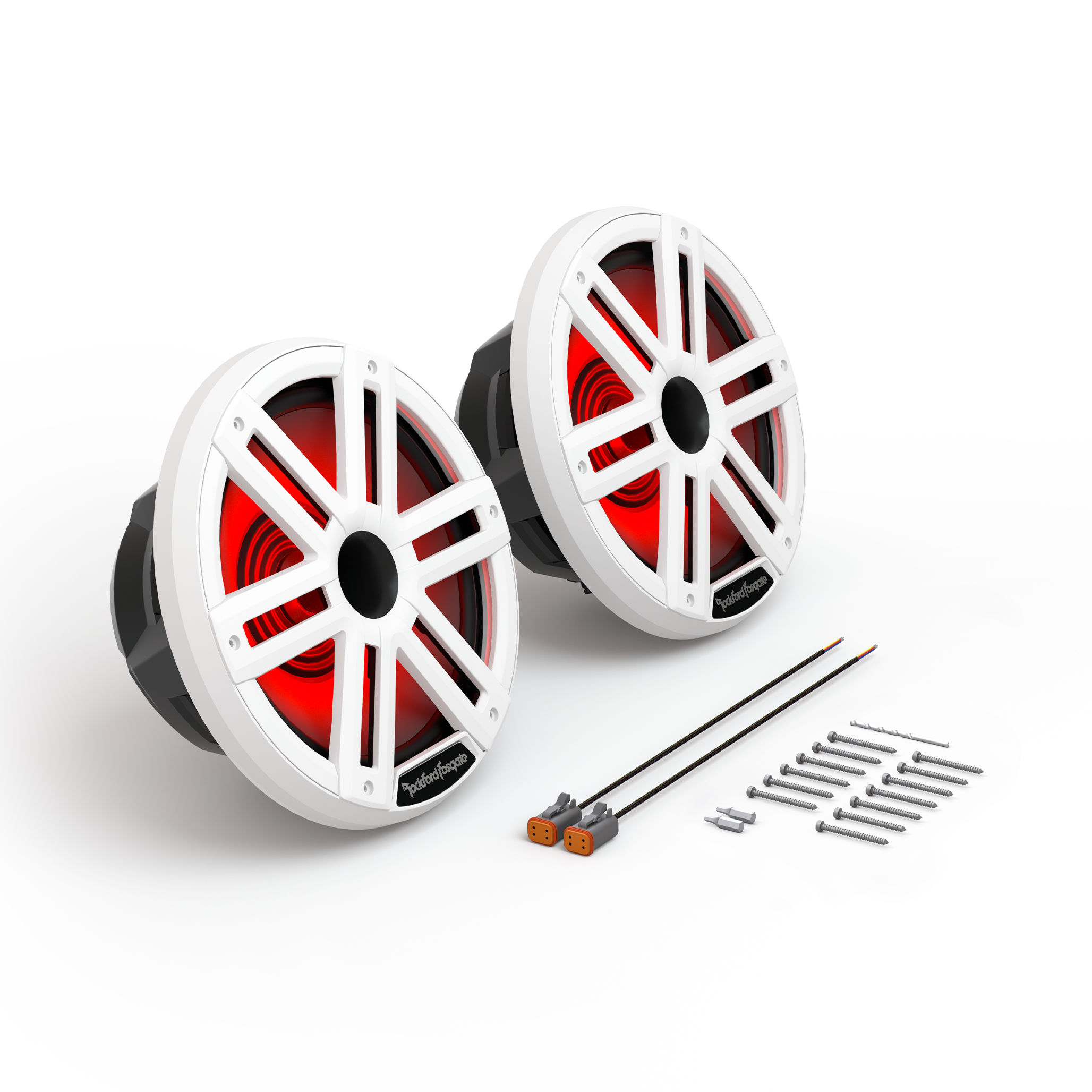

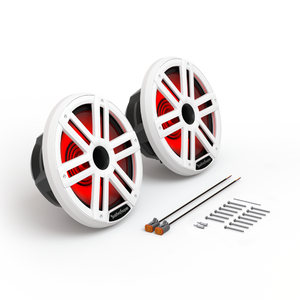

• In The Box: 2) 4-pin Deutsch harness (1130-74637-01)

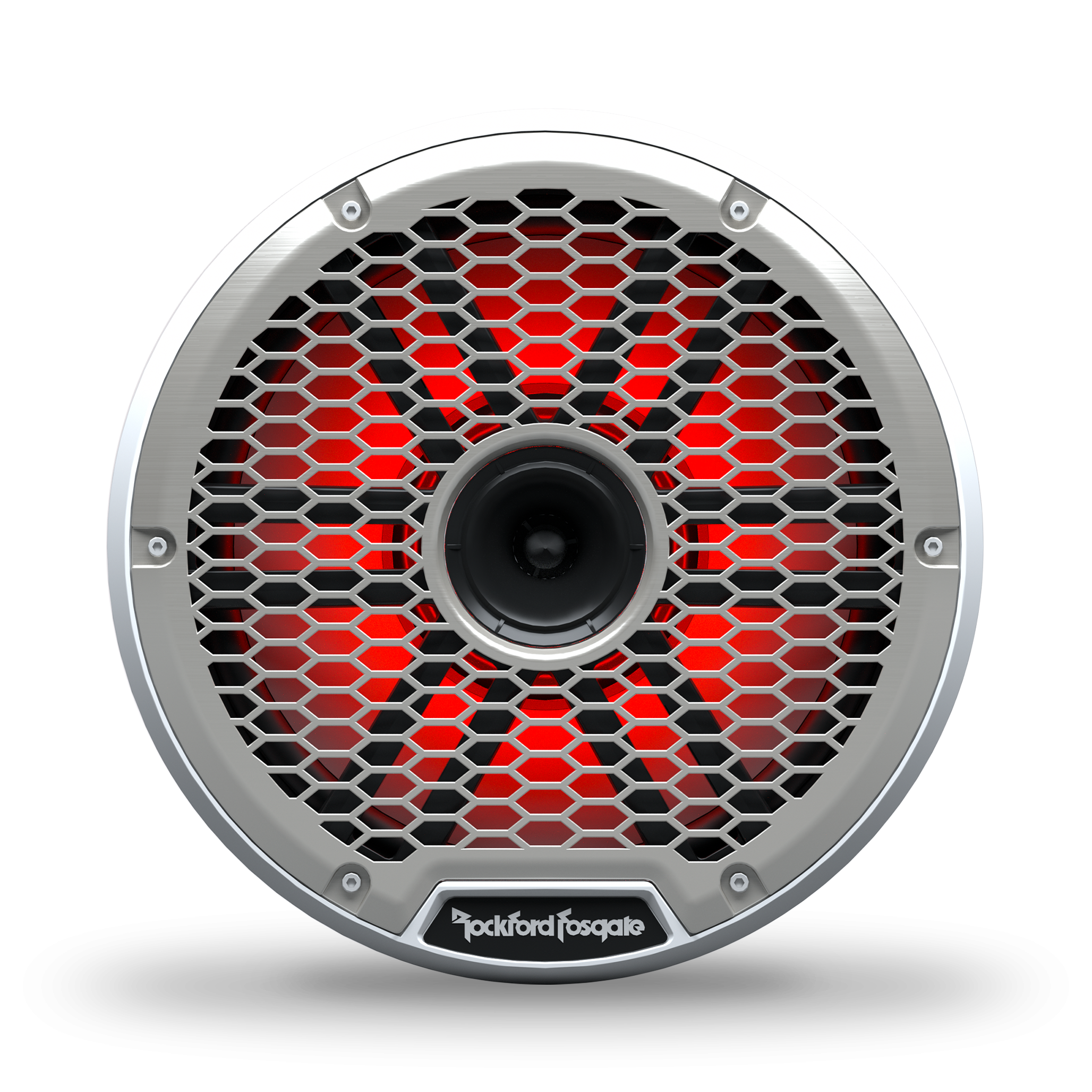

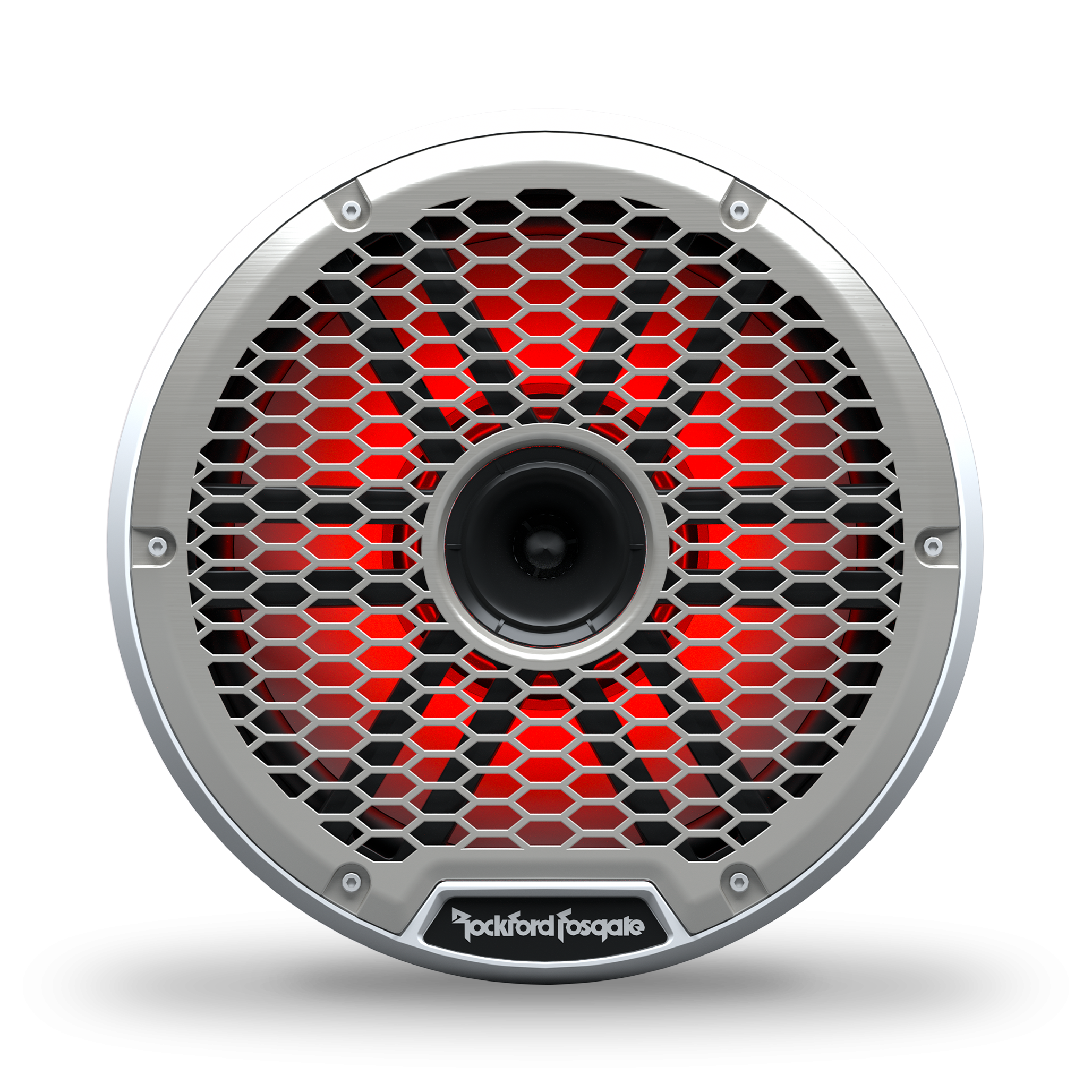

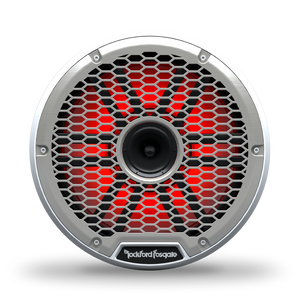

• 2) Stainless grills

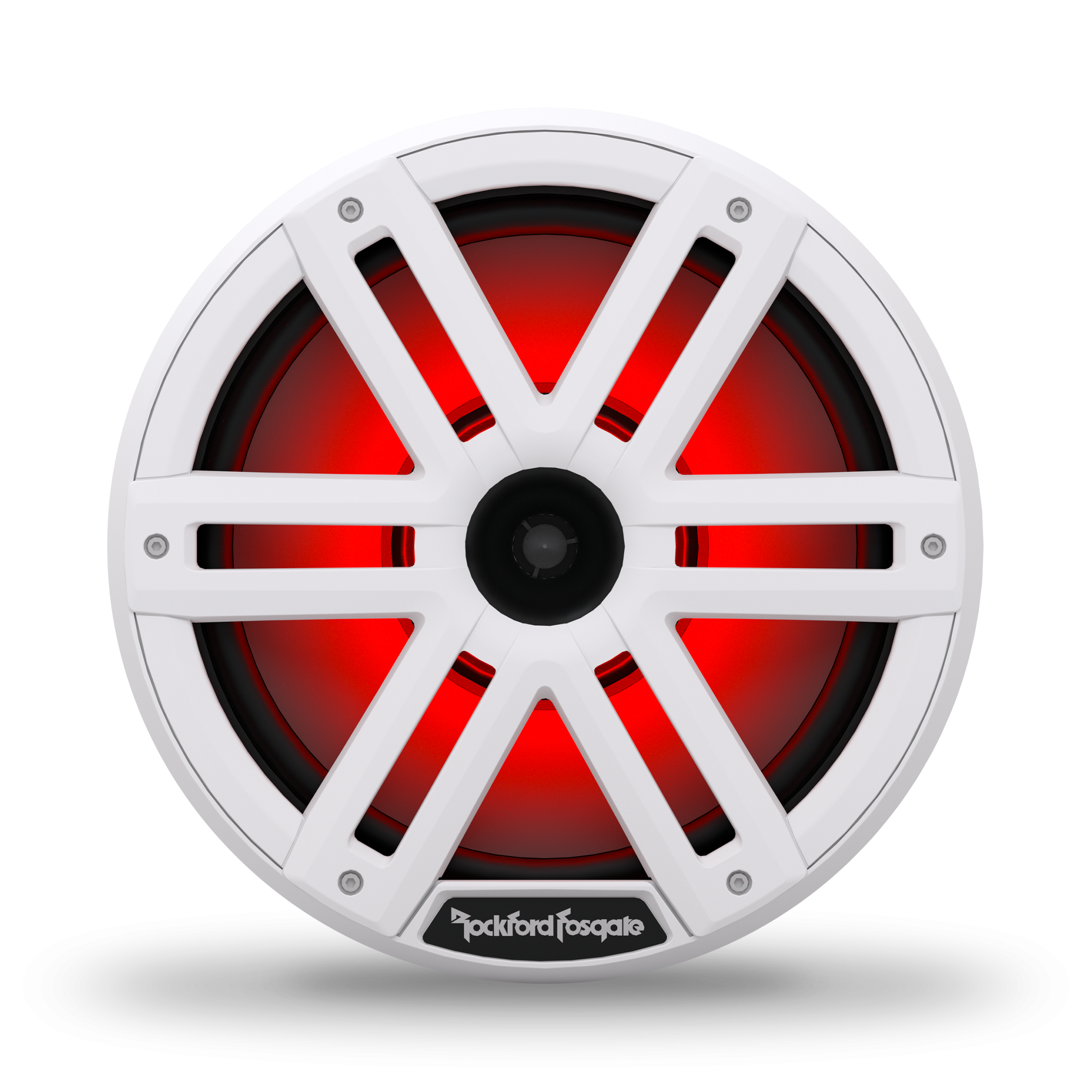

• 2) White sport grills

• 2) Driver bits

• 1) Drill bit

• 12) Mounting screws

• Sensitivity (dB @ 2.83V): 97
• Mounting Hardware: Yes
• Grille/Trim Ring Included: Yes
• Shipping Weight: 10.2 Lbs. (4.6 Kg.)
