Overview

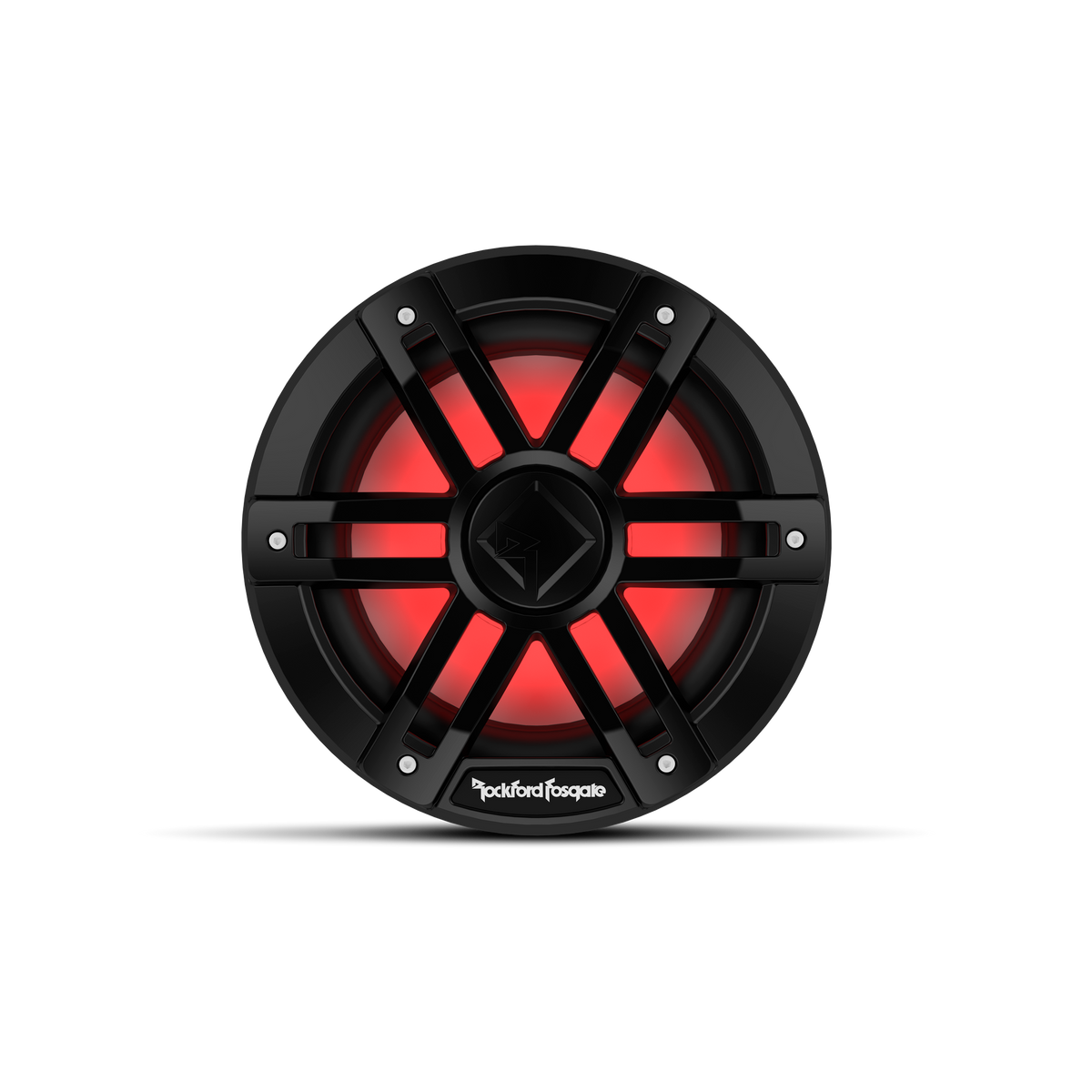

The M1D4-8B Color Optix TM 8" DVC 4-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! Sold individually (1 each).
Features
- Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Optically clear UV stable RGB Lighting Encapsulation
- 1.5" (39mm) High Temp KaptonTM Woofer Voice Coil Former
- Vented motor design with water-repelling nano coated mesh screen
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination

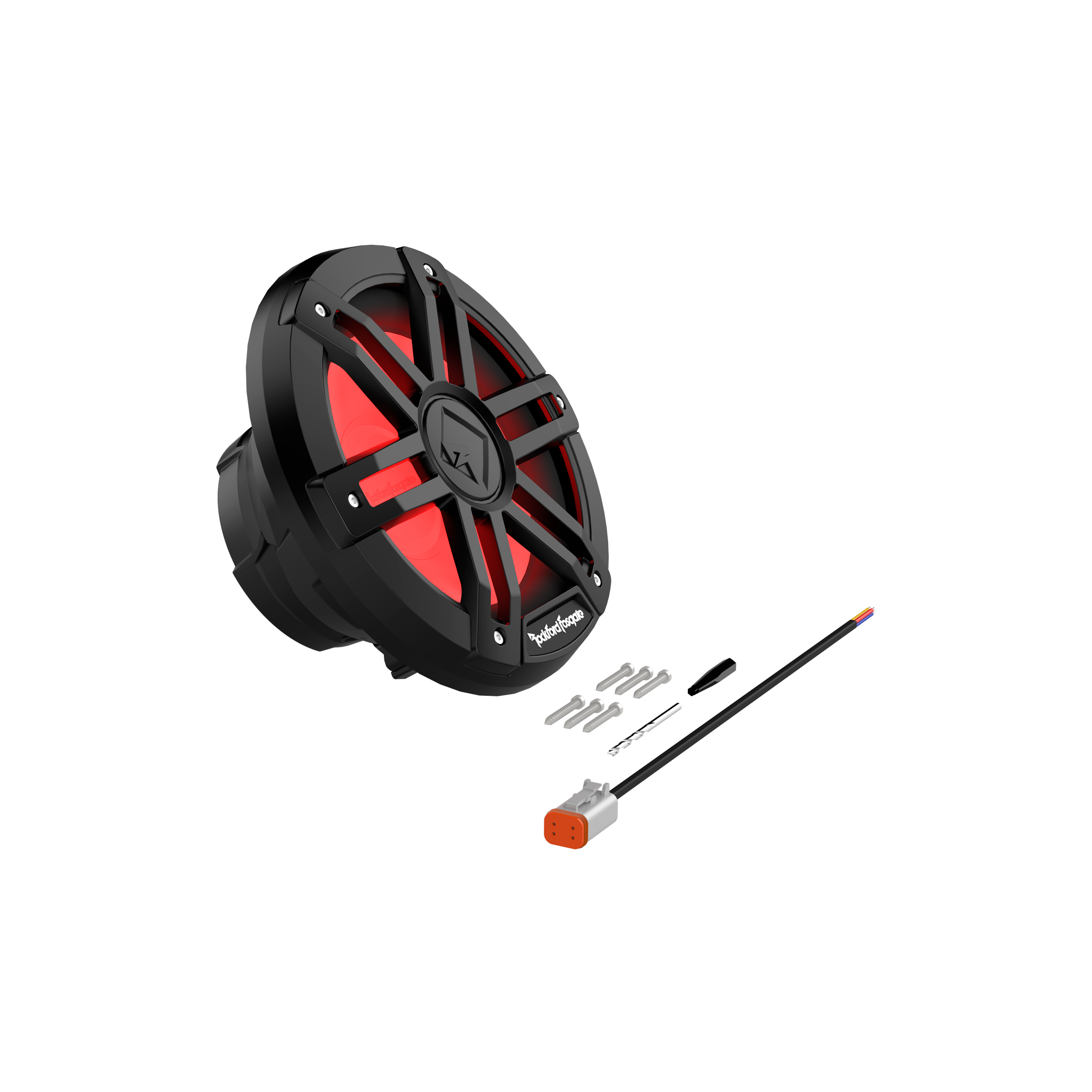

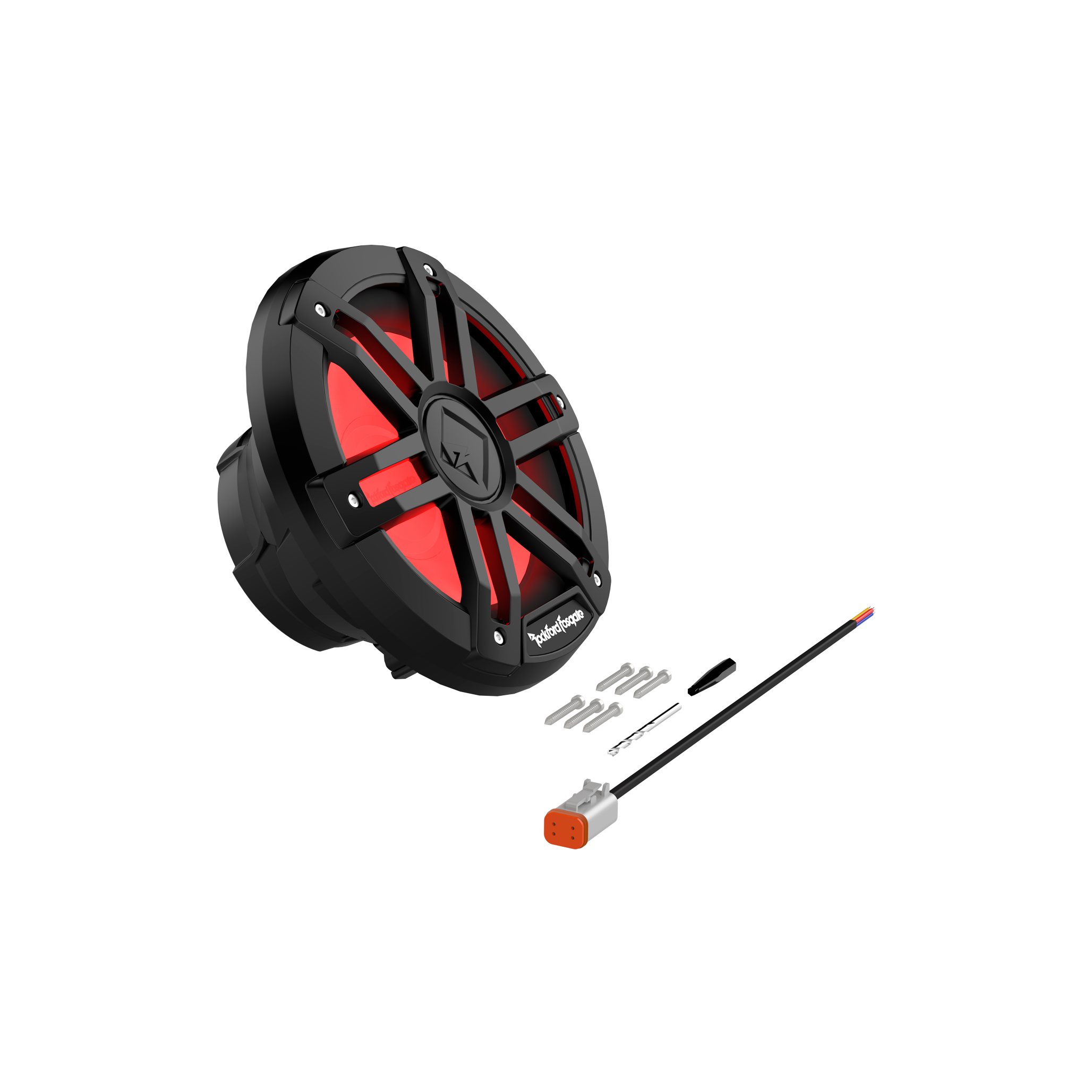

- Integrated DeutschTM/AmphenolTM connectors make wiring connections simple and error proof
- 2-Year Warranty
- Linear Synthetic Fiber Blend Spiders
- Co-molded surround and mineral filled polypropylene cone body
- Santoprene VAST Surround
- Zinc Nickel-plated Marine grade brass connection terminals
- VAST vertical attach surround technique increases effective radiating cone area up to 25%

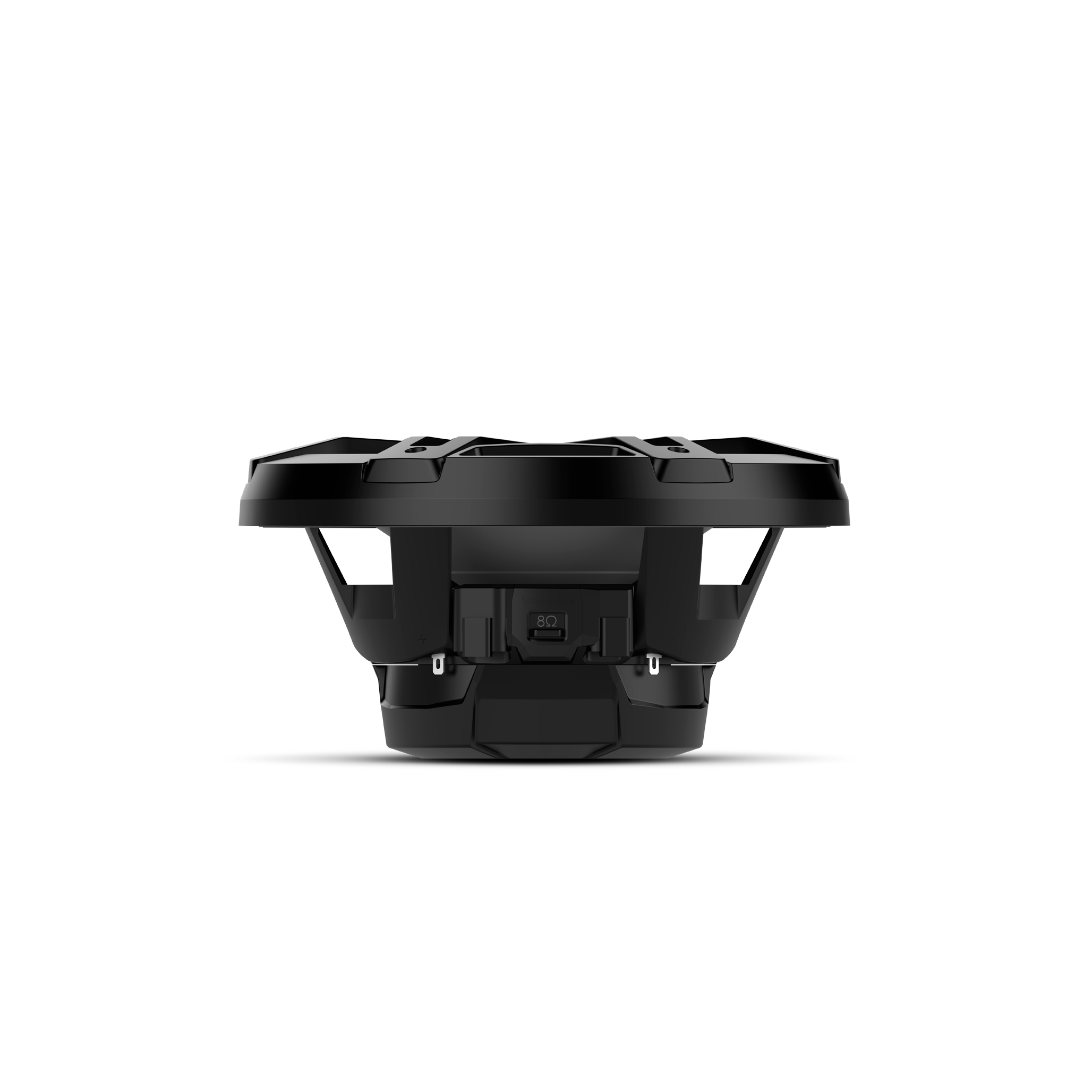

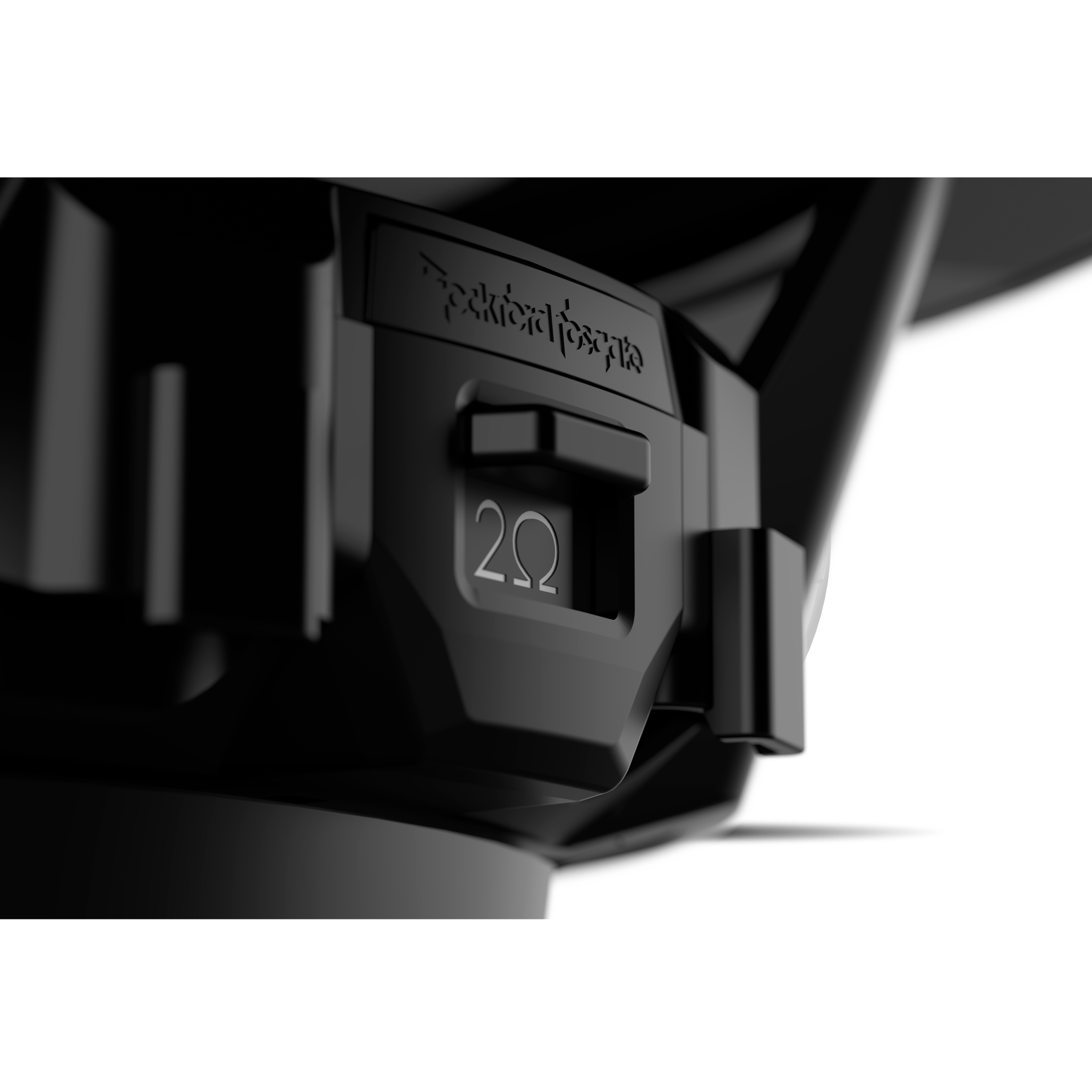

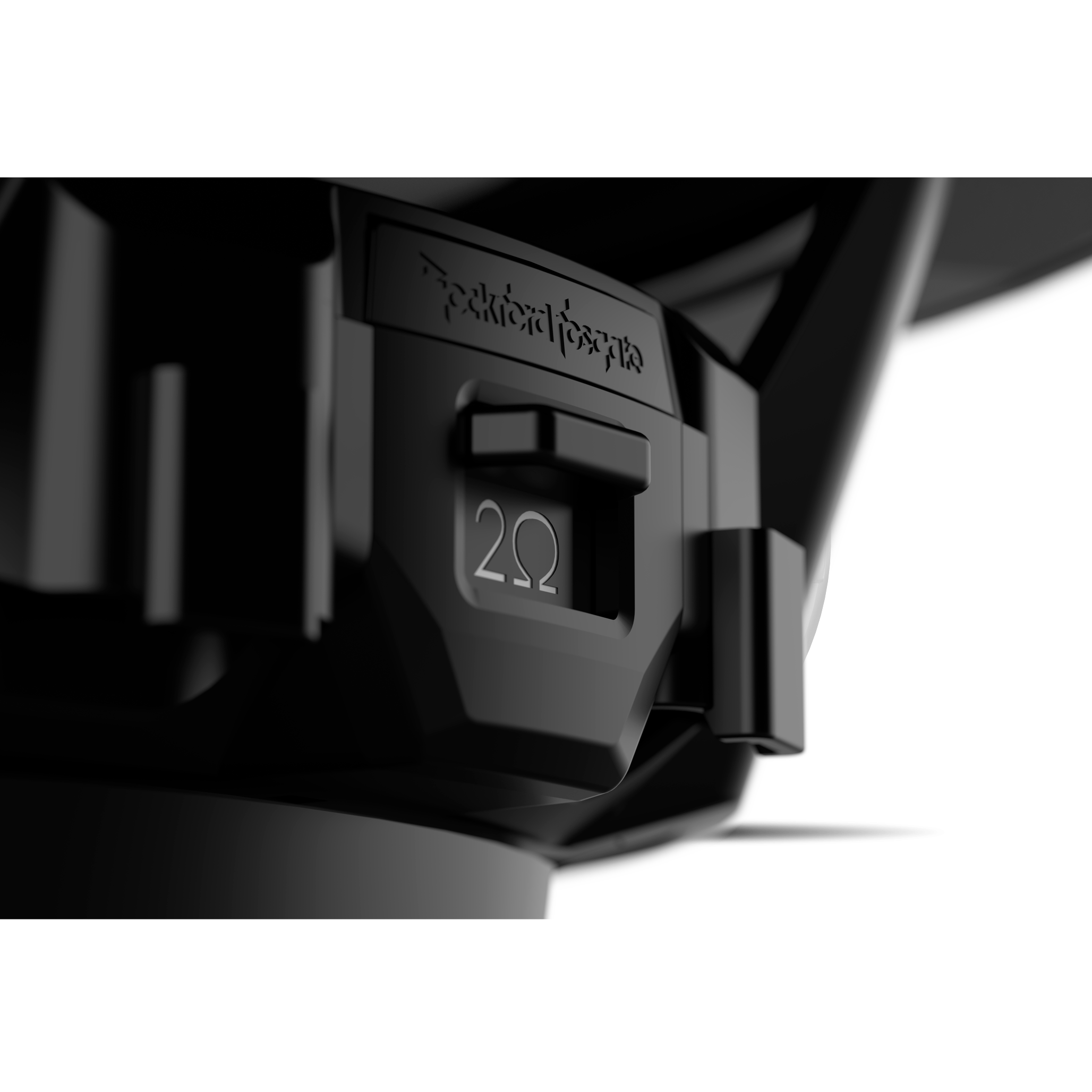

- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- Fully insulated silicone tinsel leads
Specifications
- Size: 8"
- Voice Coil Type: Dual Voice Coil
- Frequency Response: 20 Hz - 750 Hz
- Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
- Power Handling (Watts RMS): 150 Watts RMS; 1600 Watts PEAK
- Le (mH): 1.7
- Re (Ohms): 6.3
- SPL (dB @ 1w/1m): 87.5
- Sd (cm2): 227
- Xmax (mm): 7
- Vas (Liters): 15.7
- Qts: 0.9
- Fs (Hz): 44.5
- Qes: 0.79
- Qms: 9.2
- Cutout Diameter: 7.10 in. (180.4 mm)
- Mounting Depth: 3.43 in. (87.1 mm)
- Woofer Displacement: 0.05 cu. ft. (1.41 Liters)
- Magnet Weight (oz): 17.72 oz. (0.50 Kg)
- Voice Coil Diameter: 1.5" (38.6 mm)
- Speaker Connector: DeutschTM
- Shipping Weight: 4.6 Lbs. (2.10 Kg.)
