M1D4-12B
M1D4-12B
M1D4-12B
Overview

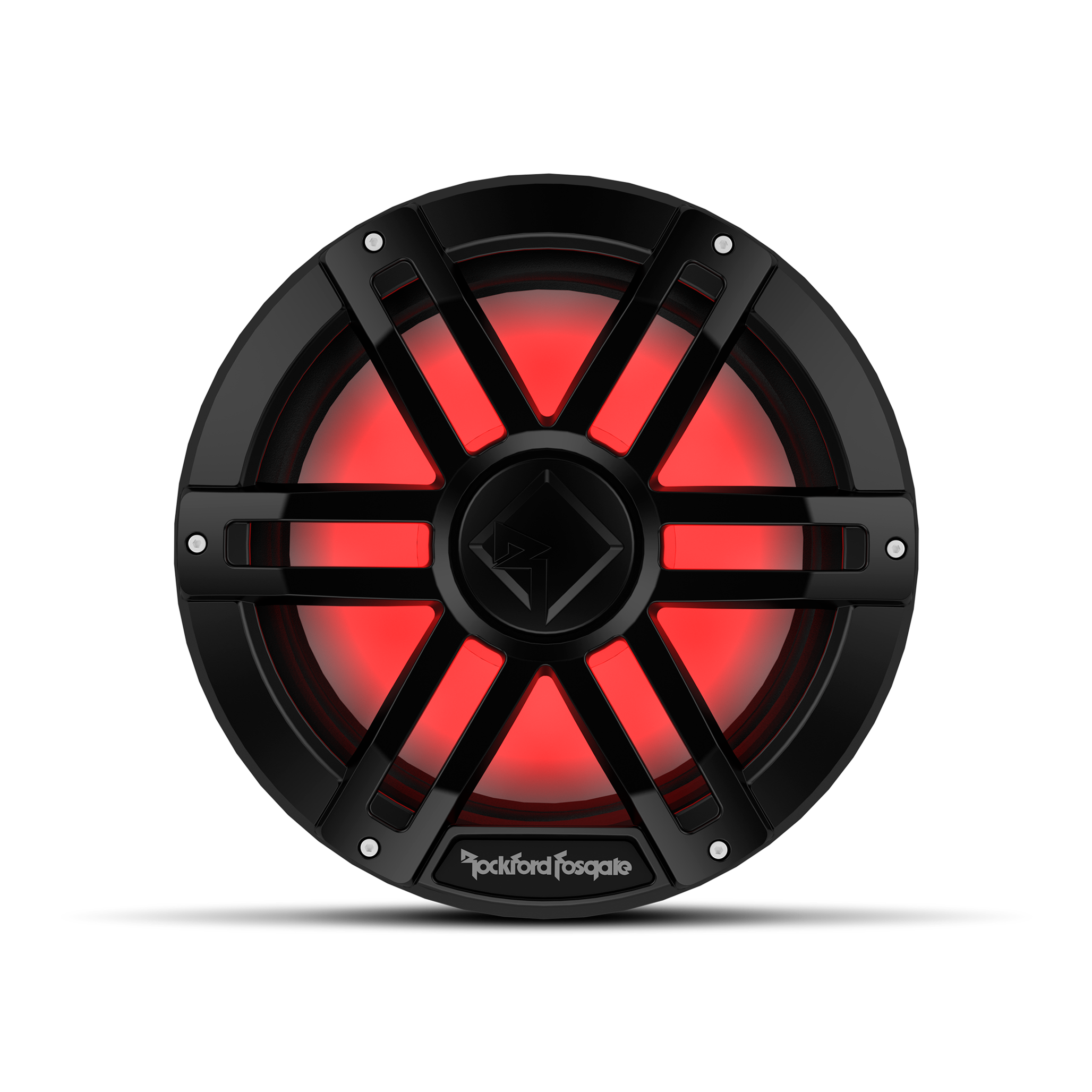

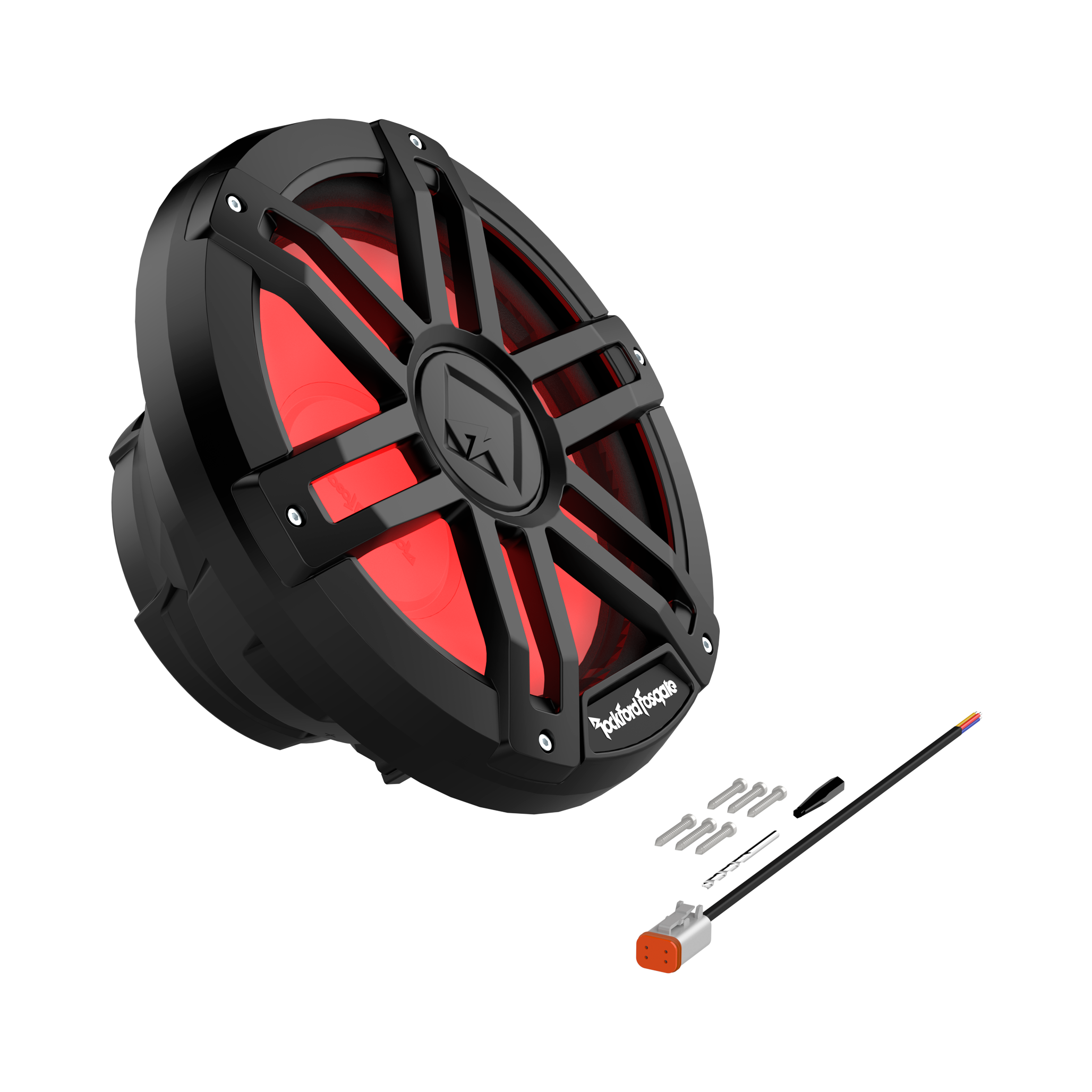

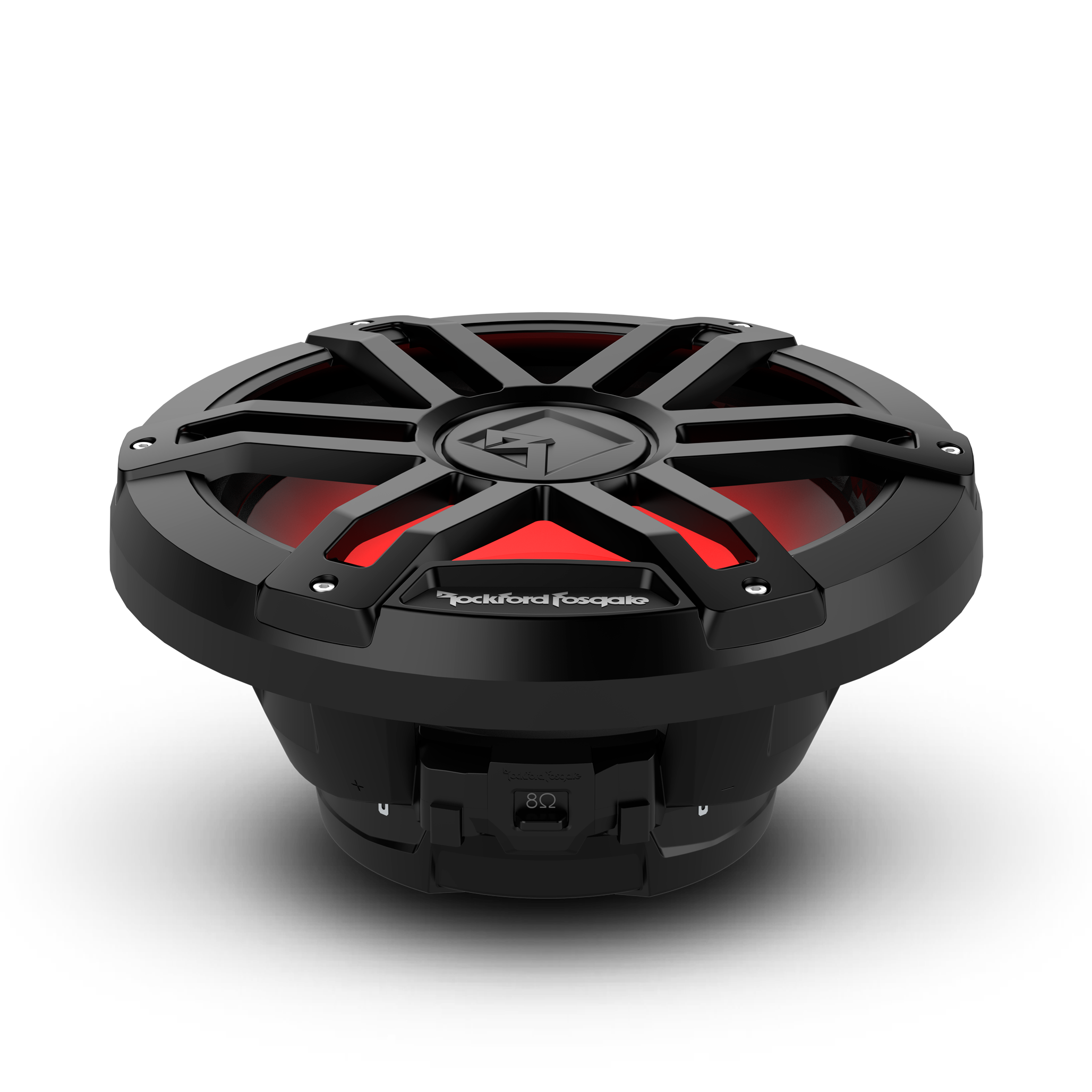

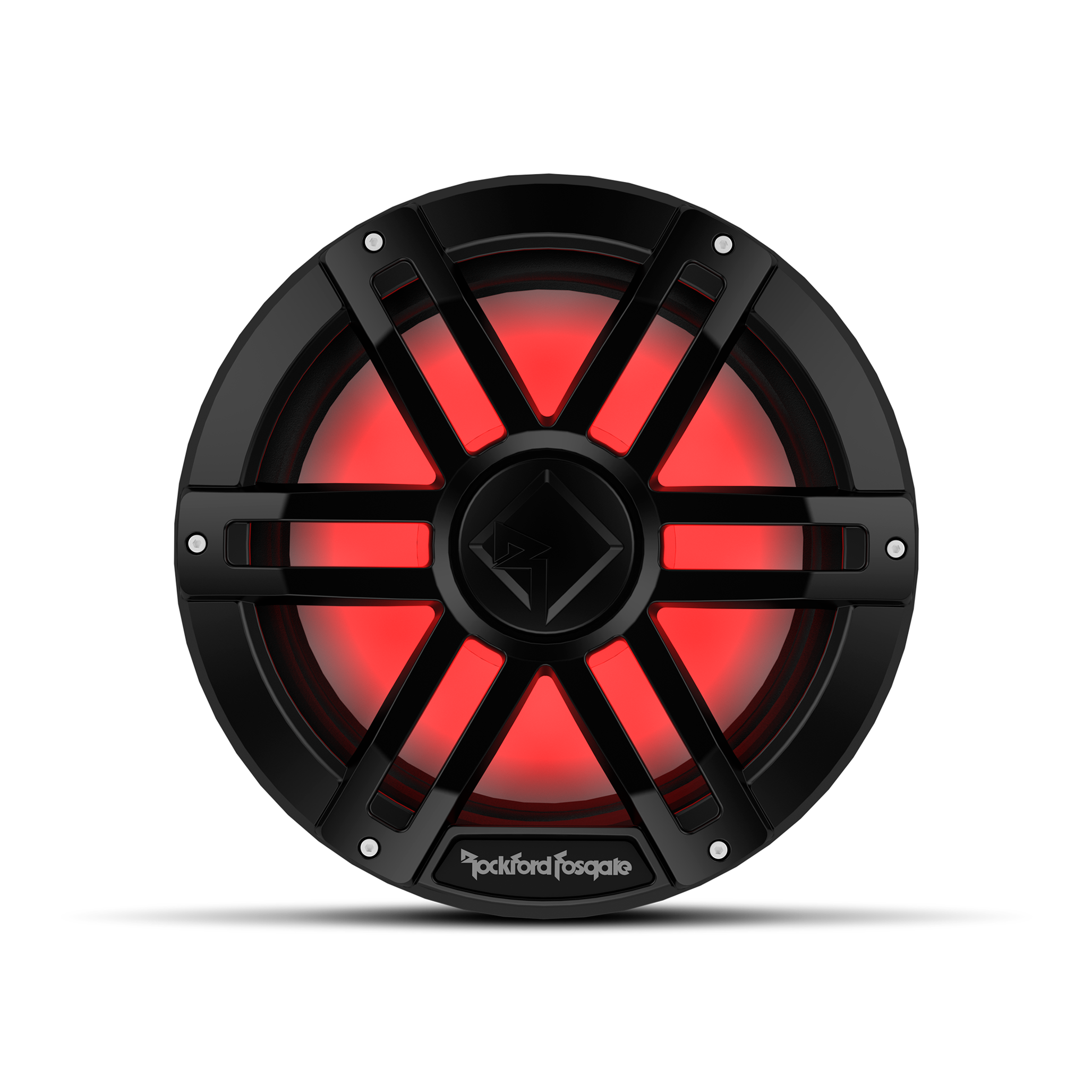

The M1D4-12B Color Optix TM 12" DVC 4-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! Sold individually (1 each).
Features
- Optically clear UV stable RGB Lighting Encapsulation
- 2" (50mm) High Temp KaptonTM Woofer Voice Coil Former
- Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Zinc Nickel-plated Marine grade brass connection terminals
- Vented motor design with water-repelling nano coated mesh screen
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Santoprene VAST Surround
- Integrated DeutschTM/AmphenolTM connectors make wiring connections simple and error proof

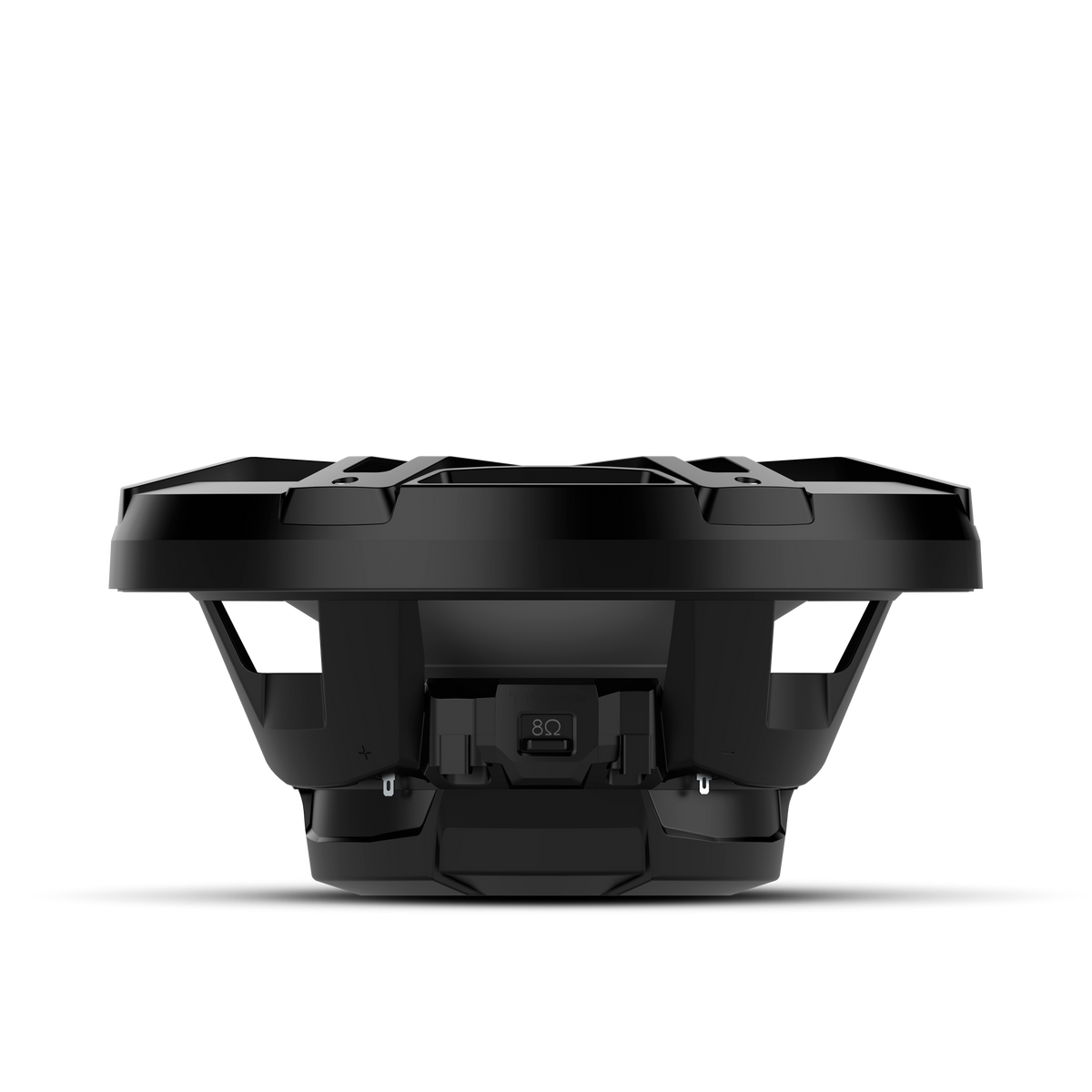

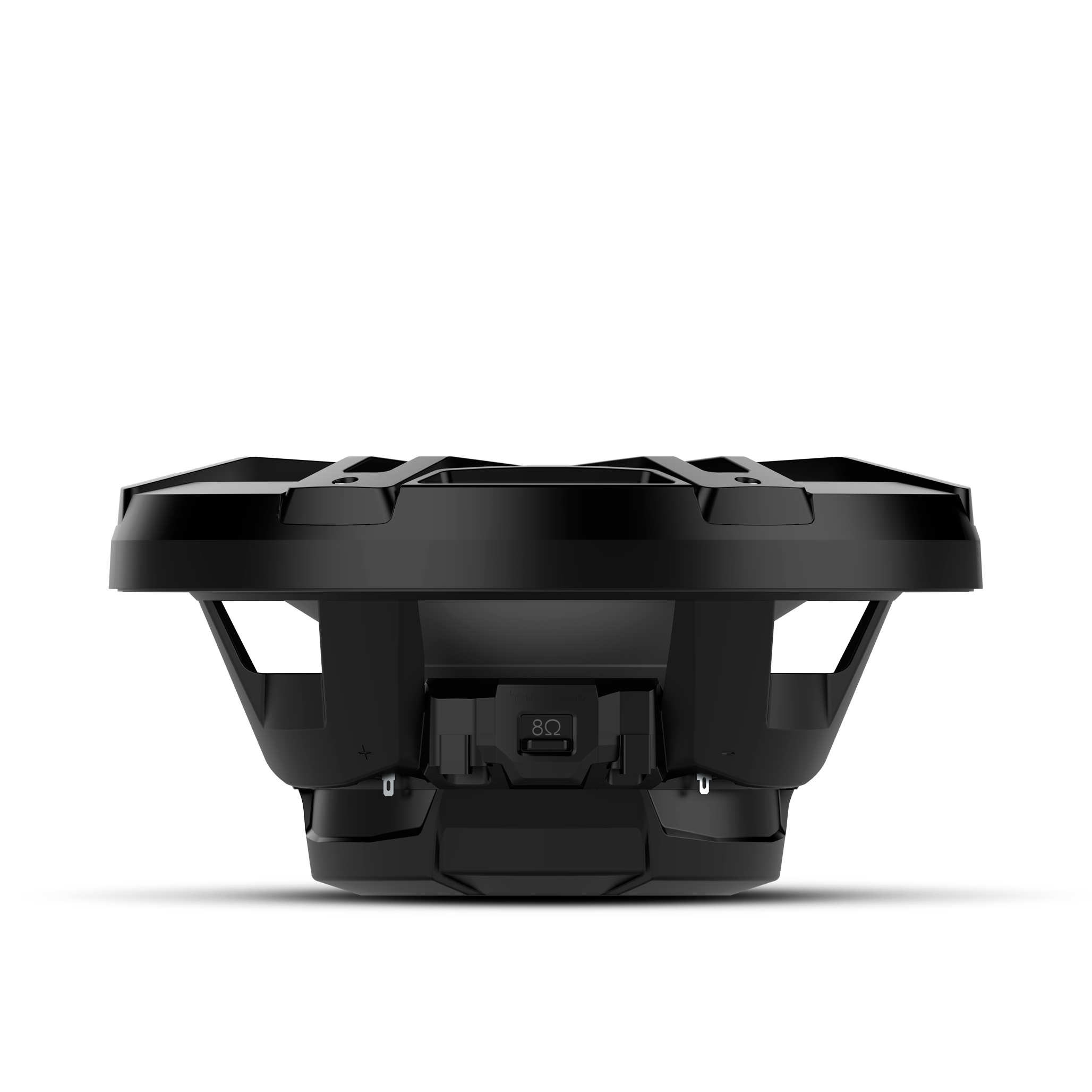

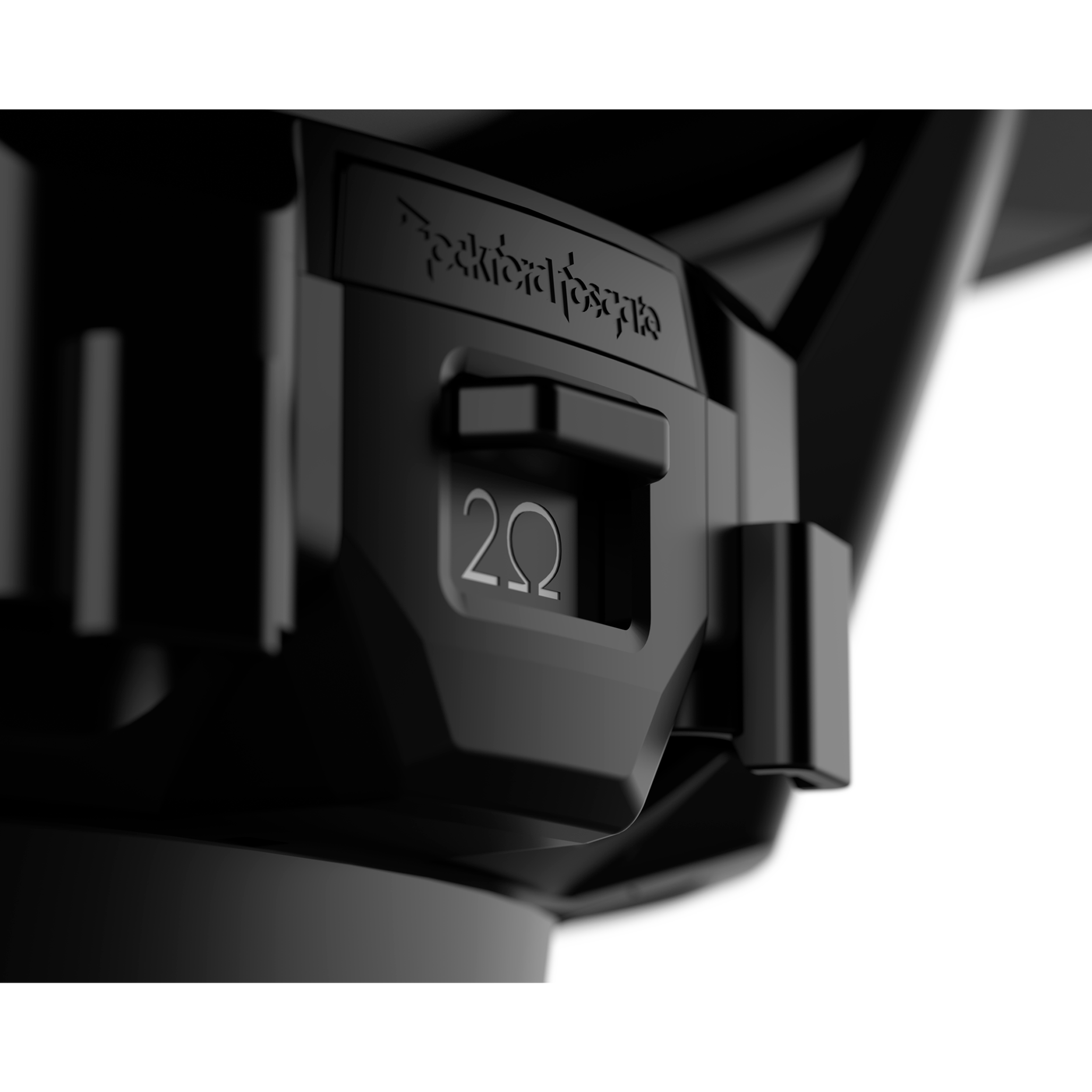

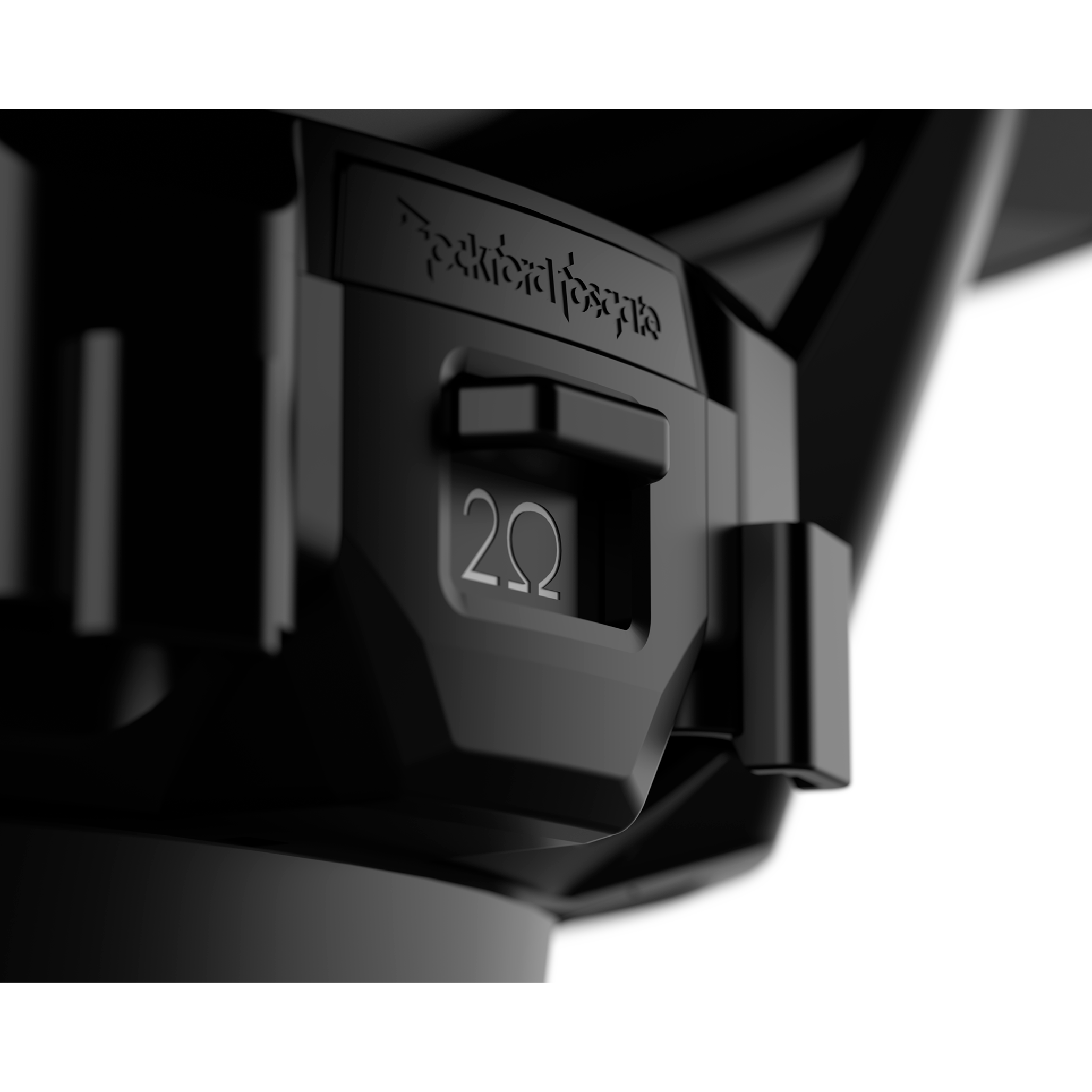

- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Co-molded surround and mineral filled polypropylene cone body
- Linear Synthetic Fiber Blend Spiders
- Fully insulated silicone tinsel leads
- 2-Year Warranty
- Injection molded mineral filled polypropylene cone body with UV inhibitors
Specifications
- Size: 12"
- Voice Coil Type: Dual Voice Coil
- Frequency Response: 20 Hz - 750 Hz
- Nominal Impedance (Ohms): 2-Ohm or 8-Ohm Switchable
- Power Handling (Watts RMS): 300 Watts RMS; 1200 Watts PEAK
- Magnet Weight (oz): 39.75 oz. (1.13 Kg)
- Voice Coil Diameter: 2" (50 mm)
- Fs (Hz): 27
- Re (Ohms): 7.6
- Le (mH): 3.4
- Sd (cm2): 585.4
- Qms: 8.2
- Sealed Box Volume (Vb): 1.65 cu. ft. (46.72 Liters)
- Qes: 0.63
- Vented Box Volume (Vb): 2.45 cu. ft. (69.38 Liters)
- Qts: 0.59
- Vas: 113.1
- SPL (dB @ 1w/1m): 92
- Xmax (mm): 6
- Woofer Displacement: 3.49 (0.12 Liters)
- Speaker Connector: DeutschTM
- Cutout Diameter: 10.85" (275.6 mm)
- Mounting Depth: 6.65" (169.1 mm)
- Shipping Weight: 9 Lbs. (4.1 Kg.)
