Overview

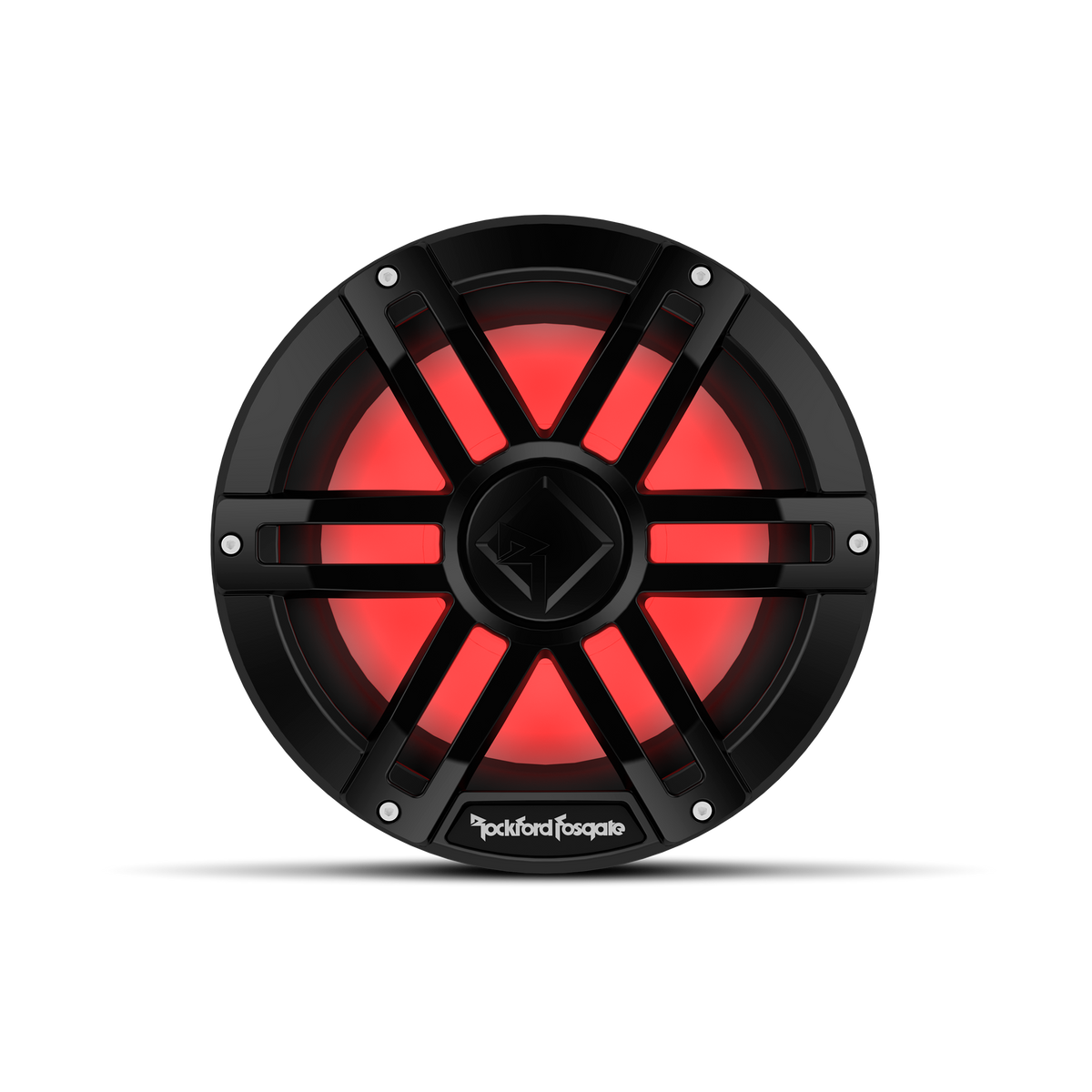

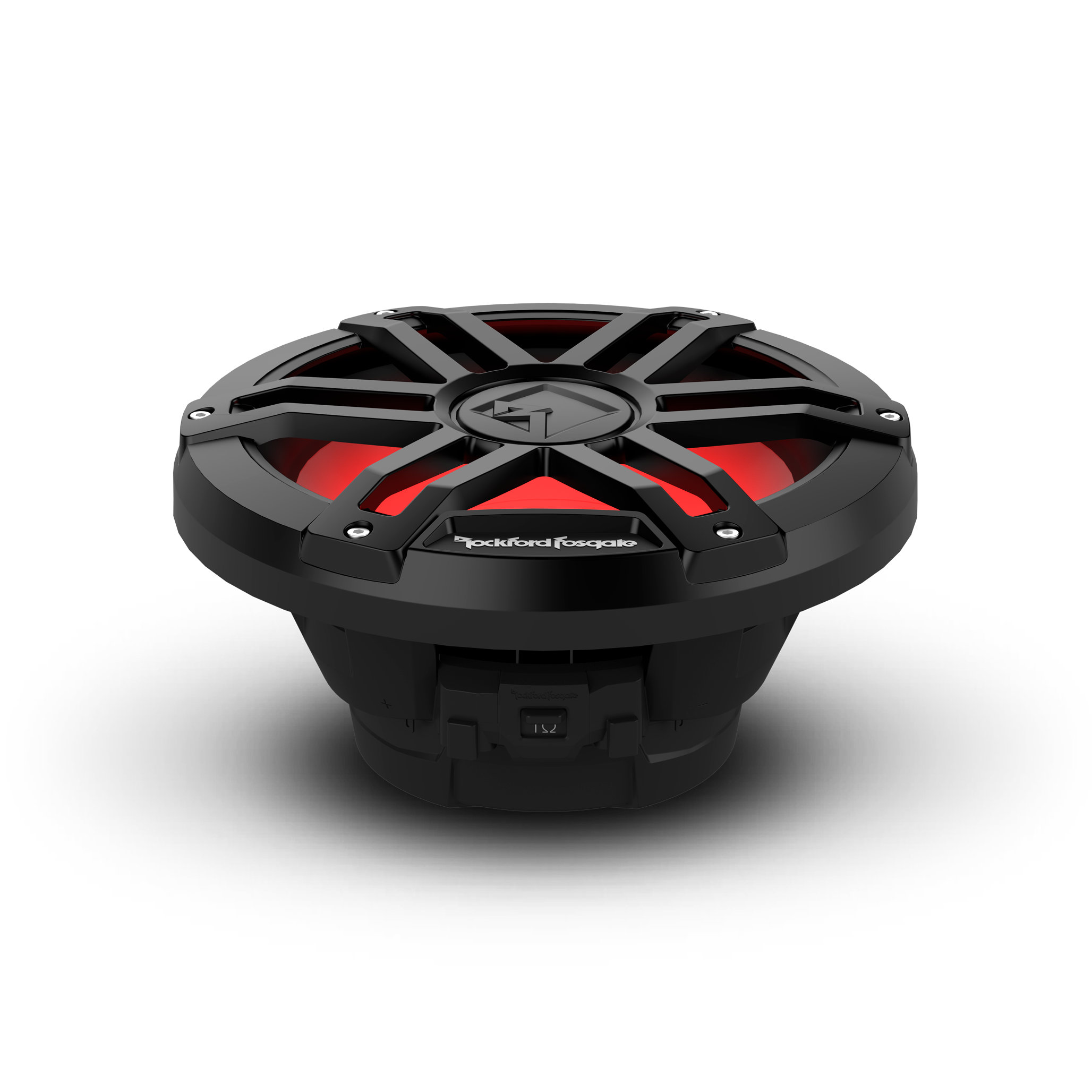

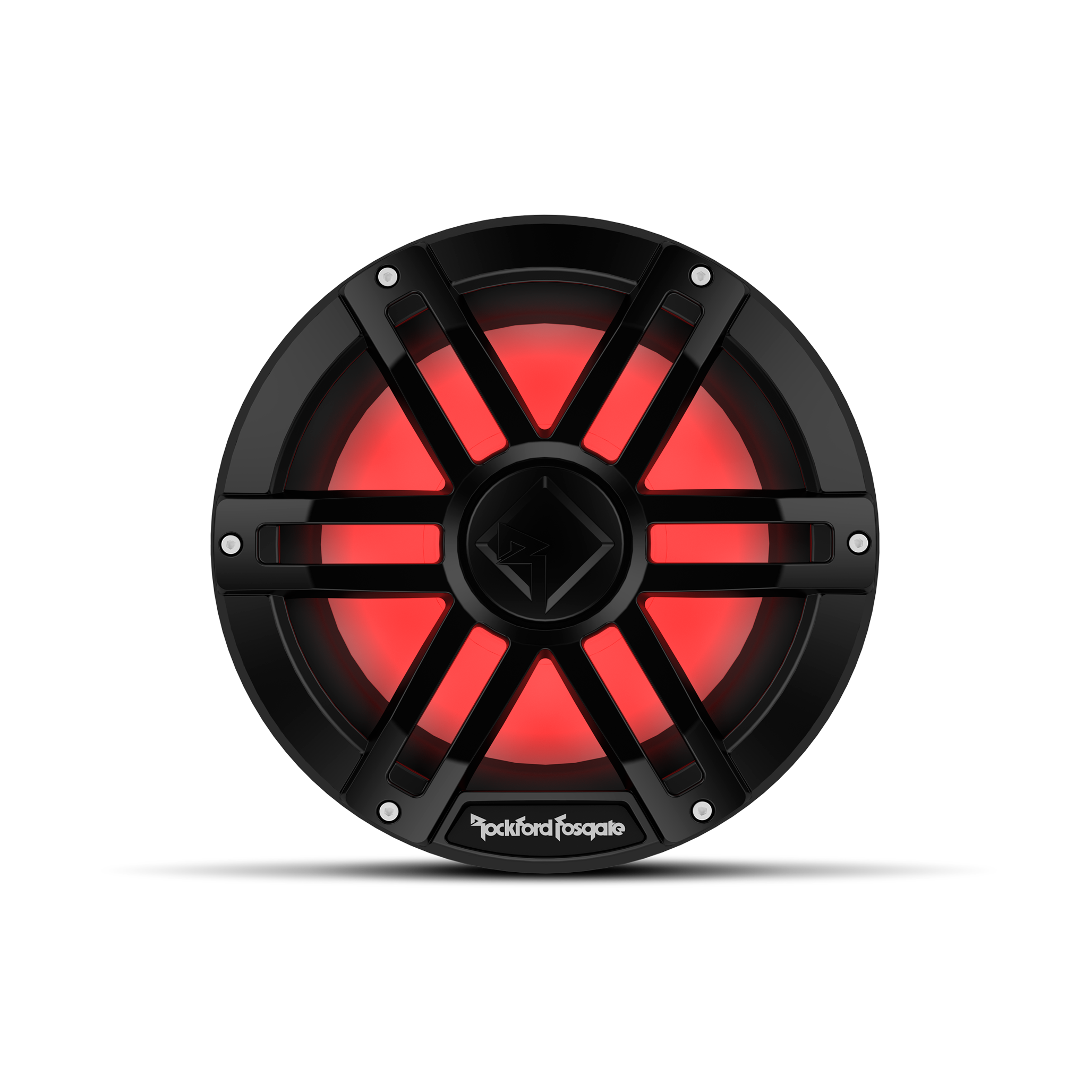

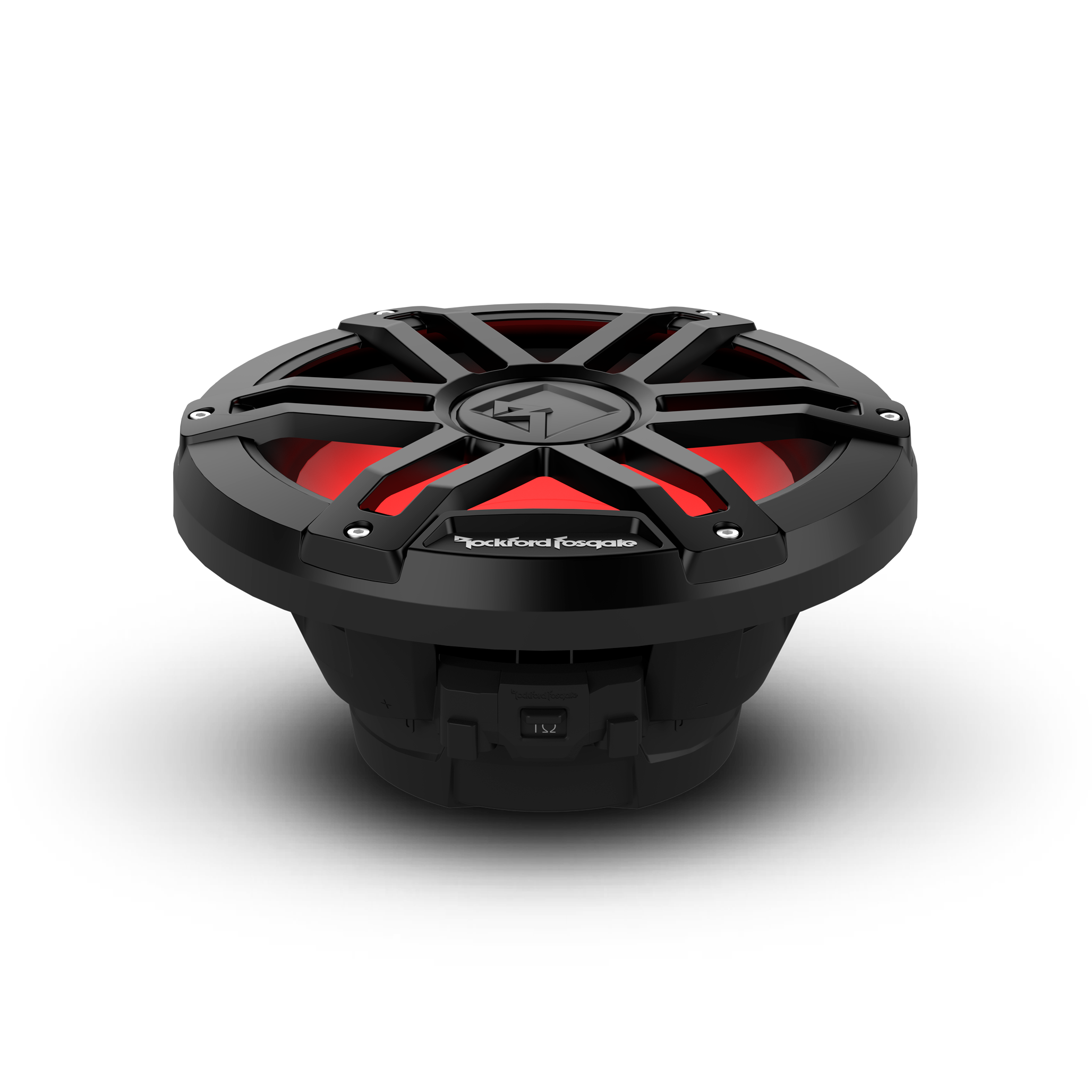

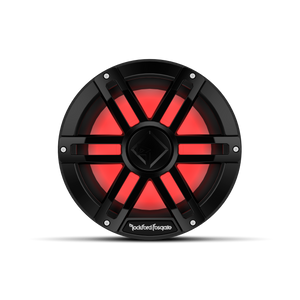

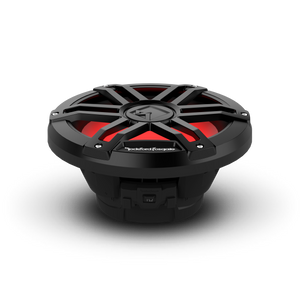

The M1D2-10B Color Optix TM 10" DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, and light the way for your journey! Sold individually (1 each).
Features

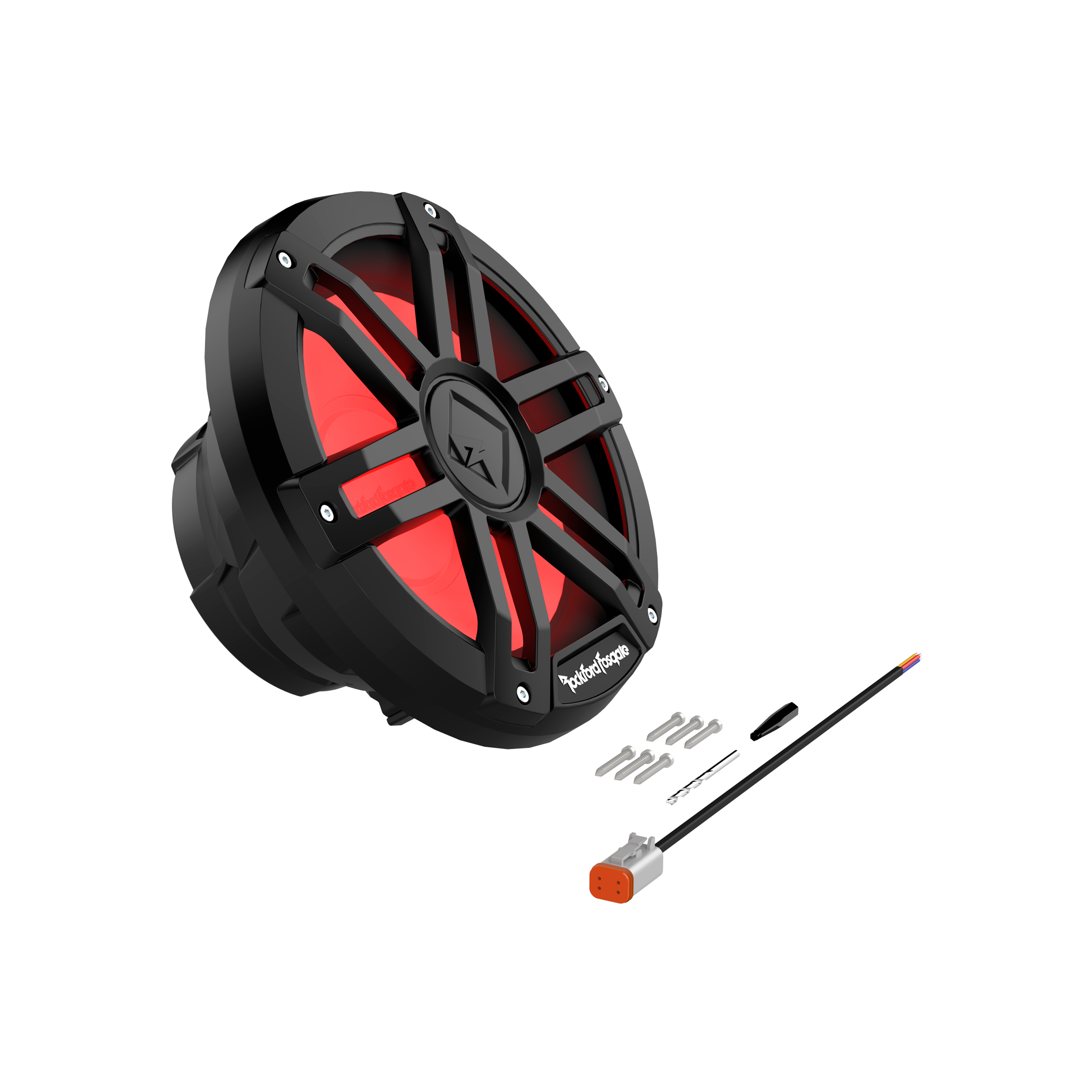

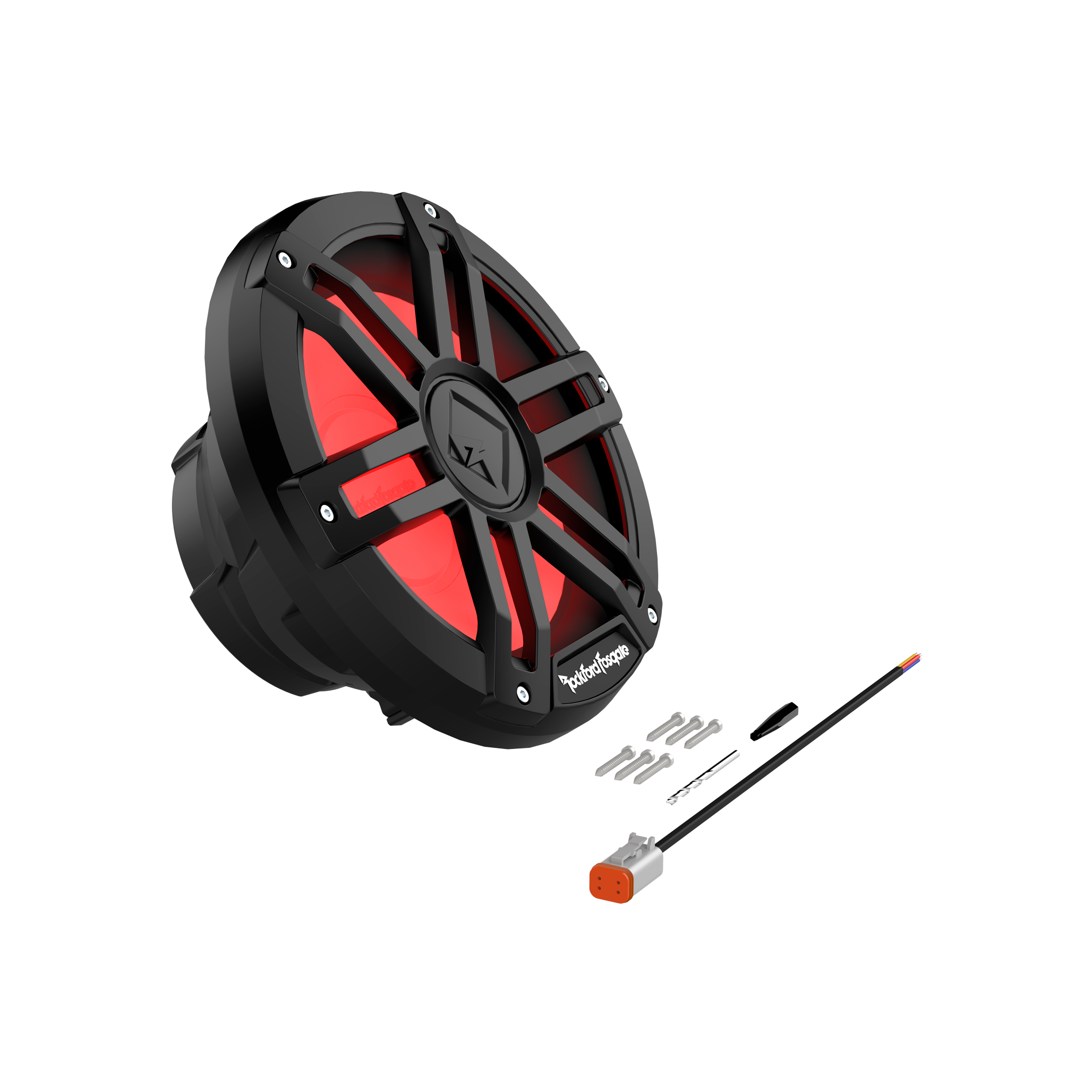

- Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
- Optically clear UV stable RGB Lighting Encapsulation
- 2" (50mm) High Temp KaptonTM Woofer Voice Coil Former
- 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
- Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
- Fully insulated silicone tinsel leads

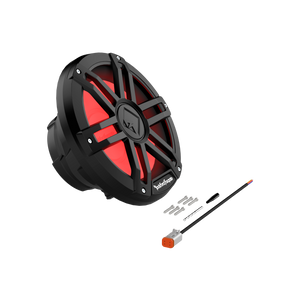

- Integrated DeutschTM/AmphenolTM connectors make wiring connections simple and error proof
- 2-Year Warranty
- Zinc Nickel-plated Marine grade brass connection terminals
- Co-molded surround and mineral filled polypropylene cone body
- Santoprene VAST Surround
- Injection molded mineral filled polypropylene cone body with UV inhibitors
- Linear Synthetic Fiber Blend Spiders
- VAST vertical attach surround technique increases effective radiating cone area up to 25%
- Vented motor design with water-repelling nano coated mesh screen

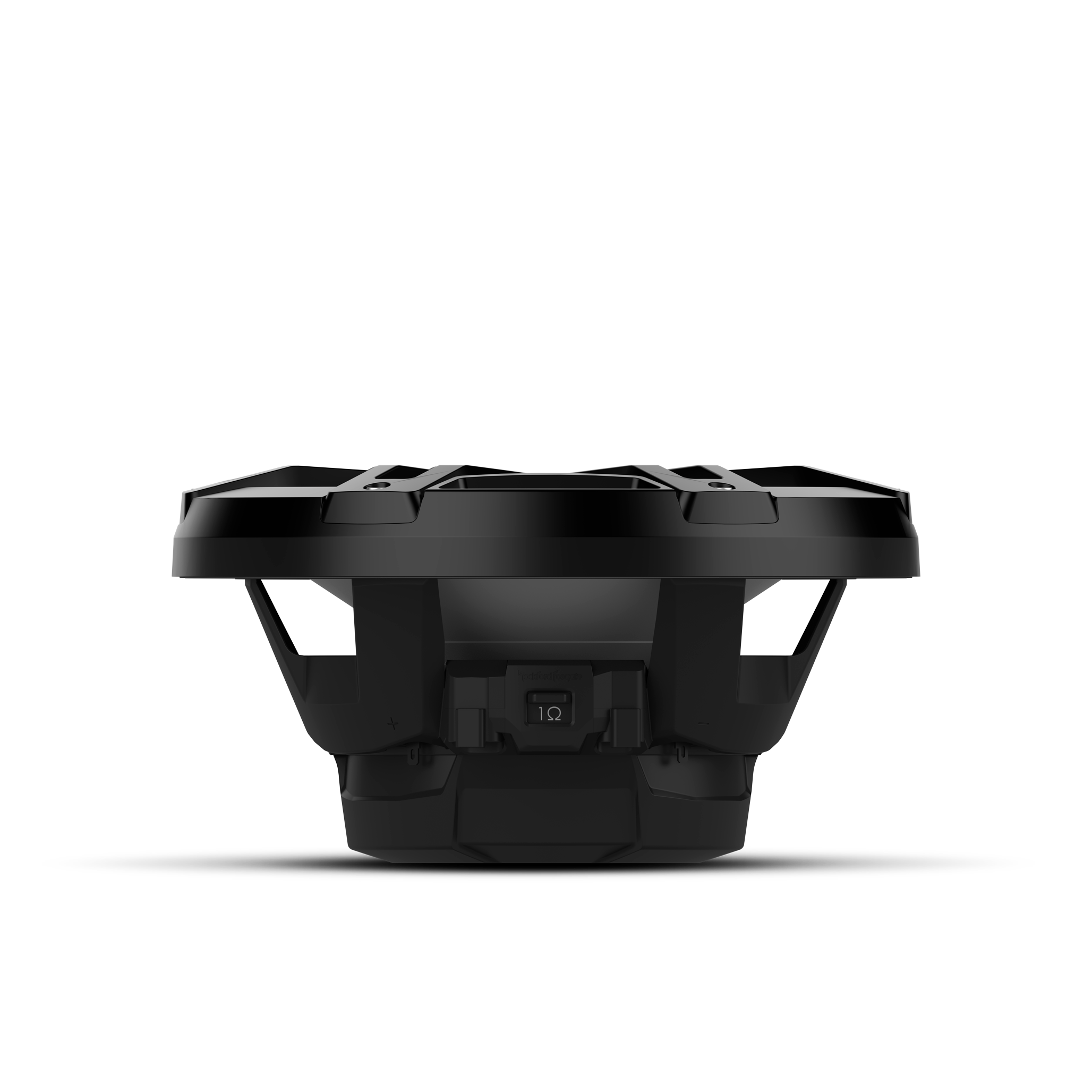

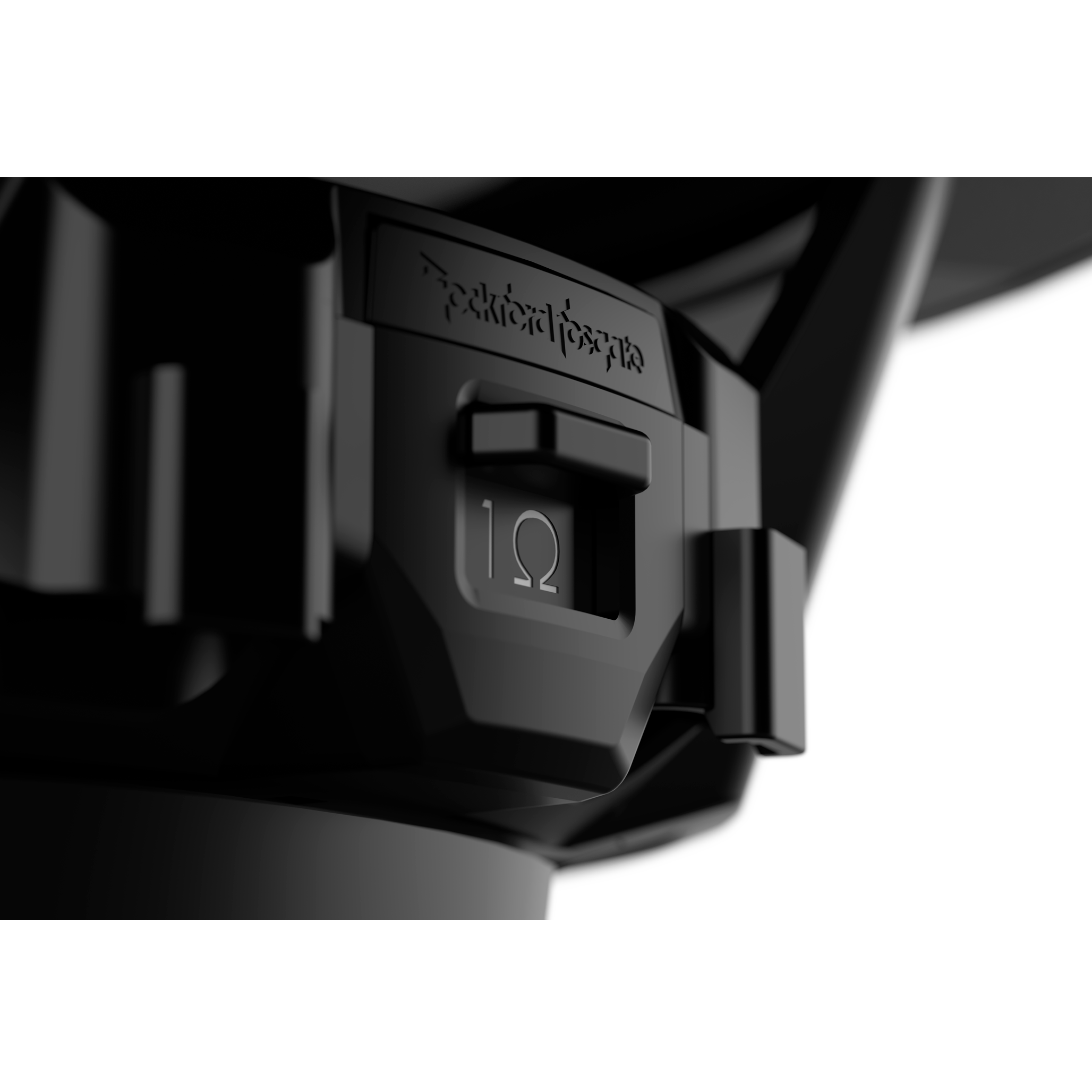

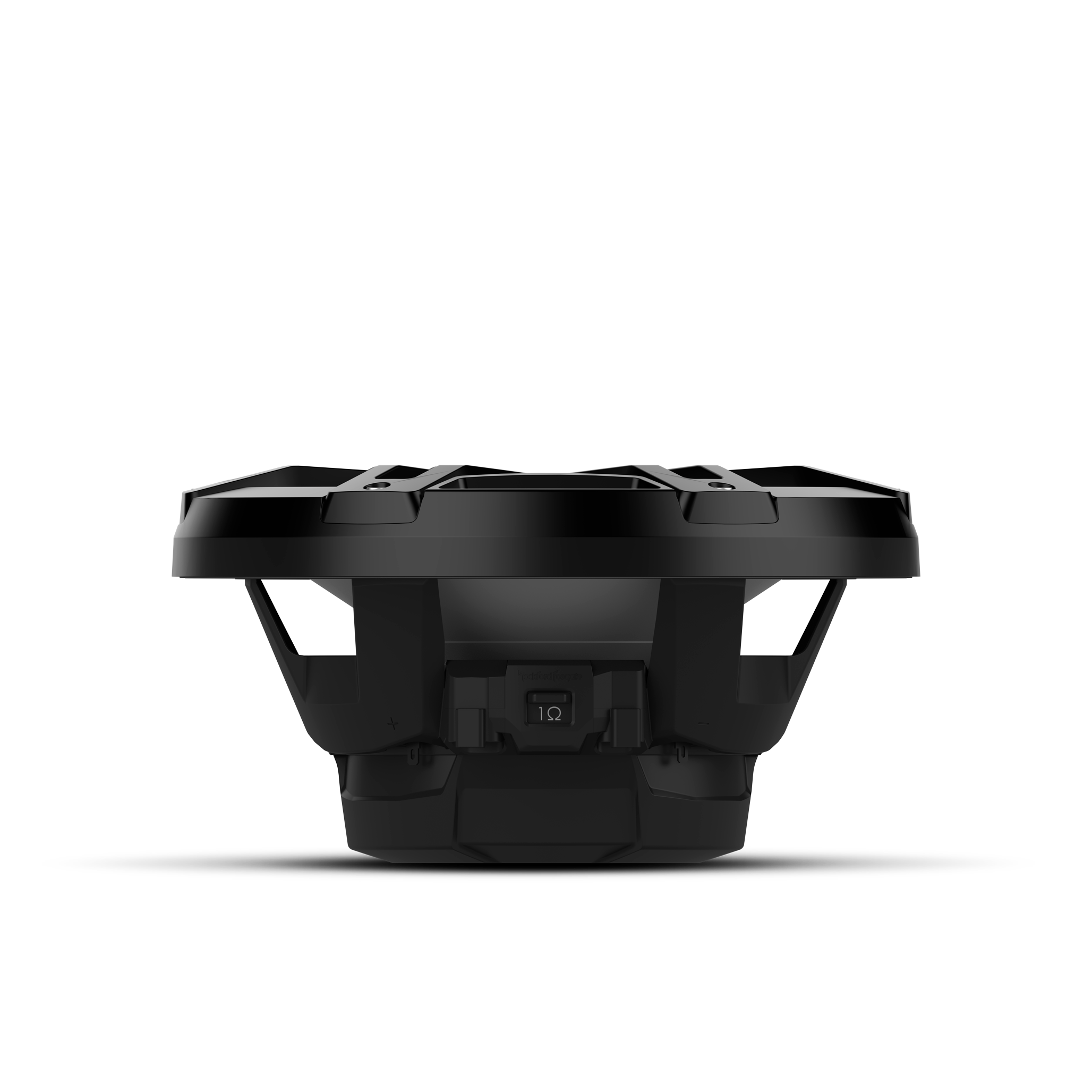

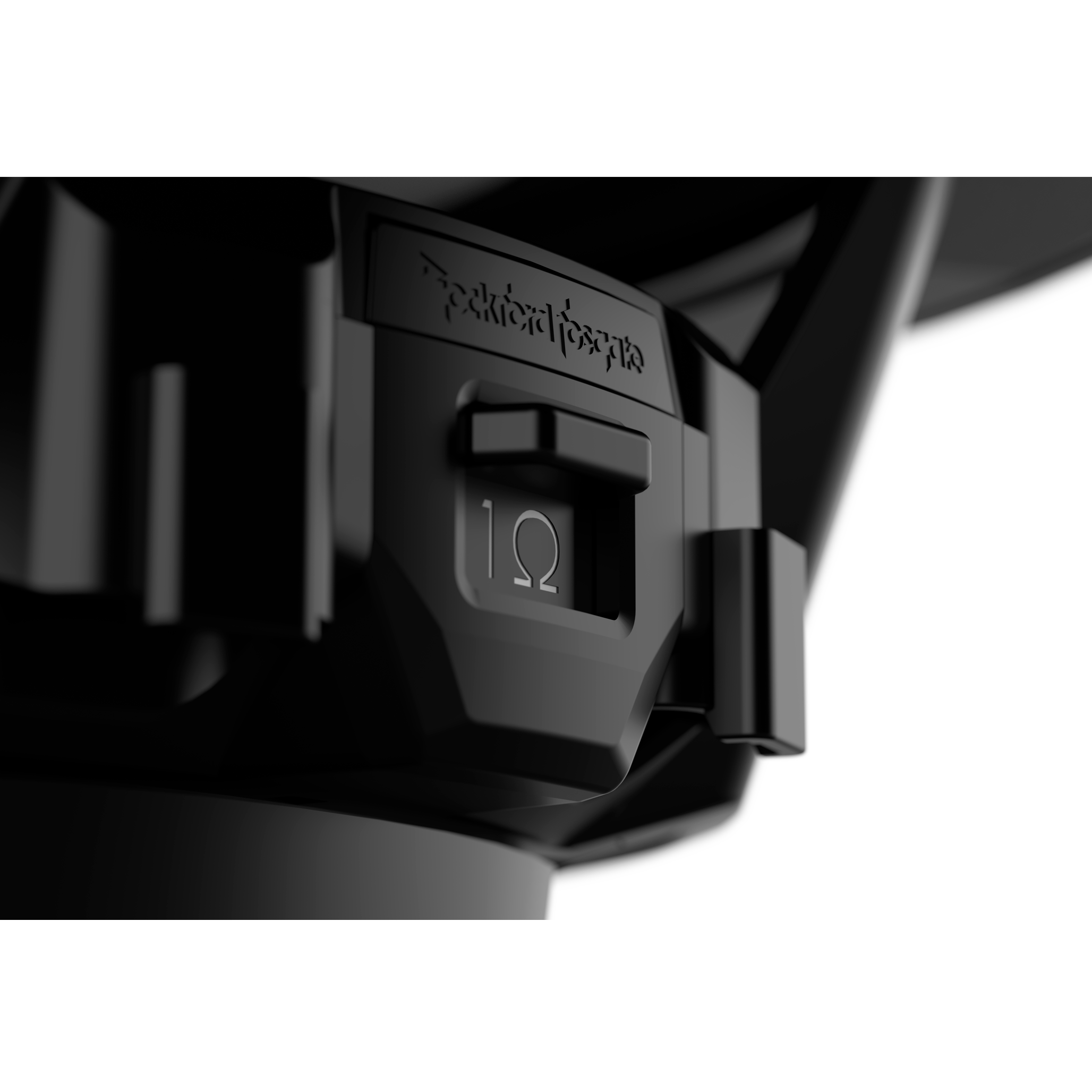

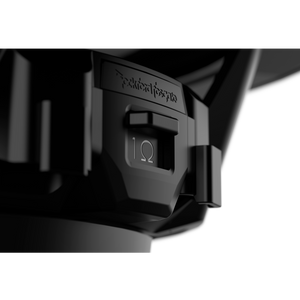

- VERSA impedance switch quickly allows series or parallel configuration without additional wiring
Specifications
- Size: 10"
- Voice Coil Type: Dual Voice Coil
- Frequency Response: 20 Hz - 750 Hz
- Nominal Impedance (Ohms): 1-Ohm or 4-Ohm Switchable
- Power Handling (Watts RMS): 300 Watts RMS; 1200 Watts PEAK
- Magnet Weight (oz): 47.70 oz. (1.35 Kg)
- Voice Coil Diameter: 2.0" (50 mm)
- Fs (Hz): 34
- Re (Ohms): 3.7
- Le (mH): 2.22
- Sd (cm2): 394.1
- Qms: 7.8
- Qes: 0.47
- Qts: 0.44
- Vas: 44.2
- SPL (dB @ 1w/1m): 91.5
- Xmax (mm): 7
- Woofer Displacement: 0.10 cu. ft. (2.80 Liters)
- Speaker Connector: DeutschTM
- Cutout Diameter: 8.90 in. (226 mm)
- Mounting Depth: 4.23 in. (107.4 mm)
- Shipping Weight: 8.6 Lbs. (3.9 Kg)
