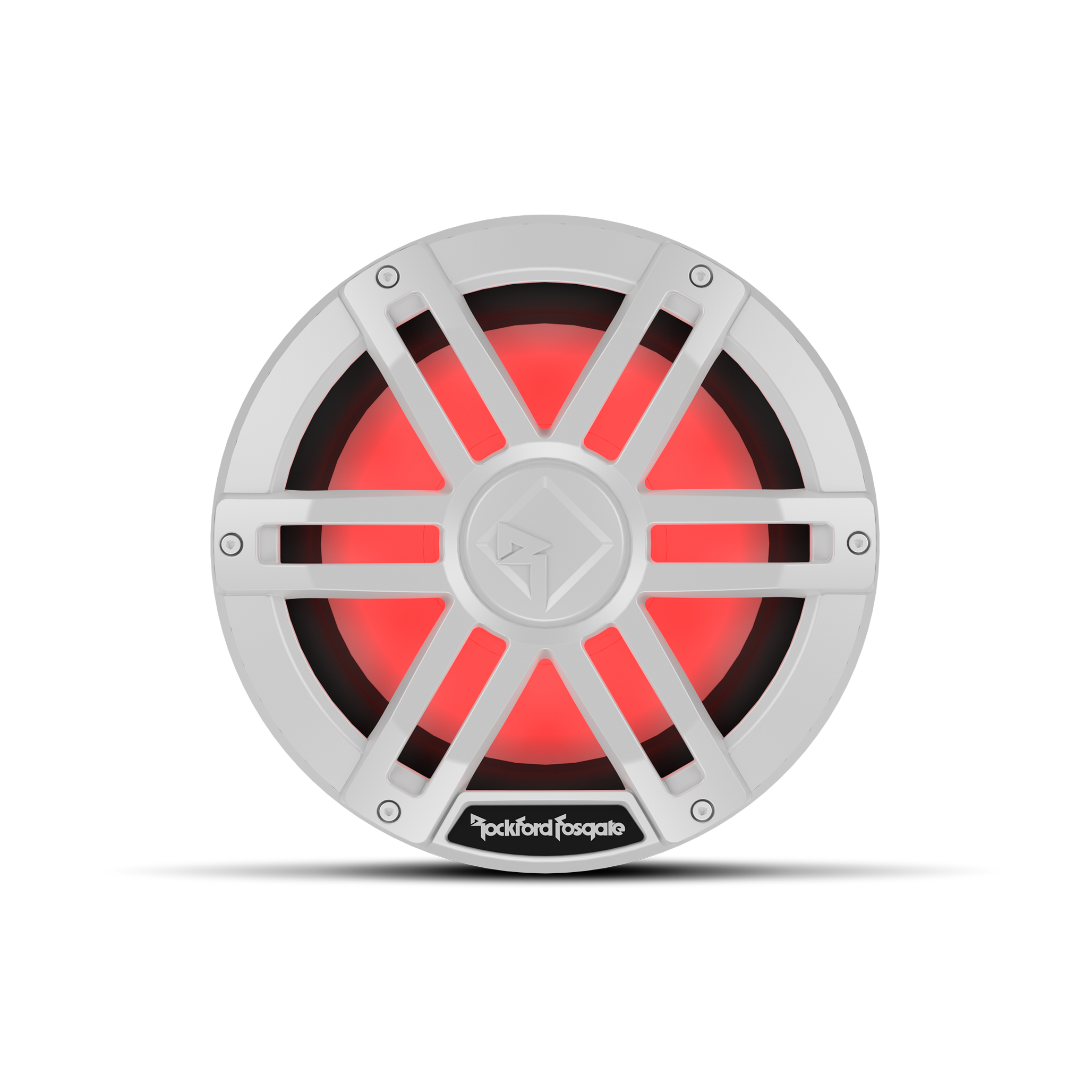

M1D2-10 Front View
M1 10'' DVC 2Ohm Color Optix TM Marine Subwoofer
M1 10'' DVC 2Ohm Color Optix TM Marine Subwoofer
M1 10'' DVC 2Ohm Color Optix TM Marine Subwoofer
M1D2-10 - M1 10" DVC 2Ohm Color Optix TM Marine Subwoofer - image 1
M1D2-10 - M1 10" DVC 2Ohm Color Optix TM Marine Subwoofer - image 2
M1D2-10 - M1 10" DVC 2Ohm Color Optix TM Marine Subwoofer - image 3
M1D2-10 - M1 10" DVC 2Ohm Color Optix TM Marine Subwoofer - image 4
M1D2-10 - M1 10" DVC 2Ohm Color Optix TM Marine Subwoofer - image 5
M1 10 DVC 2Ohm Color Optix TM Marine Subwoofer
M1D2-10 Front View
M1 10'' DVC 2Ohm Color Optix TM Marine Subwoofer
M1 10'' DVC 2Ohm Color Optix TM Marine Subwoofer
M1 10'' DVC 2Ohm Color Optix TM Marine Subwoofer

Rockford Fosgate 300 Watt Element Ready Color Optix Subwoofer Marine - M1D2-10

Availability: In stock SKU: M1D2-10
Sale price $259.99

M1D2-10 - M1 10" DVC 2Ohm Color Optix TM Marine Subwoofer - image 1

Rockford Fosgate 300 Watt Element Ready Color Optix Subwoofer Marine - M1D2-10

$259.99

Overview

The M1D2-10 Color Optix TM 10" DVC 2-Ohm subwoofers deliver loud, clear, accurate bass, & light the way for your journey!

Features

  • Industry's first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
  • Optically clear UV stable RGB Lighting Encapsulation
  • 2" (50mm) High Temp KaptonTM Woofer Voice Coil Former
  • 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
  • Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
  • Fully insulated silicone tinsel leads

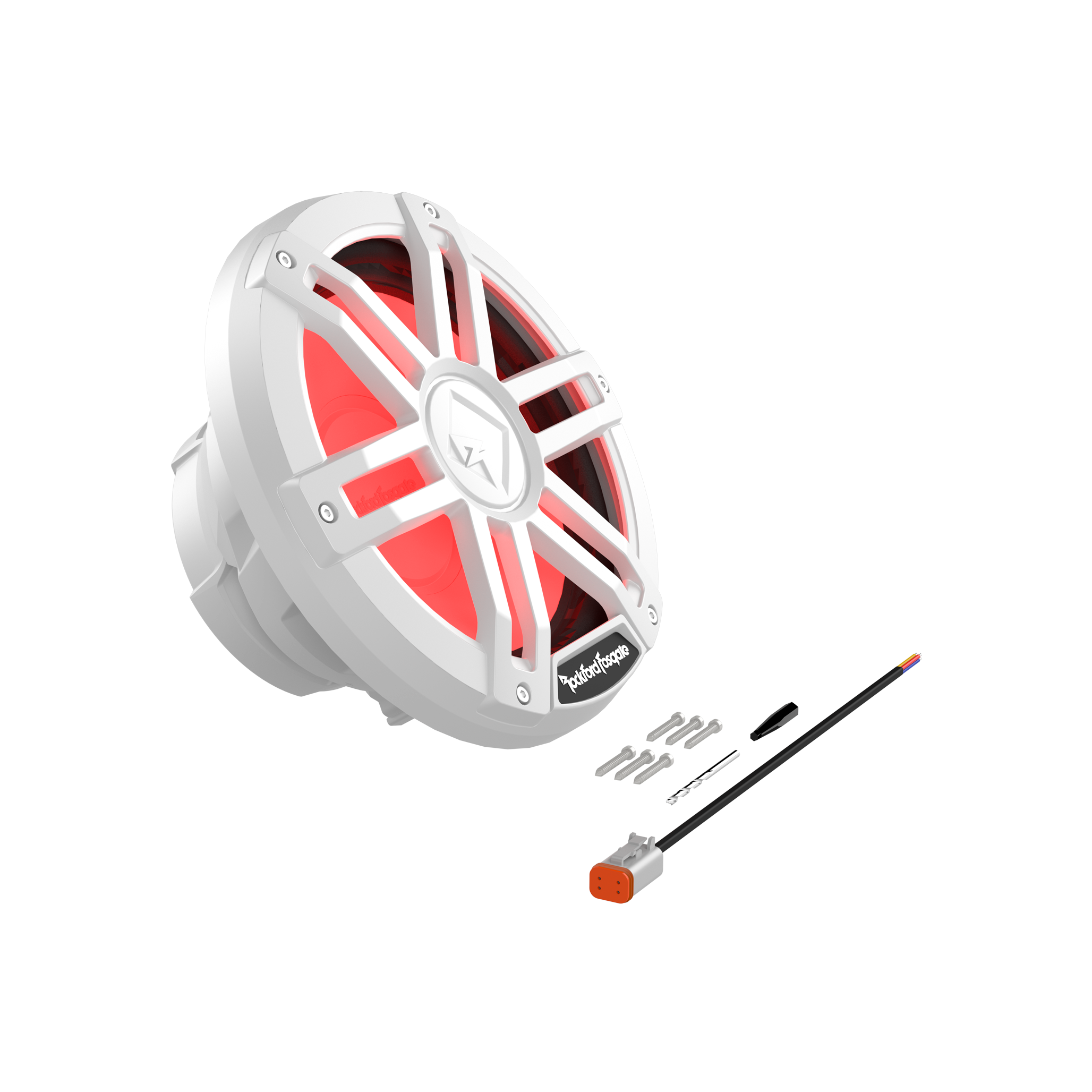

  • Integrated DeutschTM/AmphenolTM connectors make wiring connections simple and error proof
  • 2-Year Warranty
  • Zinc Nickel-plated Marine grade brass connection terminals
  • Co-molded surround and mineral filled polypropylene cone body
  • Santoprene VAST Surround
  • Injection molded mineral filled polypropylene cone body with UV inhibitors
  • Linear Synthetic Fiber Blend Spiders
  • VAST vertical attach surround technique increases effective radiating cone area up to 25%
  • Vented motor design with water-repelling nano coated mesh screen

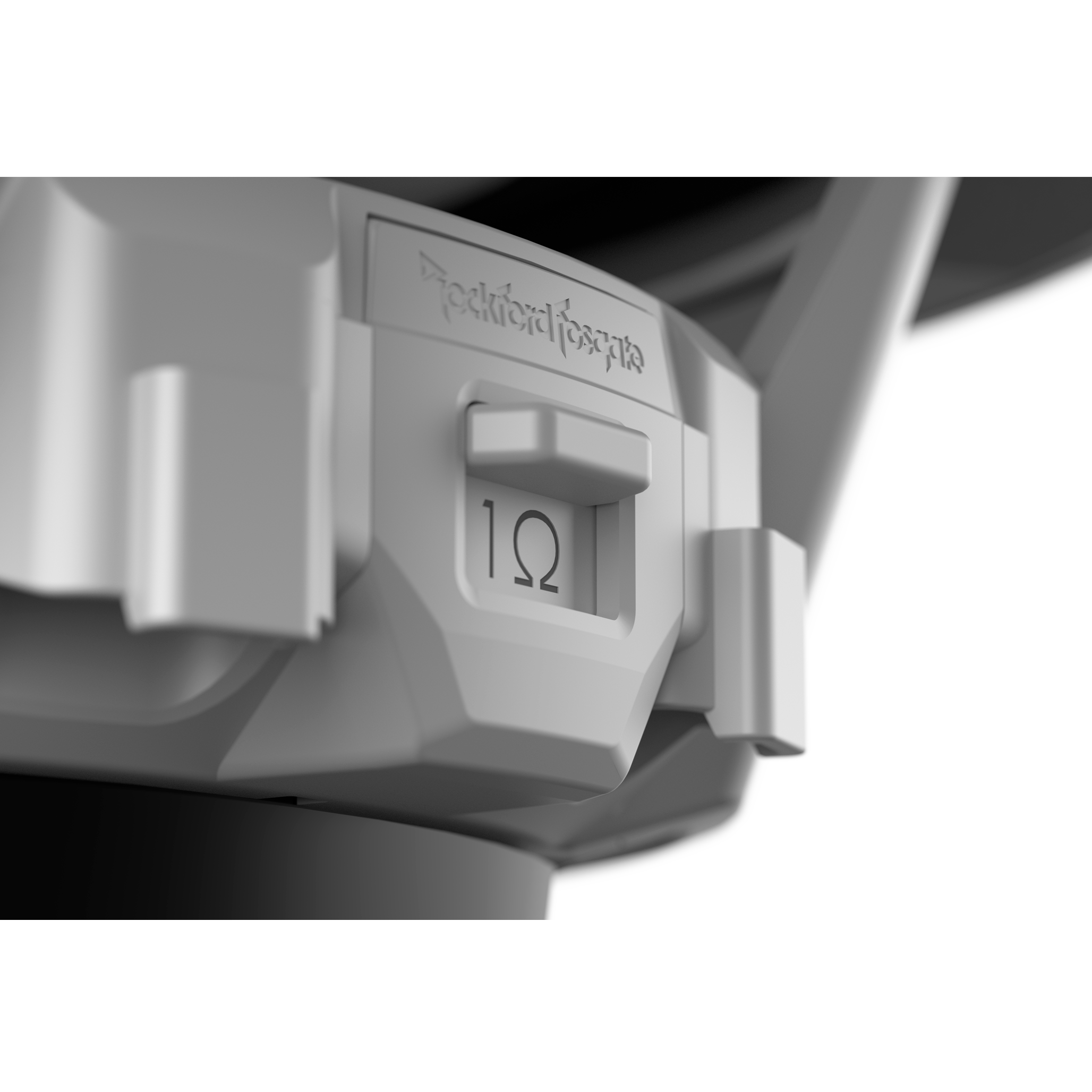

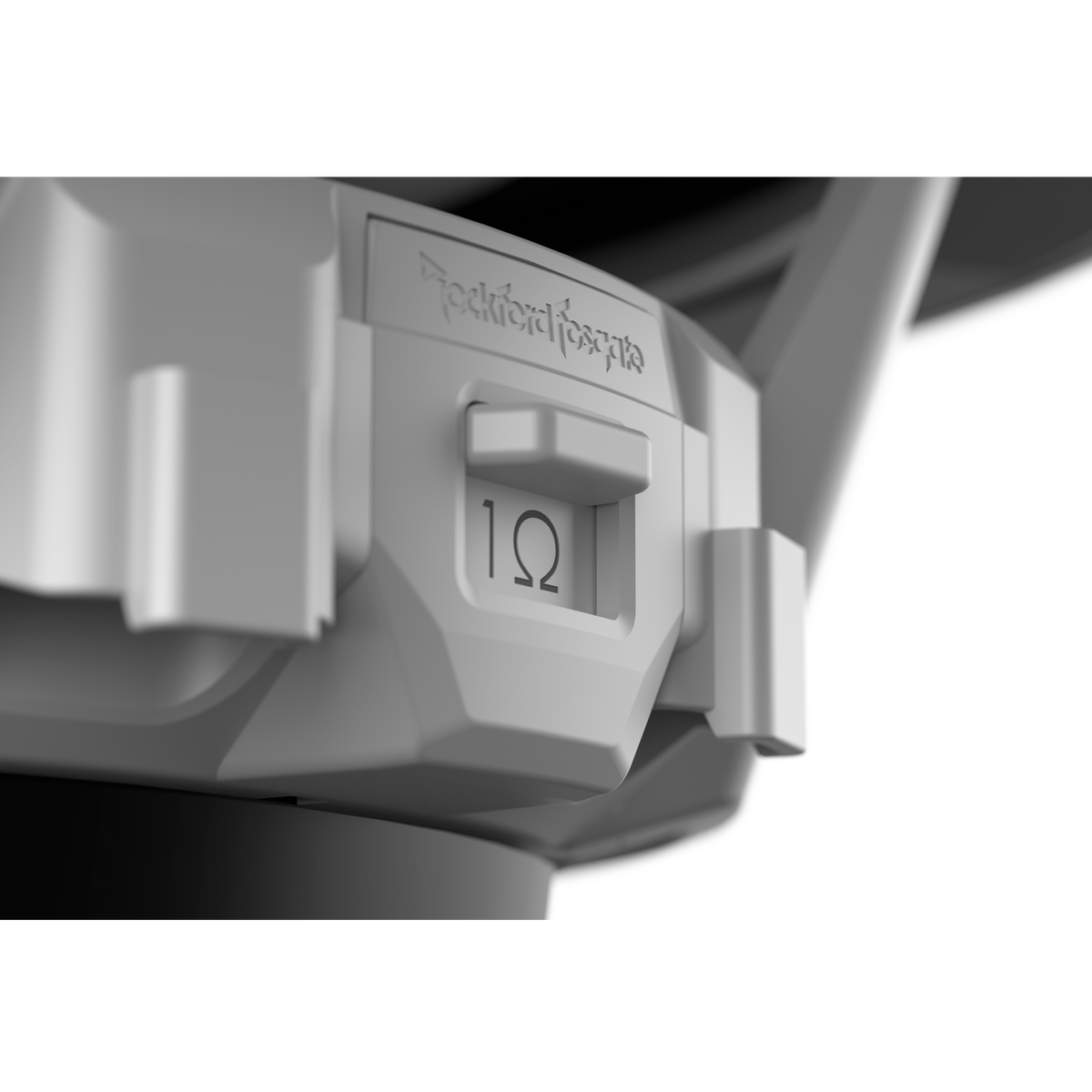

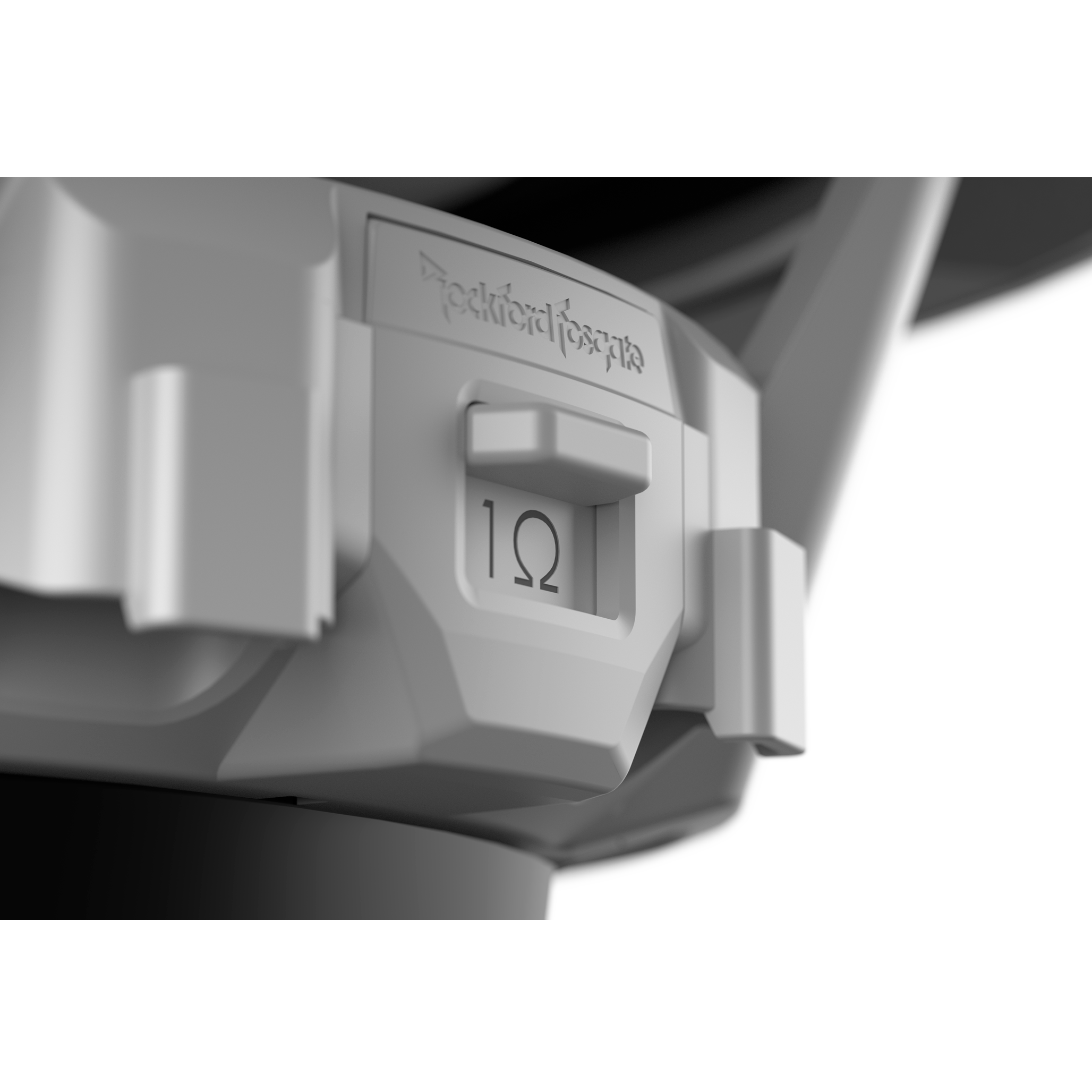

  • VERSA impedance switch quickly allows series or parallel configuration without additional wiring

Specifications

  • Size: 10"
  • Voice Coil Type: Dual Voice Coil
  • Frequency Response: 20 Hz - 750 Hz
  • Nominal Impedance (Ohms): 1-Ohm or 4-Ohm Switchable
  • Power Handling (Watts RMS): 300 Watts RMS; 1200 Watts PEAK
  • Magnet Weight (oz): 47.70 oz. (1.35 Kg)
  • Voice Coil Diameter: 2.0" (50 mm)
  • Fs (Hz): 34
  • Re (Ohms): 3.7
  • Le (mH): 2.22
  • Sd (cm2): 394.1
  • Qms: 7.8
  • Qes: 0.47
  • Qts: 0.44
  • Vas: 44.2
  • SPL (dB @ 1w/1m): 91.5
  • Xmax (mm): 7
  • Woofer Displacement: 0.10 cu. ft. (2.80 Liters)
  • Speaker Connector: DeutschTM
  • Cutout Diameter: 8.90 in. (226 mm)
  • Mounting Depth: 4.23 in. (107.4 mm)
  • Shipping Weight: 8.6 Lbs. (3.9 Kg)
