M1-6B

Overview

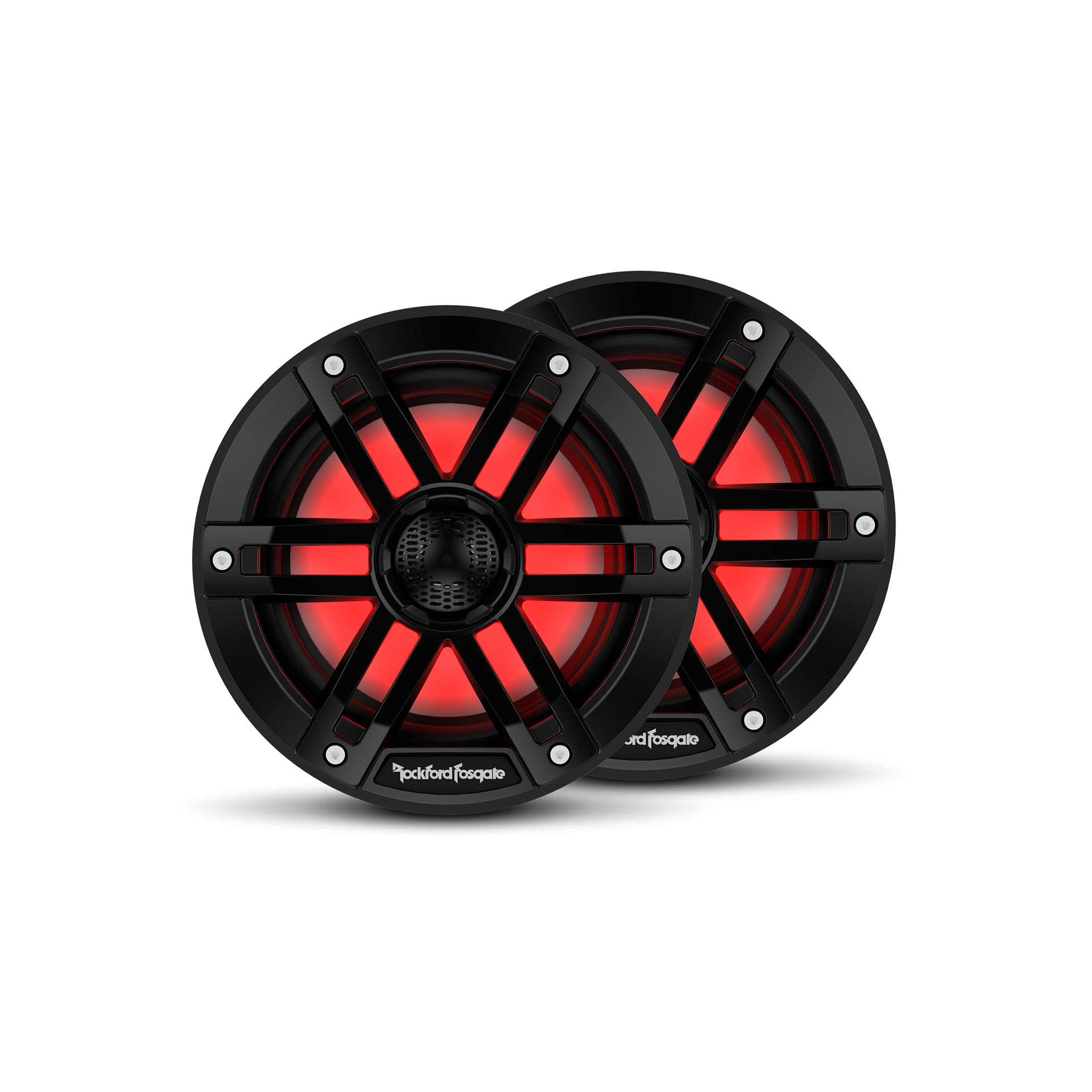

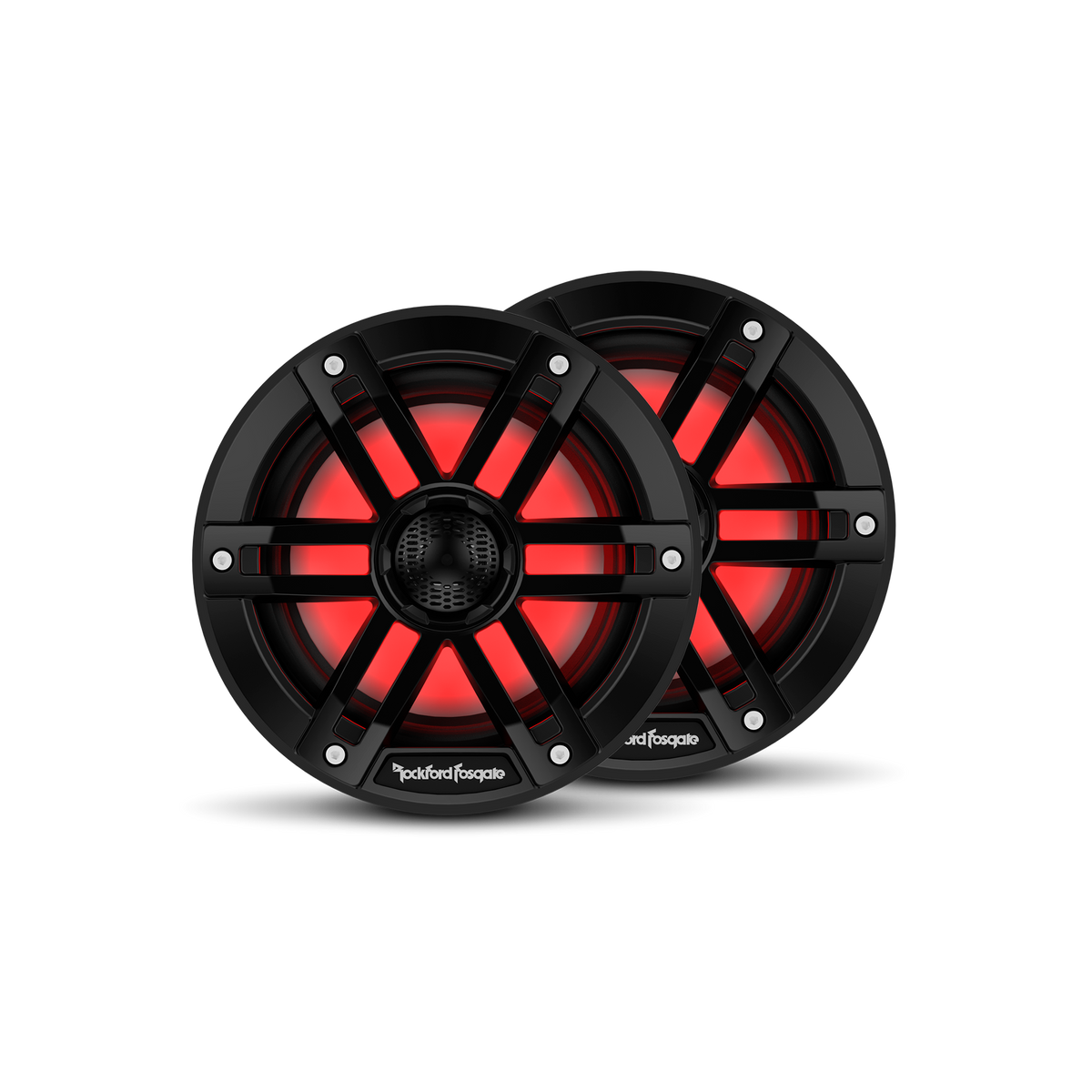

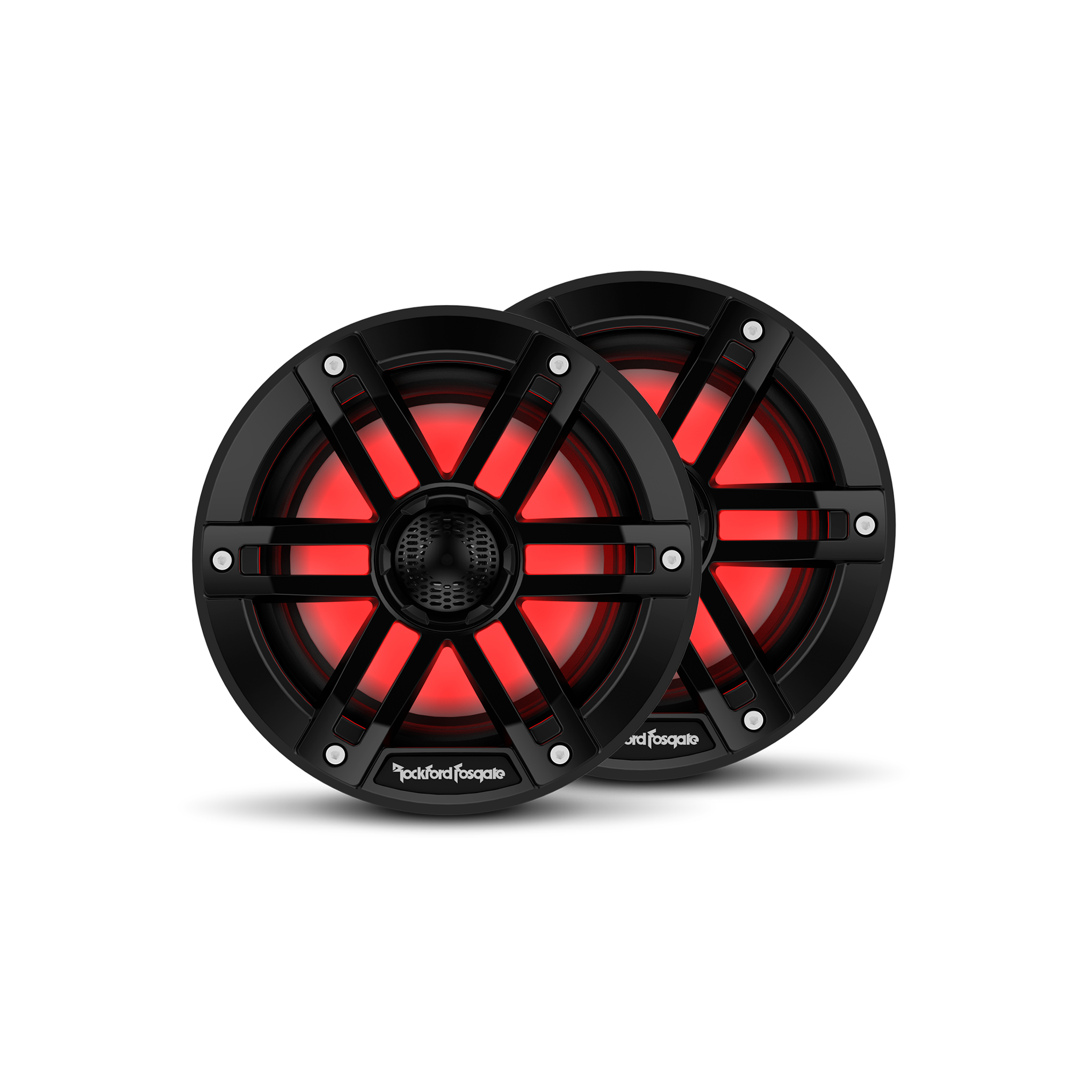

The M1-6B Color Optix TM 2-way 6" speakers deliver loud, clear, accurate sound, and light the way for your journey! Sold in pairs (2 each).

Features

• Multiplexed RGB Input
• Optically clear UV stable RGB Lighting Encapsulation
• 1" (25mm) High Temp KaptonTM Woofer Voice Coil Former
• Grill Integrated 1" (25 mm) LCP Balanced Dome Tweeter
• Zinc Nickel-plated Marine grade brass connection terminals
• Ultra-Bright, Wide Angle Tri-Color Surface Mount LED's with Flat Mold Lenses
• Linear Synthetic Fiber Blend Spiders
• Co-molded surround and mineral filled polypropylene cone body
• Fully sealed integrated concealed crossover (ICC) network
• 6dB/Octave crossover network
• Sold in pairs (2 each)
• Sealed motor design
• Integrated Deutsch RGB and Speaker receptacles
• Santoprene VAST Surround
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• 2-Year Warranty
• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
• Proprietary Dual Function Input Terminals

Specifications

• Speaker Type: 2-way Coax
• Midrange Size (Nominal Diameter): 6"
• Frequency Response (Hz): 42 Hz - 22 kHz
• Tweeter Size: 1" (25.4 mm)
• Power Handling (RMS): 75 Watts RMS; 300 Watts Peak
• Nominal Impedance (Ohms): 4-Ohm
• Midrange Mounting Depth: 2.52" (63.9 mm)
• Crossover: High Pass: 6dB/Octave
• Sensitivity (dB @ 1W/1M): 89
• Sensitivity (dB @ 2.83V/1M): 89.5
• Mounting Hardware: Stainless Steel
• Grille/Trim Ring Included: Yes
• Shipping Weight: 2.3 Lbs. (1.05 Kg.)
