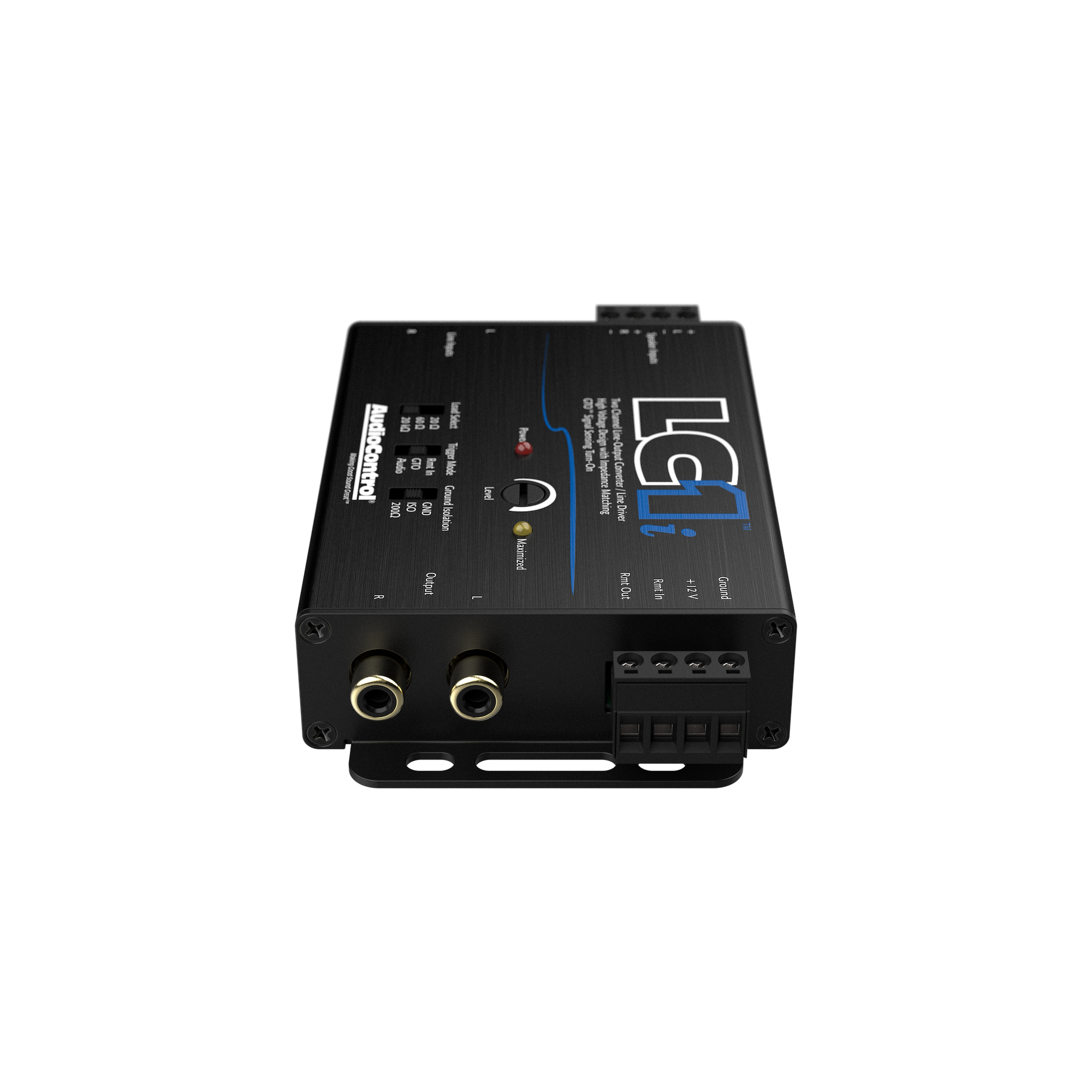

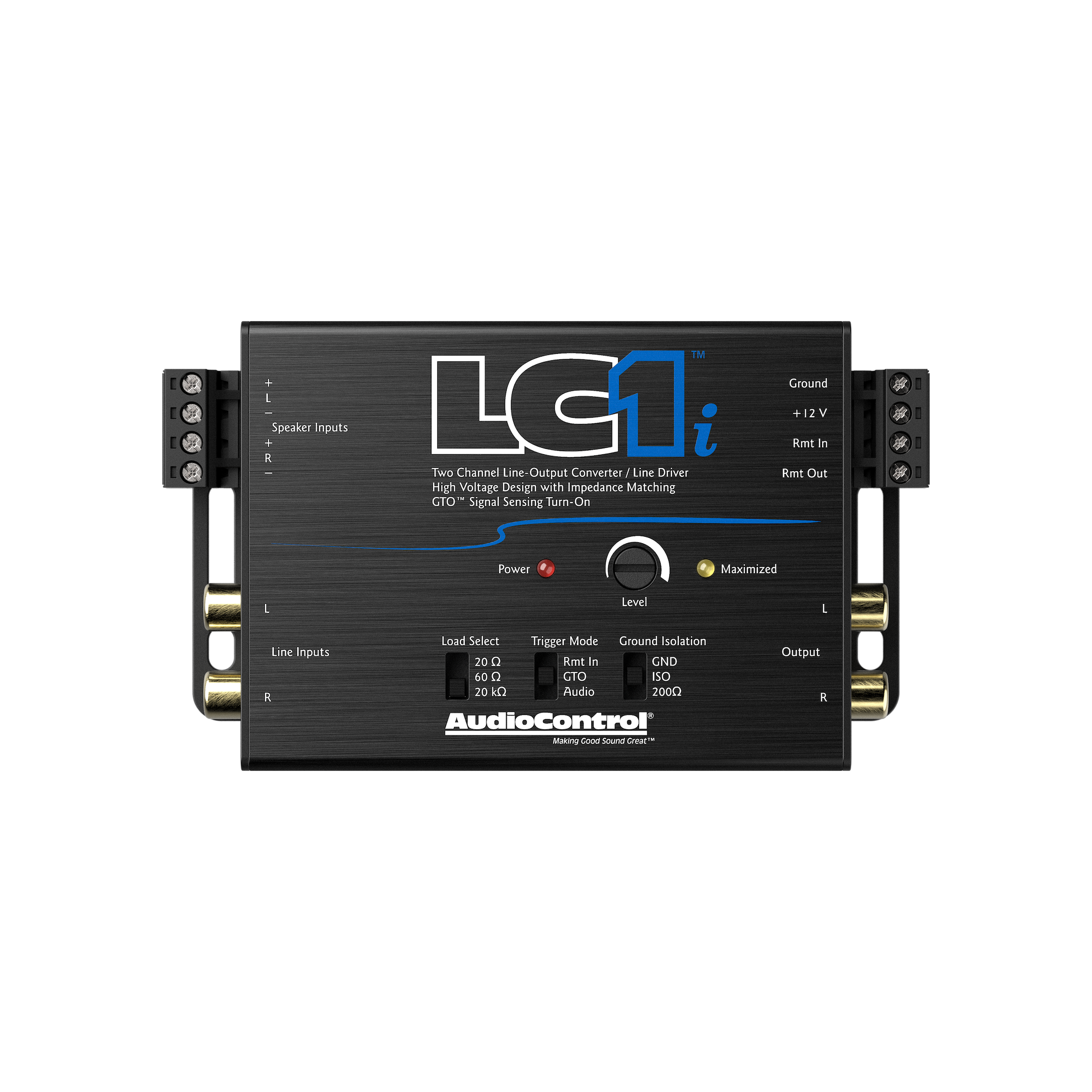

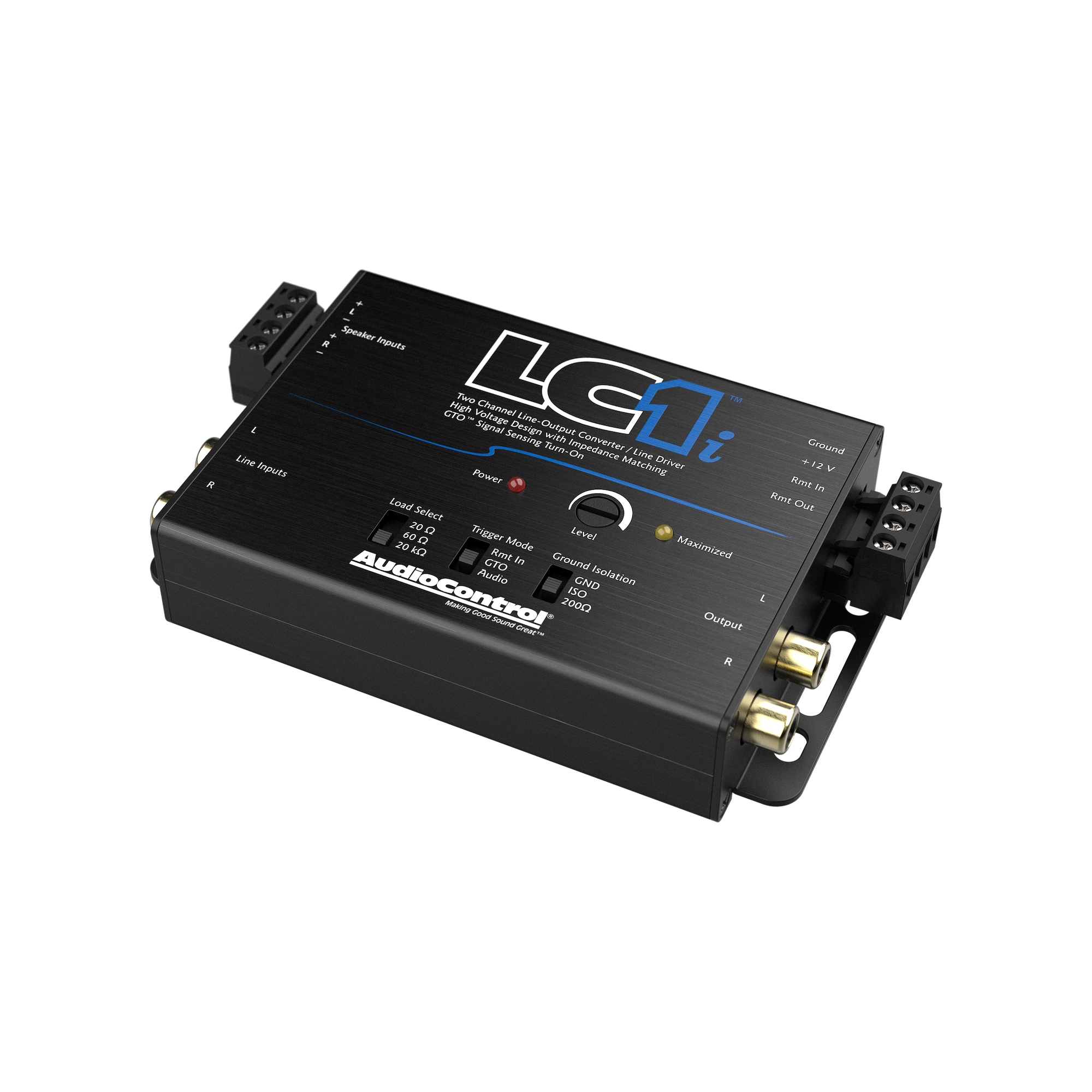

LC1i 2-Channel Line Output Converter & Line Driver
DescriptionThe LC1i joins ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub?...
Vendor:
AudioControl
Manufacturer SKU
LC1i
Availability:
Available Online — Not Stocked In Store
Product Type:
Factory System Upgrade
- $74.99
- $74.99
- Unit price
- per
Subtotal:
$74.99
Couldn't load pickup availability
Description
The LC1i joins ranks with AudioControl’s most popular active line output converter, the LC2i. Adding a sub? Planning a full system? Either way, get the best possible signal from your factory sound system to your amplifiers. Load selection switches mean OEM integration has never been easier and the LC1 will work with the most finicky factory sound systems. Installer friendly turn on trigger modes allow for flexibility via GTO™ Signal Sense (DC offset), audio sense, or remote 12 volt inputs. For future head unit upgrades, the LC1i is also a line driver and can remain in the system to provide optimal preamp signal.
Features
- Two channels of active speaker level inputs (up to 40V input handling)
- Two channels of line level inputs
- Load Selection Switch
- GTOTM Signal Sensing
- Ground Isolation Switch
- Compact design
The Kaos Run Down
| Part Number | LC1i |
|---|---|
| UPC | 851523007799 |
| Specification | INPUTS |
| Speaker Level Input | 1 (2 channels) |
| Maximum Speaker Level Input | 40 Vrms / 400 W (20kΩ setting) |
| Speaker Level Input Impedance (selectable) | 20Ω, 60Ω, 20kΩ |
| Line Level Input | 1 (2 channels) |
| Line Level Input Impedance | 7kΩ |
| Specification | OUTPUTS |
| Preamp Outputs | 1 (2 channels) |
| Maximum Output Level | 9.5Vrms/13V peak |
| Output Gain | +/- 12 dB |
| Output Impedance | 150Ω |
| Specification | PERFORMANCE |
| Total Harmonic Distortion | 0.01% |
| Signal to Noise | >110 dB |
| Frequency Response | 20 Hz – 50 kHz ±1 dB |
| Specification | CONTROL |
| Specification | Remote In / GTO™ Signal Sense / Audio Sense |
| Specification | 12VDC Remote Out (always active when unit is on) |
| Specification | GENERAL |
| Current Draw | 120 mA |
| Recommended Fuse Rating | 1 A |
| Dimensions | 4.8″L x 3″D x 1″H (including speaker connectors) |
| Weight | 0.55 lbs. (0.25 kg) |
| IN THE BOX | LC1i, Speaker and Power connectors, Manual, Warranty |
| Specification | California Proposition 65 |
| To our California customers | Please view your Proposition 65 warning here. |
