NXL 2-Channel Full-Range Class D Waterproof IP67 Marine and Powersports NANO Amplifier
Product Overview DS18 HYDRO NXL-N2 Nano Full-Range Digital Marine 2-Channel Boat, ATV, UTV Amplifier 2 X 100...
- $335.95
- $335.95
- Unit price
- per
Subtotal:
$335.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 HYDRO NXL-N2 Nano Full-Range Digital Marine 2-Channel Boat, ATV, UTV Amplifier 2 X 100 Watt @ 4 Ohm RMS 900 Watts Peak
Whether you are the type of audio enthusiast that likes to hit the open road on his bike, ride the rough trails on your side by side, or cruise the open waters, you are going to need a powerful and waterproof rated amp that has a small footprint and also make great power.
DS18 has a line just for the job with the NXL series of amplifiers to power your whole system. These amps are very efficient, small, and have great power output. These amps come in 1 channel, 2 channel, 4 channel, and 5 channels to help you accommodate for all your different speaker setups without having to look further.
Being full range amps, these can be run on subs, mids, or tweeters because of the internal design of the amp. All units have stable and reliable 4-layer PCB layouts, IPX67 rated for power sports, has an ultra-compact size for easy installation, and has audio precision quality control verification. The NXL line of amps is what the serious outdoors person will need for their vehicle hands down!
AMPLIFIERS ARE NOT FOR SUBMERSIBLE USE, WILL VOID WARRANTY
Highlights
- Stable and reliable 4 layers PCB layout design
- IPX67 Waterproof for Powersports applications
- Ultra-compact size for easy installation
- Audio precision quality control verification
- Selectable X-Over: LPF / FULL / HPF
Technical Details
| Model: | NXL-N2 |
| Number of Channels: | 2 |
| Max Power | 900W |
| Frequency Response: | 20Hz - 20KHz |
| 2 Ohms RMS Power (14.4V) Per Channel: | 2 x 150W |
| 4 Ohms RMS Power (14.4V) Per Channel: | 2 x 100W |
| 4 Ohms RMS Power Bridge (14.4V) Channel: | 1 x 300W |
| Input Sensitivity: | 0.2V + 10V |
| High Pass | 40Hz - 500Hz |
| Signal-to-Noise Ratio: | 90dB |
| Product Dimensions: (L x W x H) | 200 x 93.4 x 39.8 |
Key Features
- Marine Full Range
- 2 Channel
- 2 X 100 Watts @ 4 Ohm
- Class D
- Micro
- Water Resistant IP67
Specifications
| SKU | NXL-N2 |
|---|---|
| Total Watts (Peak) | 900W |
| RMS Power @ 4 ohm | 2 x 100W |
| RMS Power @ 2 ohm | 2 x 150W |
| RMS Power @ 4 ohm Bridge | 1 x 300W |
| Frequency Response | 20Hz-20KHz |
| Signal to Noise Ratio 1W @ 4Ω | 90dB |
| Total Harmonic Distortion (THD) | 0.1% |

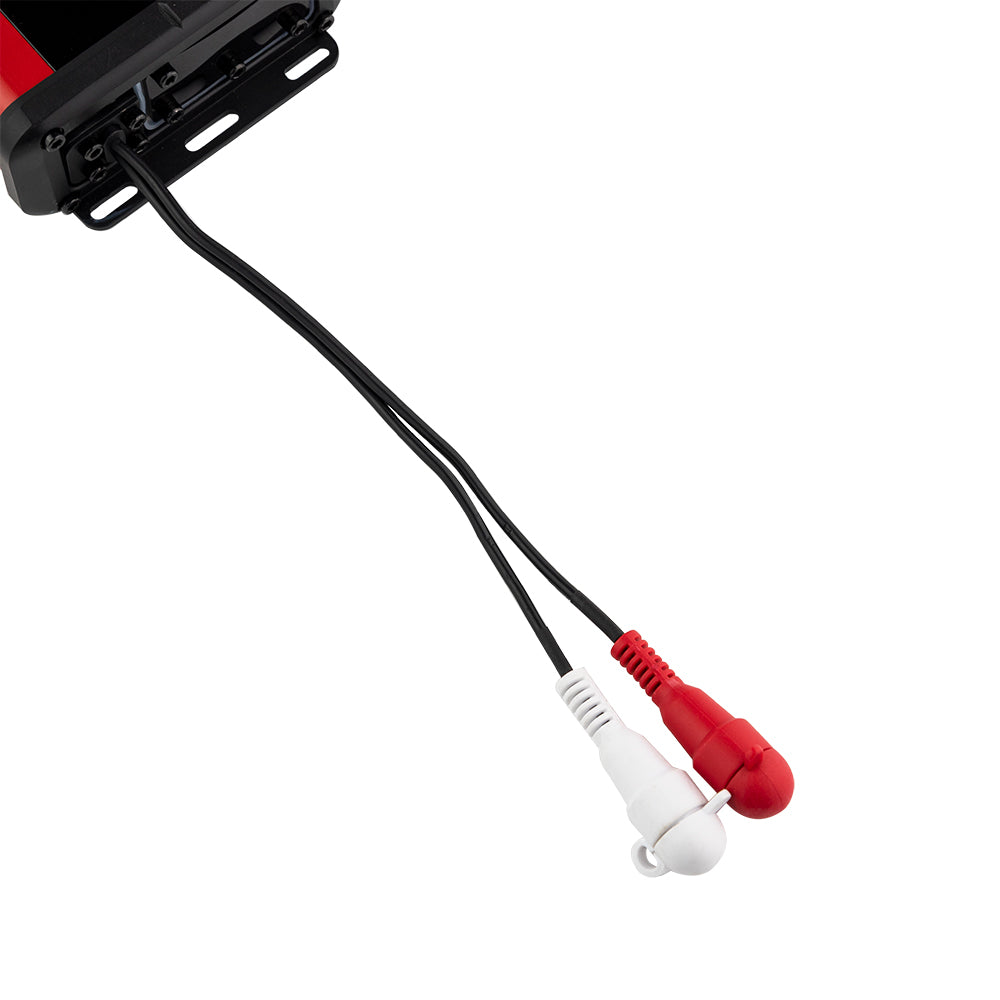

| Low Level Input Range | 200mV-5V |
| Selectable X-Over | HPF/LPF/FULL |
| X-Over Filter Range | 40-500Hz |
| Bass Boost Range | No |
| Infrasonic Filter | No |
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full Range |
| Number of Channels | 2 |
| Minimum Impedance | 2ohm (Stereo) / 4ohm (Bridge) |
| LED Indicator | Power / Protection |

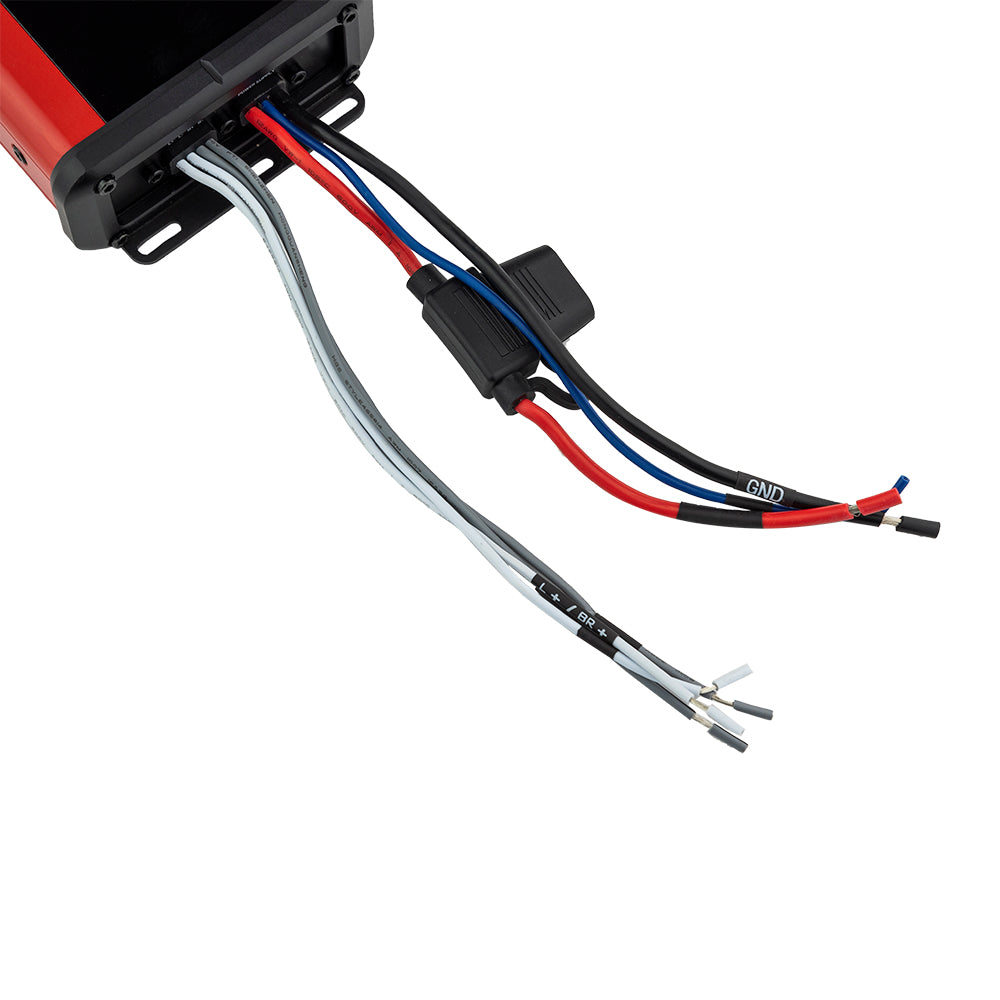

| Power Input Size | Wired 10Ga OFC |
| Fuse Size | 25A |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes (>15V) |
| Body Color | Aluminum Black and Red |
| Waterproof Rating | IPX67 |
| Latest Full Range Digital Design Based on IR Platform | Yes |
| Ultra Compact Design for Easy Installation | Yes |
| PCB Design with Stable and Reliable 4-Layer Layout | Yes |
| Quality Control Verification Using AP Instruments | Yes |
| Overall Length | 7.87" / 200mm |
| Overall Wide | 3.67" / 93.4mm |
| Overall Height | 1.56" / 39.8mm |
| Heatsink Length | 7.16" / 182mm |
| Gross Single Unit Weight | 2Lb / 947 kg |
| Product Weight | 2.5 lbs |
| Product Dimensions | 10.25 x 5 x 3 |
| M/C Weight | 25.5 lbs |
| M/C Dimensions | 16 x 11 x 10.75 |
| M/C QTY | 10 |
| Sold In | Piece |
