NXL 8" 2-Way Coaxial Marine Speaker With LED RGB Lights 125 Watts Rms 4-Ohm - Black Carbon Fiber
NXL 8" 2-Way Coaxial Marine Speaker With LED RGB Lights 125 Watts Rms 4-Ohm - Black Carbon Fiber
Product Overview
DS18 CF-8M
HYDRO 8” 2-Way Marine Speakers with RGB LED Lights
DS18 offers the best in audio, and the CF-8M’s are proof of why. Rugged durability meets high-performance in this powerhouse 2-way speaker built to endure the harshest elements.

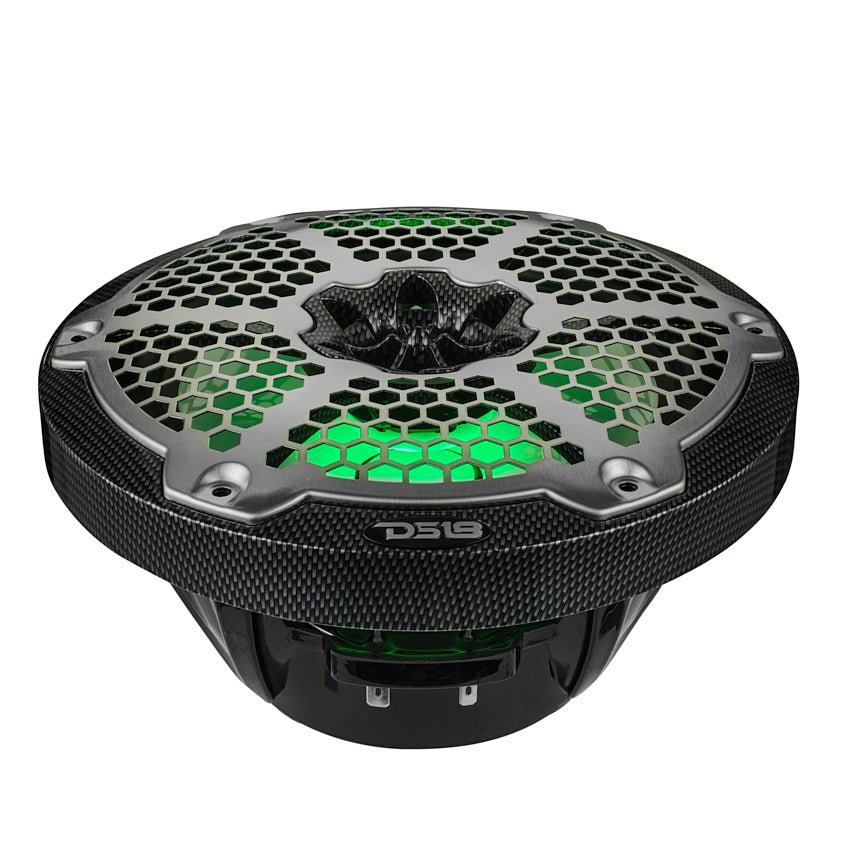

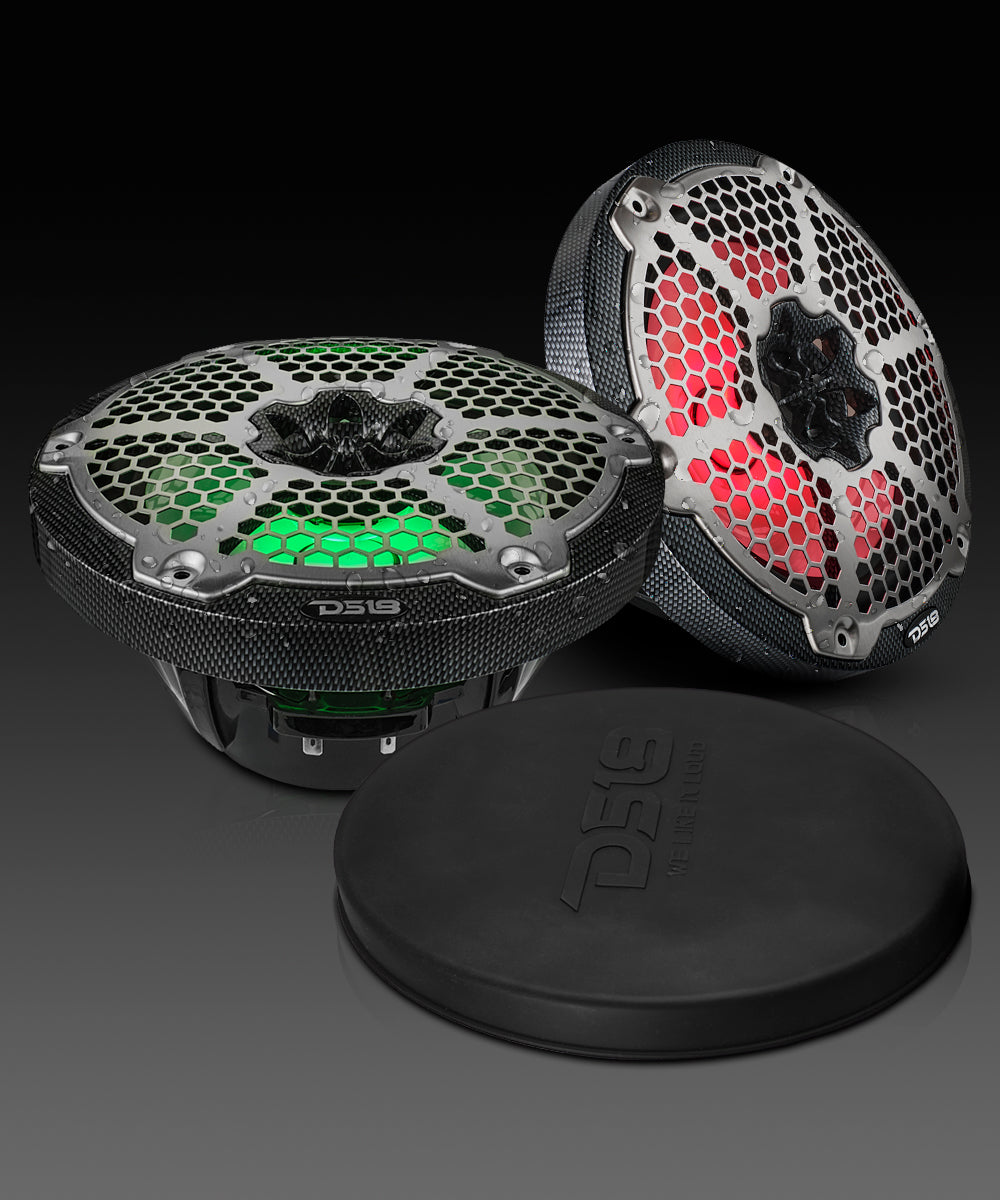

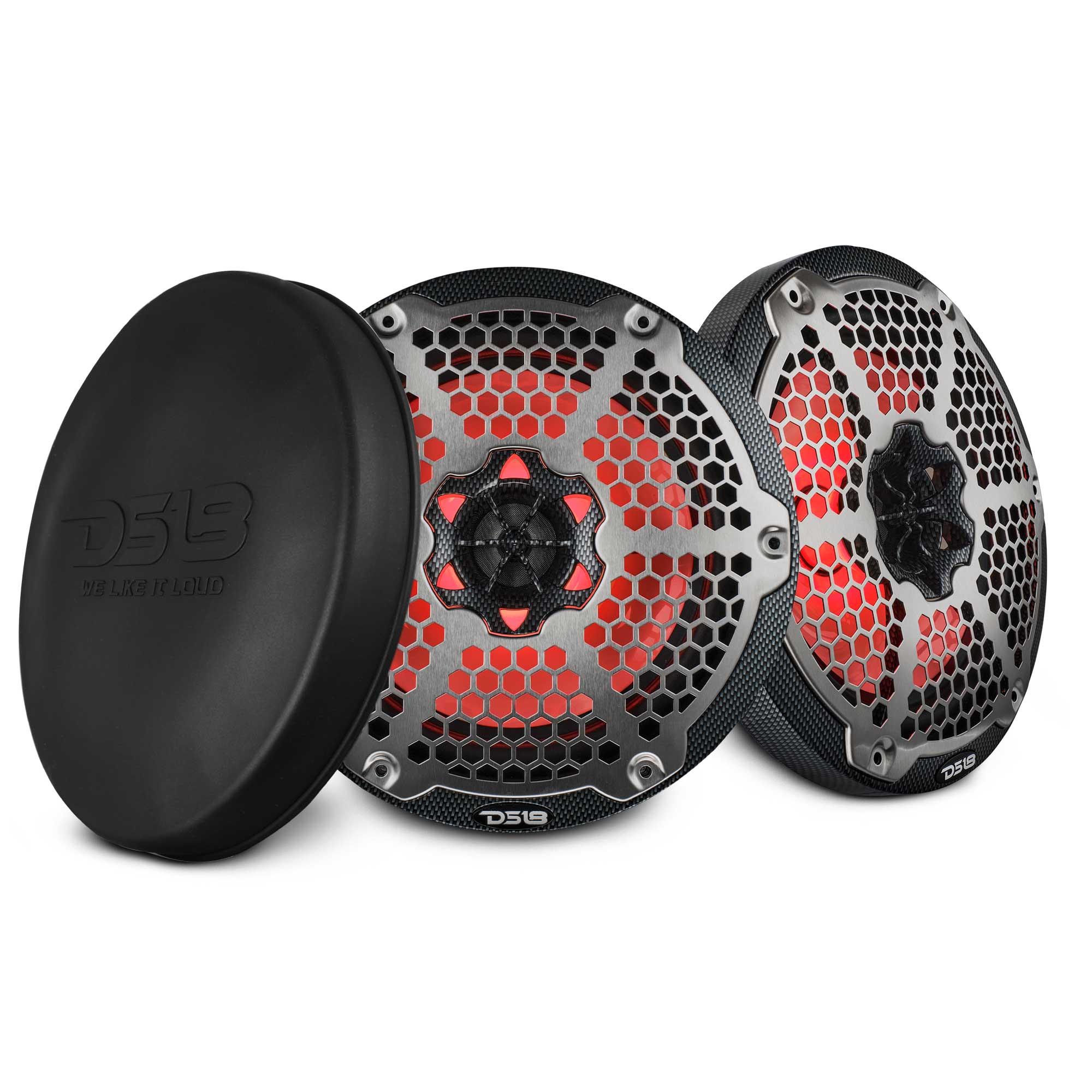

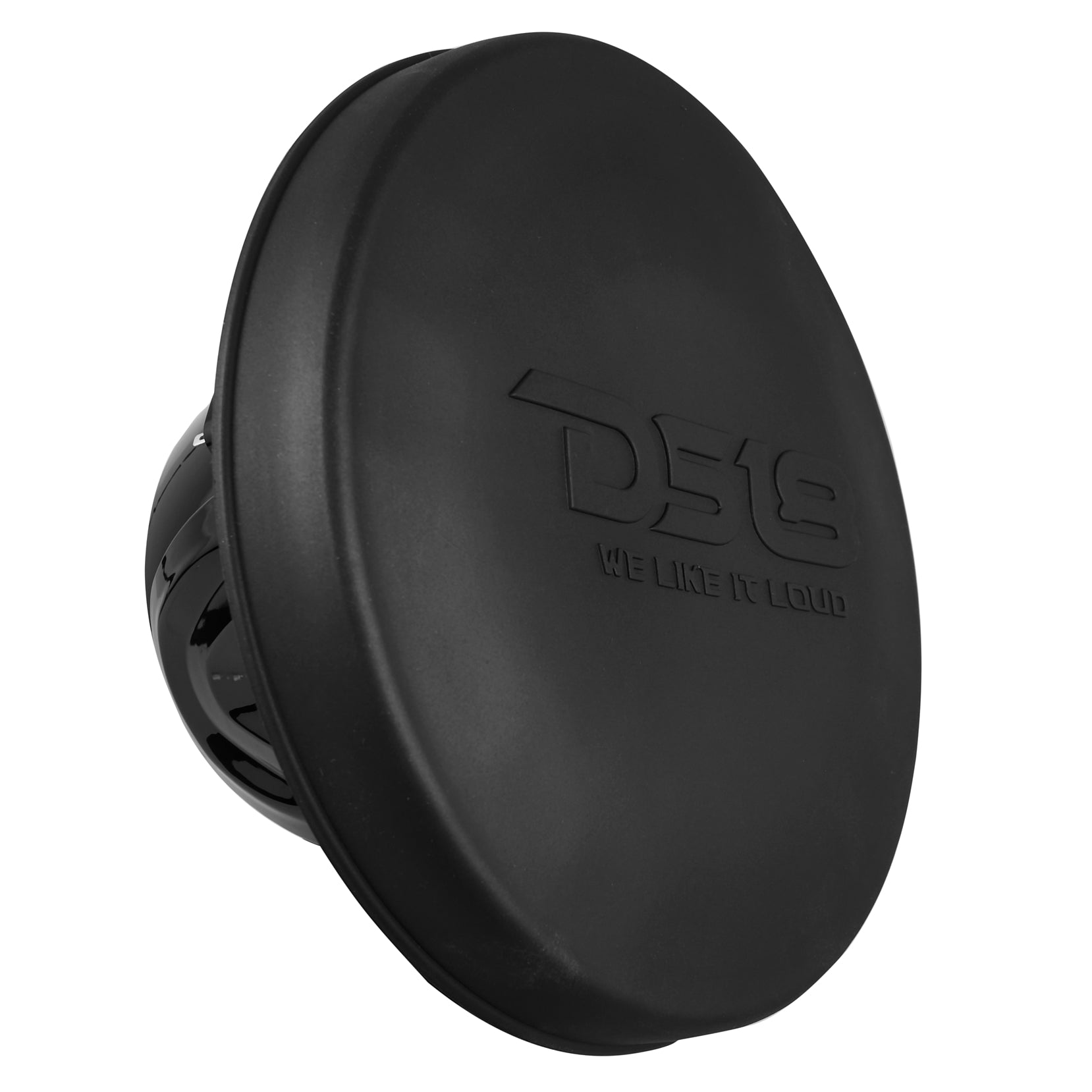

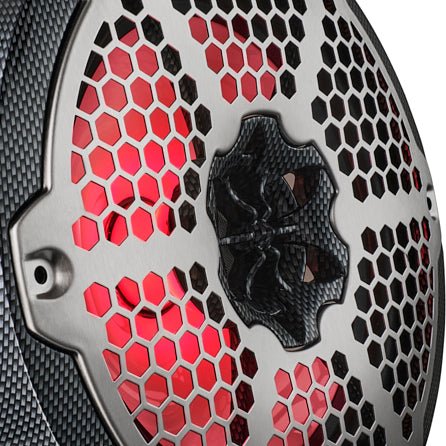

Crafted with precision and style, featuring bold black carbon fiber texture and a tough 316 metal mesh grill for ultimate durability. The high-gloss basket with UV coating and high-temp injection-molded composite construction guarantees long-lasting resilience. And now, featuring a brand-new silicone cover, these speakers are fortified with even greater protection. Backed by an IP65 waterproof rating, the CF-8M handles everything nature throws your way.
The CF-8M HYDRO handles 125W RMS and 375W MAX power, delivering clarity powered by a Y35 Ferrite Main Magnet and Reverse Neodymium technology. With 91dB sensitivity at 1w/m, every beat is crisp, every note hits, and every detail pops. Covering a frequency range from 45Hz to 23 KHz, it captures the full spectrum of your favorite tracks with unmatched depth and precision.

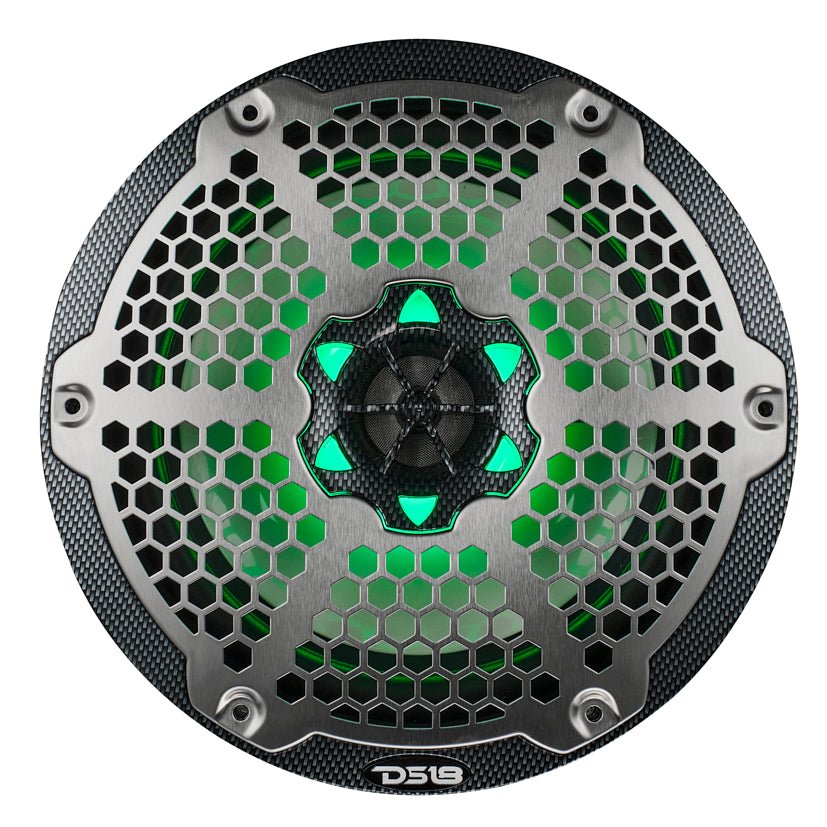

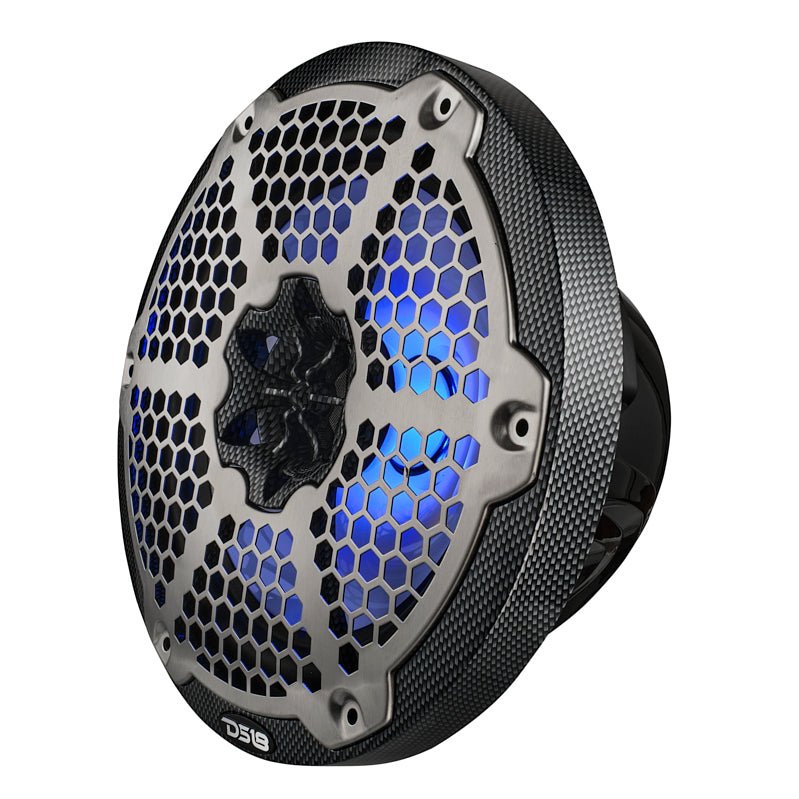

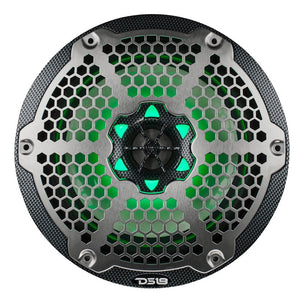

Customization is limitless with Multi-Function RGB LED Lighting. Sync your vibe to DS18’s LED-BTC controller or any RF/BT/Wifi-compatible system (sold separately).
Rugged, stylish, and engineered for excellence, DS18’s CF-8M is built for those who demand the best.
Key Features
- 8" 2-Way Marine Speaker
- RMS Power: 125 Watts
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnet
- RGB LED Light ~ Metal Mesh Grill
- Water Resistant IP65
Specifications
| SKU | CF-8M |
|---|---|
| Nominal Diameter | 8" / 203mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 125W |
| MAX Power Handling | 375W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 35Hz-23KHz |
| Recommended HI Pass Crossover | 50 Hz |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, RGB integrated |

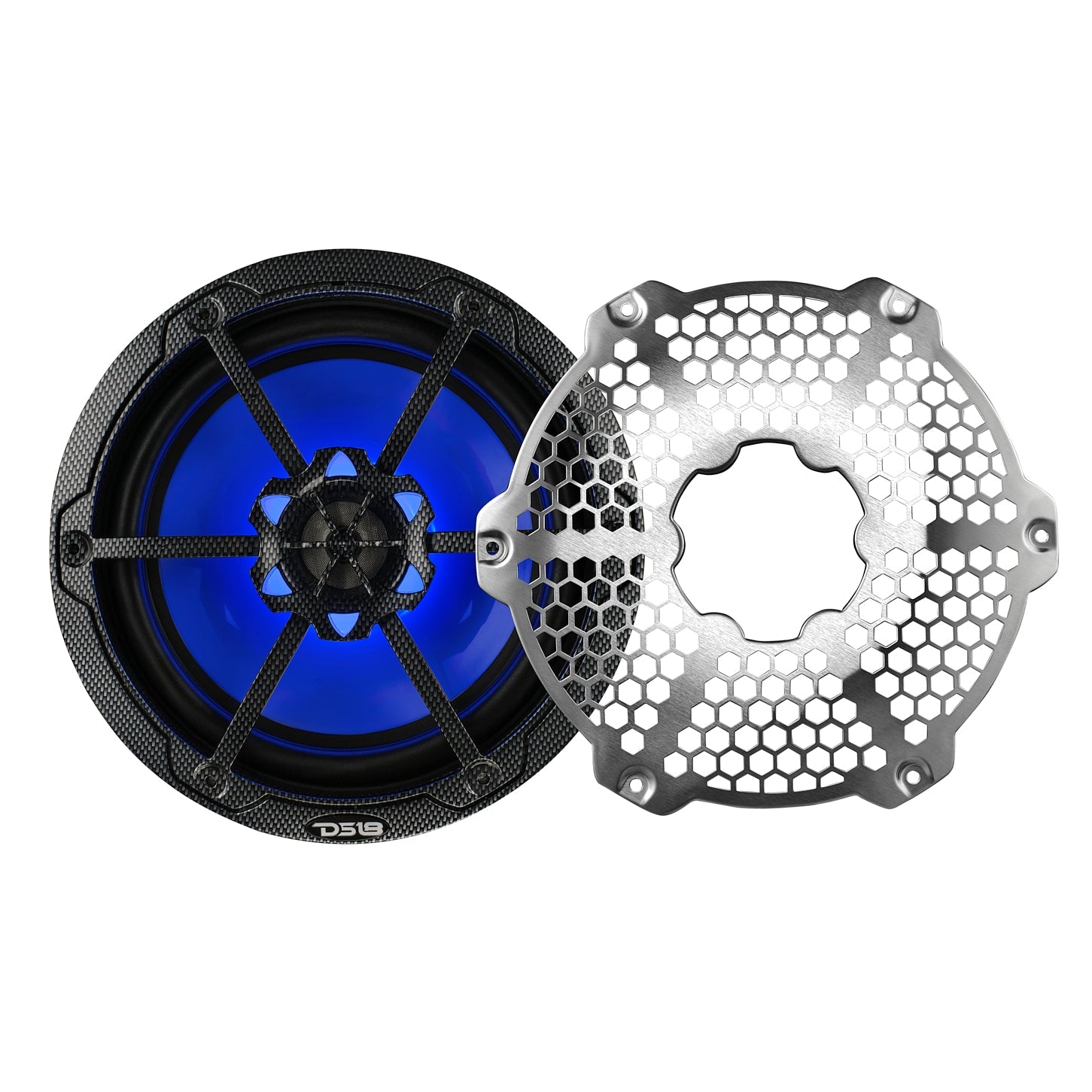

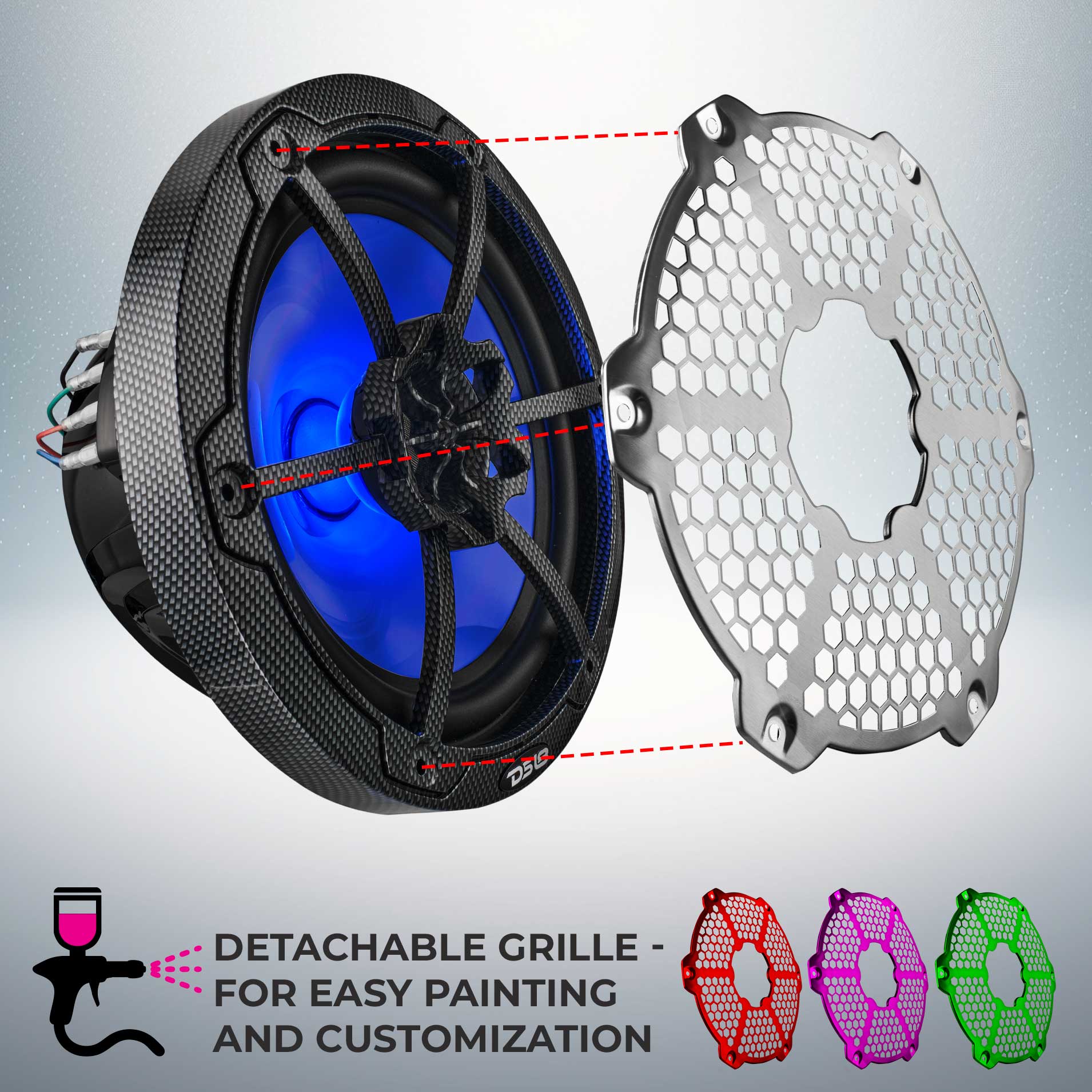

| Grill Type | Injection Molded Composite (ASA) with 316 Stainless Steel mesh |
| Pair | Yes |
| Color / Finish | Carbon Fiber Texture / Gloss |
| Voice Coil Diameter | 1.2" / 30.5mm / 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | High Temp Injection Molded Composite (ASA) with UV Protection coating |
| Magnet Material | Ferrite (Y35) + Neodymium (N35) / NEODYMIUM(N38H) |
| Magnet Weight | 24oz+0.32oz / 0.54oz |
| Diaphragm Material | PEI |
| Equivalent Volume Vas | 66.7L / 2.35ft3 |
| Excursion (one way) Xmax | 8.5 mm |
| Free Air Resonance Fs | 56Hz |
| Mechanical Factor Qms | 7.701 |
| Electrical Factor Qes | 0.899 |
| Total Factor Qts | 0.805 |
| Moving Mass Mms | 7.265g |
| Compliance Cms | 1.119mm/N |
| Bl Factor Bl | 2.98 |
| Voice Coil Inductance Le | 0.49mH |
| Cone Area Sd | 206.12cm2 |
| DC Resistance Re | 3.15ohms |
| Efficiency Bandwidth Product EBP | 62.2 |

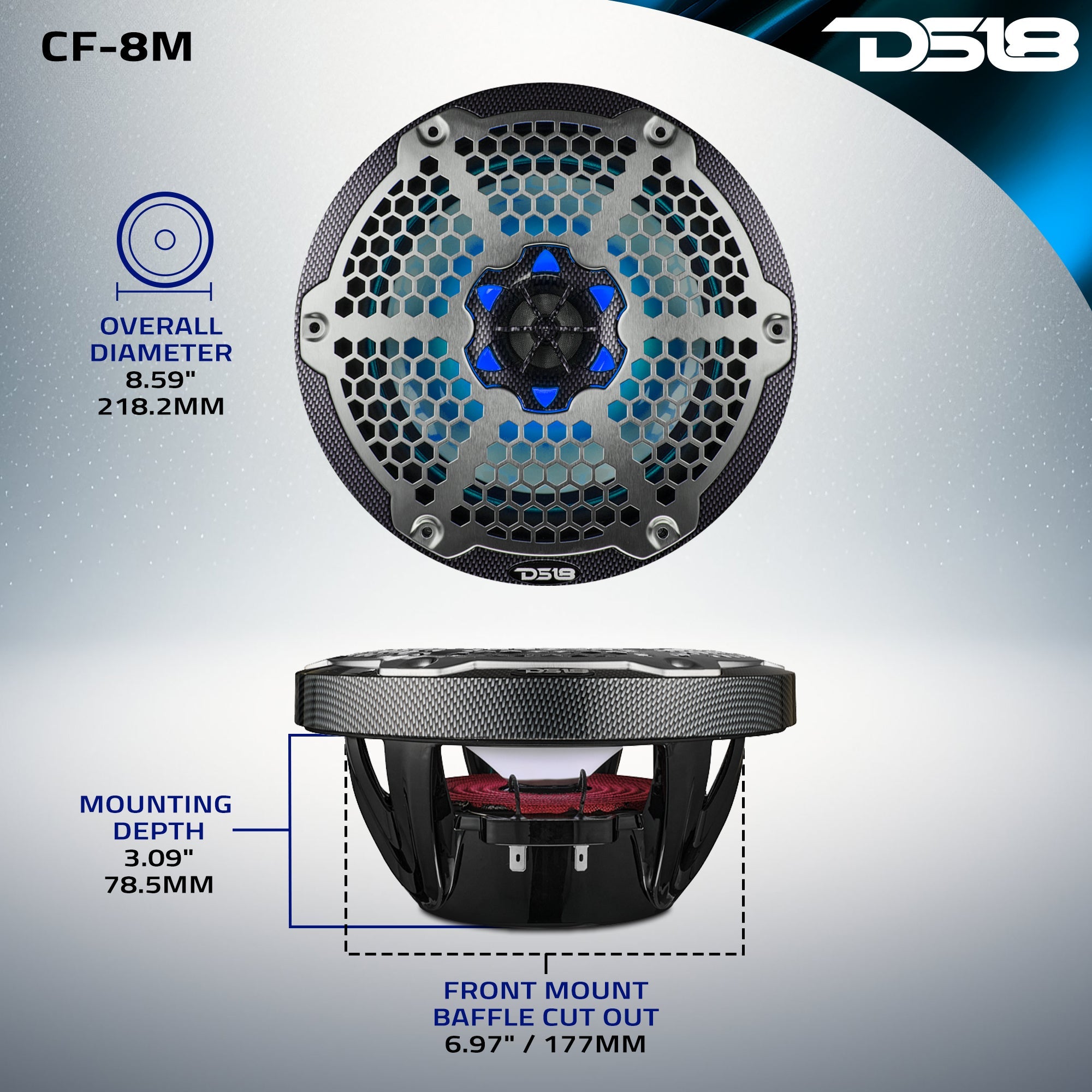

| Overall Diameter | 8.59" / 218.2mm |
| Overall Depth | 4.45" / 113mm |
| Front Mount Baffle Cutout | 6.97" / 177mm |

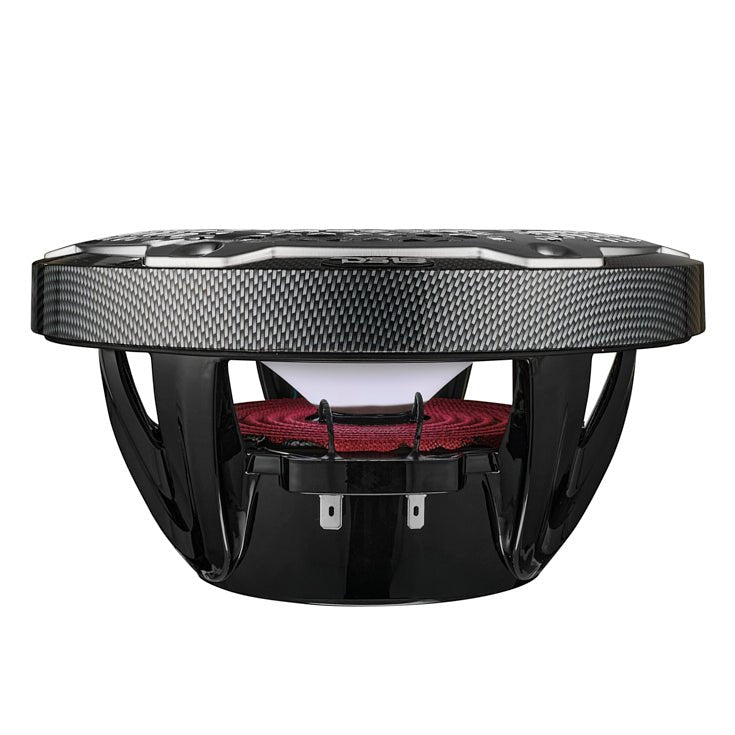

| Mounting Depth | 3.09" / 78.5mm |
| Motor Diameter | 4.32" / 110mm |
| Gross Single Unit Weight (lb) | 10.25 |
| Single Unit Box Dimensions W x L x H (Inches) | 20.25 x 10.25 x 5.5 |
| Quantity of Units in Master Carton | 4 |
| Gross Master Carton Weight (lb) | 45.5 |
| Master Carton Dimensions W x L x H (Inches) | 22.5 x 20 x 11 |
