Product Overview
DS18 NXL-8M
8” 2-Way Marine Speakers With RGB LED Lights
DS18’s NXL-8M is engineered for those who refuse to settle. These speakers deliver breathtaking sound in a cutting-edge design, tailored to withstand the harshest marine and off-road environments.

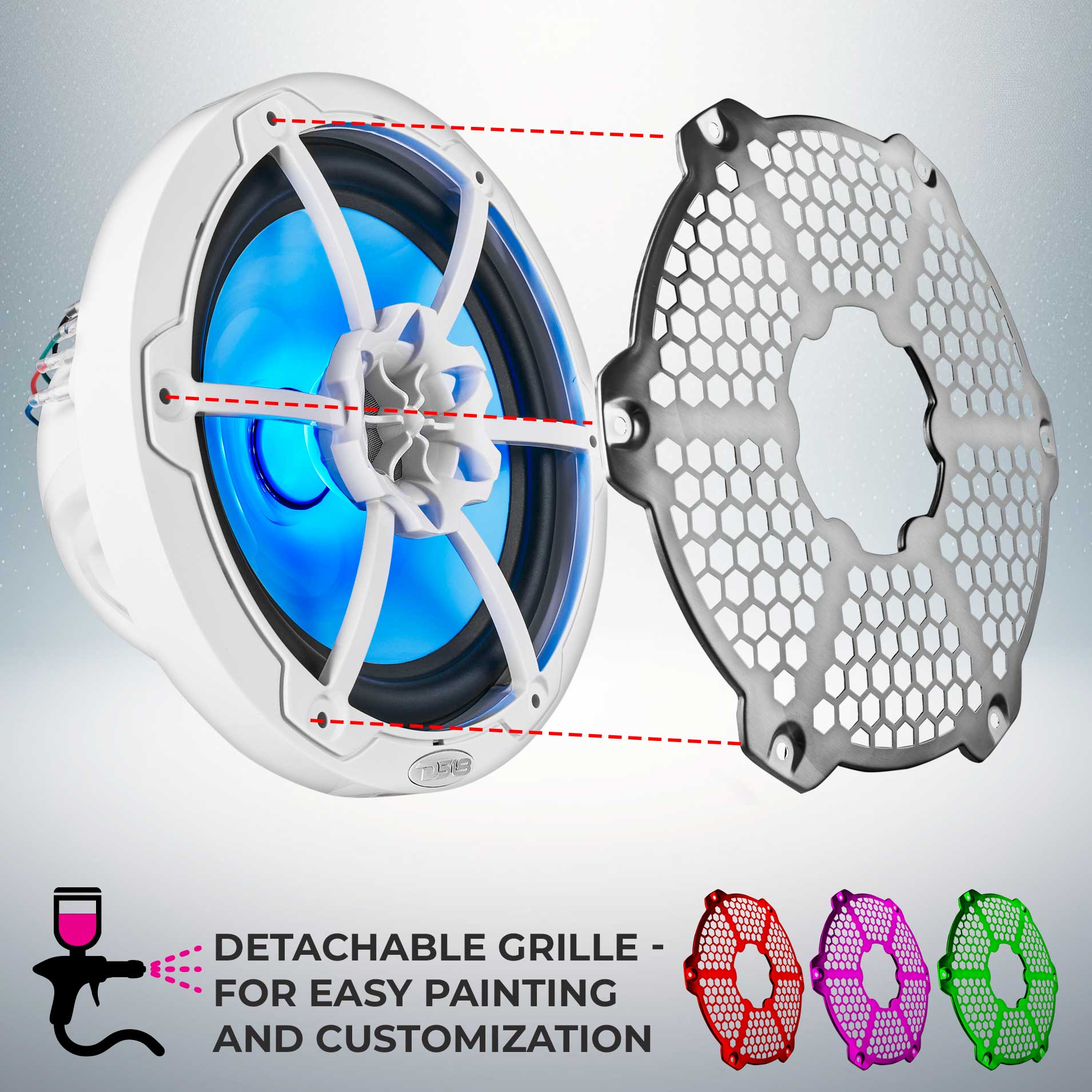

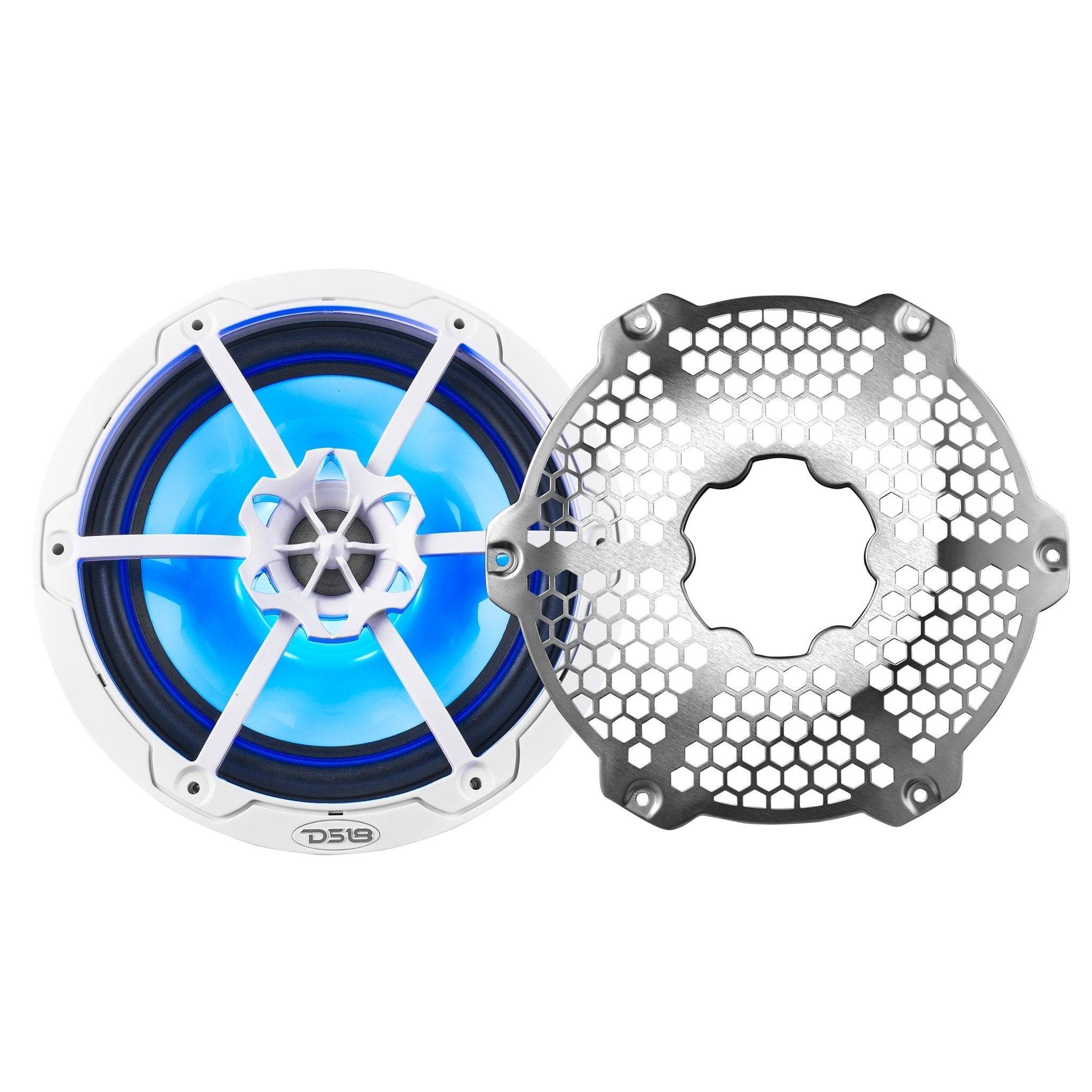

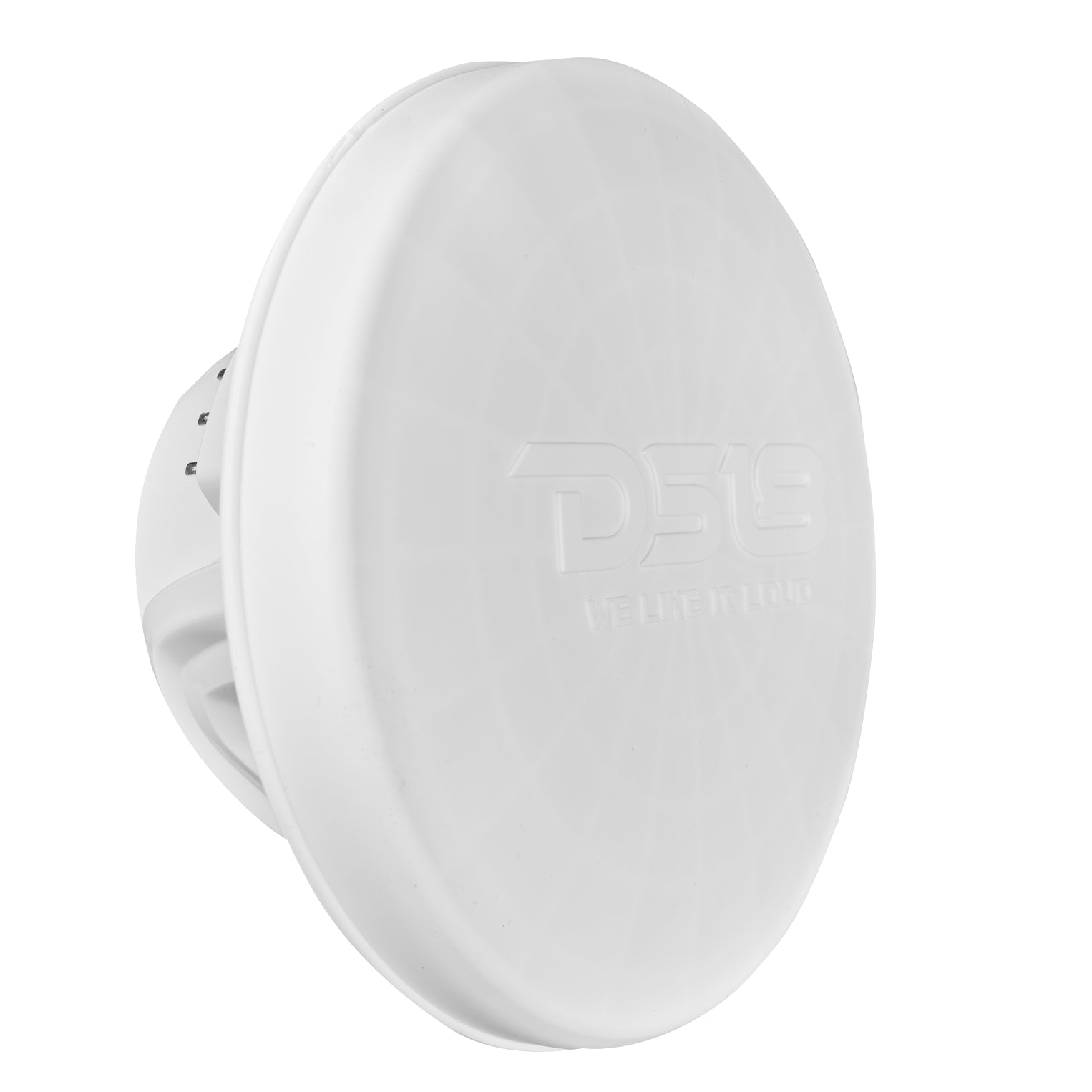

With IP65 Marine Grade Certification, these beasts endure saltwater, UV rays, and extreme temperatures. The high-temp injection-molded composite construction and detachable stainless-steel mesh grills offer resilience, protection and endless customization. The new silicone cover adds a tough, sleek layer of defense for even more durability.
Handling an impressive 125W RMS power, these speakers deliver loud, crystal-clear sound. Equipped with Y35 Ferrite Main Magnet and Reverse Neodymium, these speakers deliver astonishingly clear and powerful sound. Thanks to the revolutionary 2-way design that incorporates a 25mm Titanium Dome Tweeter, you'll experience the full range of frequencies, capturing every nuance of your favorite tracks. The NXL-8M’s sensitivity of 93dB at 1 w/m, offer an unmatched level of detail and precision in every note.
Take your experience up a notch with vibrant RGB LED lighting, fully customizable to match your vibe using the optional LED-BTC or other RF/BT/Wi-Fi Controllers (sold separately).
The NXL-8M dominates. It’s rugged, stylish, and performs like the legend it is. Upgrade today for sound that never goes out of style!
Key Features
- 8" 2-Way Marine Speaker
- RMS Power: 125 Watts / 4-Ohm
- Ferrite & Neodymium Magnets
- RGB LED Light
- Water Resistant IP65

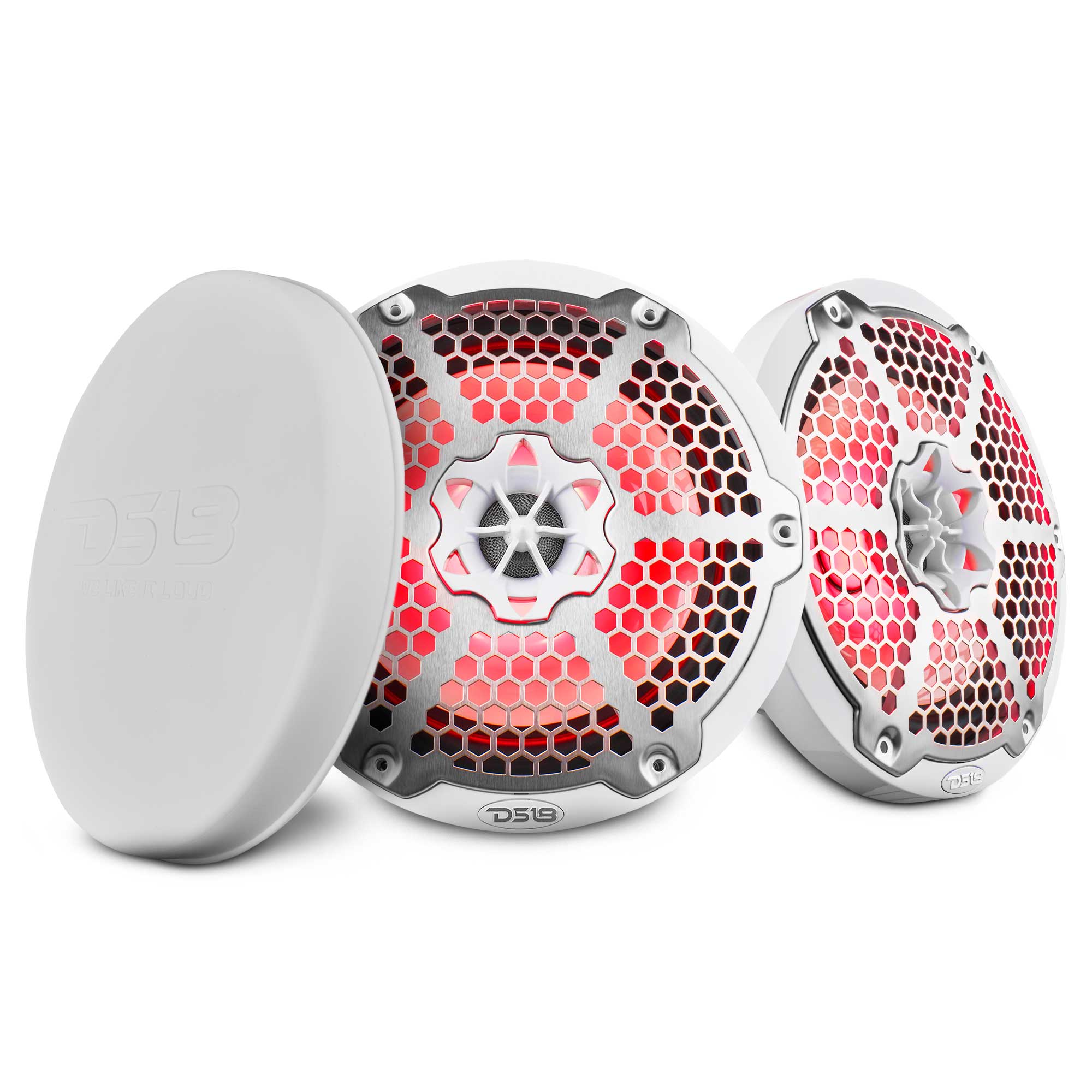

- Silicone Covers Included
Specifications
| SKU | NXL-8M/WH |
|---|---|
| Nominal Diameter | 8" / 203mm / 1" / 25.4mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 125W |
| MAX Power Handling | 375W |
| Sensitivity (1w/1m) | 93dB |
| Frequency Response | 35Hz-23KHz |
| Recommended HI Pass Crossover | 50 Hz |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, RGB integrated |
| Grill Type | Injection Molded Composite ASA with 316 Stainless Steel mesh |
| Pair | Yes |
| Color / Finish | Glossy White |
| Voice Coil Diameter | 1.2" / 30.5mm / 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | High Temp Injection Molded Composite ASA with UV Protection coating |
| Magnet Material | Ferrite+Neodymium / Neodymium (N38H) |
| Magnet Weight | 24oz + 0.32oz / 0.54oz |
| Diaphragm Material | Titanium + PEI Surround |
| Equivalent Volume Vas | 66.7L / 2.35ft3 |
| Excursion (one way) Xmax | 8.5 mm |
| Free Air Resonance Fs | 56Hz |
| Mechanical Factor Qms | 7.701 |
| Electrical Factor Qes | 0.899 |
| Total Factor Qts | 0.805 |
| Moving Mass Mms | 7.265g |
| Compliance Cms | 1.119mm/N |
| Bl Factor Bl | 2.98 |
| Voice Coil Inductance Le | 0.49mH |
| Cone Area Sd | 206.12cm2 |
| DC Resistance Re | 3.15ohms |
| Efficiency Bandwidth Product EBP | 62.2 |

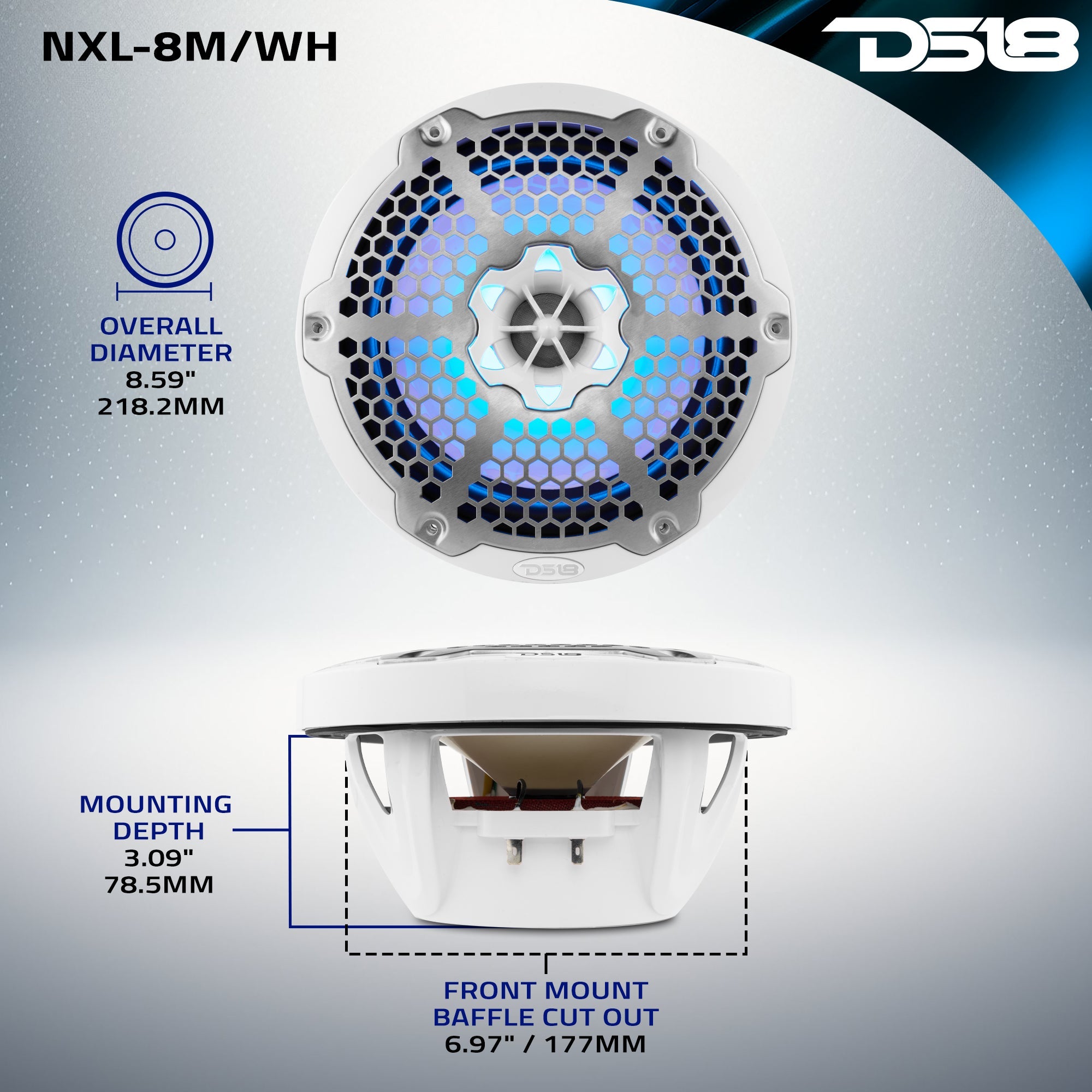

| Overall Diameter | 8.59" / 218.2mm |
| Overall Depth | 4.45" / 113mm |
| Front Mount Baffle Cutout | 6.97" / 177mm |
| Mounting Depth | 3.09" / 78.5mm |
| Motor Diameter | 4.32" / 110mm |
| Gross Single Unit Weight (lb) | 10.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 20 x 10.5 x 5.5 |
| Quantity of Units in Master Carton | 2 |
| Gross Master Carton Weight (lb) | 23 |
| Master Carton Dimensions W x L x H (Inches) | 20 x 11.5 x 11.5 |
