NXL 6.5" 2-Way Coaxial Marine Speaker With LED RGB Lights 100 Watts Rms 4-Ohm
Product Overview DS18 NXL-6M/WH6.5” 2-Way Marine Speakers With RGB LED Lights DS18’s NXL-6M is engineered for those...
- $269.95
- $269.95
- Unit price
- per
Subtotal:
$269.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 NXL-6M/WH
6.5” 2-Way Marine Speakers With RGB LED Lights
DS18’s NXL-6M is engineered for those who refuse to settle. These speakers deliver breathtaking sound in a cutting-edge design, tailored to withstand the harshest marine and off-road environments.

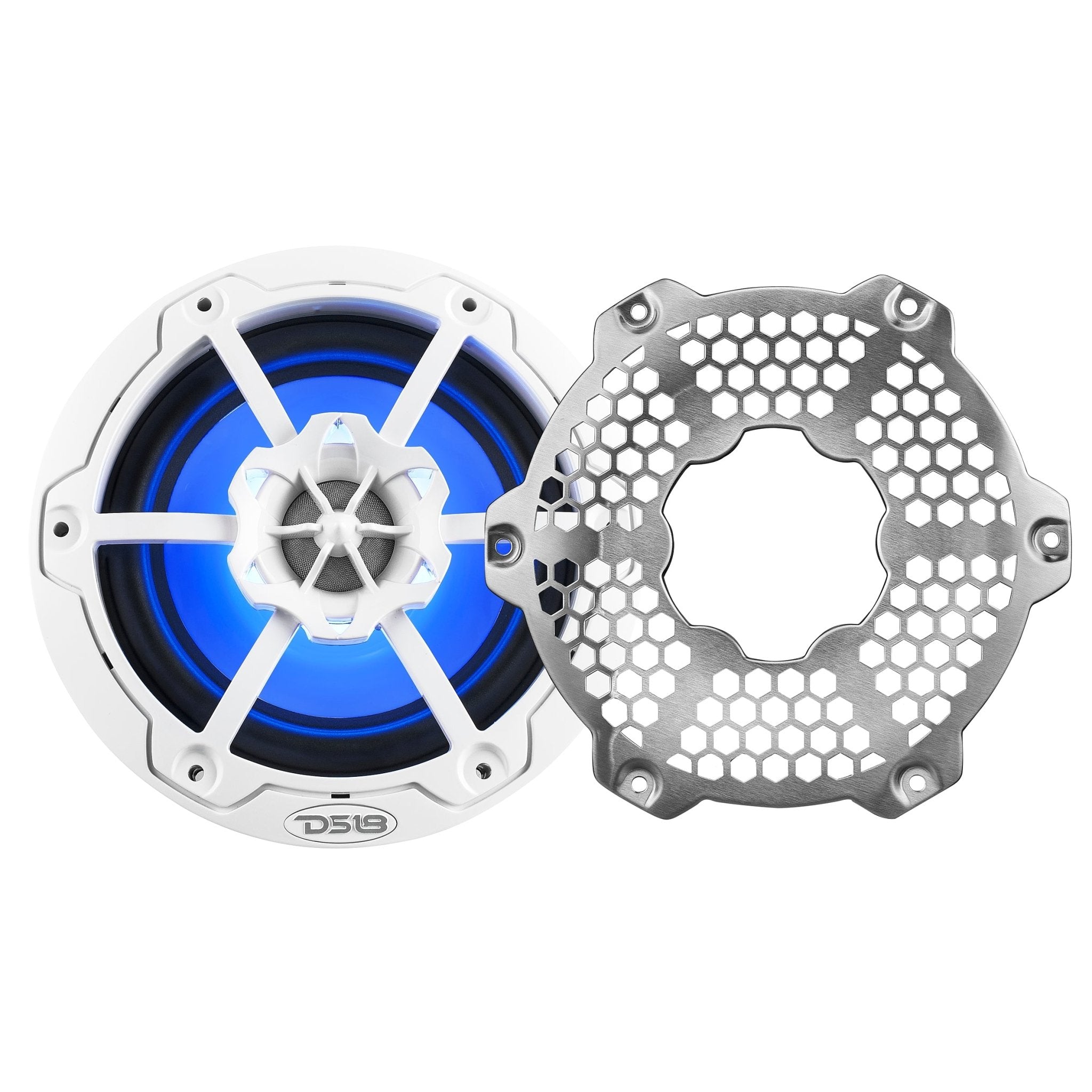

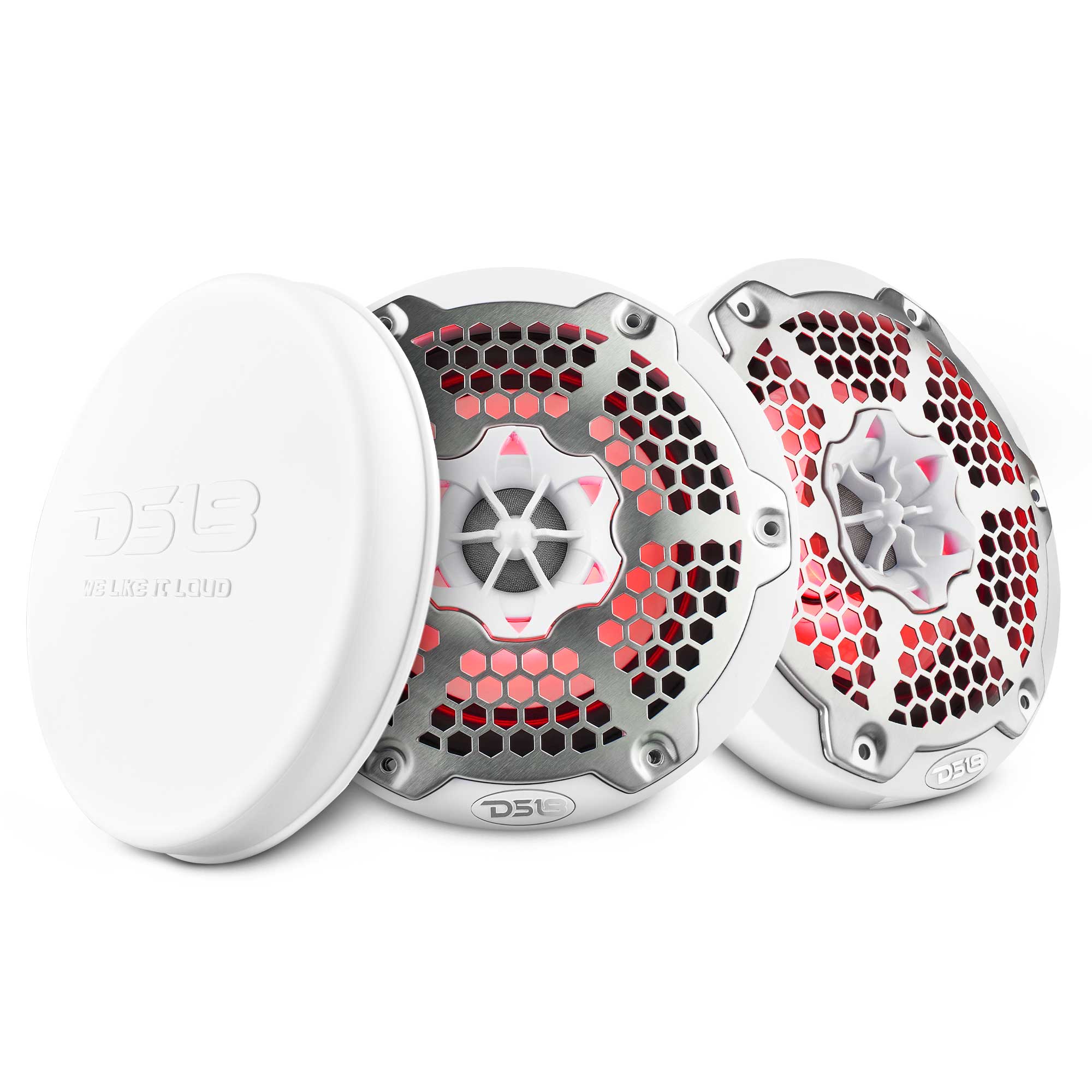

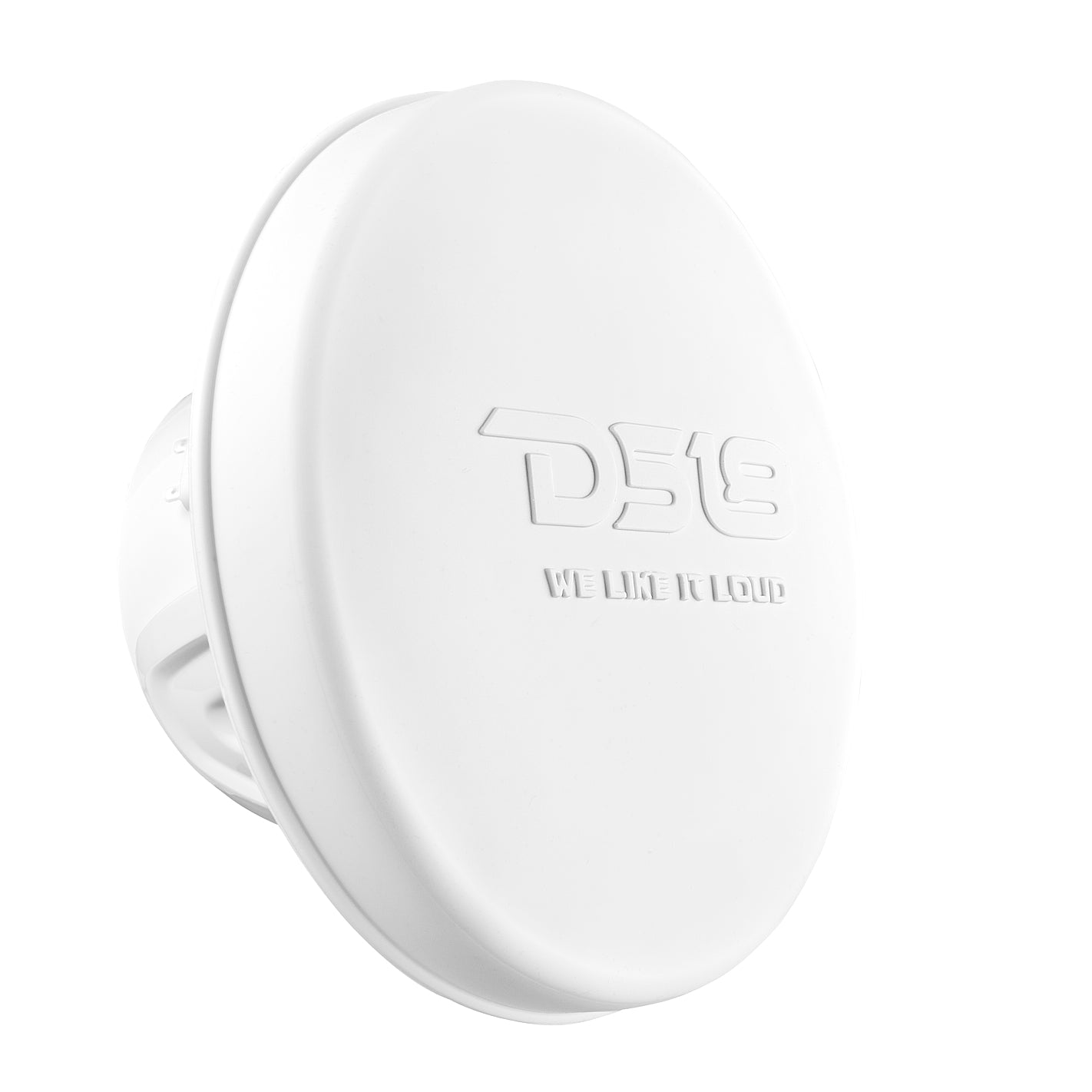

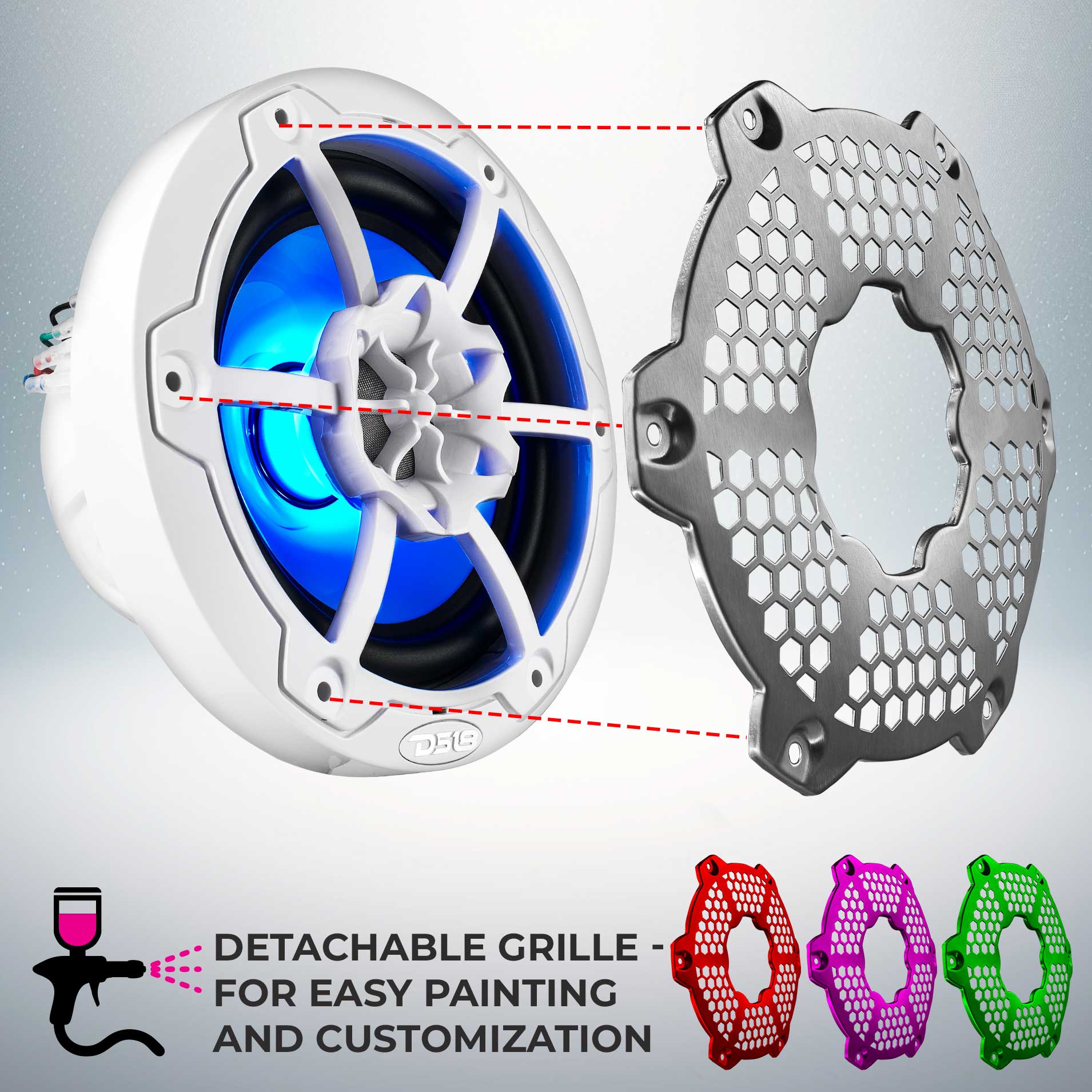

With IP65 Marine Grade Certification, these beasts endure saltwater, UV rays, and extreme temperatures. The high-temp injection-molded composite construction and detachable stainless-steel mesh grills offer resilience, protection and endless customization. The new silicone cover adds a tough, sleek layer of defense for even more durability.
Pushing an impressive 100W RMS power, these speakers deliver loud, crystal-clear sound. Equipped with Y35 Ferrite Main Magnet and Reverse Neodymium, these speakers deliver astonishingly clear and powerful sound. Thanks to the revolutionary 2-way design that incorporates a 25mm Titanium Dome Tweeter, you'll experience the full range of frequencies, capturing every nuance of your favorite tracks. The NXL-6M’s sensitivity of 91dB at 1 w/m, will leave you astounded by the level of detail and precision in every note.
Take your experience up a notch with vibrant RGB LED lighting, fully customizable to match your vibe using the optional DS18 LED-BTC or other RF/BT/Wi-Fi Controllers (sold separately). The NXL-6M dominates. It’s rugged, stylish, and performs like the legend it is.
Upgrade today for sound that never goes out of style!
Key Features
- 6.5” 2-Way Marine Coaxial Speaker
- Rated at 100W RMS / 300W MAX
- Full-Range Response with 25mm PEN Tweeter: 45Hz–23KHz
- IP65 Water-Resistant Construction with UV-Resistant Materials
- Integrated RGB LED Lighting (LC-RGB Recommended)
- Stainless Steel Mesh Grill & Butyl Rubber Surround
Specifications
| SKU | NXL-6M/WH |
|---|---|
| Nominal Diameter | 6.5" / 165mm / 1" / 25.4mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 100W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 91dB |
| Frequency Response | 45Hz-23KHz |
| Recommended HI Pass Crossover | 65 Hz |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, RGB integrated |
| Grill Type | Injection Molded Composite ASA with 316 Stainless Steel mesh |
| Pair | Yes |
| Color / Finish | Glossy White |
| Voice Coil Diameter | 1.2" / 30.5mm / 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | High Temp Injection Molded Composite ASA with UV Protection coating |
| Magnet Material | Ferrite+Neodymium / Neodymium (N38H) |
| Magnet Weight | 14oz + 0.32oz / 0.54oz |
| Diaphragm Material | Titanium + PEI Surround |
| Equivalent Volume Vas | 20L / 0.708ft3 |
| Excursion (one way) Xmax | 8.5 mm |
| Free Air Resonance Fs | 75Hz |
| Mechanical Factor Qms | 7.823 |
| Electrical Factor Qes | 1.057 |
| Total Factor Qts | 0.931 |
| Moving Mass Mms | 4.122g |
| Compliance Cms | 1.081mm/N |
| Bl Factor Bl | 2.41 |
| Voice Coil Inductance Le | 0.543mH |
| Cone Area Sd | 114.99cm2 |
| DC Resistance Re | 3.14 ohms |
| Efficiency Bandwidth Product EBP | 70.9 |

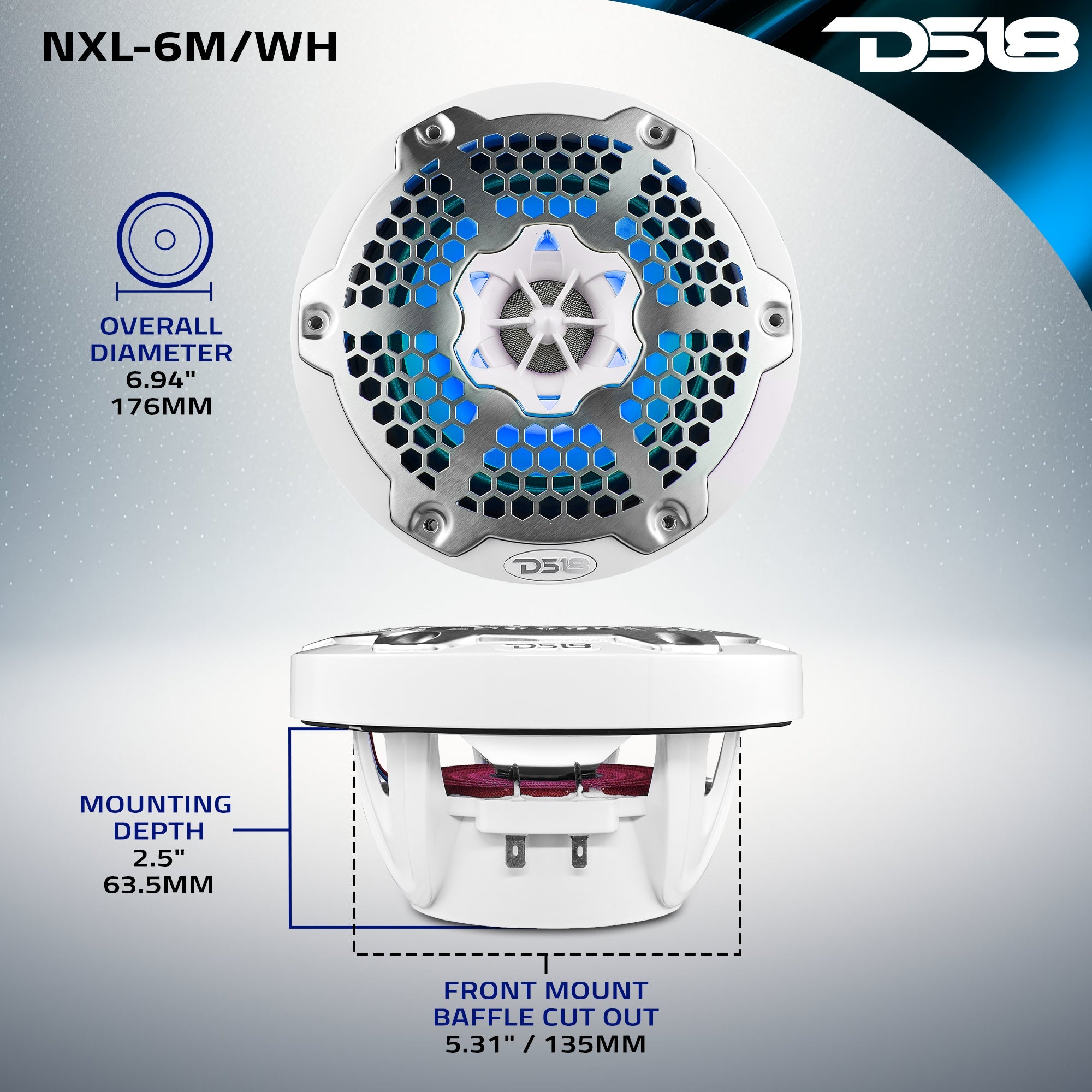

| Overall Diameter | 6.94" / 176mm |
| Overall Depth | 3.72" / 94.4mm |
| Front Mount Baffle Cutout | 5.31" / 135mm |
| Mounting Depth | 2.5" / 63.5mm |
| Motor Diameter | 3.54" / 90mm |
| Gross Single Unit Weight (lb) | 7.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 16.75 x 8.75 x 4.5 |
| Quantity of Units in Master Carton | 4 |
| Gross Master Carton Weight (lb) | 31.5 |
| Master Carton Dimensions W x L x H (Inches) | 19.5 x 17.5 x 9.75 |
