Product Overview

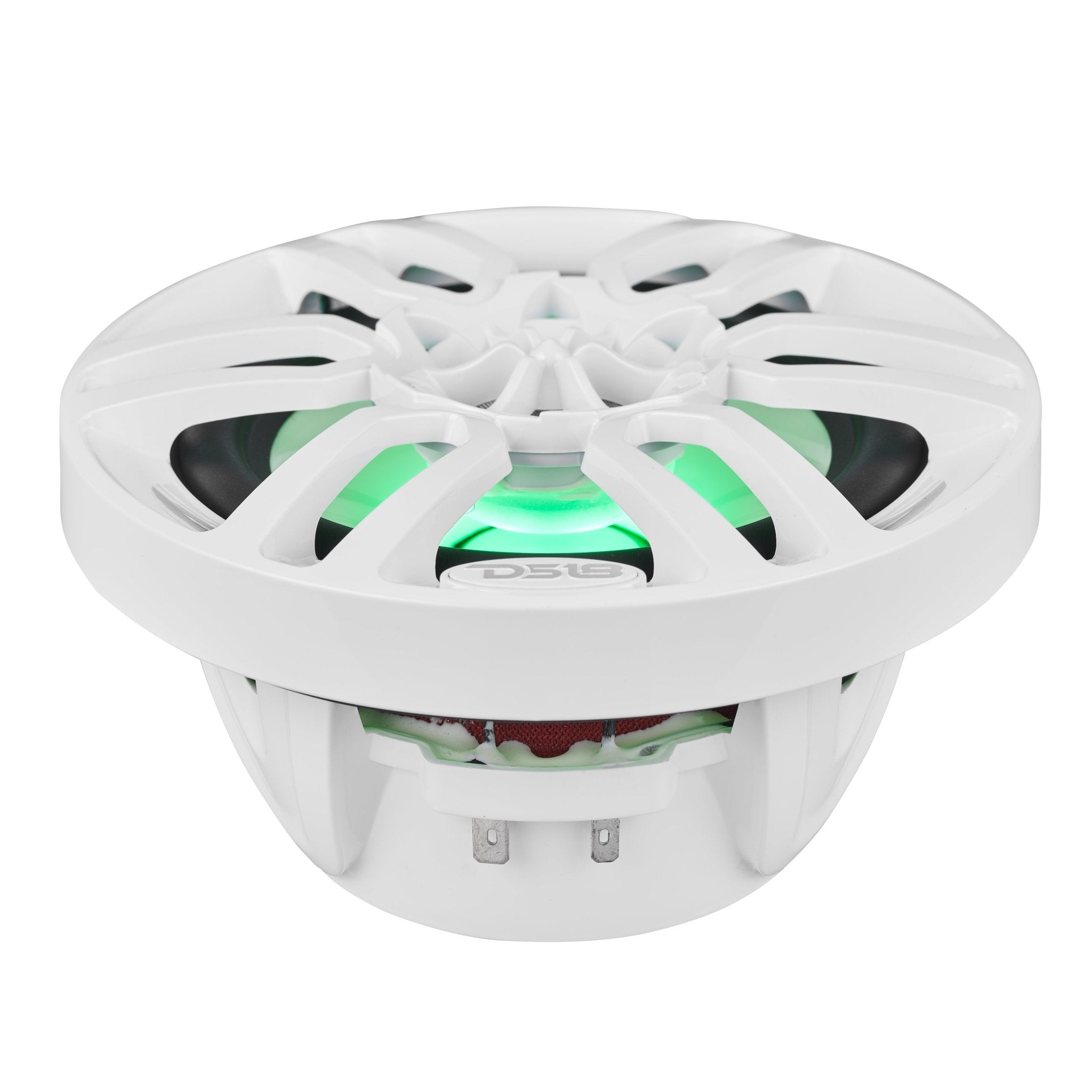

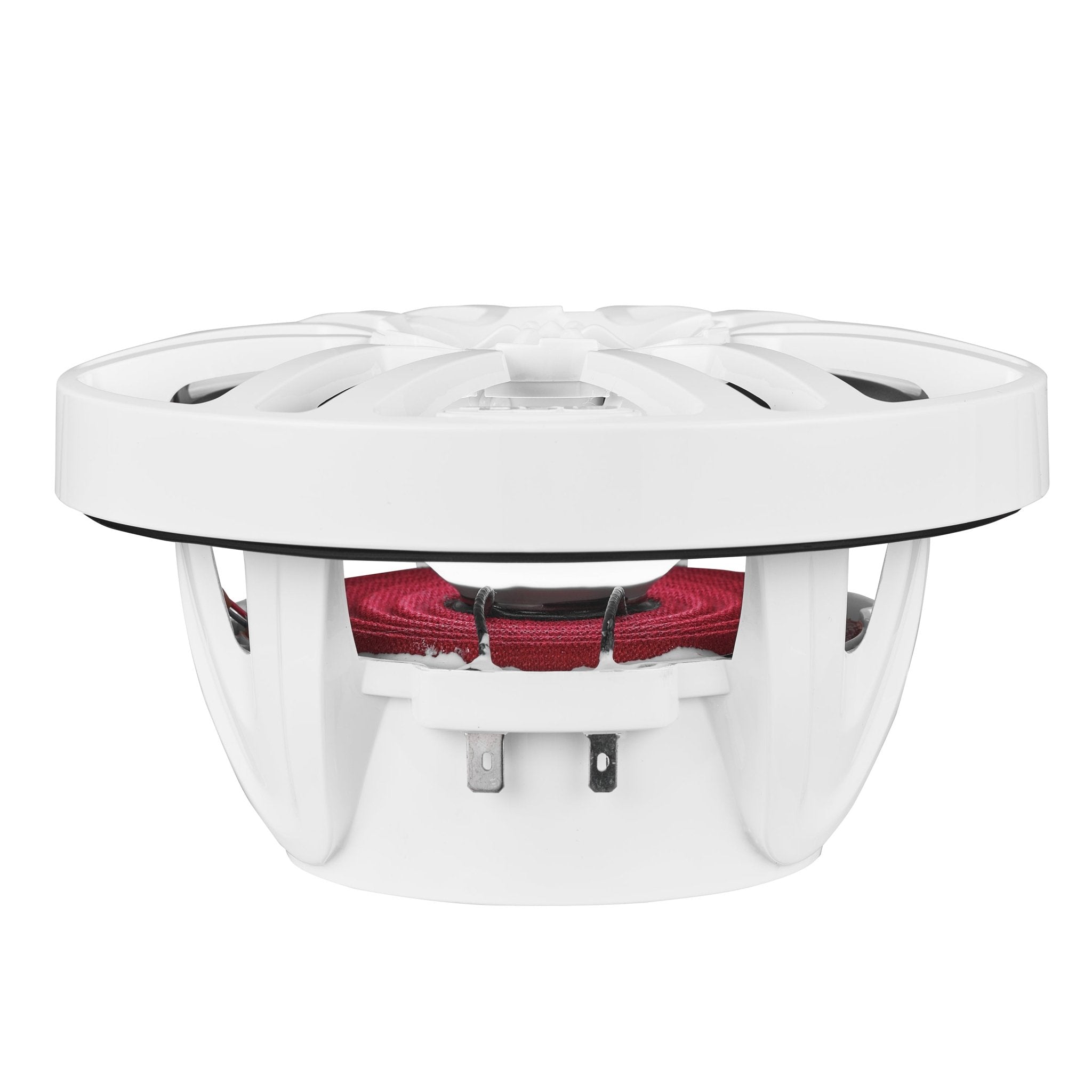

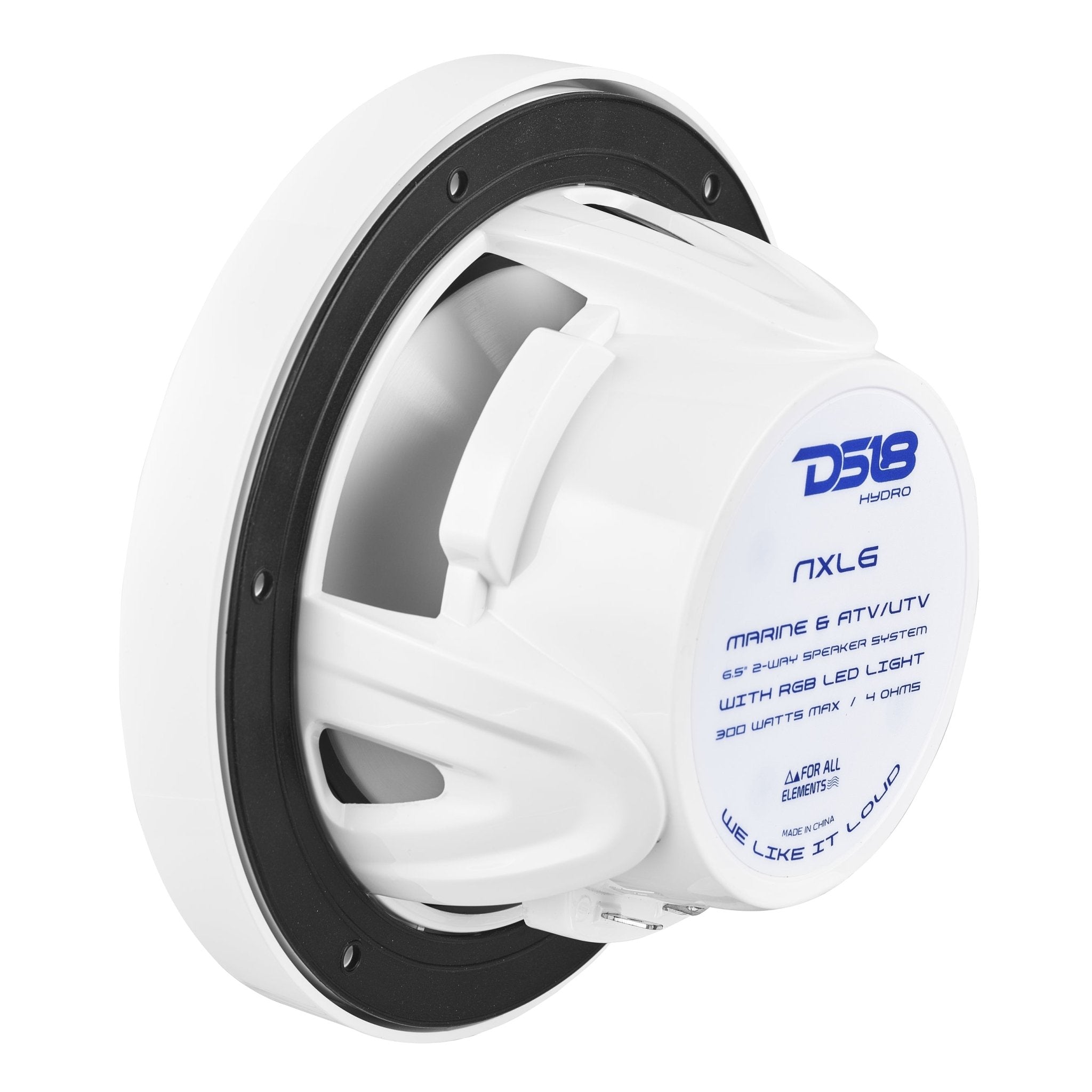

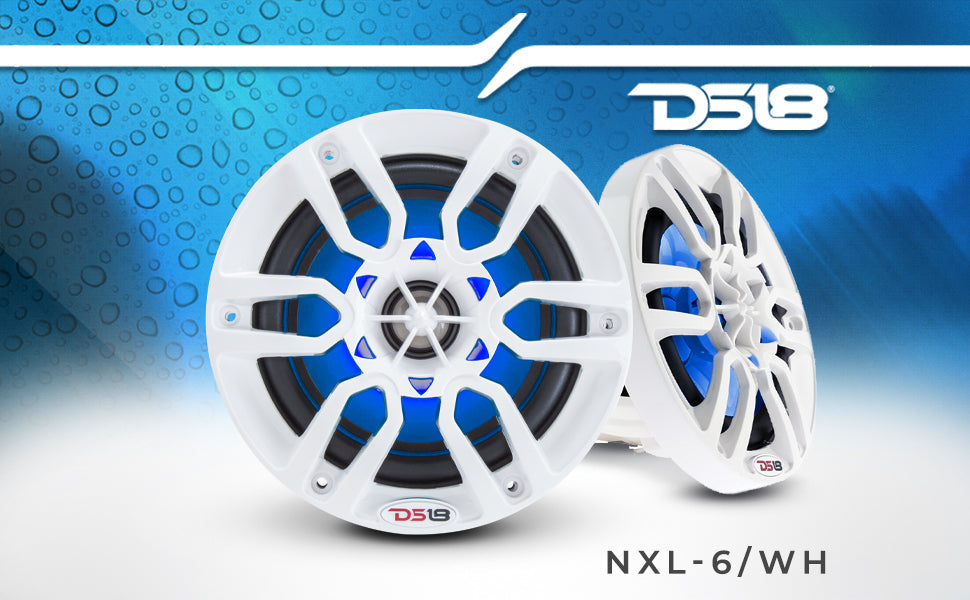

DS18 HYDRO NXL-6/WH 6.5" 2-Way Marine Water Resistant Speakers with Integrated RGB LED Lights 300 Watts - White
DS18 continues to dominate the marine scene with our innovative brand of marine speaker, the NXL series. The NXL line of marine speakers is a true sight to see! They come in 2-way configurations and carry an IP65 waterproof rating, so you know they are durable for the elements. Each speaker comes in white or black to help you complete your accents on your vehicle.

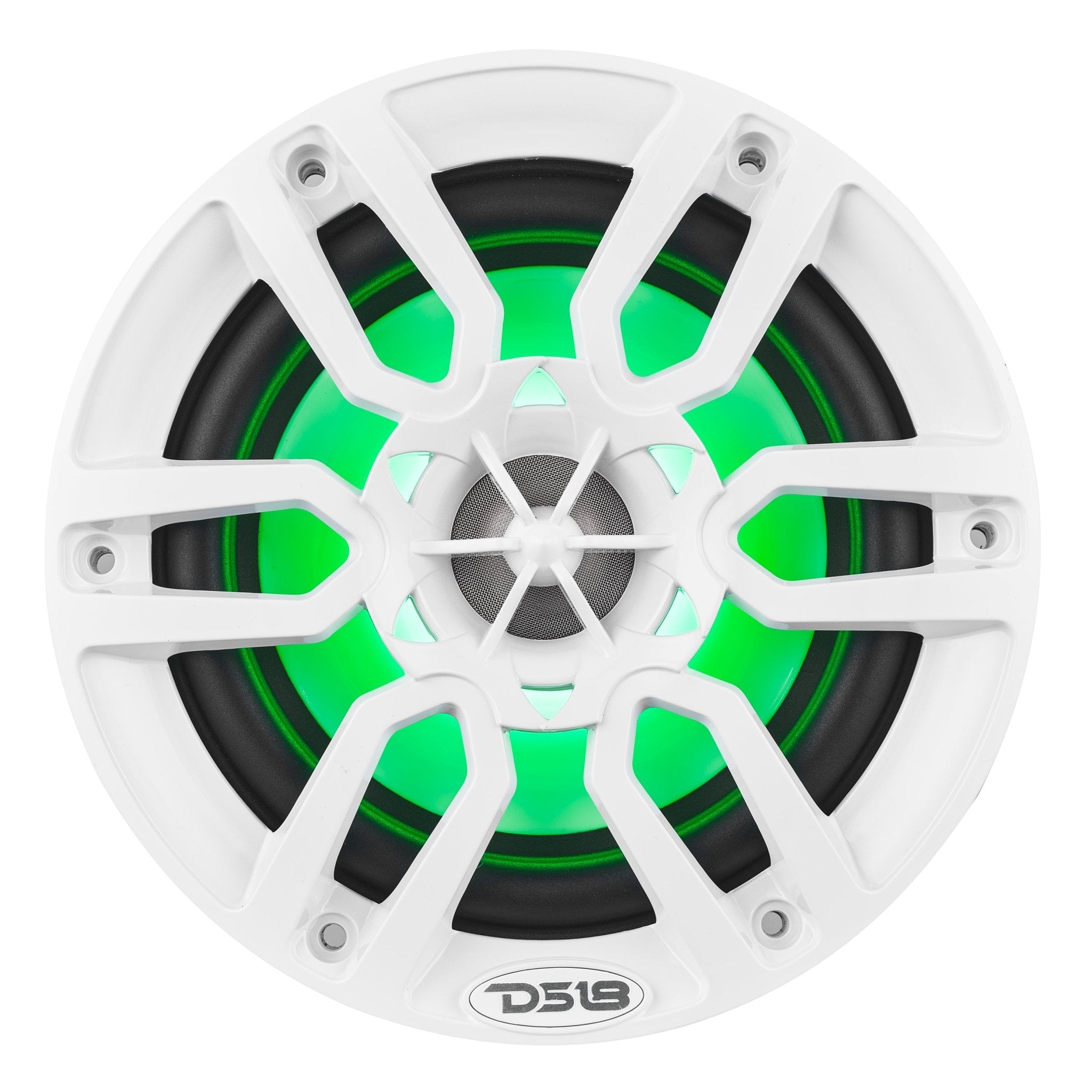

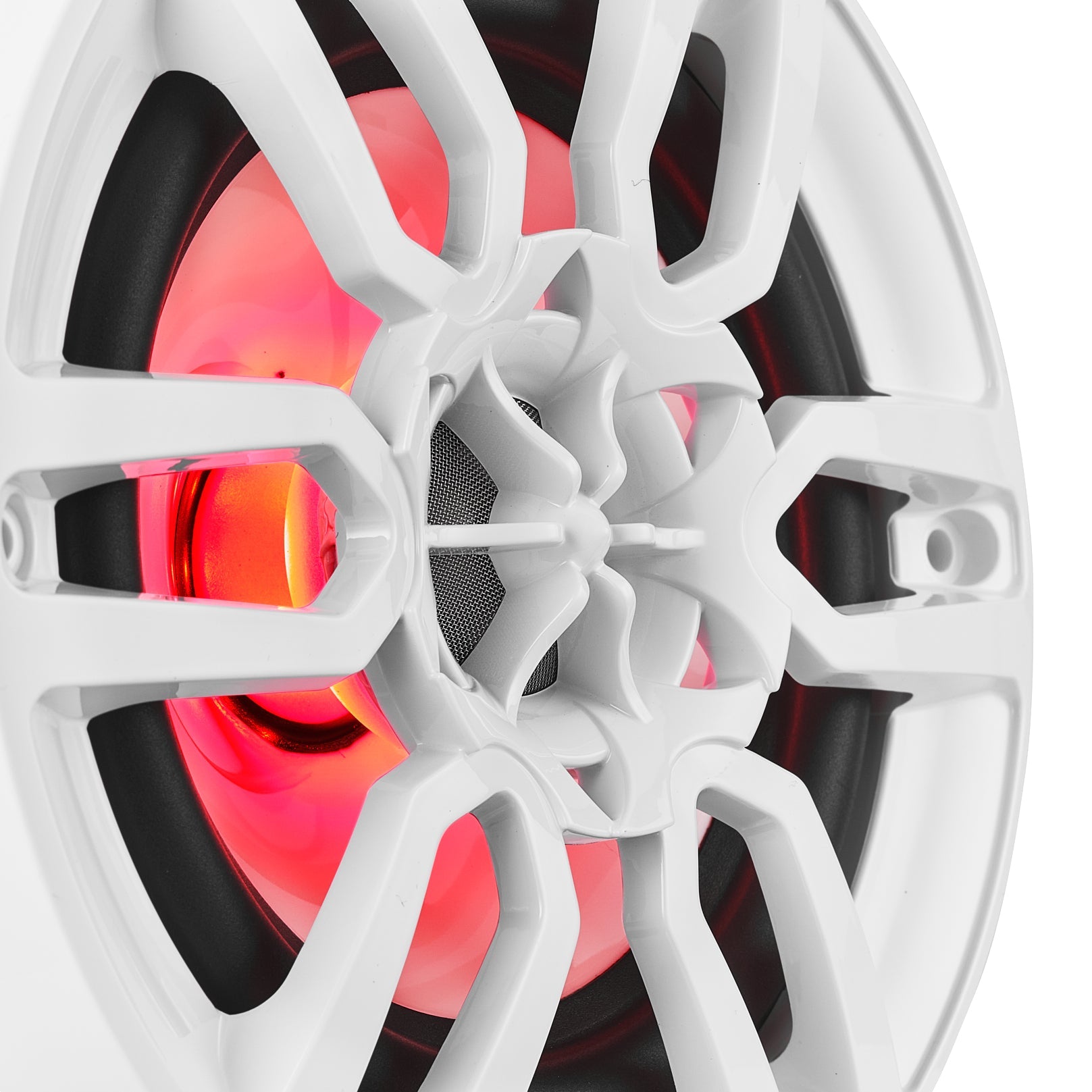

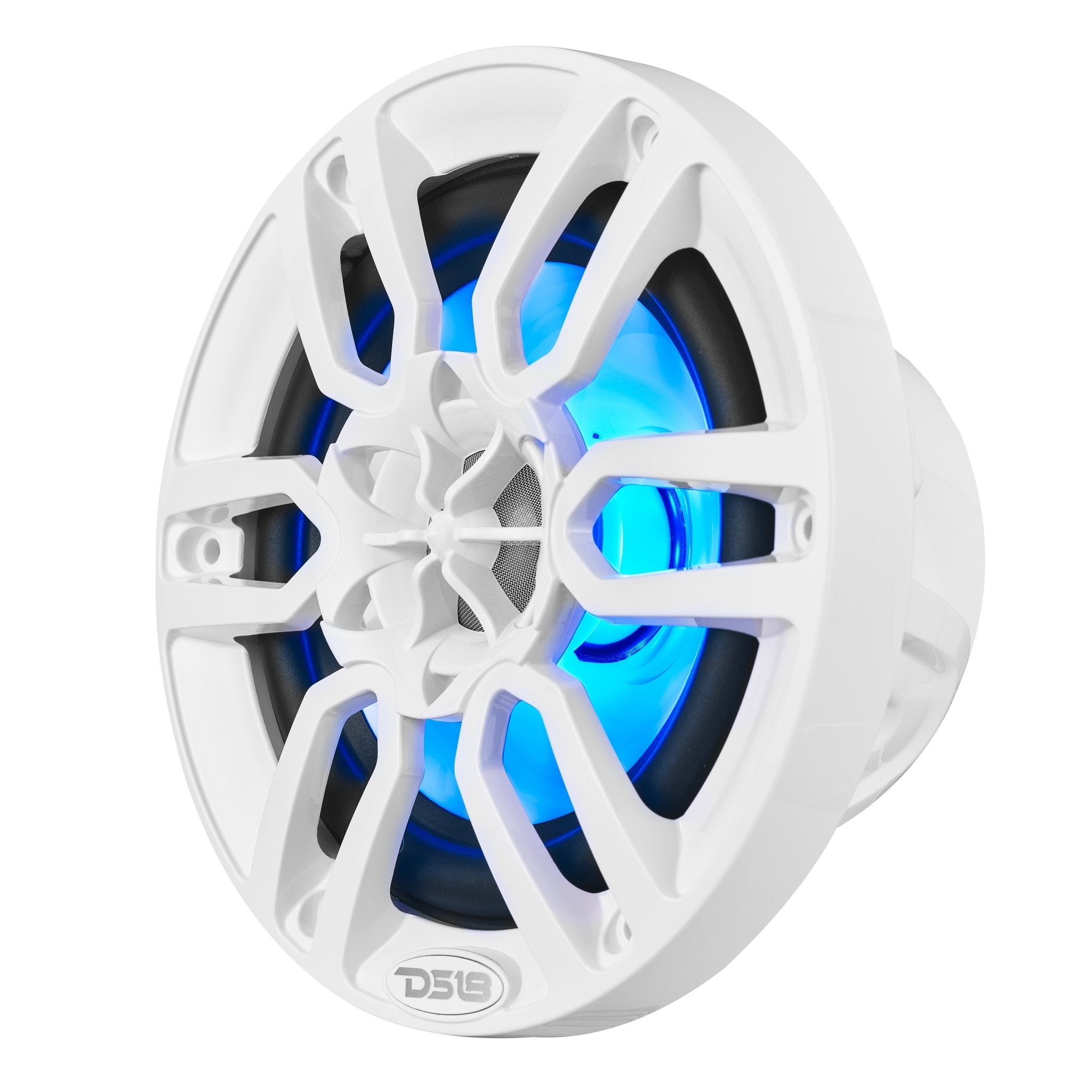

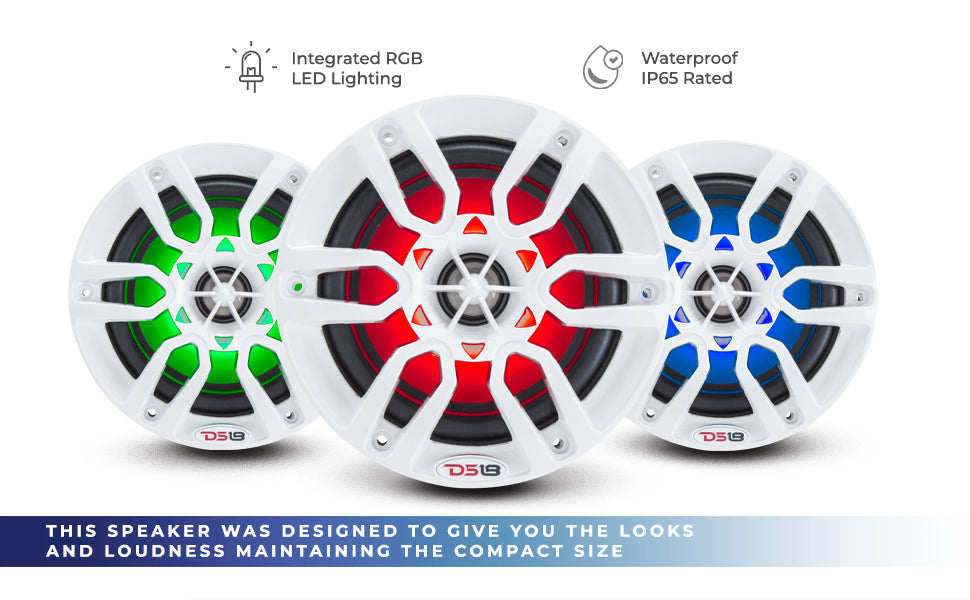

They come with their own integrated RGB lighting on the grill that shines down on the waterproof cones to complete your color scheme perfectly. These speakers produce a very full and rich sound that is very hard to replicate in open air environments like out on the water, but DS18 does it flawlessly. With two options to choose from, (6.5 inch and 8 inch) you can make sure you get the complete sound you crave and have perfect acoustical music on your command.
Compatible with DS18 LED-BTC or any other RF/BT/Wifi Controller for Multi-Function RGB LED Lighting (Sold Separately)
Highlights
- Highly popular DS18 Hydro all elements design that will keep your vehicles music loud in any conditions.

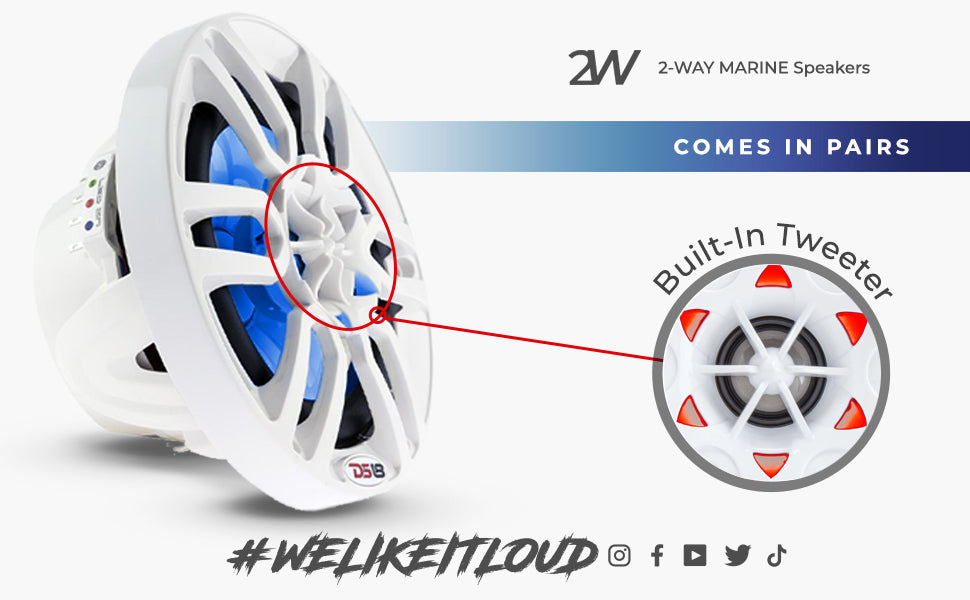

- Two way design including a built in tweeter so you get the full mid range of frequencies.
- Brilliantly lit RGB LED lighting will set the mood and match any color scheme available with the sold supermarket LED BTC controller.
- High volume and high wattage capable so you can have super loud tunes wherever you go.
Technical Details
- Ecl2esi1uu000g01s61oj40t79E
| Model: | NXL6 |
| Size: | 6.5" |
| RMS Power: | 100W |
| MAX Power: | 300W |
| Magnet Type: | Y35 Ferrite Main Magnet & Reverse Neodymium |
| Sensitivity: | 91dB at 1 w/m |
| Nominal Impedance: | 4 Ohms |
| Frequency Response: | 45Hz - 23KHz |
| Mounting Depth: | 2.25"/64mm |
| Cut-out Diameter: | 5.39"/137mm |
| Overall Diameter: | 6.93"/176mm |
| Overall Height: | 3.7"/94mm |
| Tweeter Size: | 25mm Titanium Dome PEI Surround |
Key Features

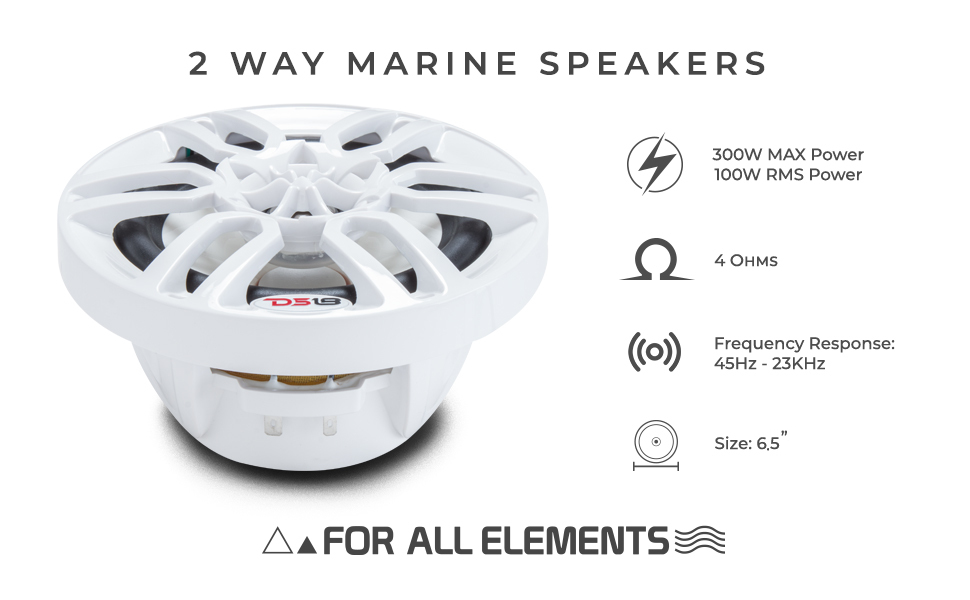

- 6.5" 2-Way Marine Speaker
- RMS Power: 100 Watts / 4-Ohm
- Ferrite & Neodymium Magnets
- RGB LED Light
- Water Resistant IP65

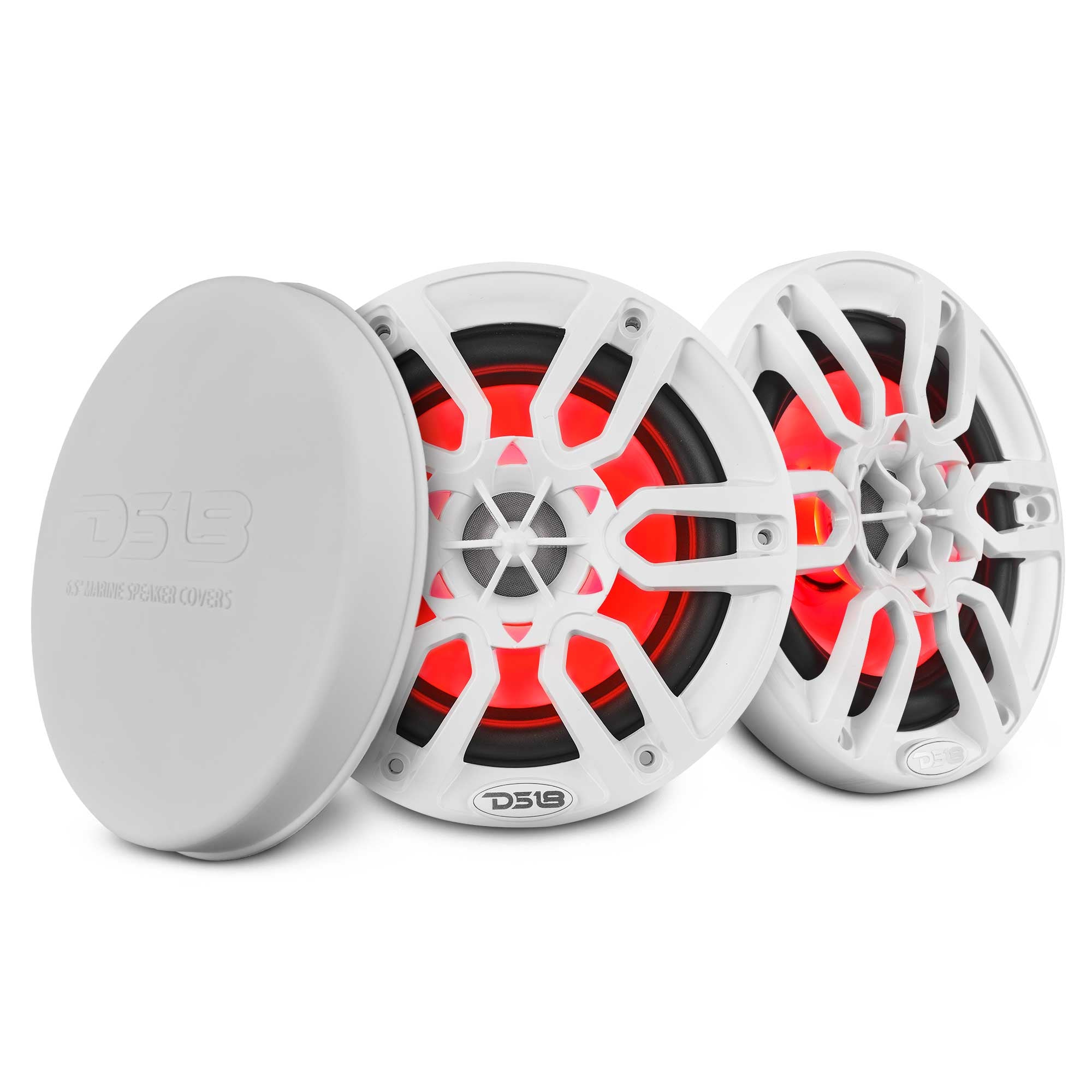

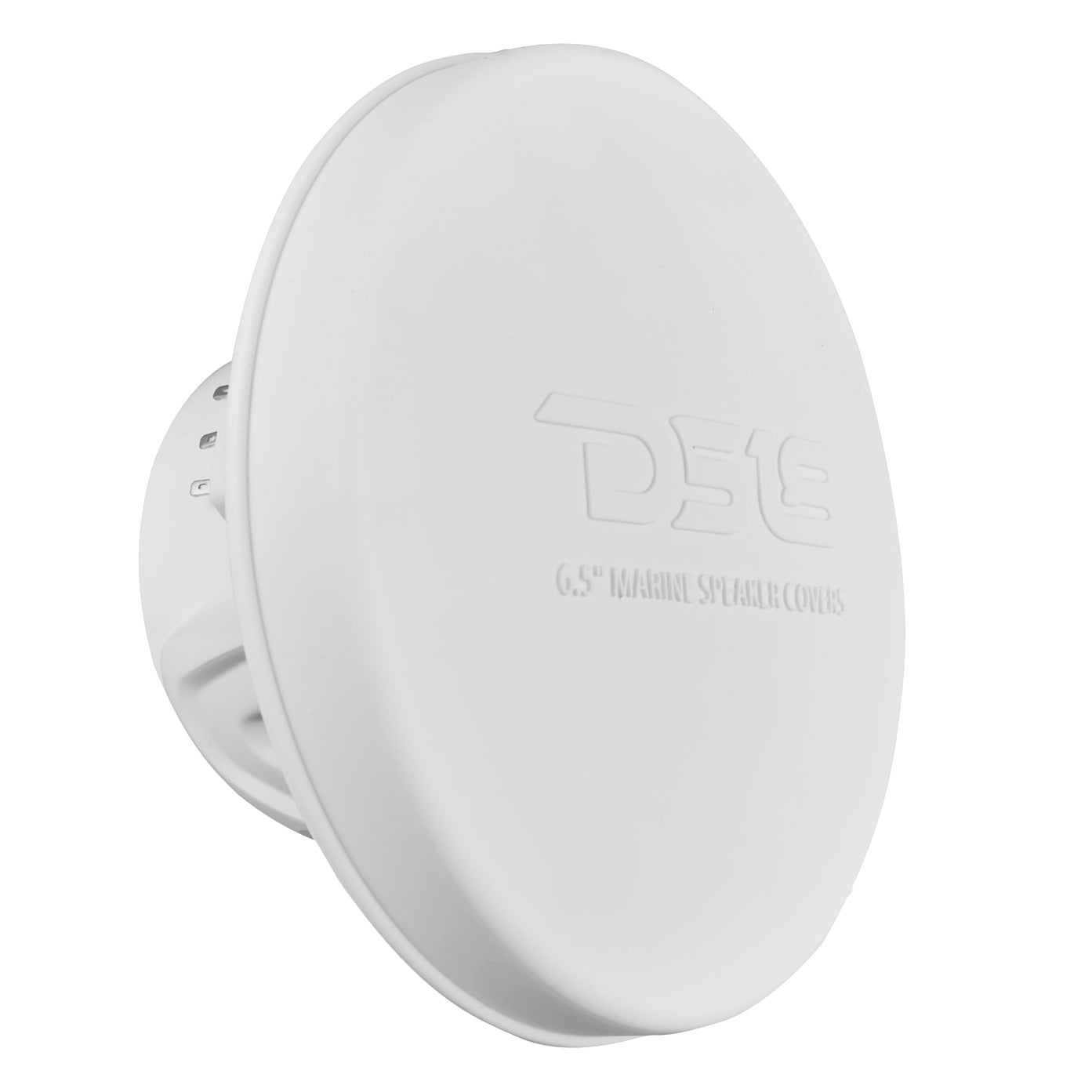

- Silicone Covers Included
Specifications
| SKU | NXL-6/WH |
|---|---|
| Nominal Diameter | 6.5" / 165mm / 1" / 25.4mm |
| Nominal Impedance | 4 Ohm |
| RMS Power Handling | 100W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 91dB |
| Frequency Response | 45Hz-23KHz |
| Recommended HI Pass Crossover | 65 Hz |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, RGB integrated |
| Grill Type | Injection Molded Composite ASA with UV Protection coating |
| Pair | Yes |
| Color / Finish | Glossy White |
| Voice Coil Diameter | 1.2" / 30.5mm / 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | High Temp Injection Molded Composite with UV Protection coating |
| Magnet Material | Ferrite+Neodymium / Neodymium (N38H) |
| Magnet Weight | 14oz + 0.32oz / 0.54oz |
| Diaphragm Material | Titanium + PEI Surround |
| Equivalent Volume Vas | 20L / 0.708ft3 |
| Excursion (one way) Xmax | 8.5 mm |
| Free Air Resonance Fs | 75Hz |
| Mechanical Factor Qms | 7.823 |
| Electrical Factor Qes | 1.057 |
| Total Factor Qts | 0.931 |
| Moving Mass Mms | 4.122g |
| Compliance Cms | 1.081mm/N |
| Bl Factor Bl | 2.41 |
| Voice Coil Inductance Le | 0.543mH |
| Cone Area Sd | 114.99cm2 |
| DC Resistance Re | 3.14 ohms |
| Efficiency Bandwidth Product EBP | 70.9 |

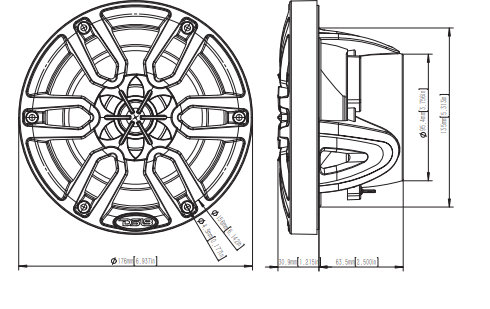

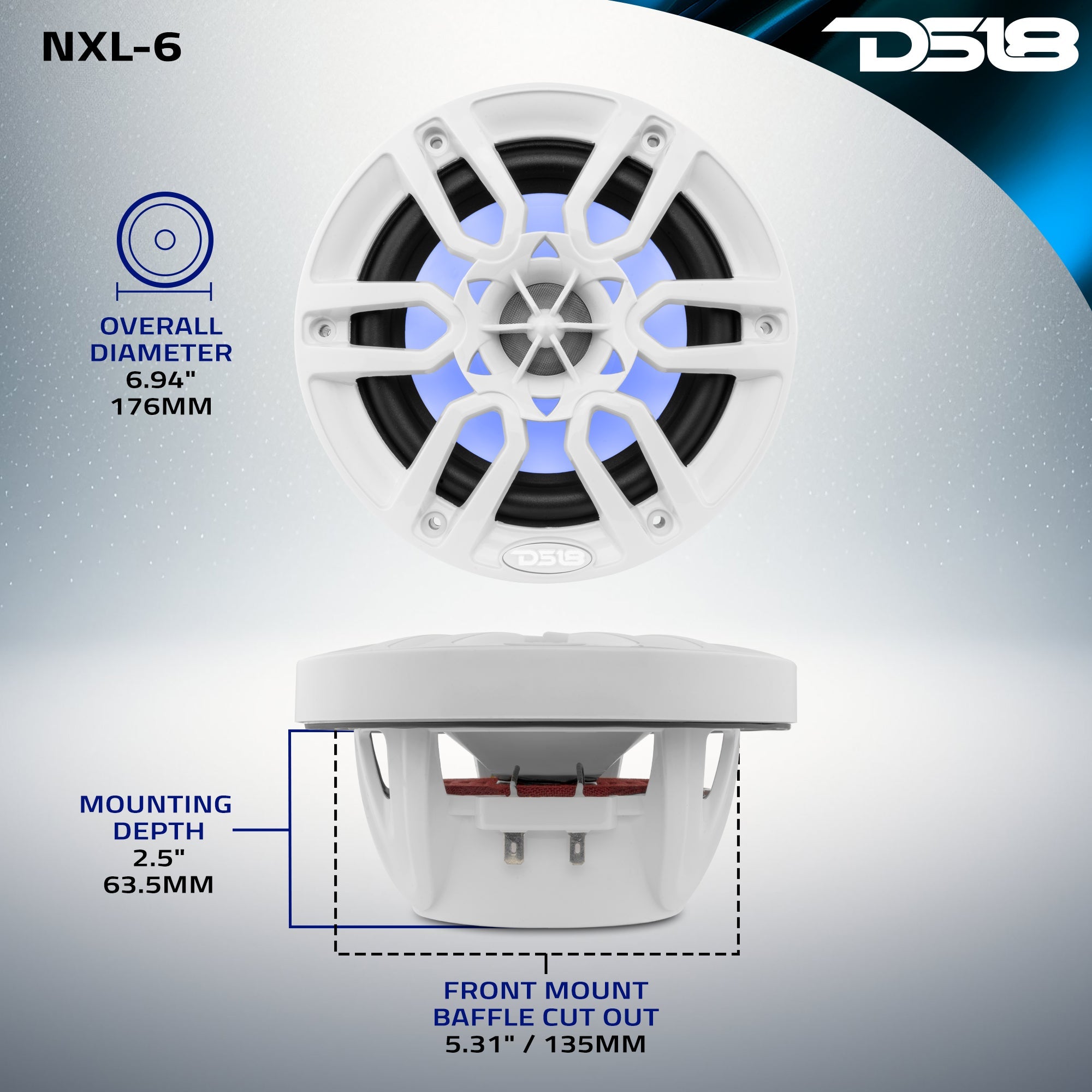

| Overall Diameter | 6.94" / 176mm |
| Overall Depth | 3.72" / 94.4mm |
| Front Mount Baffle Cutout | 5.31" / 135mm |
| Mounting Depth | 2.5" / 63.5mm |
| Motor Diameter | 3.54" / 90mm |
| Gross Single Unit Weight (lb) | 7 |
| Single Unit Box Dimensions W x L x H (Inches) | 106.5 x 8.75 x 4.75 |
| Quantity of Units in Master Carton | 4 |
| Gross Master Carton Weight (lb) | 30.5 |
| Master Carton Dimensions W x L x H (Inches) | 19.75 x 17.25 x 9.75 |
