Product Overview
DS18 CF-65M
HYDRO 6.5” 2-Way Marine Speakers with RGB LED Lights
DS18 offers the best in audio, and the CF-65M’s are proof of why. Rugged durability meets high-performance in this powerhouse 2-way speaker built to endure the harshest elements.

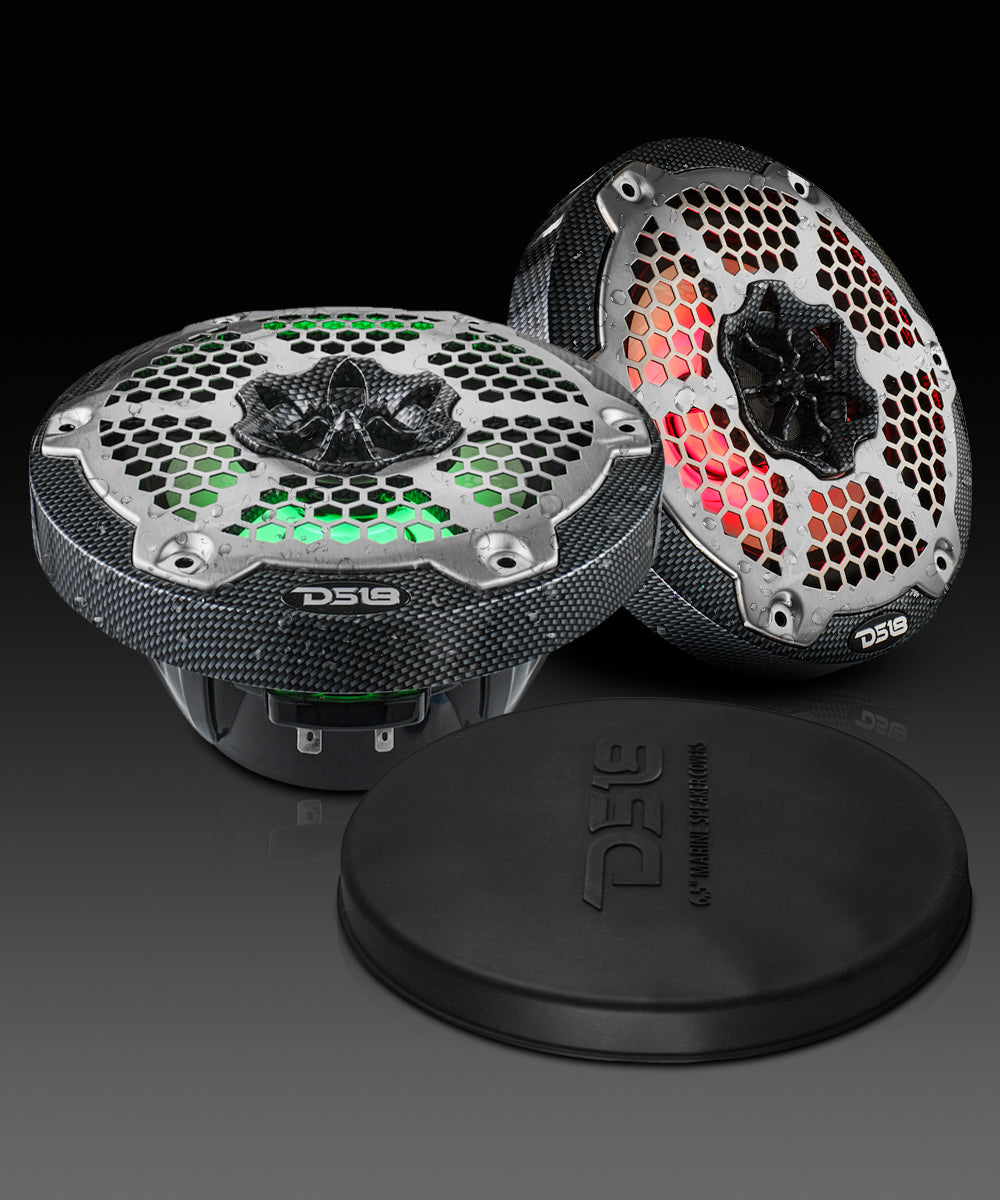

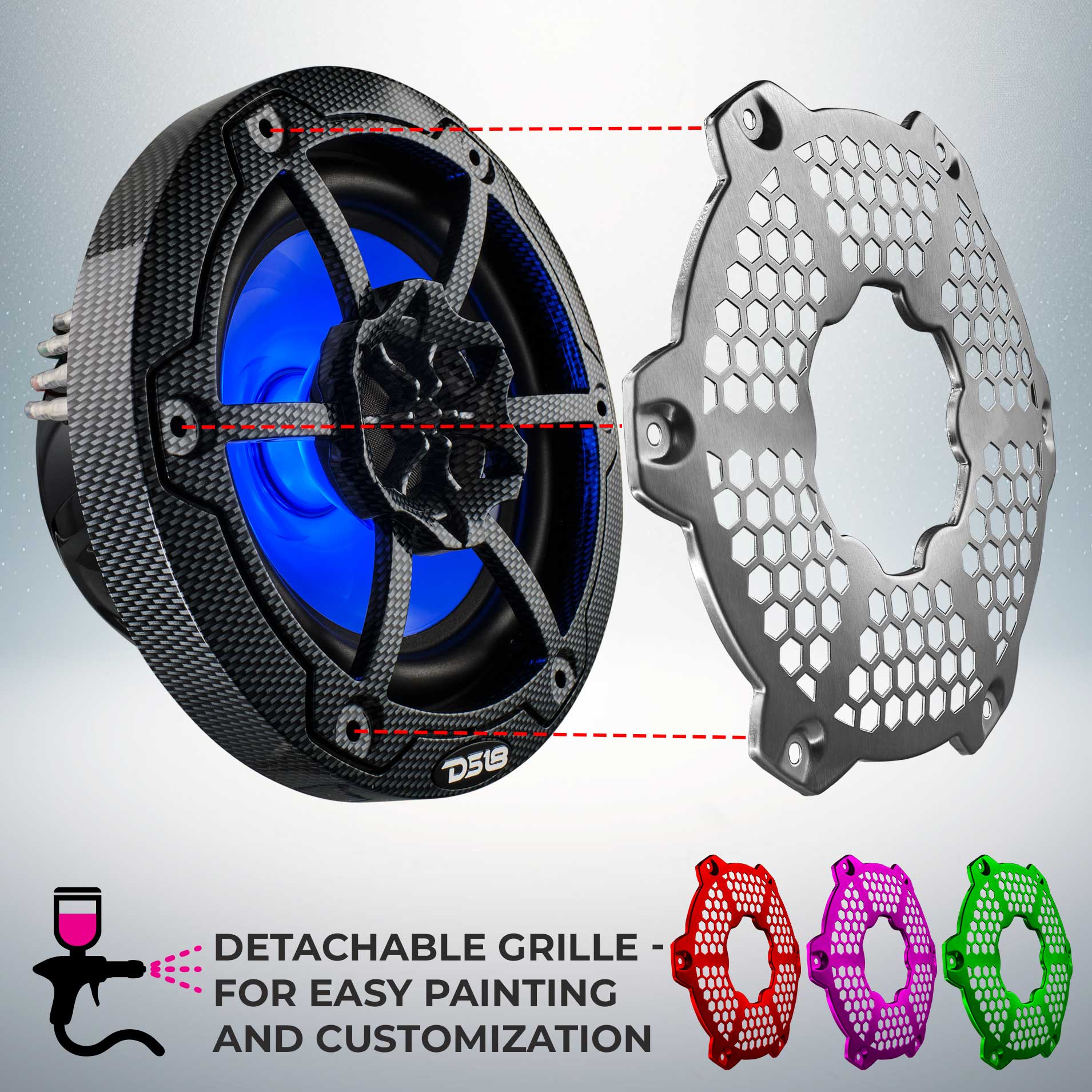

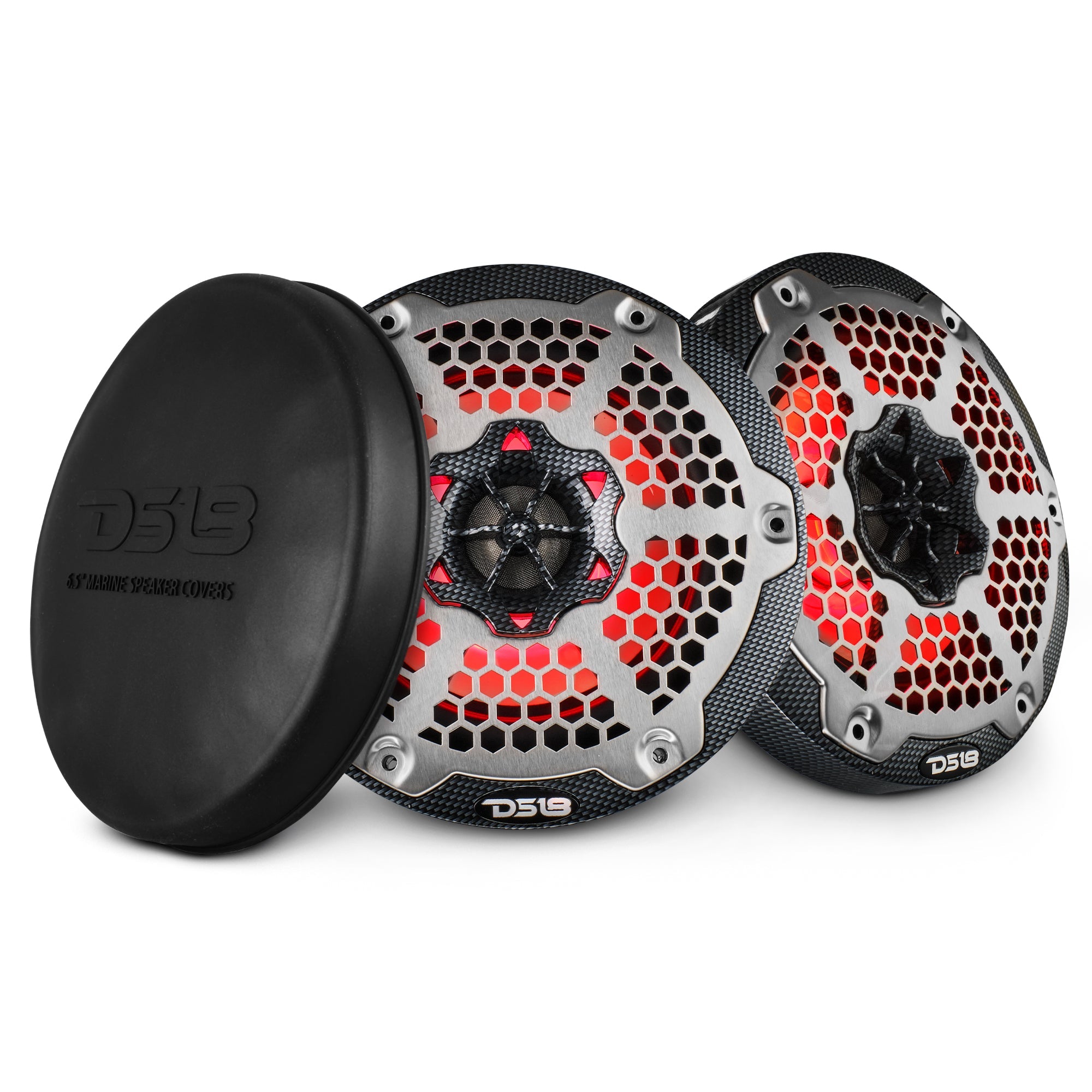

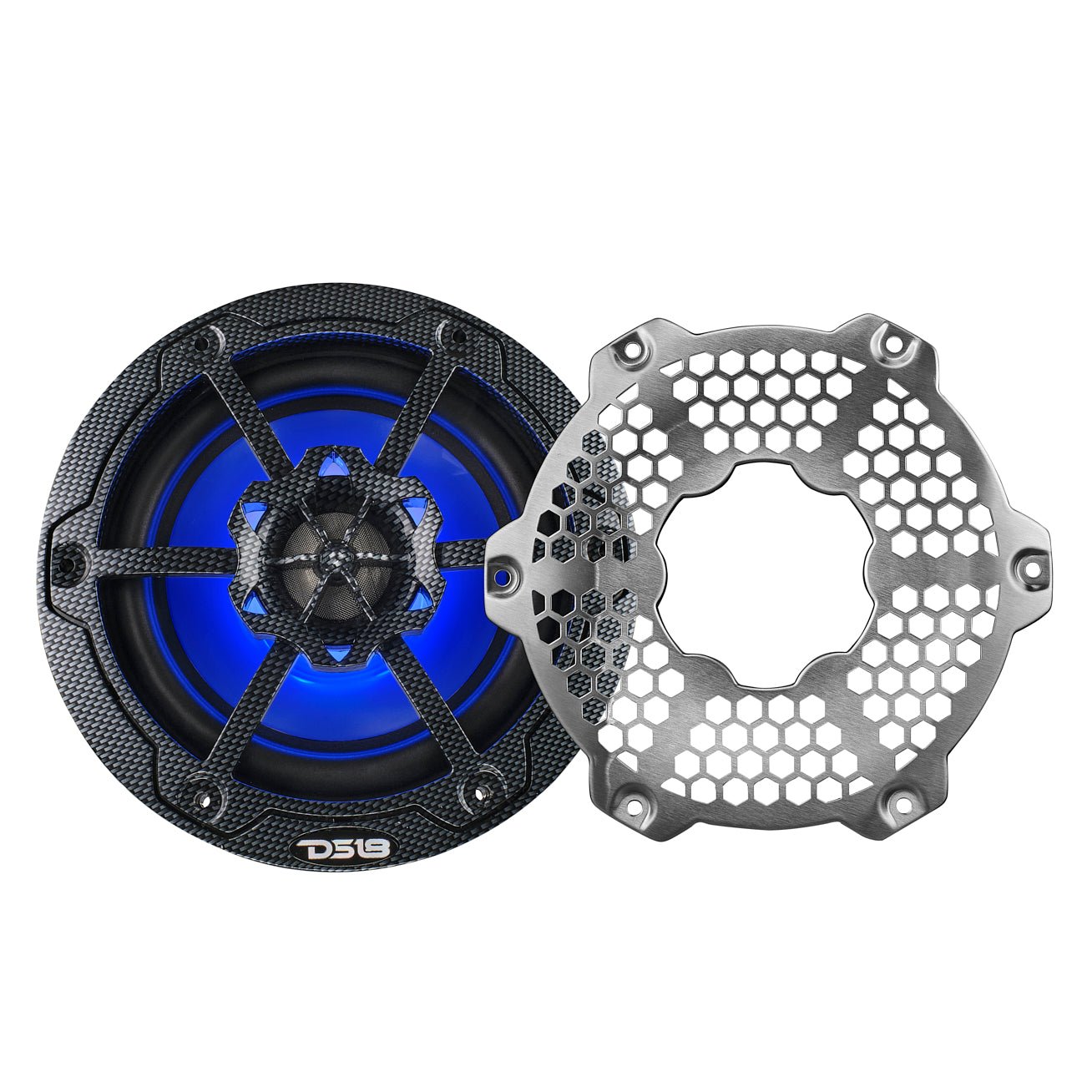

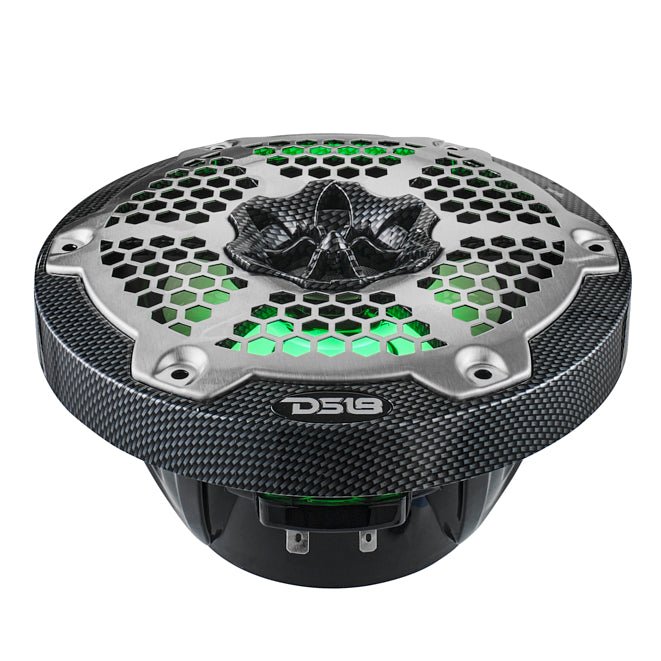

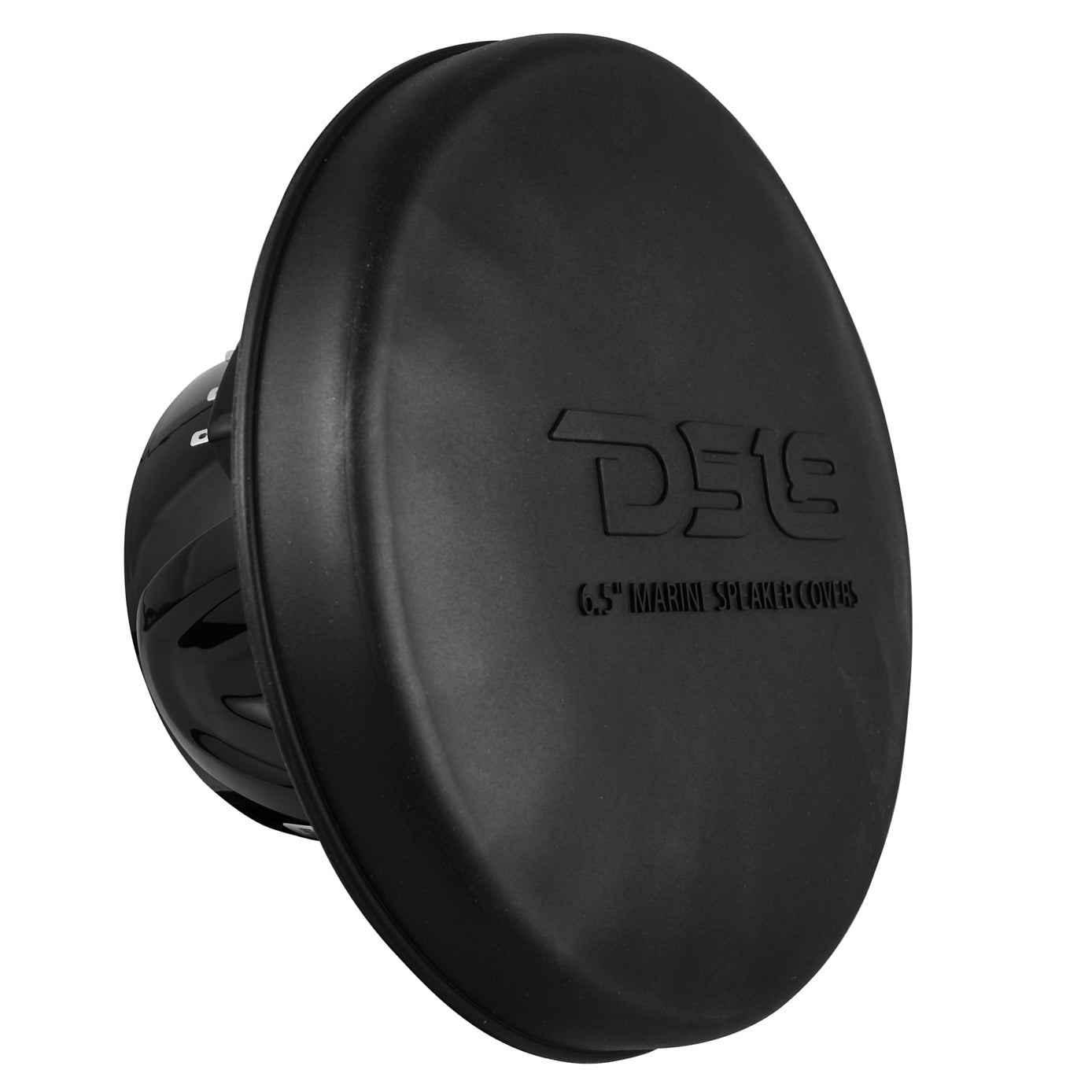

Crafted with precision and style, featuring bold black carbon fiber texture and a detachable tough 316 metal mesh grill for ultimate durability and customization. The high-gloss basket with UV coating and high-temp injection-molded composite construction guarantees long-lasting resilience. And now, featuring a brand-new silicone cover, these speakers are fortified with even greater protection. Backed by an IP65 waterproof rating, the CF-65M handles everything nature throws your way.
The CF-65M HYDRO handles 100W RMS and 300W MAX power, delivering clarity powered by a Y35 Ferrite Main Magnet and Reverse Neodymium technology. With 91dB sensitivity at 1w/m, every beat is crisp, every note hits, and every detail pops. Covering a frequency range from 45Hz to 23 KHz, it captures the full spectrum of your favorite tracks with unmatched depth and precision.

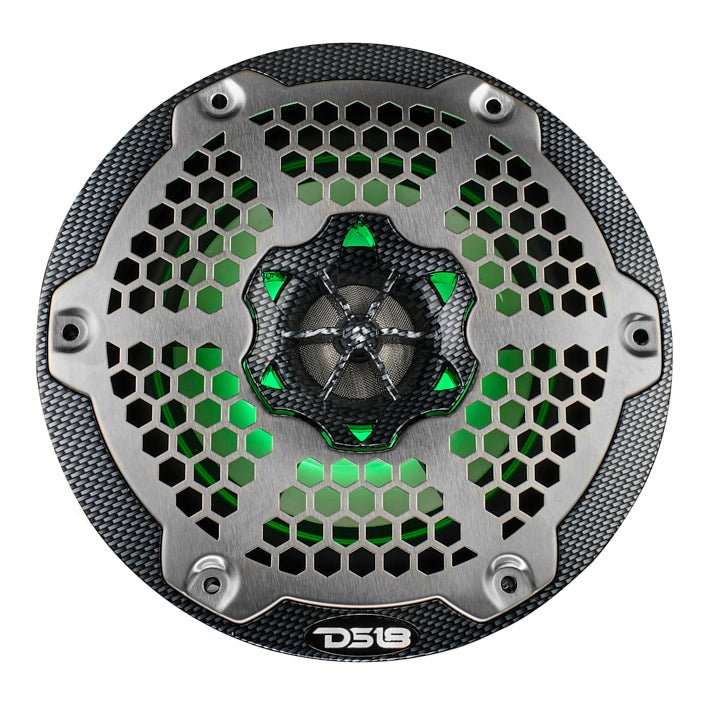

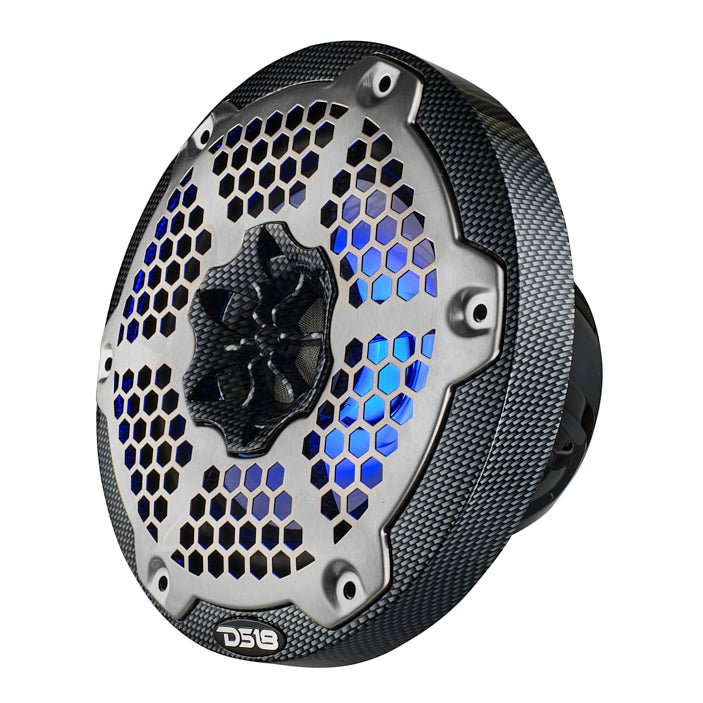

Customization is limitless with Multi-Function RGB LED Lighting. Sync your vibe to DS18’s LED-BTC controller or any RF/BT/Wifi-compatible system (sold separately).
Rugged, stylish, and engineered for excellence, DS18’s CF-65M is built for those who demand the best.
Key Features
- 6.5" 2-Way Marine Speaker
- RMS Power: 100 Watts
- Impedance: 4 Ohm
- Ferrite & Neodymium Magnet
- RGB LED Light ~ Metal Mesh Grill
- Water Resistant IP65
Specifications
| SKU | CF-65M |
|---|---|
| Nominal Diameter | 6.5" / 165mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 100W |
| MAX Power Handling | 300W |
| Sensitivity (1w/1m) | 91dB |
| Frequency Response | 45Hz-23KHz |
| Recommended HI Pass Crossover | 65 Hz |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, RGB integrated |
| Grill Type | Injection Molded Composite (ASA) with 316 Stainless Steel mesh |

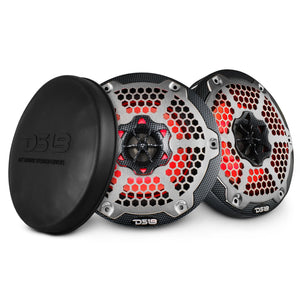

| Pair | Yes |
| Color / Finish | Carbon Fiber Texture / Gloss |
| Voice Coil Diameter | 1.2" / 30.5mm / 1" / 25.4mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | High Temp Injection Molded Composite (ASA) with UV Protection coating |
| Magnet Material | Ferrite (Y35) + Neodymium (N35) / NEODYMIUM(N38H) |
| Magnet Weight | 14oz+0.32oz / 0.54oz |
| Diaphragm Material | PEI |
| Equivalent Volume Vas | 20L / 0.708ft3 |
| Excursion (one way) Xmax | 8.5 mm |
| Free Air Resonance Fs | 75Hz |
| Mechanical Factor Qms | 7.823 |
| Electrical Factor Qes | 1.057 |
| Total Factor Qts | 0.931 |
| Moving Mass Mms | 4.122g |
| Compliance Cms | 1.081mm/N |
| Bl Factor Bl | 2.41 |
| Voice Coil Inductance Le | 0.543mH |
| Cone Area Sd | 114.99cm2 |
| DC Resistance Re | 3.14 ohms |
| Efficiency Bandwidth Product EBP | 70.9 |

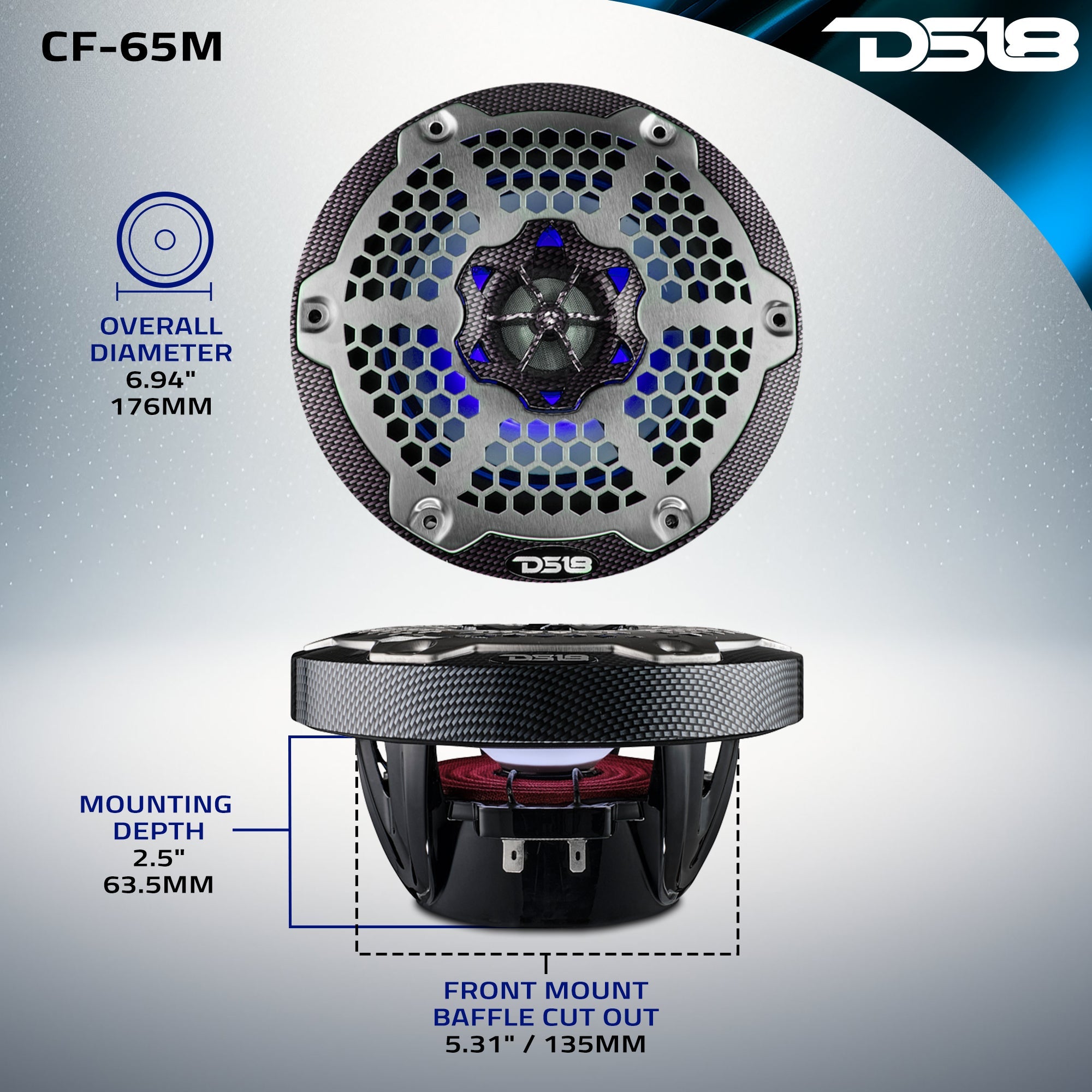

| Overall Diameter | 6.94" / 176mm |
| Overall Depth | 3.72" / 94.4mm |
| Front Mount Baffle Cutout | 5.31" / 135mm |
| Mounting Depth | 2.5" / 63.5mm |
| Motor Diameter | 3.54" / 90mm |
| Gross Single Unit Weight (lb) | 7.5 |
| Single Unit Box Dimensions W x L x H (Inches) | 16.75 x 8.75 x 4.75 |
| Quantity of Units in Master Carton | 4 |
| Gross Master Carton Weight (lb) | 31.5 |
| Master Carton Dimensions W x L x H (Inches) | 19.25 x 17.25 x 10 |
