Product Overview

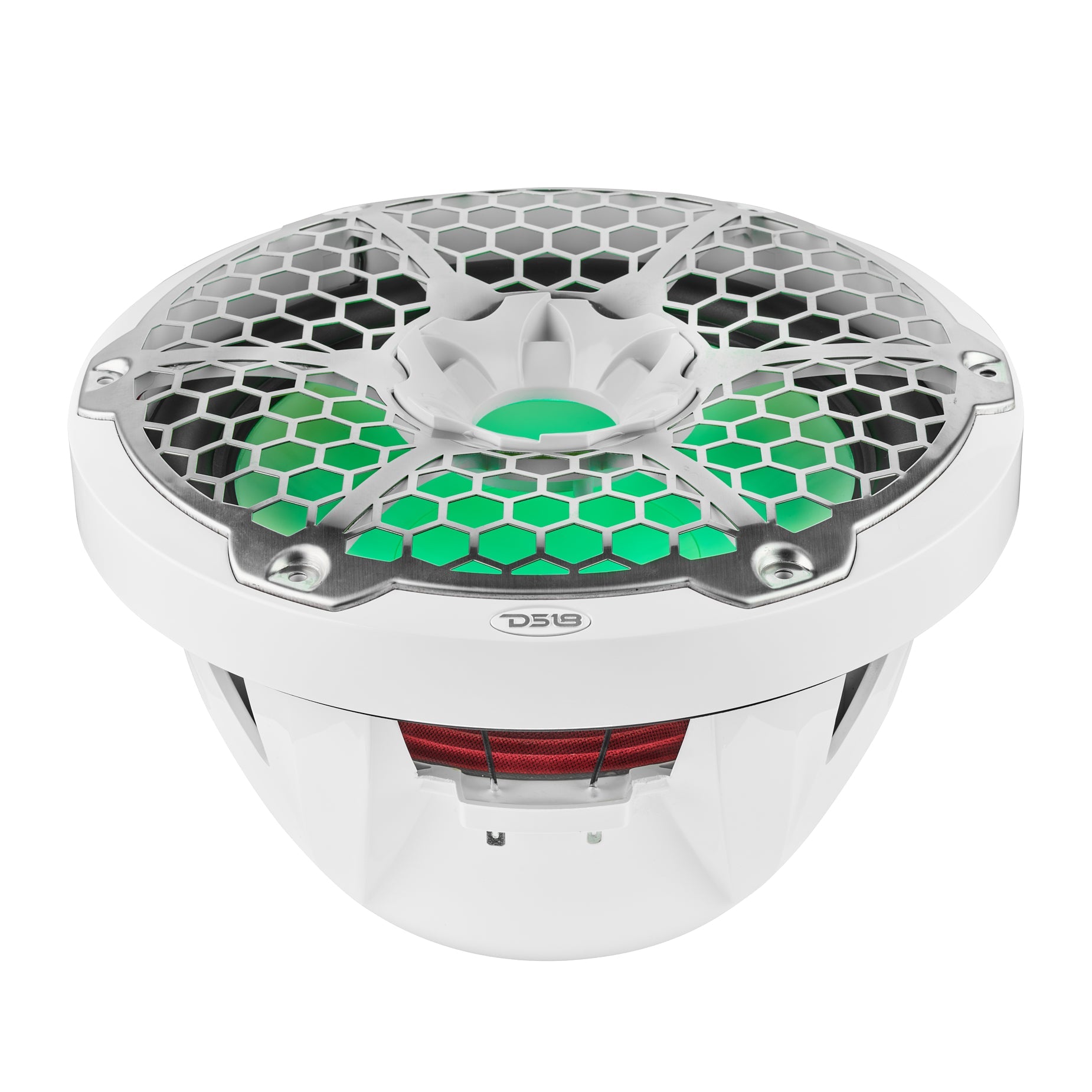

DS18 NXL-12SUB
12” Marine Subwoofer with RGB LED Lights – 350W RMS | IP65 Rated | Single Voice Coil (4Ω)
DS18’s NXL-12SUB delivers bold, deep bass in your boat, powersport vehicle, or off-road build. Engineered to perform in any environment, this 12" marine subwoofer handles 350W RMS and 700W MAX power with crisp, distortion-free response from 30Hz–500Hz. Whether sealed, ported, or free air—this sub excels wherever you mount it.
Durable and Ready for Anything

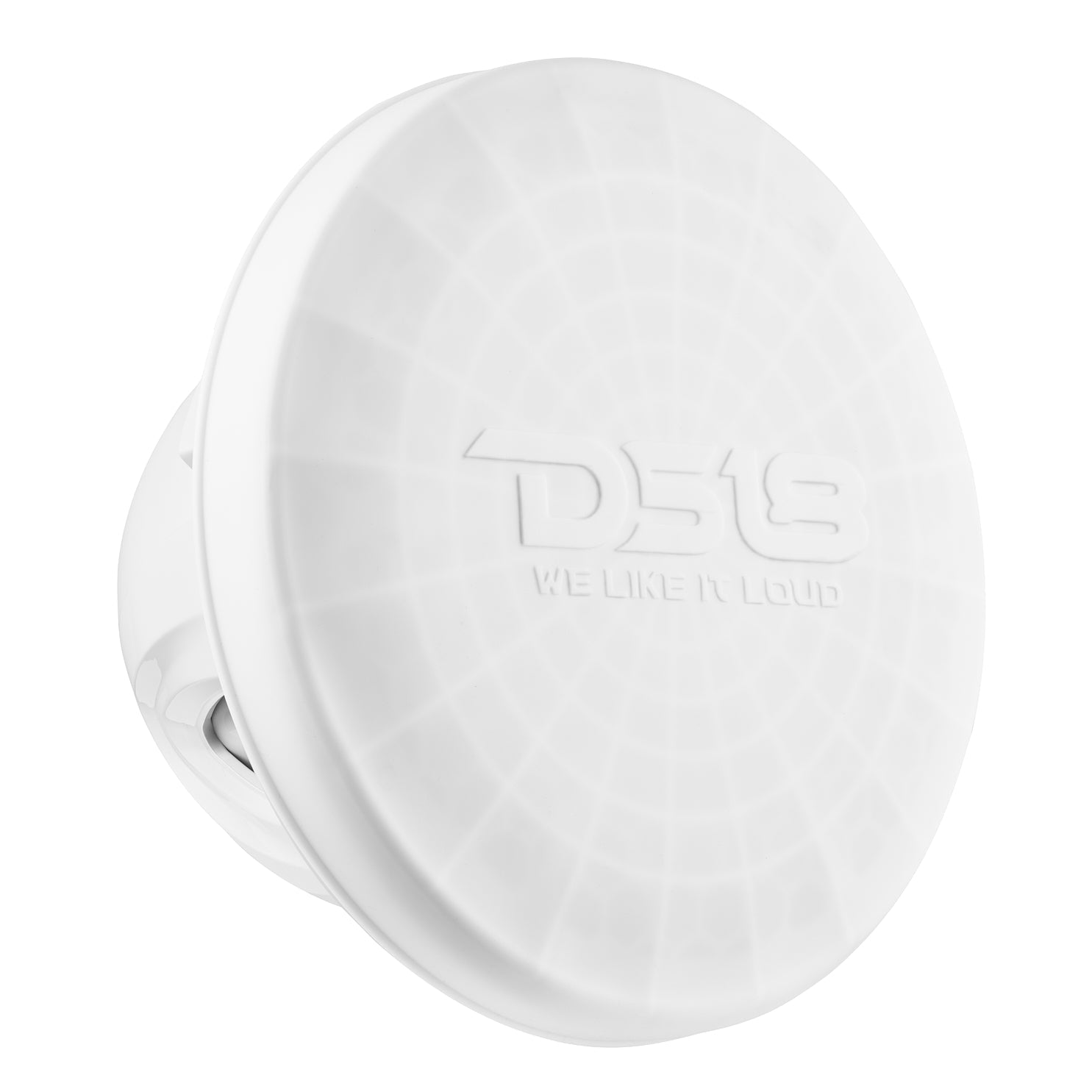

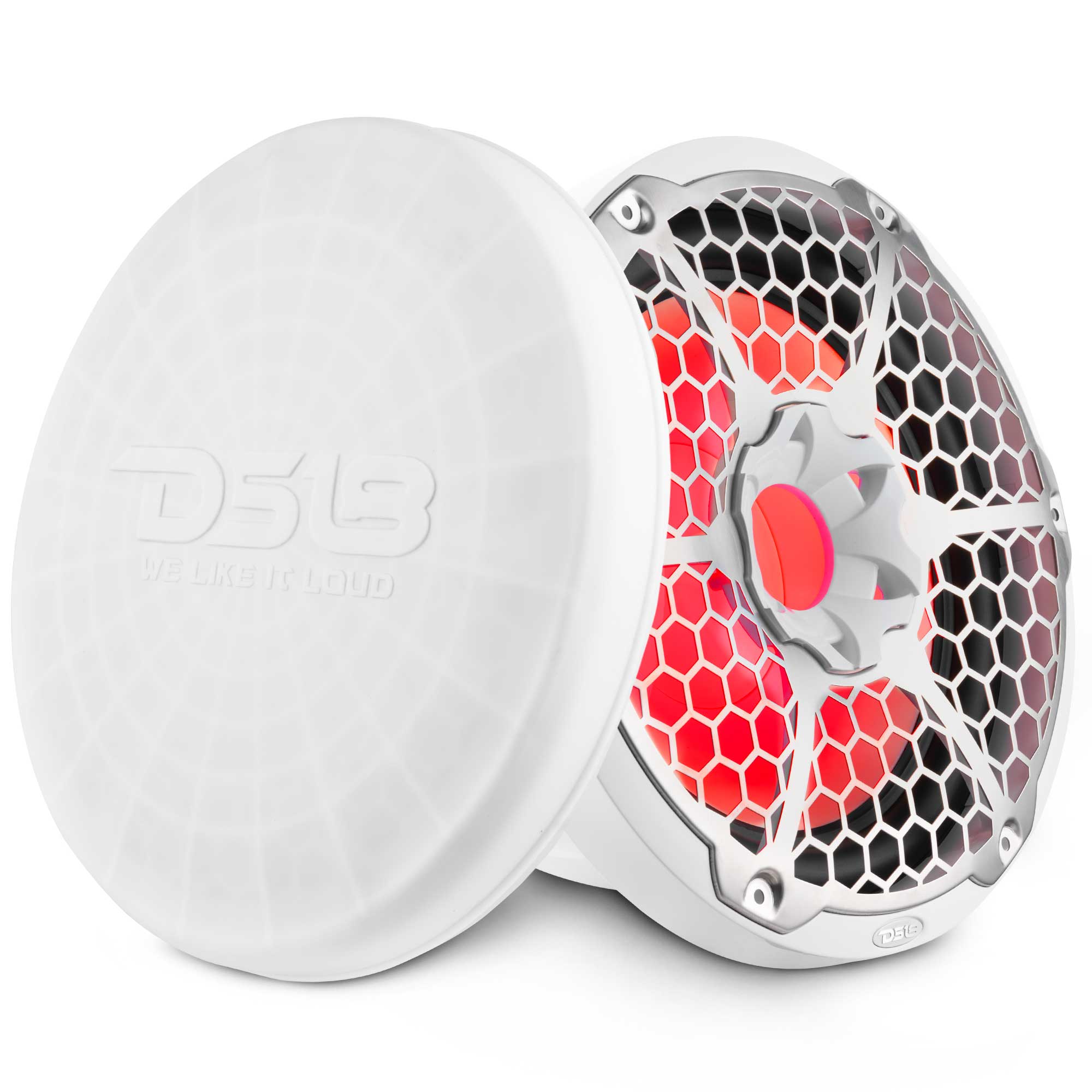

The NXL-12SUB is IP65 waterproof and built from high-temp injection-molded composite materials with gloss UV coating. Its waterproof PP cone, soft rubber surround, and heavy-duty 316 stainless steel mesh grill ensure long-lasting protection—even in harsh marine or trail conditions. This subwoofer also comes with a protective silicone cover for even stronger protection when not in use.
Show-Ready with RGB LED Lighting

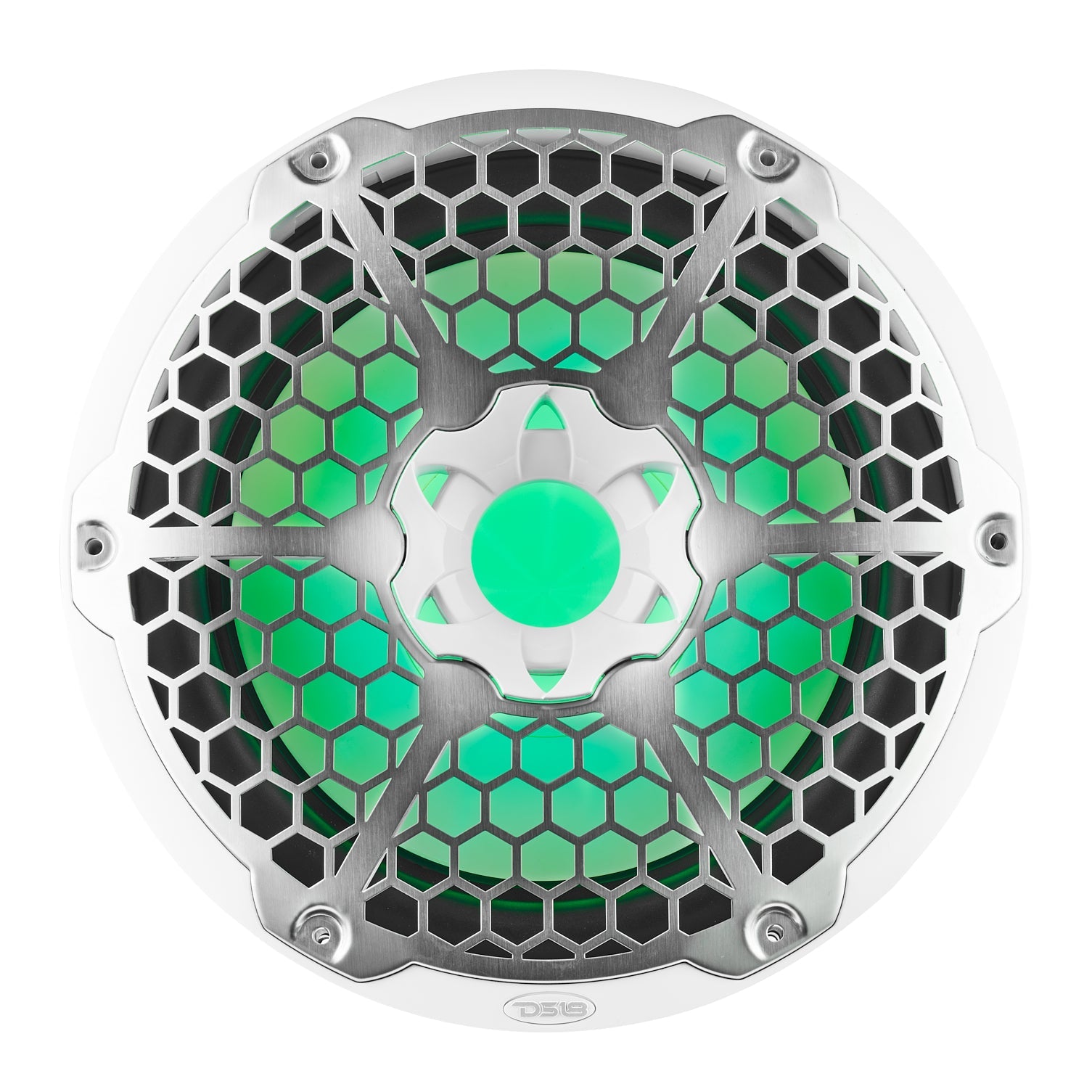

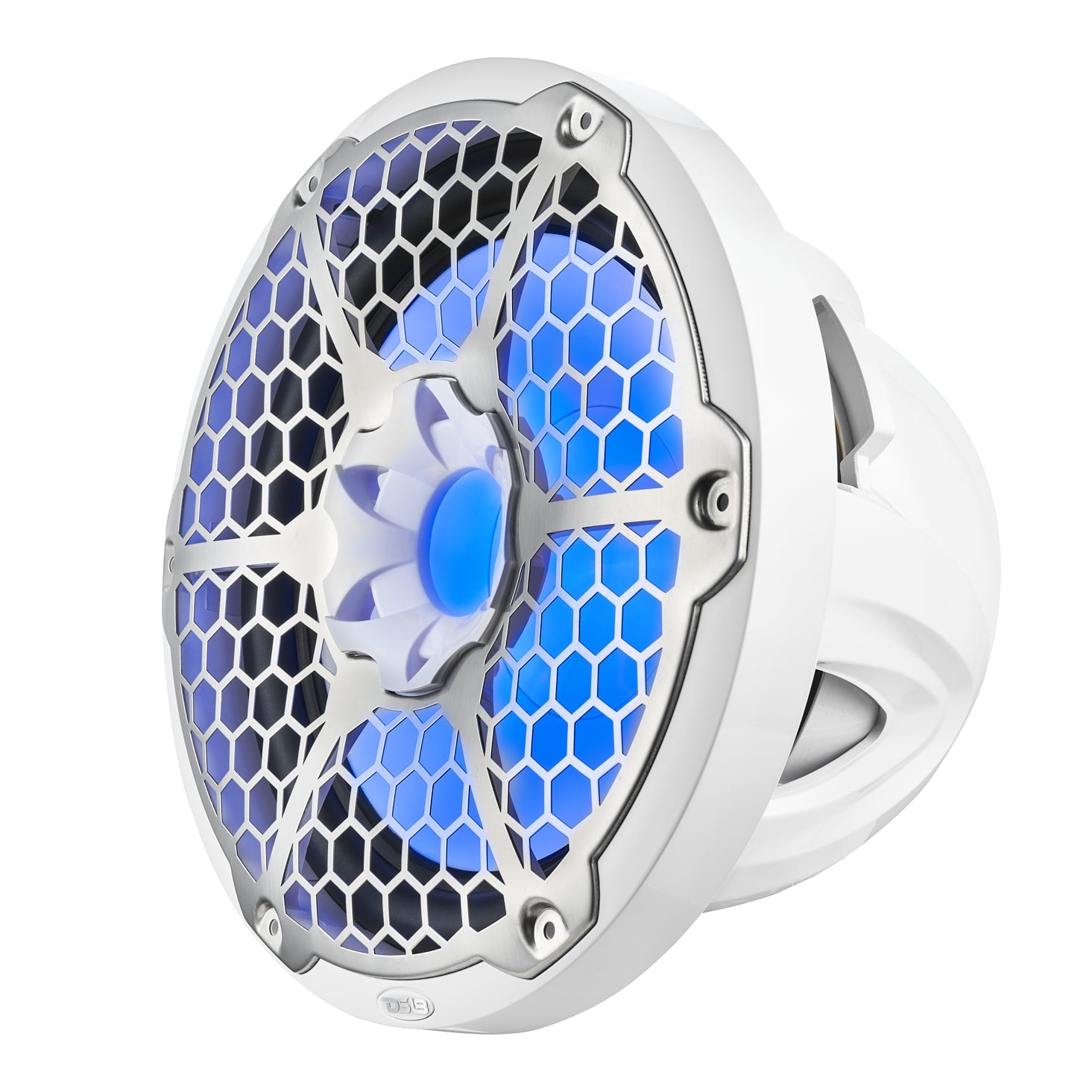

Make a statement with integrated RGB LED lighting that transforms your sound system into a light show. Compatible with DS18’s LED-BTC Control Module and LED-BTC App (sold separately), the NXL-12SUB gives you full control of color and effects for the perfect vibe.
Key Features
- 12" Marine Subwoofer
- RMS Power: 350 Watts(700 Watts Peak)
- Impedance: 4 Ohm 2" SVC
- RGB LED Lights
- Silicone Cover Included
- Water Resistant IP65
Specifications
| Nominal Diameter | 12" / 305mm |
|---|---|
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 350W |
| MAX Power Handling | 700W |
| Sensitivity (1w/1m) | 91dB |
| Frequency Response | 30-200Hz |
| Recommended Low Pass Crossover | 80Hz |
| UV Compliant | Yes, 100% Stable |
| Marine Grade Type | IP65 |
| RGB LED | Yes, RGB integrated |
| Grill Type | Injection Molded Composite (ASA) with 316 Stainless Steel mesh |
| Sold as | Single unit |
| Color / Finish | White |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former Material | Glass fiber |
| Winding Material | CCAW |
| Cone Material | Injection Molded Polypropylene + UV Compliant |
| Surround Material | Butyl (Rubber) |
| Basket Material | High Temp Injection Molded Composite (ASA) with UV Protection coating |
| Magnet Material | Ferrite |
| Magnet Weight | 75oz |
| Equivalent Volume | 68.8L / 2.42ft3 |
| Excursion (one way) | 10mm |
| Free Air Resonance | 32Hz |
| Mechanical Factor | 7.85 |
| Electrical Factor | 0.58 |
| Total Factor | 0.54 |
| Moving Mass | 131.59g |
| Compliance | 0.19 mm/N |
| BL Factor | 12.76 |
| Voice Coil Inductance | 0.89mH |
| Diaphragm Area | 510.7 Cm3 |
| DC Resistance | 4.15 ohms |
| Efficiency Bandwidth Product | 55.1 |
| Sealed Internal Volume | 0.6~2ft3 |
| Sealed Box Output Response | 60~35Hz |
| Free Air or Baffle Mount | Yes (Recommended) |

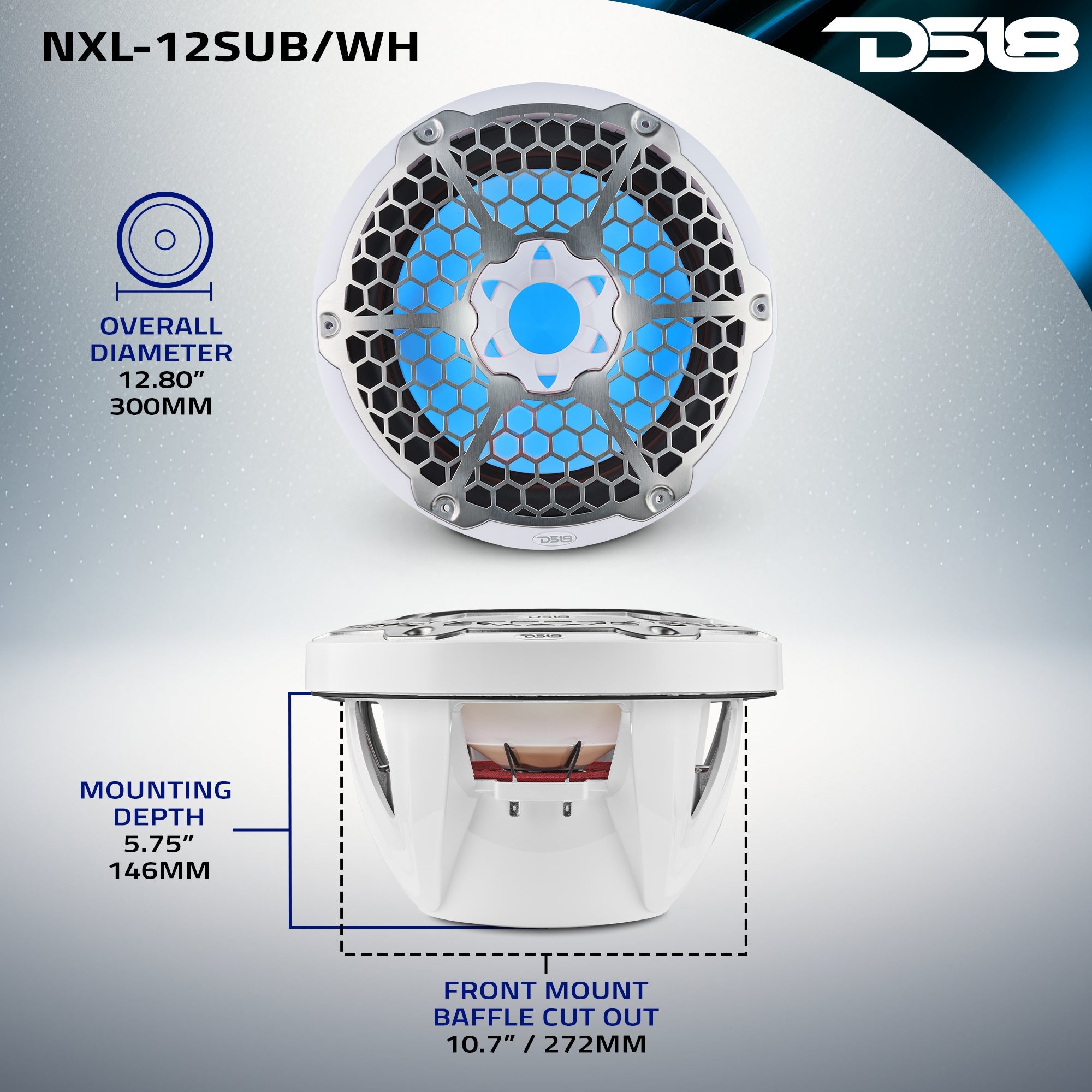

| Overall Diameter | 12.8" / 300mm |
| Overall Depth | 7.7" / 195mm |
| Front Mount Baffle Cutout | 10.7" / 272mm |
| Mounting Depth | 5.75" / 146mm |
| Motor Diameter | 5.51" / 140mm |
