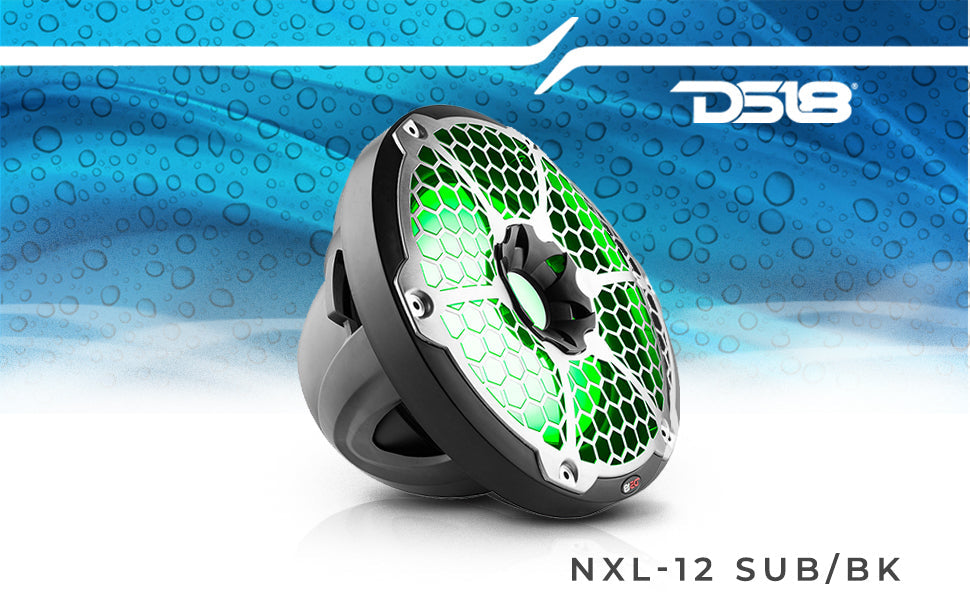

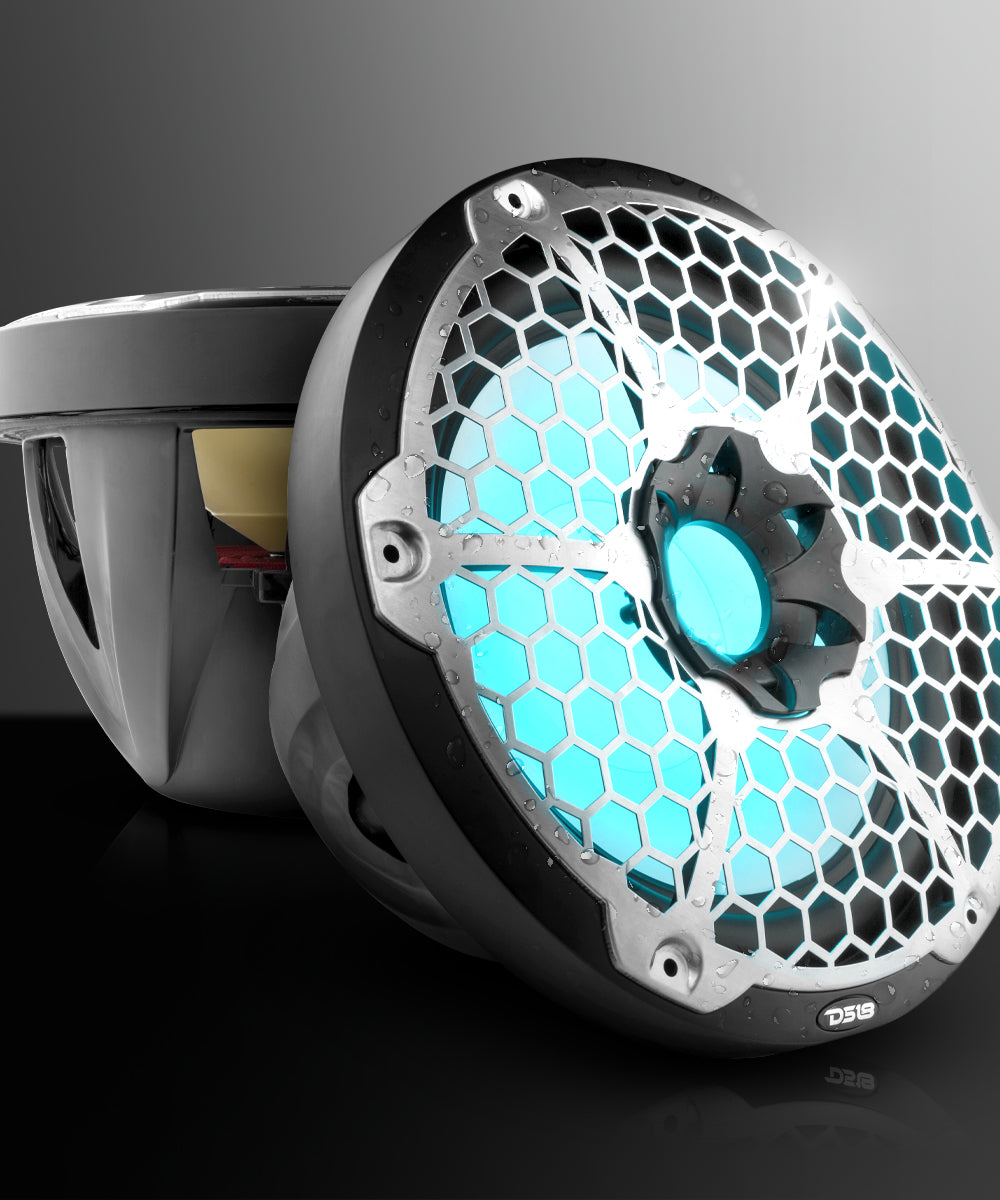

NXL 12" Marine Subwoofer with LED RGB Lights 350 Watts Rms SVC 4-Ohm

Availability: In stock SKU: NXL-12SUB/BK
Regular price $474.95 Sale price $379.96

NXL 12" Marine Subwoofer with LED RGB Lights 350 Watts Rms SVC 4-Ohm - DS18

NXL 12" Marine Subwoofer with LED RGB Lights 350 Watts Rms SVC 4-Ohm

$379.96

Product Overview

DS18 HYDRO NXL-12SUB/BK 12" Marine Water Resistant Subwoofer with Integrated RGB Lights 700 Watts SVC 4-Ohm - Black

 More cone area! More power handling! More frequency ranges! This is what the new DS18 NXL12SUB brings to the table. We have had our 10" sub in production for quite awhile now but some of our customers were wanting the same great styling, RGBs, power, and looks in a 12" variant as well. So, we happily obliged. This 12" is the big brother and it will handle more power (350w RMS) and provide more bass because of the additional cone area over the 10".

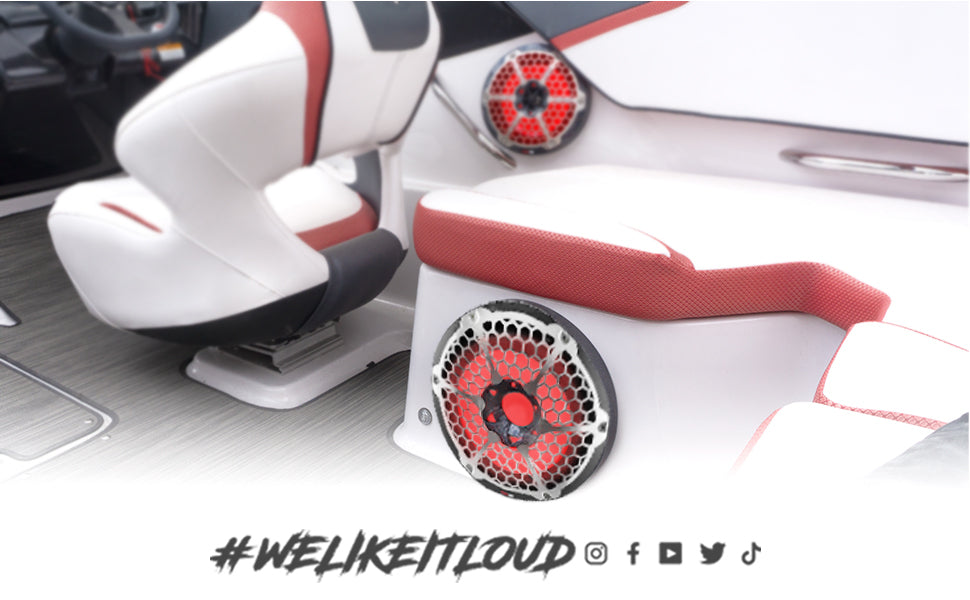

This subwoofer will perform great in all scenarios. The are mainly optimized in ported and sealed enclosures but with the correct baffles, can also be used as free air subs. These subs are IP65 waterproof rated and will take more environmental abuse than standard subs. They will come with RGB connectors built onto the frame for easy connections and fast wiring. If you need a subwoofer that will be used in rough conditions and do not want to sacrifice your equipment to damage out in the open, these are an amazing choice for your bass needs!

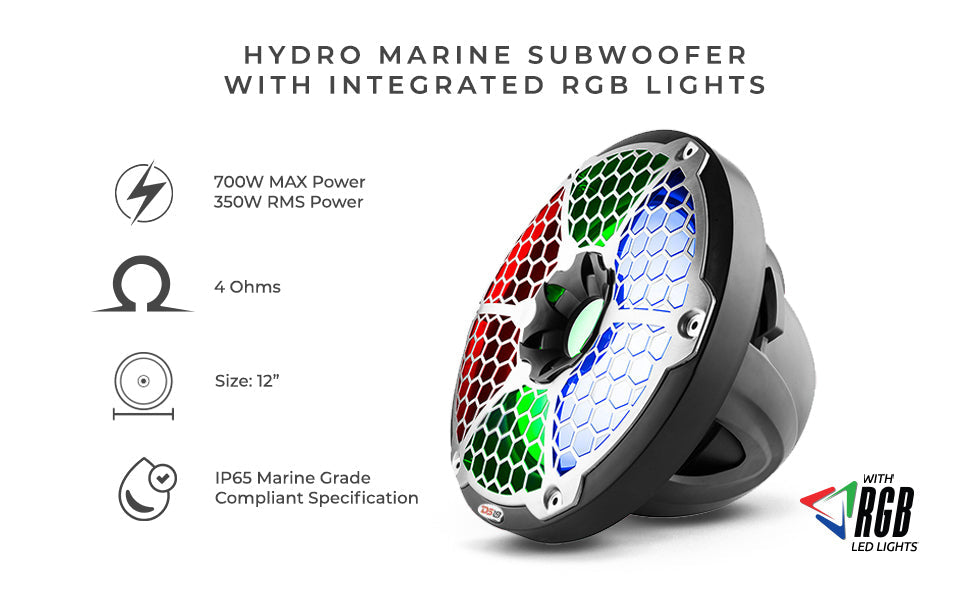

Highlights

    • Integrated RGB LED Lighting

    • IP65 Marine Grade Compliant Specifications

    • 100% UV Stable

    • Matte Black Finish

    • High Temp Injection Molded Composite

    • Matte Finish Basket with UV Coating

Technical Details
      Ecl2ew79nm000w01s6c6c22gyeE


Size:

12"

RMS Power:

350W

MAX Power:

700W

Magnet Type:

Y35 Ferrite and Reverse N40H Neodymium

Sensitivity:

91dB

Nominal Impedance:

4 Ohms

Frequency Response:

30- 500Hz

Mounting Depth:

5.75"/146mm

Mounting Hole:

11.81"/300mm

Key Features

  • 12" Marine Subwoofer
  • RMS Power: 350 Watts(700 Watts Peak)
  • Impedance: 4 Ohm 2" SVC
  • RGB LED Lights
  • Ferrite Magnet ~ 91dB
  • Water Resistant IP65

Specifications

Nominal Diameter 12" / 305mm
Nominal Impedance 4 ohms
RMS Power Handling 350W
MAX Power Handling 700W
Sensitivity (1w/1m) 91dB
Frequency Response 30-200Hz
Recommended Low Pass Crossover 80Hz
UV Compliant Yes, 100% Stable
Marine Grade Type IP65
RGB LED Yes, RGB integrated
Grill Type Injection Molded Composite (ASA) with 316 Stainless Steel mesh
Sold as Single unit
Color / Finish Black / Satin
Voice Coil Diameter 2" / 50.8mm
Voice Coil Former Material Glass fiber
Winding Material CCAW
Cone Material Injection Molded Polypropylene + UV Compliant
Surround Material Butyl (Rubber)
Basket Material High Temp Injection Molded Composite (ASA) with UV Protection coating
Magnet Material Ferrite
Magnet Weight 75oz
Equivalent Volume 68.8L / 2.42ft3
Excursion (one way) 10mm
Free Air Resonance 32Hz
Mechanical Factor 7.85
Electrical Factor 0.58
Total Factor 0.54
Moving Mass 131.59g
Compliance 0.19 mm/N
BL Factor 12.76
Voice Coil Inductance 0.89mH
Diaphragm Area 510.7 Cm3
DC Resistance 4.15 ohms
Efficiency Bandwidth Product 55.1
Sealed Internal Volume 0.6~2ft3
Sealed Box Output Response 60~35Hz
Free Air or Baffle Mount Yes (Recommended)

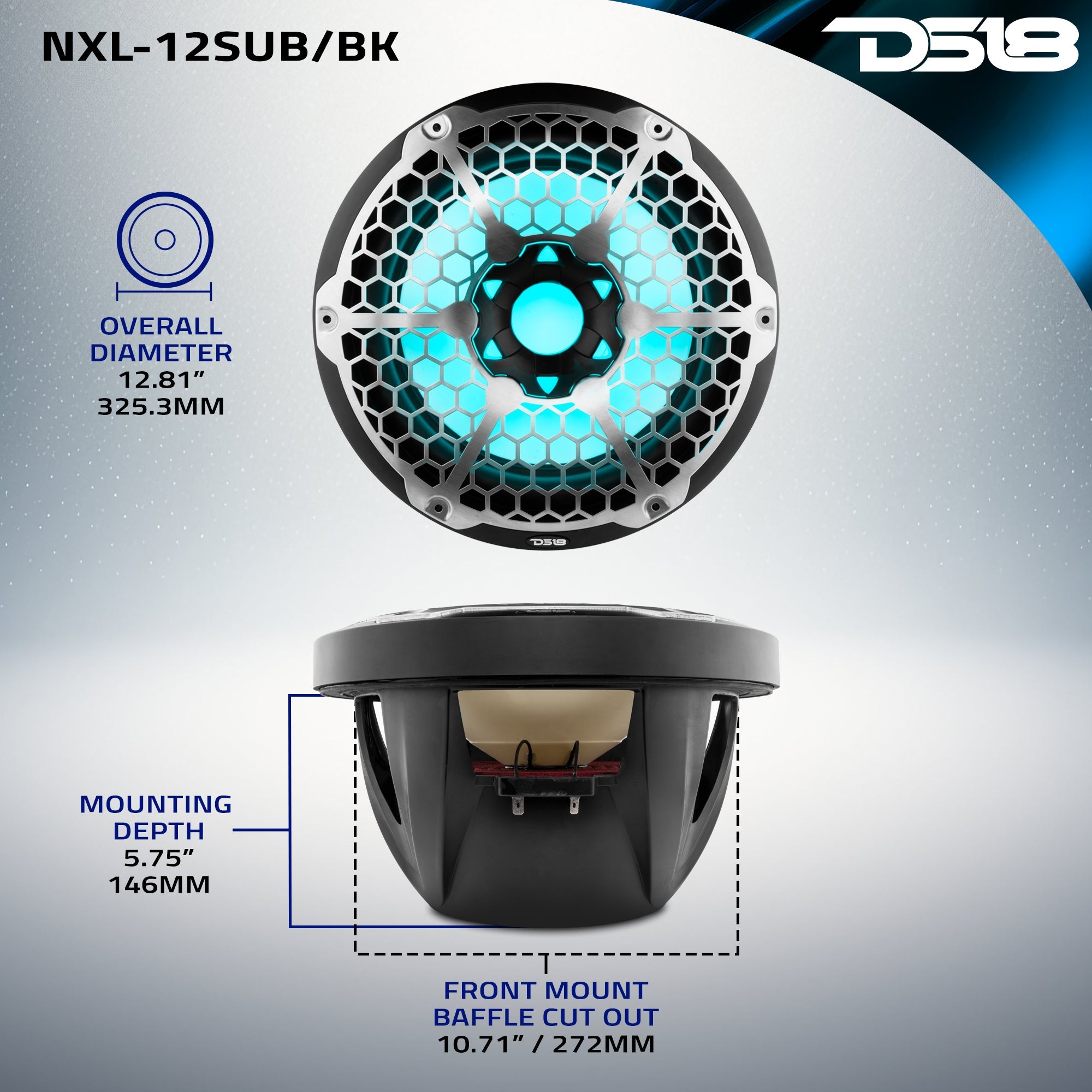

Overall Diameter 12.8" / 300mm
Overall Depth 7.7" / 195mm
Front Mount Baffle Cutout 10.7" / 272mm
Mounting Depth 5.75" / 146mm
Motor Diameter 5.51" / 140mm
