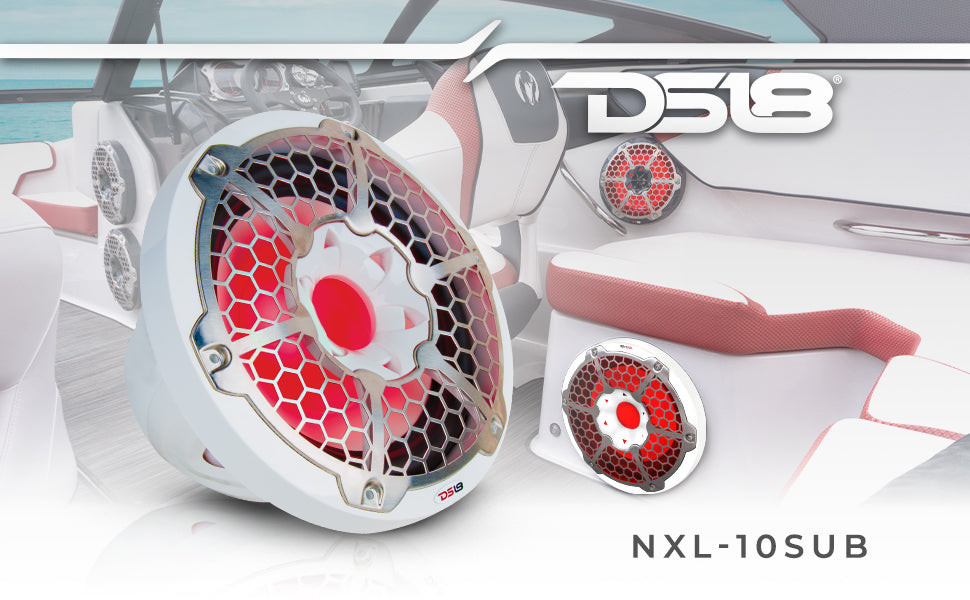

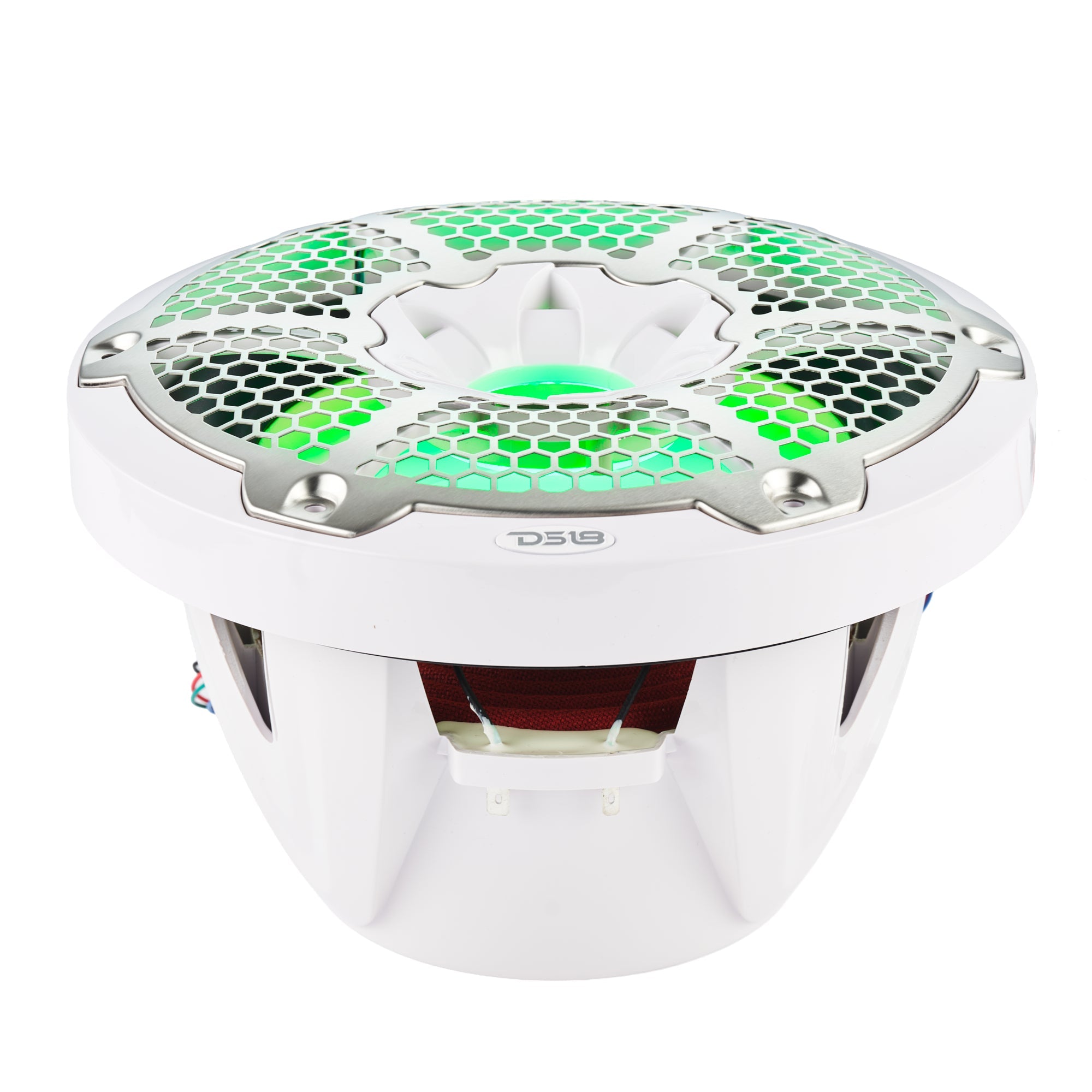

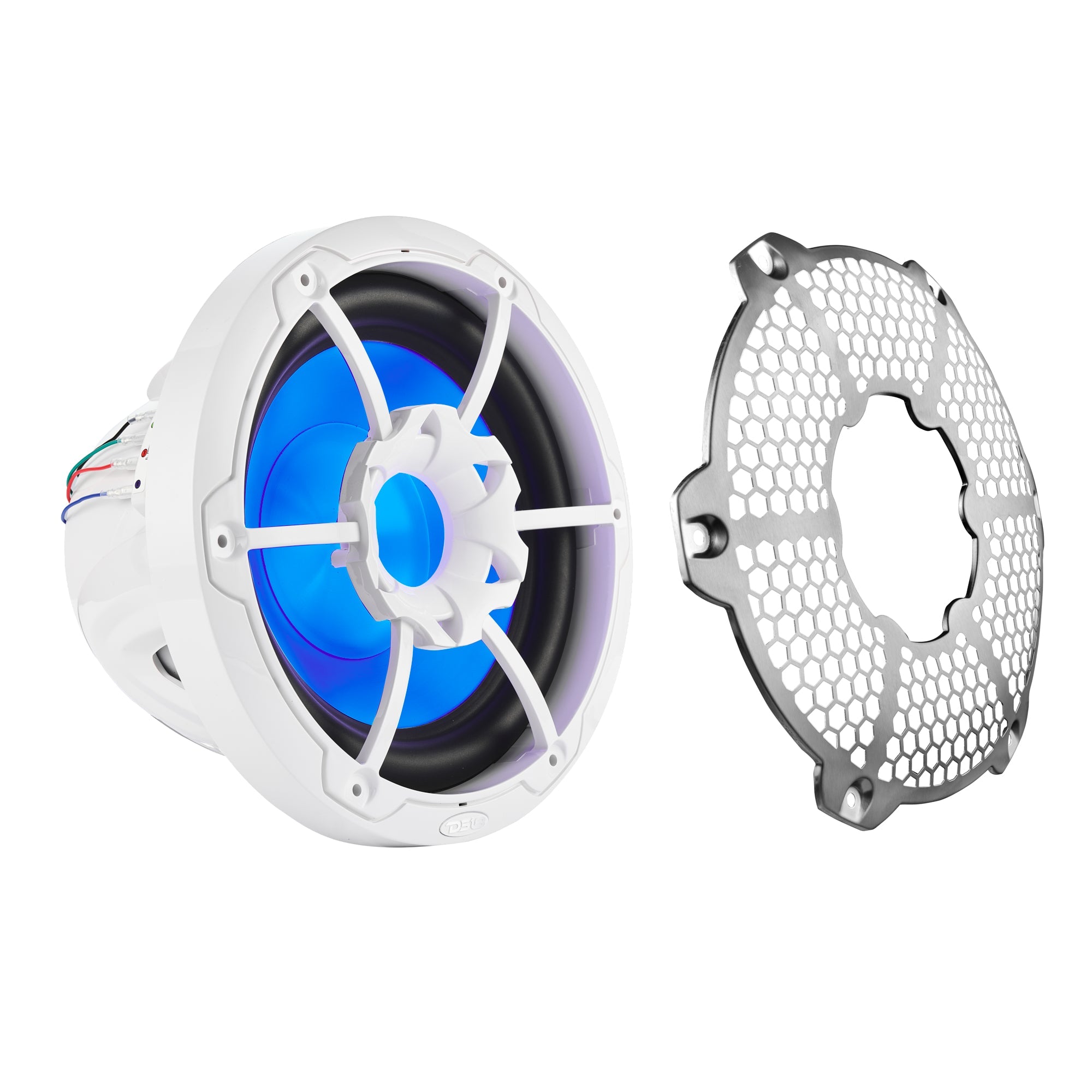

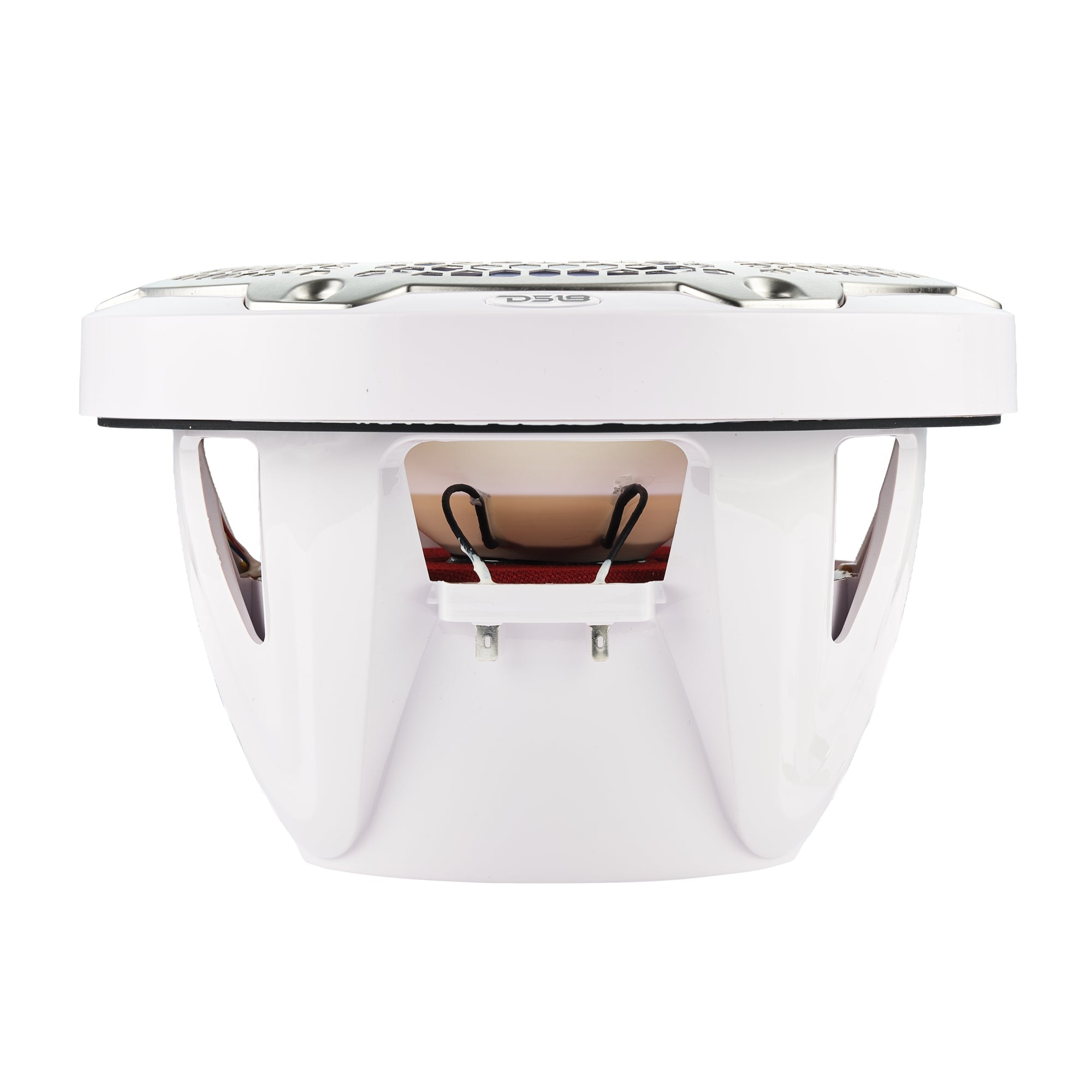

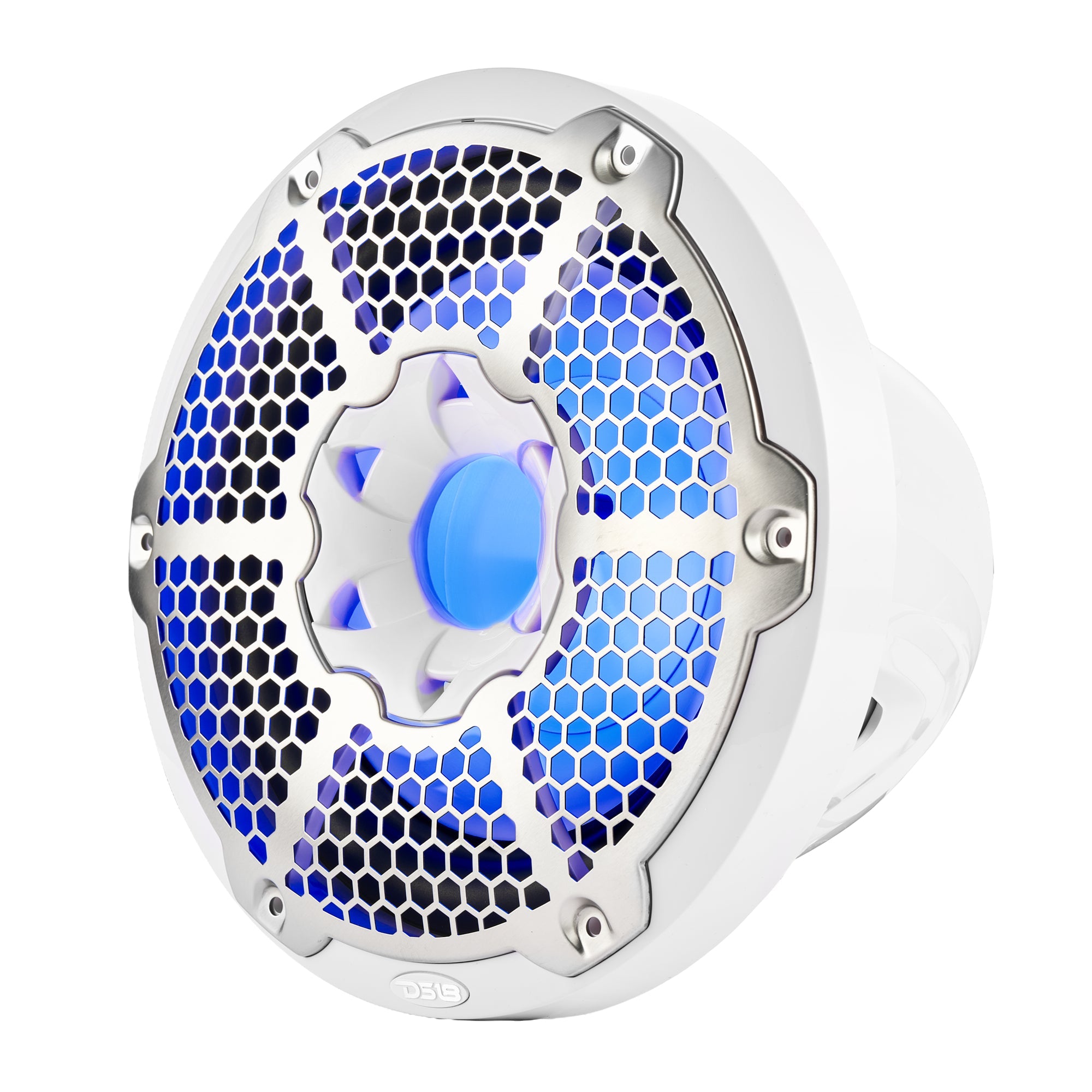

NXL 10" Marine Subwoofer with LED RGB Lights 300 Watts Rms SVC 4-Ohm

Availability: In stock SKU: NXL-10SUB/WH
Regular price $349.95 Sale price $279.96

NXL 10" Marine Subwoofer with LED RGB Lights 300 Watts Rms SVC 4-Ohm - DS18

NXL 10" Marine Subwoofer with LED RGB Lights 300 Watts Rms SVC 4-Ohm

$279.96

Product Overview

HYDRO 10" Marine Subwoofer with Integrated RGB Lights 600 Watts SVC 4-Ohms White

The DS18 Hydro All Elements Series is comprised of many components and accessories to make any build imaginable come to life. With over 50 marine grade compliant products we have whatever you may need for your ATV, UTV, Side by Side, Jeep, Motorcycle, Boat, or anything in between. We invite you to get as creative as possible and make the loudest, clearest system on any terrain, water body, or air.

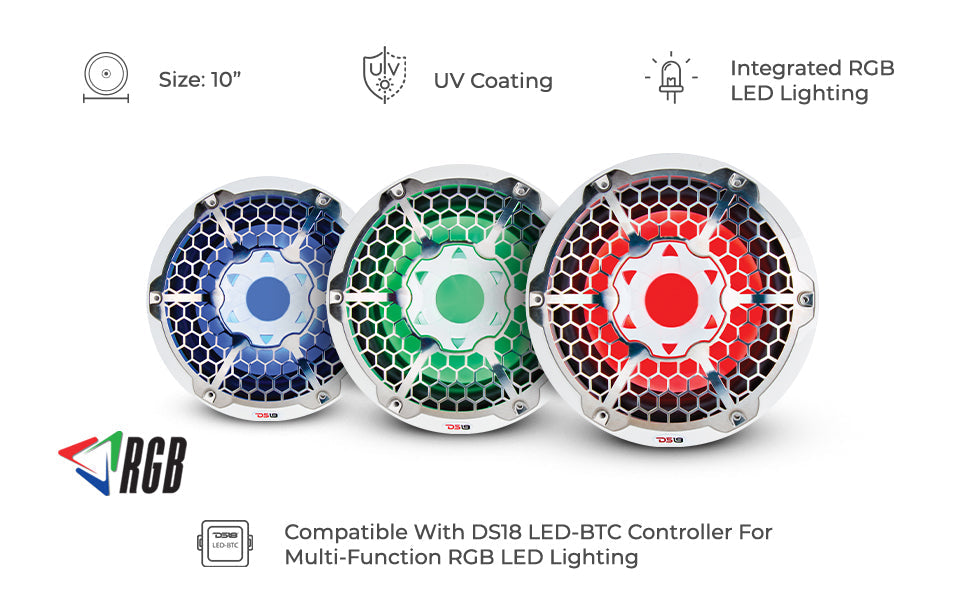

The DS18 Hydro Motorsport and Marine Series rugged yet sleek design, provide its users with trouble free, waterproof (IP65), amazing sound quality. Engineered for all elements, these speakers/subwoofers are a great addition to your marine life and motorsports! The HYDRO Series range in size from 6.5", 8", and 10" with MAX Power up to 600W! Also equipped with an integrated RGB LED Lighting, high temp injection molded composite, ASA Grills with UV coating or a high gloss basket with UV coating.

Compatible with DS18 LED-BTC or any other RF/BT/Wifi Controller for Multi-Function RGB LED Lighting (Sold Separately)

Technical Details
                                                NXL-10SUB Product Manual

NXL 10 SUB
Size: 10"
RMS Power: 300W
MAX Power: 600W
Magnet Type: Ferrite
Sensitivity: 89dB
Nominal Impedance: 4 Ohm
Frequency Response: 35Hz-250Hz

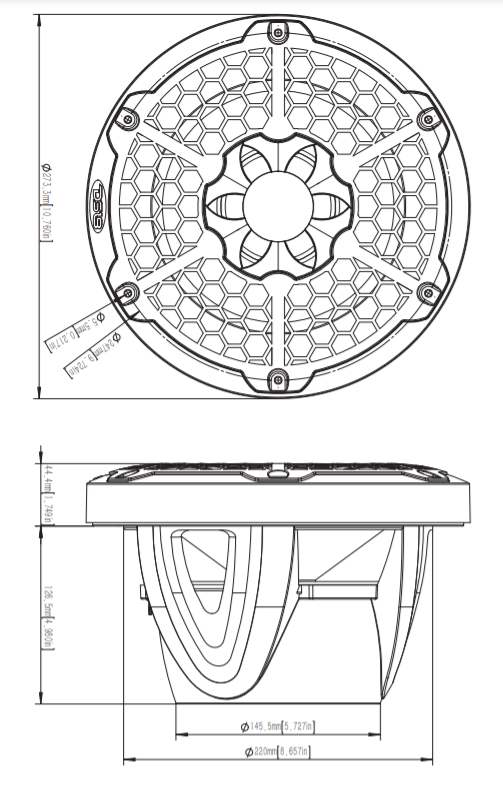

Mounting Depth: 5"/127.5mm
Cut-Out Diameter: 8.78"/223mm
Overall Diameter: 10.75"/273mm
Overall Height: 6.71"/170.5MM

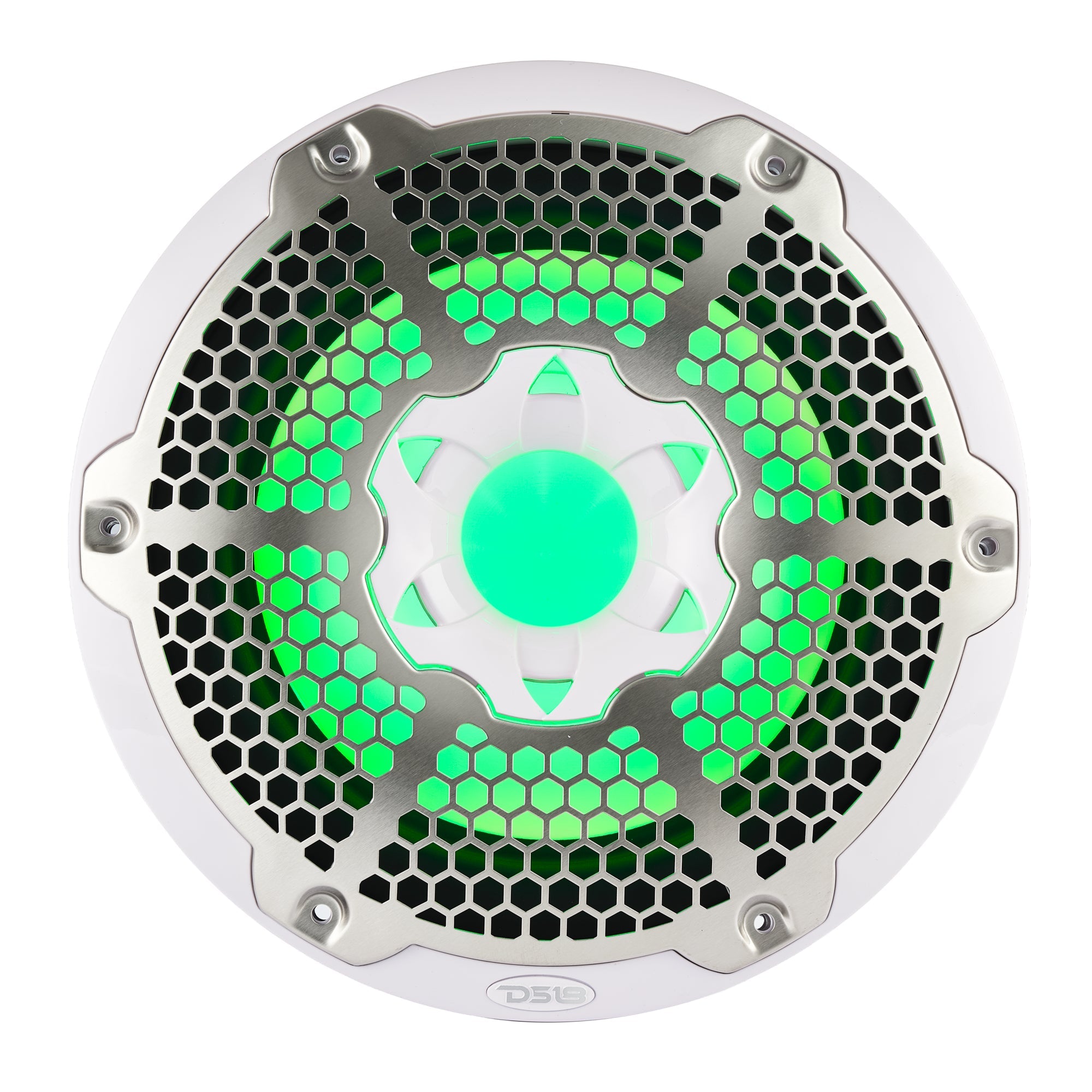

Features: Integrated RGB LED lighting
IP65 Marine Grade Compliant Specifications
100% UV Stable
Glossy White Finish
High Temp Injection molded composite
High gloss basket with UV coating

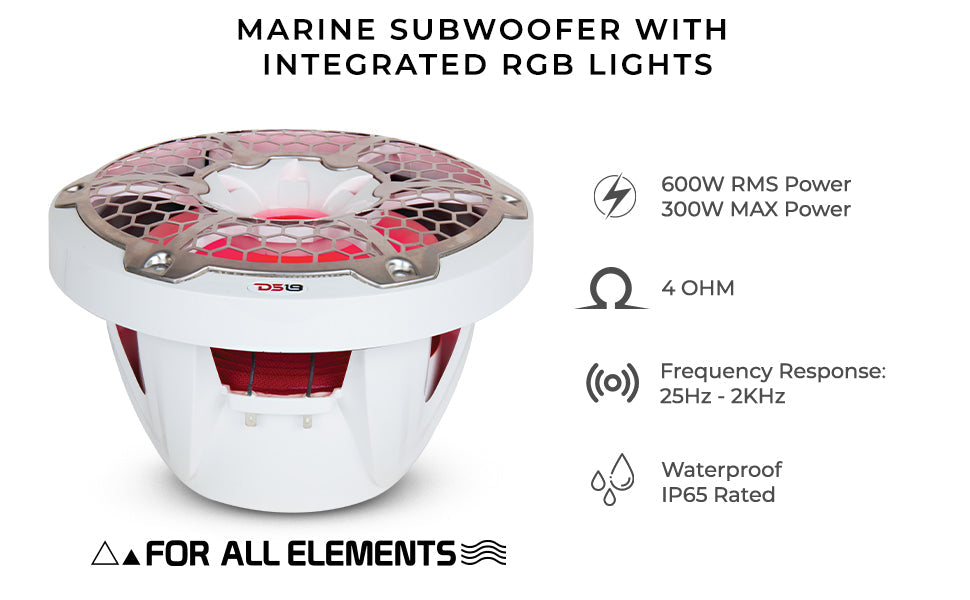

Key Features

  • 10" Marine Subwoofer
  • RMS Power: 300 Watts(600 Watts Peak)
  • Impedance: 4 Ohm 2" SVC
  • RGB LED Lights
  • Ferrite Magnet ~ 89dB

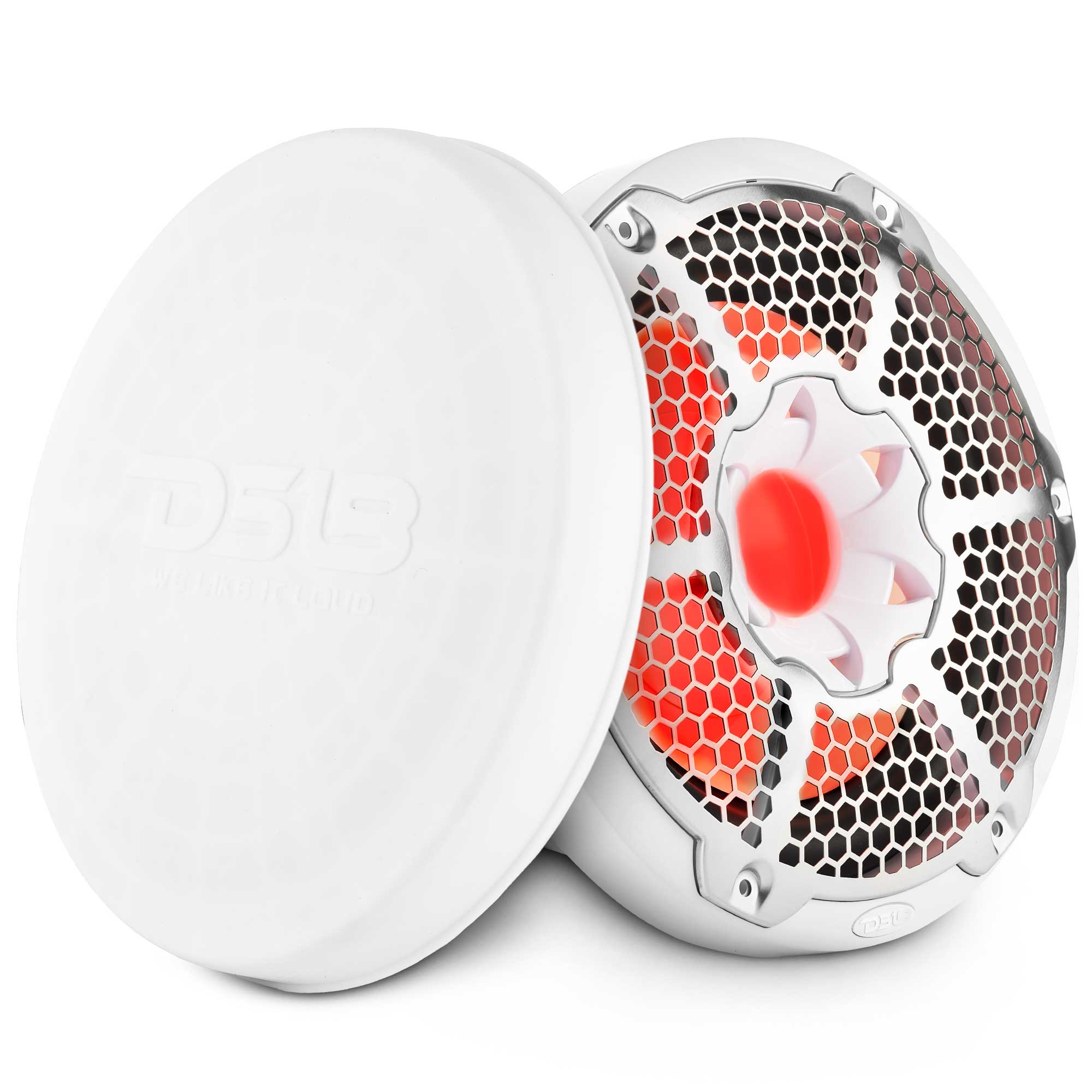

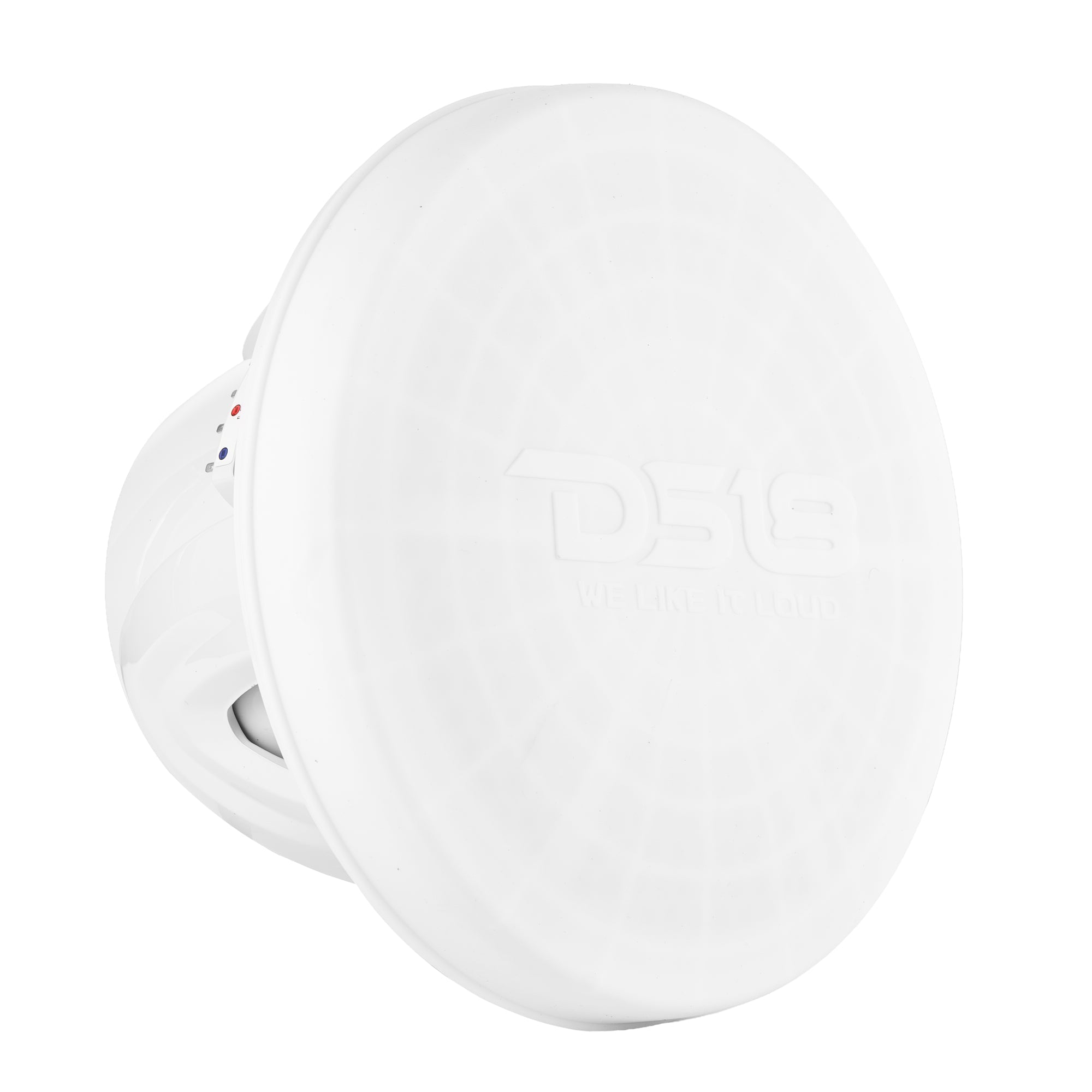

  • Water Resistant IP65 / Silicone cover included

Specifications

SKU NXL-10SUB/WH
Nominal Diameter 10" / 254mm
Nominal Impedance 4 ohm
RMS Power Handing 300W
Maximum Power Handing 600W
Sensitivity (1w/1m) 89dB
Frequency Response 35-250Hz
Recommended Lo Pass Crossover 100Hz
Voice Coil Diameter 2" / 50.8mm
Voice Coil Former Material Glass Fiber
Winding Material CCAW
Basket Material High Temp Injection Molded Composite with UV Protection coating
Magnet Weight 72 oz
Vas 26.7L / 0.94ft3
Fs 45Hz
Qms 8.919
Qes 0.805
Qts 0.457
Re 3.65

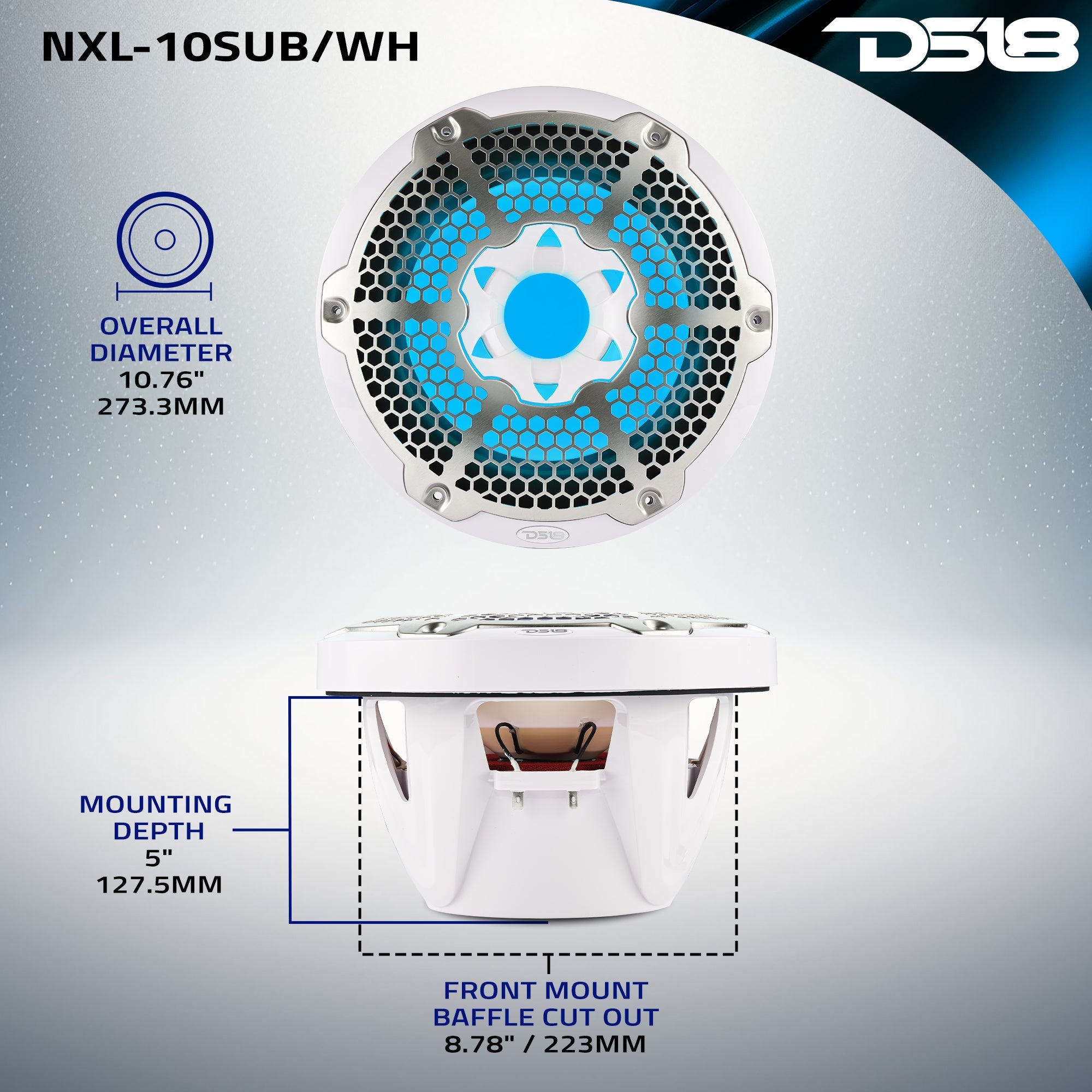

Overall Diameter 10.76" / 273.3mm
Front Mount Baffle Cutout 8.78" / 223mm
Mounting Depth 5" / 127.5mm
Overall Depth 6.73" / 171mm
Product Weight 14 lbs
Product Dimensions 13.25 x 13.25 x 8.75
M/C Weight 30 lbs
M/C Dimensions 27 x 13.75 x 9.5
M/C QTY 2
Sold In Piece
