1.92" Dome Neodymium Tweeter with Aluminum Body 60 Watts 1" Silk 4-Ohm Vc
Product Overview Overview DS18 CXT 1.92" Silk Dome Tweeter With 1" Voice Coil And Neodymium Magnet 120...
- $59.95
- $59.95
- Unit price
- per
Subtotal:
$59.95
Couldn't load pickup availability
Instructions:
View Instructions
Out of stock
Product Overview
Overview

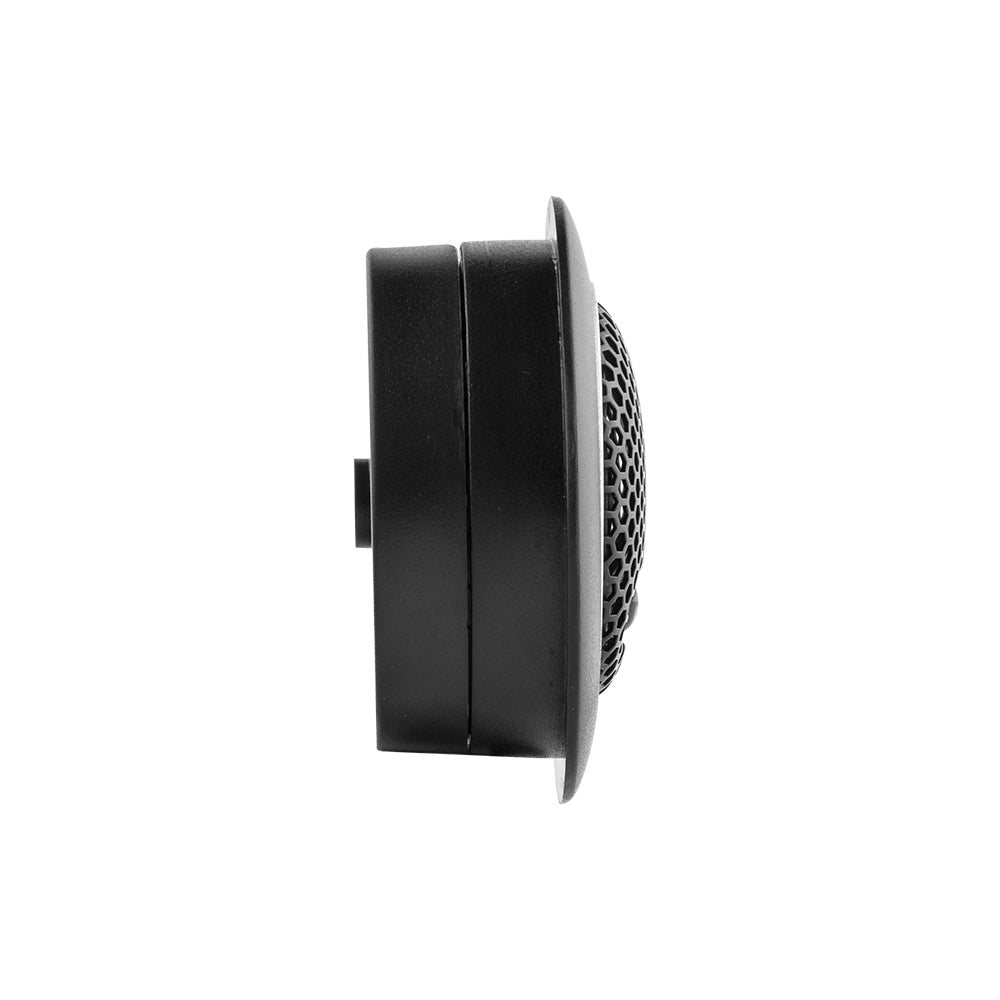

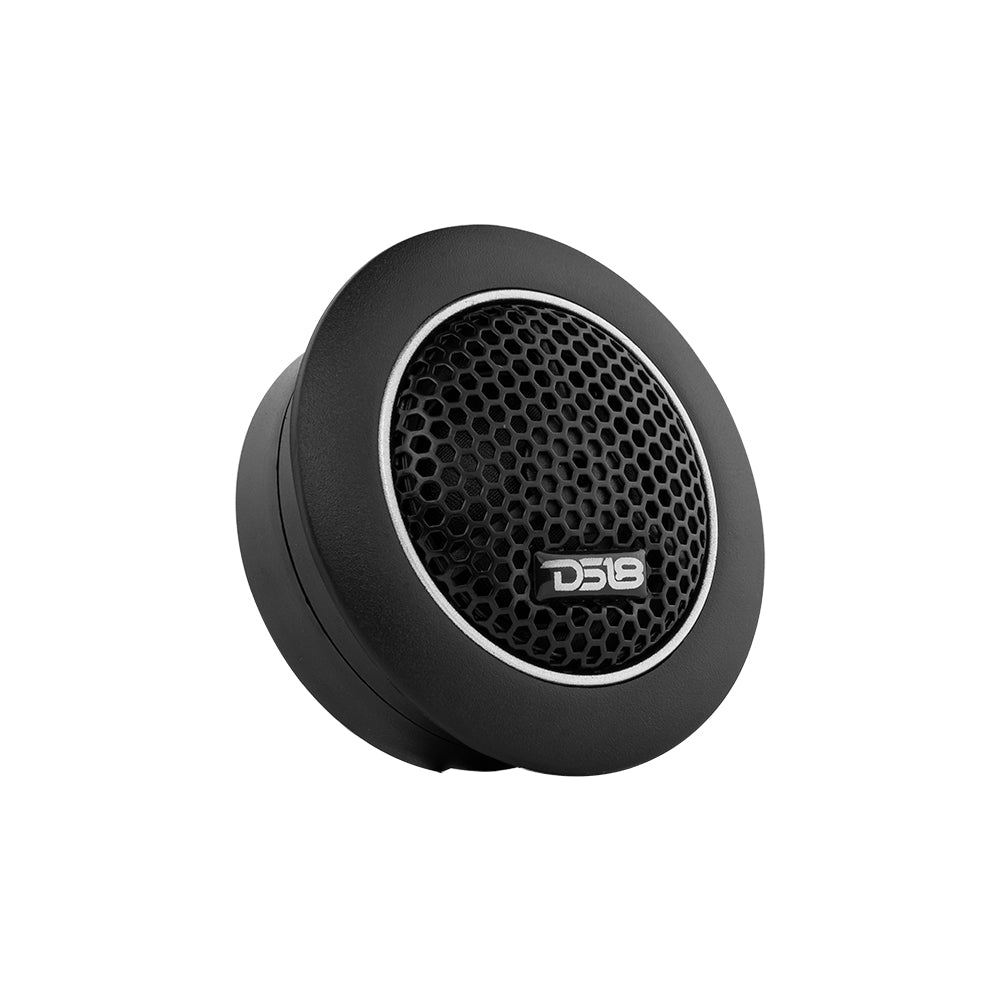

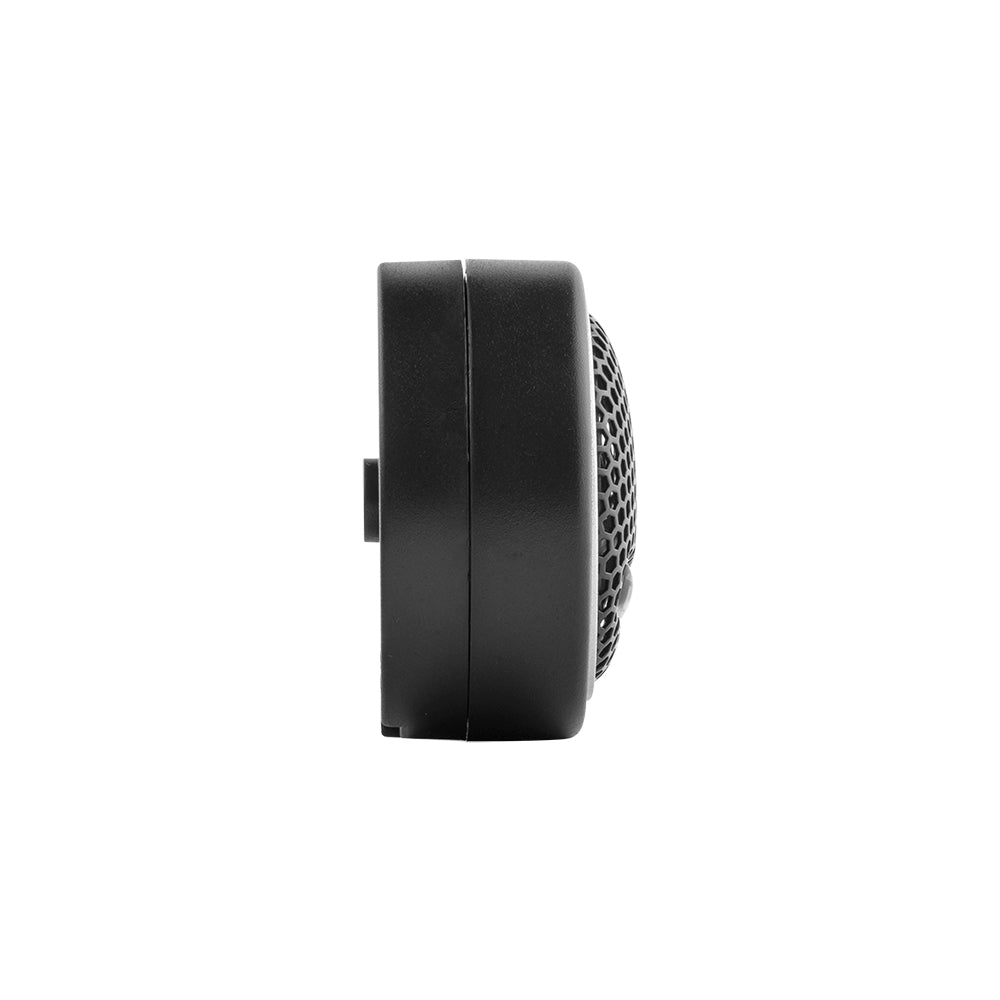

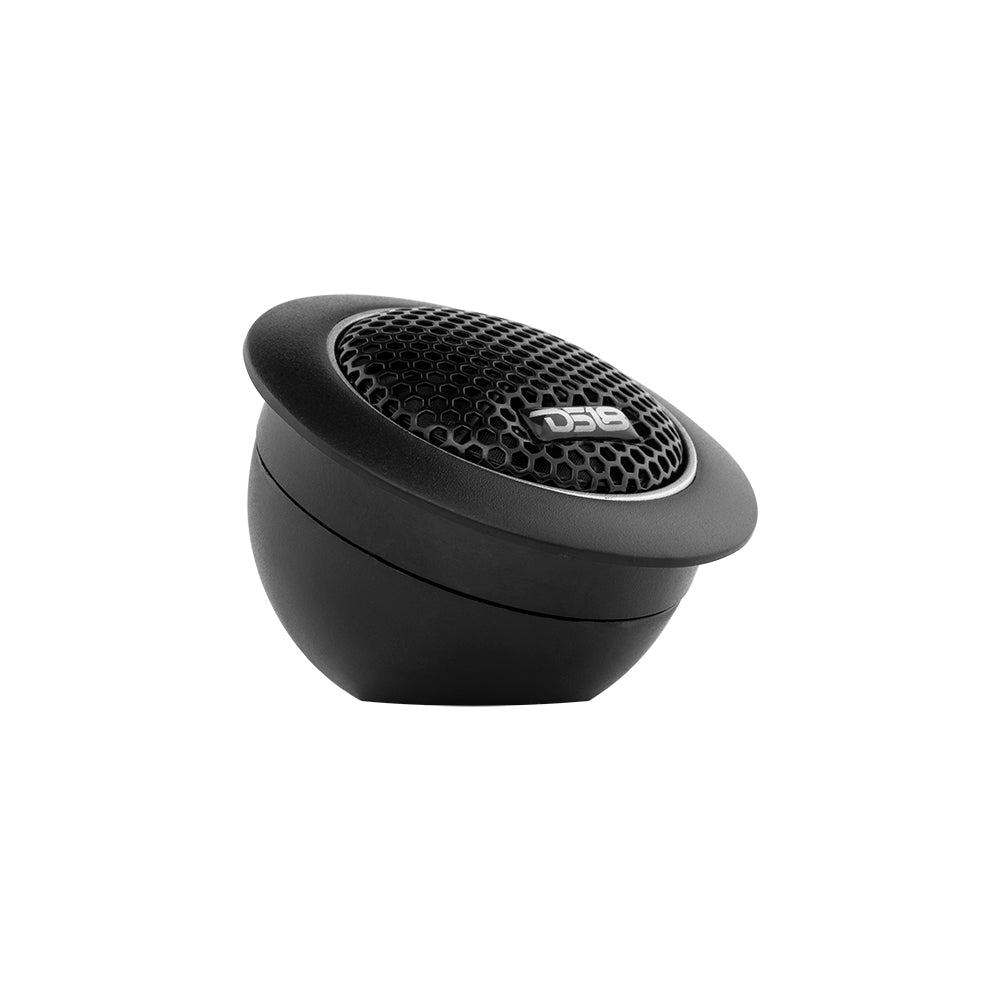

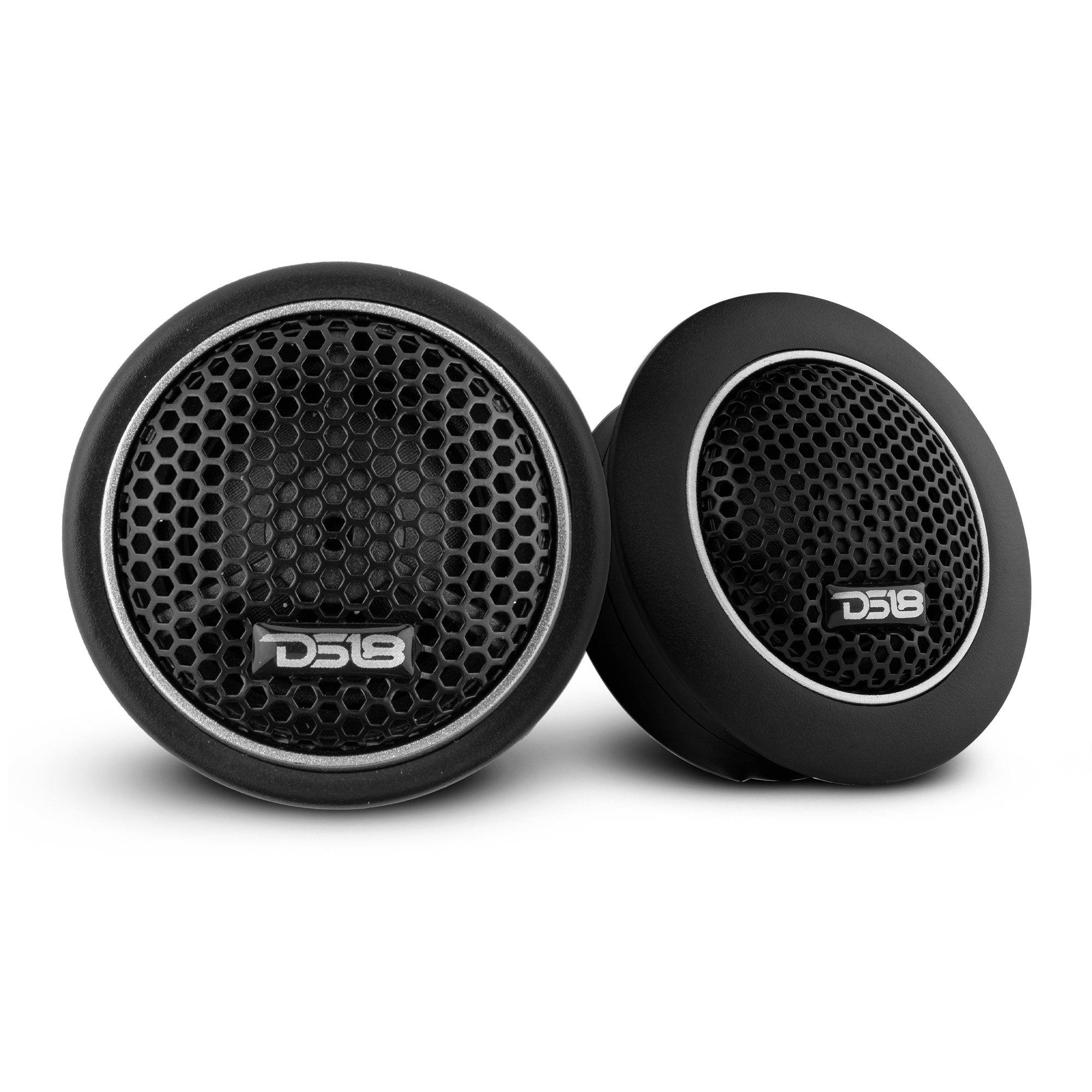

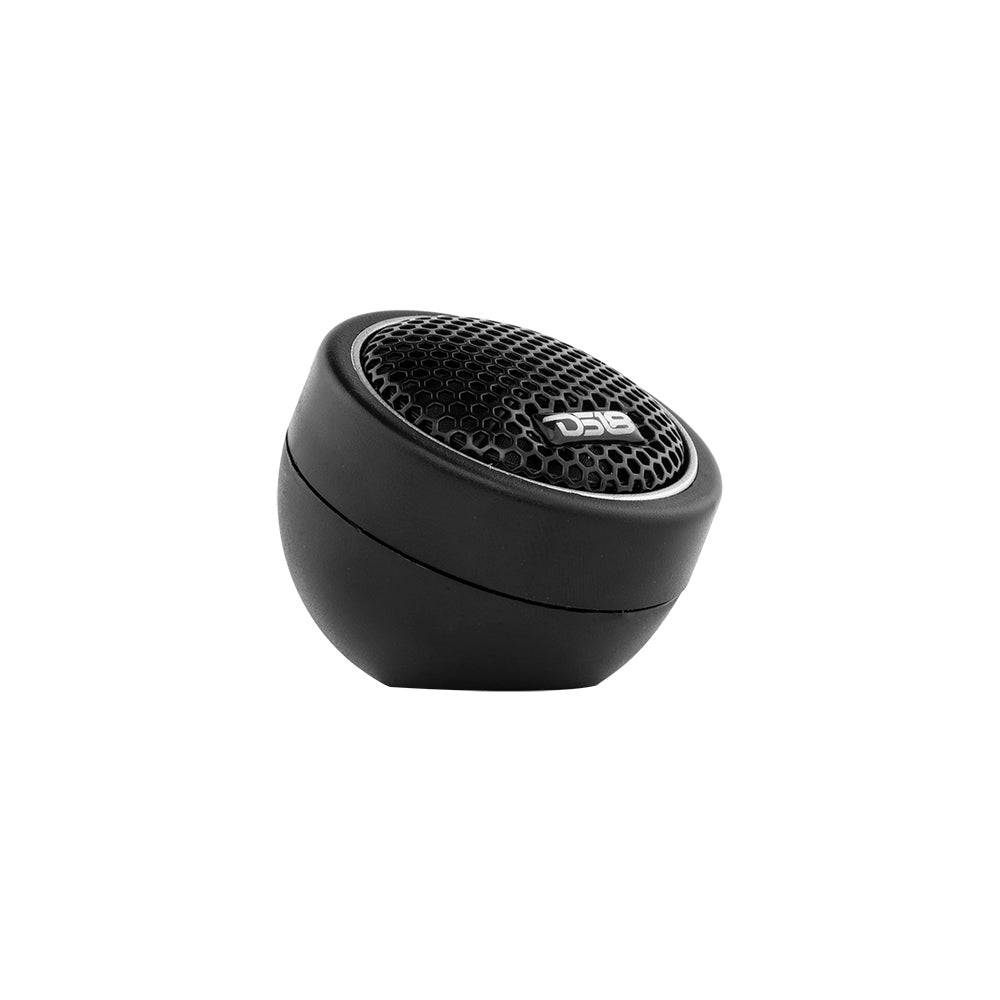

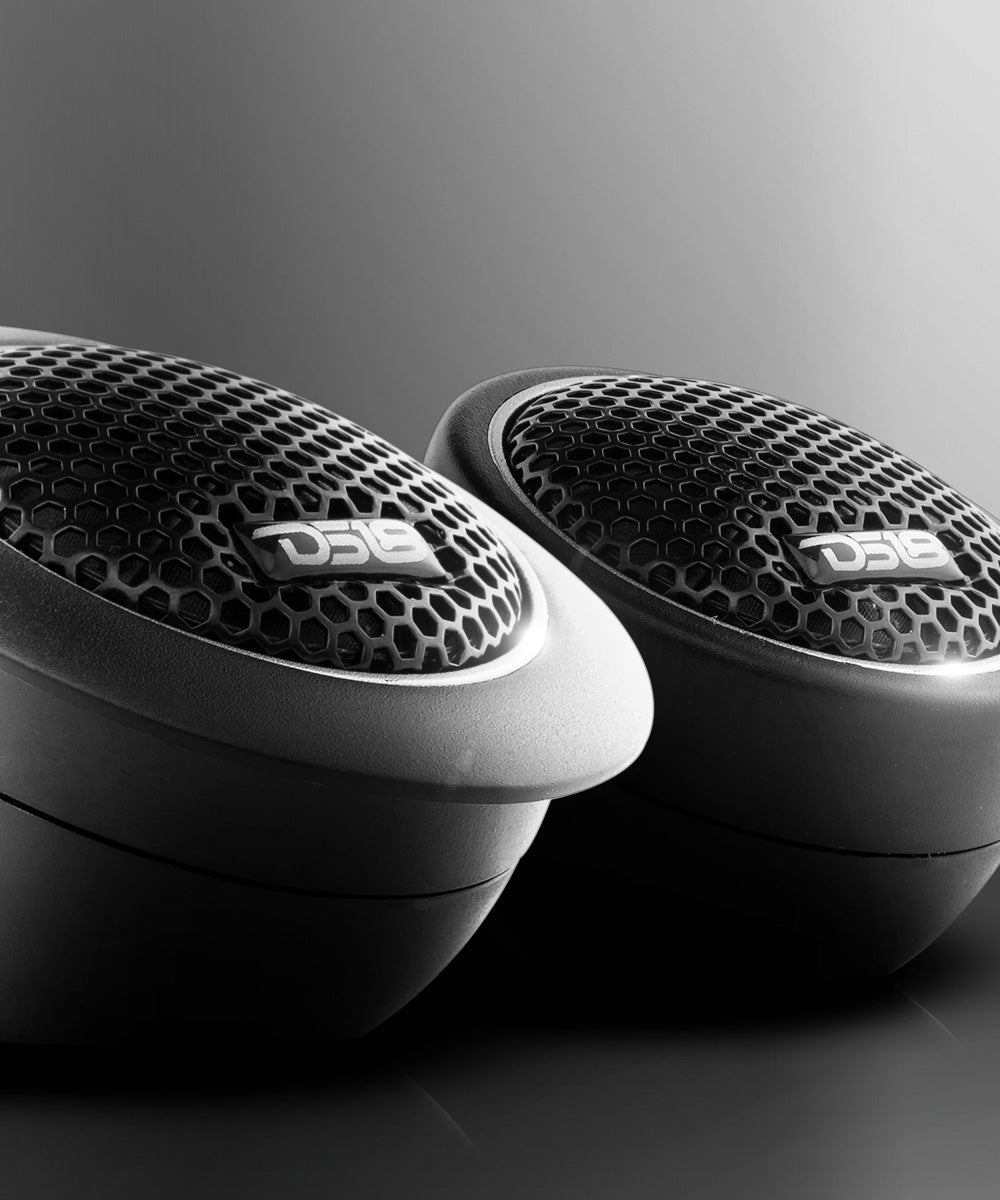

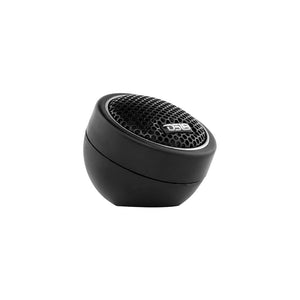

DS18 CXT 1.92" Silk Dome Tweeter With 1" Voice Coil And Neodymium Magnet 120 Watts Max
Our CXT tweeter is a great option for those wanting competition level tweeters that not only sound great, but have that intense volume that DS18's tweeters are known for around the world.
This tweeter maximizes and emphasizes volume over all with high power and high frequency notes. The high quality design gives it a unique look that demands attention from everyone around it. This drop in 1.92 inch overall diameter tweeter can handle 30w AES and 120w peak power so it will be sure to deliver all the high range frequencies you are looking for with amazing sound quality and responsiveness.
Highlights
- 1.9 inch overall diameter with a 1 inch voice coil is designed to make crisp and bright high frequencies with maximum loudness for your system.

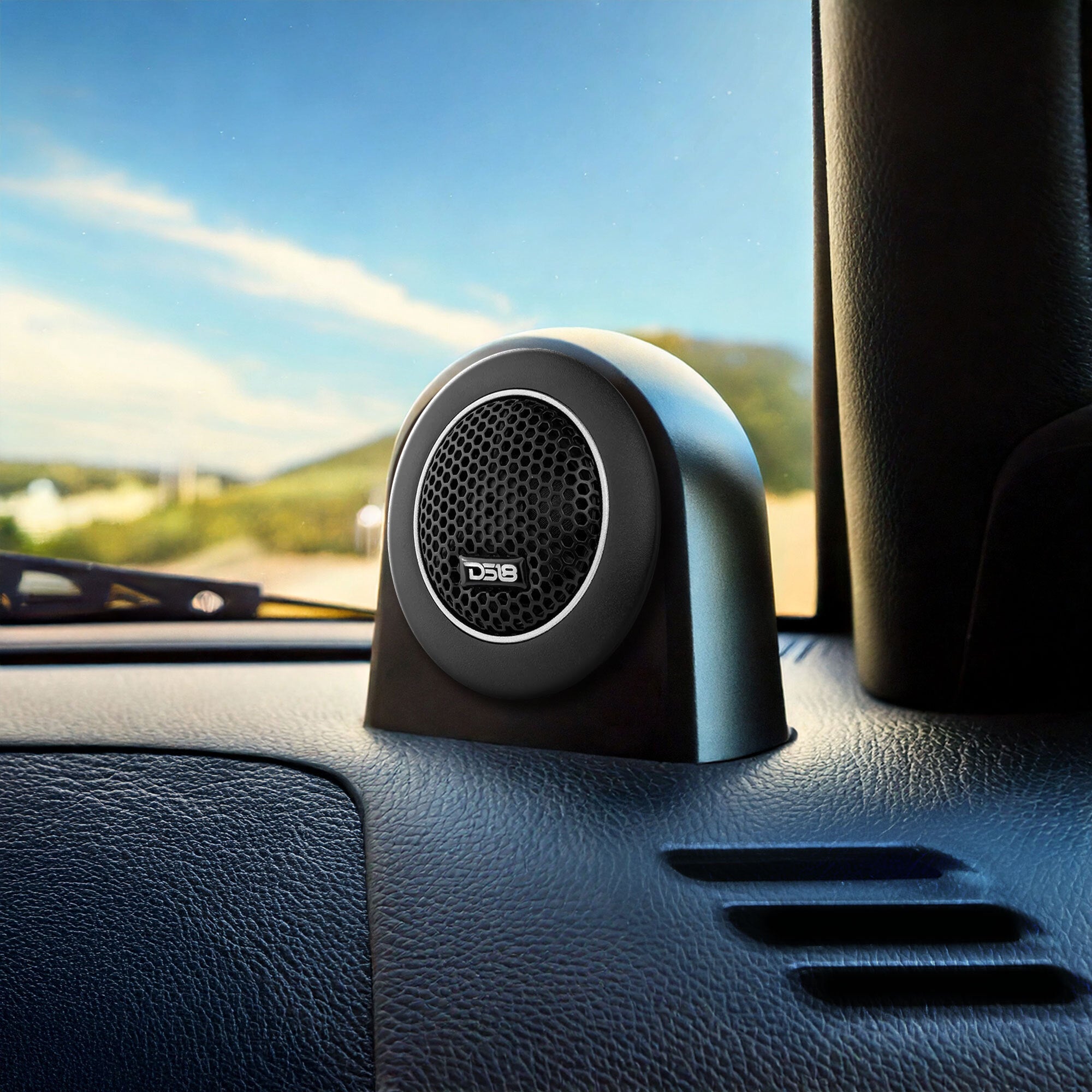

- Small design makes it easy to mount and even easier to pair together for great looks and easy installations.
- Power rating of 30w AES and 120 peak which will allow the high frequencies to play with authority.
Technical Details
| Model | CXT |
| Nominal Diameter | 1.92" / 49mm |
| Nominal Impedance | 4 OHMS |
| AES Power Handling | 30W |
| Program Power Handling | 60W |
| Peak Power Handling | 120W |
| Sensitivity (1w/1m) | 87 dB |
| Frequency Response | 1.5KHz-20KHz |
| Recommended Hi Pass Crossover | 3KHz |
| Pair | Yes |
| MOTOR | |
| Voice Coil Diameter | 1” / 25.4mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | SV |
| Diaphragm Material | Silk |
| Magnet Material | Neodymium |
| Magnet Weight | 0.33 oz / 9.6g |
| Body Material | ABS |
| Body Color | Black |

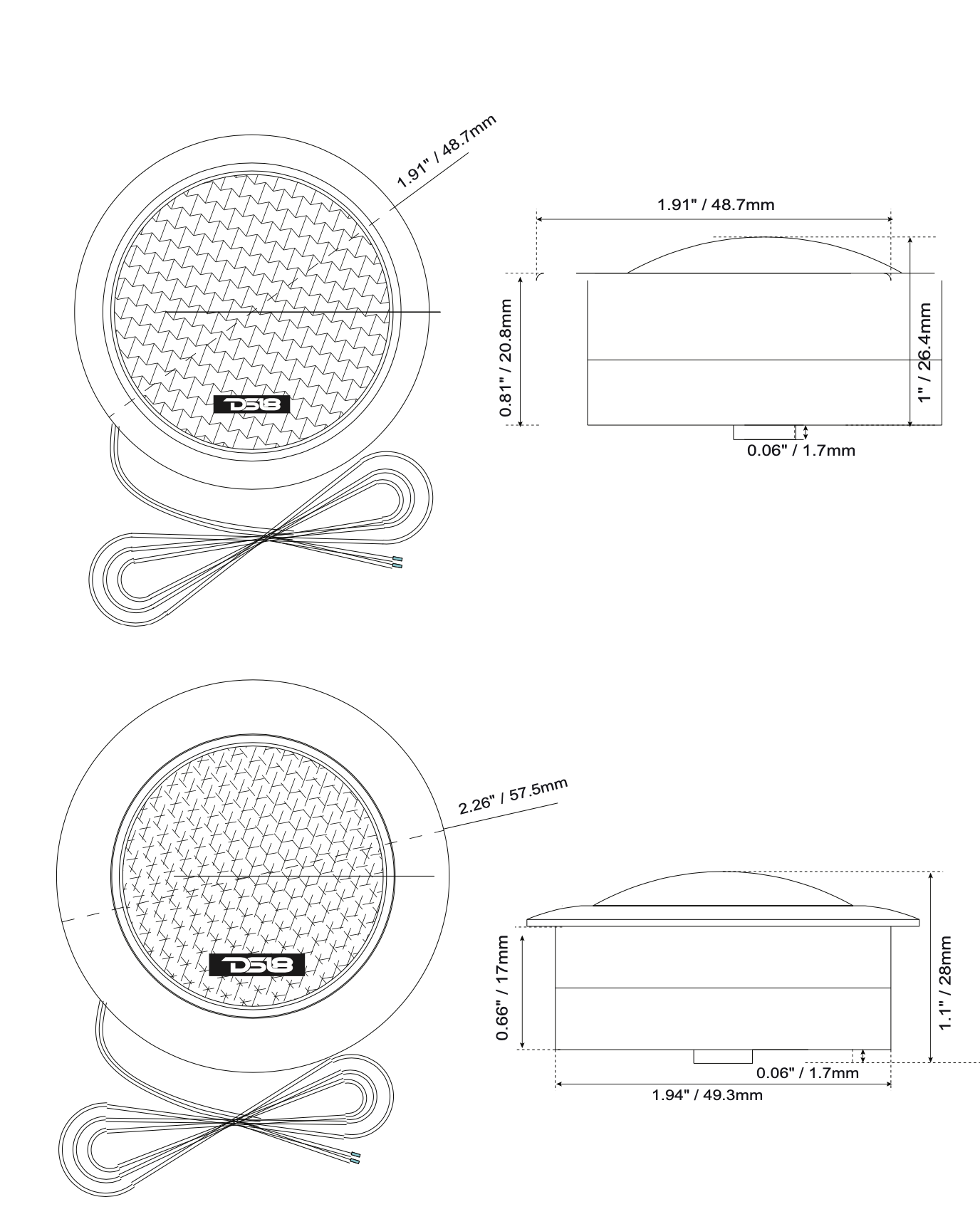

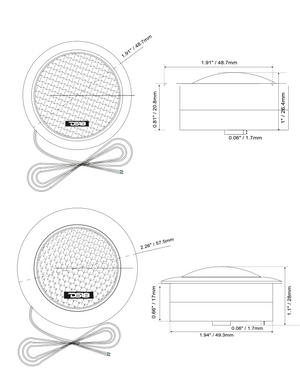

| MEASUREMENTS / MEDIDAS: | |
| Overall Diameter | 1.69" / 43mm |
| Overall Depth | 0.74" / 19mm |
| Front Mount Baffle Cutout | 1.92" / 49mm |
| Mounting Depth | 0.7" / 18mm |
Key Features
- 1.92" Dome Tweeter
- RMS Power: 60 Watts(120 Watts Peak)
- Impedance: 4 Ohm ~ 87dB
- Silk Diaphragm
- Neodymium Magnet
- Pair
Specifications
| SKU | CXT |
|---|---|
| Nominal Diameter | 1.92" / 49mm |
| Nominal Impedance | 4 OHMS |
| AES Power Handling | 30W |
| Program Power Handling | 60W |
| Peak Power Handling | 120W |
| Sensitivity (1w/1m) | 87 dB |
| Frequency Response | 1.5K-20KHz |
| Recommended Hi Pass Crossover | 3KHz |
| Pair | Yes |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | SV |
| Diaphragm Material | Silk |
| Magnet Material | Neodymium |
| Magnet Weight | 0.33 oz / 9.6g |
| Overall Diameter | 1.69" / 43mm |
| Overall Height | 0.74" / 19mm |
| Front Mount Baffle Cutout | 1.92" / 49mm |
| Mounting Depth | 0.7" / 18mm |
| Product Weight | 1 lbs |
| Product Dimensions | 10.5 x 6.5 x 2.75 |
| M/C Weight | 12.5 lbs |
| M/C Dimensions | 22 x 14.25 x 9.75 |
| M/C QTY | 12 |
| Sold In | Pair |
