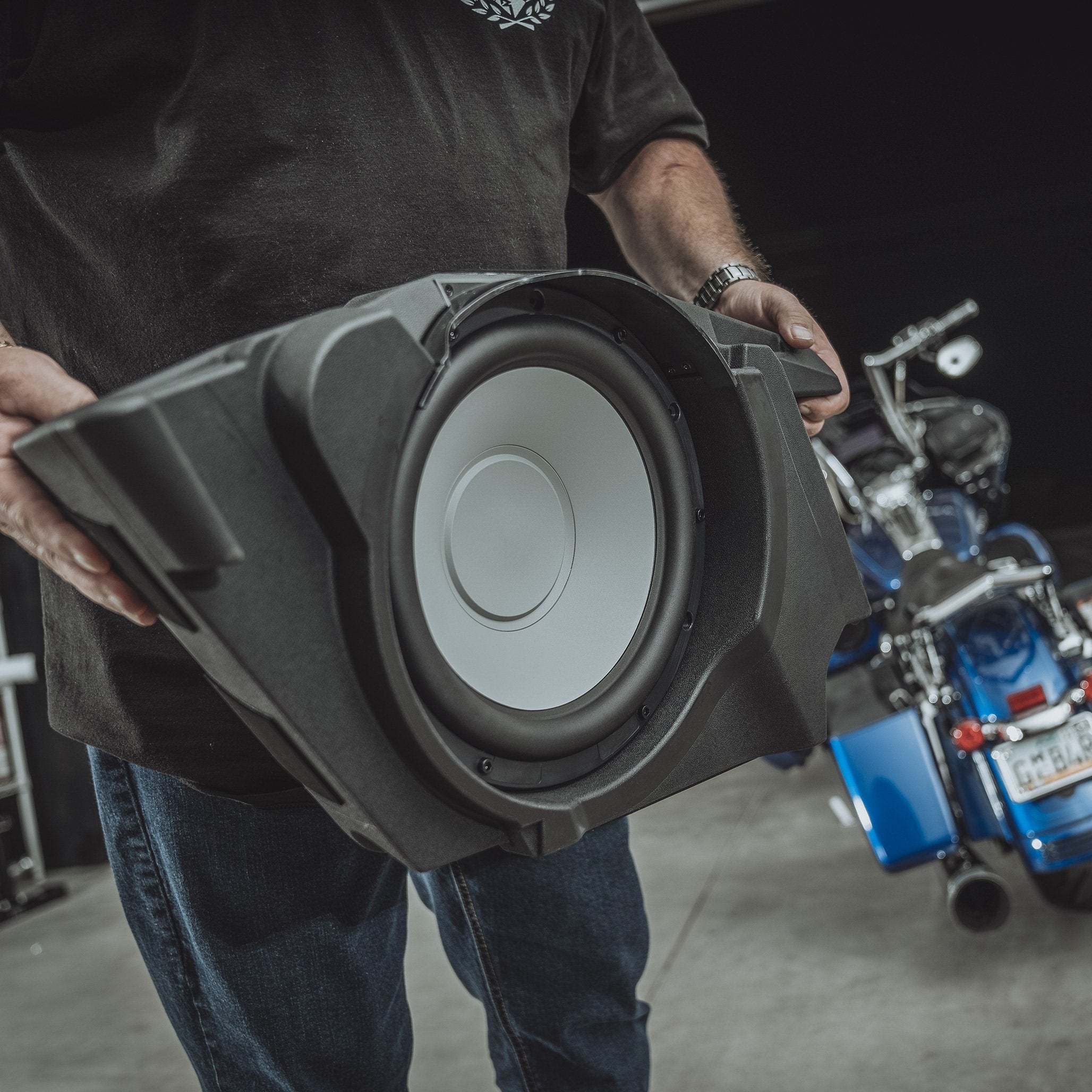

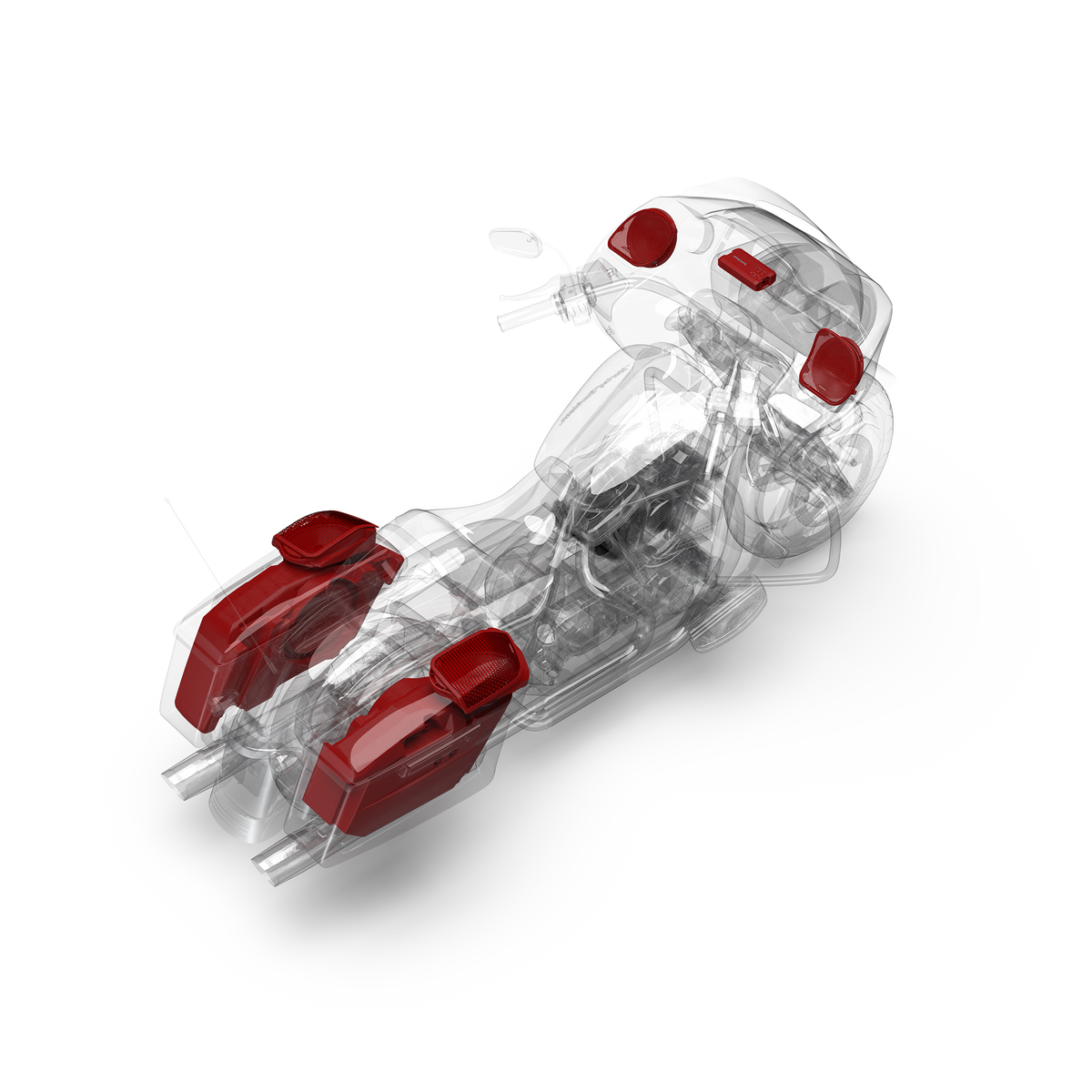

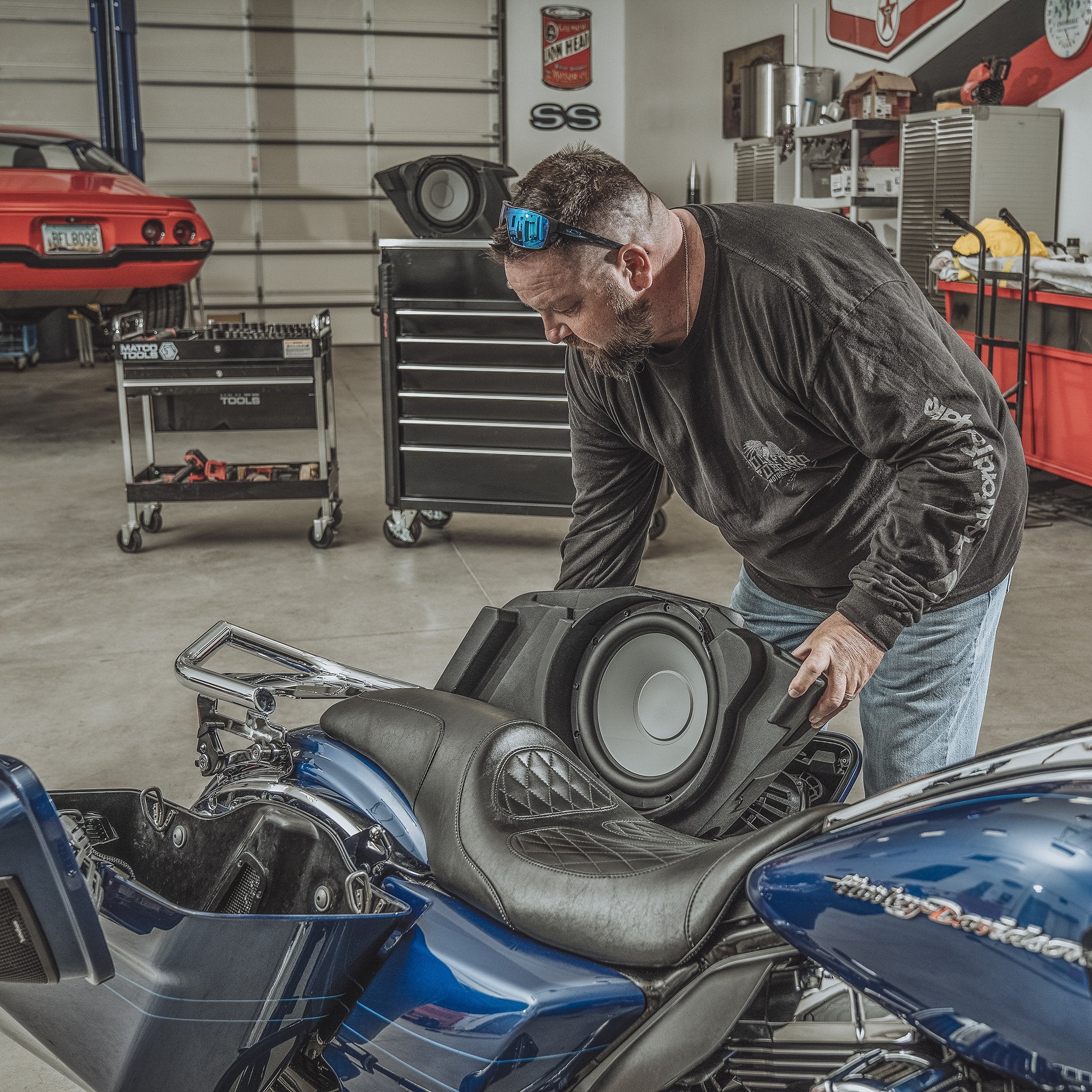

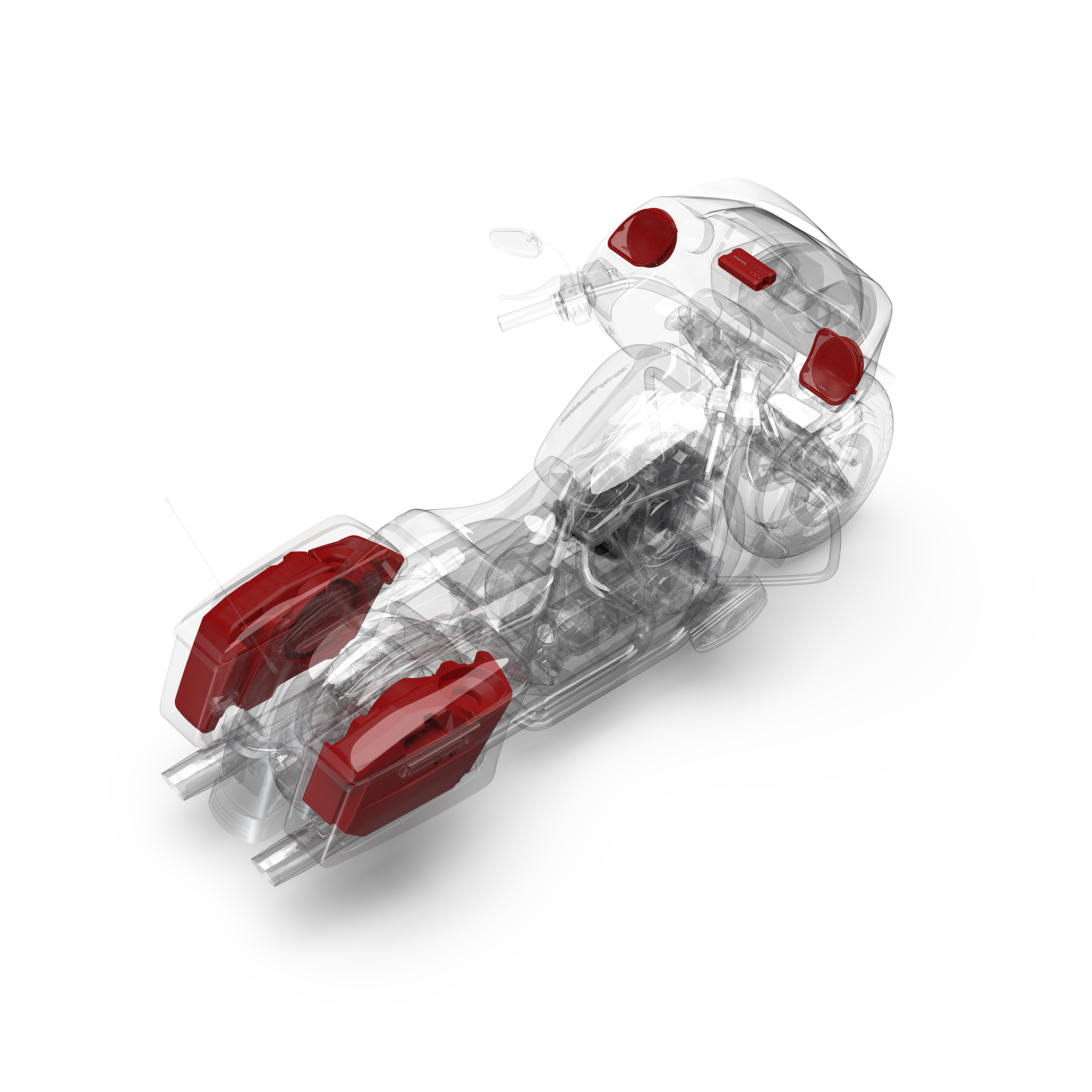

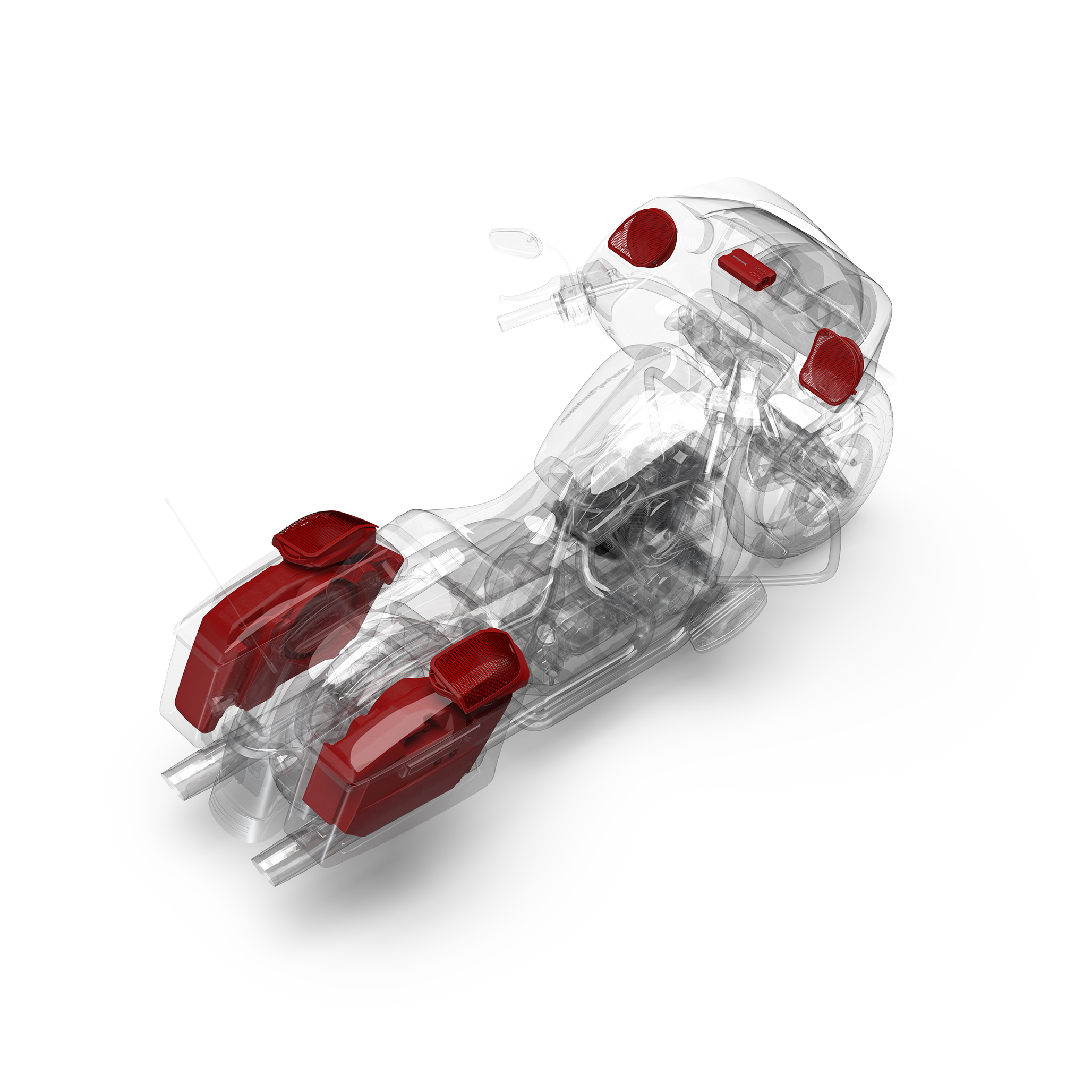

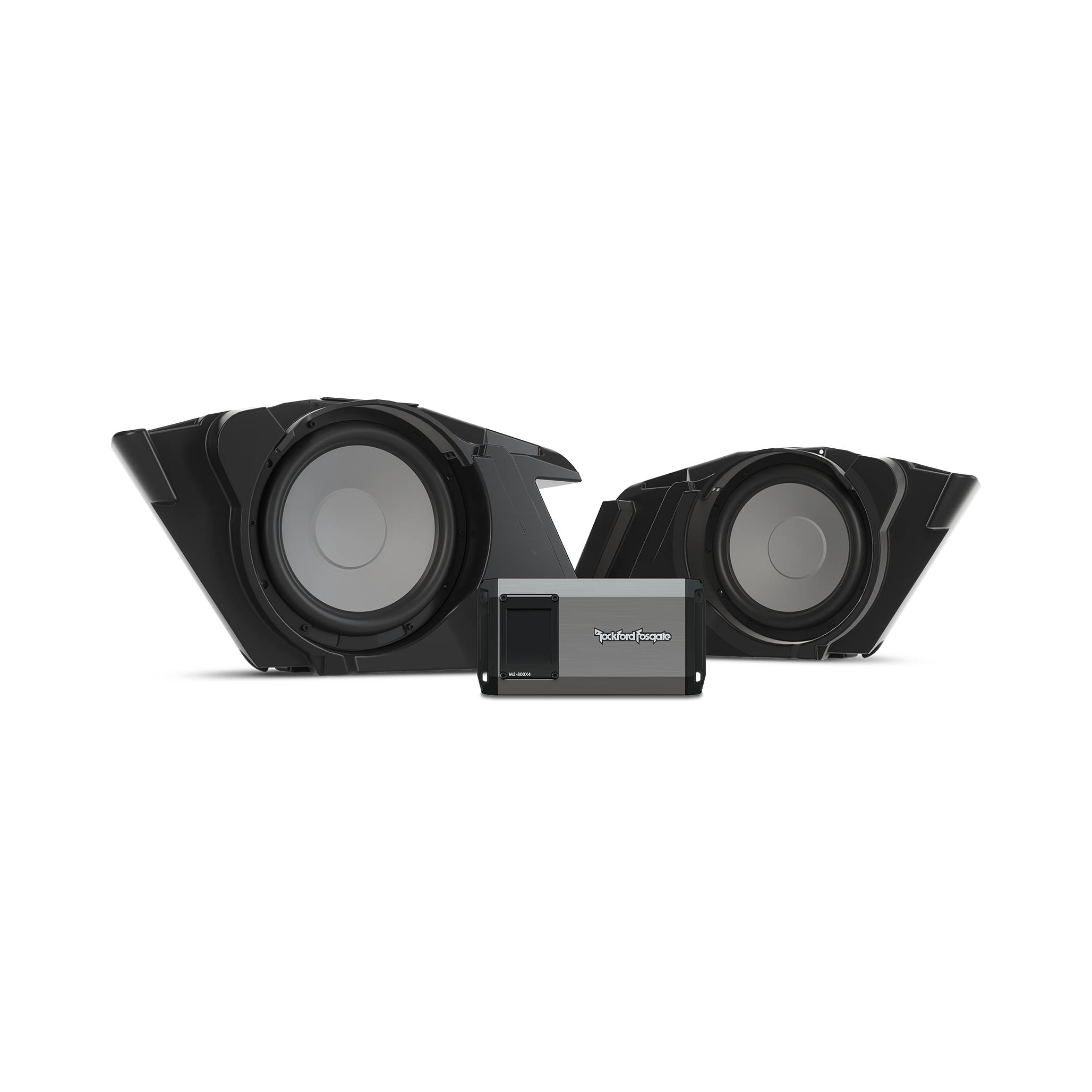

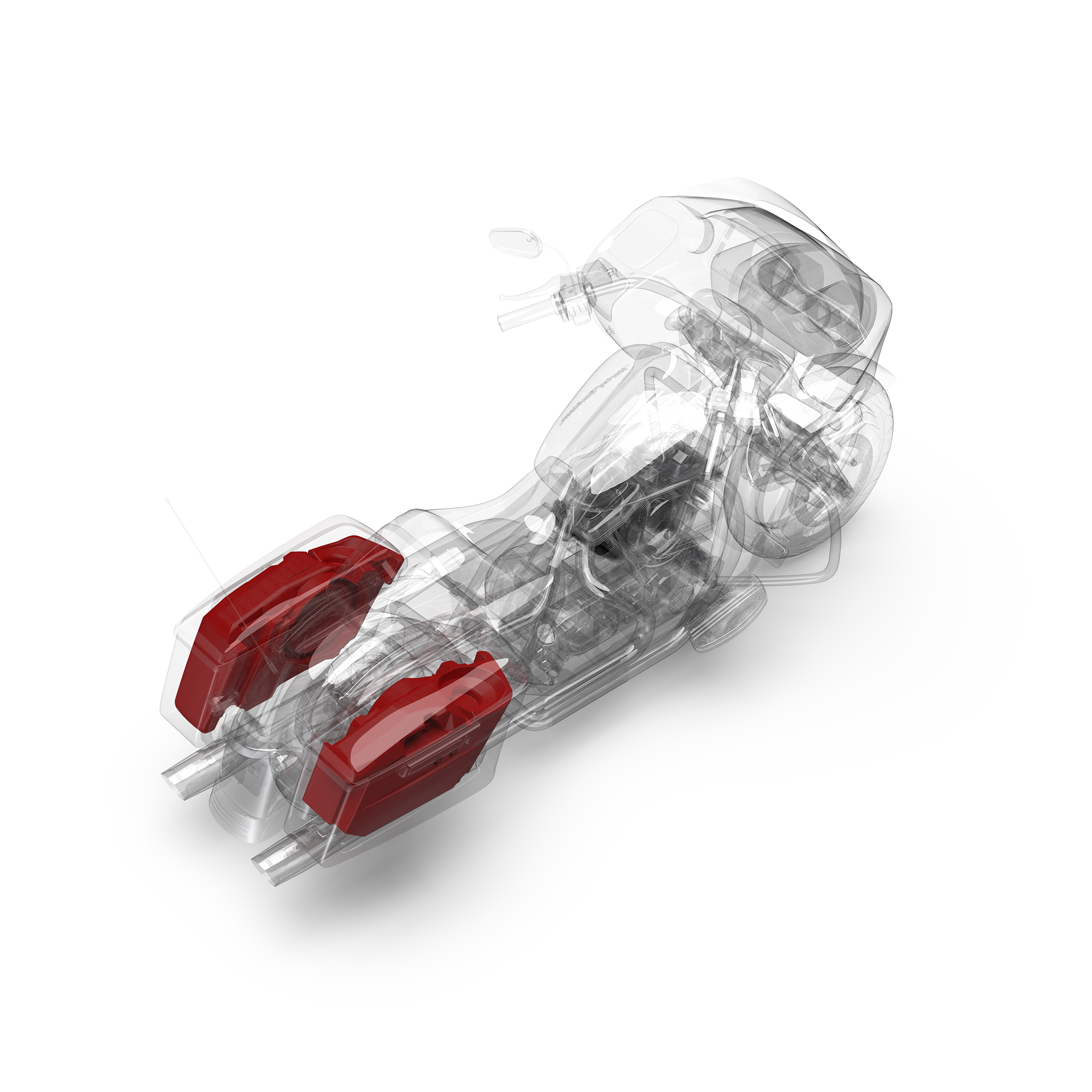

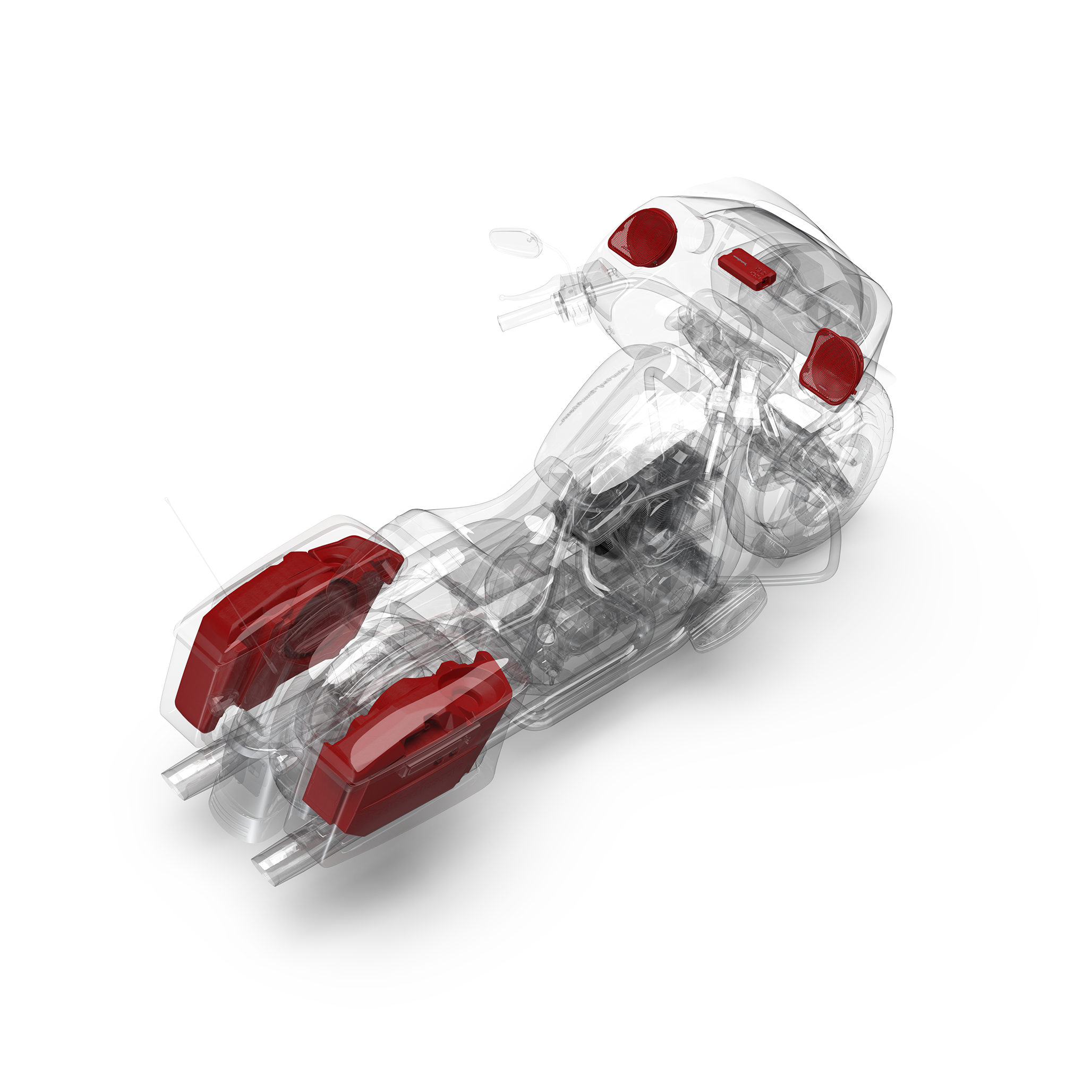

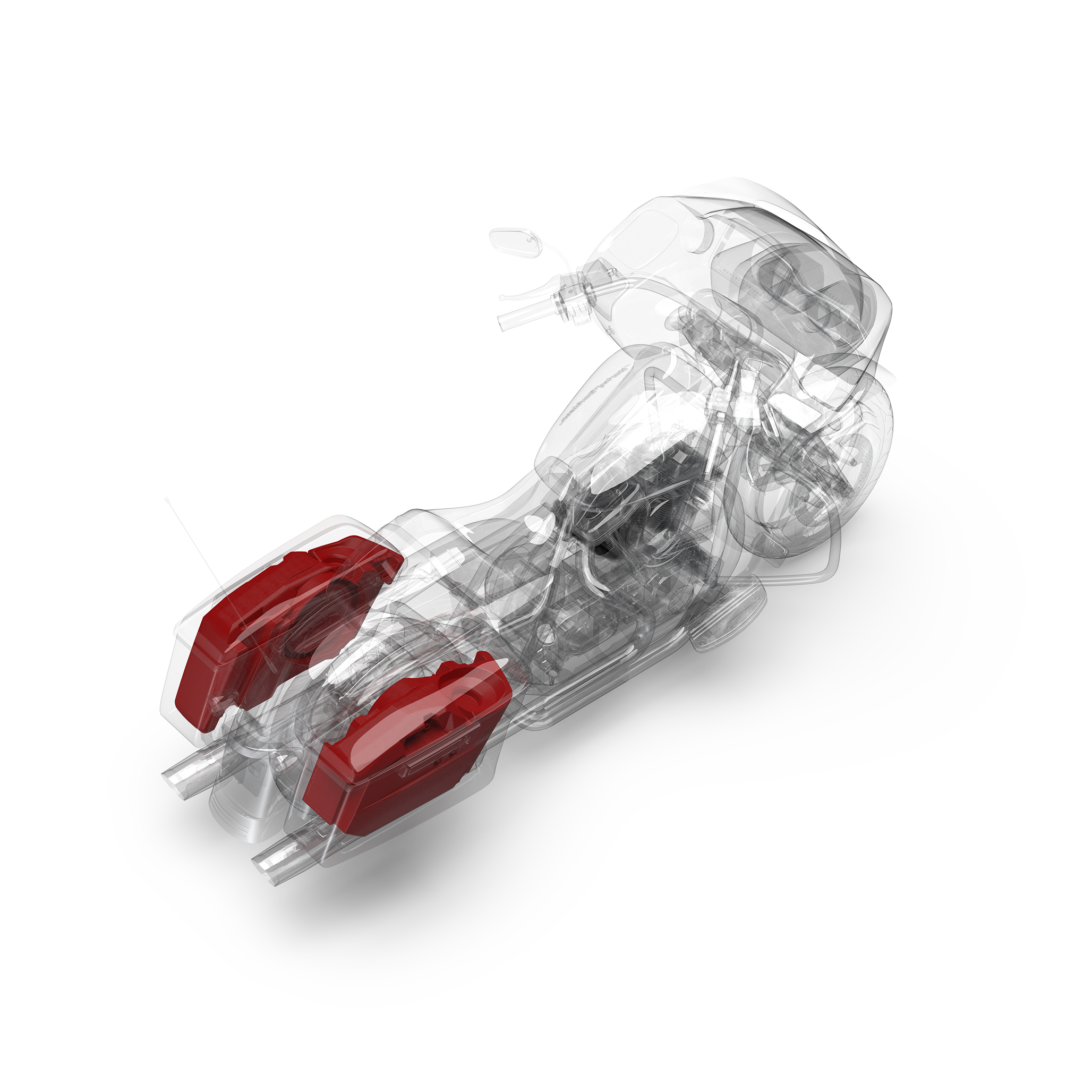

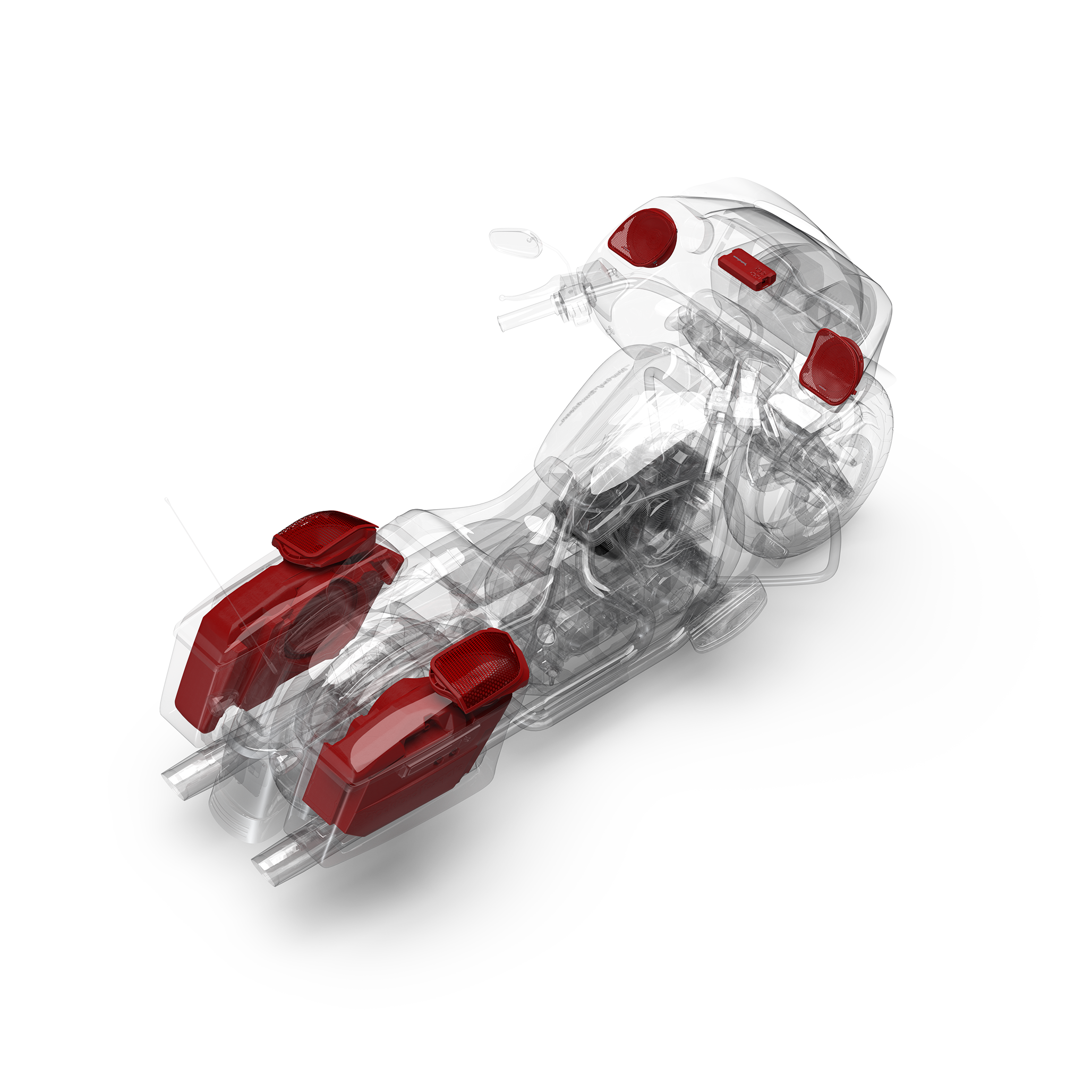

Enhance your riding adventure with the 2014+ Harley-Davidson® Dual 10" Saddlebag Subwoofer Kit! Removable subwoofer enclosures create the best bass experience.
| Woofer Qty | 2 |
| Woofer Size | 10" |
| Nominal Impedance | 4Ω (2Ω DVC wired in series) (creates 4Ω bridged amp load) |
| Woofer Series | 1465-73499-C1 |
| Power Handling | 300 Watts RMS 1200 Watts Peak |
| Enclosure Material | Rotomolded HDPE |
| Enclosure Type | Sealed |
| Speaker Connector | 2-pin DeutschTM/AmphenolTM |
| Frequency Response | 20 Hz – 750 Hz |
| Total Power | 800 Watts |
| Amplifier Type | Class-AD |
| Grille / Trim Ring Included | Yes |
| Fuse Type | ATC |
| Fuse | 40 A |
| Mounting Hardware | Yes |
| Dimensions | H 15.5 x W 21.5 x D 30 (shipping dims) |

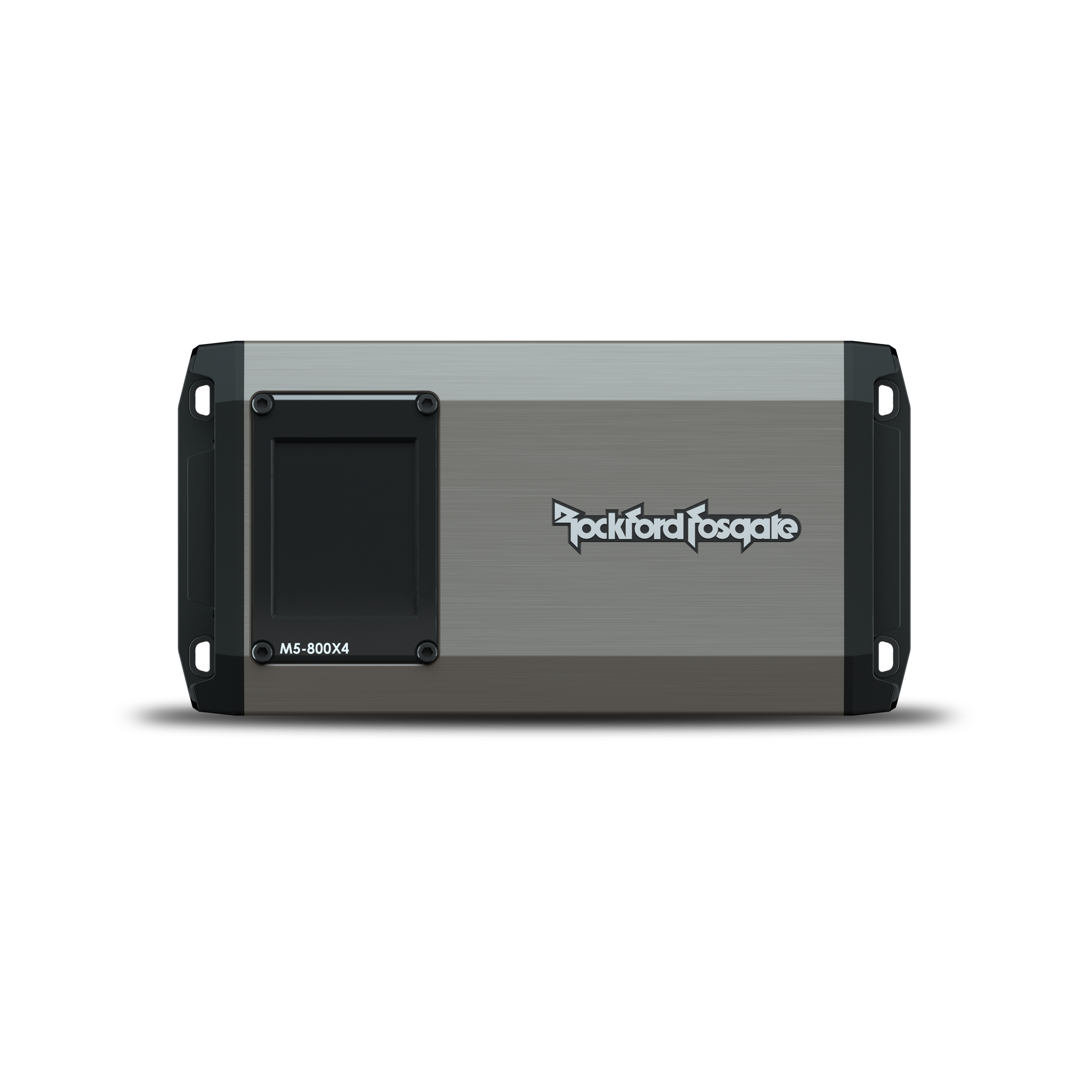

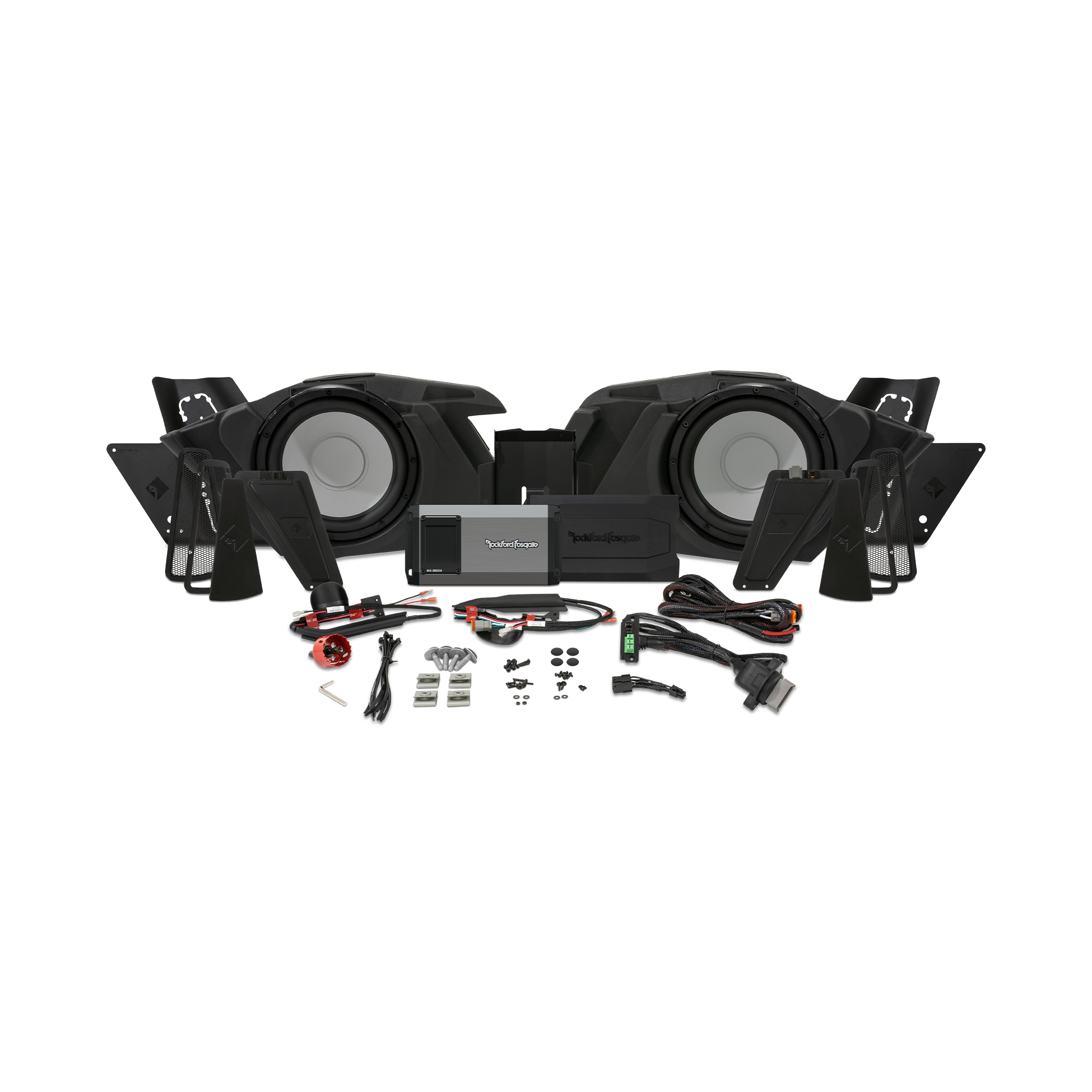

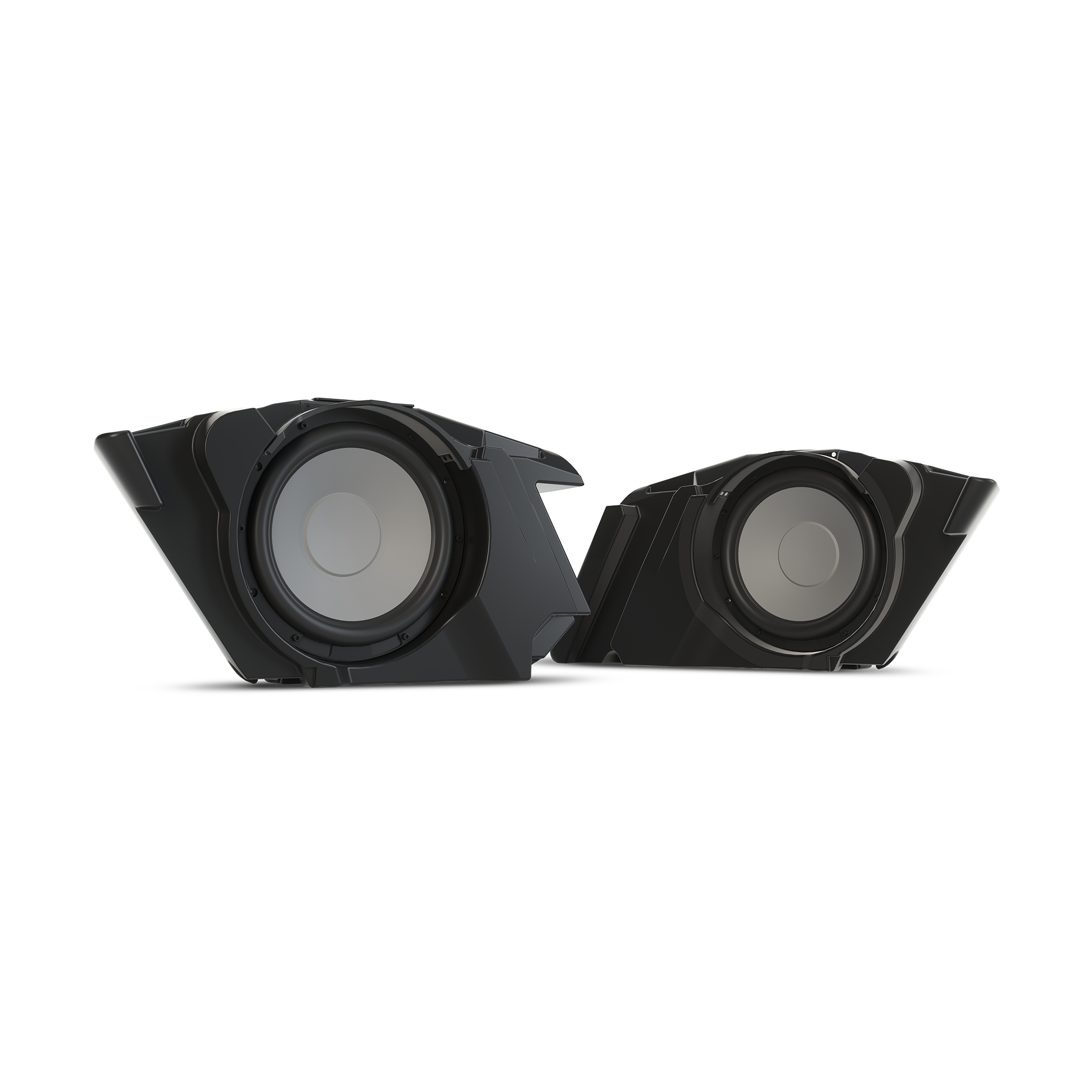

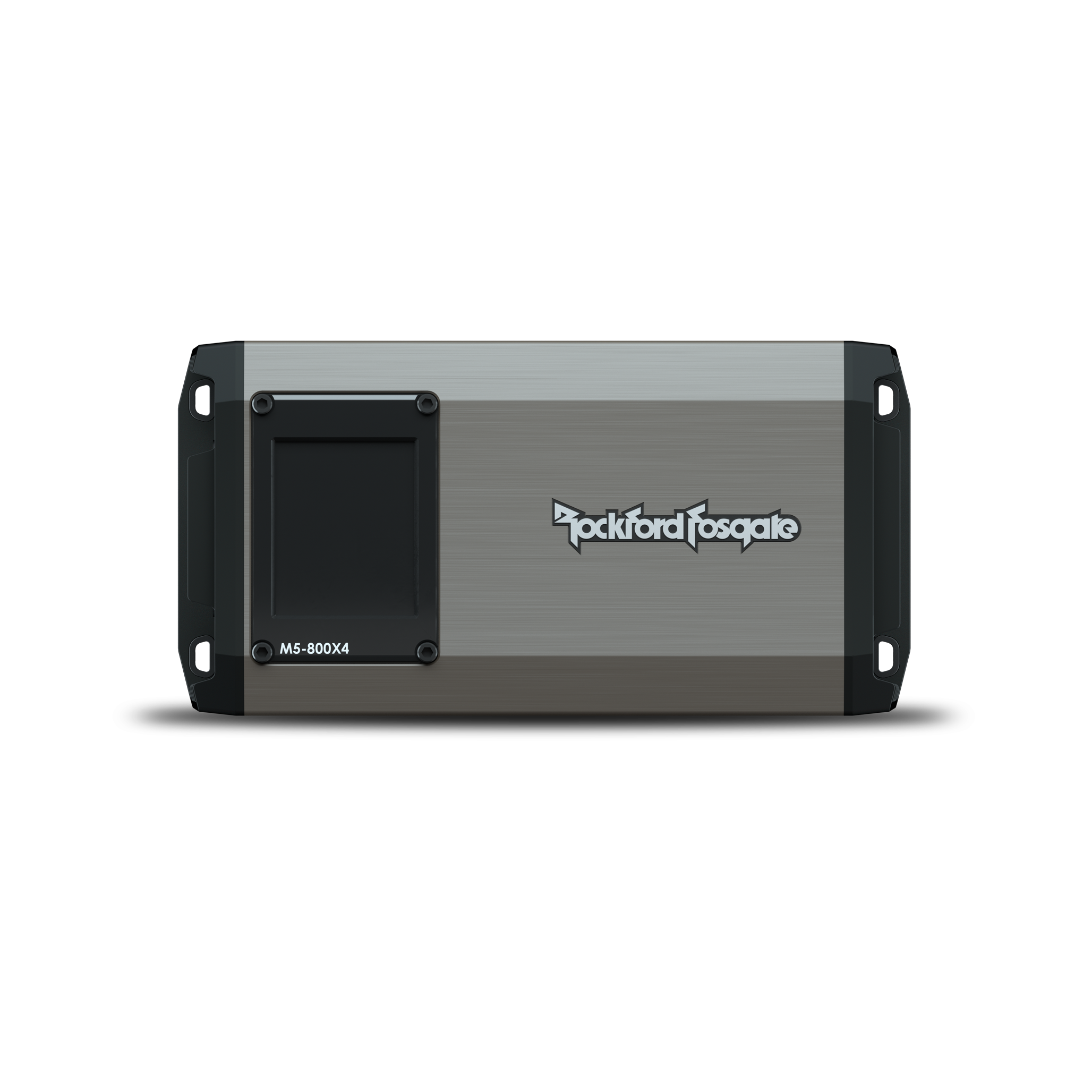

| Included In The Box | (2) M1D2-10B subwoofers (2) Subwoofer enclosures (1) M5-800X4 amplifier (1) Wiring kit (2) Cutting templates (1) Amp mounting plate (1) 1130-75394-C1 AP Pack (details below):
- (12) Nylon zip ties 8 in - (8) Phillips screws M3 x 0.5 x 12 mm - (1) Hole saw OD 45 mm - (4) Washers OD 9 x ID 3.2 x T0.8 - (4) Hex screws 3/16 in, 5/16-18 thread, 1.25 in - (4) Clip 5/16-18 thread - (2) Screw M3 x 0.5, 5 mm - (8) Screw thread cutting ST3.0, 6 mm - (2) Nylon plug ID 0.75 in - (2) Hex nut M3 x 0.5 - (8) Phillips screw #8 x 0.75 in. - (1) Hex wrench 3/16 in - (2) Alcohol wipe |
| Shipping Weight | 46 lb. (20.87 Kg) |
