Product Overview

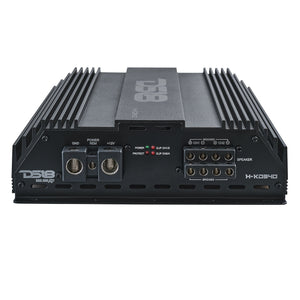

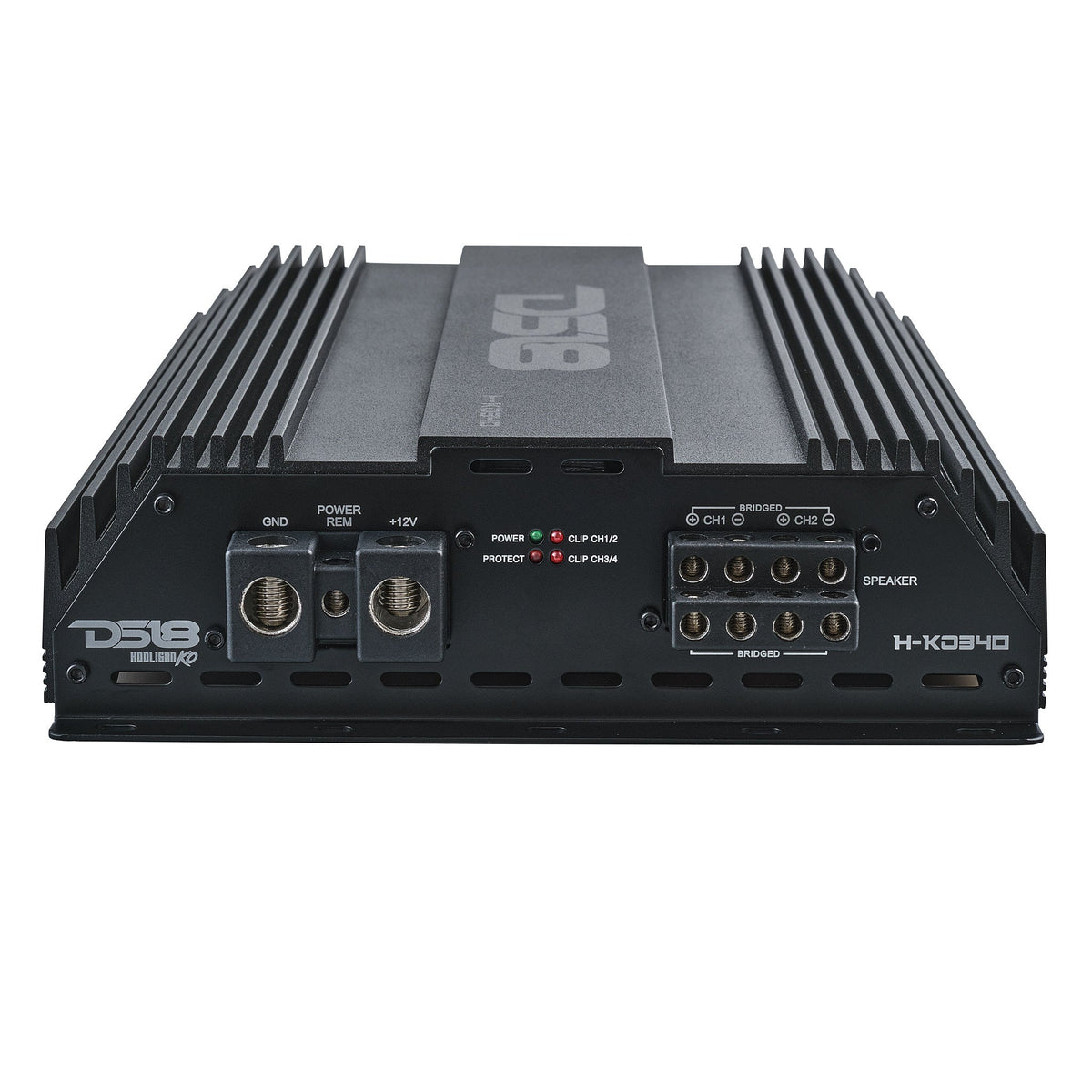

DS18 H-KO340 HOOLIGAN KO 4-Channel Amplifier with Voltmeter
4 x 300 Watts Rms @ 4-Ohm Made In Korea
DS18’s H-KO340 is a high quality, high performance, and HIGH POWERED 4-Channel Full-Range Class D Competition Amplifier. This Korean-made powerhouse is built to be beefier, more efficient, and even more durable for competition-level performance.
DS18’s H-KO340 is designed to deliver MASSIVE POWER: with RMS ratings of 4 x 300W at 4 ohms, 4 x 550W at 2 ohms, and 2 x 1000W at 4 ohms bridged. This amplifier is so powerful, we’ve equipped it with a range of protection circuits including thermal, over-load, DC, short circuit, voltage, and clipping. The LED indicators provide a clear visual representation of the amplifier's working status, protecting you and your vehicle from damage.

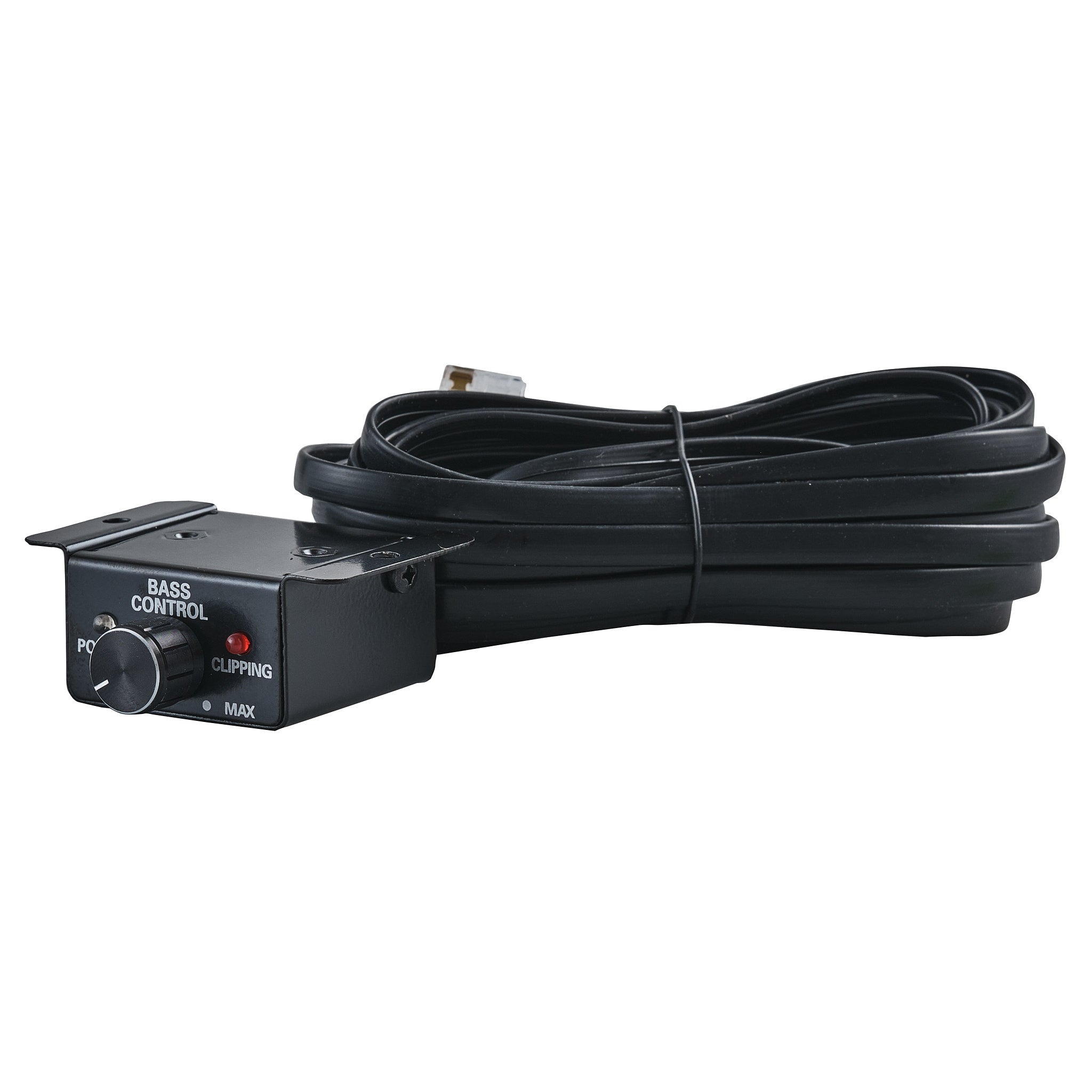

The Tiffany RCA connectors ensure a secure and reliable connection for optimal audio performance. Strap mode connection and included remote bass knob offers convenient control over your audio system. You can easily adjust the bass levels on-the-fly, allowing you to fine-tune your sound to perfection.
The selectable X-Over allows for HPF, LPF, and band-pass filtering, ensuring precise sound shaping and FULL RANGE CONTROL. The Korean high efficiency digital circuit design delivers clean power with minimal distortion (<0.2% THD) making things easier on your charging system and guaranteeing longevity.
Enjoy music the way it was meant to be heard with DS18’s H-KO340!
Key Features
- 4 Channel Stereo Full Range
- Class D
- 2 ~ 4 Ohm Stable
- 4 X 300 Watts @ 4 Ohm
- Power ~ Clip ~ Protect Indicators
- Made In Korea ~ Bass Knob
Specifications
| SKU | H-K0340 |
|---|---|
| RMS Power @ 4 ohm | 4 x 300W |
| RMS Power @ 2 ohm | 4 x 550W |
| RMS Power @ 1 ohm | N/A |
| RMS Power @ 0.5 ohm | N/A |
| RMS Power @ 4 ohm Bridge | 2 x 1000W |
| Frequency Response | 13Hz-20KHz |
| Signal to Noise Ratio | >90dB |
| Efficiency @ 4ohm | 90% |
| Damping Factor | 100 |
| Total Harmonic Distortion (THD) | <0.2% |
| Low Level input Range | 0.2-8V |

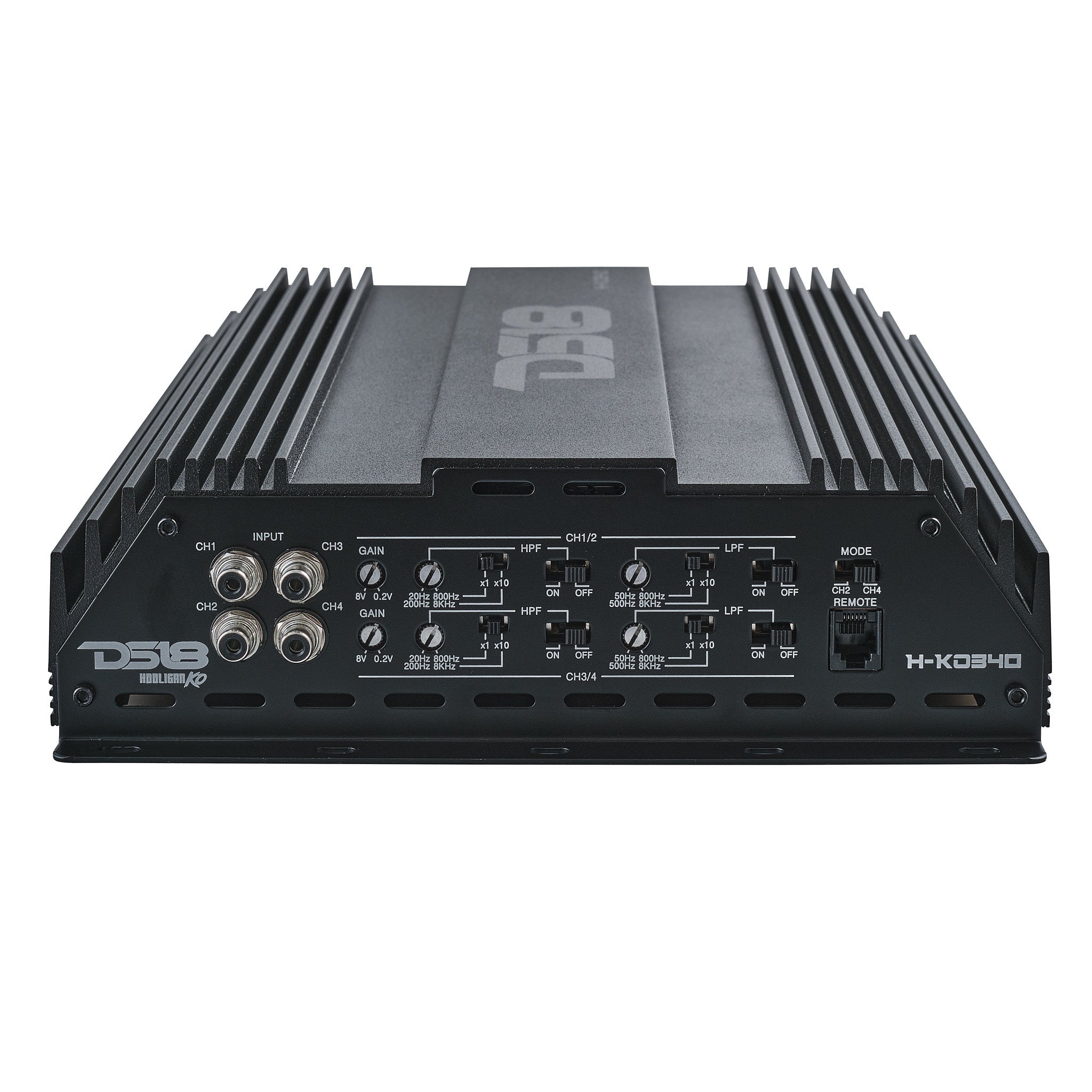

| Selectable X-Over | HPF/LPF/BAND-PASS |
| X-Over Filter Range | HPF: 20Hz-8KHz / LPF: 50Hz-8KHz (1X/10X) |
| Bass Boost Range | No |
| Bass Boost Frequency | N/A |
| Infrasonic Filter | No |
| Phase | No |
| Amplifier Class | Digital (D) |
| Amplifier Type | Stereo Full-Range |
| Number of Channels | 4 |
| Minimum Impedance | 2 ohm/Ch (4 ohm Bridge) |

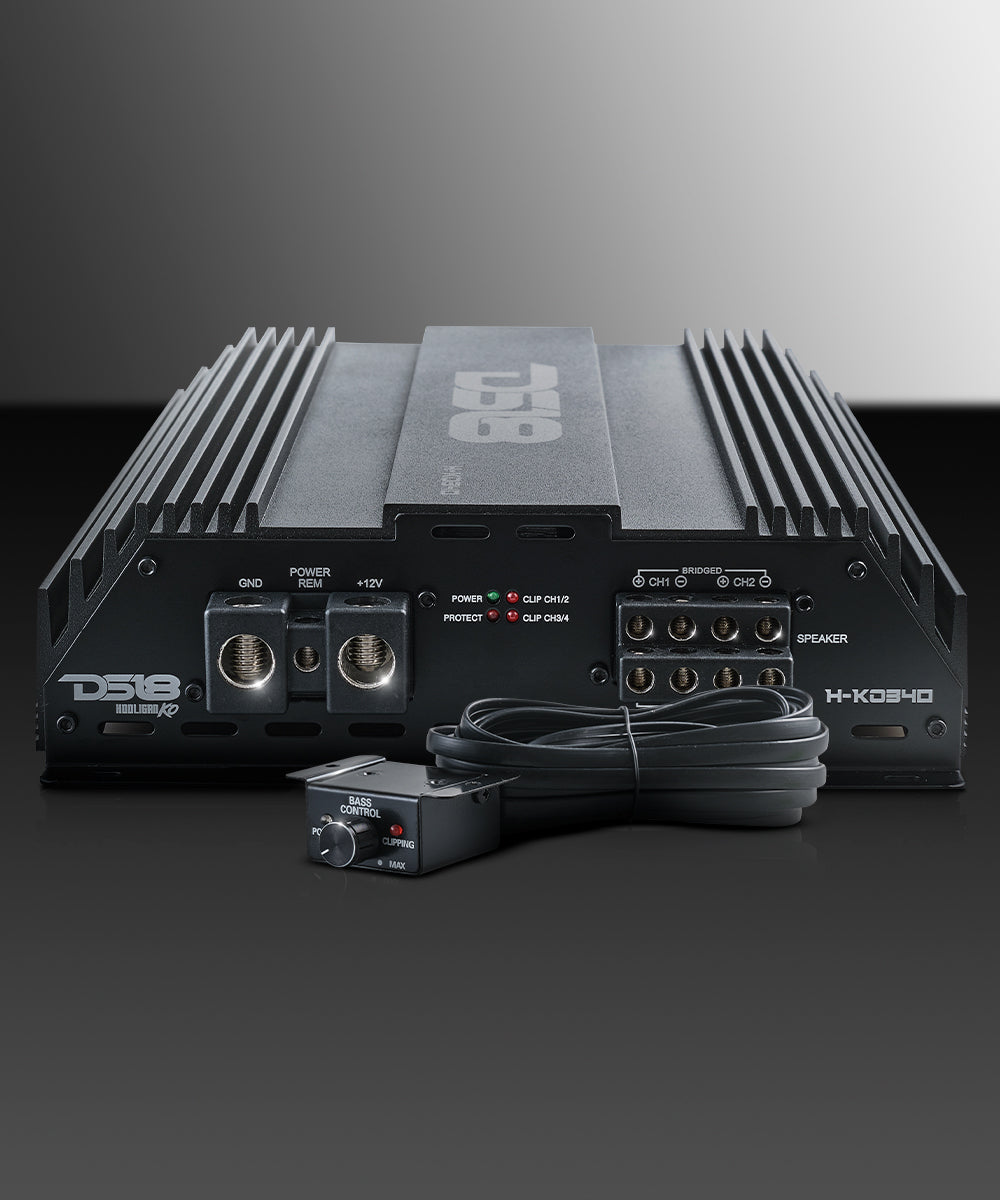

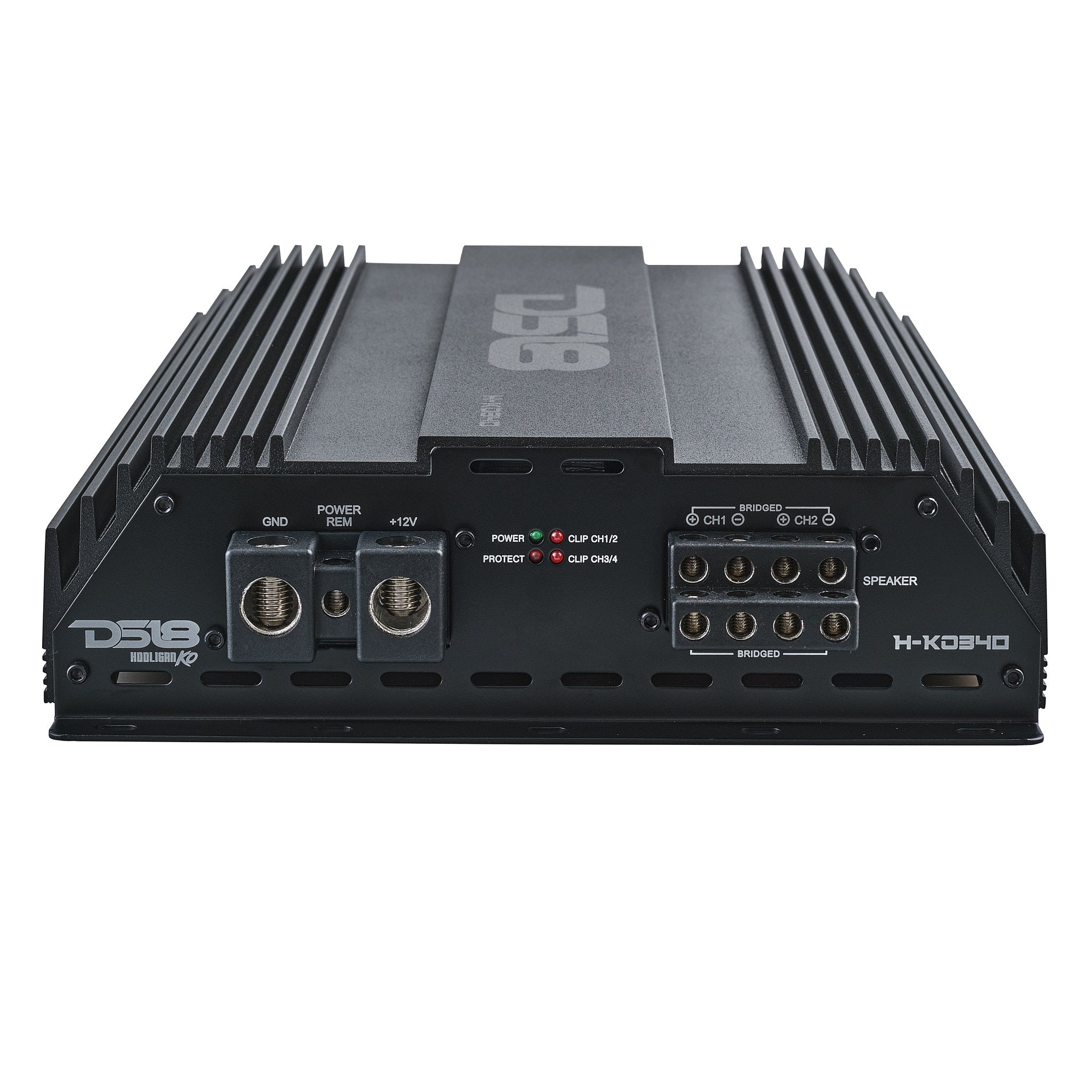

| Led Indicator | Power / Protect / Clip |
| Power Input Terminal Size | 1/0Ga |
| Fuse Size | 200A |
| Remote Level Control | Yes (Metal Case) |
| Cooling Fan | No |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Cliping Protection | Yes |
| Body Color / Finish | Red / Black |
| X-Over Frequency Multiplier | Yes |
| Input Mode Selectable | Yes |
| LED Clipping indicator | Yes |
| Professional Tiffany RCA Connectors | Yes |
| Remote Level Knob with Clip indicator | Yes |
| Linkable (Strap mode) Amplifier | No |

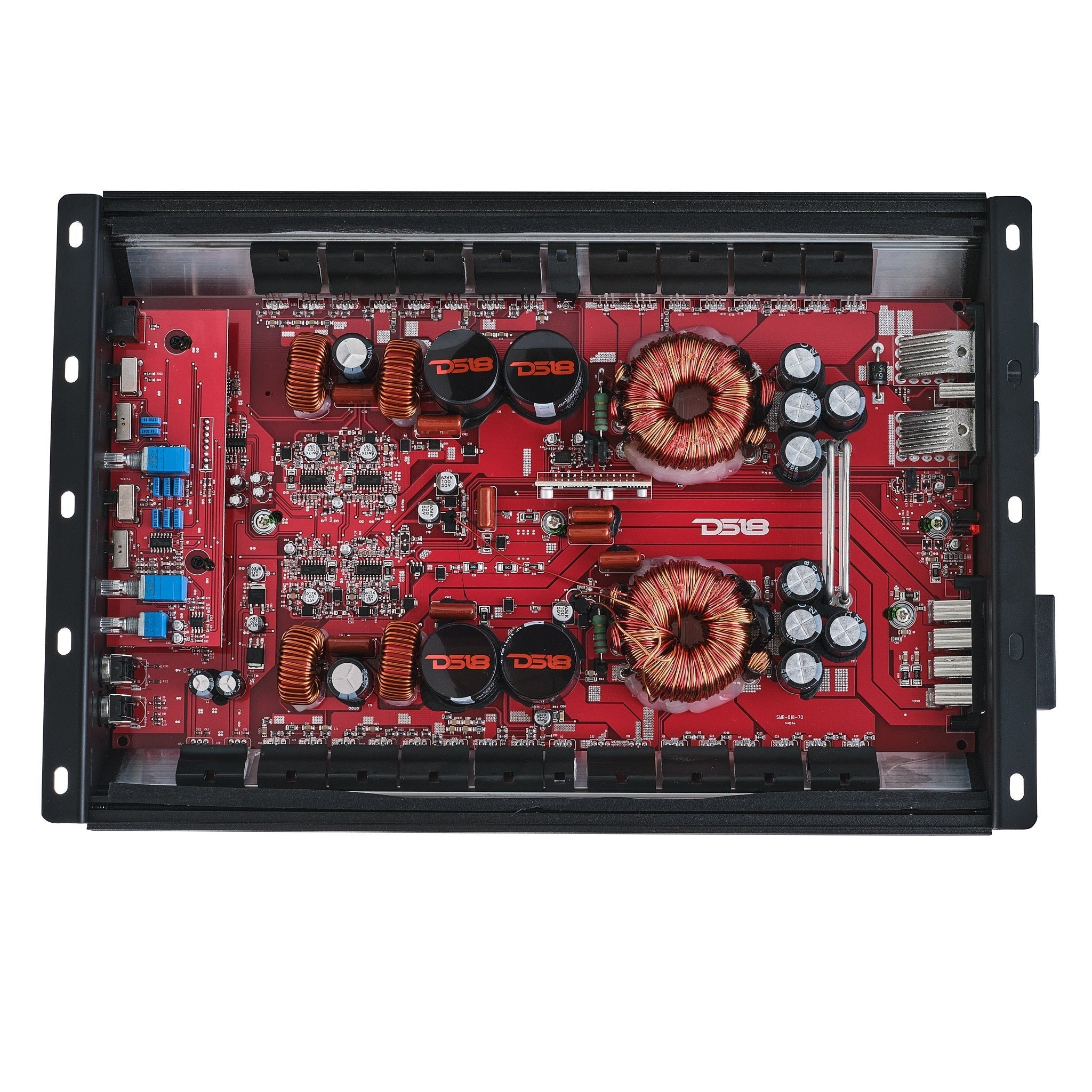

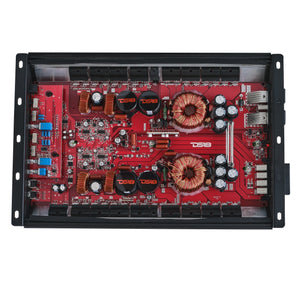

| Reliable Heavy Duty Korean Board Design | Yes |
| Very High Efficiency Digital Circuit Design | Yes |
| Overall Lengh ( with end plate ) | 14.5" / 370mm |
| Overall Wide | 9.68" / 246mm |
| Overall Height ( with end plate ) | 2.85" / 72.5mm |
| Heatsink Length | 13.3" / 340mm |
