Product Overview

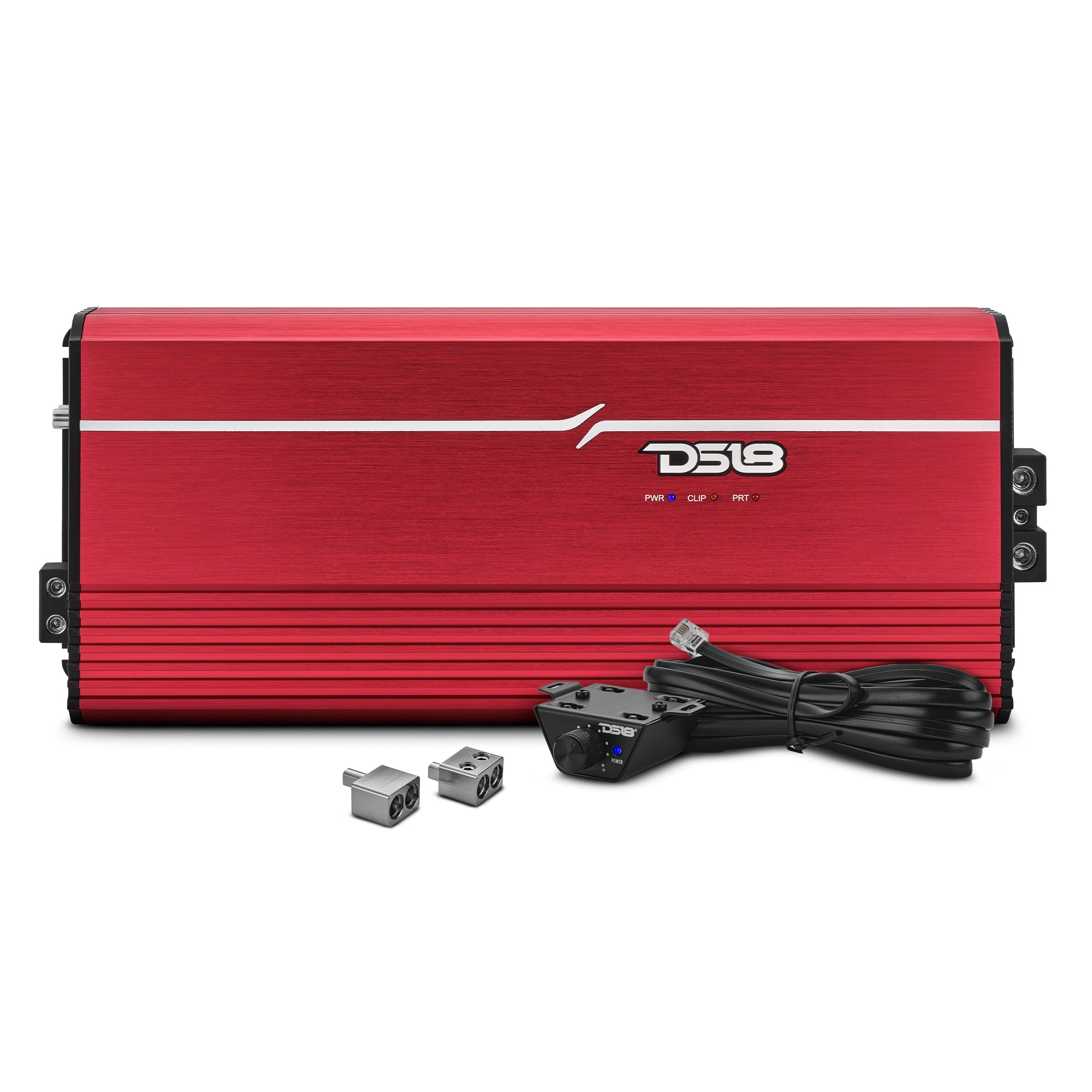

DS18 FRP-8K
Compact Monoblock Class-D Full-Range Amplifier | 8000W RMS
FULL-RANGE PERFORMANCE
When you're pushing the loudest builds in audio, you need an amp that can keep up. DS18’s FRP-8K1 delivers an earth-shaking 8000W RMS of full-range power in a monoblock design that stays collected in any conditions.
Built for Brutal Output
This monoblock beast outputs a monstrous 8000W RMS @ 1 ohm, with full-range Class D efficiency. Thanks to its high-speed digital design, stable 1-ohm operation, and smart cooling system: you get raw power with precision control.
Precision Tuning & Reliable Protection
You’re in full control of your sound with the FRP-8K1’s fully variable low-pass filter (10Hz–2KHz), subsonic filter (10Hz–80Hz), and up to 12dB bass boost centered at 50Hz.
An onboard smart cooling fan, thermal/short/overload protection, and LED clipping indicator keep the system running clean no matter how hard you push it.
Show-Ready Finish.

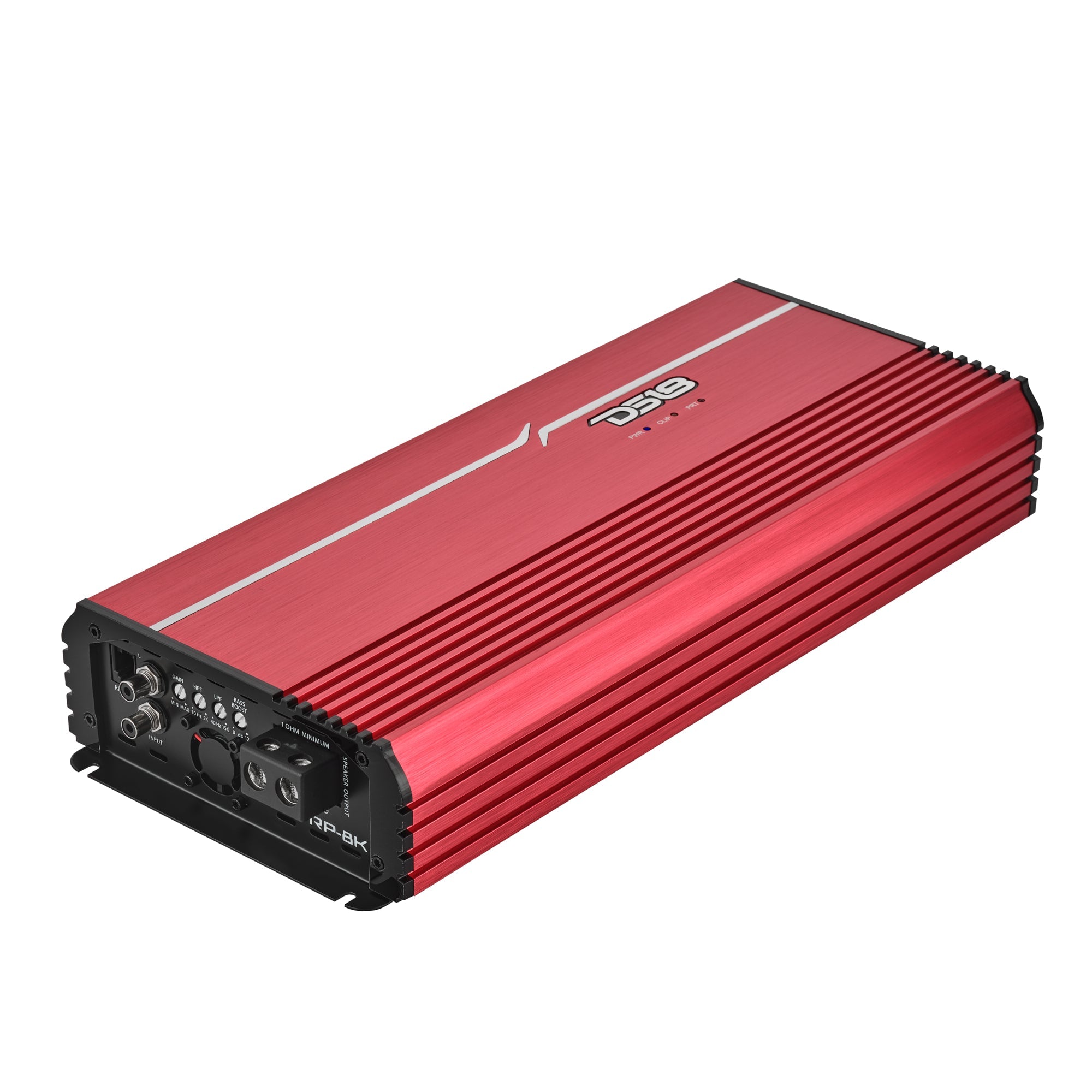

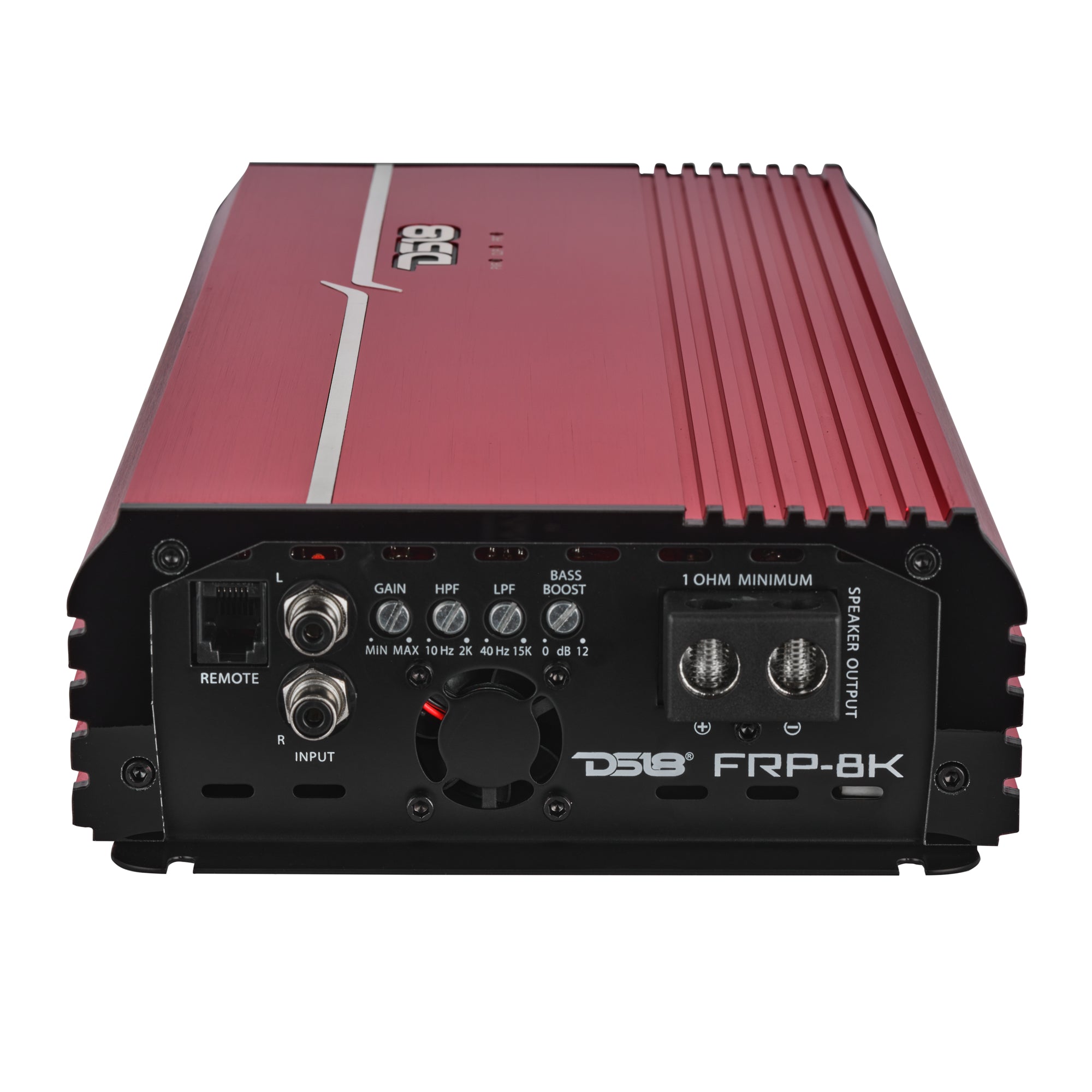

At just 16.5" long with a blue/red/titanium finish, this amp blends into tight installs while standing out on display. Built with high-efficiency surface-mount technology and tested with Audio Precision equipment, it’s engineered to take abuse and keep booming. Finished with Tiffany RCA terminals and 0GA power inputs for serious installs.
Key Features
- 8000W RMS @ 1 Ohm – Full-Range Monoblock Power
- Compact design with Smart Cooling and LED Clipping Indicator
- Variable Low-Pass & Subsonic Filters (10Hz–2KHz & 10Hz–80Hz)
- 12dB Bass Boost @ 50Hz for maximum low-end punch

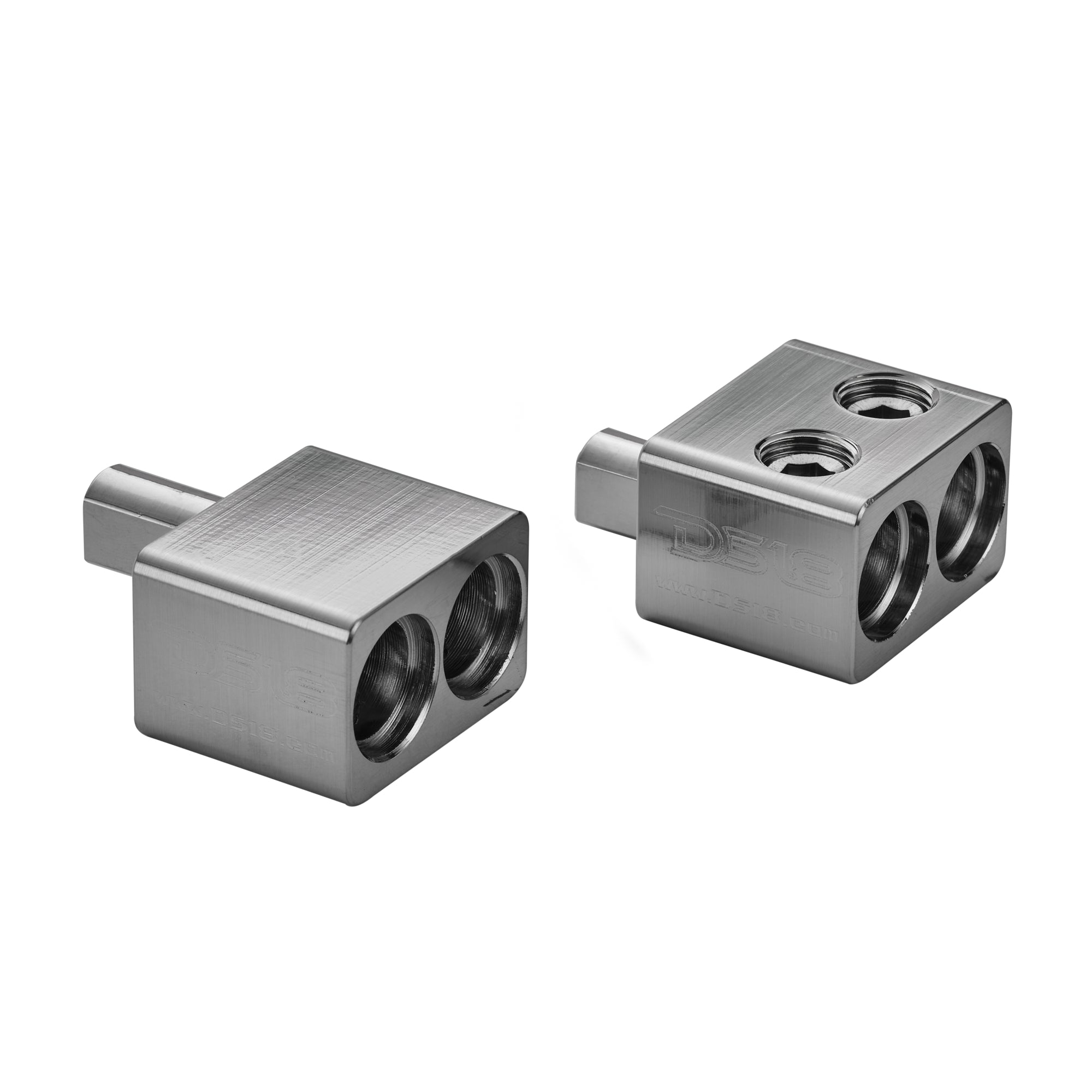

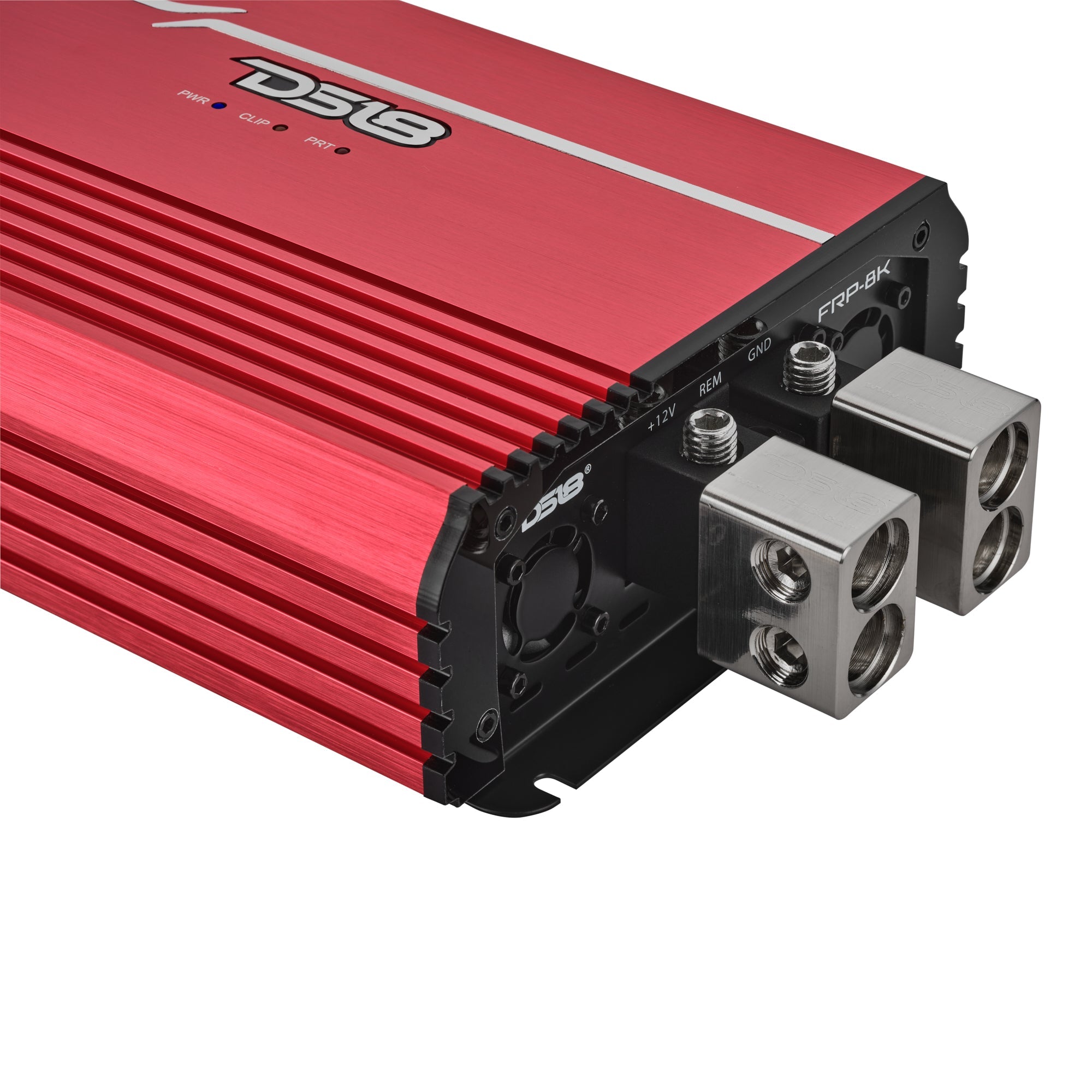

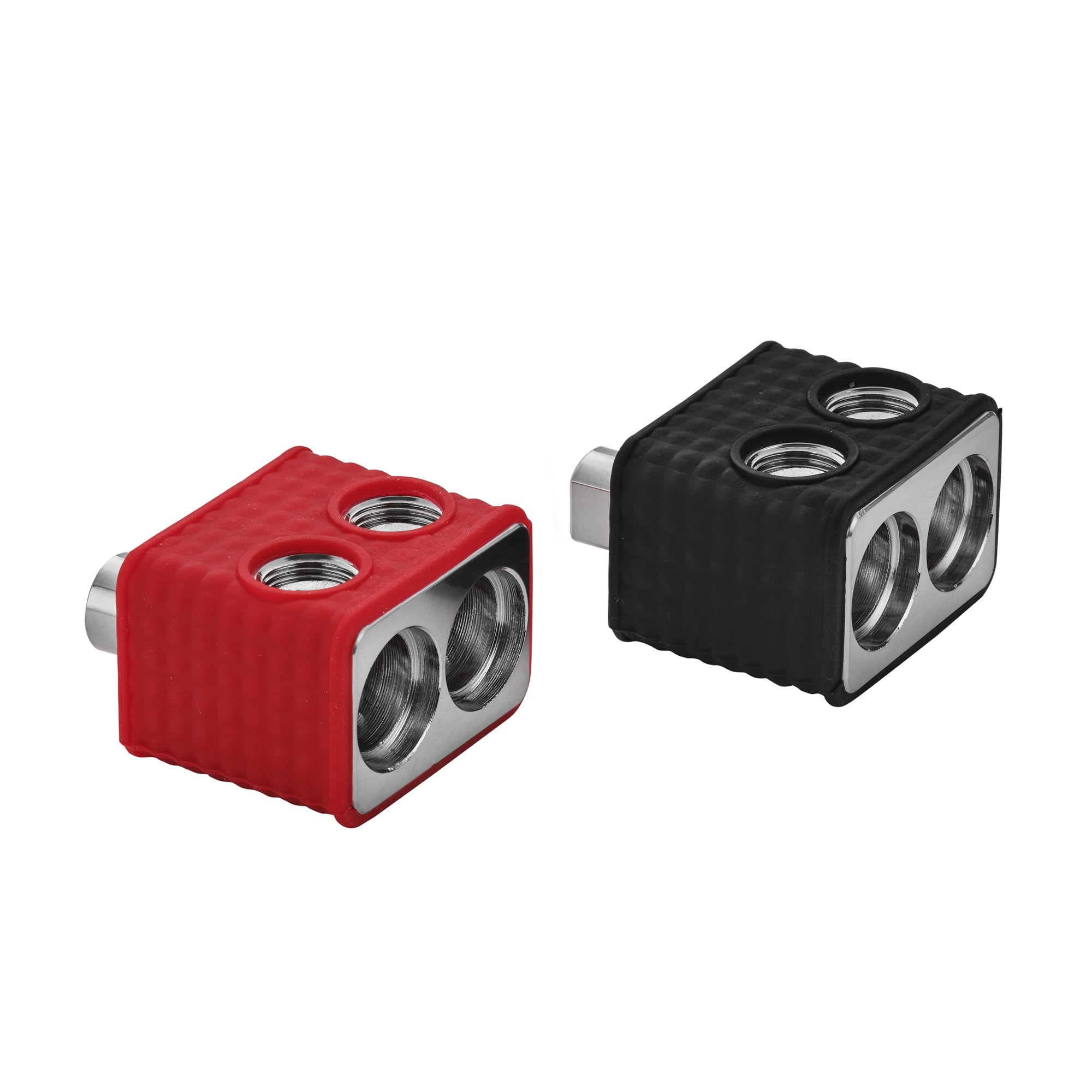

- 0GA terminals & Tiffany RCA inputs
- Tested with Audio Precision equipment for real-world durability
Specifications
| RMS Power @ 4 ohms | 2500W |
|---|---|
| RMS Power @ 2 ohms | 5000W |
| RMS Power @ 1 ohm | 8000W |
| MAX Power @ 1 ohm (Burst) | 9000W |
| Frequency Response | 10Hz-15KHz |
| Signal to Noise Ratio | 83dB |
| Efficiency @ 4ohm | 95% |
| Damping Factor | 90 |
| Input Impedance | 10KΩ |
| Total Harmonic Distortion (THD) | 0.5% |
| Low Level Input Range | 400mV-6V |
| High Level Input | No |
| Selectable X-Over | Fixed Band-Pass |
| X-Over Filter Range (HP) | 10Hz-2KHz |
| X-Over Filter Range (LP) | 40Hz-15KHz |
| Bass Boost Range | 0-12dB |
| Bass Boost Frequency | 50Hz |
| Phase Selector | No |
| Amplifier Class | Digital |
| Amplifier Type | Full-Range Monoblock |
| Number of Channels | 1CH |
| Minimum Impedance | 1Ω |
| Led Indicator | Power / Protect / Clipping |
| Power Input Terminal Size | 0GA |
| Fuse Size (Recommended) | 750A |

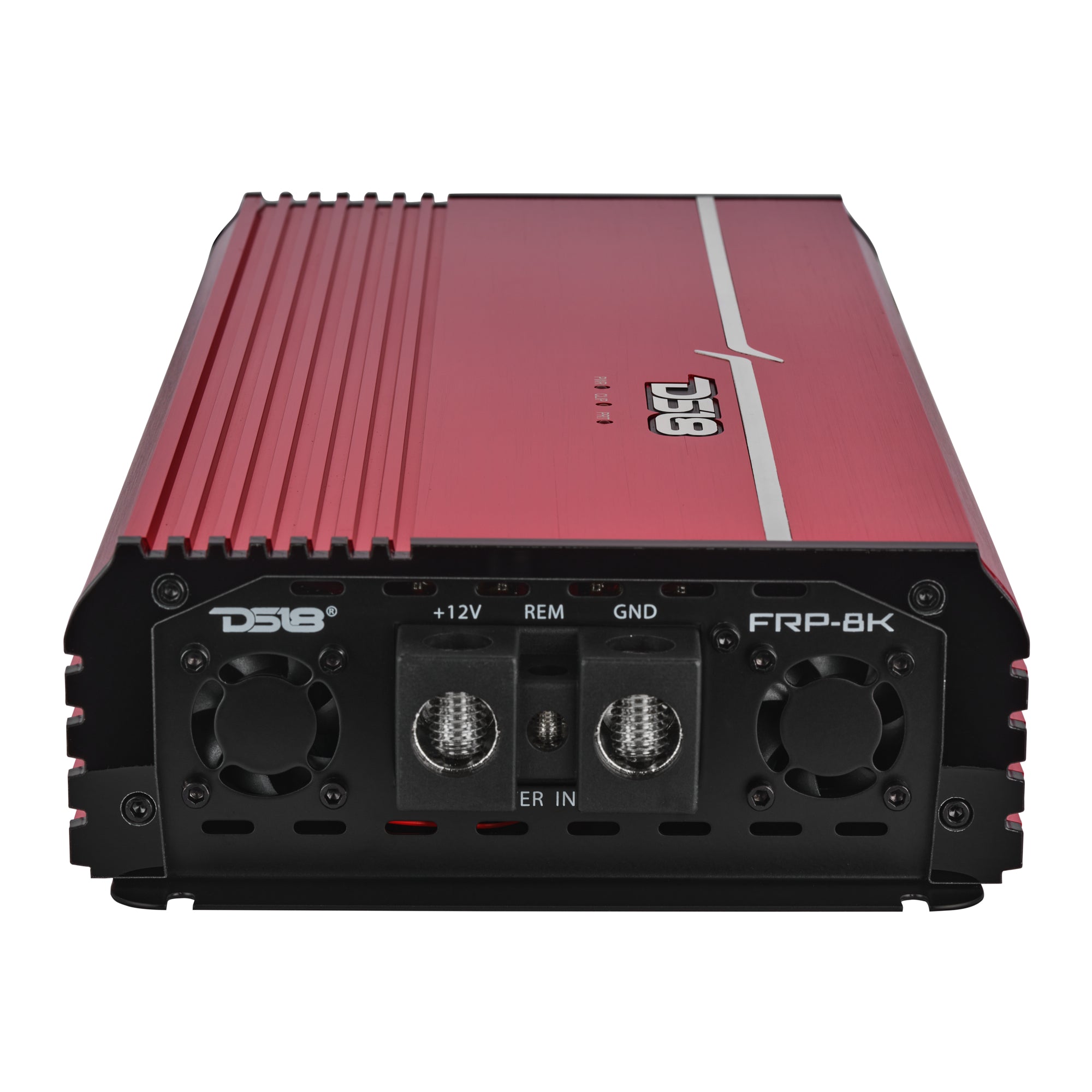

| Cooling Fan | Yes (Smart Cooling x 3) |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Blue / Red / Titanium |
| Compact Size to Easy Installation for Any Applications | Yes |

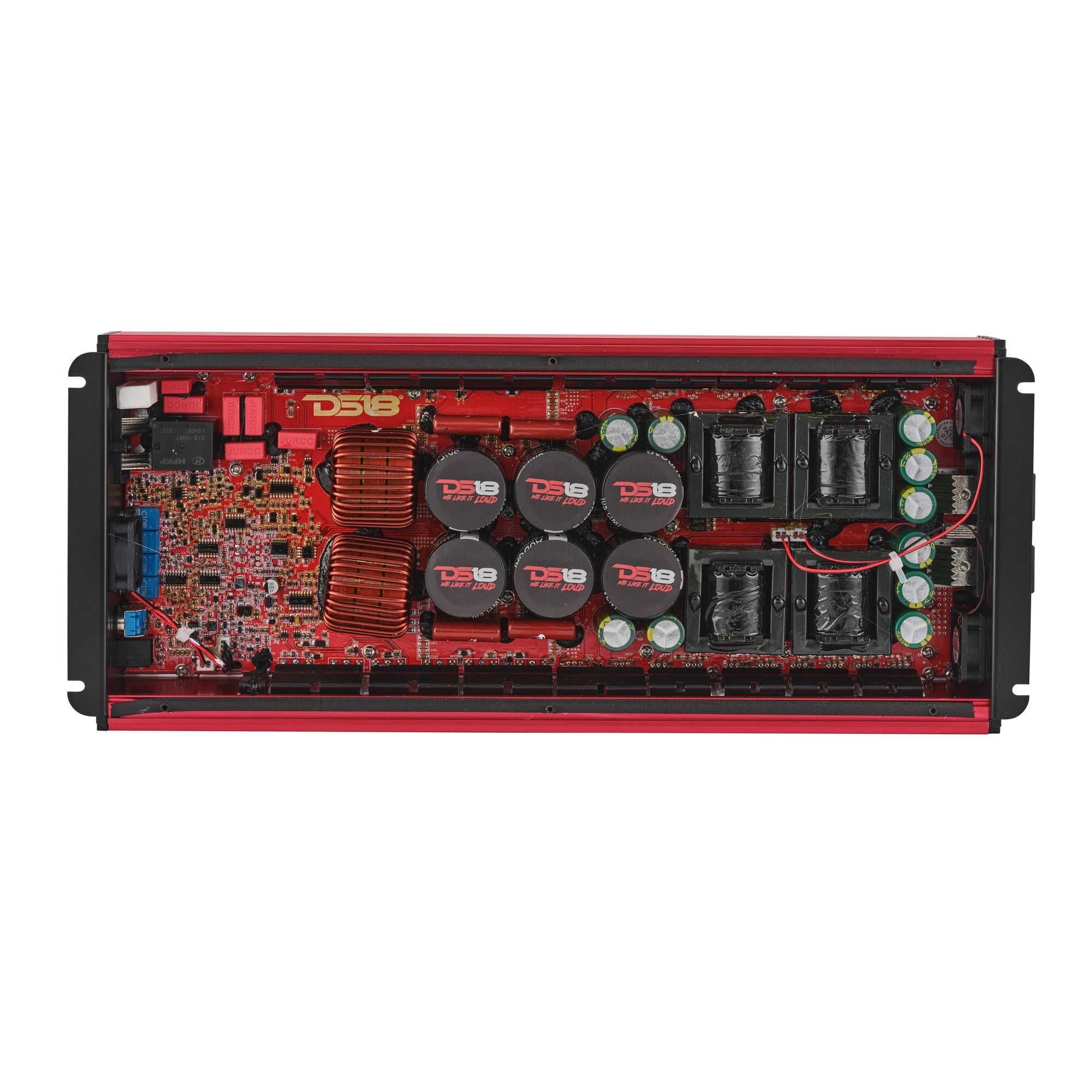

| Stable/Reliable Four Layers Traces PCB Design | Yes |
| Surface Mount Component Technology | Yes |
| Quality Control Verification using Audio Precision Instruments | Yes |
| Tiffany RCA Terminal | Yes |
| LED Clip Indicator | Yes |
| Metal Knobs with Click Steps | Yes |

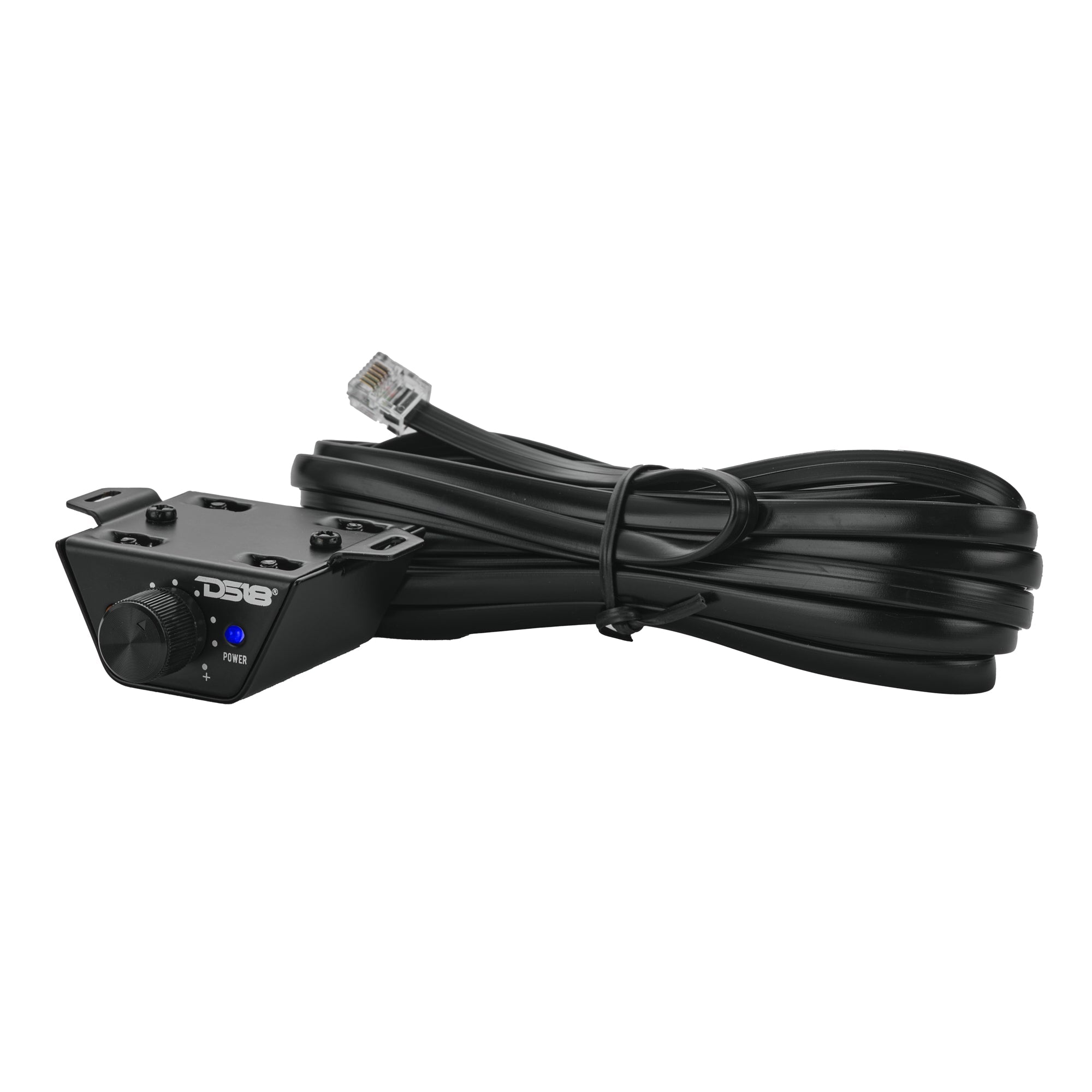

| Remote Level Control with Clip Indicator | (Included) |
| Remote Level Control with Clip Indicator and Voltmeter | (Optional) |
| Overall Length | 15.8" / 403mm |
| Overall Width | 6.5" / 166mm |
| Overall Height | 2.4" / 62mm |
| Heatsink Length | 14.6" / 371mm |
| Gross Single Unit Weight | 5kg |
