FRP Compact Full-Range Class D 1-Channel Amplifier 2,500 Watts Rms @ 1-Ohm
Product Overview FRP Compact Full-Range Class D 1-Channel Amplifier 2,500 Watts Rms @ 1-ohm Titanium Full Range...
- $359.95
- $359.95
- Unit price
- per
Subtotal:
$359.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
FRP Compact Full-Range Class D 1-Channel Amplifier 2,500 Watts Rms @ 1-ohm Titanium
Full Range Means All Systems With DS18’s FRP-2.5K!
Its variable crossover filters allow you to fine-tune your sound for optimal performance. Depending on your Band-Pass Adjustments, this Full-Range Amplifier can be used for Bass, Mids, or Highs. Micro digital design maximizes the FRP-2.5K’s power output and efficiency.

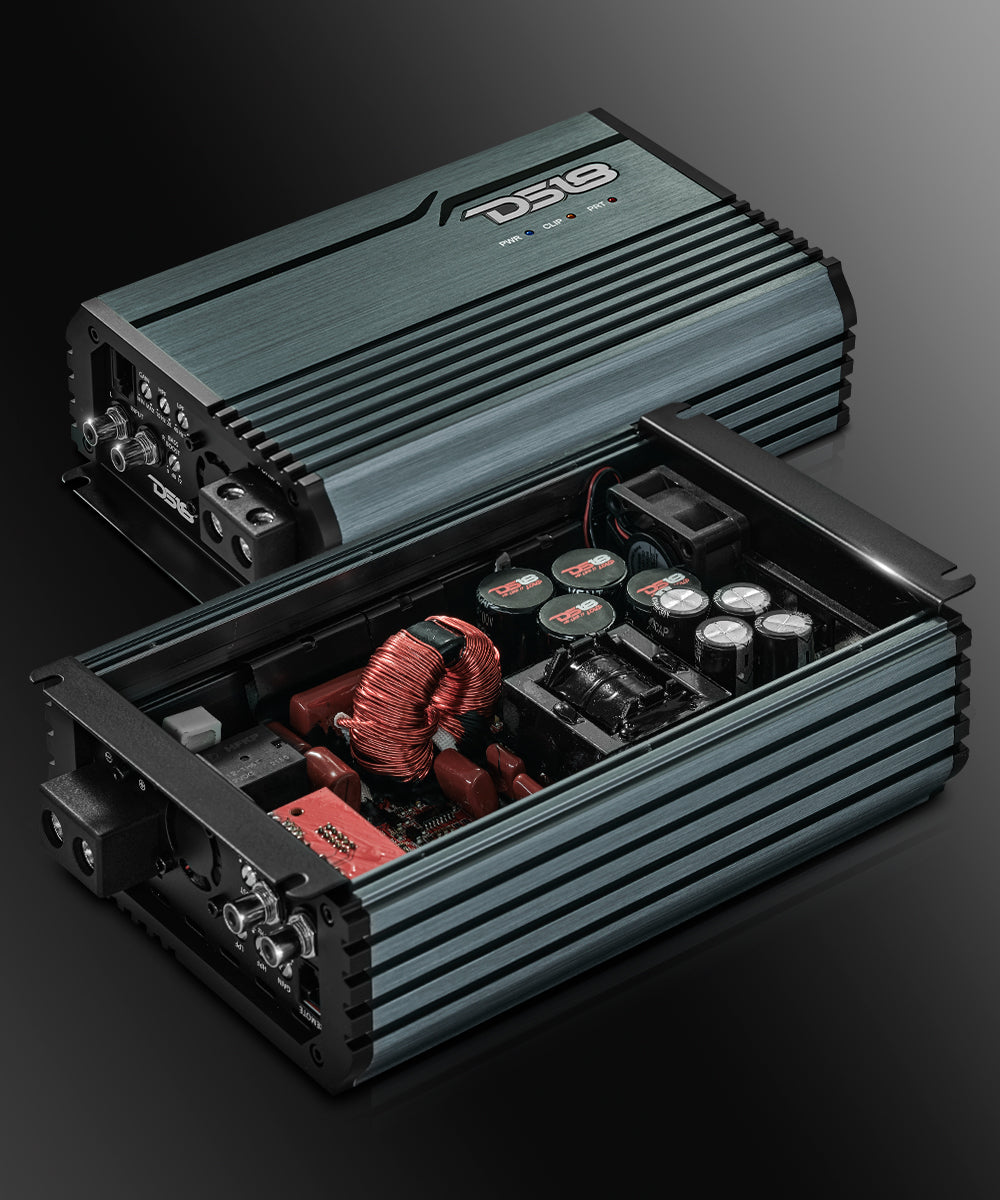

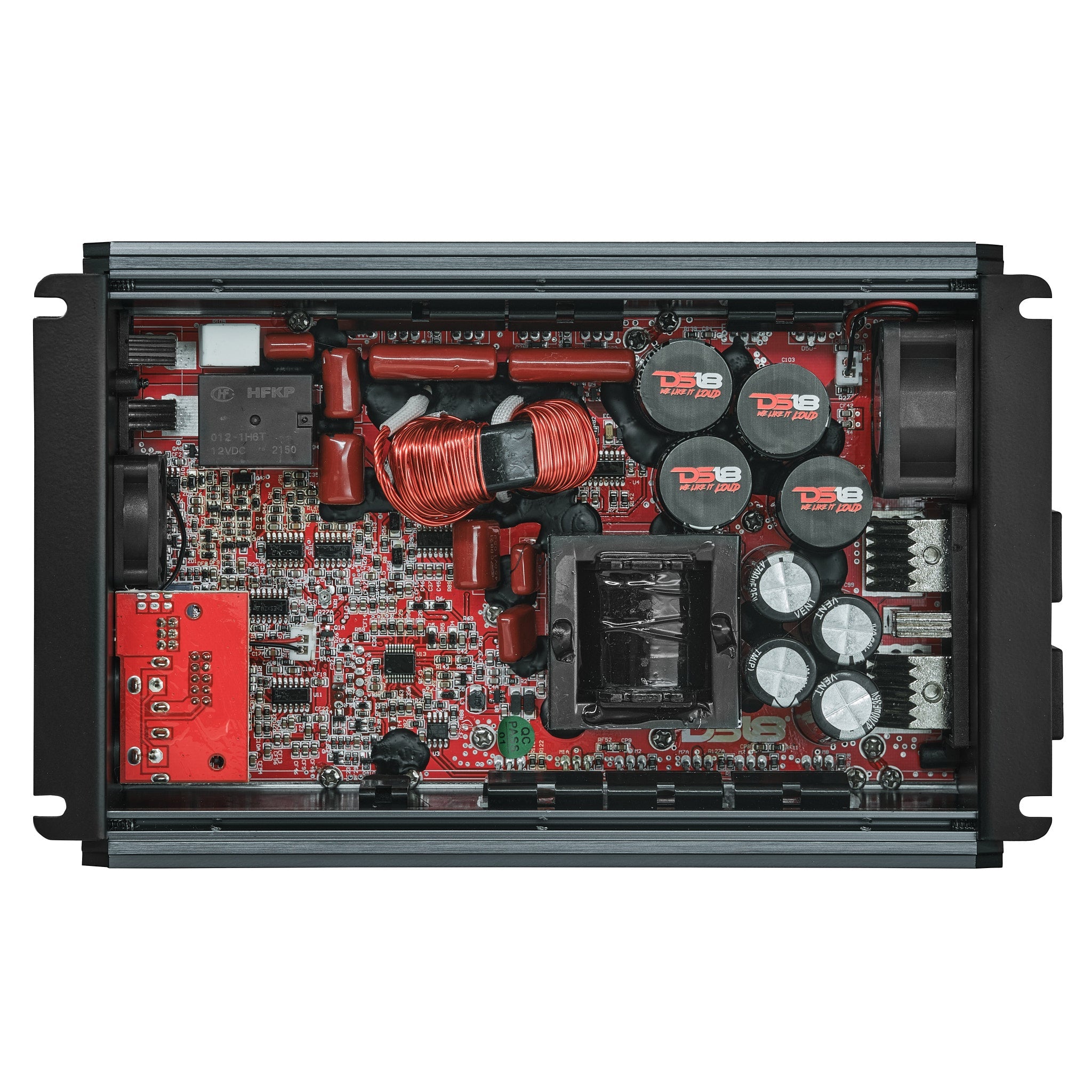

DS18’s FRP-2.5K was built for durability and performance. The protective coating on the PCB prevents moisture corrosion and bonded components provide extra vibration protection. This means you can enjoy high-quality sound even in harsh conditions.
Its bass boost feature enhances your low-end frequencies for a richer, more powerful sound. The bass knob also comes with power and clip indicators: with short circuit thermal, DC offset, and high/low voltage protection - your amplifier and vehicle are safeguarded against the most common problems in car audio.
DS18’s FRP-2.5K outputs 700W RMS @ 4-Ohm; 1300W RMS @ 2-Ohm; 2500W RMS @ 1-Ohm; and 2800W RMS @ 1-Ohm (BURST) – perfect power settings to supercharge any vehicle.
Thanks to its compact size, Tiffany RCA Terminals, and coming in three different colors (blue, titanium, or red) the FRP-2.5K fits in any system.
Upgrade with DS18’s FRP-2.5K and bring power to any system.
Key Features
- 1 Channel Full Range
- Class D
- 1 ~ 4 Ohm Stable
- 1 X 2500 Watts RMS @ 1 Ohm
- Clip / Protection Indicator

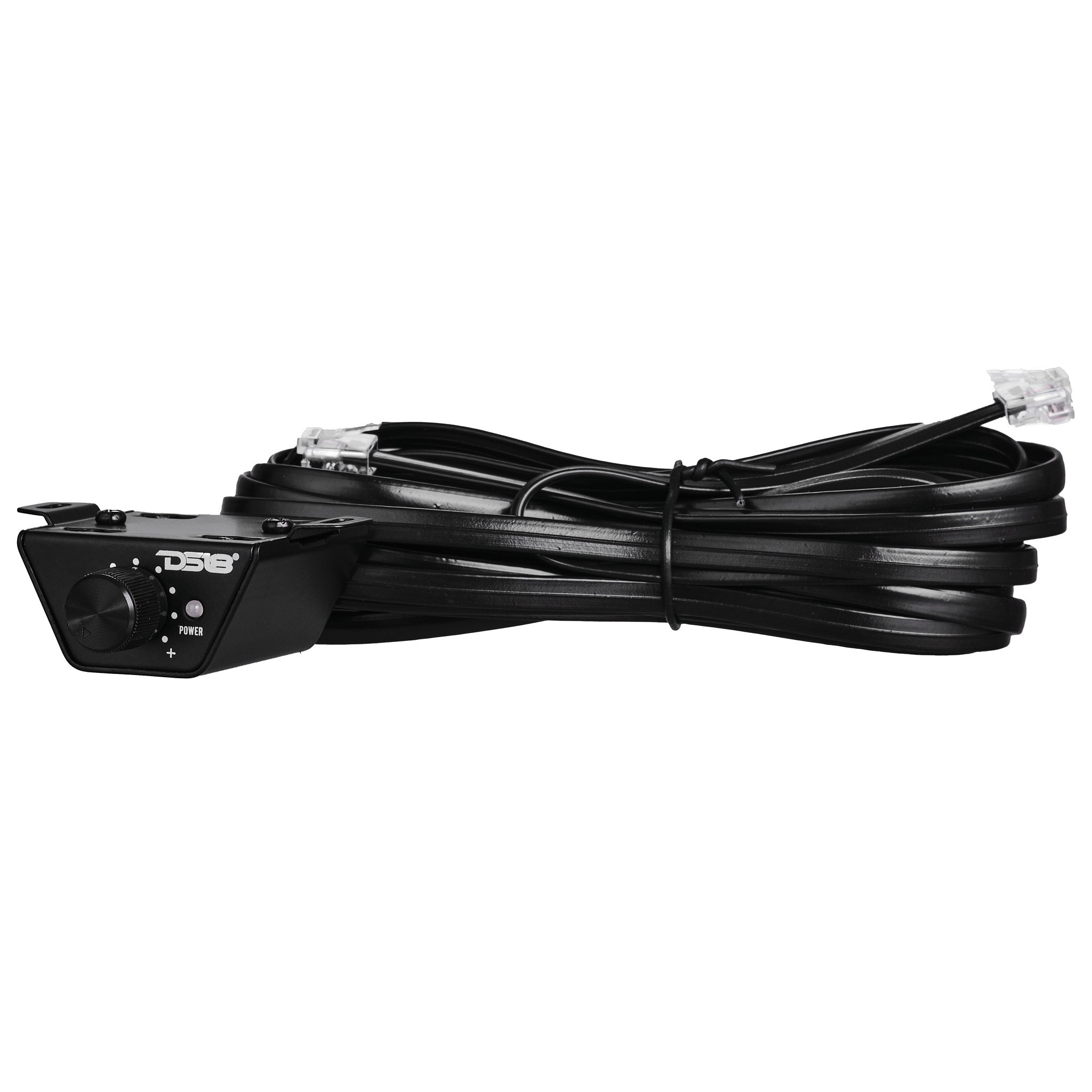

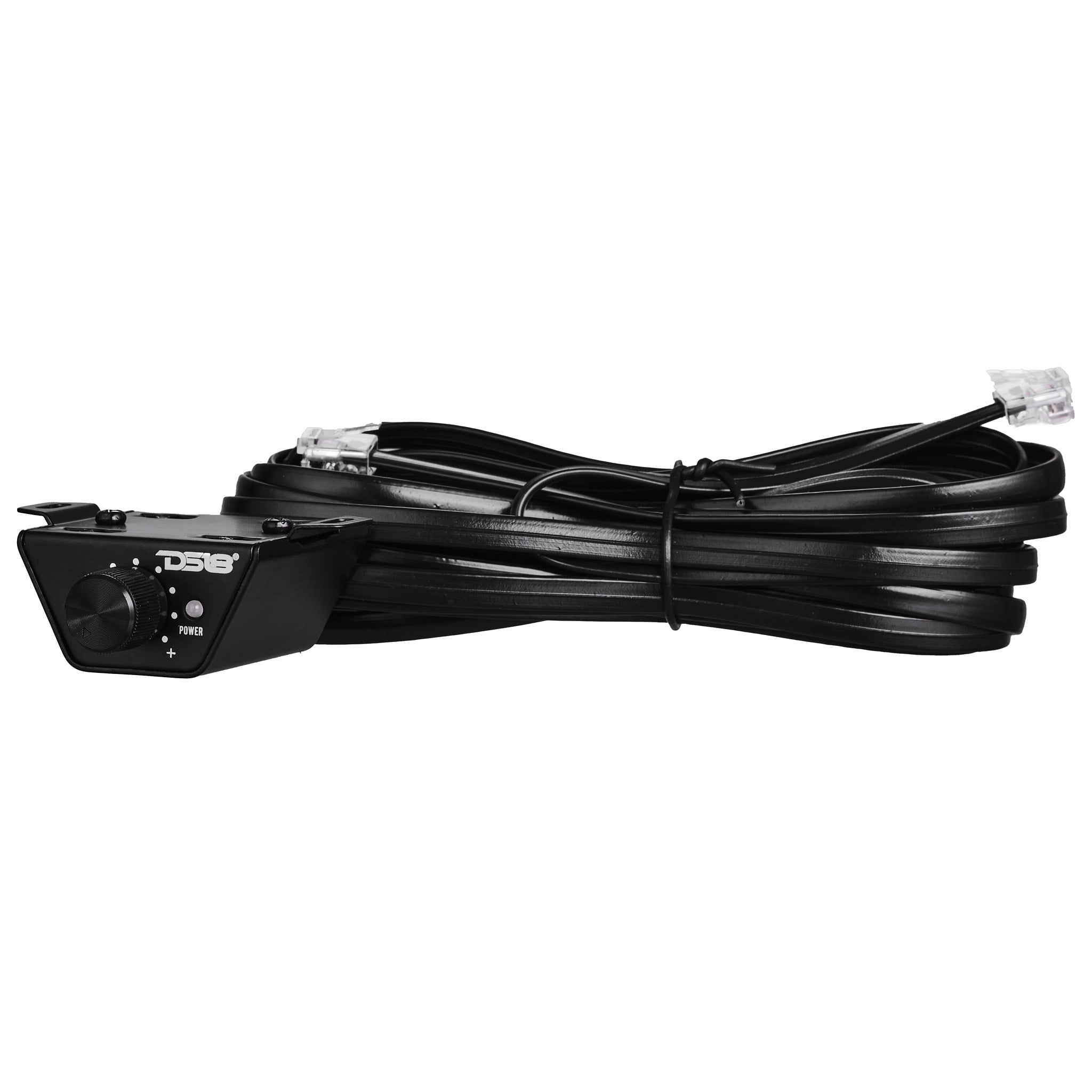

- Remote Level Control Knob
Specifications
| SKU | FRP-2.5K/TI |
|---|---|
| RMS Power @ 4 ohms | 700W |
| RMS Power @ 2 ohms | 1300W |
| RMS Power @ 1 ohm | 2500W |
| MAX Power @ 1 ohm (Burst) | 2800W |
| Frequency Response | 10Hz-20KHz |
| Signal to Noise Ratio | 83dB |
| Efficiency @ 4ohm | 85.6% |
| Damping Factor | 90 |
| Input Impedance | 10KΩ |
| Total Harmonic Distortion (THD) | 0.5% |
| Low Level Input Range | 400mv-3.6V |
| High Level Input | No |
| Selectable X-Over | Fixed Band-Pass |
| X-Over Filter Range | HP: 10Hz-2KHz / LP: 40Hz-20KHz |
| Bass Boost Range | 0-12dB |
| Bass Boost Frequency | 50Hz |
| Phase Selector | No |
| Amplifier Class | Digital |
| Amplifier Type | Full-Range Monoblock |
| Number of Channels | 1CH |
| Minimum Impedance | 1Ω |
| Led Indicator | Power / Protect / Clipping |
| Power Input Terminal Size | 0GA |
| Fuse Size (Recommended) | 200A |
| Remote Level Control | Yes (Volmeter Optional) |
| Cooling Fan | Yes (Smart Cooling x 2) |
| Voltmeter | No |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Body Color / Finish | Blue / Red / Titanium |
| Compact Size to Easy Installation for Any Applications | Yes |
| Stable/Reliable Four Layers Traces PCB Design | Yes |
| Surface Mount Component Technology | Yes |
| Quality Control Verification using Audio Precision Instruments | Yes |
| Tiffany RCA Terminal | Yes |
| LED Clip Indicator | Yes |
| Metal Knobs with Click Steps | Yes |
| Remote Level Control with Clip Indicator | (Included) |
| Remote Level Control with Clip Indicator and Voltmeter | (Optional) |
| Overall Length | 8.85" / 225mm |
| Overall Width | 5.5" / 140mm |
| Overall Height | 2.36" / 60mm |
| Heatsink Length | 7.6" / 193mm |
| Gross Single Unit Weight | 2.1kg |
