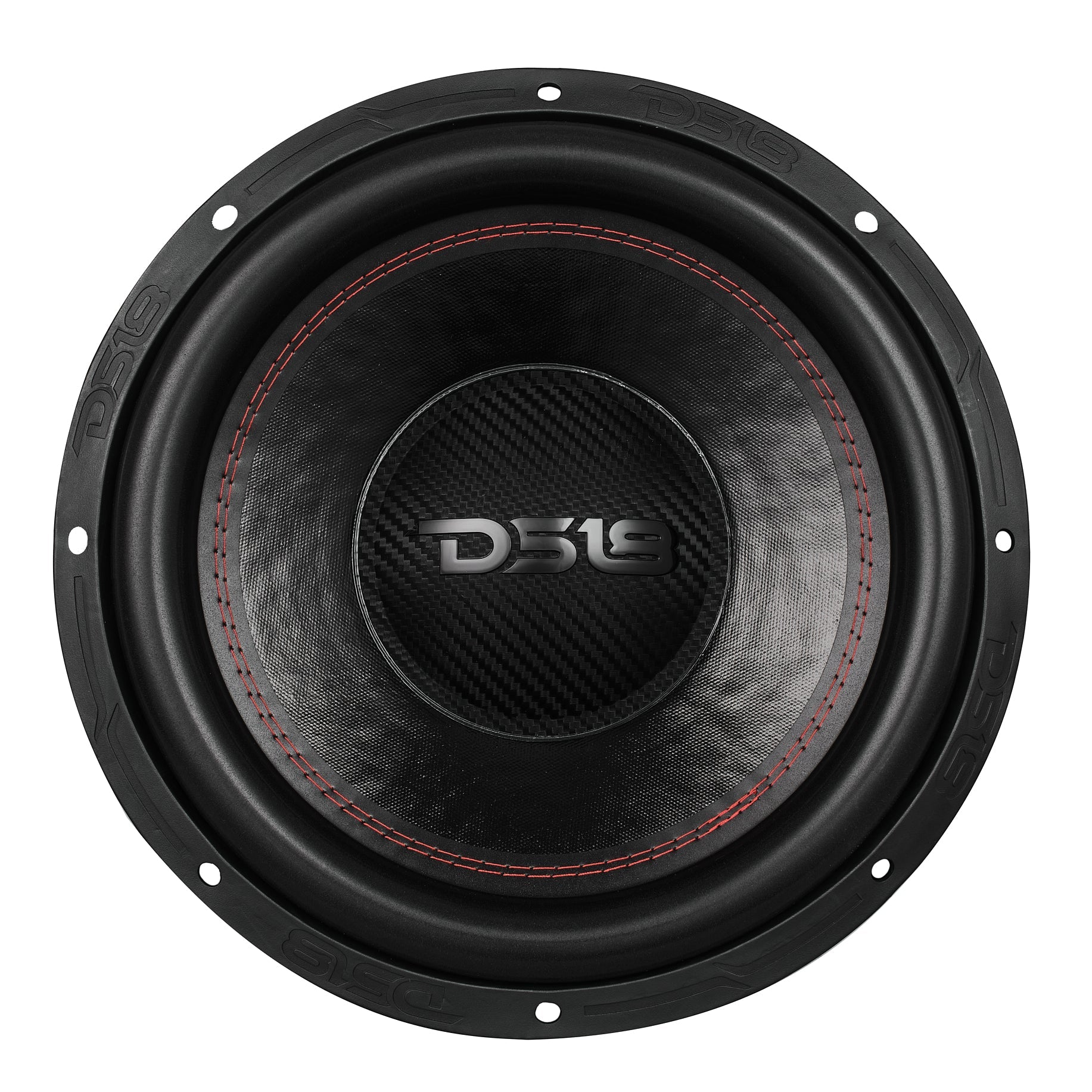

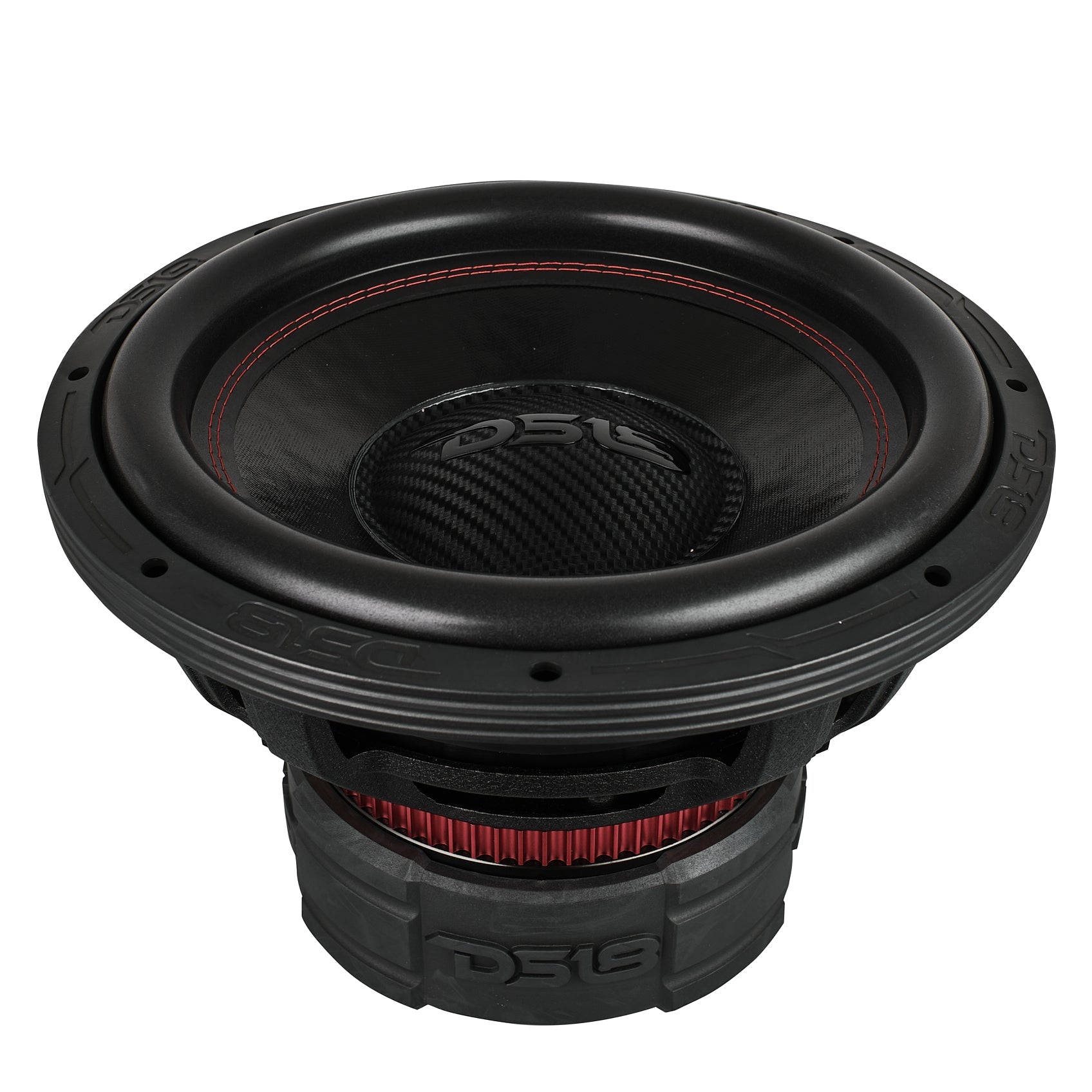

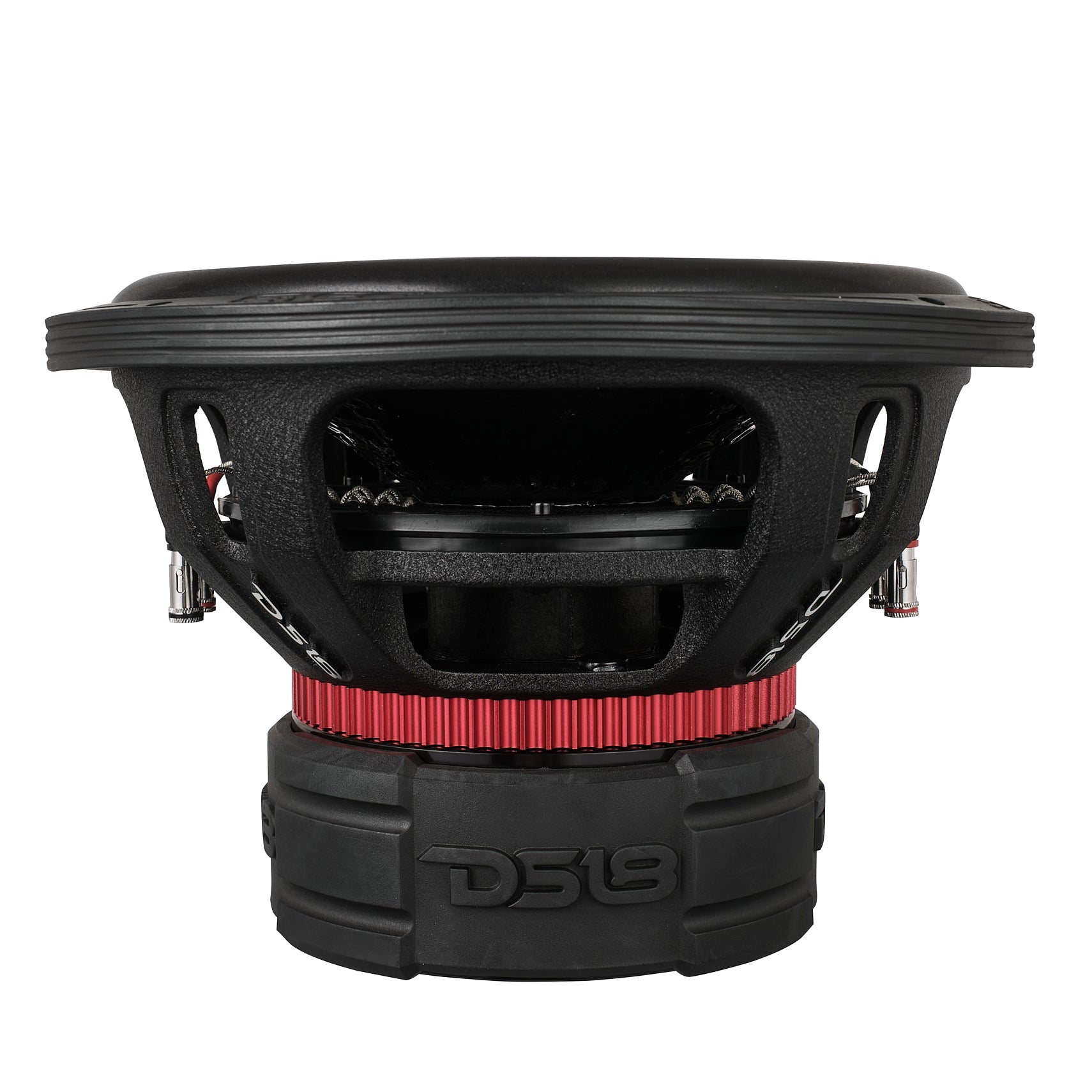

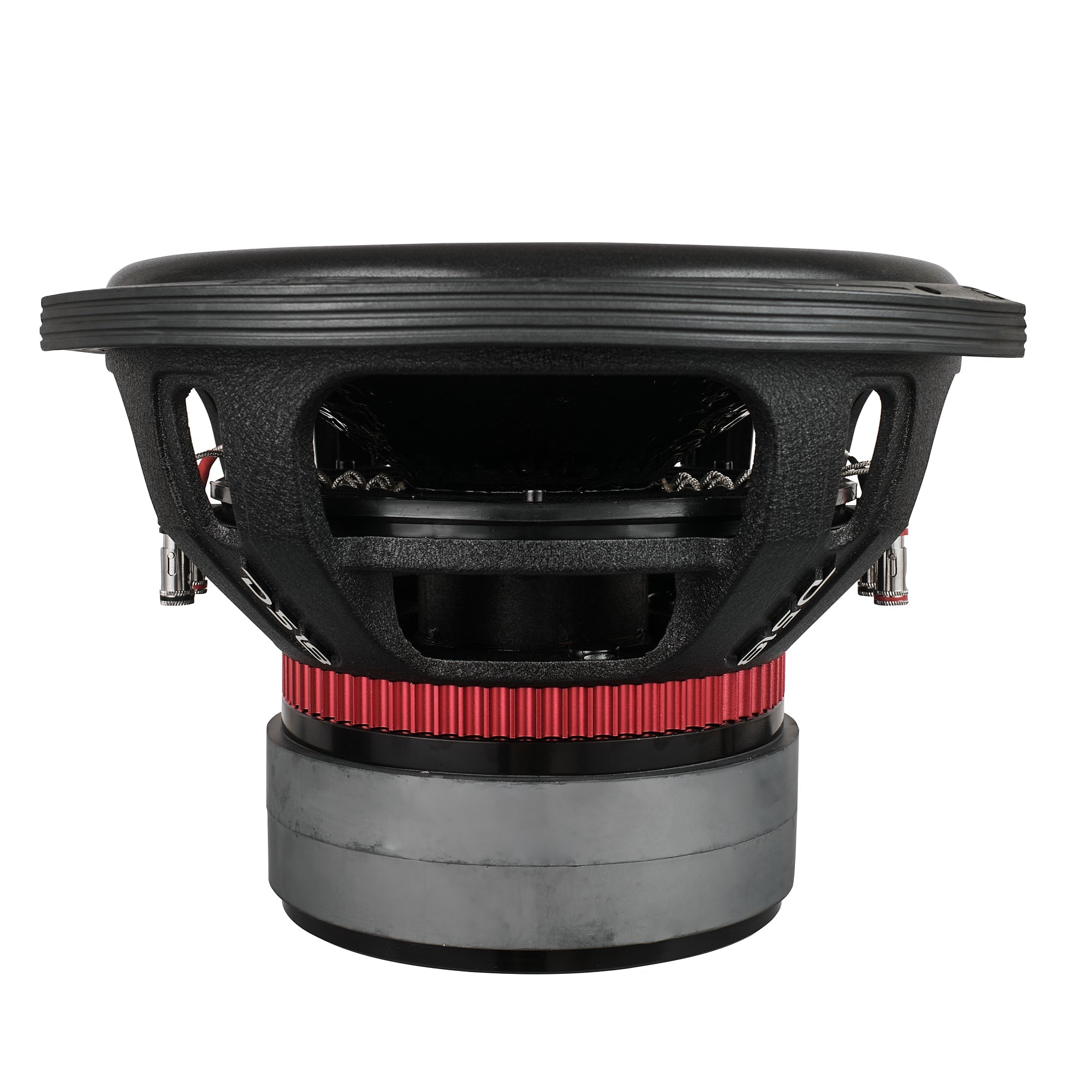

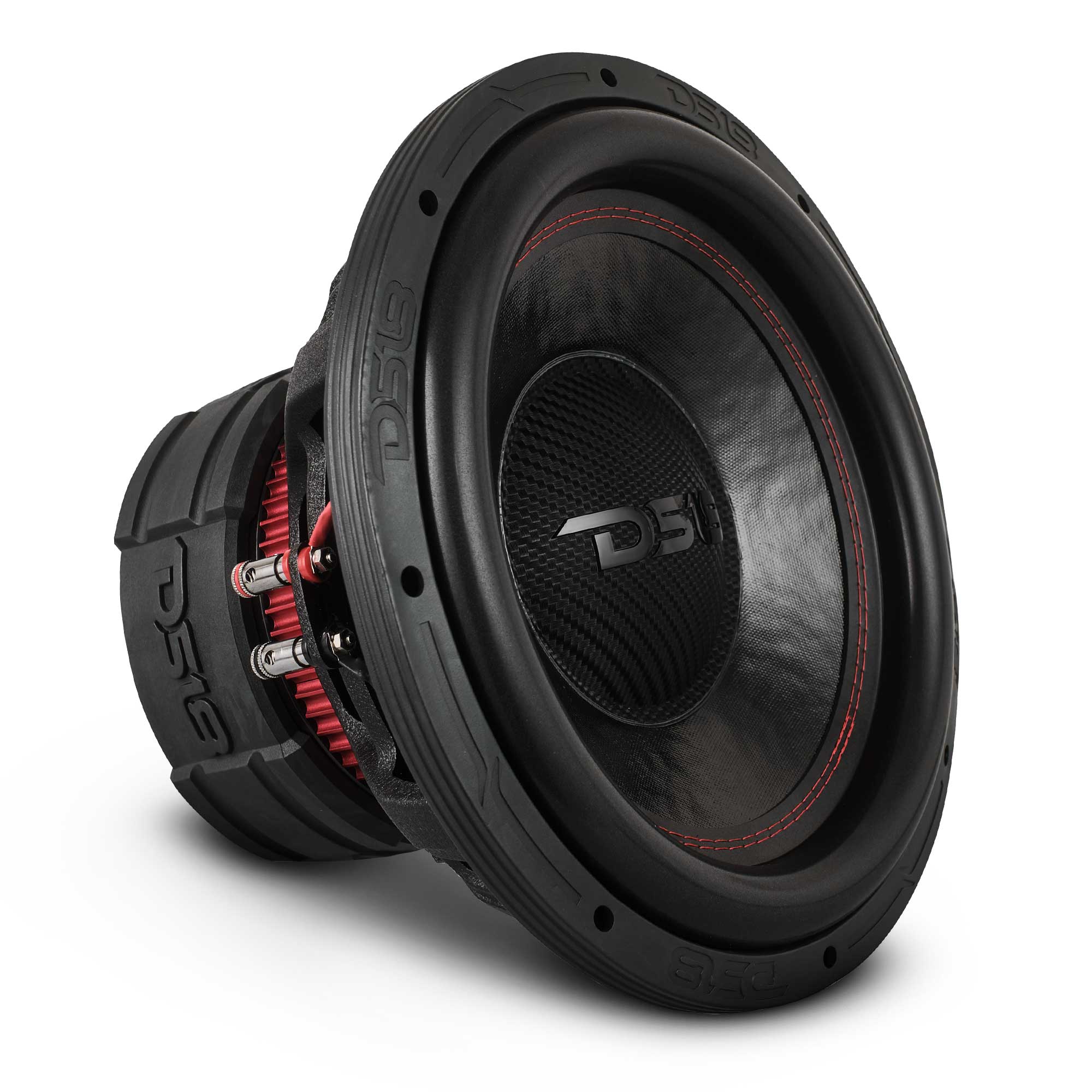

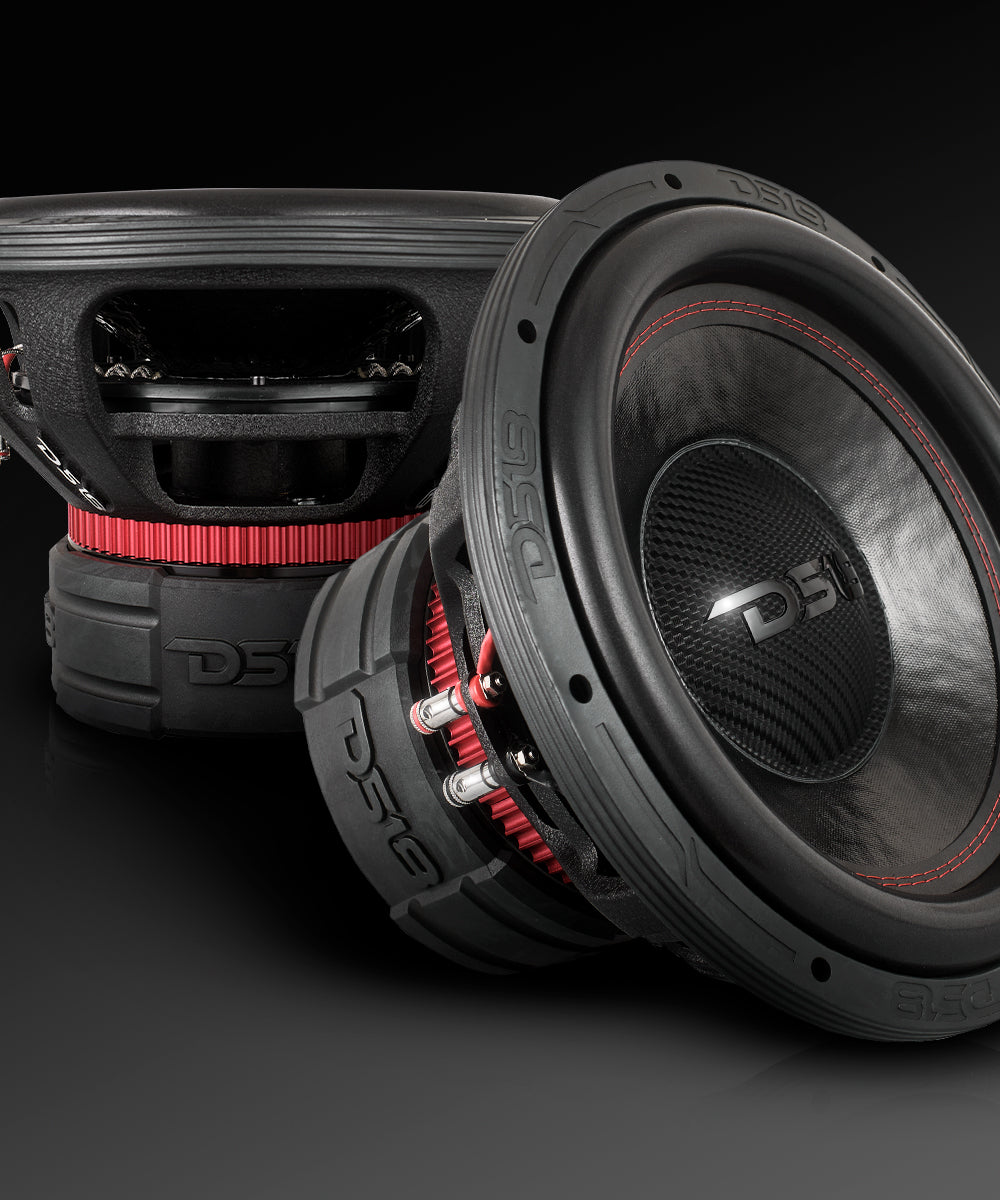

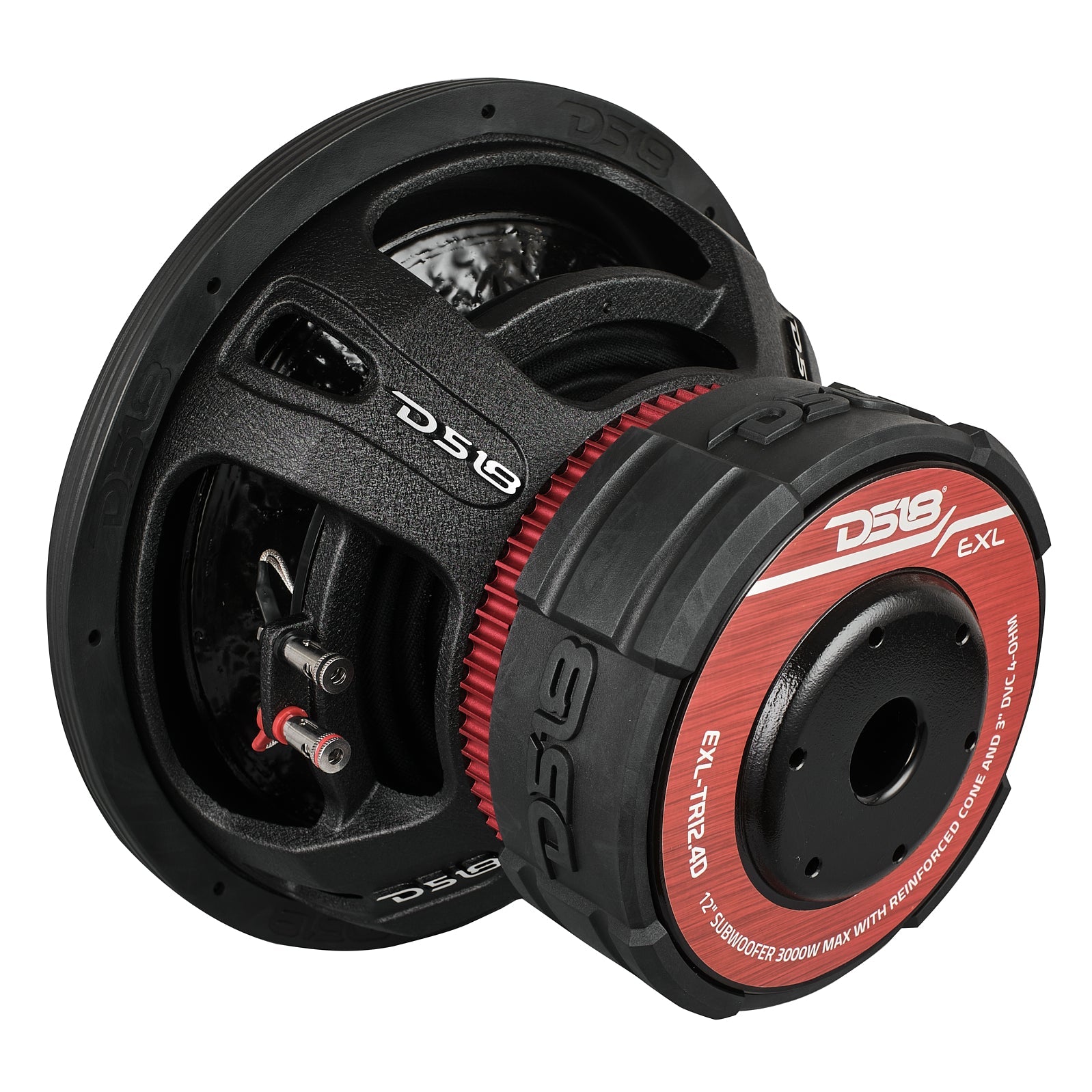

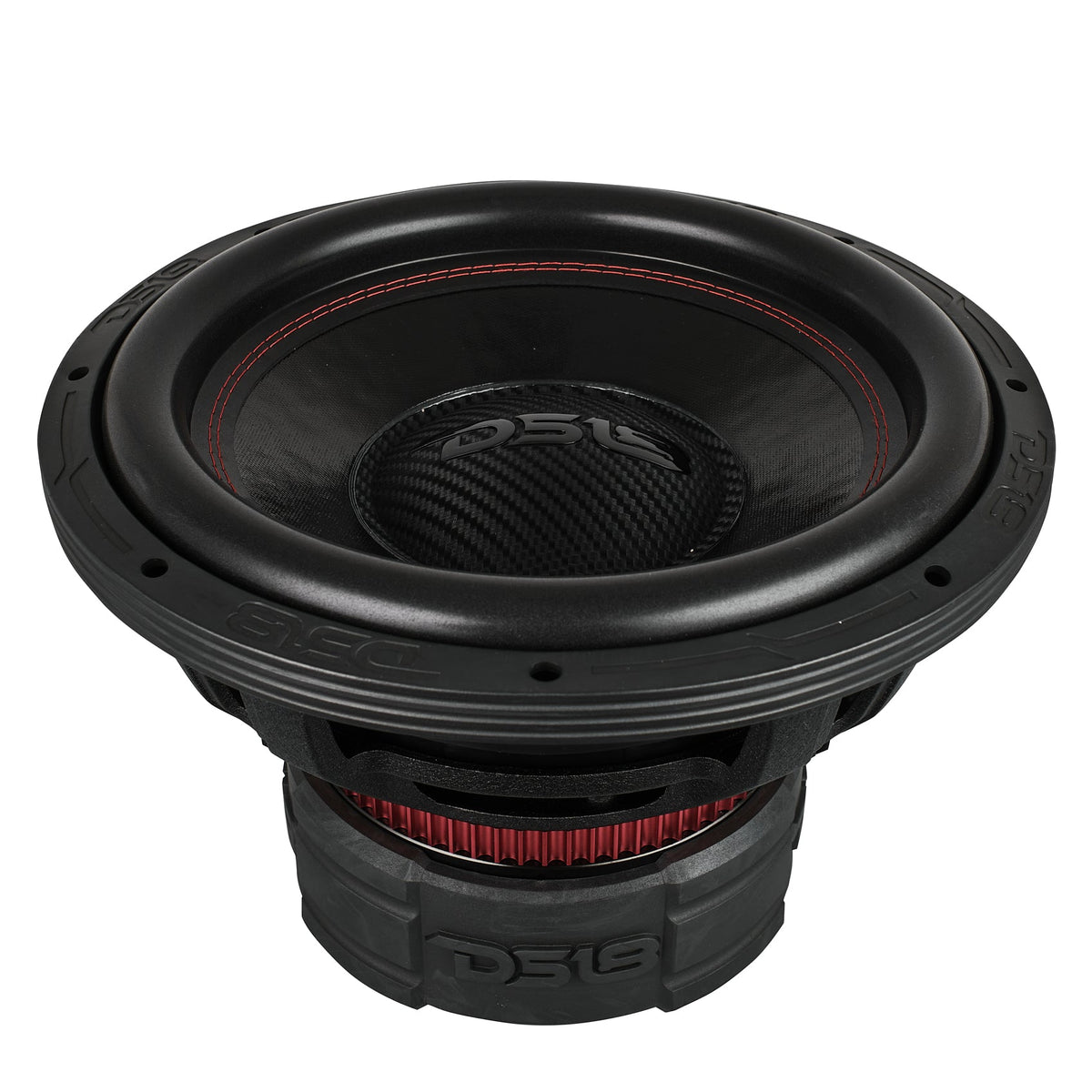

EXL 12” Subwoofer Dual Stack with Reinforced Cone 1500 Watts RMS 3" Dvc 4-Ohm
Product Overview 12" SUBWOOFER 3000W MAX WITH REINFORCED CONE AND 3" DVC 4-OHM Give your car the...
- $419.95
- $419.95
- Unit price
- per
Subtotal:
$419.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
12" SUBWOOFER 3000W MAX WITH REINFORCED CONE AND 3" DVC 4-OHM
Give your car the BOOM it needs with the EXL-TR12.4D! This high-excursion subwoofer delivers an astonishing 3000W MAX and 1500W RMS for full-powered BASS!
Crafted with a non-pressed paper cone and fortified by an epoxy coating, the EXL-TR12.4D guarantees durability while maintaining superior sound quality. The dual 4-ohm impedance configuration provides flexibility in wiring options, making it an ideal choice for custom installations.
The heart of the EXL-TR12.4D lies in its advanced materials and design. With a 3" black aluminum voice coil former and SV winding material, this subwoofer ensures efficient heat dissipation, allowing it to perform seamlessly even during extended high-output use. The spider-crossed leads further enhance reliability by maintaining signal integrity for uninterrupted bass performance. The EXL-TR12.4D also comes with a double-stacked ferrite magnet system weighing in at 170 oz.
With a frequency response that dips as low as 10 Hz, you can capture every subtle note of your favorite tracks. The high-excursion design with 17.5mm of excursion delivers massive low-end impact, perfect for those who demand intense bass without sacrificing clarity.
Versatility is key with the EXL-TR12.4D. It’s optimized for both sealed and ported enclosures, giving you control over your sound profile—whether you prefer tight, punchy bass or a deeper, more resonant boom.
Upgrade with this versatile powerhouse that promises perfect performance for years to come!
Key Features
- 12" Subwoofer
- MAX Power: 3000 Watts
- RMS Power: 1500 Watts
- Impedance: 4 OHM DVC ~ 82dB
- Dual Stacked Ferrite Magnets
- Improved Heat Dissipation ~ Reinforced Cone
Specifications
| SKU | EXL-TR12.4D |
|---|---|
| Nominal Diameter | 12" / 305mm |
| Nominal Impedance | 4+4 ohms |
| RMS Power Handling | 1500W |
| MAX Power Handling | 3000W |
| Sensitivity (1w/1m) | 82dB |
| Frequency Response | 10-500 Hz |
| Recommended Lo Pass Crossover | 120 Hz |
| Demodulating Rings | No |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push 6ga |
| Voice Coil Diameter | 3" / 76.5mm |
| Voice Coil Former Material | Black Aluminum |
| Winding Material | SV |
| Cone Material | Non-Pressed Paper + Epoxy Coating |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Spider Diameter | 8.5" / 215mm |
| Leads Connection Type | Crossed Spider |
| Basket Material | Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite |
| Magnet Weight | 2 x 85 Oz (170 Oz) |
| Displacement Volume | 3.2L / 0.113ft3 |
| Equivalent Volume Vas | 12.36L / 0.436ft3 |
| Excursion (one way) Xmax | 17.5 mm |
| Free Air Resonance Fs | 45 Hz |
| Mechanical Factor Qms | 5.839 |
| Electrical Factor Qes | 1.254 |
| Total Factor Qts | 1.032 |
| Moving Mass Mms | 385.777g |
| Compliance Cms | 30.891u m/N |
| Bl Factor BI | 25.684 |
| Voice Coil Inductance Le | 6.03mH |
| Diaphragm Area Sd | 530.929 cm? |
| Dc Resistance Re | 3.7+3.7 ohms |
| Efficiency Bandwidth Product EBP | 65 |
| Sealed Internal Volume | 17L / 0.6ft3 |
| Sealed Box Output Response | 41Hz |
| Ported Internal Volume | 42.5L / 1.5ft3 |
| Port Size *Square (WxHxLong) | 1.52"x12.28"x31.82" / 38.5x312x808.2mm |
| Port Tuning Frequency | 30Hz |
| Ported Box Output Response | 25Hz |

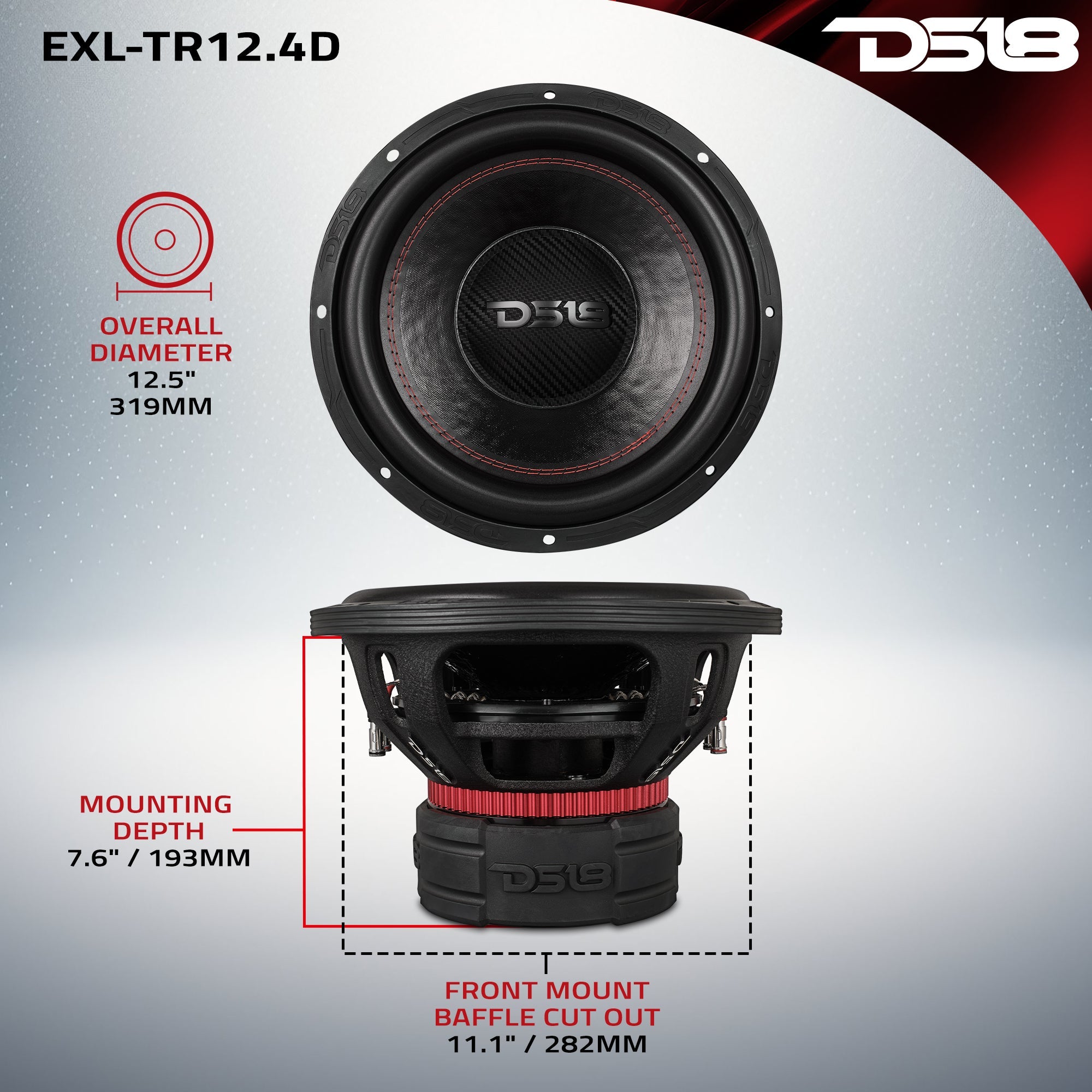

| Overall Diameter | 12.5" / 319mm |
| Overall Depth | 9" / 230mm |
| Front Mount Baffle Cutout | 11.1" / 282mm |
| Mounting Depth | 7.6" / 193mm |
| Motor Diameter | 7.5" / 191mm |
