EXL 5x7" 2-Way Coaxial Speaker | 120W RMS 3-Ohm
Product Overview 5x7" 2-Way Coaxial Speaker – 120W RMS 3-Ohm The EXL-SQ5.7 pushes 120W RMS at 3...
- $124.95
- $124.95
- Unit price
- per
Subtotal:
$124.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview

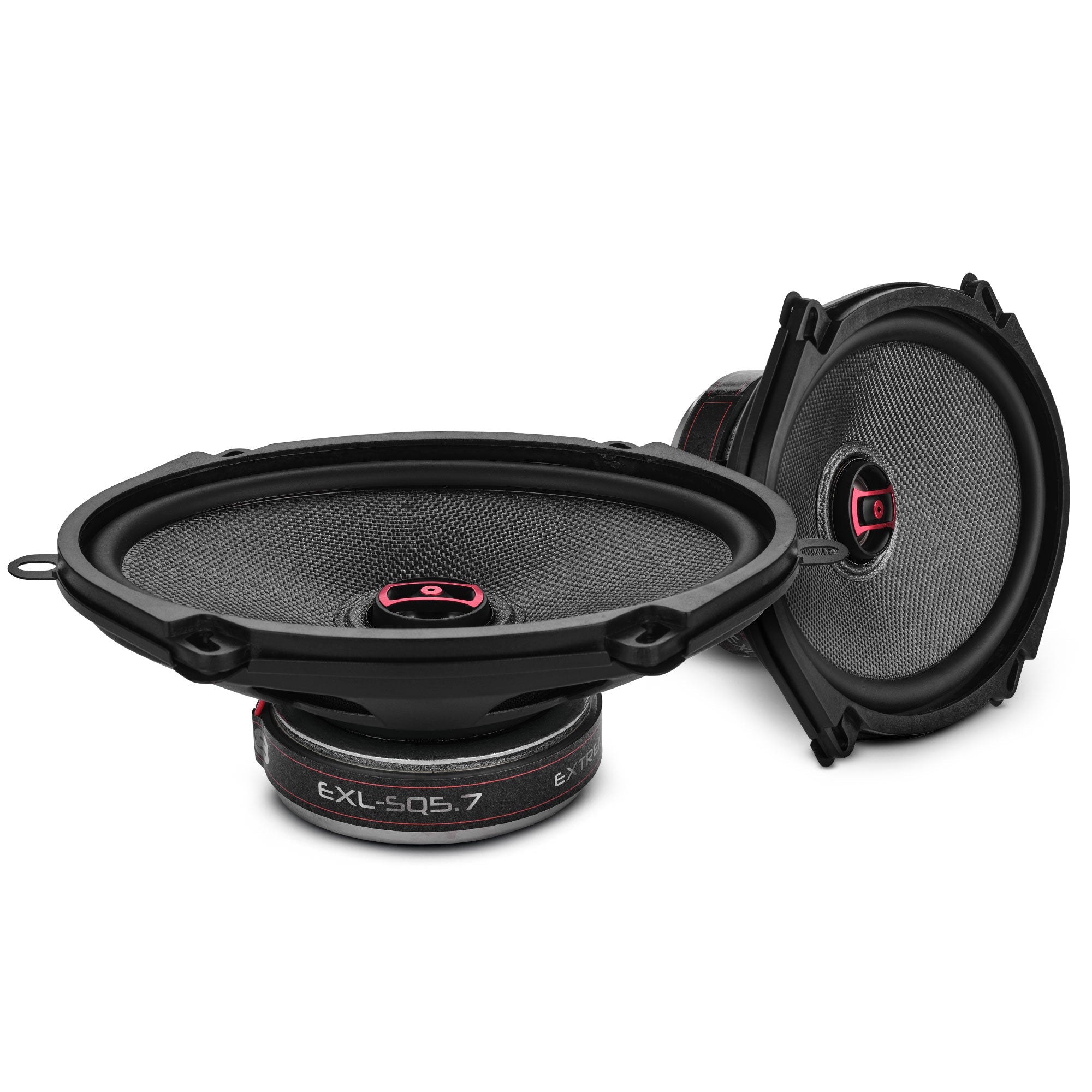

5x7" 2-Way Coaxial Speaker – 120W RMS 3-Ohm
The EXL-SQ5.7 pushes 120W RMS at 3 ohms, and handles a MAX of 400 watts. This speaker details sound from 60Hz up to 22kHz and cuts through any mix easy!
Advanced Speaker Components

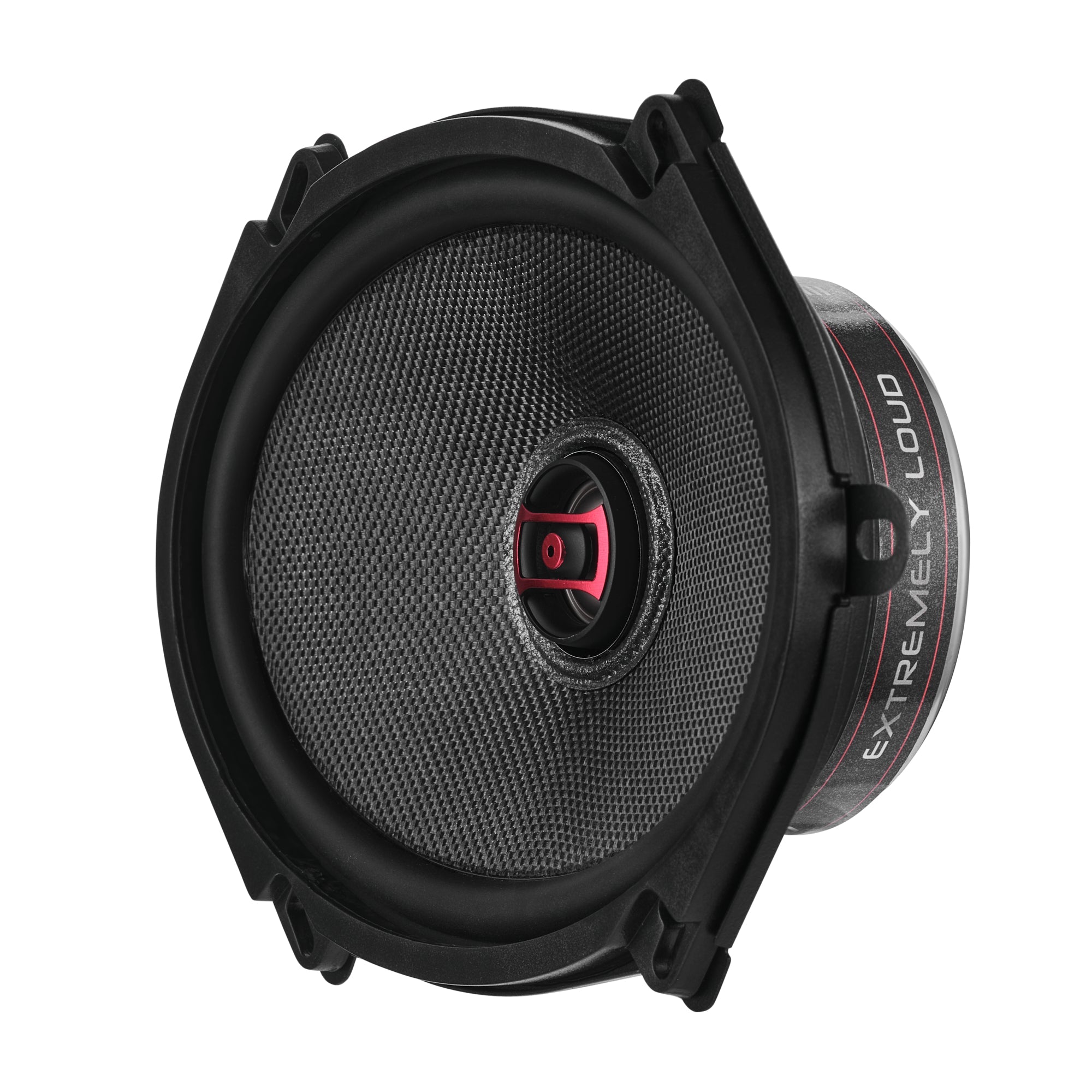

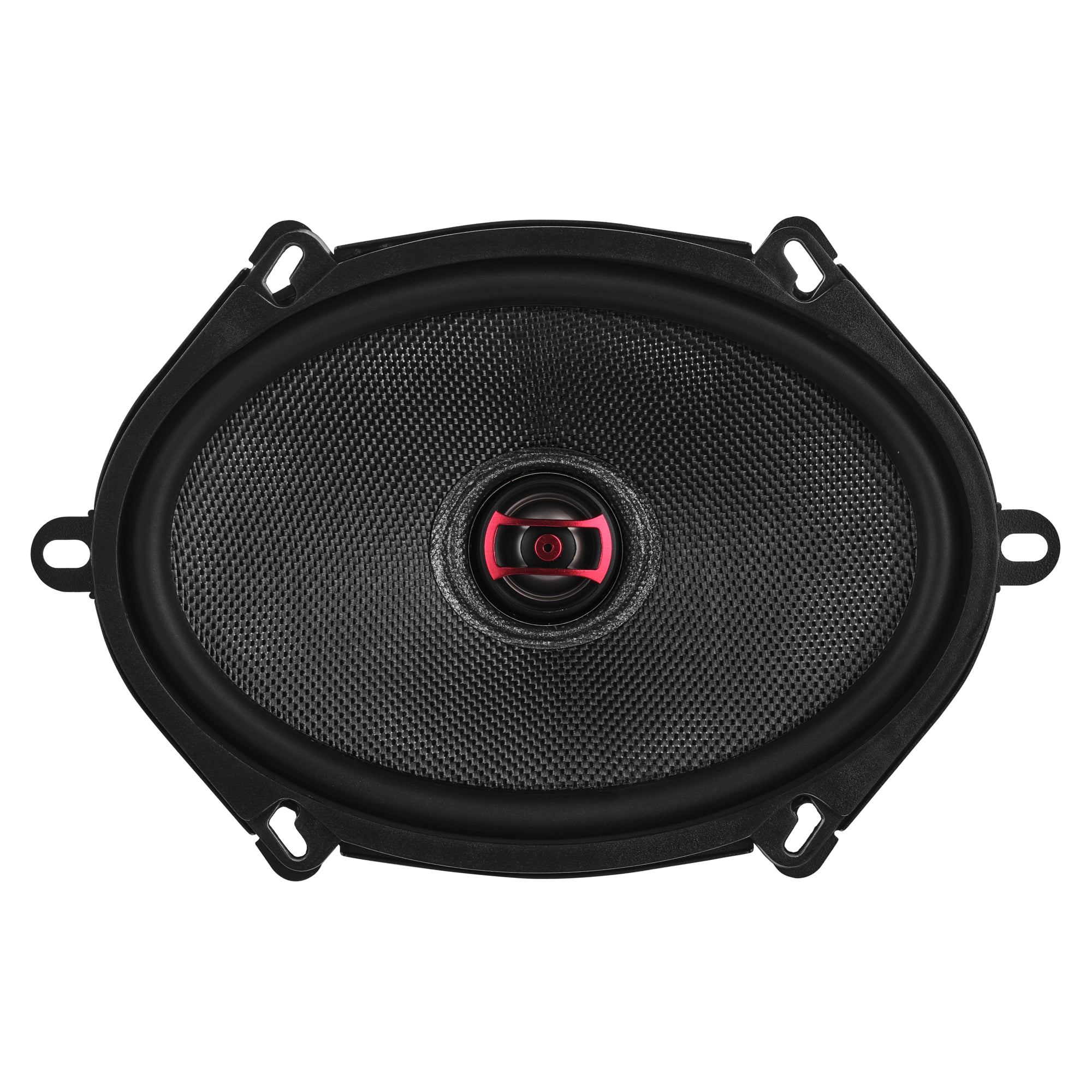

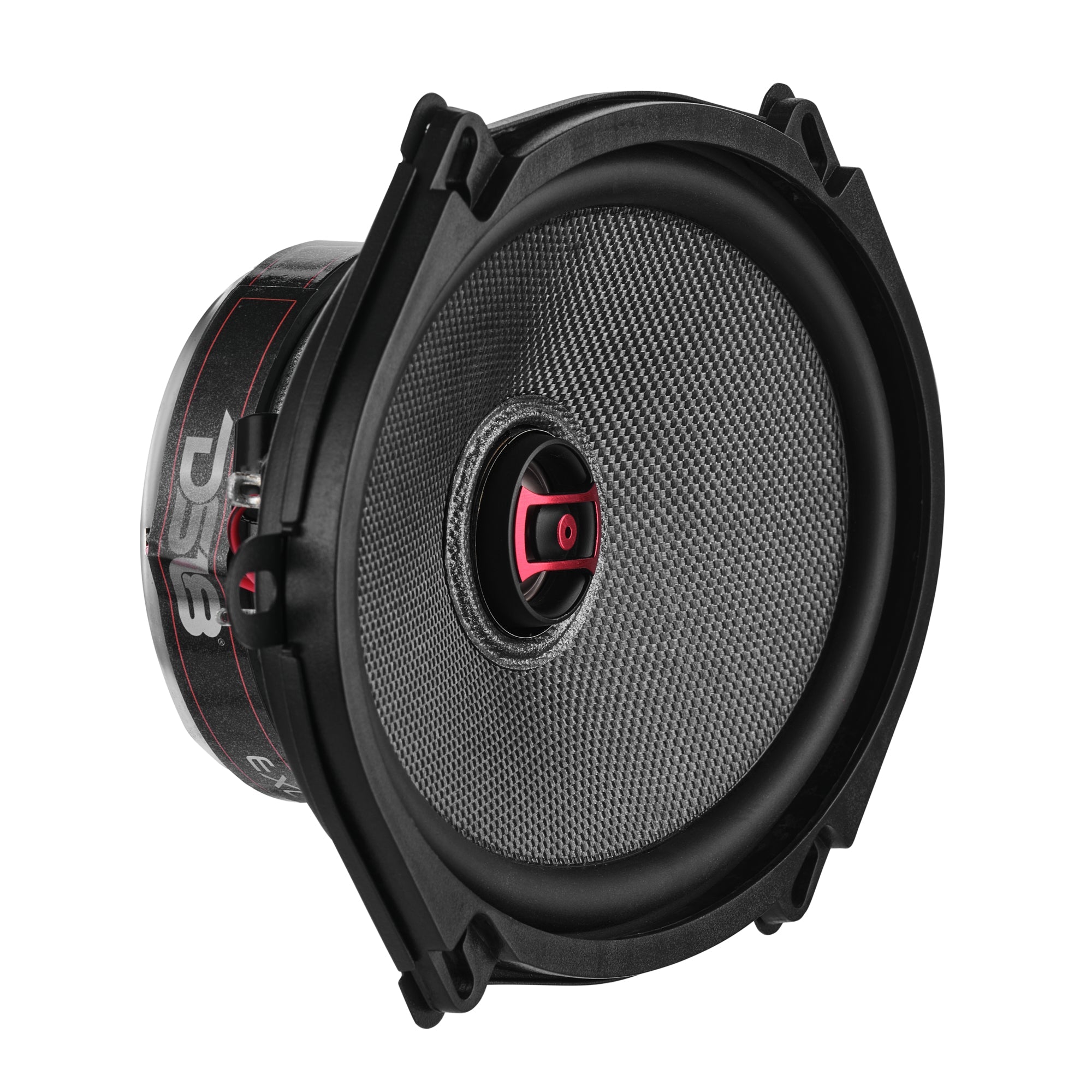

Featuring a durable glass fiber woofer cone with rubber surround, the EXL-SQ5.7 ensures longevity and accurate reproduction. The 1.3-inch ASV voice coil handles heat effectively for consistent performance. A barium magnet weighing powers the system for tight, controlled response.
High-Performance Tweeter
The included 1.14-inch PEI dome neodymium tweeter delivers sharp, clear highs. The built-in crossover protection smoothly integrates with the woofer and decreases distortion.
Built to Last

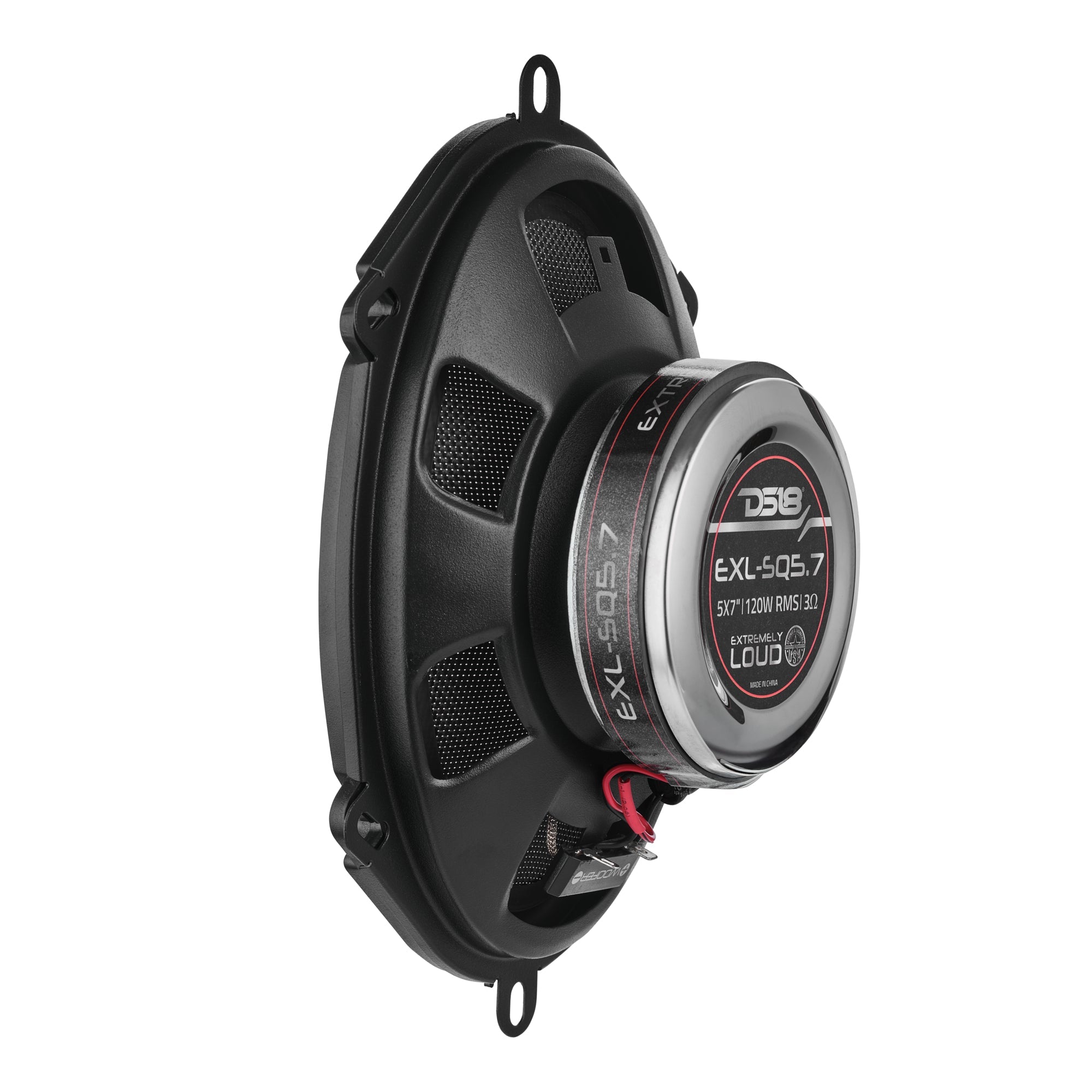

Constructed with a robust steel basket finished in black, the EXL-SQ5.7 is built for durability and long-term use in demanding automotive environments.
Upgrade to DS18’s EXL-SQ5.7 for pro-grade quality and power that will bring your audio to life!
Key Features
- 5x7" 2-Way Coaxial
- MAX Power: 400 Watts
- RMS Power: 120 Watts
- Impedance: 3-Ohm
- Barium & Neodymium Magnets
- Pair ~ 90dB
Specifications
| SKU | EXL-SQ5.7 |
|---|---|
| Nominal Diameter | 5x7" / 127x177.8mm / 1.14? / 29mm |
| Nominal Impedance | 3 ohm |
| RMS Power Handling | 120W |
| MAX Power Handling | 400W |
| Sensitivity (1w/1m) | 90 dB |
| Frequency Response | 60Hz - 22KHz |
| Recommended HI Pass Crossover | 80Hz |
| Number of ways | 2-way |
| Pair or Single | Pair |
| Grill Included | No |
| Voice Coil Diameter | 1.3" / 33mm / 0.8" / 20.3mm |
| Voice Coil Former Material | ASV |
| Winding Material | CCAW |
| Cone Material | Glass Fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Basket Color/Finish | Black |
| Magnet Material | Barium / Neodymium |
| Magnet Weight | 13.5 Oz |
| Equivalent Volume | 14.11L / 0.498ft3 |
| Free Air Resonance | 78Hz |
| Mechanical Factor | 3.219 |
| Electrical Factor | 1.466 |
| Total Factor | 1.144 |
| DC Resistance | 2.8 ohm |
| Diaphragm Material | PEI Dome |

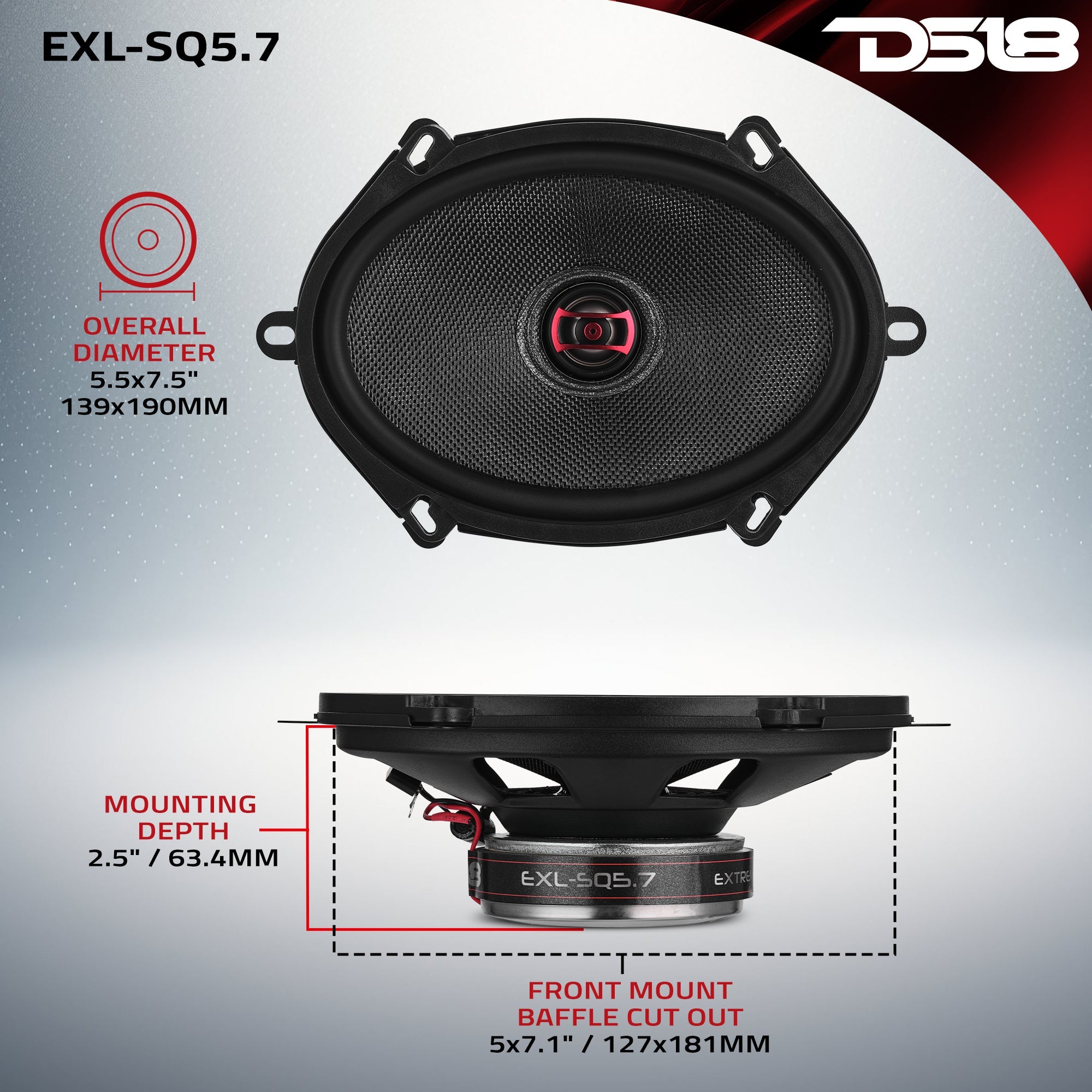

| Overall Diameter | 5.5x7.5" / 139x190mm |
| Overall Depth | 2.87" / 73mm |
| Front Mount Baffle Cutout | 5"x7.1" / 127x181mm |
| Mounting Depth | 2.5" / 63.4mm |
| Motor Diameter | 3.54" / 90mm |
