Product Overview

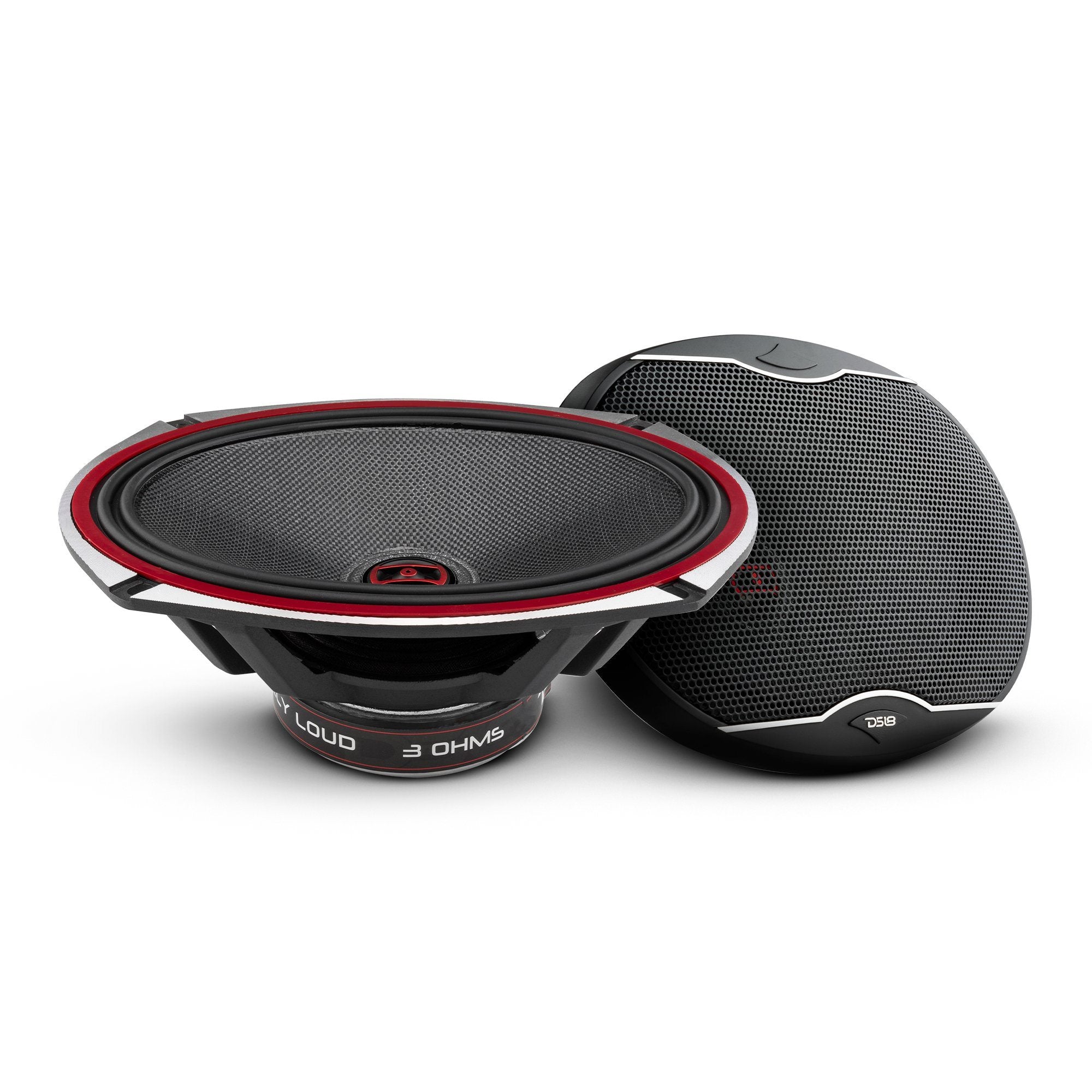

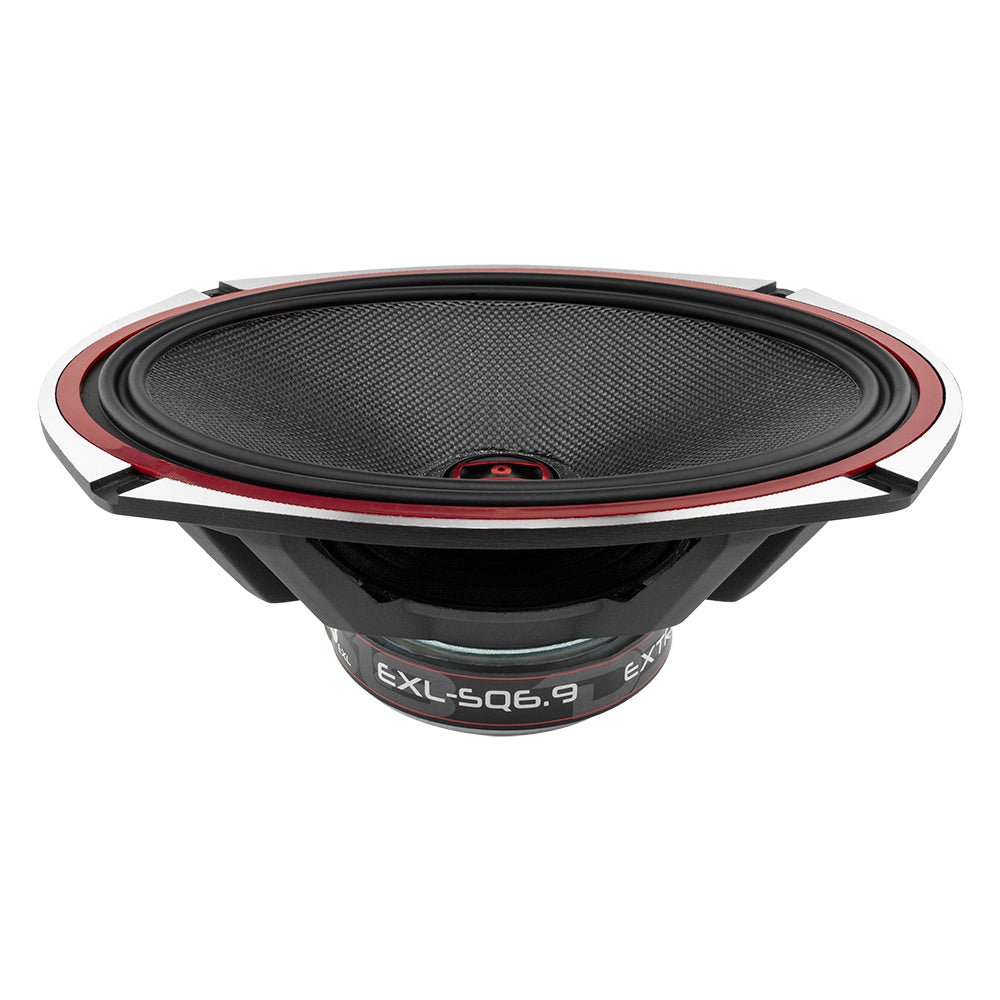

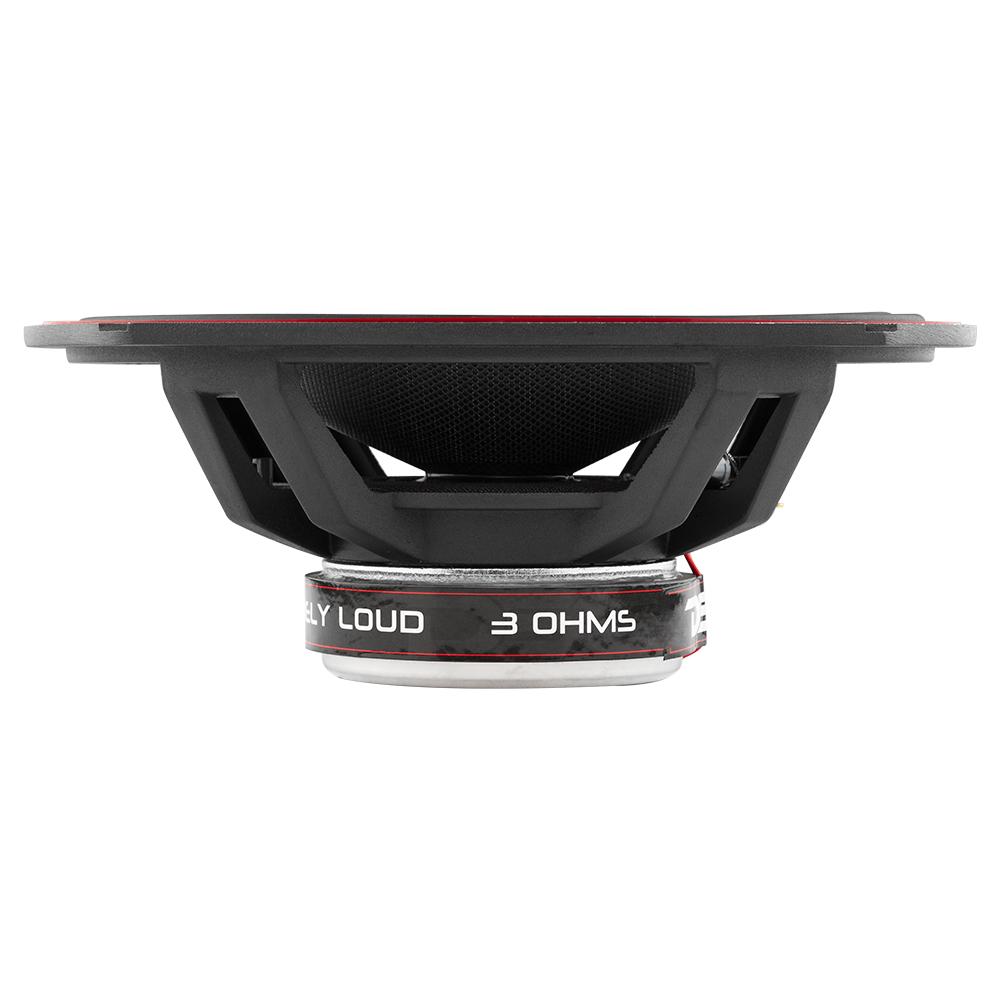

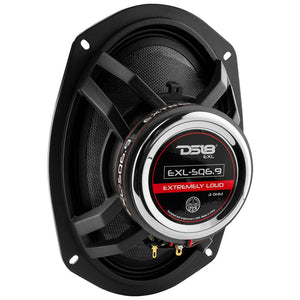

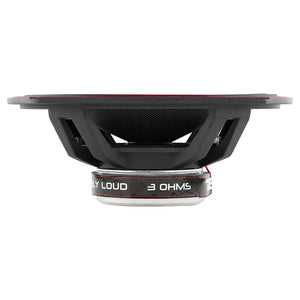

DS18 EXL-SQ6.9 Glass Fiber 6x9" 2-Way Coaxial Car Speaker 560 Watts 3-Ohm
|
When you seek sound quality, it is best to have an idea of what to look for. Sensitivity, frequencies, woofer, tweeter, surround materials, and power handling are all important key factors. EXL SQ Coaxial Speaker brings it all with black glass fiber cone, advanced PEI dome tweeter, NEO magnets, 1" BASV voice coils, 3 Ohms impedance strontium-magnets and aluminum basket. Highlights
|
Technical Details
| Model: | EXL-SQ6.9 |
| Type: | Coaxial |
| Size: | 6x9" |
| RMS Power: | 160W |
| MAX Power: | 560W |
| Frequency Response: | 55Hz - 22KHz |
| Impedance: | 3 ohms |
| Sensitivity: | 90dB |
| Materials | |
| Surround: | Rubber Edge |
| Cone: | Black Glass Fiber |
| Magnet: | Strontium |
| Voice Coil Wire: | BASV |
| Measurements | |
| Voice Coil Size: | 1.3" / 33 mm |
| Woofer Magnet: | Stronium |
| Magnet Weight: | 20 oz |
| Tweeter Voice Coil: | .08" / 20.3 mm |
| Tweeter: | 1.14" / 29 mm |
| Tweeter Magnet: | Neodymium |
| Mounting Cutout: | 5.9"x8.6" / 150x220 mm |
| Mounting Depth: | 3.22" / 82 mm |

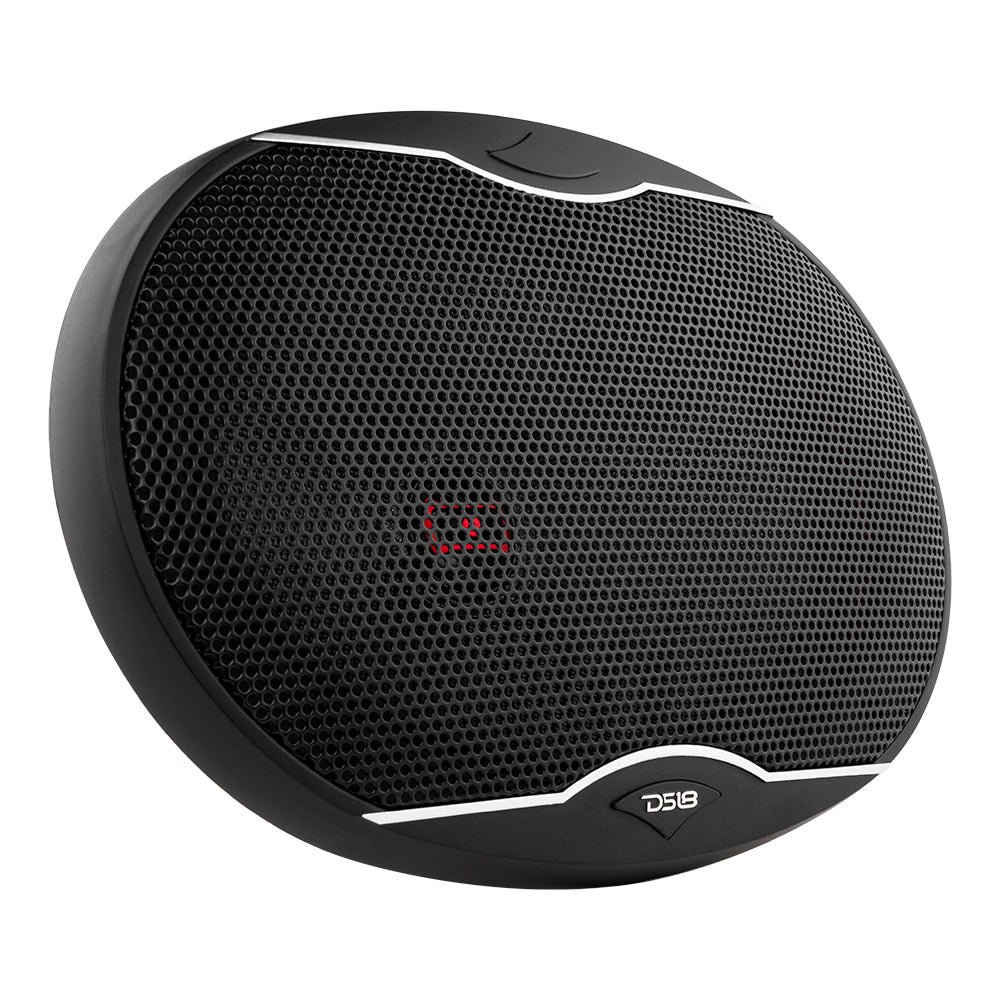

| Grills: | Yes |
Key Features
- 6x9" 2-Way Coaxial
- MAX Power: 560 Watts
- RMS Power: 160 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 90dB
Specifications
| SKU | EXL-SQ6.9 |
|---|---|
| Speaker Type | 2-Way Coaxial |
| Nominal Size | 6x9" |
| Voice Coil | BASV 1.14" |
| RMS Power | 160 Watts |
| Tweeter | 1.14" |
| Nominal Impedance | 3 Ohm |
| MAX Power | 560 Watts |
| Sensitivity | 90dB/1w/m |
| Frequency Response | 55-22KHz |
| Tweeter Material | Pei Dome Neodymium Magnet |
| Magnet Material | Strontium |
| Magnet Weight | 19.8 oz |
| Woofer Cone Material | Glass Fiber Cone |
| Woofer Surround Material | Rubber edge |
