Product Overview

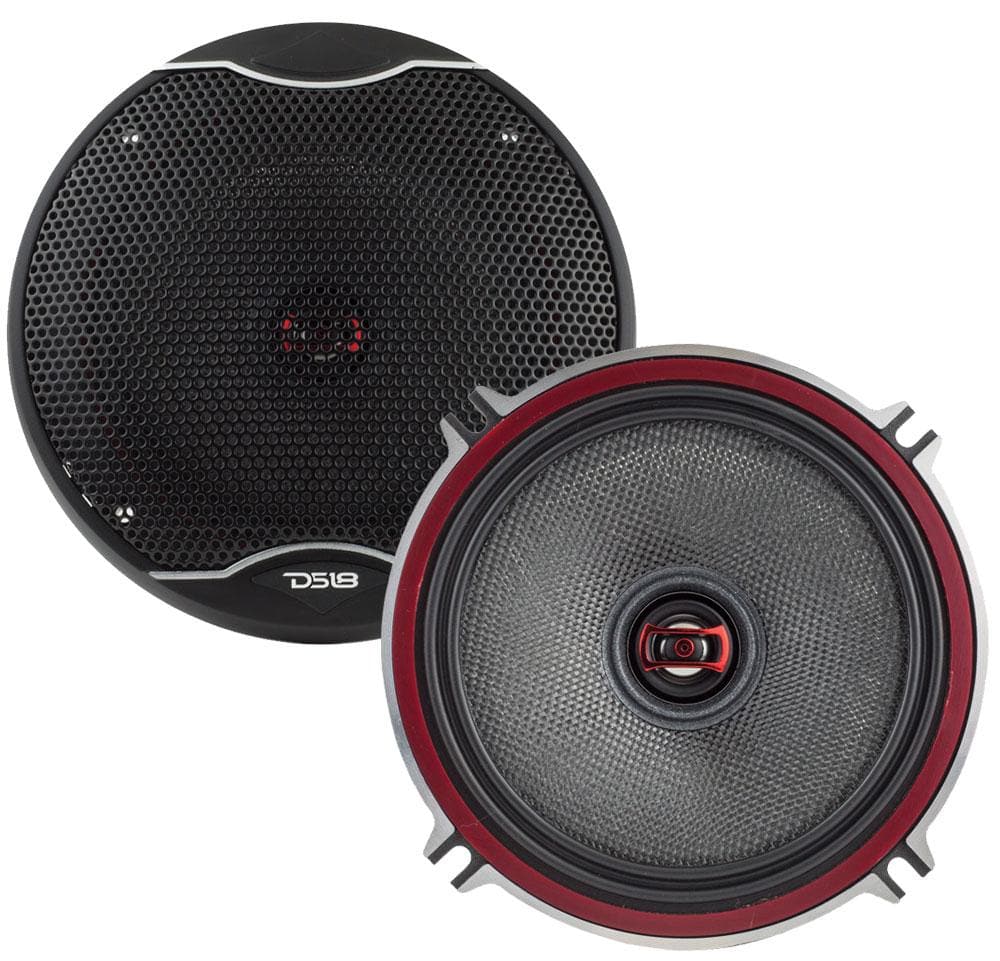

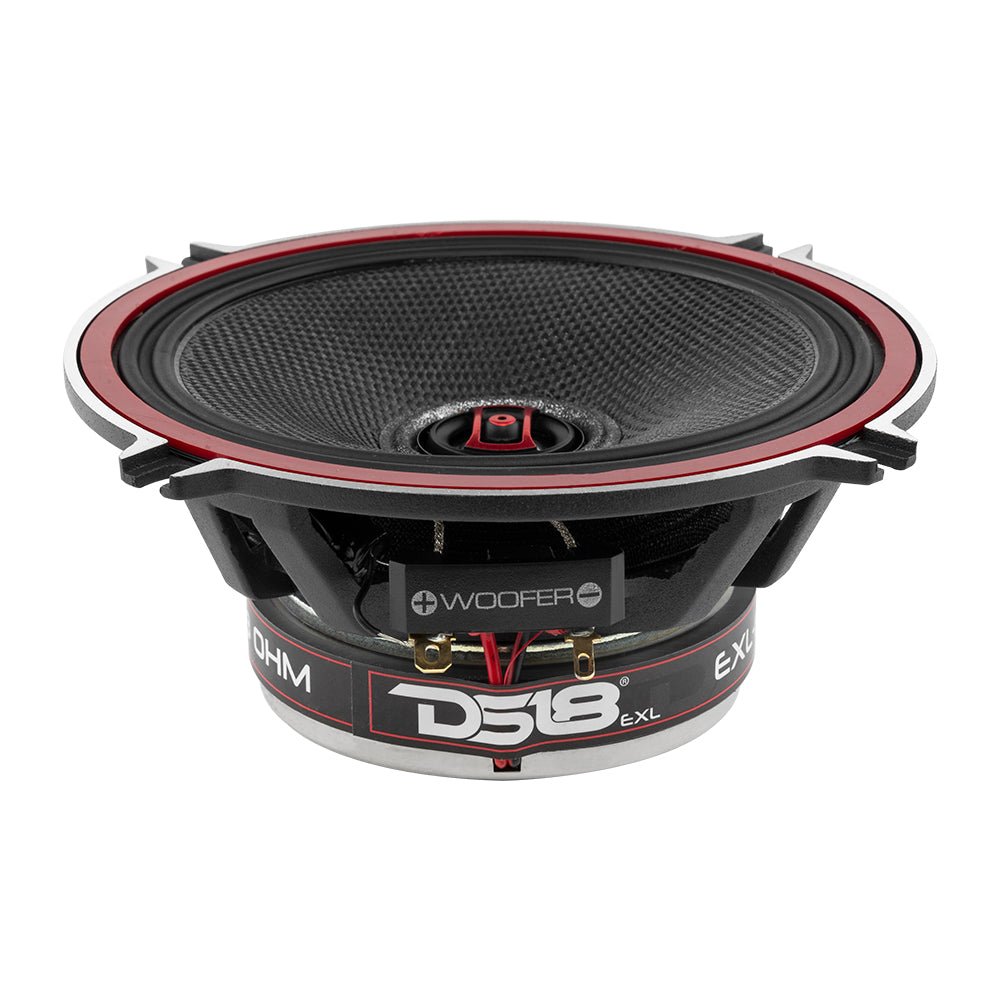

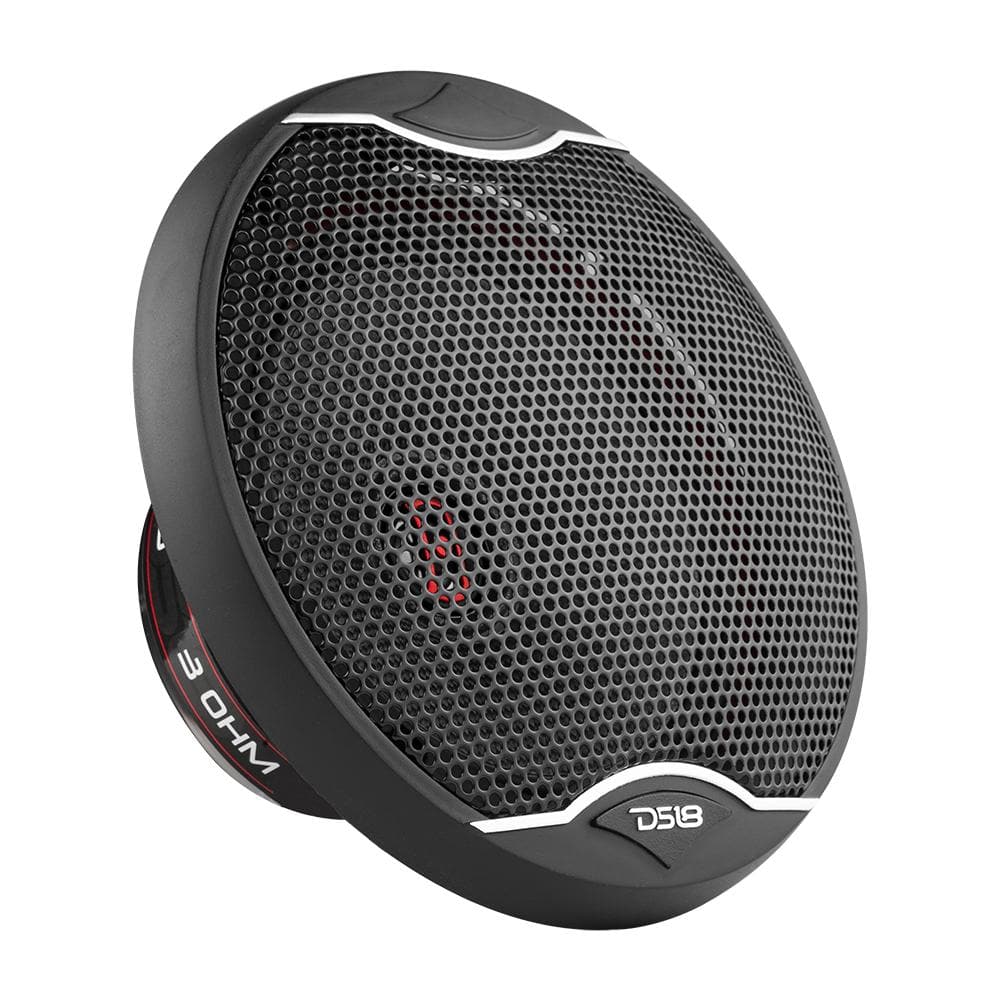

DS18 EXL-SQ5.25 Glass Fiber 5.25" 2-Way Coaxial Car Speaker 340 Watts 3-Ohm
|

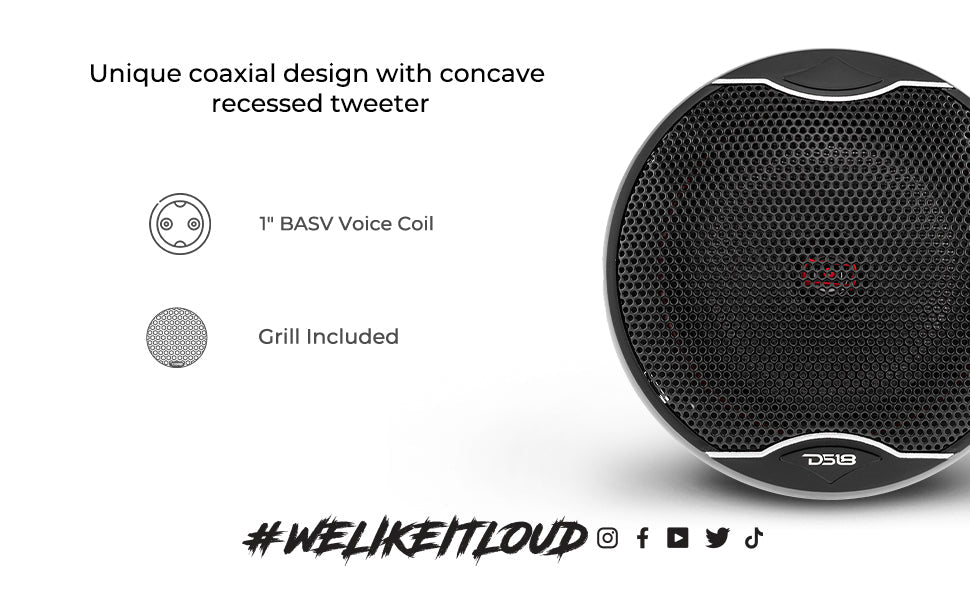

When you seek sound quality, it is best to have an idea of what to look for. Sensitivity, frequencies, woofer, tweeter, surround materials, and power handling are all important key factors. EXL SQ Coaxial Speaker brings it all with black glass fiber cone, advanced PEI dome tweeter, NEO magnets, die-cast baskets, 1" BASV voice coils, 3 Ohms impedance strontium-magnets and machine finished basket surrounds. Highlights
|
Technical Details
| Model: | EXL-SQ5.25 |
| Type: | Coaxial |
| Size: | 5.25" |
| RMS Power: | 80W |
| MAX Power: | 340W |
| Frequency Response: | 100Hz - 22KHz |
| Impedance: | 3 ohms |
| Sensitivity: | 86dB |
| Materials | |
| Surround: | Rubber Edge |

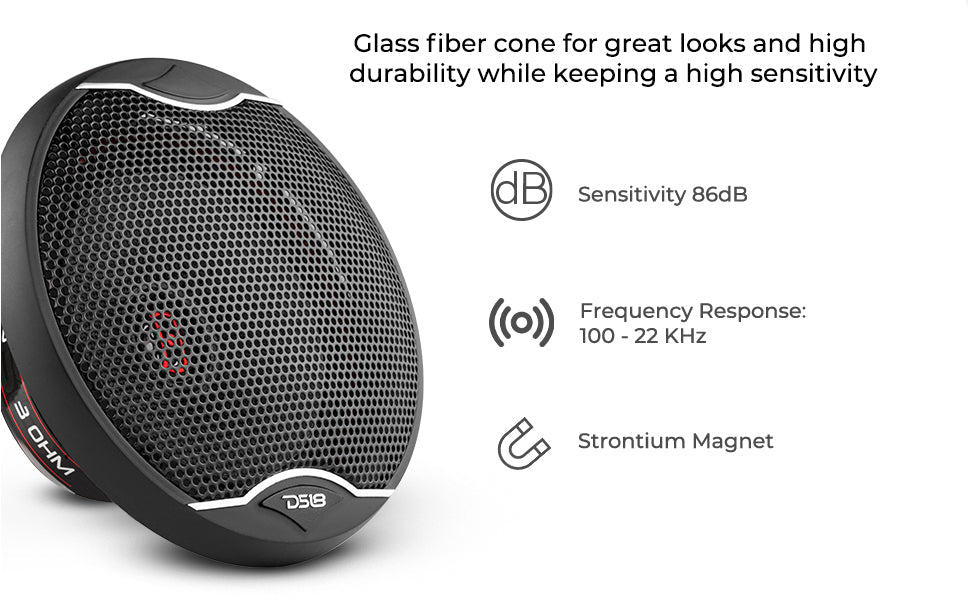

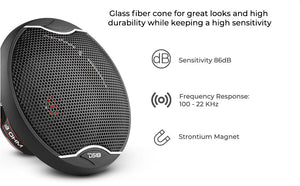

| Cone: | Black Glass Fiber |
| Magnet: | Strontium |
| Voice Coil Wire: | BASV |
| Measurements | |
| Voice Coil Size: | 1" / 25.5mm |
| Magnet Weight: | 9 oz |
| Tweeter Size: | 0.8" Neodymium PEI Dome |

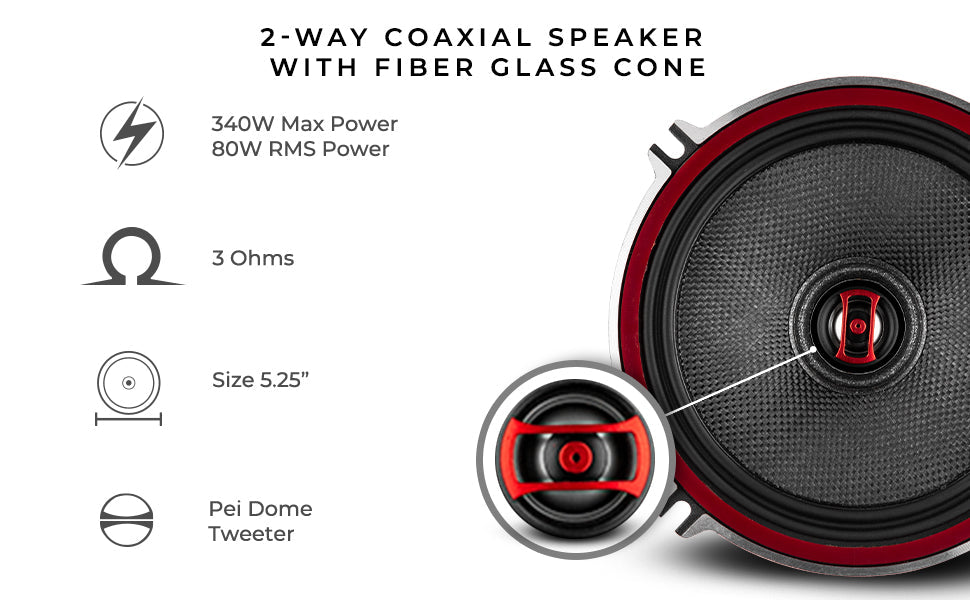

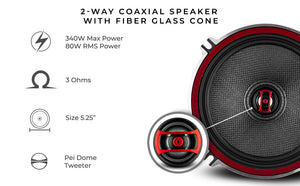

Key Features
- 5.25" 2-Way Coaxial
- MAX Power: 340 Watts
- RMS Power: 80 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 89dB
Specifications
| SKU | EXL-SQ5.25 |
|---|---|
| Speaker Type | 2-Way Coaxial |
| Nominal Size | 5.25" |
| Voice Coil | BASV 25.5 mm/1" |
| RMS Power | 80 Watts |
| Tweeter | 0.83" |
| Nominal Impedance | 3 Ohm |
| MAX Power | 340 Watts |
| Sensitivity | 86dB/1w/m |
| Frequency Response | 100-22KHz |
| Tweeter Material | Pei Dome Neodymium Magnet |
| Magnet Material | Strontium |
| Magnet Weight | 8.94 oz |
| Woofer Cone Material | Glass Fiber Cone |
| Woofer Surround Material | Rubber edge |
