Product Overview

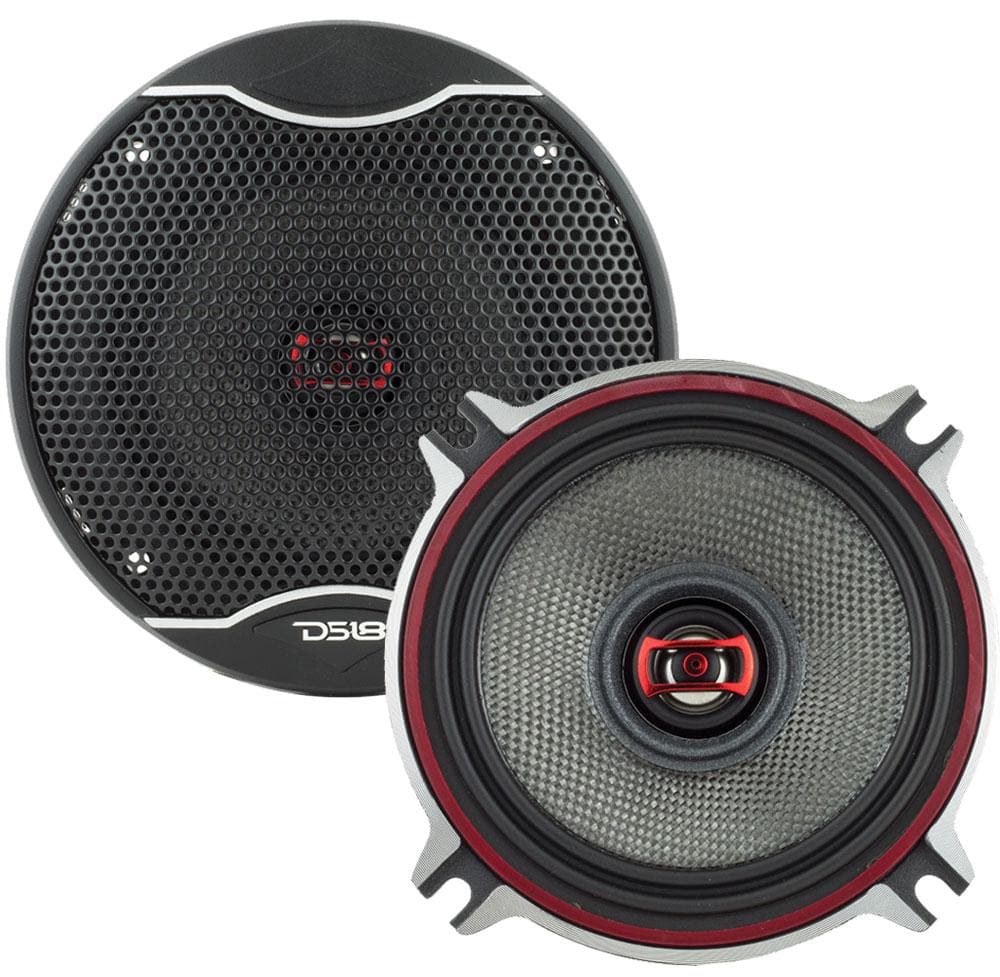

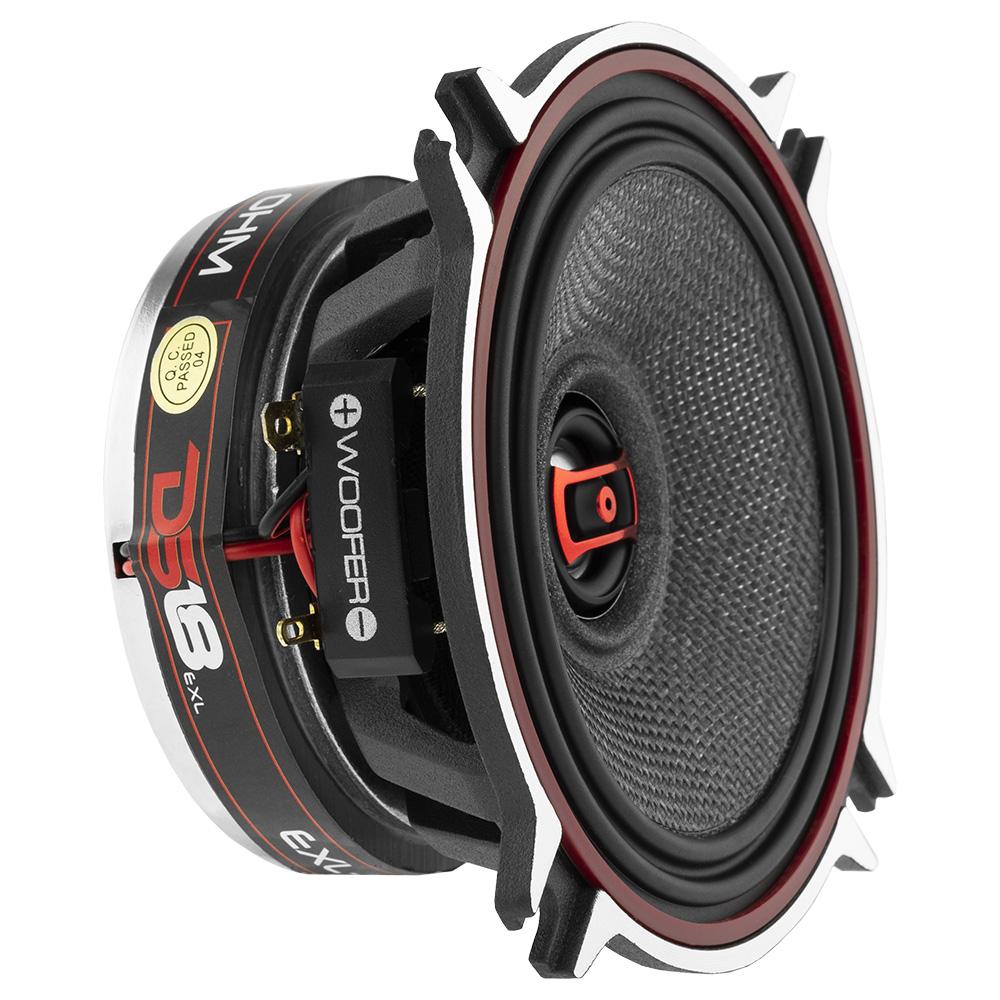

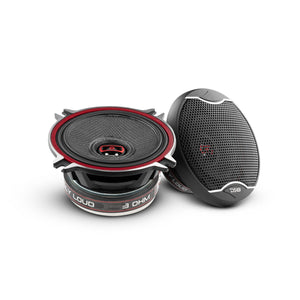

DS18 EXL-SQ4.0 Glass Fiber 4" 2-Way Coaxial Car Speaker with 260 Watts 3-Ohm
|

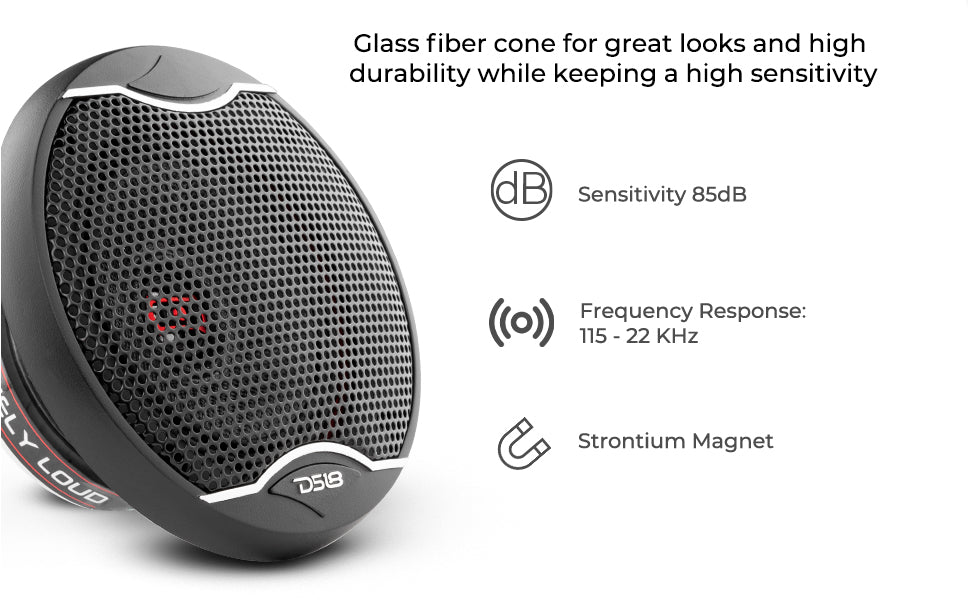

When you seek sound quality, it is best to have an idea of what to look for. Sensitivity, frequencies, woofer, tweeter, surround materials, and power handling are all important key factors. EXL SQ Coaxial Speaker brings it all with black glass fiber cone, rubber surround, advanced PEI dome tweeter, NEO magnets, die-cast baskets, 1" BASV voice coils, 3 Ohms impedance strontium-magnets and aluminum basket. Highlights
|
Technical Details
| Model: | EXL-SQ4 |
| Type: | Coaxial |
| Size: | 4" |
| RMS Power: | 60 W |
| MAX Power: | 260 W |
| Frequency Response: | 115Hz - 22KHz |
| Impedance: | 3 ohms |
| Sensitivity: | 85dB |
| Materials | |
| Frame: | Aluminum |
| Surround: | Rubber edge |
| Cone: | Black Fiber Glass |
| Magnet: | Strontium |
| Voice Coil Wire: | BASV |
| Diameters | |
| Voice Coil Size: | 0.5" / 13mm |
| Woofer Magnet Weight: | 9 oz |
| Tweeter Size: | 0.8" / 20.3mm PEI Dome |
Manual
Key Features

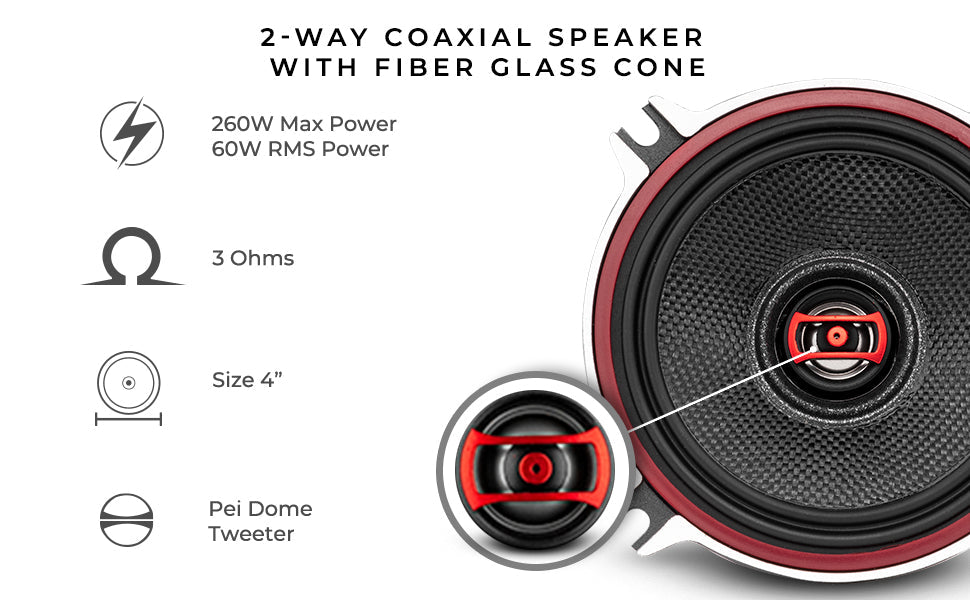

- 4" 2-Way Coaxial
- MAX Power: 260 Watts
- RMS Power: 60 Watts
- Impedance: 3 Ohm
- Strontium & Neodymium Magnets
- Pair ~ 85dB
Specifications
| SKU | EXL-SQ4.0 |
|---|---|
| Nominal Diameter | 4" / 101.6mm / 0.8" / 20.3mm |
| Nominal Impedance | 3 ohm |
| RMS Power Handling | 60W |
| MAX Power Handling | 260W |
| Sensitivity (1w/1m) | 85 dB |
| Frequency Response | 115Hz - 22KHz |
| Recommended HI Pass Crossover | 140Hz |
| Number of ways | 2-way |
| Pair or Single | Pair |

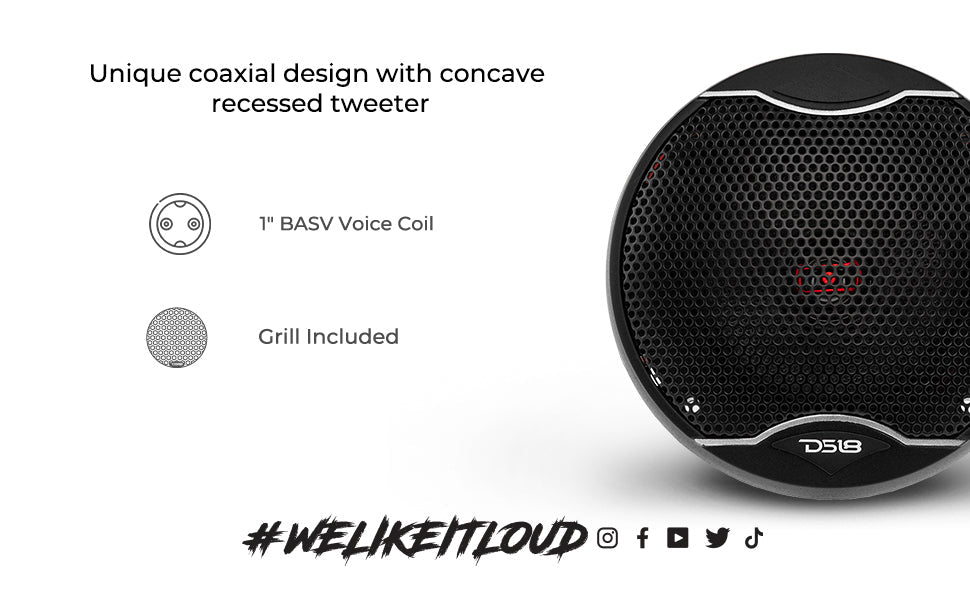

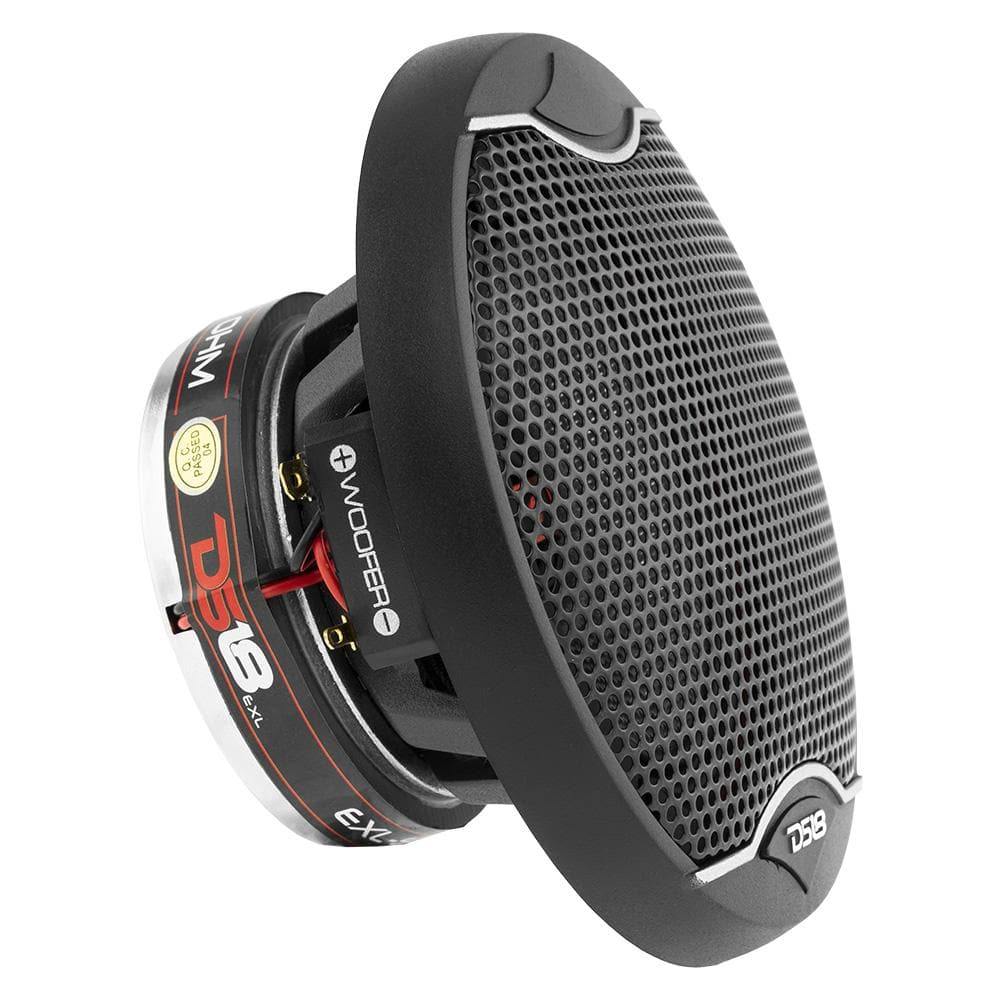

| Grill Included | Yes |
| Voice Coil Diameter | 1"/ 25.5mm / 0.5" / 13mm |
| Voice Coil Former Material | BASV |
| Winding Material | CCAW |
| Cone Material | Glass Fiber |
| Surround Material | Rubber |
| Basket Material | Aluminum |
| Basket Color/Finish | Granite Silver |
| Magnet Material | Strontium / Neodymium |
| Magnet Weight | 9 Oz |
| Equivalent Volume Vas | 1.2L / 0.043ft3 |
| Free Air Resonance Fs | 113Hz |
| DC Resistance Re | 2.8 ohm |
| Mechanical Factor Qms | 4.889 |
| Electrical Factor Qes | 0.873 |
| Total Factor Qts | 0.741 |
| Diaphragm Material | PEI Dome |

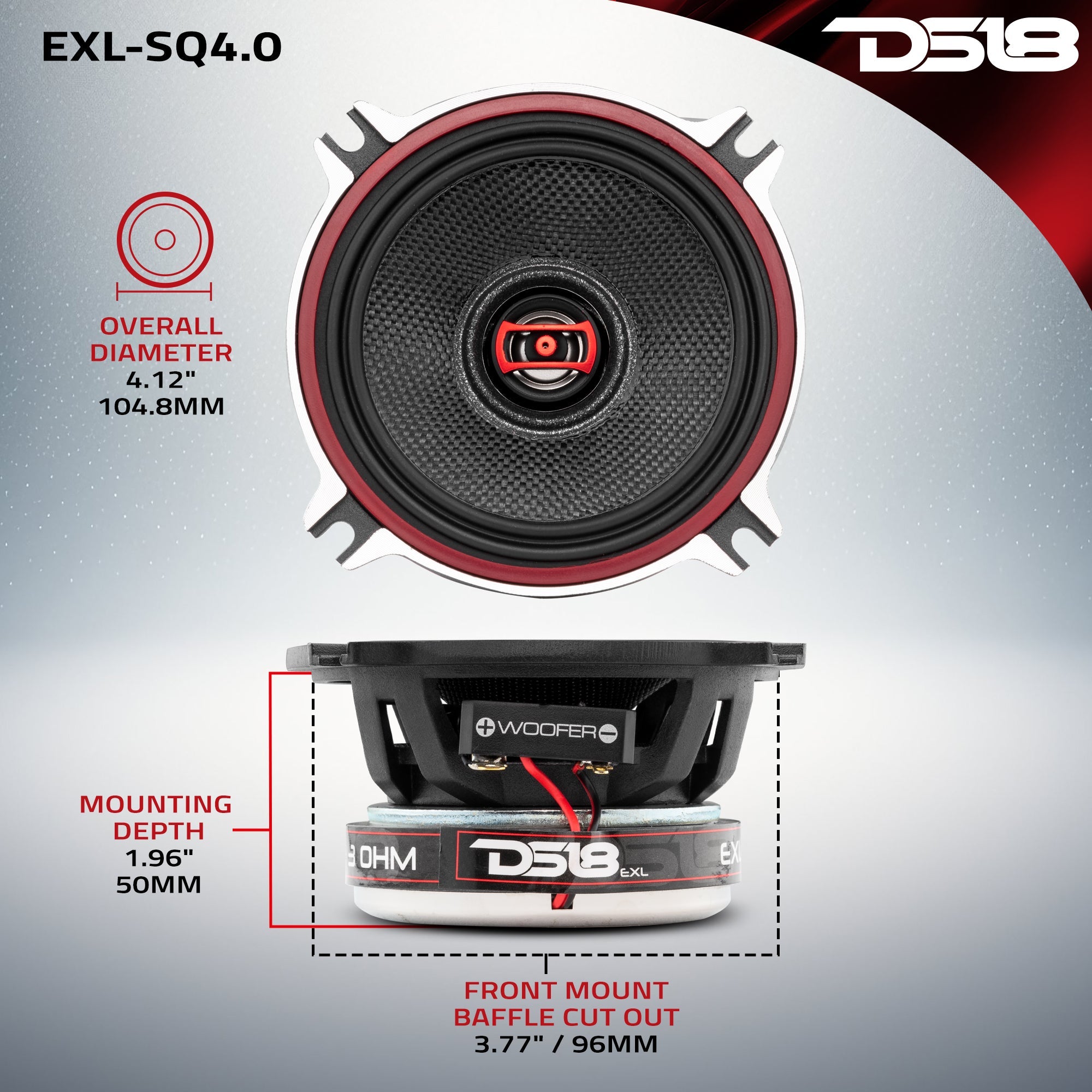

| Overall Diameter | 4.12" / 104.8mm |
| Overall Depth | 2.14" / 54.5mm |
| Front Mount Baffle Cutout | 3.77" / 96mm |
| Mounting Depth | 1.96" / 50mm |
| Motor Diameter | 3.14" / 80mm |
| Gross Single Unit Weight (lb) | 4 |
| Dimensions W x L x H (Inches) | 12.5 x 6.25 x 3.5 |
| Quantity of Units in Master Carton | 10 |
| Gross Master Carton Weight (lb) | 39.5 |
| M/C Dimensions W x L x H (Inches) | 18.75 x 13.25 x 13 |
