Product Overview

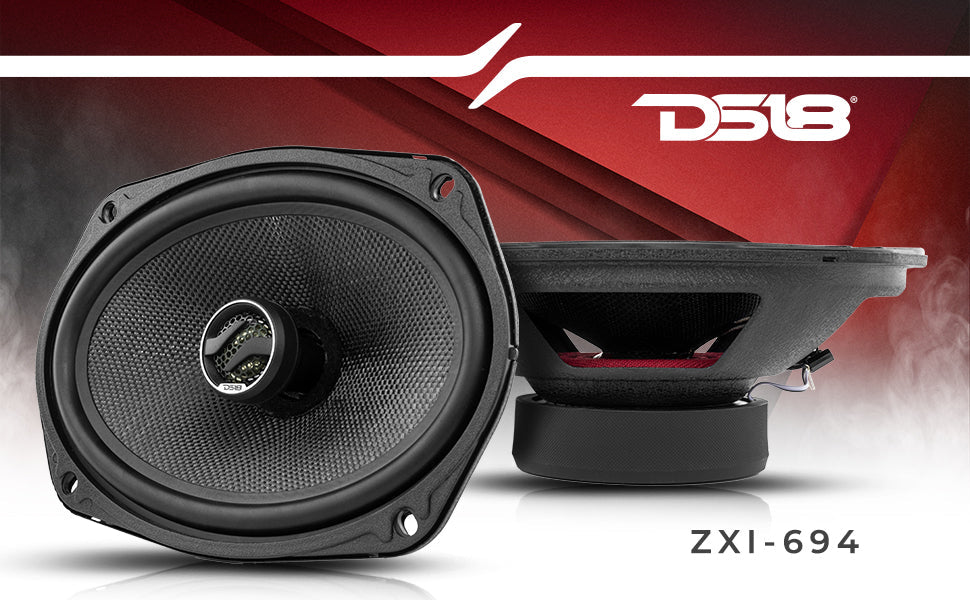

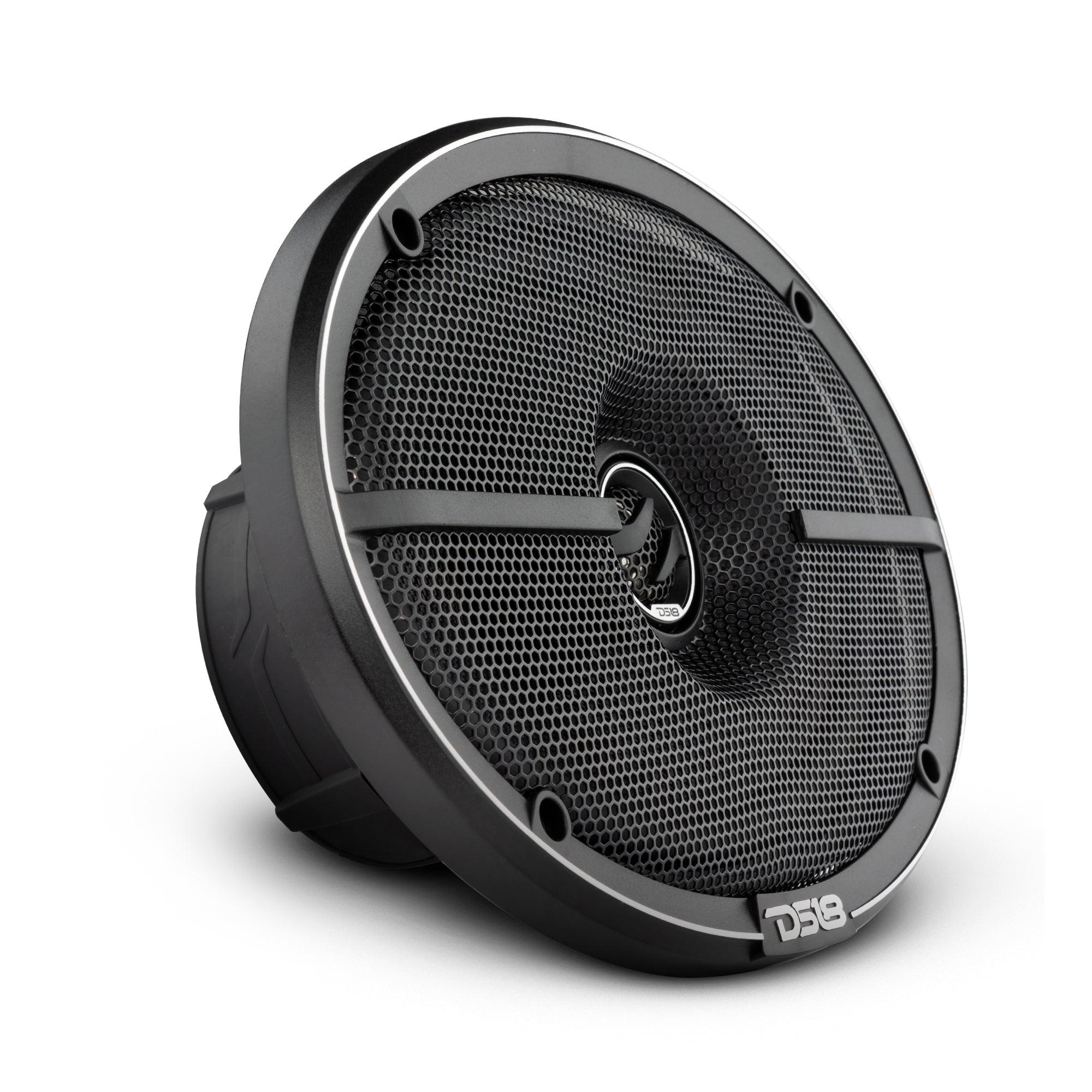

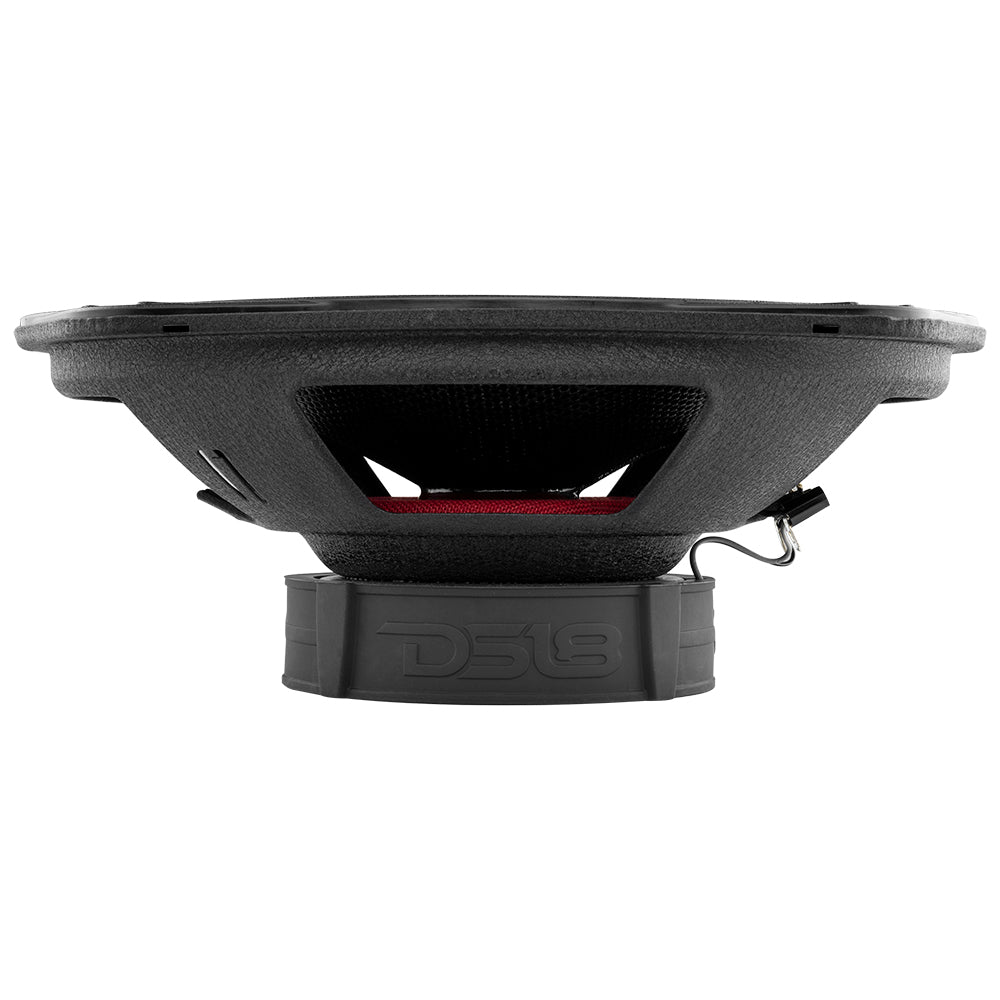

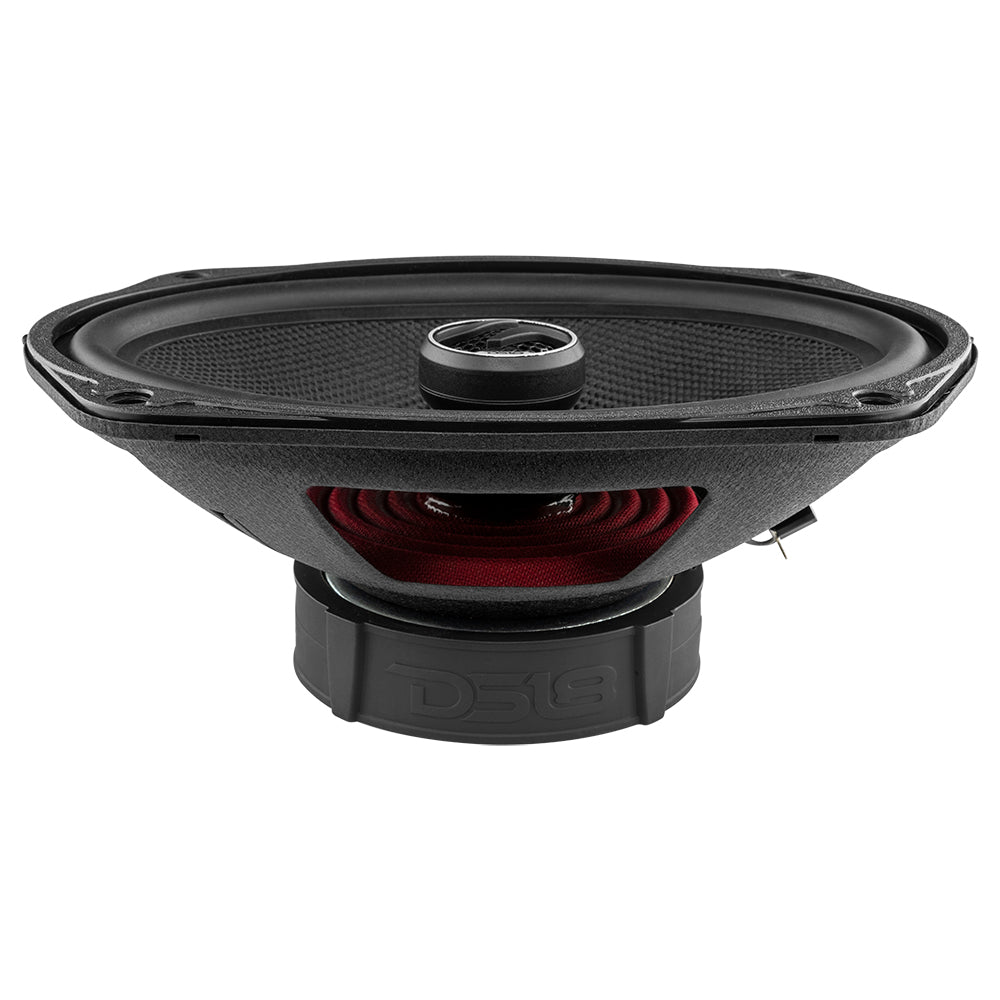

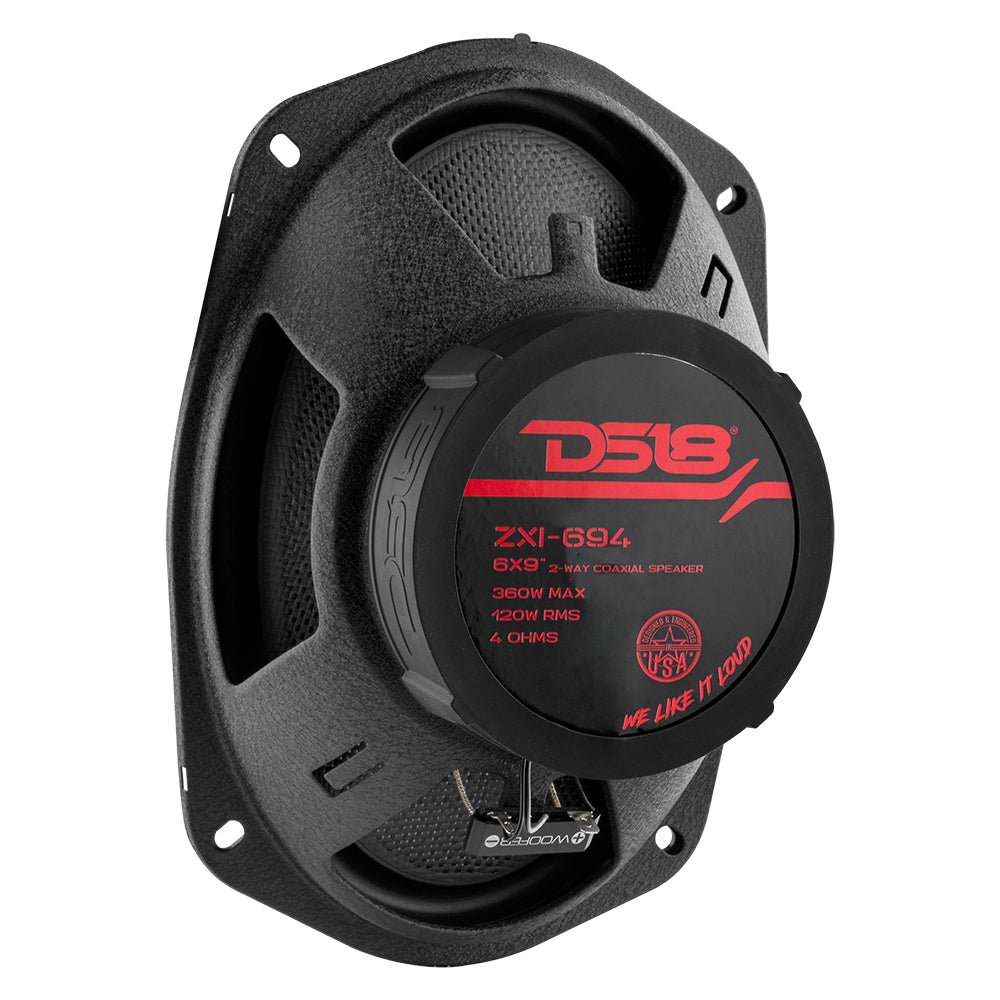

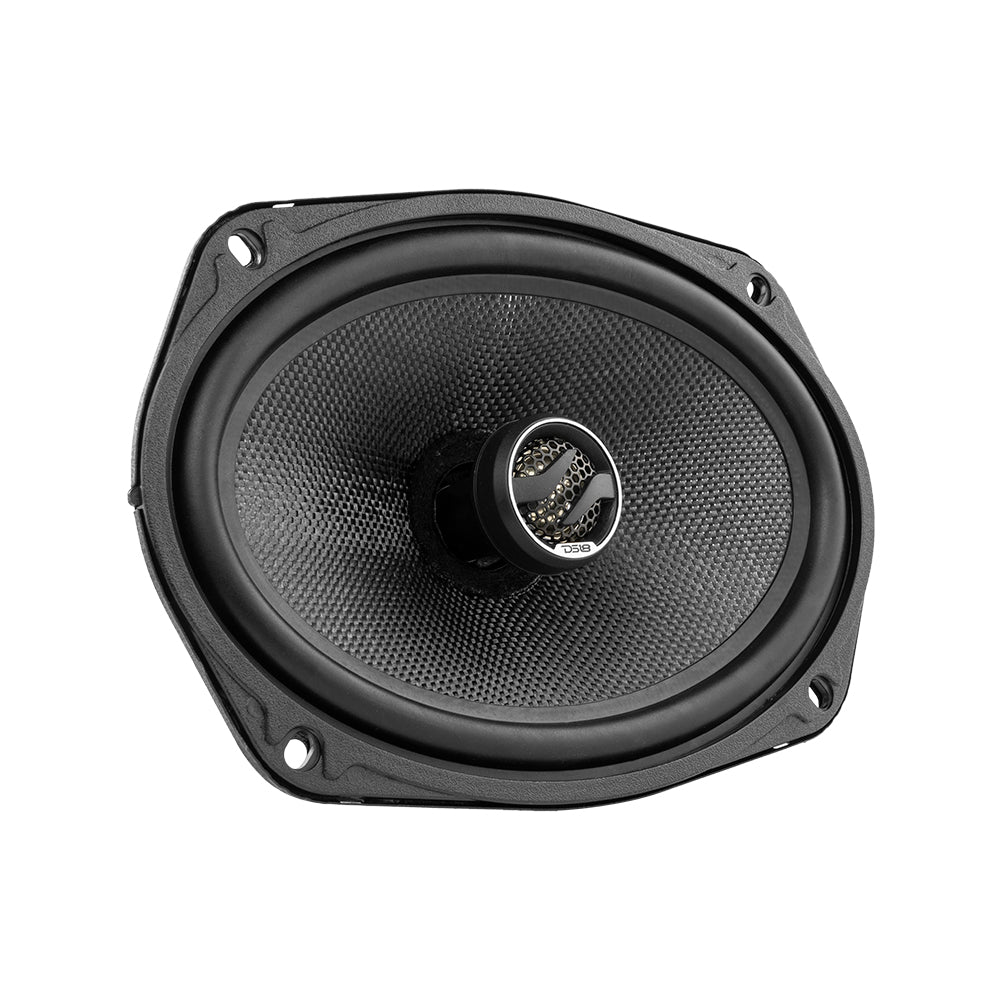

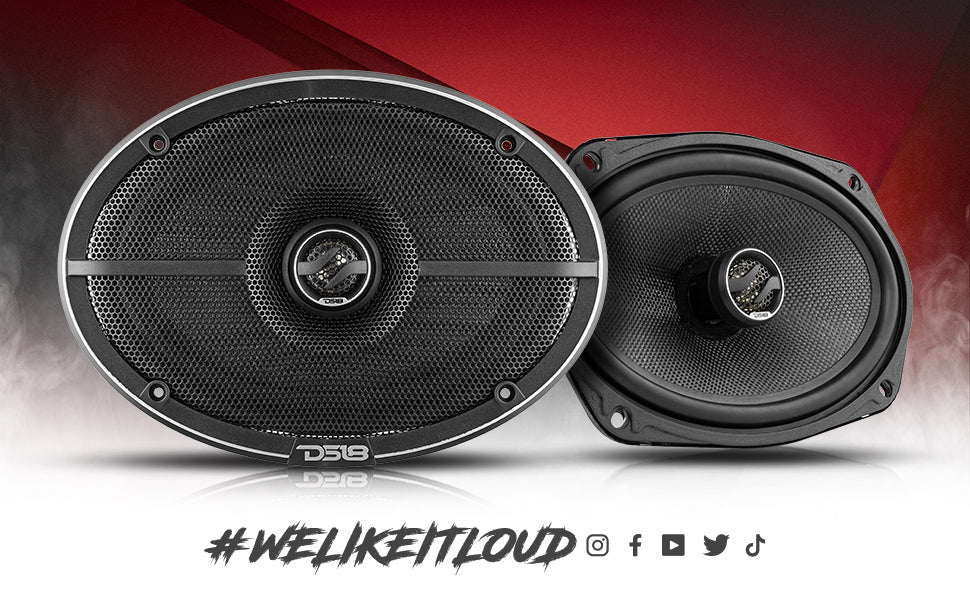

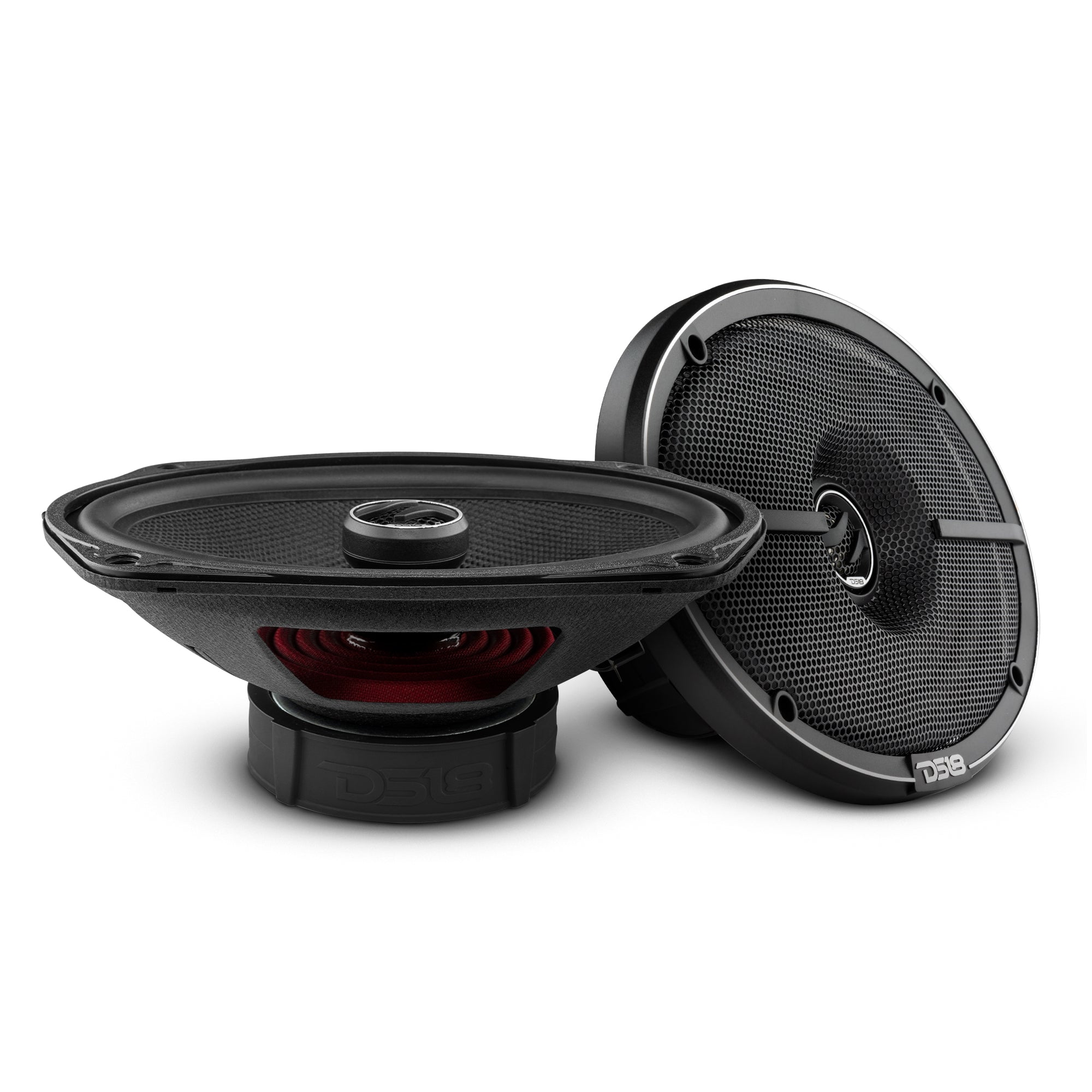

DS18 ZXI-694 Glass Fiber Cone 6x9" 2-Way Coaxial Car Speaker 360 Watts 4-Ohm
The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI-694 is a 6x9", 4 ohm coaxial speaker designed for mid tier audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness. The 2-way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.
Highlights
- The ZXi line is a complete line of amps, subs, mids, and tweeters so you can match all your equipment up to be the same for an amazing show quality look.
- 6x9" inch 2 way 4 ohm speaker requiring 120w RMS and 360w max power handling that gives amazing sound from low to extremely high volume.
- 2-way design will be sure to give you a full range of frequencies for an amazing audio experience to remember.
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 6X9” / 162*235mm |
| Nominal Impedance | 4 ohm |
| RMS Power Handing | 120W |
| MAX Power Handing | 360W |
| Sensitivity (1w/1m) | 92dB |
| Frequency Response | 31.5Hz-20KHz |
| Recommended HI Pass Crossover | 50Hz |
| Number of ways | 2-Way |
| MIDRANGE | |

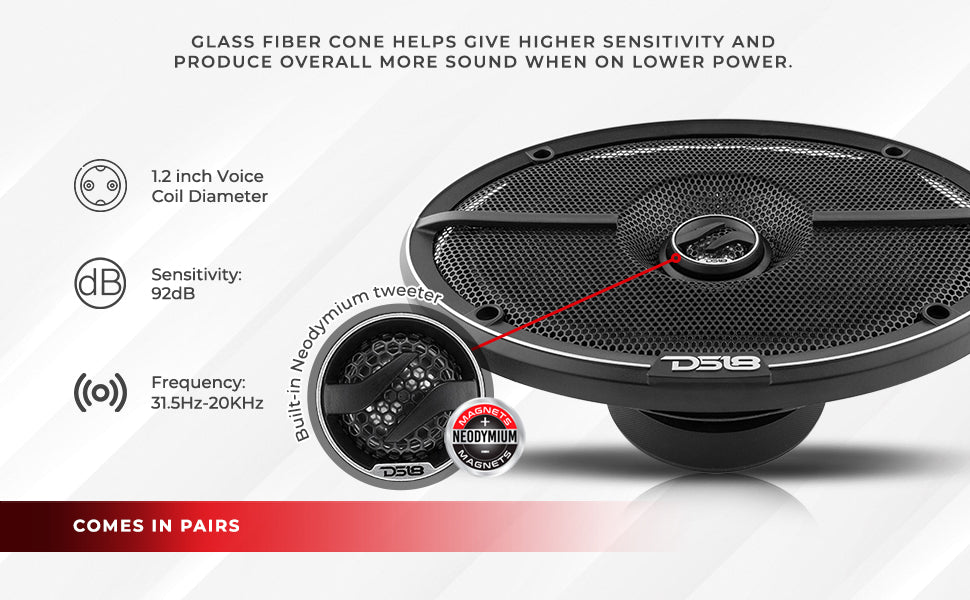

| Voice Coil Diameter | 1.2” / 30.4mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISV |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Barium Ferrite |
| Magnet Weight | 550g |
| TWEETER | |
| Nominal Diameter | 1" (25.4mm) |
| Voice Coil Diameter | 0.8"(ø20.4mm) |
| Voice Coil Former Material | KSV |
| Winding Material | EISVM |
| Diaphragm Material | PEI |
| Magnet Material | Neodymium |
| Magnet Weight | 8.5g |
| MEASUREMENT | |

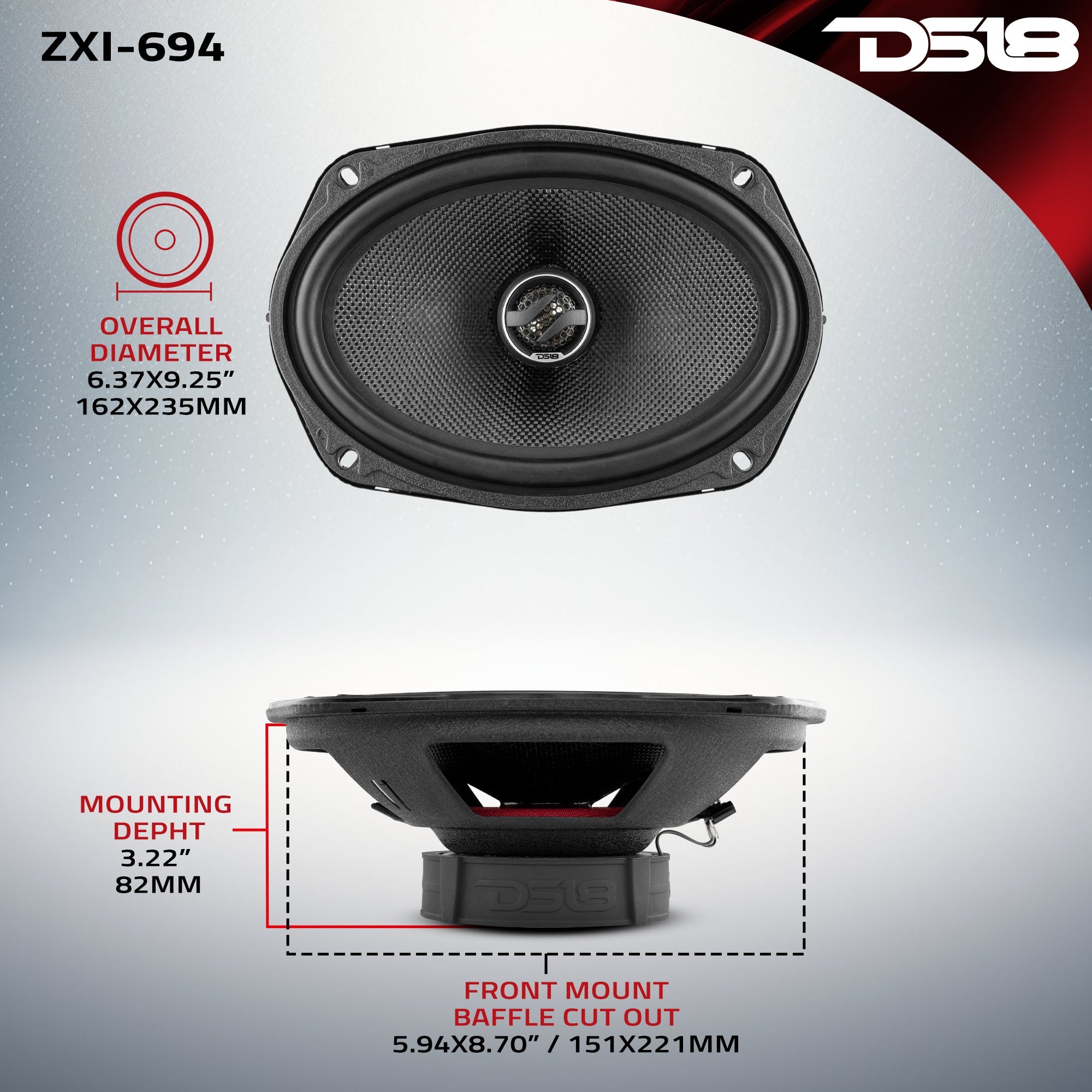

| Overall Diameter | 6.37x9.25” /162*235mm |
| Overall Depth | 3.66” / 93mm |
| Front Mount Baffle Cutout | 5.94x8.70” / 151*221mm |
| Mouting Depth | 3.22” / 82mm |
| Motor Diameter | 4.09” / 104mm |
Key Features

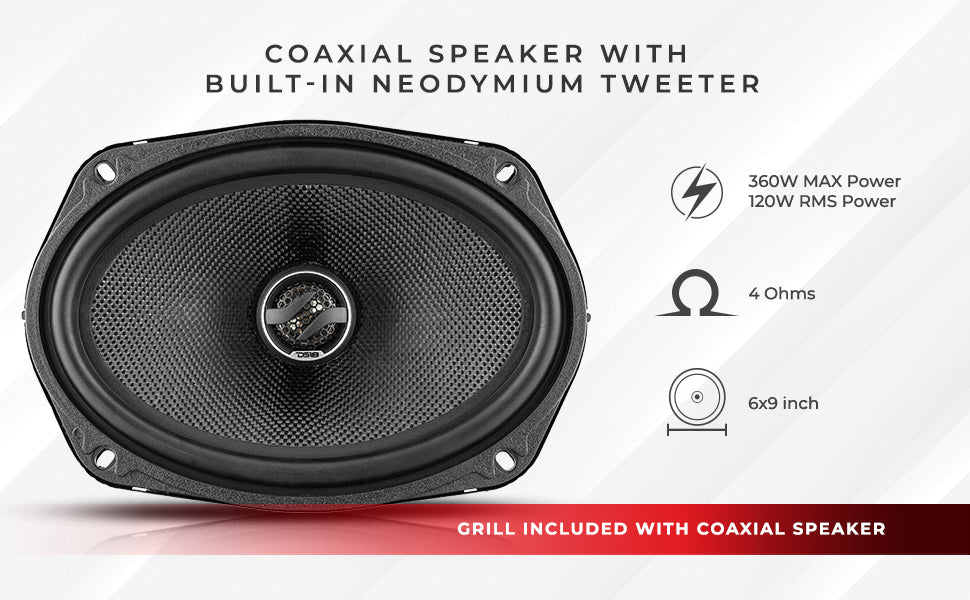

- 6X9" 2-Way Coaxial
- MAX Power: 360 Watts
- RMS Power: 120 Watts
- Impedance: 4 Ohm
- Barium Ferrite & Neodymium Magnets
- Pair ~ 92dB
Specifications
| SKU | ZXI-694 |
|---|---|
| Nominal Diameter | 6X9" / 162*235mm / 1" (25.4mm) |
| Nominal Impedance | 4 ohm |
| RMS Power Handing | 120W |
| MAX Power Handing | 360W |
| Sensitivity (1w/1m) | 92dB |
| Frequency Response | 31.5Hz-20KHz |
| Recommended HI Pass Crossover | 50Hz |
| Number of ways | 2-Way |
| Voice Coil Diameter | 1.2" / 30.4mm / 0.8"(20.4mm) |
| Voice Coil Former Material | KSV |
| Winding Material | EISV / EISVM |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material | Barium Ferrite / Neodymium |
| Magnet Weight | 550g / 8.5g |
| Diaphragm Material | PEI |
| Equivalent Volume Vas | 17.52L |
| Excursion (one way) Xmax | 3.3mm |
| Free Air Resonance Fs | 58Hz |
| Mechanical Factor Qms | 5.77 |
| Electrical Factor Qes | 1.18 |
| Total Factor Qts | 0.98 |
| Mechanical Mass Mms | 23.44g |
| Mechanical Compliance Cms | 286mm/N |
| BL Factor Bl | 5.18 |
| Voice Coil Inductance Le | 178mH |
| Cone Area Sd | 207.7cm2 |
| DC Resistance Re | 3.5 ohm |
| Mechanical Mass w/o air Mmd | 20g |
| Overall Diameter | 6.37X9.25" / 162*235mm |
| Overall Depth | 3.66" / 93mm |
| Front Mount Baffle Cutout | 5.94x8.70" / 151*221mm |
| Mouting Depth | 3.22" / 82mm |
| Motor Diameter | 4.09" / 104mm |
| Gross Single Unit Weight | 1.26KG |
| Single Unit Box Diamensions W x L x H | 415*285*115mm |
| Quantity of Units in Master Carton | 4PRS/CTN |
| Gross Master Carton Weight | 13.3KG |
| Master Carton Dimensions W x L x H | 595*430*250mm |
