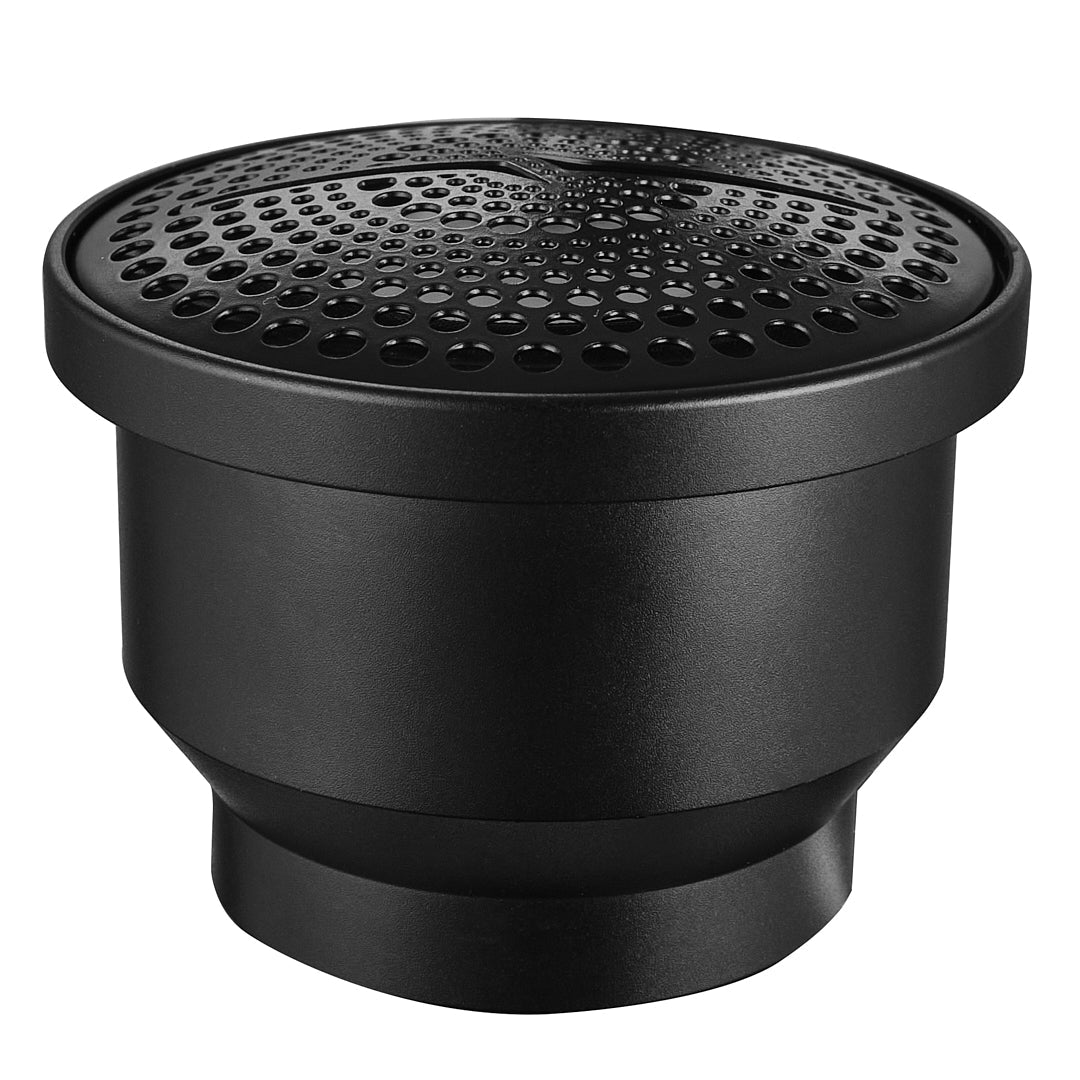

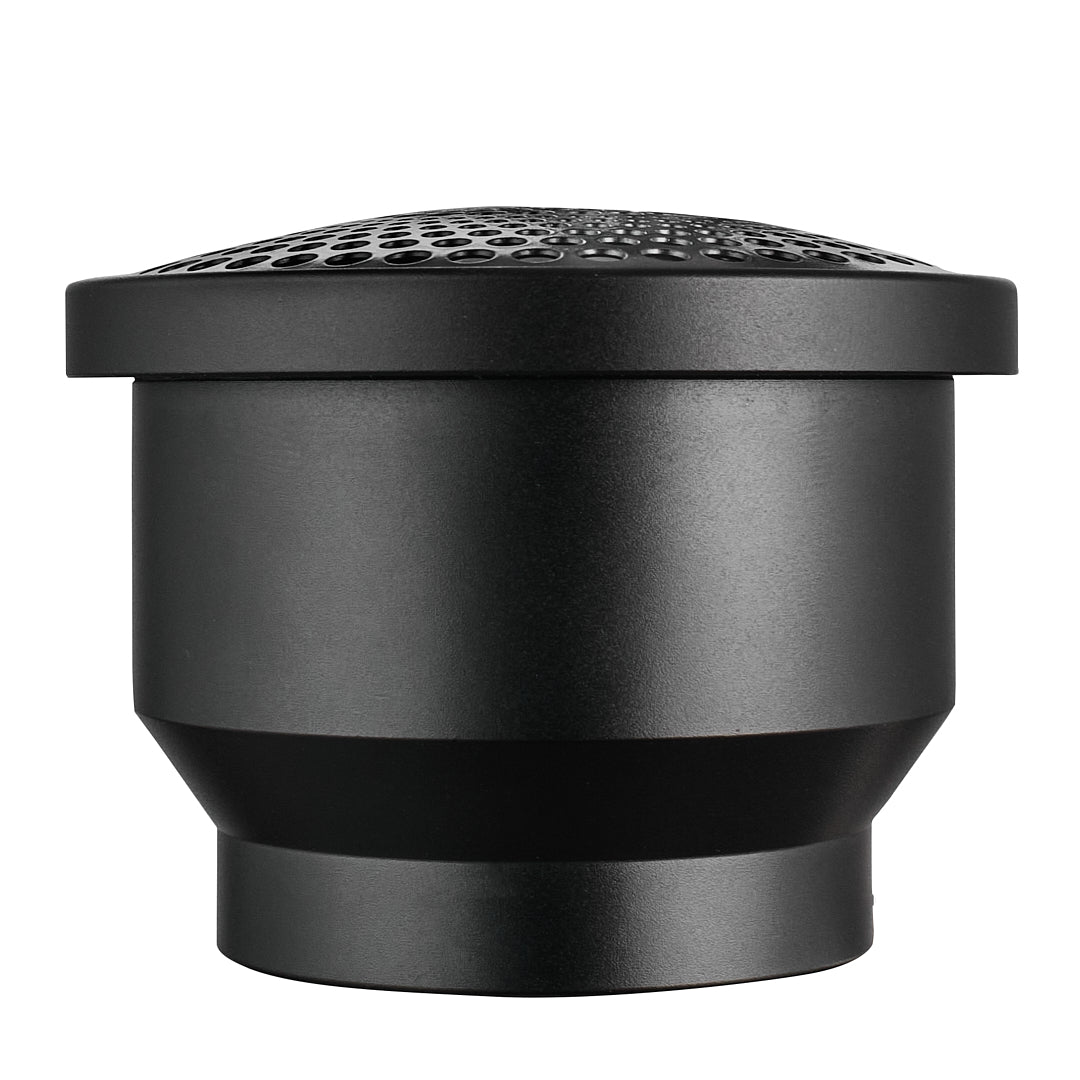

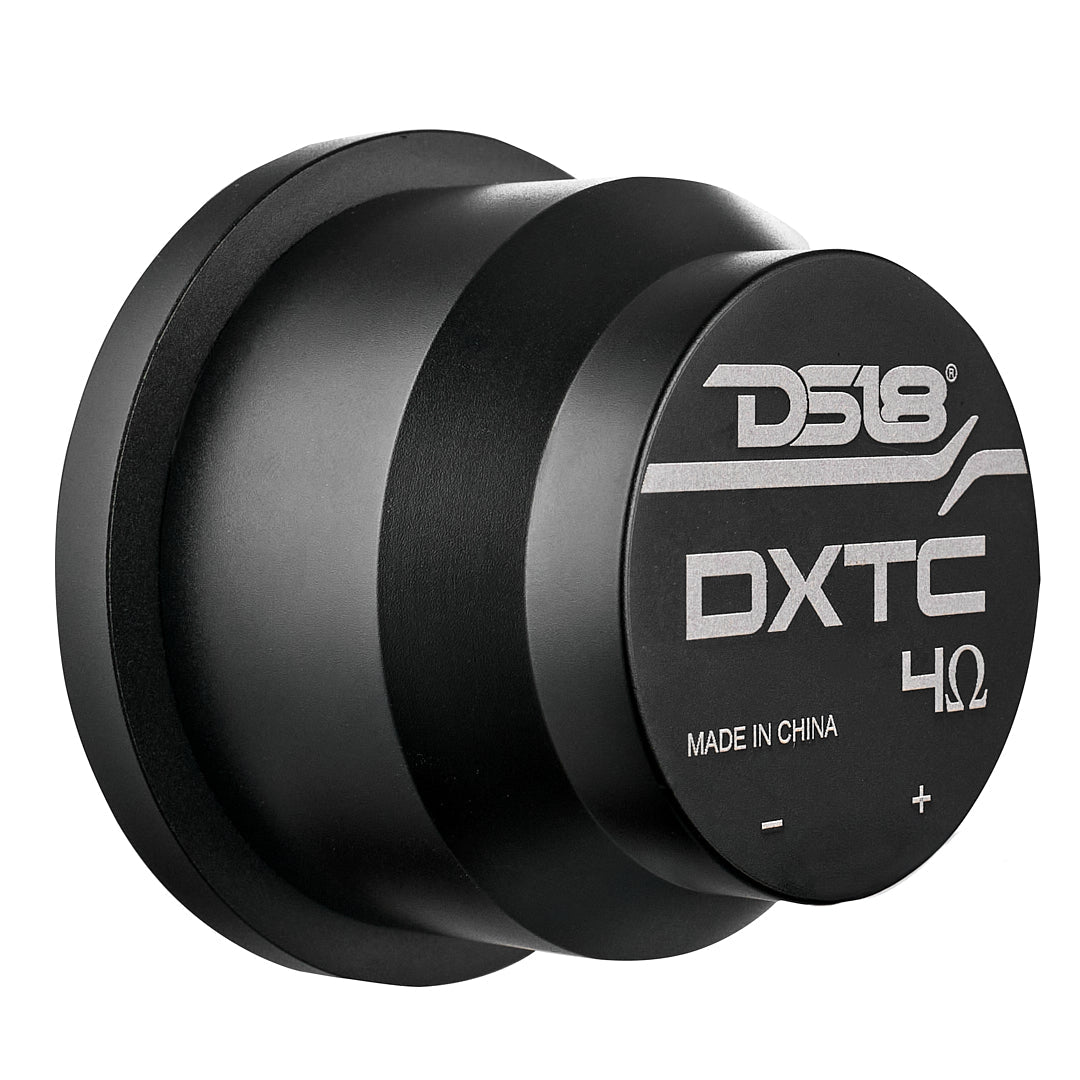

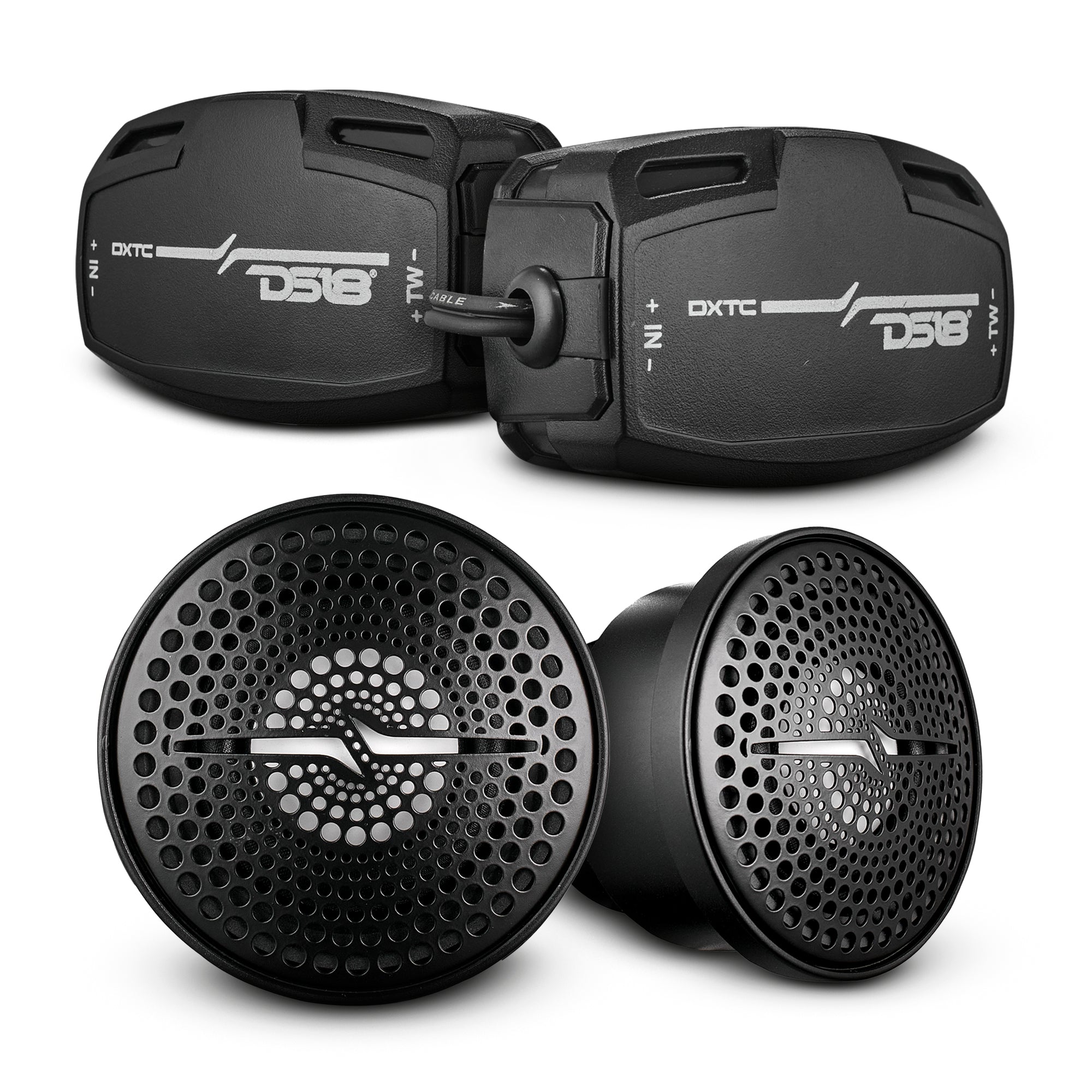

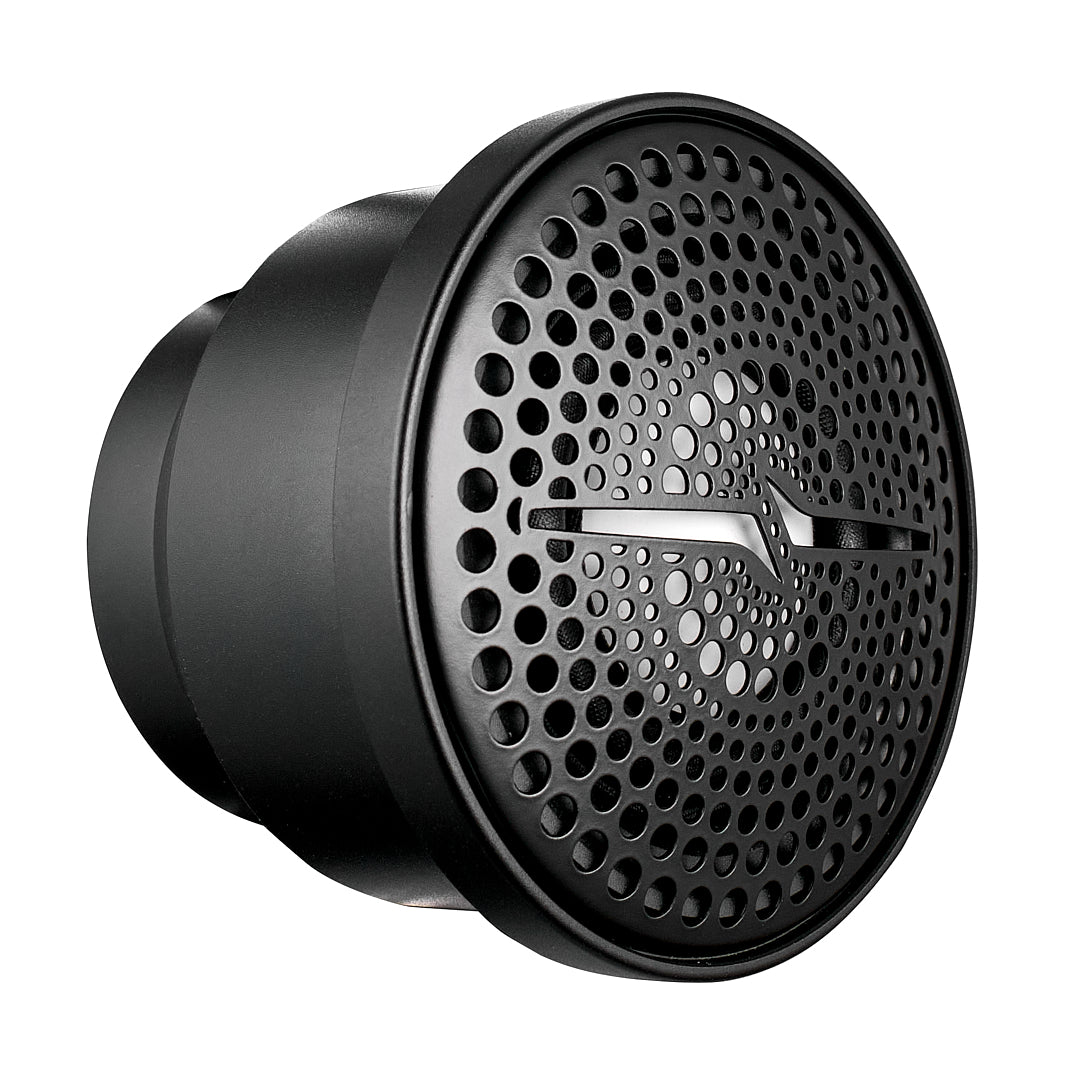

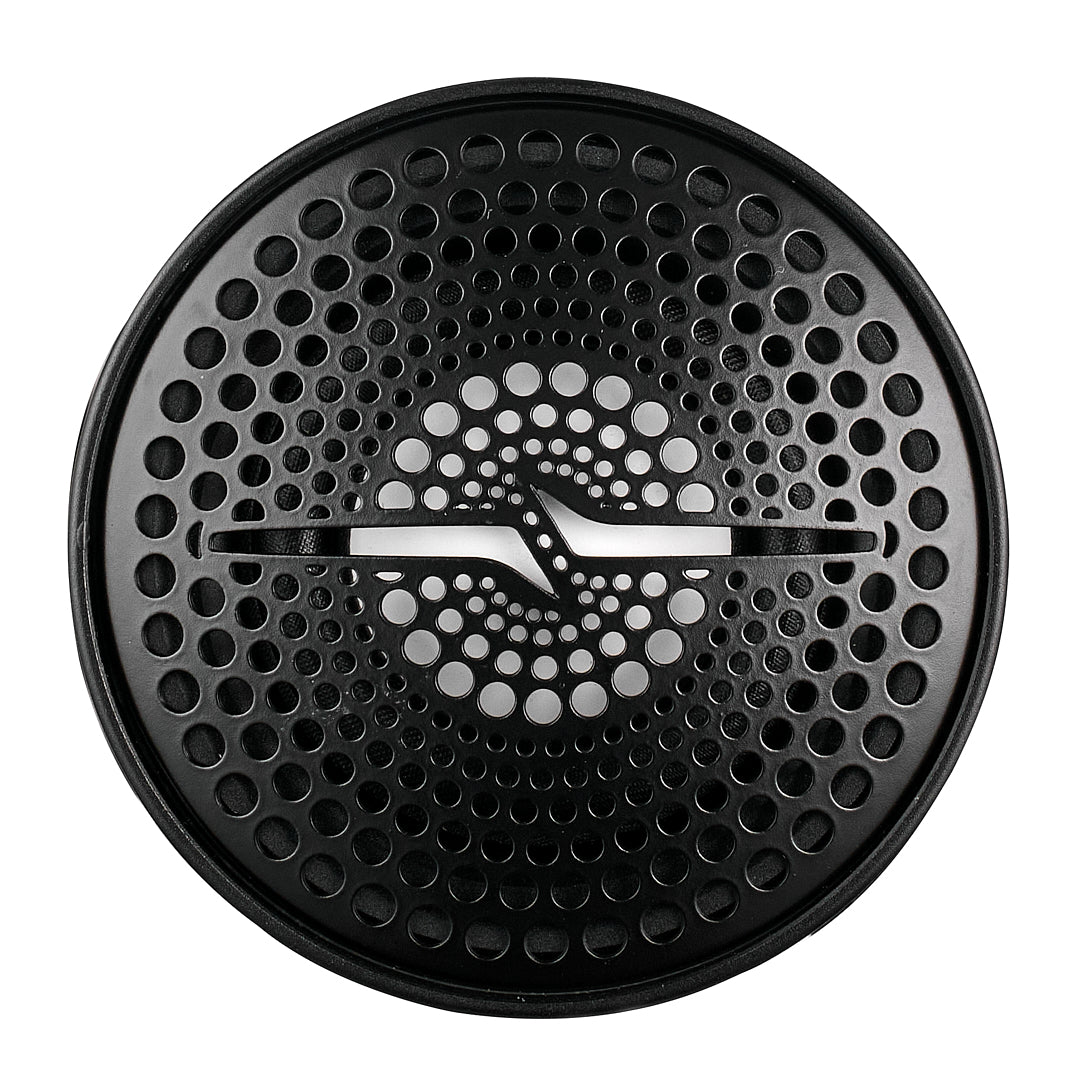

2" Encapsulated Dome Tweeter With Ceramic Diaphragm & External Crossover
2" Encapsulated Dome Tweeter With Ceramic Diaphragm & External Crossover
Product Overview
Designed for audiophiles who demand nothing but the best, DS18’s DXTC transforms your vehicle into a concert hall on wheels.
Built to deliver crisp, clear high frequencies, DS18’s DXTC tweeter operates at an impedance of 4 ohms with power handling capabilities that range from 25W AES to a peak of 100W (40 – 50W RMS Recommended), for distortion-free performance. The tweeter’s sensitivity of 88dB and frequency response spanning from 250Hz to 20KHz guarantees well-rounded sound every session.

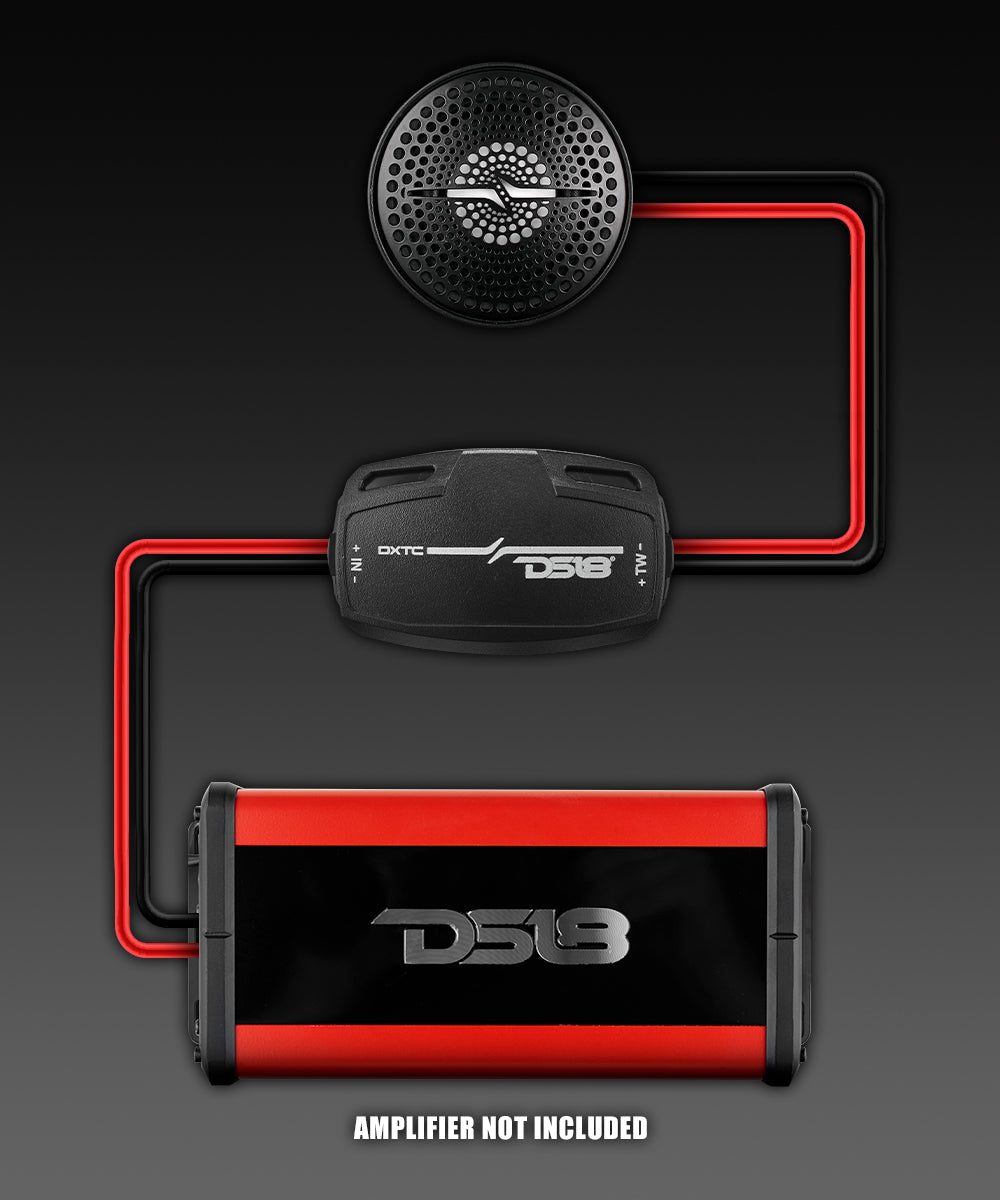

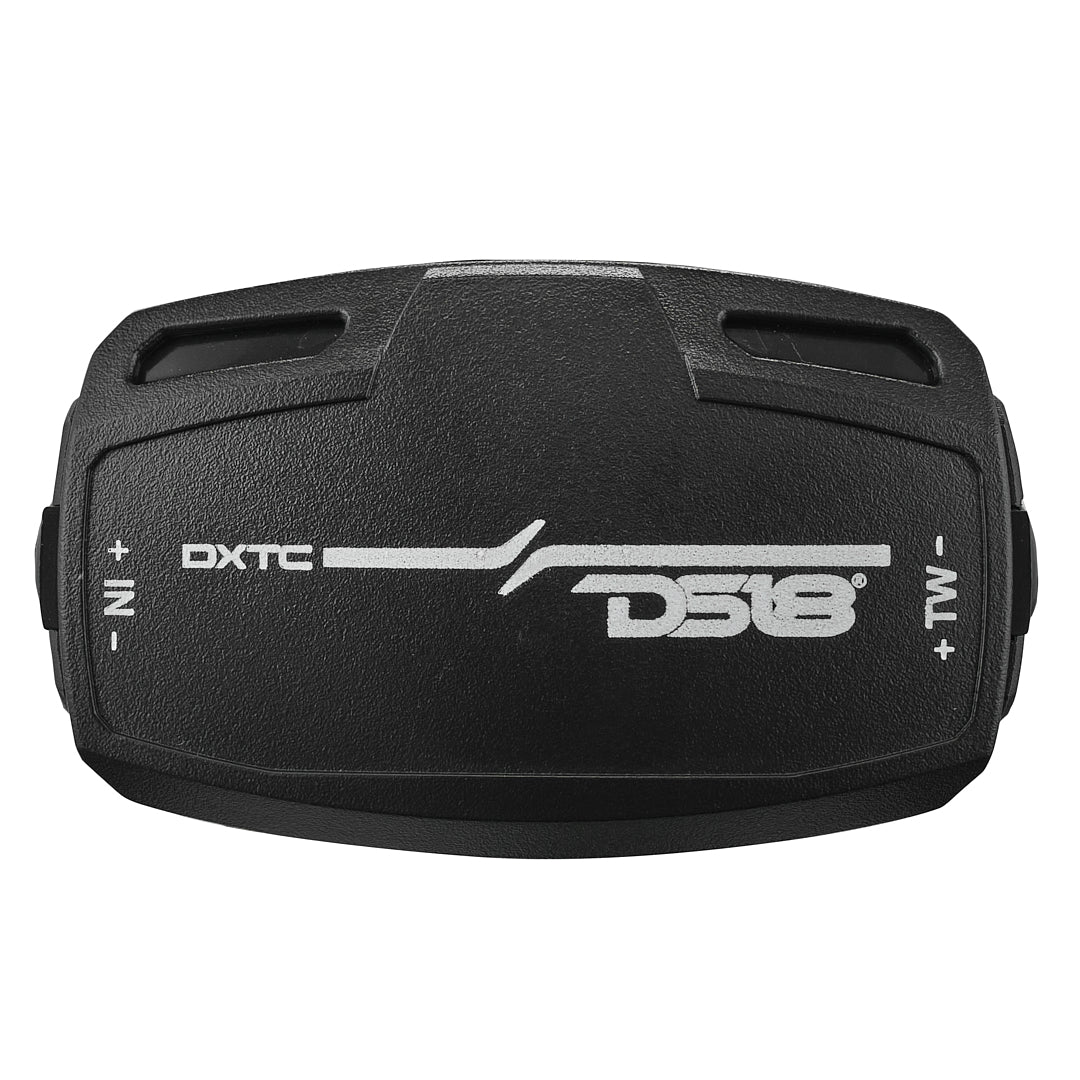

The included passive crossover is designed to filter out damaging bass frequencies, protecting the tweeters and preserving their clarity. This 12dB/Oct crossover is compact yet powerful, making it easy to integrate into any car audio setup.
The tweeter’s ceramic diaphragm and neodymium magnet ensure longevity and superior sound quality, while the polyimide voice coil former and aluminum winding materials add to its durability.
Whether you’re upgrading an existing system or building a new one from scratch, DS18’s DXTC is essential for any serious enthusiast.
Key Features
- 2" Encapsulated Tweeter with External Crossover
- RMS Power: 50 Watts(100 Watts Peak)
- Impedance: 4 Ohm ~ 88dB
- Ceramic Diaphragm
- Neodymium Magnet
- Pair
Specifications
| SKU | DXTC |
|---|---|
| Nominal Diameter | 2" / 51mm |
| Nominal Impedance | 4 Ohms |
| AES Power Handling | 25W |
| Program Power Handling | 50W |
| Peak Power Handling | 100W |
| Sensitivity (1w/1m) | 88dB |
| Frequency Response | 250Hz-20KHz |
| Recommended Hi Pass Crossover | 500Hz |
| Sold In Pair or Single | Pair |
| Crossover (Bass Blocker) | External / 12dB/Oct |
| Body Material | CNC Aluminum |
| Body Color / Finish | Black |
| Faceplate Color / Finish | Black |
| Voice Coil Diameter | 1" / 25.4mm |
| Voice Coil Former Material | Polyimide |
| Winding Material | Aluminum |
| Diaphragm Material | Ceramic |
| Magnet Material | Neodymium |
| Magnet Size / Weight | 25mm / 0.65Oz |
| Overall Diameter | 2.36" / 60mm |
| Overall Depth | 2" / 52mm |
| Front Mount Baffle Cutout | 2" / 52mm |
| Mounting Depth | 1.4" / 36mm |
| Overall Length | 3.15" / 78mm |
| Overall Width | 1.95" / 49.5mm |
| Overall Height | 1.14" / 29mm |
