Product Overview

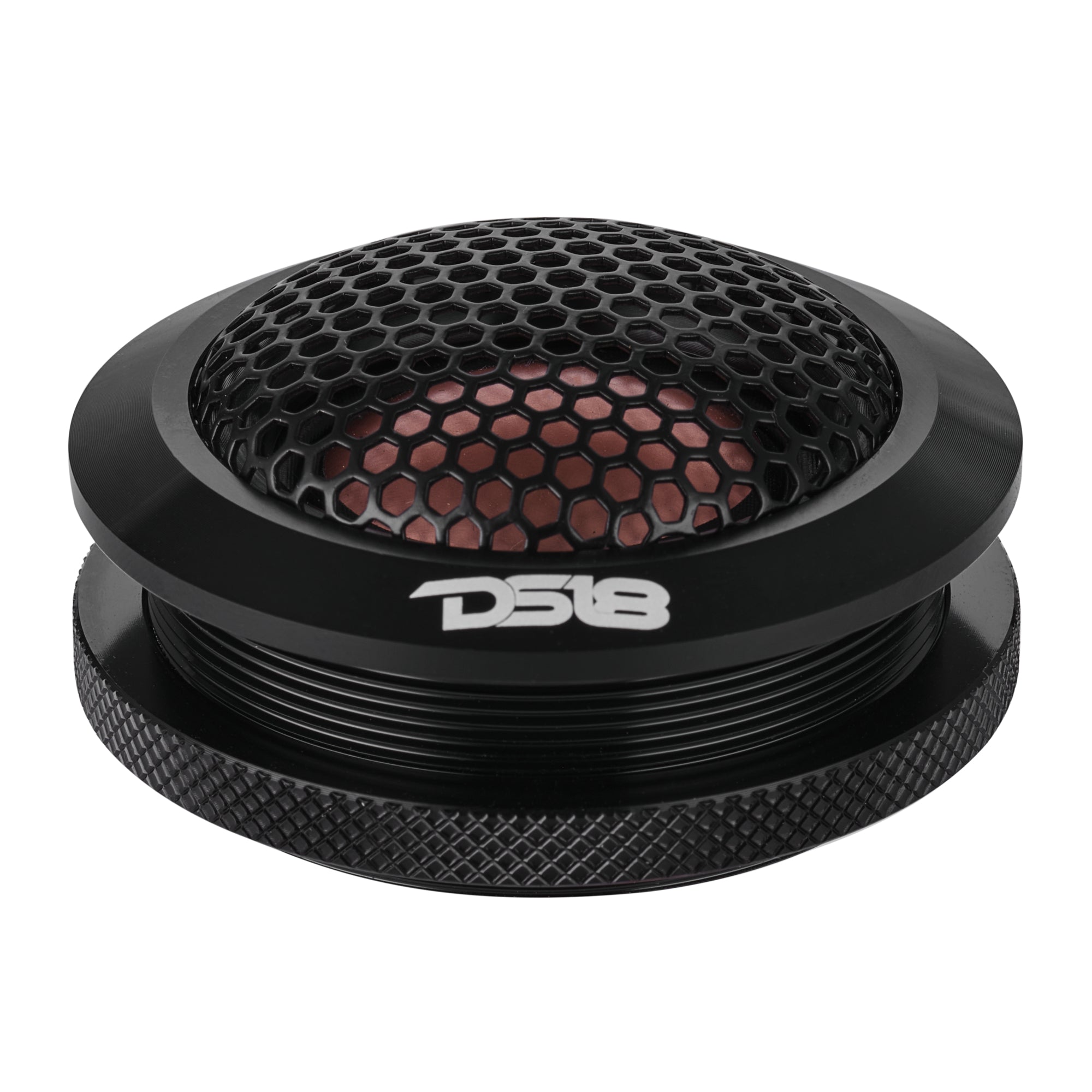

2.2" Titanium Dome Tweeter with Neodymium Magnet (Pair)
The DXQTTI delivers crystal-clear highs with a wide frequency response from 920Hz to 20kHz. Its titanium dome diaphragm offers accurate reproduction for natural, detailed sound that enhances any audio experience.
Power and Sensitivity
Rated for 30W RMS and 60W max power, this tweeter handles power efficiently while producing a high sensitivity of 95.2dB, ensuring loud, distortion-free treble even at moderate amplifier power.
Built to Perform
Constructed with a neodymium magnet and a lightweight KVC voice coil former with CCAW winding, the DXQTTI offers excellent heat dissipation and durability for long-lasting performance.
Easy Installation
With a shallow mounting depth of just 0.65 inches this tweeter fits easily into most factory and custom locations. Included is a 2.2uF bass blocker capacitor to protect the tweeter and improve sound quality.

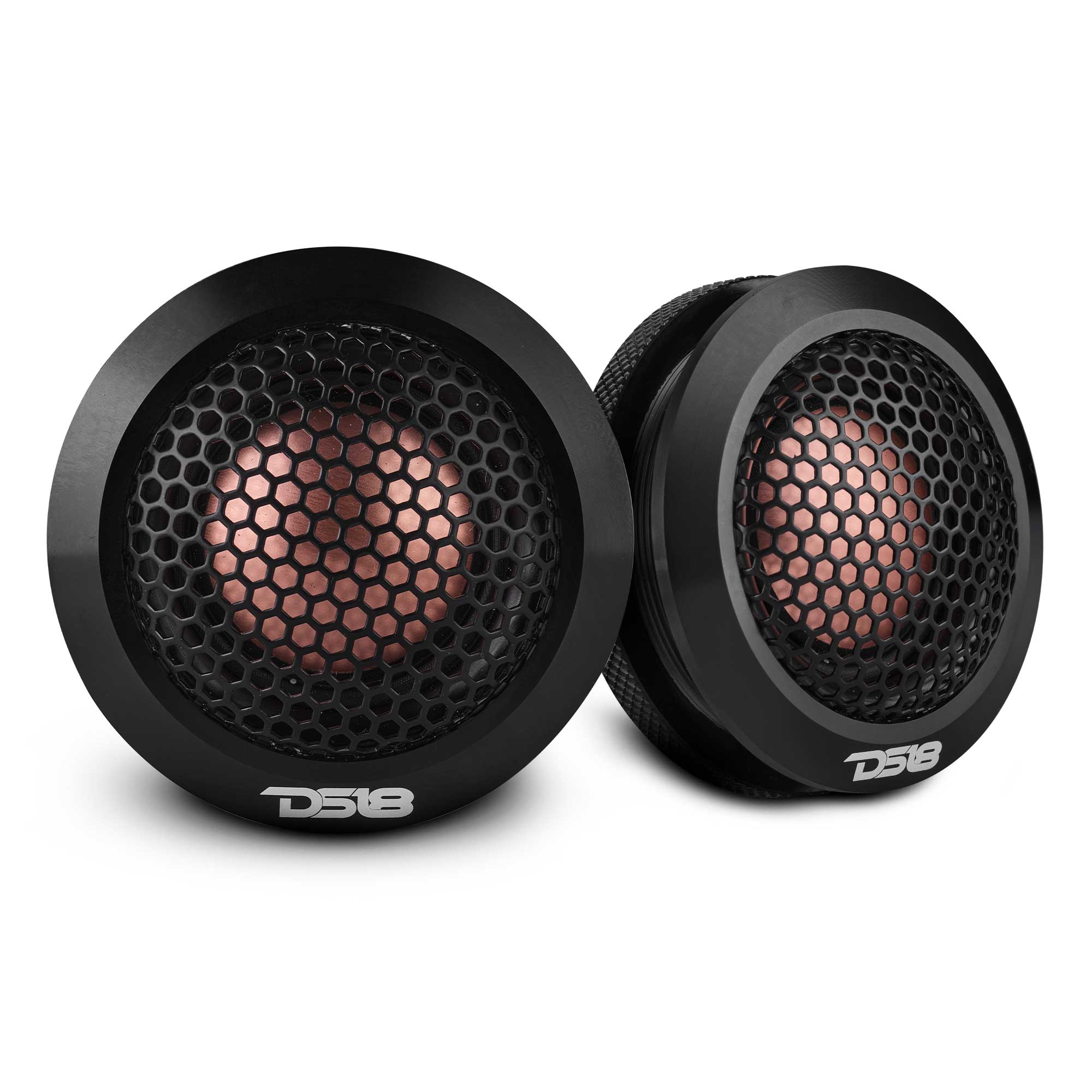

Sold in Pairs
The DXQTTI comes as a matched pair, ready for high-frequency clarity and high-quality listening experiences.
Key Features
- Crystal-clear high frequencies with zero distortion
- Titanium dome + neodymium magnet
- Rugged aluminum body
- Easy to integrate into OEM or custom setups
- Perfect upgrade for cars or audio projects
Specifications
| Nominal Diameter | 2.2" / 58mm |
|---|---|
| Nominal Impedance | 4 ohms |
| MAX Power Handling | 60W |
| RMS Power Handling | 30W |
| Sensitivity (1w/1m) | 95.2dB |
| Frequency Response | 920Hz-20KHz |
| Recommended Hi Pass Crossover | 3.8KHz |
| Sold In Pair or Single | Pair |
| Filter (Bass Blocker) | 2.2uf/50v |
| Body Material | Aluminum |
| Body Color / Finish | Black |
| Faceplate Color / Finish | Black |
| Voice Coil Diameter | 1.1'' / 28mm |
| Voice Coil Former Material | KVC |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Magnet Size / Weight | 0.4 Oz / 11.3g |

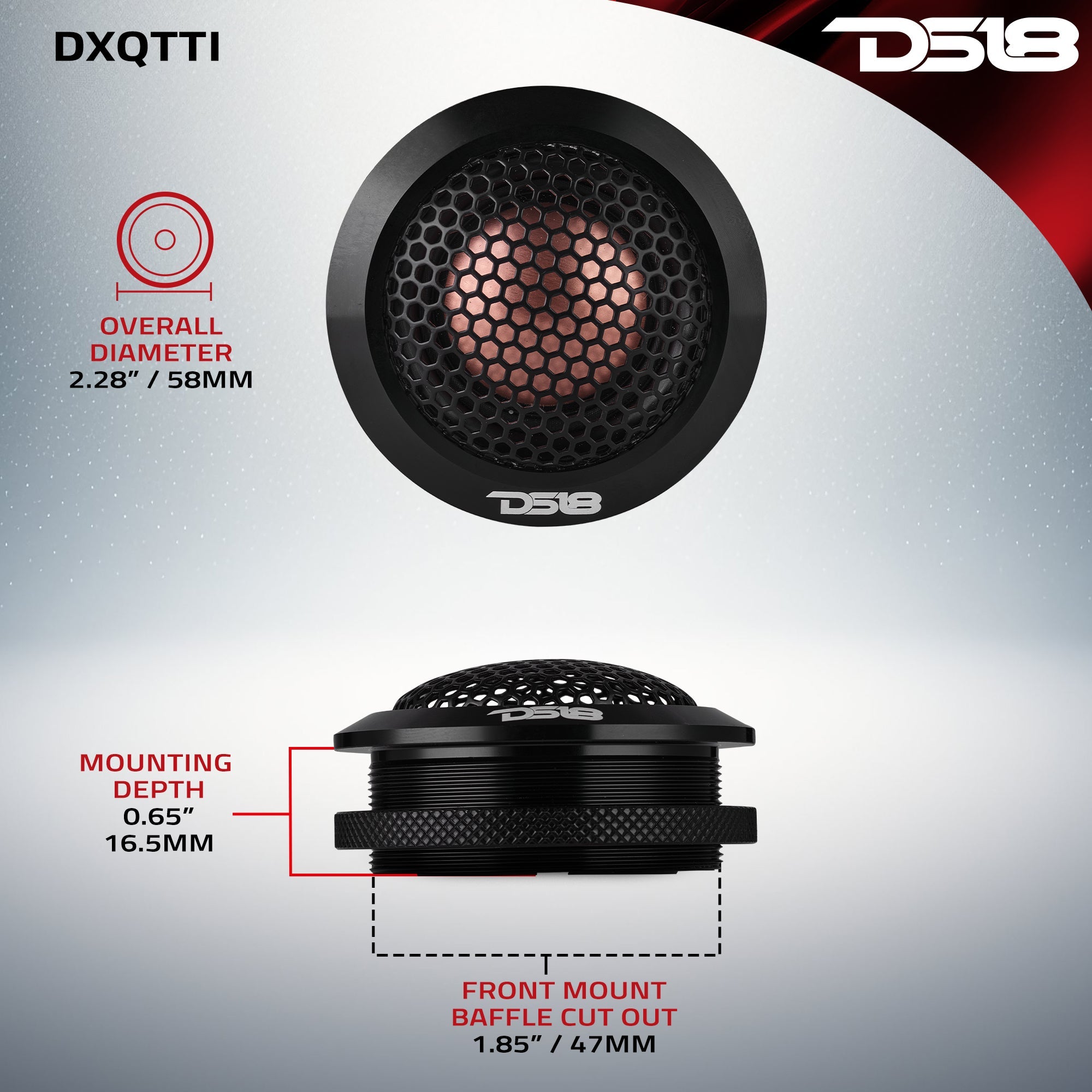

| Overall Diameter | 2.28'' / 58mm |
| Overall Depth | 1" / 26mm |
| Front Mount Baffle Cutout | 1.85" x 47mm |
| Mounting Depth | 0.65" / 16.5mm |
