Product Overview
6x9" Coaxial Speaker with Yellow Straw + Composite Foam Cone
DS18’s DXQ6.9CX is built for those who want quality over everything!
This 6x9-inch coaxial guarantees perfect audio with its robust, full-range audio capabilities. A commanding RMS handling of 150W and wide frequency response from 35Hz to 20KHz, allows clear, distortion-free audio, in any system.

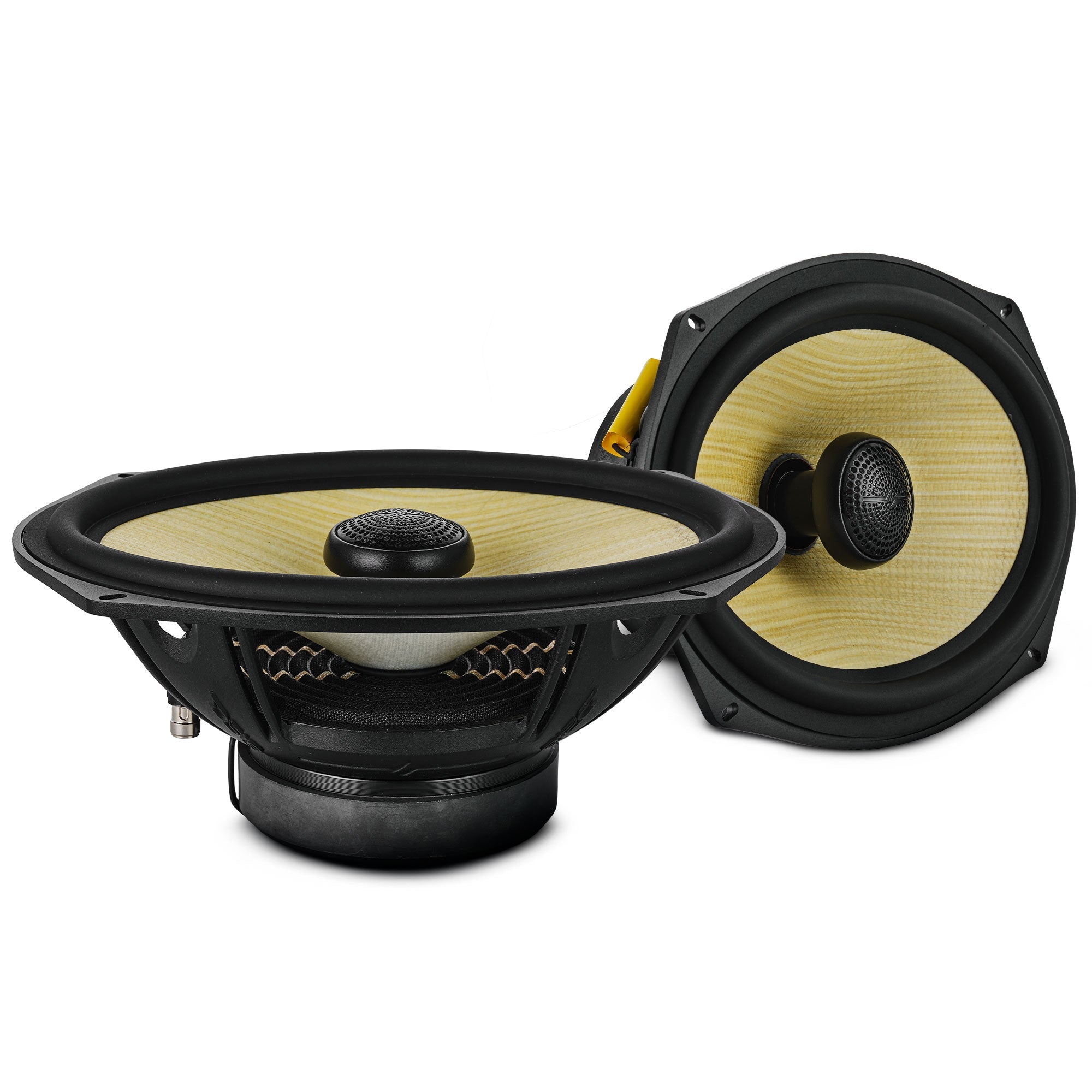

Sold in pairs to complete your stereo sound setup effortlessly, this high-power speaker ensures every note is rendered perfectly. Its advanced build features a striking bamboo cone paired with a durable rubber surround, making it tough enough to handle rigorous use without compromising performance.
With a nominal impedance of 4 ohms and a voice coil diameter of 1.2 inches, these speakers premium woofer and tweeter design set it apart. The 6x9-inch woofer, crafted from composite materials, amplifies bass response while maintaining durability. Meanwhile, the 1-inch silk diaphragm tweeter employs Neodymium magnets for smooth, high-frequency sounds that elevate any listening experience.
This dual speaker system is perfect for any audio configuration. Its recommended 60Hz crossover seamlessly balances all music genres, offering rich tones across the spectrum. Coupled with enhanced heat dissipation technology, the DXQ6.9CX promises longevity and reliability.
This premium coaxial speaker system is designed for those who demand nothing but the best in sound.
Key Features
- Premium Yellow Straw and Composite Foam Cone

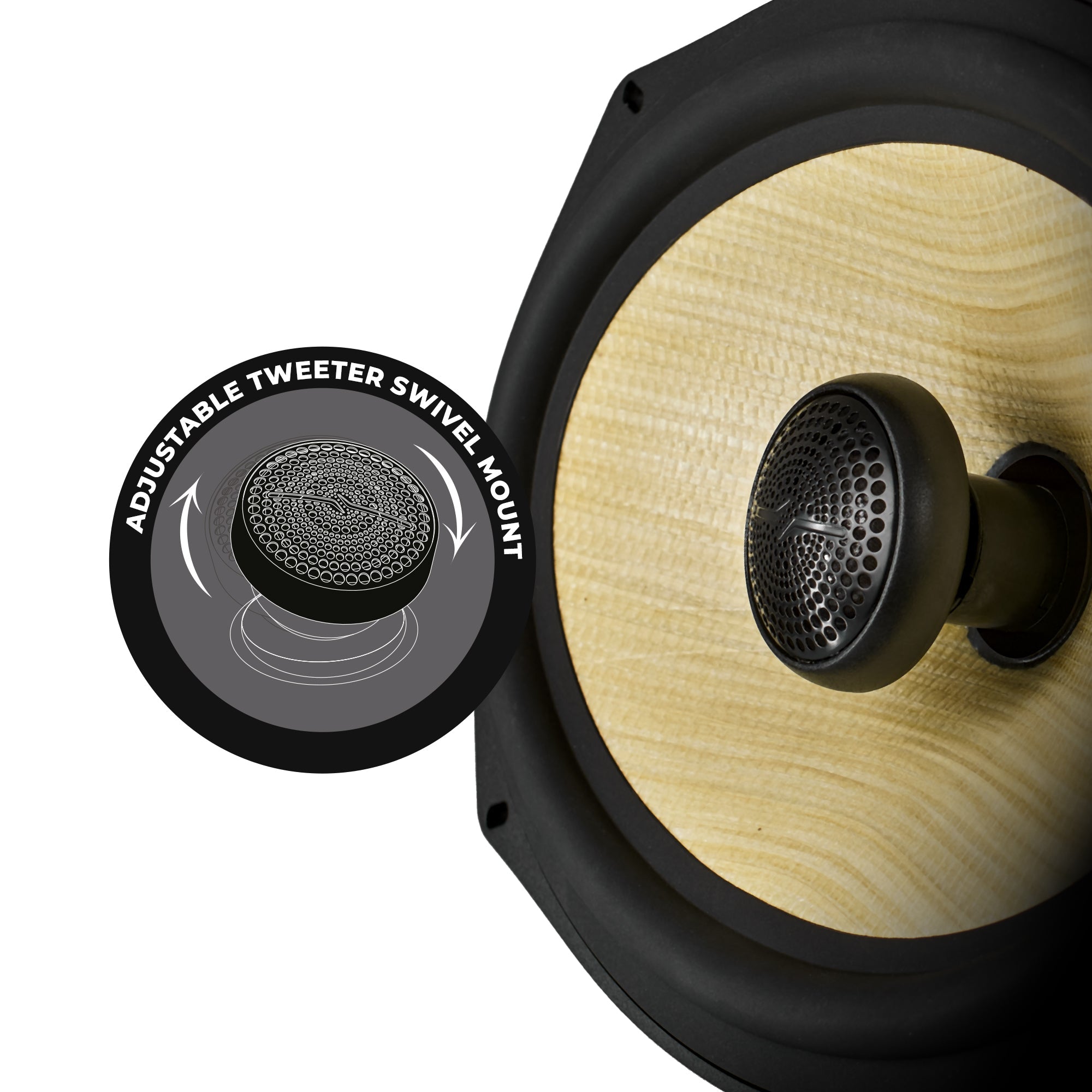

- Adjustable Swivel Mount Silk Tweeter
- Ferrite Magnets
- High Power Handling 150W RMS / 300W Peak
- Wide Frequency Response
Specifications
| SKU | DXQ6.9CX |
|---|---|
| Nominal Diameter | 6x9" / 152x228mm / 1" / 25mm |
| Nominal Impedance | 4 ohms |
| MAX Power Handling | 300W |
| RMS Power Handling | 150W |
| Sensitivity (1w/1m) | 89dB |
| Frequency Response | 35Hz-20KHz |
| Recommended HI Pass Crossover | 60Hz |
| Number of ways | 2 |
| Sold in Pair or Single | Pair |
| Grill Included | No |
| Voice Coil Diameter | 1.2" / 30.5mm / 1" / 25mm |
| Voice Coil Former Material | TL / ASV |
| Winding Material | SV / CCAW |
| Cone Material | Yellow Straw + Composite Foam |
| Surround Material | Rubber Edge |
| Basket Material | Aluminum |
| Basket Color/Finish | Black |
| Magnet Material | Ferrite / Neodymium |
| Magnet Weight | 20.2 Oz / 0.5 Oz / 14g |
| Improved Heat Dissipation | Yes |
| Cone Shape | Curvilinear |
| Speaker Terminals | Push / 14Ga |
| Equivalent Volume Vas | 20.96L / 0.74ft3 |
| Excursion (one way) Xmax | 5mm |
| Free Air Resonance Fs | 55Hz |
| Mechanical Factor Qms | 6.112 |
| Electrical Factor Qes | 0.883 |
| Total Factor Qts | 0.772 |
| Mechanical Mass Mms | 28.919g |
| Mechanical Compliance Cms | 0.287mm/N |
| BL Factor BL | 6.32 |
| Voice Coil Inductance Le | 0.321mH |
| Cone Area Sd | 226.98cm2 |
| DC Resistance Re | 3.52ohms |
| Mechanical Mass w/o air Mmd | 25.054g |
| Diaphragm Material | Silk |
| Overall Diameter | 6.4x5.2" / 163x232mm |
| Overall Depth | 3.8" / 98mm |
| Front Mount Baffle Cutout | 5.8x8.6" / 146x217mm |
| Mounting Depth | 3.4" / 88mm |
| Motor Diameter | 3.9" / 100mm |
