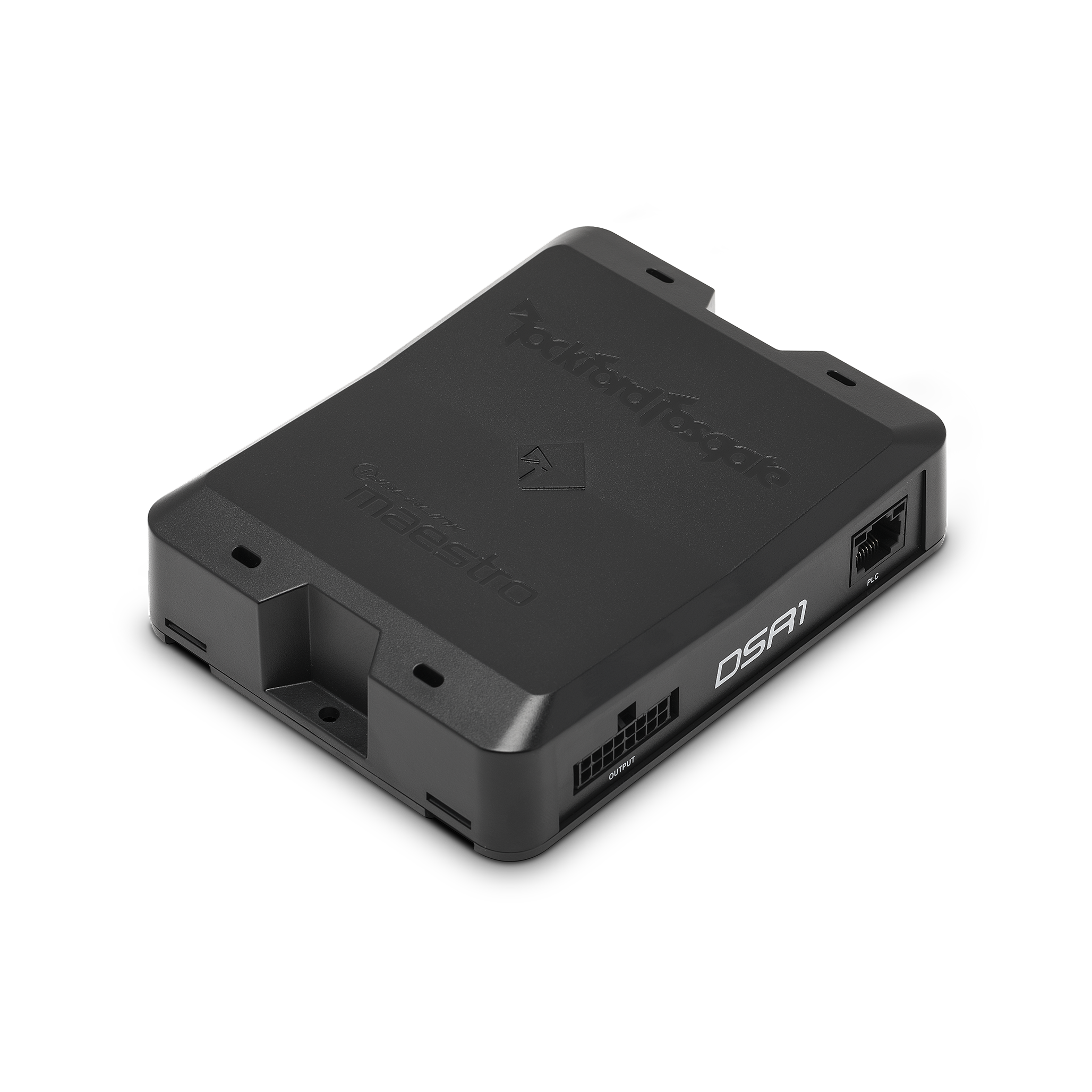

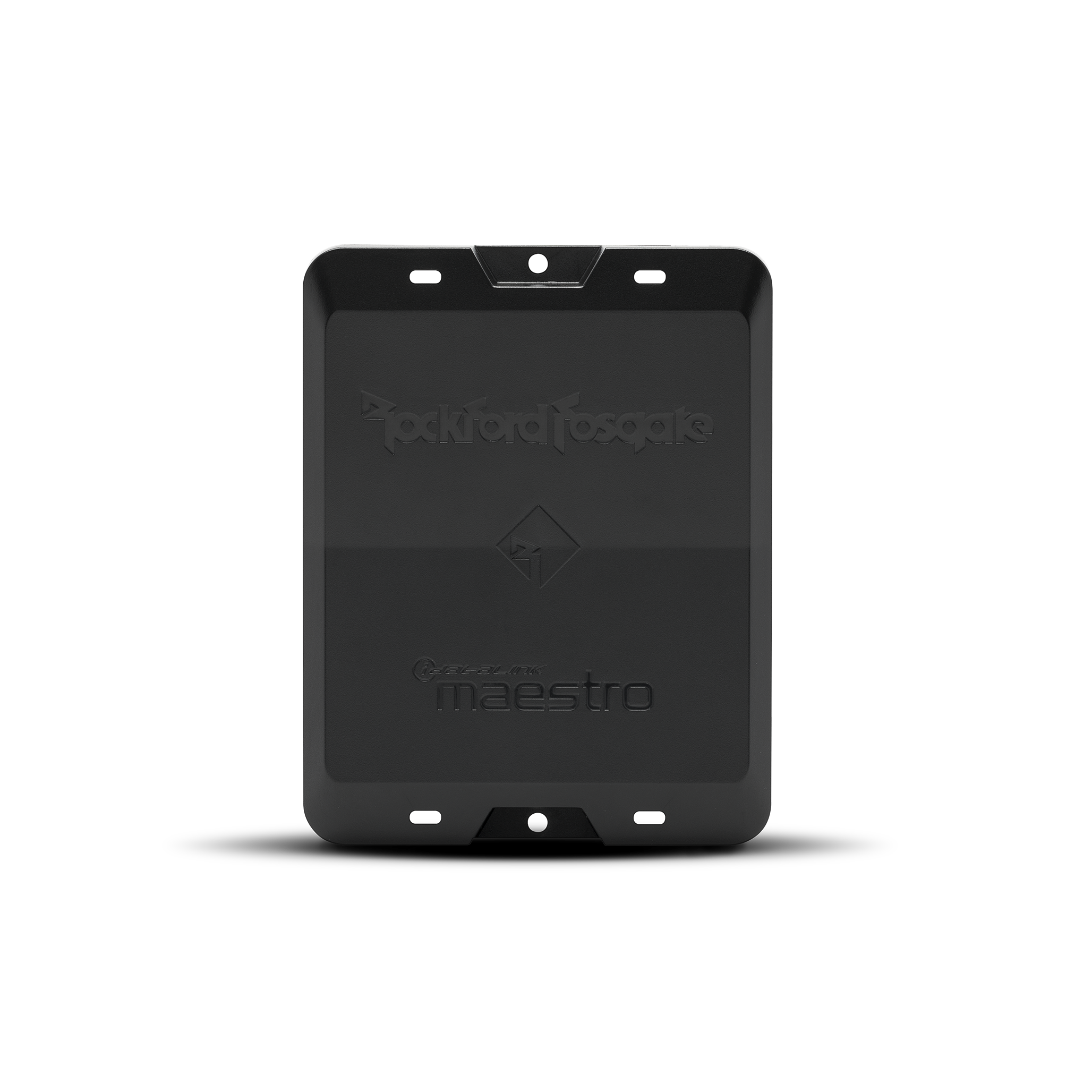

8-Channel Interactive Signal Processor w/ Integrated iDatalink Maestro Module
OverviewCo-developed with iDatalink Maestro, the DSR1 combines a full-featured digital signal processor with a flashable Maestro integration...
- $419.99
- $419.99
- Unit price
- per
Subtotal:
$419.99
Couldn't load pickup availability
25 in stock
Overview
Co-developed with iDatalink Maestro, the DSR1 combines a full-featured digital signal processor with a flashable Maestro integration module.
Features

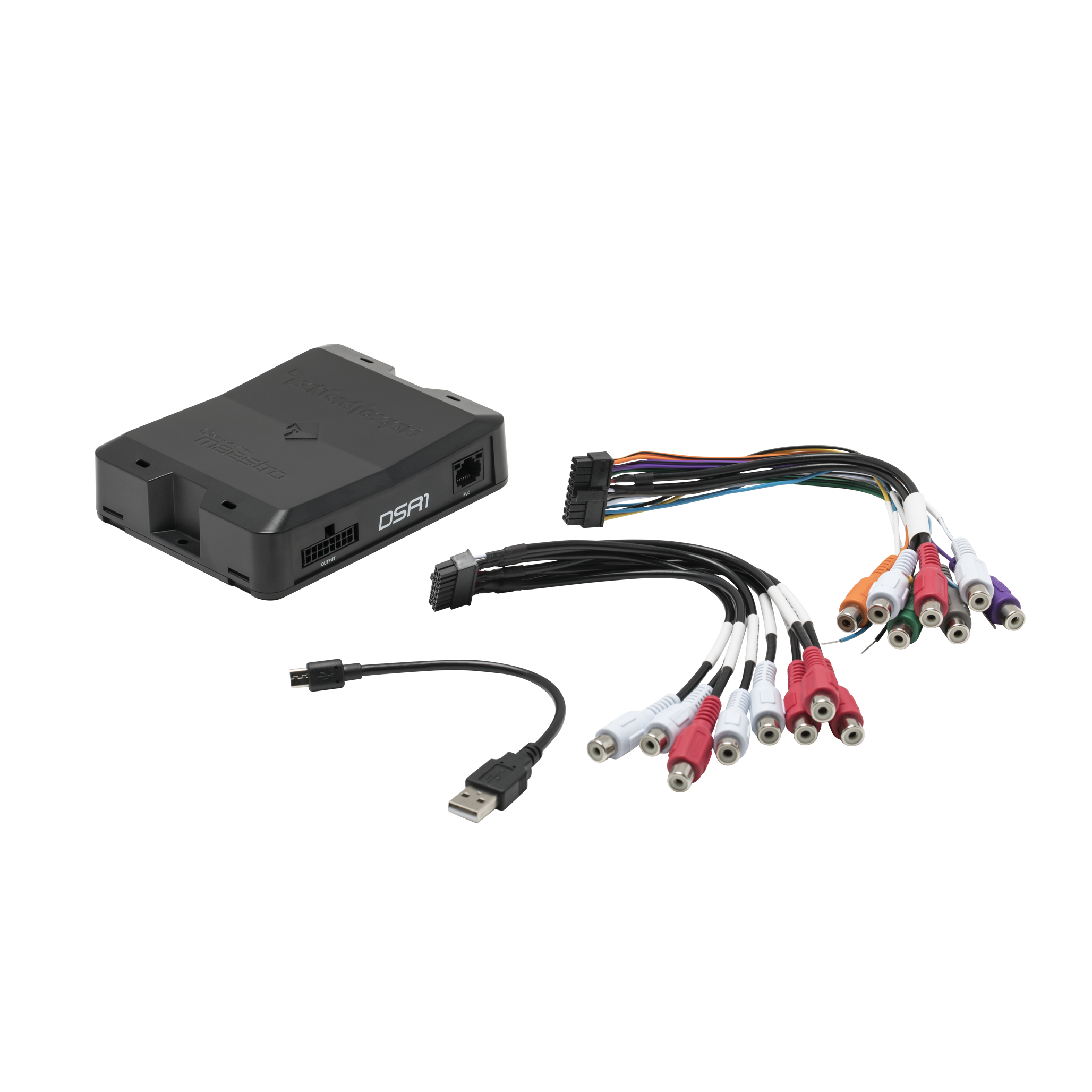

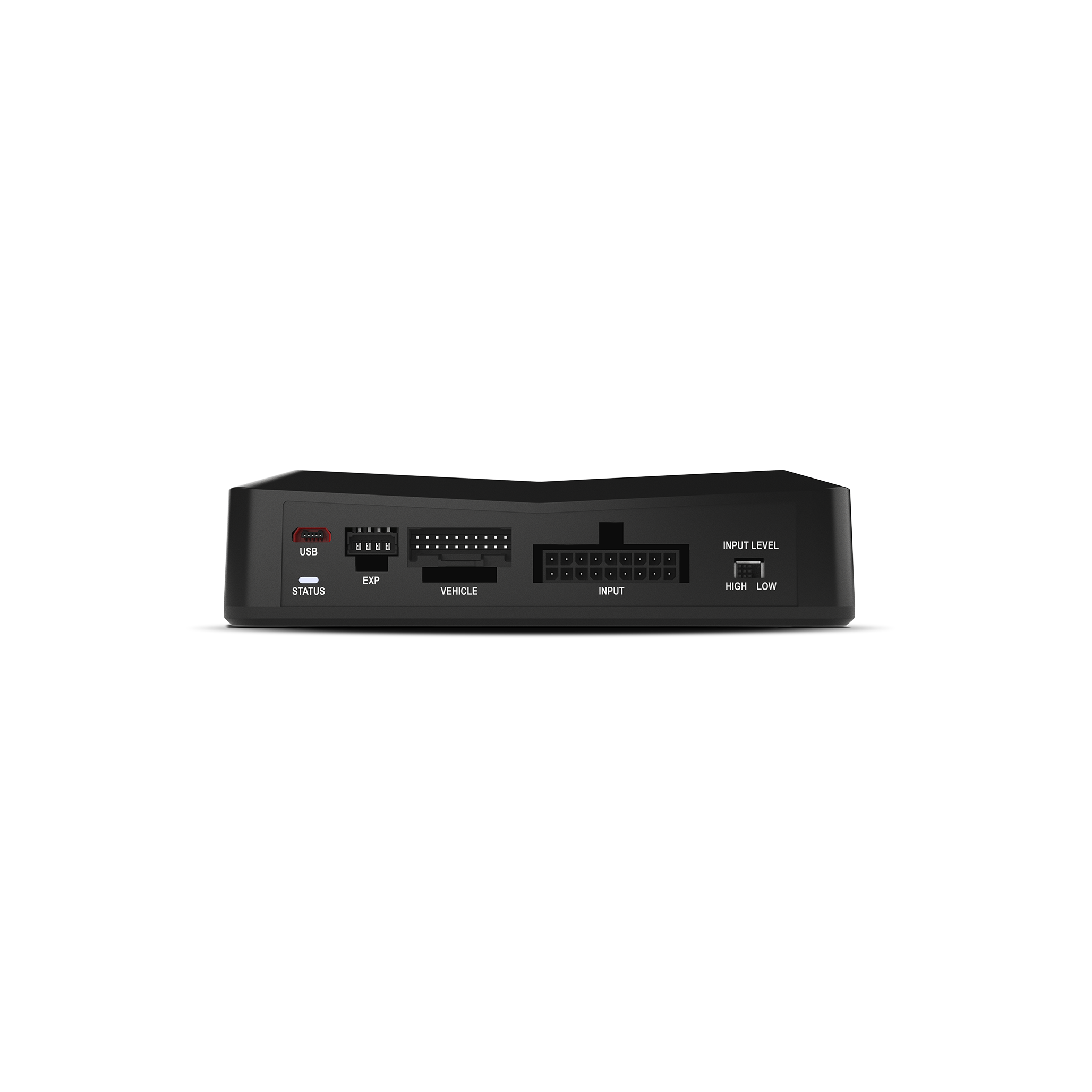

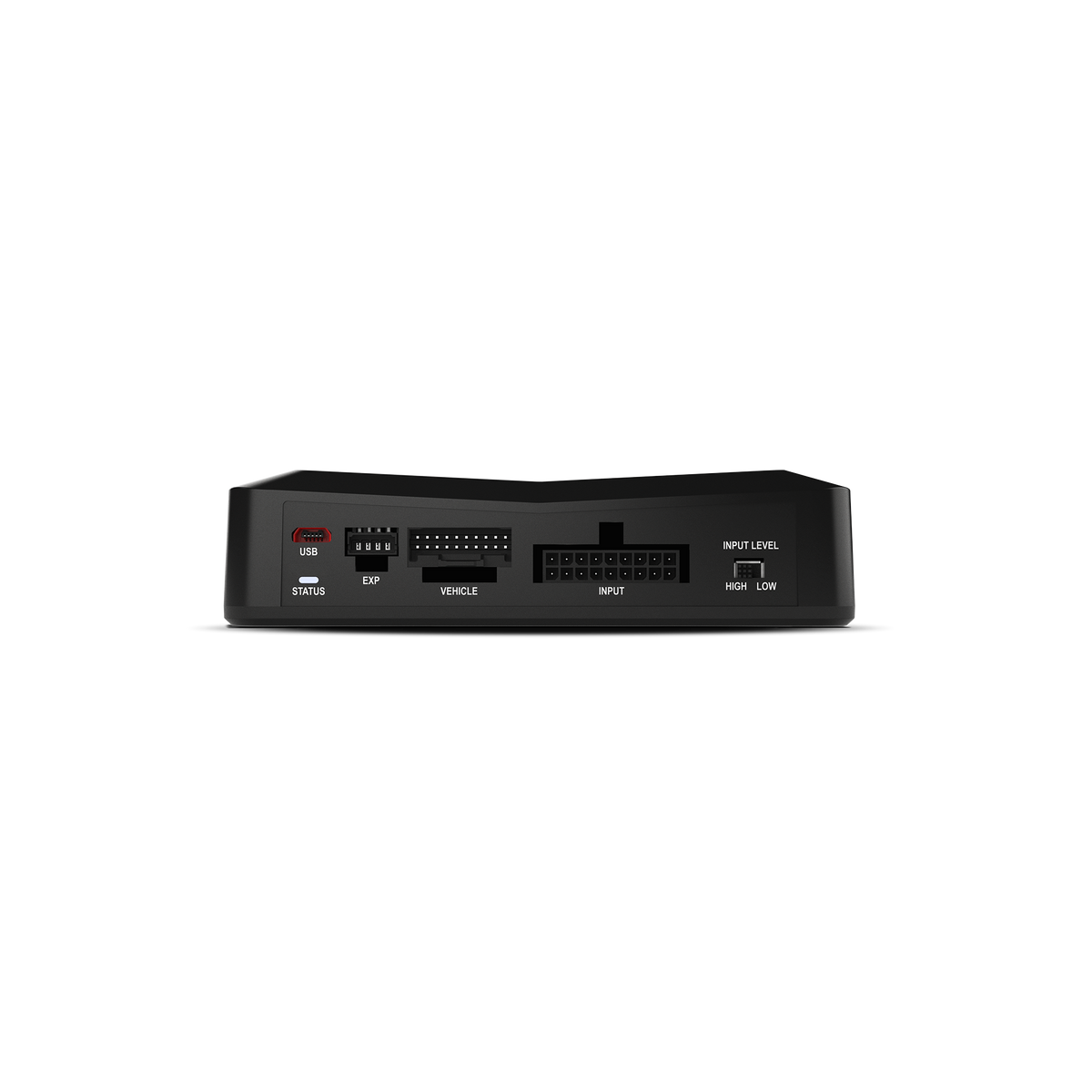

- 18 Pin Analog Input Harness
- 245 Bands of Equalization for Aftermarket Tuning
- Adjustable crossovers with selectable slope
- Digital Signal Processing with Integrated Maestro CAN Interface
- Four Channel Balanced Differential RCA Inputs
- Four Channel High Level Inputs with Signal Sense Turn On

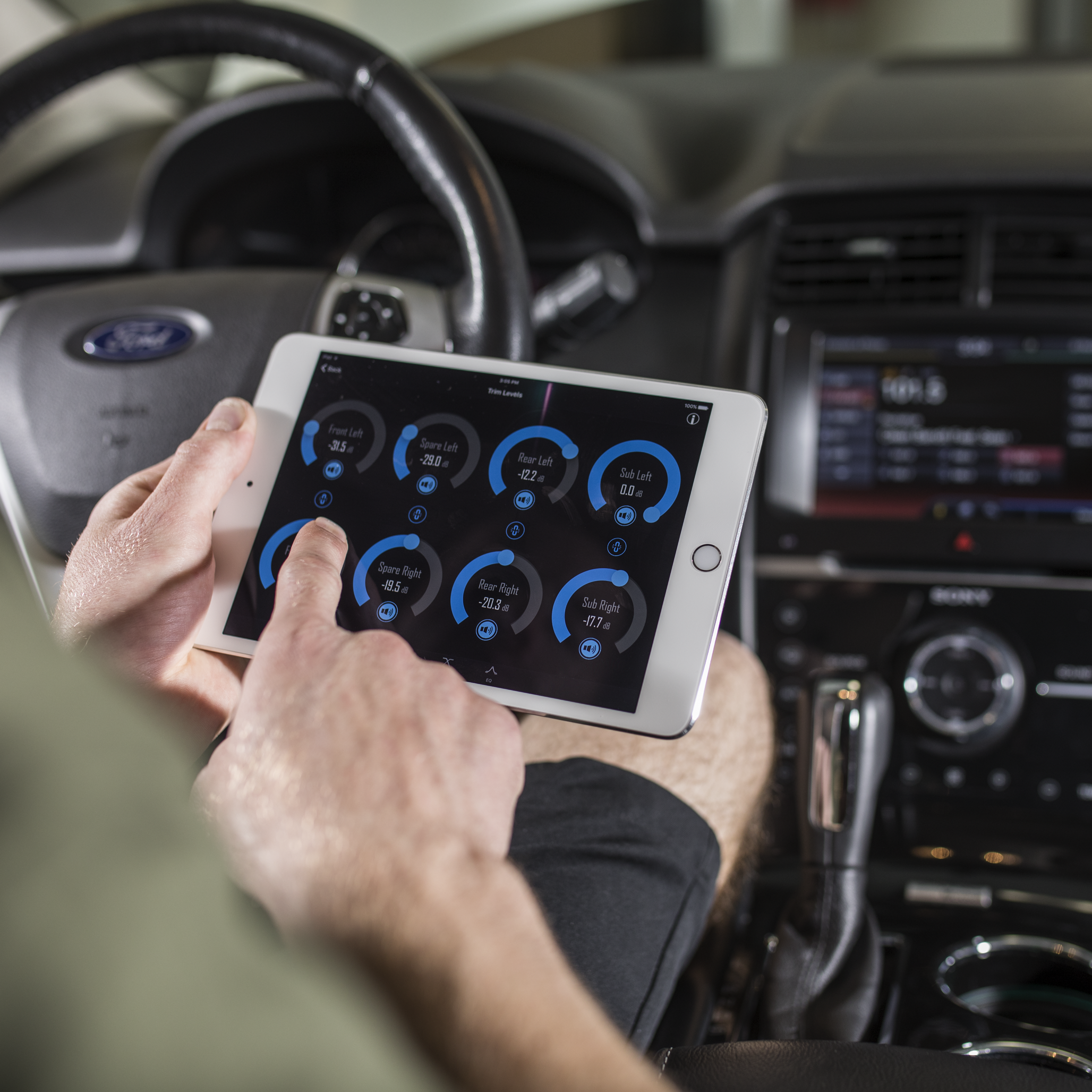

- Interactive Tuning Interface Controlled via Android/ iOS APP
- Optional PLC2 Level Controller with Assignable Functions
- 1 Year Warranty

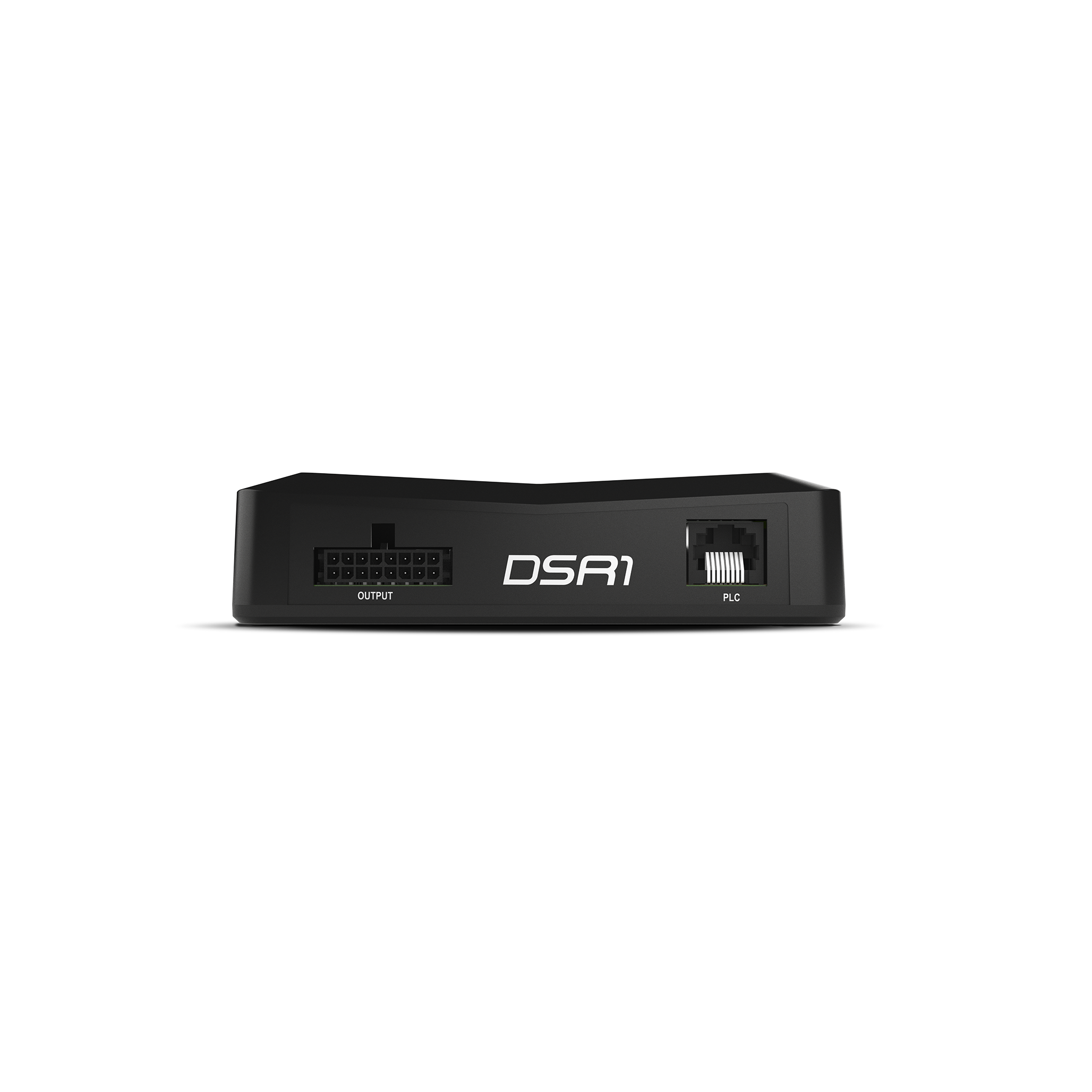

- 16 Pin Analog Output Harness
- Bluetooth 4.0 Connectivity for convenient setup
- CE and FCC Compliant
- Designed for use with Select Maestro Vehicle T-Harnesses
- Micro USB Setup/Update Port
- Up 10msec of delay on each channel for Time Alignment
- Auxiliary RCA and SPDIF Coaxial Inputs
Technologies
- Tuning Connectivity via Bluetooth: Bluetooth connectivity allows connection to a mobile device for tuning (non audio streaming.)
- iDatalink Maestro: The iDatalink Maestro technology is a flashable module that allows vehicle specific firmware to be downloaded to the unit, enabling integration into a factory installed system without the loss of factory equipped controls and features.
- DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
- CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
Specifications
| Processor Type | Digital Processor |
| Signal Input | 4 Balanced Differential RCA Inputs 4 High-Level Inputs w/ Signal Sense 2 AUX RCA Inputs SPDIF Coaxial Input |
| Gain | — |
| Input Impedance | 20k Ohms |
| Output Impedance | 200 Ohms |
| Frequency Response | 20Hz - 20kHz +/- 0.5dB |
| Operating Voltage | 9 - 16 VDC |
| Mounting | Behind Dash |
| Signal Output | 8 RCA Outputs |
| Input Voltage |
Low Level (RCA): up to 4V High Level: up to 12.5V High Level Turn-On: 4V - 16V AUX: up to 2V |
| Output Voltage | up to 4V RMS |
| Signal-to-Noise |
RCA: >100 dBA (A-weighted) AUX: >100 dBA (A-weighted) |
| THD+N | <1.0% |
| Digital Signal Processing (DSP) | Speed: 147 MIPS Precision: 32-BIt Accumulators: 72-bit |
| Analog to Digital (ADC) | Precision: 24-Bit Dynamic Range: 105 dB THD+N: -98 dB |
| Crossover Frequency | Variable: 20 Hz to 10 kHz |
| Crossover Type | High-Pass Low-Pass Band-Pass All-Pass Fixed Linkwitz-Riley |
| Digital to Analog (DAC) | Precision: 24-Bit Dynamic Range: 108 dB THD+N: -98 dB |
| Crossover Slope | Selectable Slope: 6/12/18/24/30/36/48 dB/Octave |
| EQ Frequency Centers |
Channels: Front/Spare/Rear/Sub Frequency Bands: 31 per channel |
| Smartphone Compatibility |
APPLE: iOS 10.0 or later (iPhone, iPad, iPod touch) ANDROID: Oreo 8.0 or later (optimized for 5-inch screen or larger) |
| EQ Frequency Controls | Selectable Q: 0.01 to 10.0 |
| Smartphone App |
App Store Google Play |
| Shipping Weight | 0.5 lb. (0.22 Kg) |
| Dimensions (H x W x D) | 1.26" x 4.04" x 5.12" (32 mm x 102.5 mm x 130 mm) |
Videos
- Maestro for DSR1 - An overview of the Maestro module inside DSR1 that allows you to interface with factory installed systems equipped with a factory amplifier.
