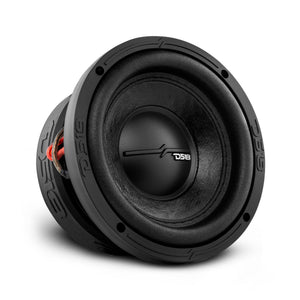

ZR 6.5" Subwoofer 300 Watts Rms DVC 2-Ohm
Product Overview DS18 ZR6.2D 6.5" Car Subwoofer with 600 Watts 2-Ohm DVC The ZR subline is a...
- $95.95
- $95.95
- Unit price
- per
Subtotal:
$95.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 ZR6.2D 6.5" Car Subwoofer with 600 Watts 2-Ohm DVC
The ZR subline is a great entry level subwoofer that both handles great power and gives you smooth clean bass. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.
This 6.5-inch model comes in both dual 2 and dual 2-ohms configurations giving you many options to match your amplifiers optimal impedance. This model comes with a 1.5-inch voice coil that handles 300w RMS and 600w max power. The large foam surround and pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout the vehicle.
Highlights

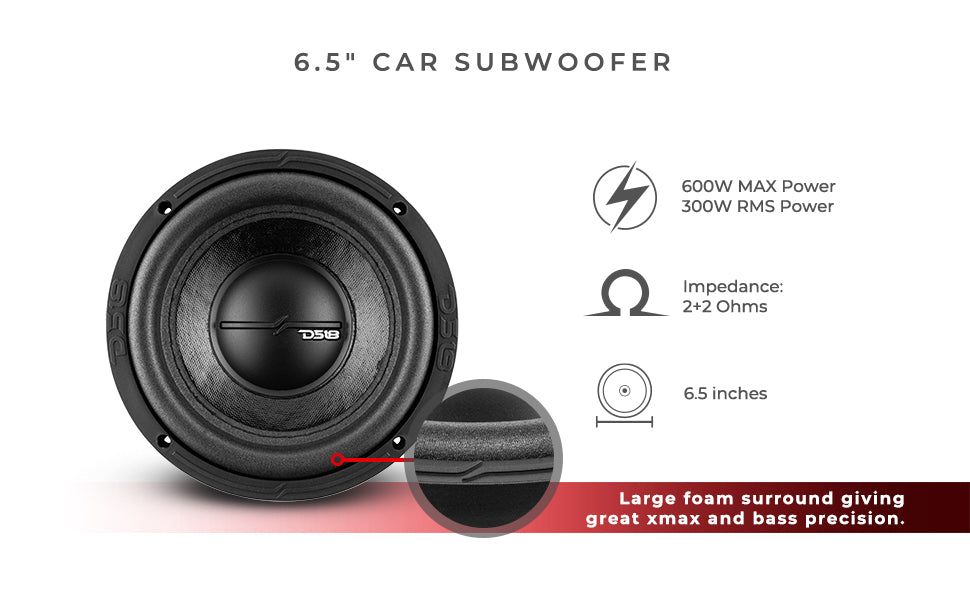

- Large foam surround giving great Xmas and bass precision while keeping great cone control when the subwoofer is close to maximum power.
- Great power handling of 300w RMS and 600w max through a high strength 1.5-inch aluminum voice coil.

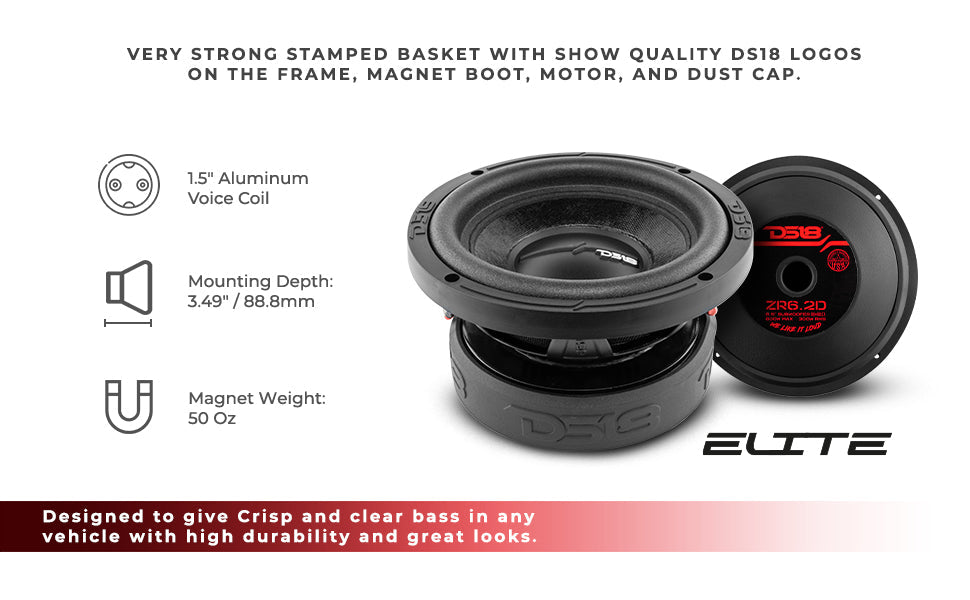

- Very strong stamped basket with show quality DS18 logos on the frame, magnet boot, magnet, and dust cap.

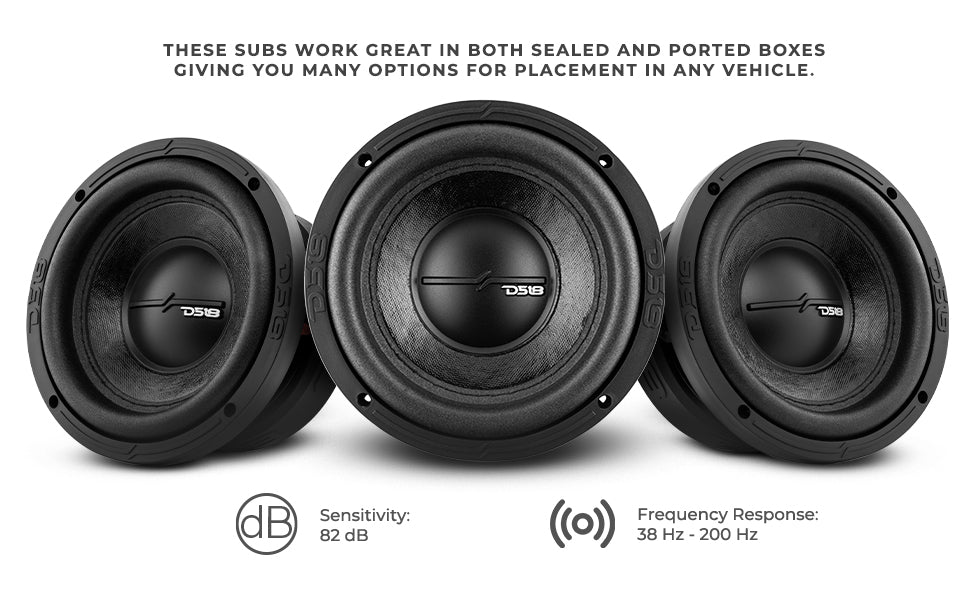

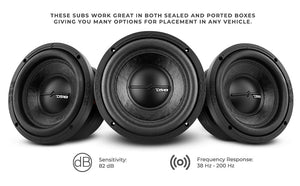

- Designed to give crisp and clear bass in any vehicle and can be used in sealed and ported boxes.
Technical Details
| Nominal Diameter | 6.5” |
| Nominal Impedance | 2+2 Ohms |
| RMS Power Handling | 300W |
| MAX Power Handling | 600W |
| Sensitivity (1w/1m) | 82 dB |
| Frequency Response | 38Hz - 200 Hz |
| Recommended Lo Pass Crossover | 160 Hz |
| MOTOR | |
| Voice Coil Diameter | 1.5” / 38.8mm |
| VC Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Basket Color/Finish | Matte Black |
| Magnet Material | Ferrite |
| Magnet Weight | 50 oz |
| Displacement Volume | 0.02 ft3 |
| THIELE & SMALL PARAMETERS | |
| Equivalent Volume | 2.65 L |
| Excursion (one way) | 15mm |
| Free Air Resonance | 65Hz |
| Mechanical Factor | 3.412 |
| Electrical Factor | 0.769 |
| Total Factor | 0.627 |
| Moving Mass | 55.41g |
| Compliance | 91.07µ/ mN |
| BL Factor | 5.37 |
| Voice Coil Inductance | 324.3m mH |
| Cone Area | 143 Cm2 |
| DC Resistance | 1.8 + 1.8 ohm |
| Efficiency Bandwidth Product | 84.5 |

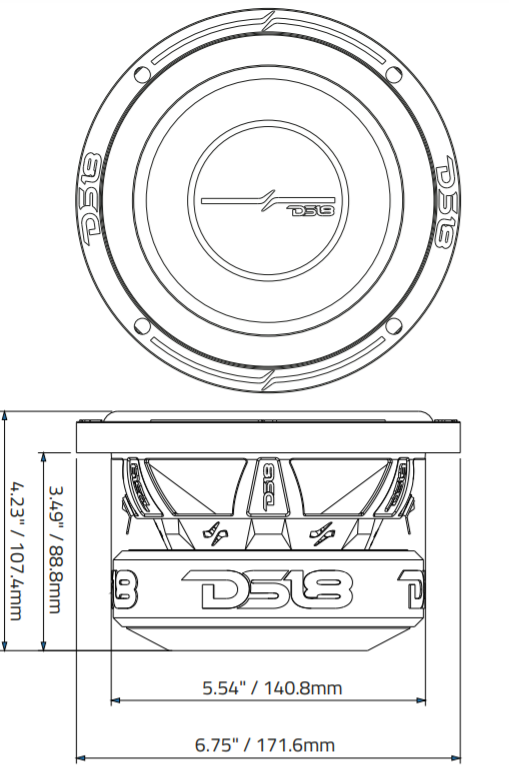

| MEASUREMENTS | |

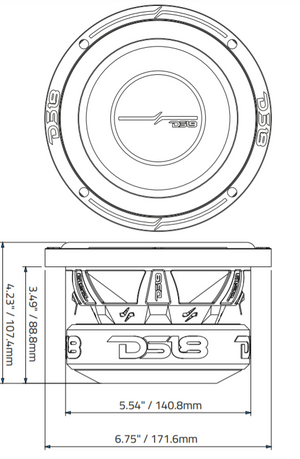

| Overall Diameter | 6.75” / 171.6mm |
| Overall Depth | 4.23” / 107.4mm |
| Front Mount Baffle Cutout | 5.54” / 140.8mm |
| Mounting Depth | 3.49” / 88.8mm |
| Motor Diameter | 5.23" / 133mm |

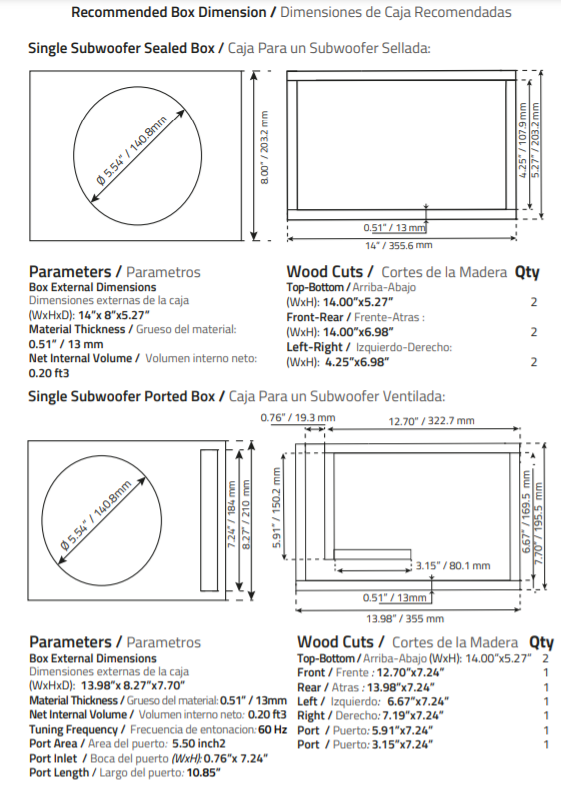

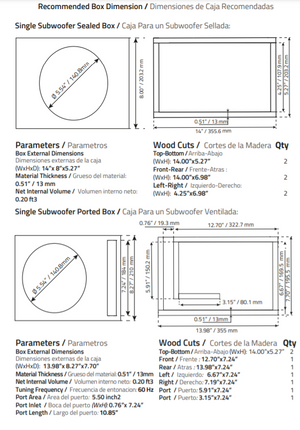

Box info
Key Features
- 6.5" Subwoofer
- MAX Power: 600 Watts
- RMS Power: 300 Watts
- Impedance: 2-Ohm 1.5" DVC
- Ferrite Magnet
- 82dB
Specifications
| SKU | ZR6.2D |
|---|---|
| Nominal Diameter | 6.5" / 165.1mm |
| Nominal Impedance | 2 + 2 Ohm |
| RMS Power Handling | 300W |
| Maximum Power Handling | 600W |
| Sensitivity (1w/1m) | 82 dB |
| Frequency Response | 38-200Hz |
| Recommended Lo Pass Crossover | 160Hz |
| Voice Coil Diameter | 1.5" / 38.8mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Basket Color/Finish | Black Matte |
| Magnet Material | Ferrite |
| Magnet Weight | 50 Oz |
| Displacement Volume | 0.02 ft3 |
| Equivalent Volume Vas | 2.65 L |
| Free Air Resonance Fs | 65 Hz |
| Mechanical Factor Qms | 3.412 |
| Electrical Factor Qes | 0.769 |
| Total Factor Qts | 0.627 |
| Moving Mass Mms | 55.41g |
| Compliance Cms | 91.07? m/N |
| Bl Factor BI | 5.37 |
| Voice Coil Inductance Le | 324.3m mH |
| Diaphragm Area Sd | 143 Cm2 |
| DC Resistance Re | 1.8 + 1.8 Ohm |
| Efficiency Bandwidth Product EBP | 84.5 |
| Overall Diameter | 6.75" / 171.6mm |
| Overall Depth | 4.23" / 107.4mm |
| Front Mount Baffle Cutout | 5.54" / 140.8mm |
| Mounting Depth | 3.49" / 88.8mm |
| Motor Diameter | 5.23" / 133mm |
| Gross Single Unit Weight (lb) | 7.5 |
| Dimensions W x L x H (Inches) | 7.5 x 7.5 x 5.25 |
| Quantity of Units in Master Carton | 4 |
| Gross Master Carton Weight (lb) | 30.5 |
| M/C Dimensions W x L x H (Inches) | 16.75 x 8.25 x 11.25 |
