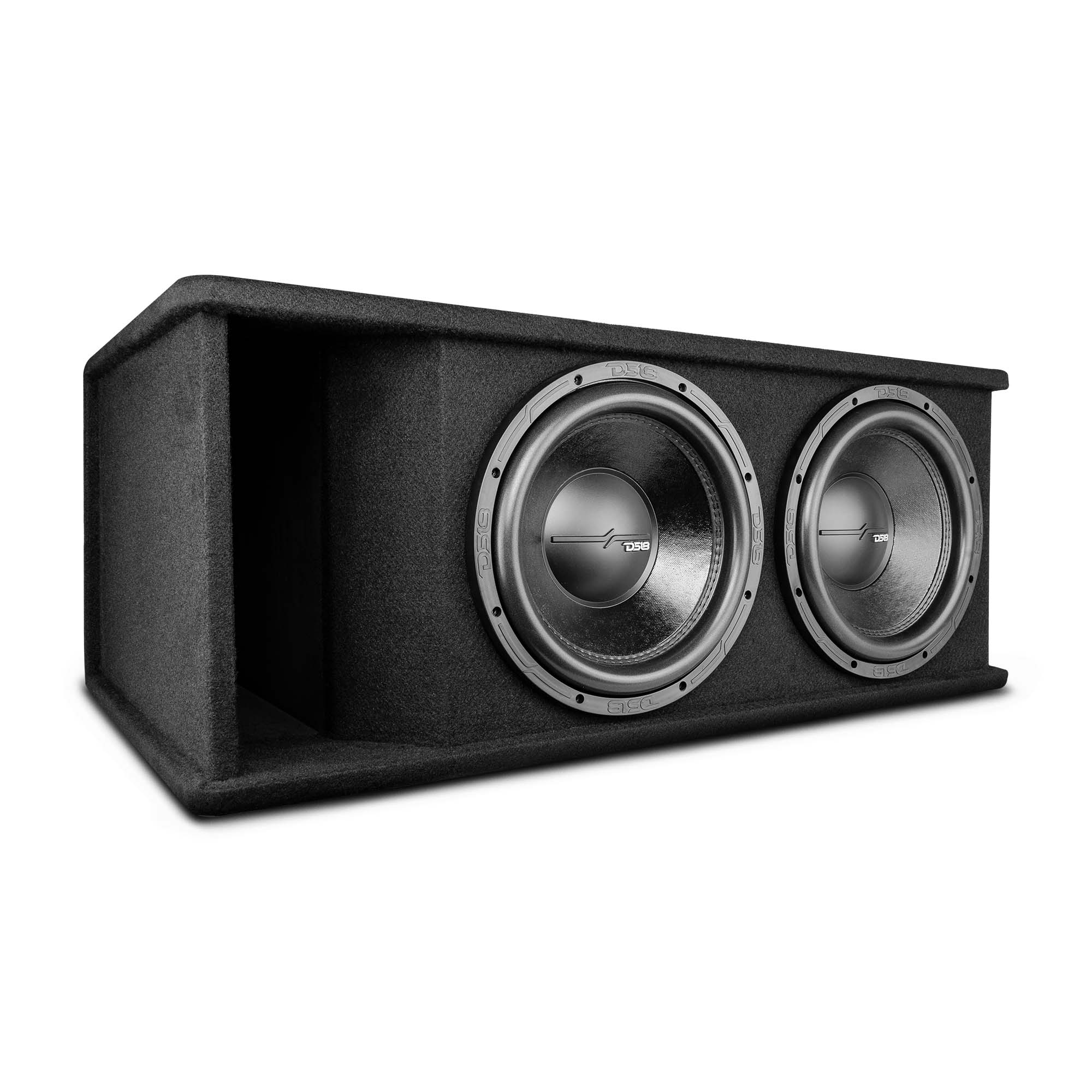

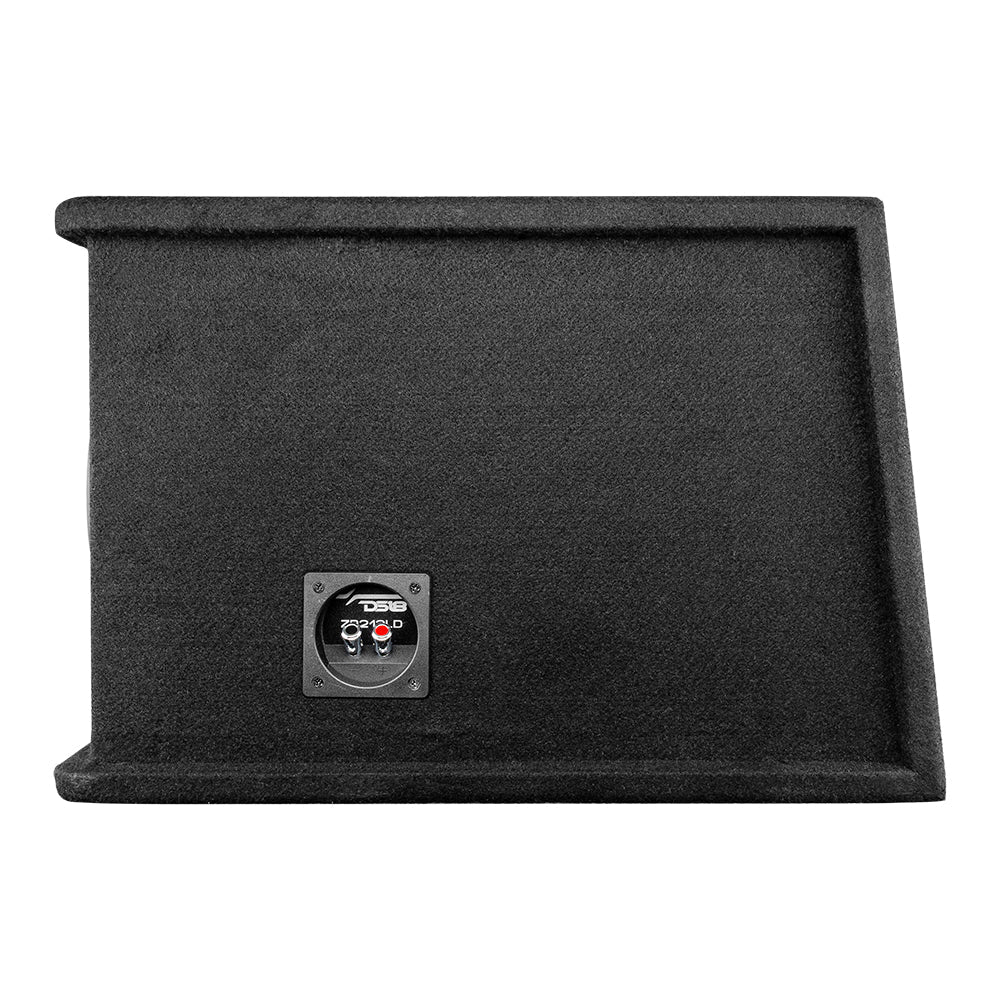

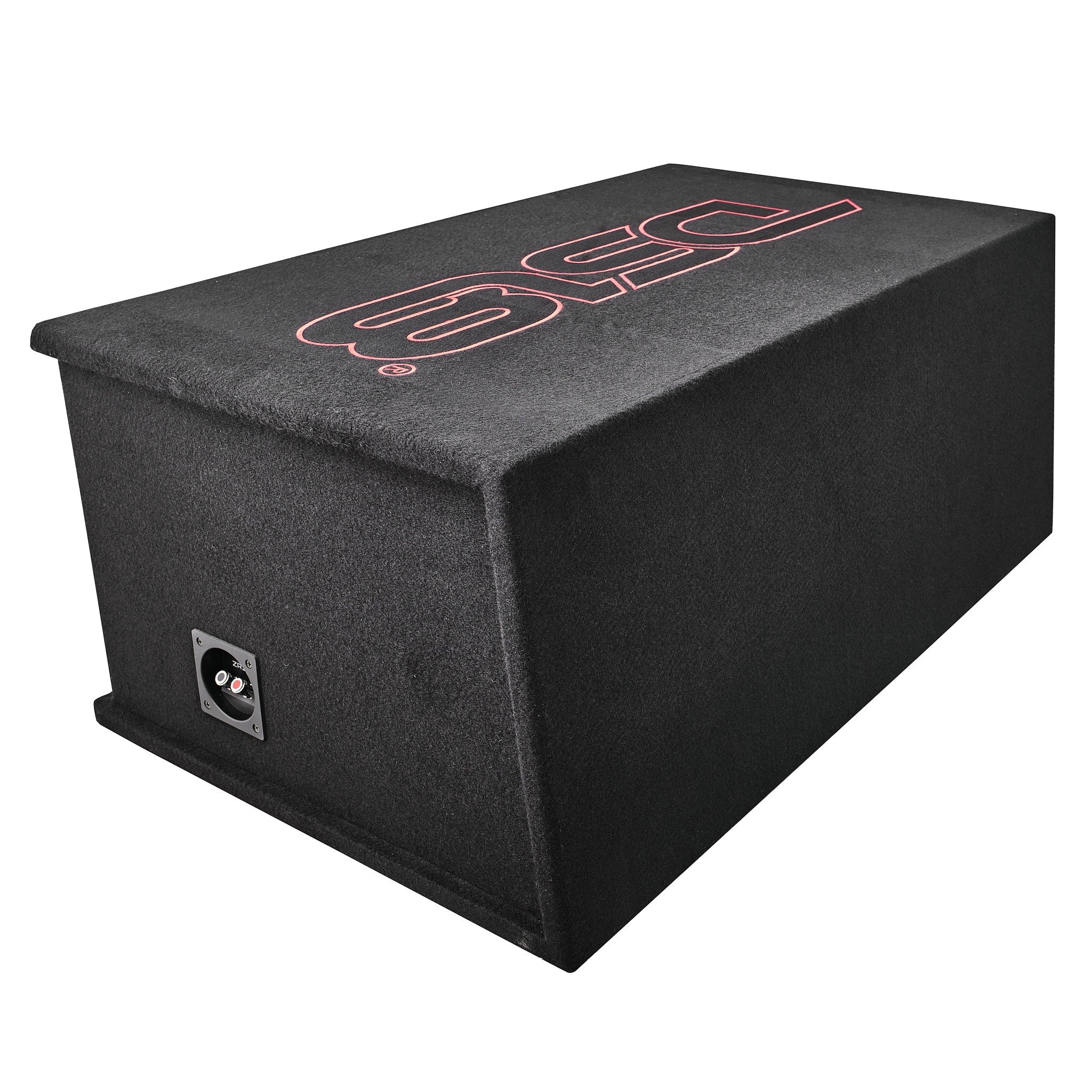

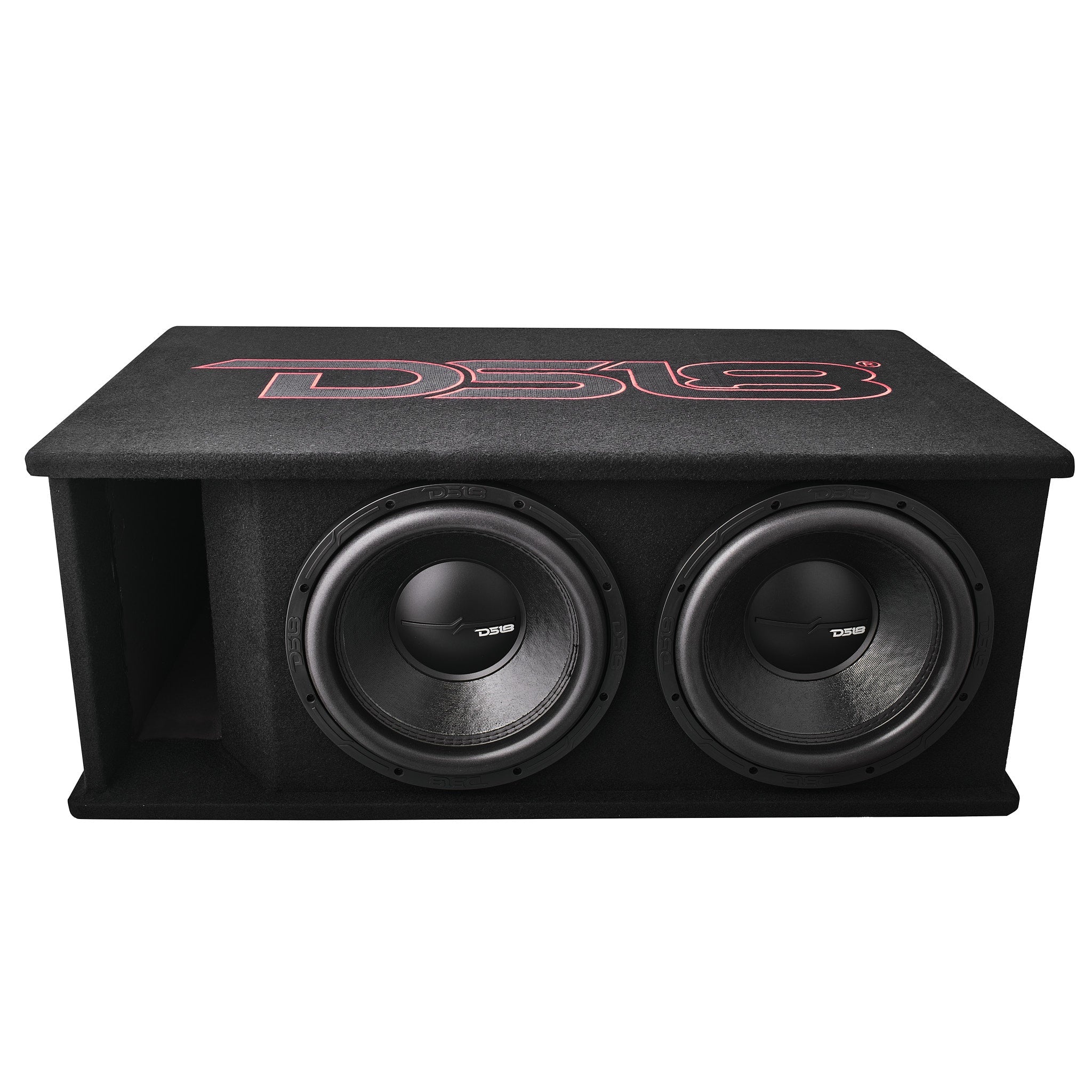

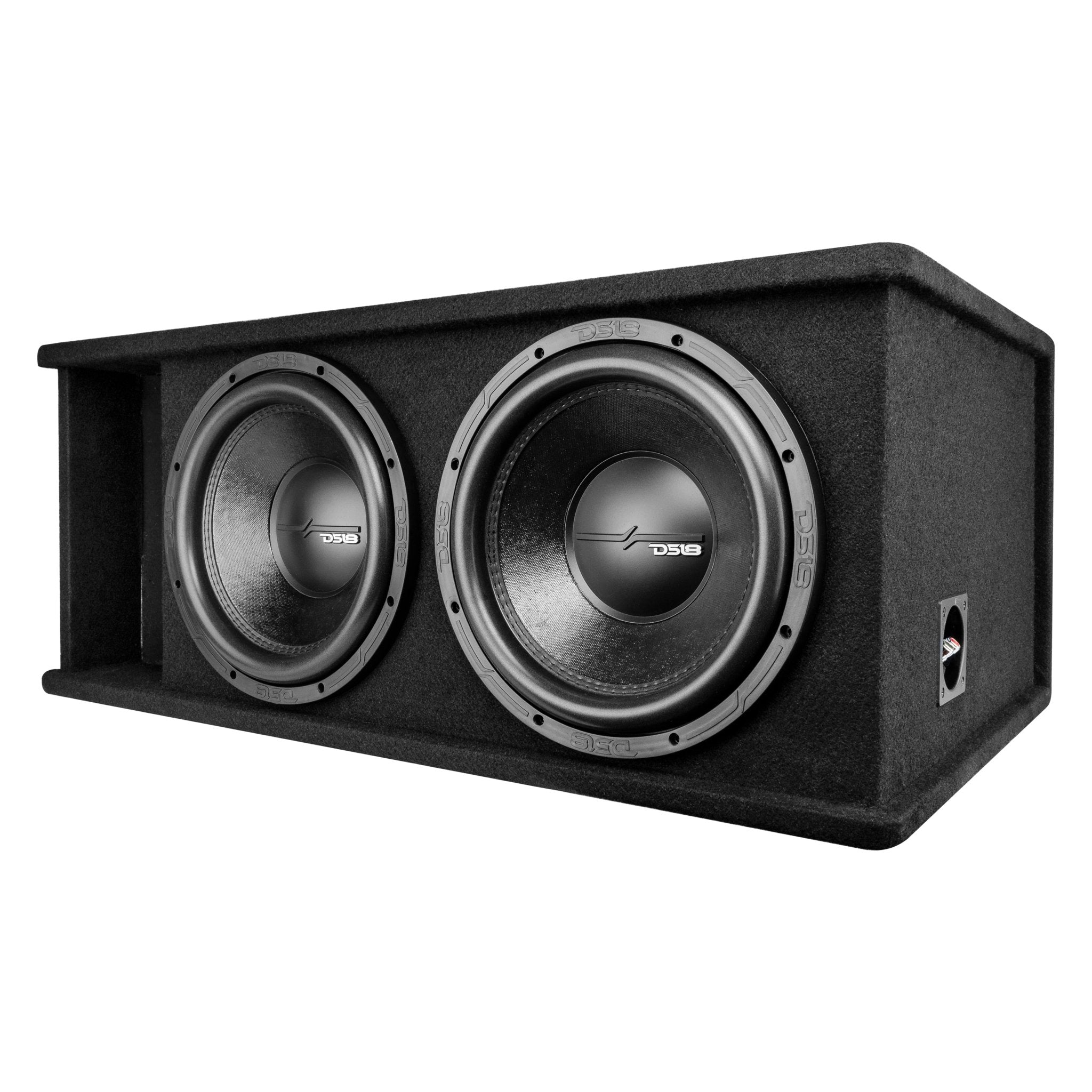

Dual 12" Loaded Subwoofer Ported Enclosure With ZR12.2 1600 Watts Rms
Product Overview DS18 ZR212LD Bass Package 2 x ZR12.2 12" Subwoofers In a Ported Box 3200 Watts...
Vendor:
DS18
Manufacturer SKU
ZR212LD
Availability:
In Stock
Product Type:
Speaker Enclosures & Pods
- $599.95
- $599.95
- Unit price
- per
Subtotal:
$599.95
Couldn't load pickup availability
Instructions:
View Instructions
10 in stock
Product Overview
DS18 ZR212LD Bass Package 2 x ZR12.2 12" Subwoofers In a Ported Box 3200 Watts
The ZR212LD provides dual 12 inch subwoofers loaded into a ported box for the listeners who like it loud!
The ported box is tuned to 29 Hz and helps get the most from your subwoofers by delivering a deeper, punchier bass. Included in the ported box are two ZR12.4D subwoofers, one of our bestselling car audio subs, designed with dual 4-Ohms voice coils wired in parallel for a nominal impedance of 1-Ohm.
This loaded subwoofer combo offers great sound through high-quality and high-power subwoofers in a prefabricated box that is guaranteed to last! The RMS requirement is 1600W RMS and 3200W max: so in order to power this combo to maximum potential, we recommend a 2000W RMS Amplifier like the ZR2000.1D, H-KO2, or EXL-P2000X1D.
Highlights
- The box is constructed of thick 3/4 inch MDF for great strength, resonance, and tuned to 29hz for low and hard hitting bass
- Dual 12 inch subwoofers with the cone area to blast great sounding bass more efficiently Subwoofers
Key Features
ZR12.4D
- Two 12 inch DVC subwoofer
- Max Power Handling: 1600 watts each
- RMS Power Handling: 800 watts each
- Frequency Response: 25hz-200hz
- Voice Coil Diameter: 2.5"
- Voice Coil Material: Copper
- Impedance: Dual Voice Coil 4-Ohm
- Sensitivity: 82 DB
- Magnet Weight: 100 Oz
- Magnet Material: Ferrite
- Mounting Depth: 6.6"
- Xmax: 25mm one way
Box:
- Box Material: 3/4 inch MDF
- Box Covering: Carpet with DS18 logo
- Box Tuning: 29hz
- Box Type: Side Ported
- Internal Volume: 5.3 ft3Demensions:

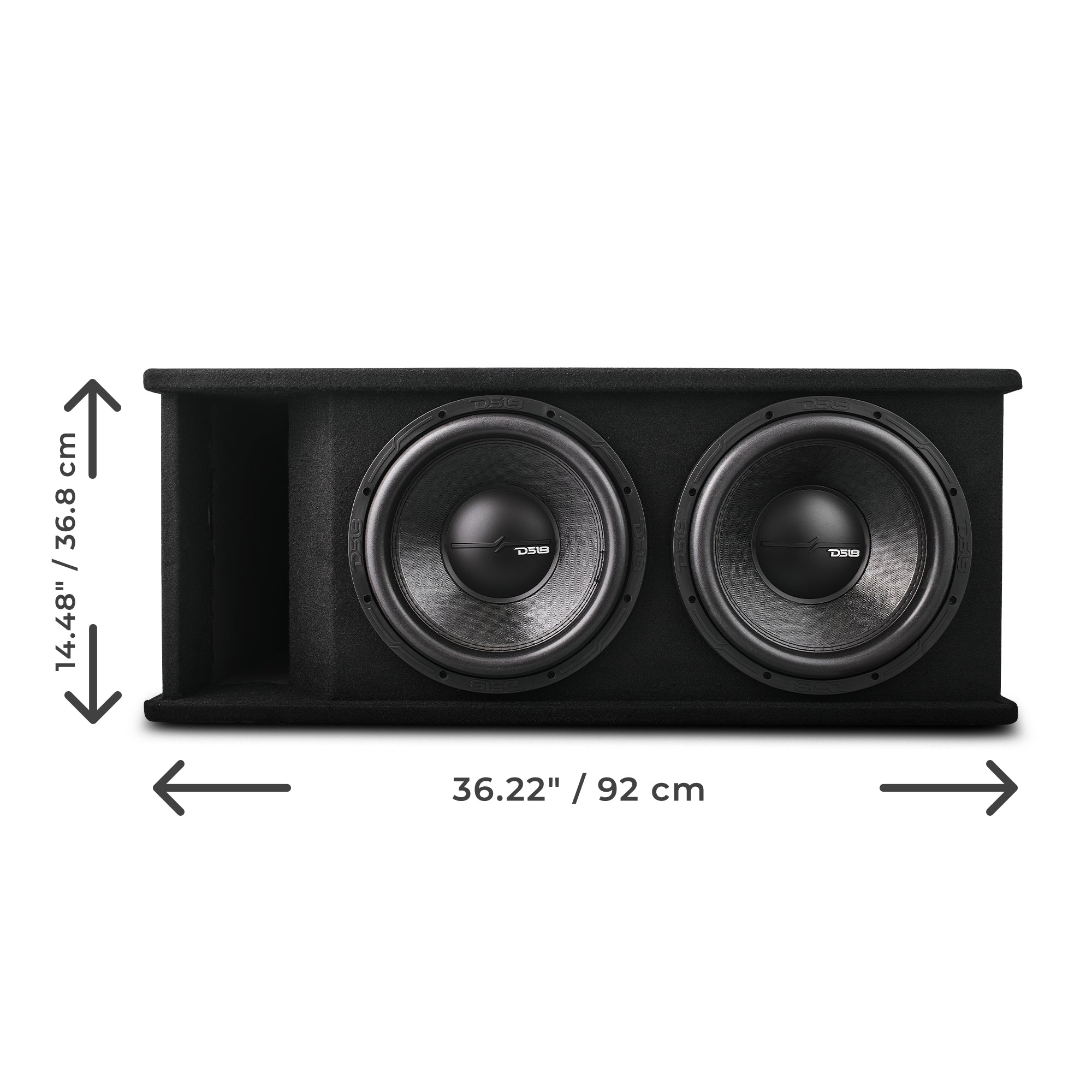

- Height: 14.48"
- Width: 36.22"
- Depth 1: 19.68"
- Depth 2: 21.65"
Great For:
- Car Audio
- Pro Audio
- Home Solutions
- Hi-Fi Installation
- DIY Projects
Technical Details
| SPECIFICATIONS / ESPECIFICACIONES: | |
| Speaker Type/Size / Tipo/Tamaño de Altavoz | Dual 12" / 316mm |
| Total Impedance / Impedancia Total | 1 Ohm |
| Total RMS Power Handling / Manejo de Potencia RMS total.. | 1600W |
| Total MAX Power Handling / Manejo de Potencia MAX total | 3200W |
| Sensitivity (1w/1m) / Sensibilidad (1w/1m) | 86db |
| Frequency Response / Respuesta de Frecuencia | 20Hz-200Hz |
| Recommended Lo Pass Crossover / Crosover Paso Bajo Recomendado | 70Hz |
| MOTOR / MOTOR: | |
| Voice Coil Diameter / Diámetro de la Bobina de Voz.... | 2.5"/61.6mm |
| Voice Coil Former Material / Material Interior de Bobina Móvil | Aluminum/Aluminio |
| Winding Material / Material de Bobinado . | Copper / Cobre |
| Cone Material / Material del Cono | Non-Pressed Paper / Papel no Prensado |
| Dustcap Material / Material de la Tapa Anti-polvo. | PPI |
| Surround Material / Material de la Suspension | Foam / Espuma |
| Basket Material / Material de la Canasta | Steel / Acero |
| Magnet Material / Material del Imán | Ferrite / Ferrita |
| Magnet Weight / Peso del Imán | 100 oz |

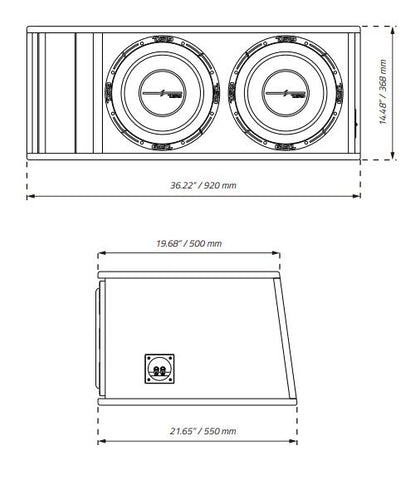

| MEASUREMENTS / MEDIDAS: | |
| Height / Altura | 14.48" / 368 cm |
| Width / Ancho | 36.22" / 920 cm |
| Depth 1 / Profundidad 1 | 19.68" / 500 mm |
| Depth 2 / Profundidad 2 | 21.65" / 550 mm |
Key Features
- ZR Subwoofer Enclosure
- 2 x 12" ZR12.2
- RMS Power: 1600 Watts(3200 Watts Peak)
- Impedance: 1-Ohm ~ 86dB
- 3/4" MDF with Black Carpet
- 29 HZ Ported Box
Specifications
| SKU | ZR212LD |
|---|---|
| Speaker Type / Size | Dual 12" / 316mm |
| Total Impedance | 1 Ohm |
| Total RMS Power Handling | 1600W |
| Total MAX Power Handling | 3200W |
| Sensitivity (1w/1m) | 86 db |
| Frequency Response | 20-200 Hz |
| Recommended Lo Pass Crossover | 70Hz |
| Voice Coil Diameter | 2.5" / 61.6mm |
| Voice Coil Former Material | Aluminum |
| Winding Material | Copper |
| Cone Material | Non-Pressed Paper |
| Dust Cap Material | PPI |
| Surround Material | Foam |
| Basket Material | Steel |
| Magnet Material | Ferrite |
| Magnet Weight | 100 Oz |
| Internal Volume | 141.6L / 5 ft3 |
| Port Tune FB | 29 Hz |
| Load Configuration | Ported Box |
| Box Type | Double 12" |
| Box Material | 3/4" (19mm) MDF |
| Finish Material | Black Carpet |
| Logo | Red Stitched |
| -3Db Dropping Point F3 | 24 Hz |
| Height | 14.48" / 36.8 cm |
| Width | 36.22" / 92 cm |
| Depth 1 | 19.68" / 50 cm |
| Depth 2 | 21.65" / 55 cm |
| Gross Single Unit Weight (lb) | 107 |
| Single Unit Box Dimensions W x L x H (Inches) | 39.5 x 25.25 x 18.75 |
| Quantity of Units in Master Carton | 1 |
| Gross Master Carton Weight (lb) | 107 |
| Master Carton Dimensions W x L x H (Inches) | 39.5 x 25.25 x 18.75 |
